Product Type	Freestanding Washing Machine
Brand	PKM
Model	WA6-ES1015D
Capacity	6 kg
Spin Speed	1000 rpm
Energy Class	D
Dimensions (H x W x D)	85 x 60 x 50 cm
Weight	62 kg
Power Supply	220-240 V, 50 Hz
Water Connection	Cold water only
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Quick Wash, Eco
Additional Features	Delay Start, Child Lock, Drum Cleaning
Display	LED
Drum Material	Stainless Steel
Noise Level (Wash/Spin)	58 dB / 76 dB
Annual Energy Consumption	180 kWh
Annual Water Consumption	9500 L
Maintenance	Clean detergent drawer, drum and filter regularly
Safety	Child lock, overflow protection, unbalanced load detection
Spare Parts Availability	At least 10 years after purchase

Frequently Asked Questions - WA6-ES1015D PKM

How do I install the washing machine?

Ensure the surface is level and stable. Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Attach the drain hose to a standpipe or sink outlet. Plug into a grounded outlet. Remove all transit bolts before first use.

What should I do if the machine doesn't start?

Check if the door is properly closed. Ensure the water supply is turned on and the drain hose is not kinked. Verify the power cord is plugged in and the circuit breaker hasn't tripped. Select a program and press the Start/Pause button.

How do I clean the detergent drawer?

Pull out the drawer until it stops. Press the release lever and remove the drawer. Rinse under warm water and use a soft brush to remove residues. Wipe the compartment with a damp cloth. Reinsert the drawer until it clicks.

Why is my laundry still wet after spinning?

The load may be unbalanced. Redistribute the laundry evenly in the drum. Also check that the Spin Speed setting is not set too low. Clean the pump filter if it is clogged.

How often should I clean the pump filter?

Clean the pump filter every 2-3 months or if you notice drainage issues. Turn off the machine and unplug it. Open the filter cover, place a container underneath, unscrew the filter and remove debris. Reinstall and tighten.

What does the 'Child Lock' feature do?

The child lock prevents accidental operation by locking the buttons. To activate, press and hold the Child Lock button for 3 seconds. A lock symbol appears on the display. Repeat to deactivate.

Can I use liquid detergent?

Yes, but pour it into the main wash compartment (II) just before starting the program. Do not use liquid detergent with the delay start function, as it may dry out. For pre-wash, use powder.

How do I run a drum cleaning cycle?

Empty the drum. Add a descaling agent or drum cleaning tablet to the detergent drawer. Select the Drum Clean program (if available) or run a cotton cycle at 90°C with no laundry. Follow the product instructions.

What should I do if the machine leaks water?

Check the water inlet hose connections and tighten if loose. Inspect the drain hose for damage. If the leak is from the bottom, the pump filter may be loose or the inner tub seal damaged. Contact a technician.

Where can I find spare parts?

Spare parts such as door seals, belts, and filters are available through authorized service centers or online spare parts retailers. Use the model code WA6-ES1015D to ensure compatibility.

USER MANUAL WA6-ES1015D PKM

Front view of a white PKM washing machine with black dome and control panel (no visible text or symbols on the device itself)

Deutsch

English

Seite

Page

2

70

Technical diagram of a mechanical component with labeled cross-section A, showing internal structure and mounting points (no text or symbols beyond label)

A

Diagram showing a hand using a screwdriver to adjust a mechanical component labeled A and D, with directional arrows indicating movement.

Diagram of a mechanical component with a circular spring above it, showing a downward force or assembly (no text or symbols present)

Illustration showing a mechanical clamp being held by a hand, with no text or symbols present.

Line drawing of a washing machine with a large circular component and a crossed-out black X symbol (no text or labels)

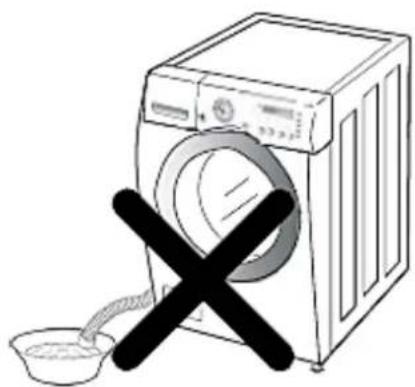

Line drawing of a washing machine with a black X symbol indicating no text or symbols on its body, and a bowl beside it (no text or symbols present)

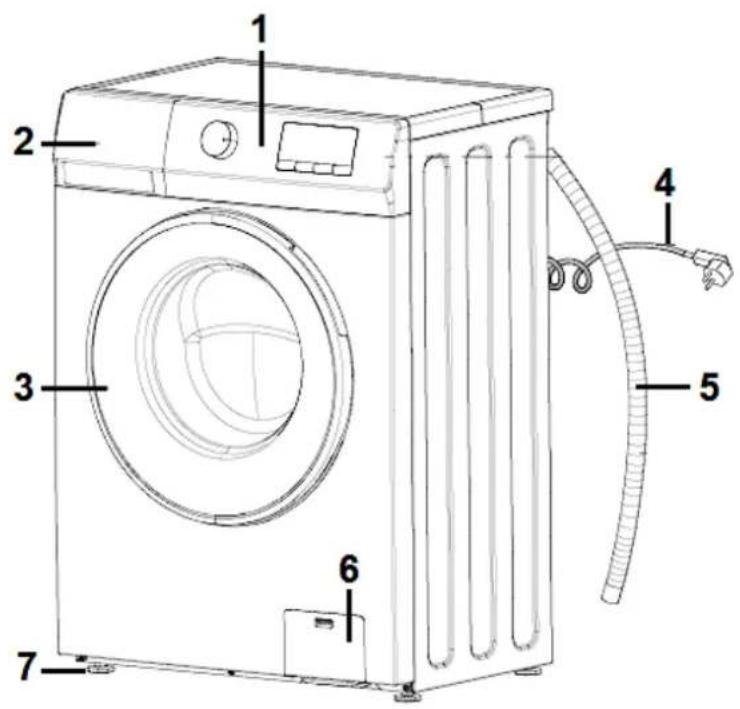

Technical diagram of a washing machine with numbered parts labeled 1 through 7

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, the instruction manual should be included.

Index

1. Safety information....72

1.1 Signal words ....73
1.2 Safety instructions....73

1. Installation 77

2.1 Scope of delivery....78
2.2 Unpacking / Site....78

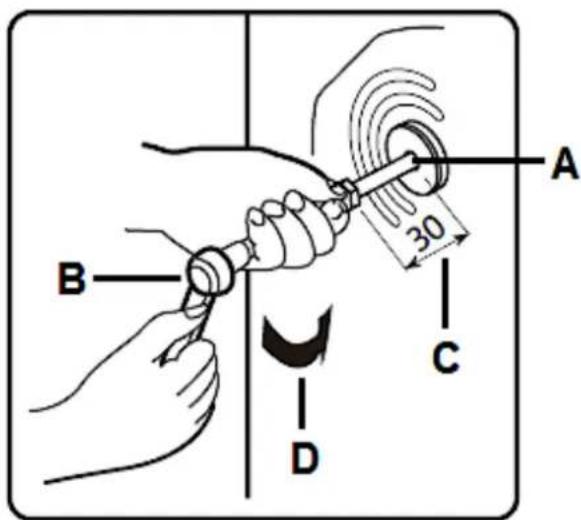

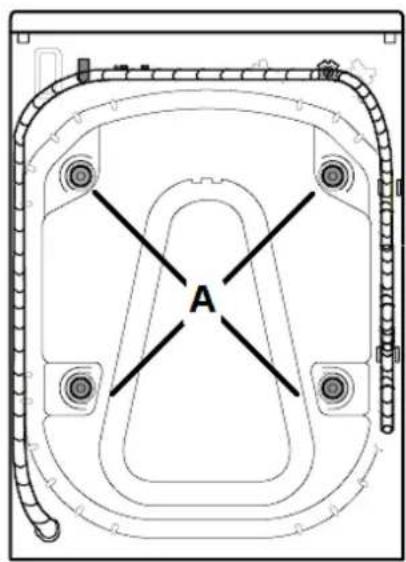

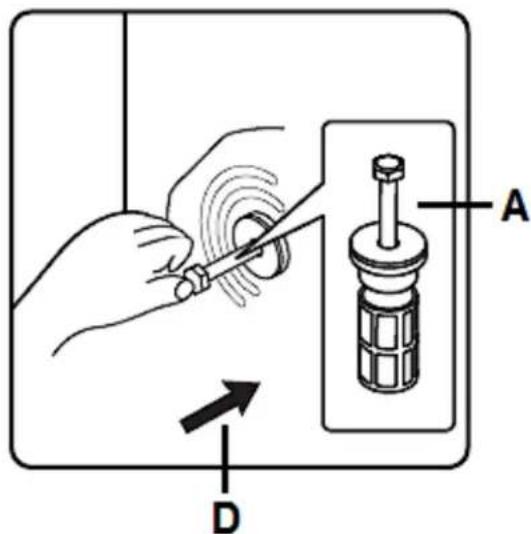

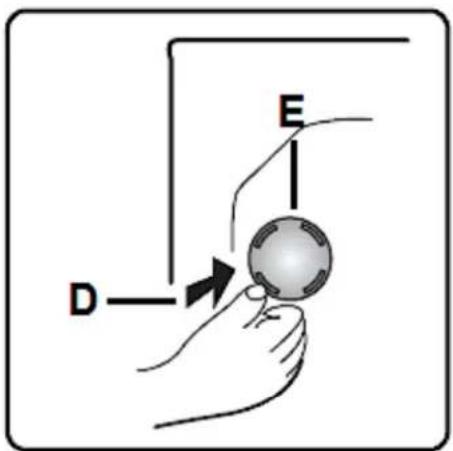

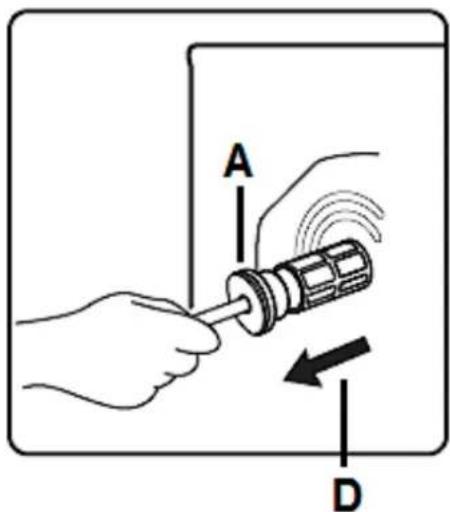

2.3 Removing of the shipping bolts....79

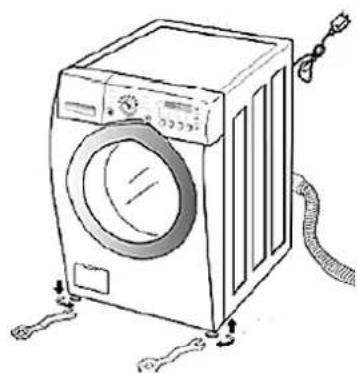

2.4 Levelling....81
2.5 Connection of the water inlet hose....83

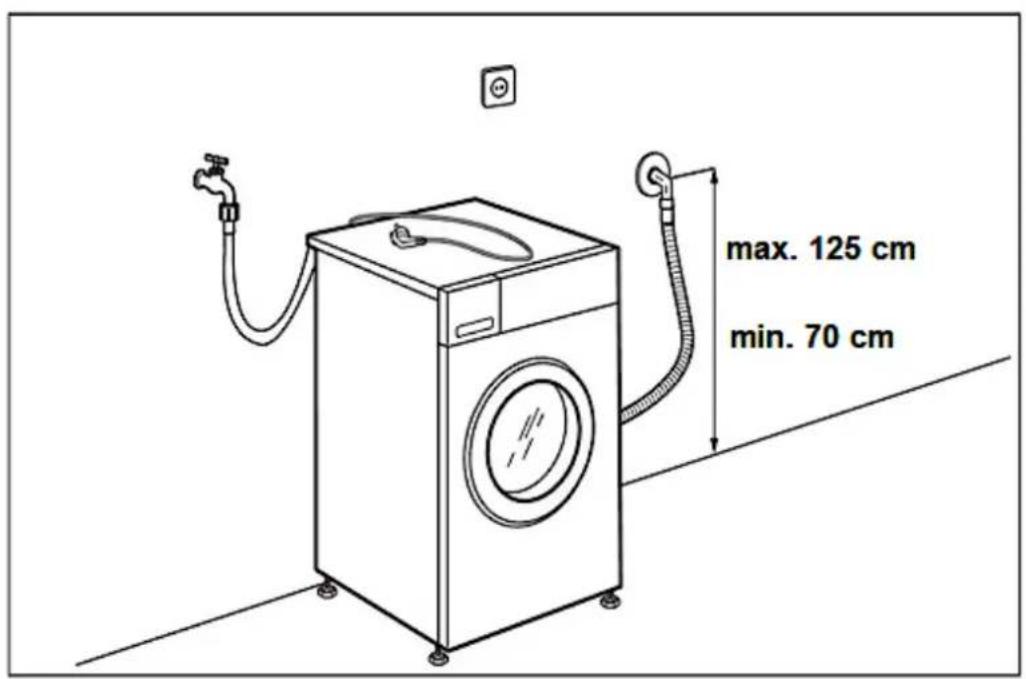

2.6 Connection of the water drain hose....84
2.7 Connection to the mains....87

1. Description of the appliance....88

3.1 Washing machine....88

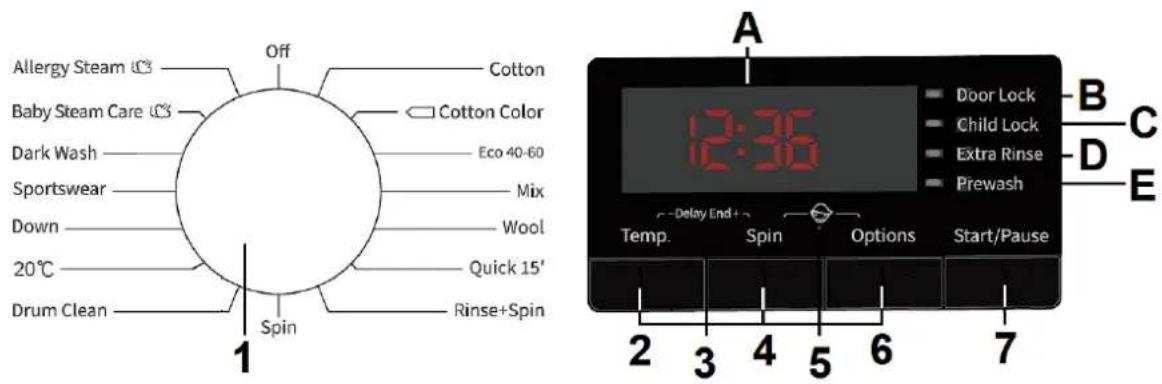

3.2 Control panel: operating buttons and indicators....89

1. Operation....91

4.1 Before the first use....91
4.2 The washing programmes 92

4.2.1 General textile care symbols....99
4.2.2 Weight of clothes: reference values....100

4.3 Additional washing functions / washing options ....101
4.4 Programming and starting of a washing programme ....103

4.4.1 Selection of the additional washing functions / washing options .....104

4.5 Door Lock....108
4.6 End of a washing programme....110
4.7 Selection of a new washing programme / washing function....111
4.8 Reload laundry 111

4.9 Unbalance protection....112

1. Instructions for proper use....113

5.1 Detergent 113
5.2 Use of the dispenser....113

5.2.1 The different compartments of the dispenser....114
5.2.2 How to use detergents and additives....114
5.3 Preparation of the laundry....115

1. Environmental protection ....116

6.1 Environmental protection: disposal....116
6.2 Environmental protection: energy saving....116

1. Cleaning and maintenance....116

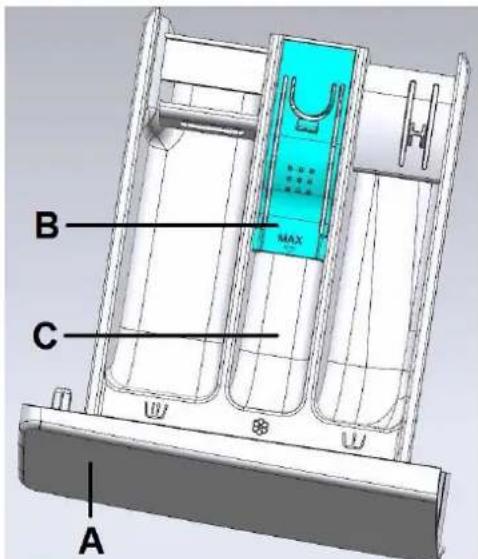

7.1 Cleaning of the dispenser....118

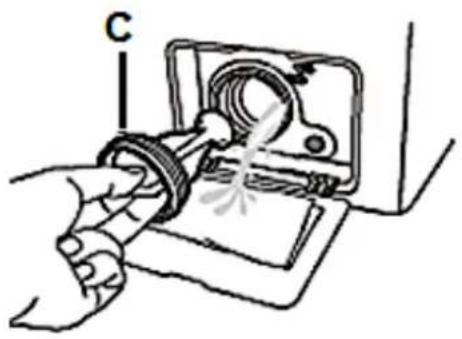

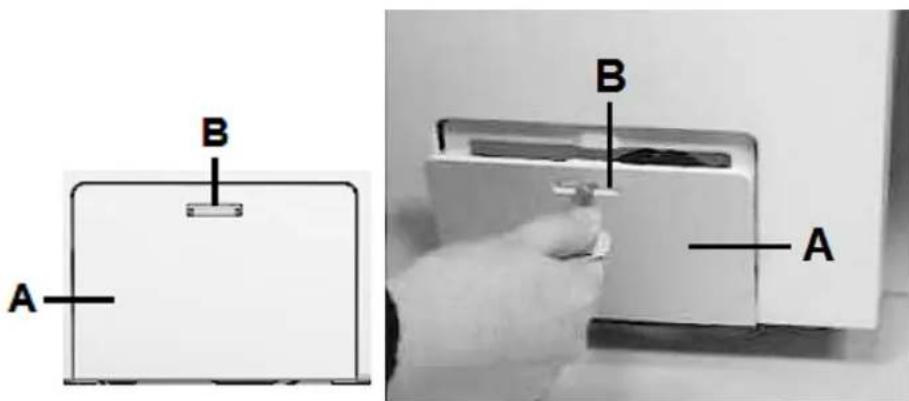

7.2 Cleaning / Removing of the drain pump filter....119
7.3 Residual water drainage....120

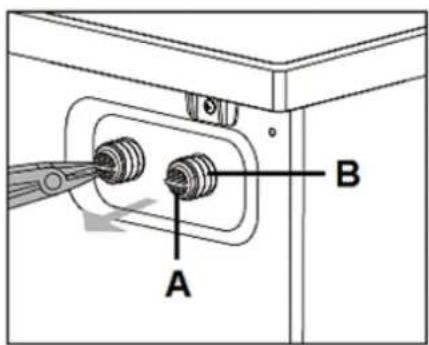

7.4 Cleaning of the water inlet valve....121
7.5 Programme « DRUM CLEAN »......122

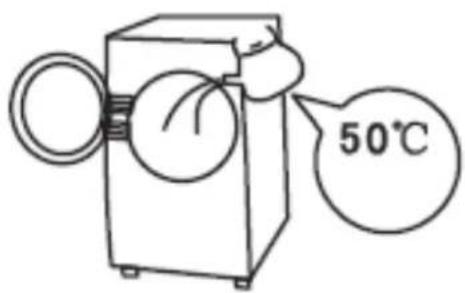

7.6 "Frozen" appliance....122

1. Trouble shooting....124

8.1 Checklist....124
8.2 Error codes....126

1. Technical data....129

2. Waste management .... 130

3. Guarantee conditions .... 131

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety information

READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for washing laundry in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
4. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged. RISK OF ELECTRIC SHOCK!
5. The technical data of your energy supplier must meet the data on the model plate of the appliance.

6. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

7. Never try to repair the appliance yourself. Repairs carried out by unauthorised persons can cause serious damage. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at: ^21 Original spare parts should be used only. Original spare parts should be used only.

8. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
9. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
10. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
11. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. Unplug the appliance after operation and turn off the water supply.
2. Disconnect the appliance from the mains before you clean or maintain it.
3. Operate the appliance with 220\~230V AC only. Use a suitable safety-socket near of the appliance.
4. The appliance must always be grounded and protected corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
5. After installation, the power plug and the safety socket must be always easily-accessible.
6. In case of an event caused by a technical malfunction, disconnect the appliance from the mains (fuse box of your household power supply). Contact the aftersales service or the shop you purchased the appliance at. ^22
7. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.
8. The power plug must be connected to the power cable properly.
9. Do not bend the power cord.

10. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

11. Keep the cord away from heated surfaces.

12. The technical data of your energy supplier must meet the data on the model plate of the appliance.
13. Do not place any electrically-powered appliances on the appliance.
14. Do not carry out any modifications to your appliance.
15. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.
16. Do not install the appliance in rooms or at areas which contain flammable substances such as petrol, gas or paint. Do not put any laundry which is contaminated by such materials in or near of the appliance. RISK OF FIRE! RISK OF EXPLOSION!
17. Use washer-suitable detergents only. Never use flammable, explosive or toxic detergents, e.g. petrol or alcohol.
18. Do not install the appliance on a soft carpet or wooden floor.

19. When any fuels or gases are set free near of the appliance:

20. open all windows for proper ventilation.
    ➢ do not unplug the appliance and do not use the controls of the appliance.
    ➢ do not touch the appliance unless the gas has been discharged completely.

21. otherwise, sparks can occur. RISK OF FIRE!

22. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRICAL SHOCK!

23. Do not install the appliance near of sources of heat.

24. Do not install the appliance in a place where it can come in contact with rain or high levels of moisture. Otherwise, the electric components can be damaged.

25. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

26. Do not spray the appliance with water.

27. The drained water can be very hot. RISK OF SCALDING!

28. During operation the glass door of the appliance can become very hot. Keep children and pets away from the appliance during operation. RISK OF SCALDING! RISK OF BURNS!

29. Children must not play with the appliance.

30. Always supervise children if they are near the appliance.

31. Check that children or pets have not get into the appliance before washing. Check the drum carefully before closing. RISK OF CHOKING HAZARD!

32. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.

33. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. Do not use any aggressive, abrasive and acrid detergents or sharpedged items to clean the appliance.
2. Never fill water by hand into the appliance while operating.
3. Before you open the door check, that the water is drained completely. Do not open the door if any water is visible.

NOTICE

1. Do not force the door to close. When you cannot close the door easily, check the amount and position of the laundry.
2. After end of operation, wait 3 minutes before you open the door.
3. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
4. Never use the door for moving the appliance as you will damage the hinges.
5. The appliance must be transported and installed by at least two persons.
6. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. When you use fabric conditioner or a similar product, observe the information given on their packaging.
11. Dry washer-proof fabrics only. Observe the information on the labels.
12. Do not place any items liquid can escape from on the appliance as the liquid can damage the control panel.

13. Metal-made items, e.g. keys, screws, coins etc., can damage the appliance. Check that your laundry is free of such items.

14. Remove all fluffs before operating the appliance.

15. Do not overload the appliance.
16. The room temperature must be higher than +0 °C when operating the appliance, otherwise the normal operation of the appliance will be affected.
17. Clean the appliance and its components regularly.
18. Prewash programmes / prewash cycles are depending on the model of the appliance and are not available for all models of washing machines.
19. The maximum capacity of the appliance is 6.00 kg.
20. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
21. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

⚠ WARNING! Remove the safety bolts before initial use (see chapter 2.3 REMOVING OF THE SHIPPING BOLTS); otherwise, the appliance may cause serious injury to persons and/or severe damage to the appliance.

IMPORTANT INFORMATION: The installation of this appliance must be carried out by a person who is experienced in such a work ^23 . The following instructions are intended for such a person. The manufacturer is not liable for any damage caused by improper installation.

2.1 Scope of delivery

SCOPE OF DELIVERY / ACCESSORIES
	1x	WATER INLET HOSE
	4x	CAPS
	1x	HOLDER(water drain hose)
	1x	INSTRUCTION MANUAL

2.2 Unpacking / Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

2. Check that the appliance and the power cord are not damaged.

3. Do not install the appliance in a bathroom or a place where it may come in contact with water or rain; otherwise, the insulation of the electrical system will be damaged. Do not install the appliance in a room where explosive or flammable gases are stored.

4. Protect the appliance from direct sunlight.

5. Install the appliance in a dry and well-ventilated place. The room temperature must be higher than 0 °C.

6. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.

7. Do not install the appliance on a carpet / fitted carpet.

8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

9. If you install the appliance on a wooden floor, you must also place it on a plywood panel (60.00*60.00 cm) at least 3.00 cm thick to distribute the weight of the appliance. Fix and secure the plywood panel properly to the wooden floor.

10. All required installations for the electric and water supply must be carried out by a qualified professional.

11. Connect the appliance to the mains properly.

12. The nameplate is situated at the back of the appliance.

2.3 Removing of the shipping bolts

1. The four shipping bolts (A) are on the back of the appliance; s. fig. below.

Technical line drawing of a mechanical component with labeled cross-section A (no text or symbols beyond label)

A

SHIPPING BOLTS

1. Unscrew all shipping bolts approx. 30 mm out of the appliance using a spanner; s. fig. below / note the direction of the arrow. Do not unscrew the shipping bolts completely!

A 30 B C D

A	SHIPPING BOLTS
B	WRENCH
C	SHIPPING BOLTS: unscrew approx. 30 mm
D	NOTE THE DIRECTION OF THE ARROW (anti-clockwise)

1. Push the -30 mm unscrewed- shipping bolt horizontally in the direction of the arrow; s. fig. below. This will loosen the complete shipping bolt.

Diagram showing a hand using a tool to adjust or install a screwdriver, labeled with points A and D.

A

SHIPPING BOLT

D

NOTE THE DIRECTION OF THE ARROW

1. Pull the complete shipping bolt incl. rubber and plastic part out of the appliance carefully; s. fig. below / note the direction of the arrow.

A D

A	SHIPPING BOLT
D	NOTE THE DIRECTION OF THE ARROW

1. Remove all shipping bolts as described in steps 2 - 4.
2. Insert the four provided caps into the screw holes; s. fig. below / note the direction of the arrow.

D E

D

NOTE THE DIRECTION OF THE ARROW

E

CAP

1. . Keep the shipping bolts and the wrench for future use.

2.4 Levelling

1. Install the appliance on a flat and solid ground only.

2. Turn the adjustable feet for horizontal alignment.

Line drawing of a washing machine with attached hoses and control panel (no text or symbols)

a. Raise: clockwise.

Hand holding a small electronic device with an arrow indicating rotation (no text or symbols visible)

b. Lower: anti-clockwise

1. NOTICE! While you adjust the feet, pay attention to the respective lock nut; s. below.

a. How to release the lock nut: turn the lock nut clockwise; s. fig. on the right.
b. How to tighten the lock nut: turn the lock nut anti-clockwise; s. fig. on the right.
c. Please note: The distance between the lock nut and the adjustable foot must not exceed 20 mm (2.0 cm)!

NOTICE! After you have levelled the appliance properly, always tighten the lock nuts again.

2.5 Connection of the water inlet hose

Do not use a water connection the water of which is warmer than 50 ^ .
Required water pressure (flow pressure): 100 kPa - 1000 kPa (1 - 10 bar).

1. Ensure that the rubber washer is in the valve connector; both ends ^24 / s. fig. on the right.
2. Attach the straight end of the water inlet hose to the appropriate water connection; s. fig. on the right.
3. Put the other end of the water inlet hose into a bucket or into another suitable container (s. fig on the right) and open the water tap to flush foreign substances (e.g. dirt, sand, etc.) out of the water pipe and of the hose. Check the water temperature.	Fig. similar
4. Ensure that the rubber washer ^25 is in the valve connector. Attach the curved end of the water inlet hose to the inlet valve of the washing machine; s. fig. on the right / 1. Tighten the water inlet hose firmly (clockwise) to avoid leakage; s. fig. on the right / 2.

NOTICE! Do not overtighten the water inlet hose. Overtightening of the water inlet hose can damage the valves.

2.6 Connection of the water drain hose

The water drain hose must be installed at a height between 70 cm and 125 cm above the floor; s. below; fig. 1, 2 and 3.
The hose outlet must not be installed less than 70 cm above the floor.
The hose outlet must not be installed higher than 125 cm above the floor.

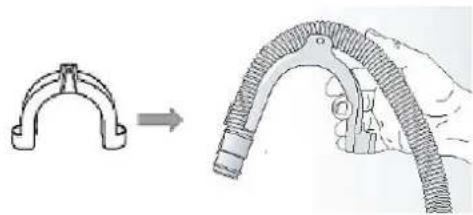

Use the holder of the water drain hose provided ^26 to hold the water drain hose in a curved position; s. fig. below.

Diagram showing a pipe clamp being held by a hand, with no text or symbols present.

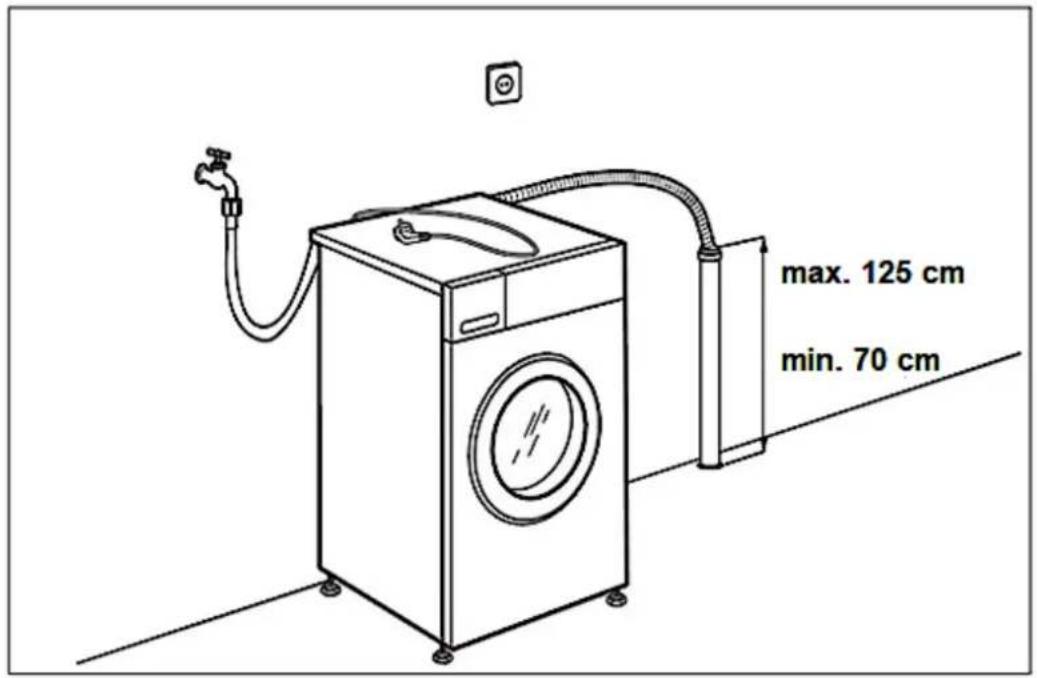

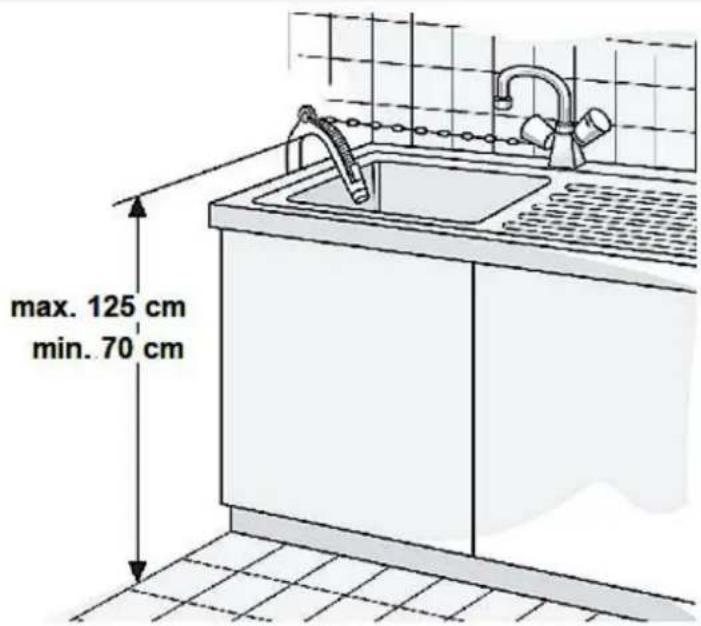

THE WATER DRAIN HOSE CAN BE INSTALLED IN DIFFERENT WAYS (see below; fig. 1, 2 and 3):

FIG. 1

max. 125 cm min. 70 cm

FIG. 2

max. 125 cm min. 70 cm

FIG. 3

max. 125 cm min. 70 cm

IMPORTAT NOTES!

If the washing machine is connected to an integrated drainage system, make sure that it is equipped with a vent to prevent water from running in and out at the same time (siphon effect).
i Make sure that the water drain hose does not have any kinks.
Secure the water drain hose so that it cannot fall down. Note: After the washing phase, the machine drains the hot water.
i A small hand wash basin is not suitable as a drain.
Use a water drain hose of the same type for extension and secure the connections with clamps.

Line drawing of a washing machine with a black X symbol indicating no text or symbols on its body, suggesting a prohibition or prohibition (no text present)

The hose must not be twisted.

Simple line drawing of a washing machine with a crossed-out black X symbol (no text or symbols present)

The hose outlet must not be submerged into water.

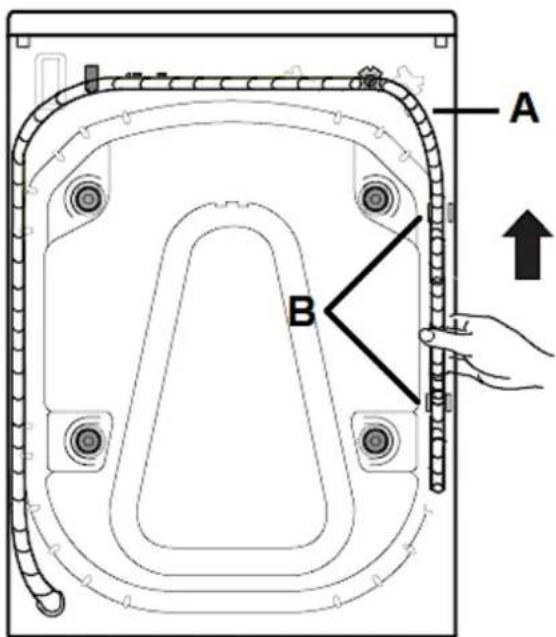

NOTICE! If the washing machine is out of operation, fix the water drain hose (A) on the back of the appliance using the appropriate brackets (B); s, fig. below. Do not remove the brackets!

A B

A

WATER DRAIN HOSE

B

BRACKETS

2.7 Connection to the mains

⚠️ DANGER! Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged. RISK OF ELECTRIC SHOCK!

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

➢ Operate the appliance with 220 \~ 240 V AC / 50 Hz only.
The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.
Do not use an extension cord, a socket board or a multi socket.
Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
➢ After installation, the power plug and the safety socket must be always easily-accessible.
The plug must always be accessible after installation. Connect the appliance with the safety plug to a properly grounded and dedicated safety socket only. Use a safety socket to minimise any risk of electric shock.

WARNING! Remove the safety bolts before initial use (see chapter 2.3 REMOVING OF THE SHIPPING BOLTS); otherwise, the appliance may cause serious injury to persons and / or severe damage to the appliance.

3.1 Washing machine

Technical diagram of a washing machine with numbered parts labeled 1 through 7

Fig. similar: modifications are possible

1	CONTROL PANEL
2	DETERGENT DISPENSER
3	DRUM / DOOR OF THE WASHING MACHINE
4	POWER CABLE AND POWER PLUG
5	WATER DRAIN HOSE
6	DRAIN PUMP FILTER / COVER OF THE DRAIN PUMP FILTER
7	ADJUSTABLE FEET, 4 pcs.

3.2 Control panel: operating buttons and indicators

Allergy Steam Baby Steam Care Dark Wash Sportswear Down 20°C Drum Clean Off Spin Cotton Cotton Color Eco 40-60 Mix Wool Quick 15' Rinse+Spin 1 A Door Lock Child Lock Extra Rinse Prewash B C D E Temp. Spin Options Start/Pause 2 3 4 5 6 7

Fig. similar: modifications are possible.

OPERATING BUTTONS
1	ROTARY KNOB for PROGRAMME SELECTION // « ON / OFF »➢ Rotary knop to select a washing programme according to fibre type and degree of soiling.➢ Switches the washing machine on / off by selecting the desired programme.
2	« TEMP. » - BUTTON➢ Button to change the temperature of a washing programme.➢ Press this button repeatedly to switch through the different temperatures.➢ See also chapter 4.4.1 SELECTING THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.➢ In some washing programmes the settable temperature range is limited: depending on model.
3	« DELAY END. » - BUTTON➢ Button to set a DELAYED PROGRAMME START.➢ Press the buttons « TEMP. » and « SPIN » simultaneously to activate the delayed programme start.➢ See also chapter 4.4.1 SELECTING THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.
4	« SPIN » - BUTTON➢ Button to select the SPIN SPEED of a washing cycle.➢ Press this button repeatedly to switch through the different speeds.➢ See also chapter 4.4.1 SELECTING THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.➢ In some programmes the settable spin speed is limited: depending on model.
5	« CHILD SAFETY LOCK » - BUTTON➢ Button for the activation / deactivation of the CHILD SAFETY LOCK.➢ Press the buttons « SPIN » and « OPTIONS » simultaneously to activate / deactivate the CHILD SAFETY LOCK.➢ See also chapter 4.4.1 SELECTING THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.
6	« OPTIONS » - BUTTON➢ Button for the selection of other wash functions (wash options); e. g. EXTRA RINSE, PRE-WASH.➢ Press this button repeatedly to switch through the different options.➢ See also chapter 4.4.1 SELECTING THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.
7	« START / PAUSE » - BUTTON➢ To start or pause operation; e. g. for reloading laundry.

INDICATORS
A	DISPLAY➢ Indication of detailed information displaying the selected washing programme and other functions (spin speed, temperature, washing time, etc.).
B	OPERATIONAL STATUS INDICATOR « DOOR LOCK »➢ The door lock is activated.
C	OPERATIONAL STATUS INDICATOR « CHILD SAFETY LOCK »➢ The child safety lock is activated.
D	OPERATIONAL STATUS INDICATOR « EXTRA RINSE »The additional washing function (option) « EXTRA RINSE » is activated.
E	OPERATIONAL STATUS INDICATOR « PRE-WASH »The additional washing function (option) « PRE-WASH » is activated.

4. Operation

4.1 Before the first use

To remove potential residues in the drum of the appliance caused by production, testing or transportation of the appliance, a complete wash cycle without laundry (quick washing programme) should always be started before the first regular wash cycle.

1. Open the water tap
2. Close the door.
3. Set a quick washing programme (e.g. « QUICK 15' ») using the rotary knob. The appliance is now switched on and in STANDBY MODE.
4. Press the « START / PAUSE » - BUTTON to start the programme.
5. The door lock will be activated automatically. The operational status indicator of the door lock « Door Lock
6. When the programme is finished, the displays indicate « END » and an acoustic signal sounds ^27 .
7. The door lock is deactivated automatically after approx. 2 minutes. The operational status indicator of the door lock « Door Lock
8. When the programme is finished, always turn the ROTARY KNOB for the programme selection back to « OFF » to switch off the appliance completely; see also chapter 4.6 END OF A WASHING PROGRAMME.
9. Close the water tap.

4.2 The washing programmes

NOTICE! Always observe the textile labels.

You can receive information about the symbols on the textile labels in chapter 4.2.1 TEXTILE CARE SYMBOLS or on the webpage of your local consumer advice centre.
i Please also observe chapter 5. INSTRUCTIONS FOR PROPER USE et seq.

COTTON	-- (cold) / 20 °C - ✉ (5) / 40 °C / 60 °C / 95 °CDEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	Programme for the washing of normally- and heavily-soiled laundry made of cotton, linen or cotton blends: c.g. terry towels, underwear, T-shirts, etc.Always observe the textile labels.

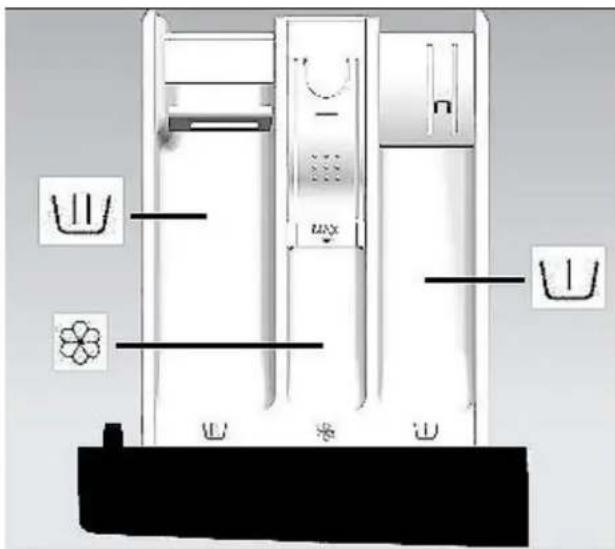

Detergent dispenser	PRE-WASH	MAIN-WASH	SOFTENER
	⊥	∥	⊗
	*	√	*
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm

COTTON COLOUR	-- (cold) / 20 °C - ✉ (5) / 40 °C / 60 °CDEFAULT TEMPERATURE: 20 °C (1)
Material / Degree of soiling	Programme for the washing of lightly- and normally-soiled laundry made of cotton, linen or cotton blends.Wash textiles worn directly on the skin at 60 °C.Wash lightly soiled textiles at 40 °C.Always observe the textile labels.
Detergent dispenser	PRE-WASH↓-	MAIN-WASH↓✓	SOFTENER⊗*
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 1000 rpm
Eco 40 - 60 (2)	The temperature cannot be changed. DEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	Programme for the washing of normally-soiled laundry made of cotton,Always observe the textile labels.
Detergent dispenser	PRE-WASH↓-	MAIN-WASH↓✓	SOFTENER⊗*
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 1000 rpm

MIX	-- (cold) / 20 °C - ⚙5) / 40 °CDEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	Programme for the washing of mixed loads of medium-soiled cotton and synthetic fibres.Always observe the textile labels.
Detergent dispenser	PRE-WASH *	MAIN-WASH ✓	SOFTENER *
Max. load	3.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm

QUICK 15'	-- (cold) / 20 °C - ⚙️ (5) / 40 °CDEFAULT TEMPERATURE: ⚙️ (1), (5)
Material / Degree of soiling	➤ Special programme for the washing of rarely-used or newly-bought clothing.➤ High-speed wash cycle (approx. 15 min.).➤ Always observe the textile labels.
Detergent dispenser	PRE-WASH -	MAIN-WASH ✓	SOFTENER *
Max. load	1.0 kg
Max. rpm / spinning	800 rpm (3)Default spin speed: 800 rpm
WOOL	-- (cold) / 20 °C - ⚙️) / 40 °CDEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	➤ Special programme for the washing of washer-safe wool.➤ For washer-safe wool only.➤ Always observe the textile labels.➤ Remove the laundry immediately after the washing cycle is completed.➤ Always wash light and dark clothes separately.➤ The highest settable temperature of the wool programme is 40 °C
Detergent dispenser	PRE-WASH↓-	MAIN-WASH↓✓	SOFTENER⊗*
Max. load	2.0 kg
Max. rpm / spinning	600 rpm (3)Default spin speed: 600 rpm

ALLERGY STEAM (4)	40 °C / 60 °CDEFAULT TEMPERATURE: 60 °C (1)
Material / Degree of soiling	This special programme is suitable for high-temperature and less fading textiles.This special programme uses high-temperature steam to remove allergens such as pollen, mites and parasites from textiles.Always observe the textile labels.WARNING! To avoid burns and scalds, do not touch the glass of the door or open the detergent compartment during operation!RISK OF BURNS! RISK OF SCALDING!
Detergent dispenser	PRE-WASH↓*	MAIN-WASH↓✓	SOFTENER⊗*
Max. load	2.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm
BABY STEAM CARE (4)	40 °C / 60 °C / 95 °CDEFAULT TEMPERATURE: 60 °C (1)
Material / Degree of soiling	This special programme is suitable for baby clothes, underwear, etc.This special programme sterilises and disinfects the textiles using high-temperature steam.Always observe the textile labels.WARNING! To avoid burns and scalds, do not touch the glass of the door or open the detergent compartment during operation!RISK OF BURNS! RISK OF SCALDING!
Detergent dispenser	PRE-WASH-	MAIN-WASH✓	SOFTENER*
Max. load	2.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm
DARK WASH	-- (cold) / 20 °C - (5) / 40 °C / 60 °CDEFAULT TEMPERATURE: 20 °C (1)
Material / Degree of soiling	Special programme for the washing of dark textiles made of cotton and dark easy-care textiles.Always observe the textile labels.
Detergent dispenser	PRE-WASH*	MAIN-WASH✓	SOFTENER*
Max. load	3.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm
SPORTSWEAR	-- (cold) / 20 °C - (5) / 40 °CDEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	> Special programme for the washing of sportswear and leisurewear made of microfibre fabrics.> Always observe the textile labels.
Detergent dispenser	PRE-WASH *	MAIN-WASH ✓	SOFTENER *
Max. load	3.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm

DOWN	-- (cold) / 20 °C - (*) / 40 °CDEFAULT TEMPERATURE: 40 °C (1)
Material / Degree of soiling	➢ Special programme for the washing of washer-safe down; down jackets, down pillows, etc.➢ For washer-safe down only.➢ This special programme is also suitable for the washing of machine-washable items filled w synthetic fibres, such as pillows, quilts, duvets, etc.➢ Always observe the textile labels.
Detergent dispenser	PRE-WASH↓-	MAIN-WASH↓✓	SOFTENER⊗*
Max. load	3.0 kg
Max. rpm / spinning	600 rpm (3)Default spin speed: 600 rpm
20 °C	The temperature cannot be changed. DEFAULT TEMPERATURE: 20 °C (1)
Material / Degree of soiling	➢ Special programme for the washing of rarely-used or lightly-soiled textiles or delicates.➢ This programme is energy saving.➢ Always observe the textile labels.
Detergent dispenser	PRE-WASH *	MAIN-WASH ✓	SOFTENER *
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm
RINSE & SPIN	The temperature cannot be changed. DEFAULT TEMPERATURE: -- (cold), (1)
Material / Degree of soiling	➢ Programme for the removal of excess water and remaining washing agent from textiles.➢ Do not use any additional washing agent.➢ Always observe the textile labels.
Detergent dispenser	PRE-WASH -	MAIN-WASH -	SOFTENER *
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm
SPIN	The temperature cannot be changed. DEFAULT TEMPERATURE: -- (cold), (1)
Material / Degree of soiling	Programme for the removal of excess water from textiles.You can set the spin speed manually.Always observe the textile labels.
Detergent dispenser	PRE-WASH↓-	MAIN-WASH↓-	SOFTENER⊗-
Max. load	6.0 kg
Max. rpm / spinning	1000 rpmDefault spin speed: 800 rpm

Drum Clean	The temperature cannot be changed. DEFAULT TEMPERATURE: 95 °C
Material / Degree of soiling	➢ For the removing of contaminations and bacterial residues which may accumulate in the appliance after some time, especially then when you mainly use low-temperature-programmes.➢ For cleaning the drum, you can add a fair amount of chlorine bleach to the washing machine (please observe to the information given by the manufacturer of the chlorine bleach).➢ Do not use any additional washing agent.➢ Do not wash any textiles / laundry when using this programme.
Detergent dispenser	PRE-WASH↓↓-	MAIN-WASH↓↓-	SOFTENER⊗-
Max. load	0.0 kg
Max. rpm / spinning	600 rpmDefault spin speed: 600 rpm

*	Additional functions (options).
√	Detergent.
-(1)	Selection disabled.The suitable washing temperature is indicated on the textile labels of your garments.
(2)	Wash performance test programmes are: ECO 60 °C, full / partial loading, ECO 40 °C, full / partial loading. The actual energy and water consumption can vary depending on the usage of the appliance.
(3)	The spinning speed is limited to 800 rpm or 600 rpm to protect your clothing.
(4)	The programmes « ALLERGY STEAM » and « BABY STEAM CARE » are both suitable for sterilising colourfast laundry / clothing.WARNING! To avoid burns and scalds, do not touch the glass of the door or open the detergent compartment during operation! RISK OF BURNS! RISK OF SCALDING!
(5)	20 °C - washing temperature: ≤ 20 °C (20 °C or colder)

The programme descriptions listed above are only recommendations, the user can select a suitable programme relevant to their needs.

4.2.1 General textile care symbols

	Hard-wearing textiles		Do not iron
	Easy-care textiles		Damp ironing only
	Washable up to 95 °C		Use intermediate layer
	Washable up to 60 °C		Do not wring out
	Washable up to 40 °C		Do not dry clean
	Washable up to 30 °C		Drying: lying flat
	Hand wash only		Hang up dripping wet
	Dry cleaning only(professional cleaning)		Hang up wet
	Bleaching in cold water allowed		Tumble drying: normal heat
	Do not bleach		Tumble drying: reduced heat
	Ironing up to max. 100 °C		Do not tumble dry
	Ironing up to max. 150 °C		Line dry
	Ironing up to max. 200 °C		Dry cleaning with perchloride, lighter fluid, pure alcohol or R 113 only.
	Dry cleaning with paraffin, pure alcohol or R 113 only		Not machine-washable

The textile care symbols above are examples only. Modifications are possible.
i The list above does not claim to be complete.
i You can receive further information about the symbols on the textile labels on the webpage of your local consumer advice centre.

4.2.2 Weight of clothes: reference values

CLOTHES	REFERENCE VALUE	CLOTHES	REFERENCE VALUE
Bathrobe	approx. 1600 g	Nightgown	approx. 265 g
Napkin	approx. 130 g	Lingcric	approx. 130 g
Quilt	approx. 930 g	Men's work shirt	approx. 800 g
Sheet	approx. 665 g	Men's Shirt	approx. 265 g
Pillow case	approx. 266 g	Pyjama	approx. 130 g
Tablecloth	approx. 330 g	Blouse	approx. 665 g
Terry towel	approx. 265 g	Men's Underpants	approx. 130 g

The reference values listed above are examples only. Modifications are possible.
i The list above does not claim to be complete.

4.3 Additional washing functions / washing options

PROGRAMME	AVAILABLE ADDITIONAL FUNCTIONS (OPTIONS)
COTTON	➢ Temperature setting: up to 95 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
COTTON COLOUR	➢ Temperature setting: up to 60 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
ECO 40 - 60	➢ Delay end➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
MIX	➢ Temperature setting: up to 40 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
WOOL	➢ Temperature setting: up to 40 °C max.➢ Delay end➢ Extra rinse➢ Spin speed setting: up to 600 rpm max.➢ Reload laundry➢ Child safety lock
QUICK 15`	➢ Temperature setting: up to 40 °C max.➢ Delay end➢ Extra rinse➢ Spin speed setting: up to 800 rpm max.➢ Reload laundry➢ Child safety lock
ALLERGY STEAM	➢ Temperature setting: up to 60 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
BABY STEAM CARE	➢ Temperature setting: up to 95 °C max.➢ Delay end➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
DARK WASH	➢ Temperature setting: up to 60 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
SPORTSWEAR	➢ Temperature setting: up to 40 °C max.➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
DOWN	➢ Temperature setting: up to 40 °C max.➢ Delay end➢ Extra rinse➢ Spin speed setting: up to 600 rpm max.➢ Reload laundry➢ Child safety lock
20 °C	➢ Delay end➢ Pre-wash➢ Extra rinse➢ Spin speed setting: up to 1000 rpm max.➢ Reload laundry➢ Child safety lock
RINSE & SPIN	▸ Delay end▸ Extra rinse▸ Spin speed setting: up to 1000 rpm max.▸ Reload laundry▸ Child safety lock
SPIN	▸ Delay end▸ Spin speed setting: up to 1000 rpm max.▸ Reload laundry▸ Child safety lock
DRUM CLEAN	▸ Delay end▸ Spin speed setting: up to 600 rpm max.▸ Reload laundry▸ Child safety lock

4.4 Programming and starting of a washing programme

1. Load the drum.
2. Fill the detergent(s) into the relevant sections of the dispenser according to the desired programme.
3. Open the tap.
4. Set the desired programme using the ROTARY KNOB. The washing machine is now switched on and in STANDBY MODE.

5. The DISPLAY (A) indicates the duration of the programme (hours : minutes) ^4 .

6. Additionally to the selected programme, further washing functions such as temperature, spin speed, delay, etc. can be selected by pressing the corresponding buttons; s. chapter 4.4.1 SELECTION OF THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.

7. Press the « START / PAUSE » - BUTTON (7) to start the washing programme.

8. The door lock will be activated automatically. The operational status indicator of the door lock « Door Lock

9. When the programme is finished, the displays indicate « END » and an acoustic signal sounds ^29 .

10. The door lock is deactivated automatically after approx. 2 minutes. The operational status indicator of the door lock « Door Lock

11. When the programme is finished, always turn the ROTARY KNOB for the programme selection back to « OFF » to switch off the appliance completely; see also chapter 4.6 END OF A WASHING PROGRAMME.

i It is possible that the current run time of the selected washing programme will be adjusted automatically so that it may vary from the washing time which is indicated on the display.

4.4.1 Selection of the additional washing functions / washing options

FOLLOWING ADDITIONAL WASHING FUNCTIONS CAN BE SELECTED:

→ FUNCTION « TEMP. »: SELECTION OF THE WASHING TEMPERATURE
→ FUNCTION « DELAY END »: DELAYED PROGRAMME START
→ FUNCTION « SPIN »: SELECTION OF THE SPIN SPEED
→ FUNCTION « OPTIONS »: PRE-WASH
→ FUNCTION « OPTIONS »: EXTRA RINSE
→ FUNCTION « 😊 »: CHILD SAFETY LOCK (ON / OFF)

1. Press the corresponding button(s) to select or to modify an additional function.
2. Press the corresponding button(s) once or repeatedly, until the indicator of the desired washing function or combination ^30 is displayed.
   If the selected programme cannot be combined with the desired functions, these functions cannot be selected or will be cancelled and the indicators switches off automatically.

FUNCTION « TEMP. » = SELECTION OF THE WASHING TEMPERATURE

The temperature of some washing programmes can be selected individually; up to the maximum allowed temperature of the selected programme.
◆ Each of the washing programmes contains a default temperature.

To set the temperature of a washing programme individually, press the « TEMP. » - BUTTON repeatedly until the desired temperature is indicated on the display.

i If no temperature is indicated « -- », the appliance washes with cold water.

In some washing programmes the settable temperature range is limited; depending on model.

The «TEMP.» - function may not be available for all programmes; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS / WASHING OPTIONS.

i If the selected programme cannot be combined with the desired functions, these functions cannot be selected or will be cancelled and the indicators switches off automatically.

FUNCTION « DELAY END » = DELAYED PROGRAMME START

◆ You can set a delayed programme start.
Set the washing programme and the desired additional function and then activate the « DELAY END » - FUNCTION using the « DELAY END » - BUTTON.

i You can choose a delay period from 1 hours to 24 hours.

The delay period has to be longer than the duration of the washing programme as the set delay time defines the end of the washing programme. Example: if the duration of the set washing programme is 02:58, the delay period must be set between 03:00 hours and 24:00 hours.

1. Set the washing programme using the rotary knob. Set the desired additional function using the corresponding buttons.
2. The appliance is on and in STANDBY MODE.
3. Press the « TEMP. » - BUTTON and the « SPIN » - BUTTON simultaneously to activate the delayed programme start.

To deactivate the delayed programme start, press the « TEMP. » - BUTTON and the « SPIN » - BUTTON simultaneously again.

1. Press the « TEMP. » - BUTTON or the « SPIN » - BUTTON repeatedly to decrease or increase the delay period until the desired delay period (desired end of the washing programme in h) is indicated on the display.

i Each press of the « TEMP. » - BUTTON decreases the delay period by one hour.
i Each press of the « SPIN » - BUTTON increases the delay period by one hour.

1. The programmable delay periods are from 1 hours (min.) to 24 hours (max.).

2. Press the « START / PAUSE » - BUTTON after you have set the delay period. As soon as the count-down time has reached the starting time of the washing programme, the washing programme starts. The display indicates the remaining washing time.

To cancel the programmed delay period before pressing the « START / PAUSE » - BUTTON, set another programme using the rotary knob.

i If you wish to cancel the delayed programme start after pressing the « START / PAUSE » - BUTTON (but before the washing programme has started), you have to switch off the appliance using rotary knob (ON / OFF) ^31 .
i It is possible that the current run time of the selected washing programme will be adjusted automatically so that it may vary from the washing time which is indicated on the display.
The « DELAY END » - FUNCTION may not be available for all programmes; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS / WASHING OPTIONS.

FUNCTION « SPIN » = SELECTION OF THE SPIN SPEED

The spin speed of some washing programmes can be selected individually; up to the maximum permitted spin speed of the selected programme.
◆ Each of the washing programmes contains a default spin speed.

To set the spin speed of a washing programme individually, press the « SPIN » - BUTTON repeatedly until the desired spin speed is indicated on the display.

If spin speed « 0 » has been selected, the final spin speed will be cancelled. Before the programme ends, the appliance drains the water only.

In some washing programmes the settable spin speed is limited; depending on model.

The « SPIN » - FUNCTION may not be available for all programmes; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS / WASHING OPTIONS.

i If the selected programme cannot be combined with the desired functions, these functions cannot be selected or will be cancelled and the indicators switches off automatically.

A pre-wash can be set for some washing programmes to increase the washing effect and remove stains; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS / WASHING OPTIONS).
A pre-wash before a wash programme is particularly suitable for heavily soiled textiles.

When you activate the « PRE-WASH » - FUNCTION, also remember to fill the pre-wash compartment of the detergent drawer « L» with detergent; see also chapter 5.2 USE OF THE DISPENSER ff.
To activate the « PRE-WASH » - FUNCTION for a washing programme, press the « OPTIONS » - BUTTON repeatedly until the operational status indicator of the « PRE-WASH » - FUNCTION « Prewash » goes on.
The « PRE-WASH » - FUNCTION may not be available for all programmes; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS/ WASHING OPTIONS.
i If the selected programme cannot be combined with the desired functions, these functions cannot be selected or will be cancelled and the indicators switches off automatically.

An extra rinse cycle can be set for some wash programmes: the appliance runs the normal rinse cycle of the set washing programme again before it starts the softening cycle. The running time of the washing programme increases accordingly.
To activate the « EXTRA RINSE » - FUNCTION for a washing programme, press the « OPTIONS » - BUTTON repeatedly until the operational status indicator of the « EXTRA RINSE » - FUNCTION « Extra Rinse » goes on.
The « EXTRA RINSE » - FUNCTION may not be available for all programmes; see also chapter 4.3 ADDITIONAL WASHING FUNCTIONS / WASHING OPTIONS.
i If the selected programme cannot be combined with the desired functions, these functions cannot be selected or will be cancelled and the indicators switches off automatically.

FUNCTION « 🍴 » = CHILD SAFETY LOCK (ON / OFF)

The appliance is equipped with a CHILD SAFETY LOCK.
The CHILD SAFETY LOCK serves to protect your children and disables all operating buttons and all settings of the rotary knop (except « OFF »).

1. The washing machine must be in operation.
2. Press and hold the « SPIN » - BUTTON and the « OPTIONS » - BUTTON for 2 seconds simultaneously.
3. The operational status indicator of the activated child safety lock
4. All operating buttons and all settings of the rotary knop (except « OFF ») are locked.

AUTOMATIC DEACTIVATION OF THE CHILD SAFETY LOCK

1. The child lock is deactivated automatically when

a) the washing programme is finished.
b) the appliance has a malfunction (error codes).
c) there is a power failure.

1. The operational status indicator of the child safety lock « Child Lock » goes off.

2. All operating buttons and all settings of the rotary knop are released.

MANUAL DEACTIVATION OF THE CHILD SAFETY LOCK

1. Press and hold the « SPIN » - BUTTON and the « OPTIONS » - BUTTON for 2 seconds simultaneously.

2. The operational status indicator of the child safety lock « Child Lock » goes off.

3. All operating buttons and all settings of the rotary knop are released.

4.5 Door Lock

⚠️ WARNING! If you stop a running programme, the temperature of the water, the laundry and the drum can be very high. Be very careful while removing the laundry. RISK OF SCALDING! RISK OF BURNS!

❖ The appliance is equipped with an automatic door lock.

➢ After programme start, the door lock is activated automatically and the operational status indicator of the door lock « Door Lock » goes on. The door is locked.

The door is always locked while a programme is running. It is not possible to open the door while the door lock indicator is on. To open the door by force can damage the appliance seriously.

HOW YOU CAN OPEN THE DOOR MANUALLY

1. The door lock is activated. The operational status indicator of the door lock « Door Lock
2. Press the « START / PAUSE » - BUTTON if you want to open the door; e. g. to reload laundry.
3. If the running washing programme permits the deactivation of the door lock, the operational status indicator of the door lock flashes; requirements: the temperature in the washing drum is less than 50 °C and / or the current washing programme has not progressed too far.
4. It is very important to check the water level and water temperature inside the drum before opening.
5. The door lock is deactivated after approx. 2 minutes. The operational status indicator of the door lock « Door lock
6. You can open the door.

OR

1. The door lock is activated. The operational status indicator of the door lock « Door Lock
2. Press the « START / PAUSE » - BUTTON.
3. If the requirements described in point 3 above are not fulfilled, the appliance does not permit the deactivation of the door lock. The operational status indicator of the door lock does not flash, but is on continuously: « » Door Lock door cannot be opened.
4. In this case, turn the rotary knob for the programme selection to the position « OFF ». Leave the rotary knob in this position for at least 3 seconds to switch off the appliance and cancel all settings.
5. Set the programme « SPIN » using the rotary knob and set the spin speed to « 0 » using the « SPIN » - BUTTON; see also chapter 4.4.1 SELECTION OF THE ADDITIONAL FUNCTIONS / WASHING OPTIONS.
   i If spin speed « 0 » has been selected, the final spin speed will be cancelled. Before the programme ends, the appliance drains the water only.
6. Press the « START / PAUSE » - BUTTON to start the programme « SPIN ».
7. When the programme is finished, the displays indicate « END » and an acoustic signal sounds ^32 .

8. The door lock is deactivated automatically after approx. 2 minutes. The operational status indicator of the door lock « Door Lock » goes off.

9. When the programme is finished, always turn the ROTARY KNOB for the programme selection back to « OFF » to switch off the appliance completely; see also chapter 4.6 END OF A WASHING PROGRAMME.

10. It is very important to check the water level and water temperature inside the drum before opening.
11. You can open the door.
    If the door lock will not be released and the door cannot be opened, the temperature inside the washing drum is more than 50 °C or the current washing programme has progressed too far.

NOTICE! It is not possible to open the door while the door lock indicator is on. Do not open the door by force. To open the door by force can damage the appliance seriously. RISK OF DAMAGE!

NOTICE! Any damage to the appliance and / or the door caused by forcible opening of the door are not subject to the guarantee or the warranty!

NOTICE! If there is a lot of foam or water in the drum, open the door very carefully. Use a dry cloth to prevent foam and / or water from leaking out of the drum while the door of the appliance is opened.

4.6 End of a washing programme

When a programme has ended, the displays indicates « END ».
- After 2 minutes without using any operating buttons, the programme is switched off automatically. ^33
❖ The door lock is deactivated after approx. 2 minutes.

1. When a programme is finished, the displays indicate « END » and an acoustic signal sounds ^4 .
2. The door lock is deactivated automatically after approx. 2 minutes. The operational status indicator of the door lock « Door lock
3. When the programme is finished, always turn the ROTARY KNOB for the programme selection back to « OFF » to switch off the appliance completely.
4. Close the water tap.
5. Open the door and remove the laundry.
6. Leave the door and the detergent dispenser slightly opened, so the moisture can escape completely.

4.7 Selection of a new washing programme / washing function

You must switch off the appliance first to cancel the old settings and to be able to make new settings.

1. During a washing cycle, turn the rotary knob for the programme selection to the position the « OFF ». Leave the rotary knob in this position for at least 3 seconds to switch off the appliance and cancel all settings.
2. Set a new programme and new washing functions if desired.
3. If needed, set a new spin speed.
4. Please note: do not add more detergent.
5. Press the « START / PAUSE » - BUTTON to start the new programme.

4.8 Reload laundry

⚠ WARNING! If you stop a running programme, the temperature of the water, the laundry and the drum can be very high. Be very careful while removing the laundry. RISK OF SCALDING! RISK OF BURNS!

i It is very important to check the water level and the temperature of the water in the washing drum before opening the door.

TO RELOAD LAUNDRY DURING A RUNNING PROGRAMME, PROCEED AS FOLLOWS

1. Press the « START / PAUSE » - BUTTON once. The washing cycle is interrupted.
2. If the running washing programme permits the deactivation of the door lock, the operational status indicator of the door lock flashes; requirements: the temperature in the washing drum is less than 50 °C and / or the current washing programme has not progressed too far.
3. The door lock is deactivated automatically after approx. 2 minutes. The operational status indicator of the door lock « Door Lock
4. Open the door
5. Reload the laundry and close the door.
6. Press the « START / PAUSE » - BUTTON to reactivate the programme.

If the door lock will not be released and the door cannot be opened, the temperature inside the washing drum is more than 50 °C or the current washing programme has progressed too far.

NOTICE! It is not possible to open the door while the door lock indicator is on. Do not open the door by force. To open the door by force can damage the appliance seriously. RISK OF DAMAGE!

NOTICE! Any damage to the appliance and / or the door caused by forcible opening of the door are not subject to the guarantee or the warranty!

NOTICE! If there is a lot of foam or water in the drum, open the door very carefully. Use a dry cloth to prevent foam and / or water from leaking out of the drum while the door of the appliance is opened.

4.9 Unbalance protection

The appliance is equipped with an unbalance protection to avoid strong vibrations of the appliance during spinning.
Before starting spinning the appliance needs a certain period to space the laundry evenly.
If the laundry is not spaced evenly in the drum, the spin speed can be decreased ^35 to avoid strong vibrations of the appliance due to unbalance.
If the laundry load in the appliance is too low to reach a balance of the drum, the spin cycle may not start. Then you have to reload laundry; s. chapter 4.8 RELOAD LAUNDRY.

NOTICE! Always observe the textile labels.

5.1 Detergent

Choose your detergent relevant to the laundry you wish to wash (cotton, wool, synthetic etc.), the temperature and the level of contamination; otherwise, a strong formation of bubbles may occur. Always observe the dosage instructions on the packaging of the detergent. Bleachers are alkaline and may damage your clothing.

Use as less detergent as necessary. Powdery detergents may remain in your clothing, so rinse them thoroughly.

If you use too much detergent or if the water-temperature is too low, the detergent will not dissolve completely; so residuals of the detergent may remain in the clothing, the hoses and the appliance itself. Customise the washing procedures relevant to the grade of contamination of the laundry, your local water hardness and the information given on the packaging of your detergent. For information about the water hardness, ask your local water supplier. Store your detergents in a safe and dry place out of the reach of children.

5.2 Use of the dispenser

Observe the dosage instructions on the packaging of the detergent. The proper dosage depends on:

▶ type and degree of soiling.

▶ quantity of the laundry.

i Half load: 3/4 of the detergent used for full load.

i Minimum load (approx. 1 kg): 1/2 of the detergent used for full load.

- Your water supplier will inform you about the water hardness of your water. Soft water requires less detergent than hard water.

If you use too much detergent, a strong formation of foam may occur which can reduce the efficiency of the appliance. If the appliance detects too much foam, it may prevent spinning.

Using an insufficient quantity of detergent can cause calcification of the heating system, the drum and the hoses.

5.2.1 The different compartments of the dispenser

The dispenser is separated in three compartments:

THE PRE-WASHCOMPARTMENT
Detergent for Pre-Wash.
THE MAIN-WASHCOMPARTMENT
➢ Detergent for Main-Wash.➢ Stain removers.➢ Water softener (Water hardness class 4).
THE SOFTENERCOMPARTMENT
➢ Softeners.➢ Liquid starches.➢ Fill up to MAX-mark only!

Diagram of a refrigerator interior with labeled fixtures and directional arrows indicating airflow or movement.

(fig. similar)

5.2.2 How to use detergents and additives

You can use liquid detergents for programmes including pre-wash (depending on model), but - in such a case - you have to use washing powder for main-wash.
Do not use any liquid detergent if you have selected the « DELAY » - FUNCTION.
Use a laundry ball or bag ^36 to avoid dosing problems when using highly-concentrated detergents.
Only use descaling agents which are suitable to be used in a washer. Descaling agents can contain substances which will damage parts of the appliance.
Only use bleaching agents and dyes which are suitable to be used in a washer. bleaching agents and dyes can contain substances which will damage parts of the appliance.
➢ Never use solvents such as turpentine, petroleum ether etc.

WHEN YOU USE STARCH

1. Only use starch which is suitable to be used in a washer.
2. Wash the laundry using the desired programme.
3. Prepare the starch relevant to the instructions of its packaging.

4. Select the PROGRAMME « RINSE & SPIN » and start it.

5. Pull the dispenser until you can see approx. 3 cm of the main-wash compartment.

6. Pour the starch-solution into the main-wash compartment while the water is running into the dispenser.
7. If some starch should have remained in the dispenser after programme end, clean the dispenser.

5.3 Preparation of the laundry

1. Empty all pockets of each piece of your laundry.
2. Classify the laundry relevant to the labels: cotton, blended fabric, synthetic, silk, wool, man-made fibres.
3. Not suitable to be washed in a washer are:

a. ties, waistcoats, coats and clothes, which will shrink easily and clothing with components such as stickers, lace etc.
b. Crease-resistant clothing, clothing with imprints or lamination.
c. Crease-resistant silk, clothing with fur components, fur.
d. Clothing, which loose colour easily, e.g. gowns or traditional costumes.
e. Clothing contaminated with gas, petrol, paint thinner or alcohol etc.
f. Waterproof objects, e.g. skiing suits, sleeping bags, rain coats etc.

1. Wash clothing of different size together; so you maximise the efficiency of the appliance.
2. Wash delicate clothes separately. Select a gentle programme for silk and wool.
3. Remove hooks and other fastening materials from curtains.
4. Wash clothing with buttons or embroideries inside out.
5. Close zippers, buttons and hooks. Tie loose ribbons.
6. Wash clothing, which will release fluffs easily, separately and inside out.
7. Put bras into pillow cases so they cannot damage the drum.
8. Wash quite delicate and small clothing in wash bags (commercially available).
9. When you wish to wash a single, large piece (e.g. a jacket or jeans), an imbalance in the drum may be generated. Always add 1 or 2 other pieces of laundry to ensure proper operation.
10. Remove dust, mud and animal hair from the laundry.
11. Wash baby-wear and clothes a baby may come in contact with separately to reduce the risk of infection. Increase the rinsing cycles to wash out the detergent completely if necessary.
12. Do not leave any laundry in the washer for a longer period of time; otherwise, the laundry becomes musty and will mould.

6.1 Environmental protection: disposal

Appliances bearing this symbol « 📄 » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

6.2 Environmental protection: energy saving

• Try to load the appliance up to its particular maximum capacity. Little loads are uneconomical.
• Modern detergents allow washing at lower washing temperatures (e.g. 20 °C). Use appropriate temperature settings to save energy.
  ◆ Ensure that the installation room is well ventilated.

7. Cleaning and maintenance

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before cleaning and/or maintenance. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

⚠️ CAUTION! Ensure before cleaning and maintenance that the water and the drum have cooled down completely. RISK OF SCALDING! RISK OF BURNS!

NOTICE! Clean the appliance and its components regularly.

Take off all rings and bracelets before cleaning or maintenance; otherwise, you will damage the surface or the drum of the appliance.

DETERGENTS

➢ Do not use any harsh, abrasive and aggressive detergents.
➢ Do not use any abrasive detergents!
➢ Do not use any organic detergents! ^37
Do not use essential oils!
▶ Never use solvents.

NOTICE! Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

HOUSING

▶ Use a neutral, diluted detergent.
Do not use any harsh, abrasive and aggressive detergents.
Do not use any solvents.

CONTROL PANEL

➢ Use a damp cloth and a mild detergent suitable for the material only to clean the control panel.
➢ Never spray cleaner on the control panel directly; it can damage the control panel.

DRUM

➢ Remove any rust, e.g. from metal-made objects in your laundry, immediately with a chlorine-free detergent.
▶ Never use wire wool.

DOOR SEALS

➢ Clean the door and the door seal after each washing cycle using a soft cloth.
➢ Remove any foreign objects which got stuck in the door seal immediately.

7.1 Cleaning of the dispenser

1. Open the dispenser (A).

2. Press down the cover (B) in the fabric softener compartment (C) carefully and remove the dispenser (A); s. fig. below.

B C MAX A

A	DISPENSER
B	COVER
C	FABRIC SOFTENER COMPARTMENT

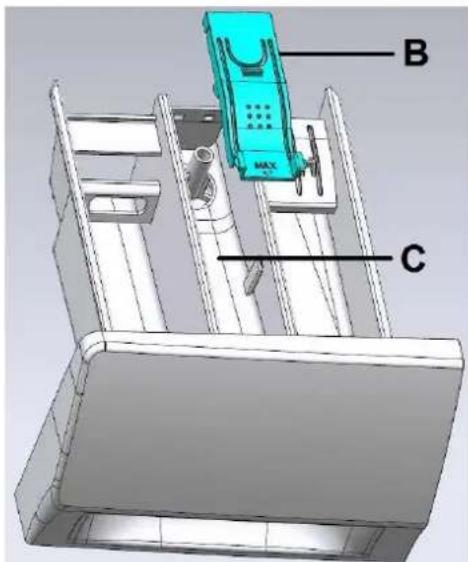

1. Remove the cover (B) of the fabric softener compartment (C); s. fig. below.

B MAX C

1. Clean all parts under running water.

2. Reinstall the cover on the fabric softener compartment properly.

3. Insert the dispenser into its recess properly.

7.2 Cleaning / Removing of the drain pump filter

We strongly recommend to clean the drain pump filter regularly (monthly).

i You have to clean the drain pump filter if the appliance does not drain the water properly or does not run the spinning programme.

i You have to clean the drain pump filter if the pump is blocked by any foreign object (e.g. buttons, coins etc.).

⚠ WARNING! Do not clean the drain pump filter while the washing machine is in operation! Switch off the appliance and disconnect it from the mains before.

⚠ WARNING! If there is hot water in the washing machine, ensure before residual water drainage that the water has cooled down completely. RISK OF SCALDING! RISK OF BURNS!

1. Switch off the appliance and disconnect it from the mains.

2. Insert a flathead screwdriver or a key ^38 into the small opening of the bottom cover panel carefully to open the cover. Flap it away towards the front. Remove the cover. ^39

A B B A

1. Place a container in front of the opening.

2. Open the drain pump filter (C), but do not remove it completely. Rotate the drain pump filter (C) in anti-clockwise direction until the water begins to run; s. fig. below.

C

Fig. similar: fig. serve as an example only.

1. Wait until the water has drained completely.

2. Unscrew the drain pump filter completely and remove it.

3. Clean the drain pump filter.

4. Depending on model, check that the pump rotor can move freely.

5. Insert the drain pump filter and screw it in as far as possible in clockwise direction; s. fig. below.

C

Fig. similar: fig. serve as an example only.

1. Check that the drain pump filter is installed properly.

2. Install the cover panel.

7.3 Residual water drainage

1. Switch off the appliance and disconnect it from the mains.

2. Remove the cover panel of the drain pump filter.

3. Place a container in front of the opening.

4. Open the drain pump filter, but do not remove it completely. Rotate the drain pump filter in anti-clockwise direction until the water begins to run.

5. Wait until the water has drained completely.

6. Unscrew the drain pump filter completely and remove it.

7. Carefully tilt the appliance forward so the water can be drained.

8. Insert the drain pump filter and screw it in as far as possible in clockwise direction.

9. Check that the drain pump filter is installed properly.

10. Install the cover panel.

⚠ WARNING! Ensure before residual water drainage that the water has cooled down completely. RISK OF SCALDING! RISK OF BURNS!

7.4 Cleaning of the water inlet valve

The water inlet valve should be cleaned at least once every six months.

The water inlet valve has to be cleaned, when it is not or improperly supplied with water with the tap opened.

1. Close the water tap.

2. Disconnect the appliance from the mains (unplug).

3. Remove the water inlet hose from the tap.

4. Clean the internal filter and reconnect the water inlet hose to the tap.

5. Remove the water inlet hose from the washing machine.

6. Remove the filter (A) from the water valve (B) using a universal pliers; s. fig. below.

A B

Fig. similar: fig. serve as an example only.

A	FILTER
B	VALVE OF THE WATER INLET

1. Clean the filter using some water and a toothbrush.

2. Reinstall the filter properly.

3. Reconnect the water inlet hose to the appliance again.

4. Open the tap and make sure that the connections (hose - tap / hose - washing machine) are properly installed and watertight.

- Contaminations and bacterial residues may accumulate in the washing drum and / or hoses of the appliance after some time, especially then you mainly use low temperature programmes.

The washing drum should be cleaned at least once a month.
The programme « DRUM CLEAN » cleans the outside and inside of the washing drum.
For cleaning the drum, you can add a fair amount of chlorine bleach to the washing machine (please always observe to the information given by the manufacturer of the chlorine bleach).
i Do not use any additional washing agent.
Do not wash any textiles / laundry when using this programme.

HOW TO START THE PROGRAMME « DRUM CLEAN »

1 Open the tap.
2 Close the door of the appliance
3 Set the programme « DRUM CLEAN » using the ROTARY KNOB. The washing machine is now switched on and in STANDBY MODE.
4 Press the « START / PAUSE » - BUTTON to start the programme.

7.6 "Frozen" appliance

IF THE AMBIENT TEMPERATURE IS LOWER THAN 0^ C AND THE APPLIANCE HAS BEEN FROZEN, PROCEED AS DESCRIBED BELOW.

1. Disconnect the appliance from the mains.
2. Close the water tap.
3. Wash the tap with warm water (approx. 50 °C ) so you can take the water inlet hose off. You can also use a warm cloth (approx. 50 °C ) at the junction between the water tap and the water inlet hose (B) to loosen the water inlet hose; s. fig. below.

A B C

A	TAP
B	JUNCTION BETWEEN TAP AND WATER INLET HOSE
C	WATER INLET HOSE

1. Take off the hose and immerse it in warm water (approx. 50^ ); s. fig. below.

50°C

1. Pour warm water (2 - 3 litres / approx. 50 °C) into the drum and wait approx. 10 minutes; s. fig. below.

50°C

1. Reconnect the water inlet hose to the tap and check, that the water inlet and the water drain works properly.

2. When you operate the appliance again, the ambient temperature must be higher than 0^ C.

⚠️ DANGER! Never try to repair the appliance yourself. Improper repairs or manipulating of the electric components of the appliance can endanger the life and health of the user. RISK OF ELECTRIC SHOCK! RISK OF FIRE!

8.1 Checklist

MALFUNCTION
POSSIBLE CAUSE(S)	MEASURE(S)
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
PROGRAMMES ARE NOT STARTED.
1. Door is not closed properly.2. No water supply.3. START / PAUSE button is pressed.4. ON / OFF button is not pressed.	1. Close the door properly.2. Check the water supply.3. Check your settings.4. Press the ON / OFF button.
FAULTY HEATING.
1. Heater defective.	1. The appliance can wash but not heat. Please contact your aftersales service immediately.
INDICATORS / DISPLAY DO NOT WORK.
No energy supply.Circuit board damaged.Wiring harness damaged.	Check the energy supply.Please contact your aftersales service.Check the wiring harness (please contact your aftersales service if necessary).
SOME DETERGENT LEFT IN THE CONTAINER.
Accumulated, damp detergent.	Clean the container.Use liquid detergents.Use detergents suitable for washers only.
UNSATISFACTORY WASHING RESULTS.
Heavily-contaminated laundry.Wrong amount of detergent.	Select a suitable programme.Choose the proper amount of detergent (look at the information on the packaging of your detergent).
ABNORMAL NOISE / SEVERE VIBRATIONS
The shipping bolts are still in the appliance.The appliance is not installed and / or adjusted properly.Foreign objects are in the appliance.Load is too low.The laundry has accumulated at one side of the drum.Laundry which cannot be spaced is in the drum.	Remove the shipping bolts.Install and / or adjust the appliance properly.Remove any foreign objects.Load the appliance properly.Space the laundry.Remove the pieces which cannot be spaced.

If the appliance has a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

8.2 Error codes

ERROR CODE	POSSIBLE CAUSE(S)	MEASURE(S)
F 01Problems with the water inlet.	1. Water tap closed.2. Water pressure too low.3. Water inlet hose is frozen.4. Filter is blocked.	1. Open the water tap.2. Wait some time.3. Defrost the water inlet hose.4. Remove the filters and clean them.
F 03Problems with the water outlet.	1. The « START / PAUSE » - button is pressed and the programme is paused.2. Water drain hose was installed too high.3. Water drain hose is frozen.4. Water drain hose is blocked.5. Water discharge is blocked.6. Drain pump filter is blocked.	1. Press « START / PAUSE » - button again to reactivate the set programme.2. Max. height 125 cm.3. Defrost the water drain hose.4. Remove the blockage and clean the hose.5. Remove the blockage and clean the water discharge.6. Remove the drain pump filter and clean it.
F 04 / F 05F 06 / F 07F 23The display indicates one of the error codes above.	1. Failure of the electronic module.	1. Turn the rotary knob to position « OFF » for at least 3 seconds to switch off the appliance. Set a program; e.g. « SPIN ». When the display no longer indicates an error code, press the « START / PAUSE » - BUTTON to start the programme. i If the problem cannot be solved, switch off and unplug the appliance, close the water tap and contact the aftersales service.
F 24	1. Water level reaches overflow level.	1. Turn the rotary knob to position « OFF » for at least 3 seconds to switch off the appliance. Set the programme « SPIN » (and Spin Speed = 0) to drain the water. You can start a new programme when the display no longer indicates an error code. i If the problem cannot be solved, switch off and unplug the appliance, close the water tap and contact the aftersales service.
F 13	1. Door lock problems.	1. Start a programme for 20 seconds. Press the « START / PAUSE » - BUTTON and wait 2 minutes until the door lock is deactivated automatically. Open and close the door. When the display no longer indicates an error code, press the « START / PAUSE » - BUTTON to restart the programme. i If the problem cannot be solved, switch off and unplug the appliance, close the water tap and contact the aftersales service.
F 14	1. Door opening alarm.	2. Press the « START / PAUSE »- BUTTON The appliance tries to open the door. The error code remains until the door lock is deactivated. Or turn the rotary knob to position « OFF » for at least 3 seconds to switch off the appliance. Start a programme. The error code goes off.
Unb	1. Unbalance alarm: laundry in the drum is not distributed.2. Unbalance alarm: too little laundry. If the laundry load in the appliance is too low to reach a balance of the drum, the spin cycle may not start. Then you have to reload laundry.	1. Turn the rotary knob to position « OFF » for at least 3 seconds to switch off the appliance. Open the appliance. Remove the laundry, shake it out and put it back into the drum. Set the programme « SPIN » and start the programme.iIf the problem cannot be solved, switch off and unplug the appliance, close the water tap and contact the aftersales service.2. Turn the rotary knob to position « OFF » for at least 3 seconds to switch off the appliance. Open the appliance. Reload laundry and start a programme.iIf the problem cannot be solved, switch off and unplug the appliance, close the water tap and contact the aftersales service.

If you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

TECHNICAL DATA*
Type	Washing Machine
Control system	Electronic
Max load	6.0 kg
Energy efficiency class1	E
Annual energy consumption2	70.3 kWh
Energy consumption per washing cycle3	0.703 kWh
Rated power input / off	0.49 W
Rated power input / standby mode	-
Water consumption per washing cycle3	36.00 l
Spinning efficiency class6	C
Max. spinning rotation	1000 rpm
Residual moisture	60 %
Programme time3	198 min.
Programme time4	156 min.
Programme time5	156 min.
Noise emission / spinning^3,7	B / 76 dB(A) re 1 pW
Power	1800 W
Interior	Stainless steel
Programmes	15 (Allergy steam Care / Baby Steam Carc / Cotton / Cotton Colour / ECO 40 - 60 / Mix / Wool / Quick 15` / Dark Wash / Sportswear / Down / 20 °C / Rinse & Spin / Spin / Drum Clean
ECO function	✓
Operation	Push buttons
Unbalance protection	✓
Delayed programme start	✓
Adjustable feet	✓
Child lock	✓
Dimensions H*W*D in cm	85.00*59.50*46.00
Weight net / gross	55.00 kg / 57.00 kg

◆ Technical modifications reserved.

*	According to Regulation (EU) No. 2019/2014
1	On a scale from A (highest efficiency) to G (lowest efficiency) according to the new EU standard.
2	Based on 100 standard-washing cycles. The actual energy and water consumption depend on the type and use of the appliance.
3	Standard programme ECO 40 - 60 / fully loaded.
4	Standard programme ECO 40 - 60 / partially loaded (half).
5	Standard programme ECO 40 - 60 / partially loaded (quarter).
6	From A (highest) to G (lowest).
7	From A (highest) to D (lowest).

10. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
