USER MANUAL INN-008 Innoliving

MISURATORE

DI PRESSIONE

DIGITALE

DA POLSO

INN-008

MANUALE D'USO

USER MANUAL

Pure horizontal gray bar with two vertical lines above and one below, no text or symbols present.

INN-008 MISURATORE DI PRESSIONE DIGITALE

1

MANUALE D'ISTRUZIONE

Line drawing of a medical device with a screen and rolled paper (no text or symbols)

Fig.1

Line drawing of a wristwatch with a hand pointing to the wrist (no text or symbols present)

Fig.2

Silhouette of a person seated at a desk with a heart symbol on the arm, no text or symbols present

Fig.3

|

Fig. 4

Fig.5

Fig.6

Fig.9

Apparecchio alimentato internamente Internally powered equipment

POWERED:DC3V/1,5W

3V = (1,5V x 2AAA Batt.)

RANGE MISURAZIONE:

Thanks for having purchased the automatic digital blood pressure monitor INNOLIVING INN-008.

For a proper use of the product, please read the following instructions carefully and preserve this manual for possible future consultation.

This instruction manual is intended to assist the user for safe and efficient operation of the automatic digital blood pressure monitor INN-008. The device must be used in accordance with the procedures described in the manual. It is important to read and understand the entire manual, especially the section < IMPORTANT SAFETY INSTRUCTIONS >.

CAUTION

1. Do not use this device on infants or persons who cannot express their intentions.
2. The device is not suitable for measuring the blood pressure of children. Ask your doctor before using it on elder children.
3. The patient is an intended operator. But persons who suffer from arrhythmia, diabetes, cardiovascular problems or who have had a stroke should consult your doctor before using the device.

PRINCIPLE OPERATION

This device adopts the oscillometric technology with Fuzzy Algorithm to measure the arterial blood pressure and pulse rate. The cuff is wrapped around the arm and automatically inflated by the air pump. The sensor of the device catches weak fluctuation of the pressure in the cuff produced by extension and contraction of the artery of the arm in response to each heartbeat.

GB

The amplitude of the pressure weaves is measured, converted in millimeters of the mercury column, and is displayed by digital value.

IMPORTANT: This device can not provide reasonable accuracy if used or stored in the temperature or humidity beyond the range stated in the section of this manual.

NEW TECHNOLOGIES USED

Fuzzy Algorithm is the processing algorithm, taking into account the specialty of individual heartbeats, which provides higher accuracy of measurement.

Software version: V1.1

TIPS ON TAKING BLOOD PRESSURE MEASUREMENT

It is necessary to know that arterial blood pressure is subjected to sharp fluctuations. The level of the arterial blood pressure depends on many factors. Generally arterial blood pressure is lower in summer and higher in winter. Arterial blood pressure changes with atmosphere pressure and is affected considerably by many factors, e.g. physical loads, emotional excitability, stress, meals, etc. Medicines, drinking, smoking affects greatly the level of individual blood pressure. Blood pressure does vary with age and individuals, and it is recommended to write down the readings from blood pressure records daily, then you can check with your doctor to find out what is a "normal blood pressure measurement" for you.

Please read the instruction manual carefully before using this device especially , it can help you use the device correctly and safely! Please keep the instruction manuale safe for future use. For specific information about your own blood pressure, consult your physician.

GB

WARNINGS

• Consult your physician if you suffer from illnesses prior to using the device.
  • The device is not suitable for persons who have electrical implants.
• If you had a mastectomy (breast amputation) do not use this blood pressure monitor on the arm on the side of the mastectomy.
• Pregnant women should only measure their own blood pressure in consultation with their doctor, since the readings may be changed with pregnancy.
• Do not service or maintain the cuff and the device

GB

while in use with patient.

• Do not use this blood pressure monitor on any arm where intravascular access or therapy (such as an intravenous drip or a blood transfusion), or an arteriovenous shunt (A-V shunt) is present. The temporary interference to blood flow by the blood pressure measurement could result in injury.
• Do not use the device with other medical electrical (ME) equipment simultaneously.
• Do not use the device in the area the HF surgical equipment, MRI, or CT scanner exists, or in the oxygen rich environment.

GB

• Do not use a mobile phone or other devices that emit electromagnetic fields, near the device. This may result in incorrect operation of the device.
• Verify (for example, by observation of the limb concerned) that operation of the AUTOMATED SPHYGMOMANOMETER does not result in prolonged impairment of the circulation of the blood of the patient.
• Never use any accessories or parts from other manufacturers. Using such accessories or parts could cause a hazardous situation for the user or damage to the device.

GB

• Do not modify this device without authorization of the manufacturer.
• The batteries used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat or incinerate.
• Keep this device away from fire and heat sources to prevent fire or explosion.
• Please keep the unit out of reach of infants, children or pets, since inhalation or swallowing of small parts can be dangerous or even fatal.
• Please pay attention that the continuous CUFF pressure due to connection tubing kinking will

GB

cause a harmful injury.

• It is quite normal that two measurements taken in quick succession may produce significantly different results, because too frequent and consecutive measurements could cause disturbances in blood circulation and injuries.
• This medical device is intended for household use only.

CAUTIONS

- Use this device under the right environmental conditions as indicated in this user manual. If not, this could affect the performance, lifetime of the devi-

GB

ce and measurement results.

• Only use this device for its intended purpose as described in this user manual.
• Do not confuse self-monitoring with self-diagnosis. This device allows you to monitor your blood pressure. Do not begin or end medical treatment based on the measurement results. Always consult your physician for treatment advice.
• Do not take any therapeutic measures on the basis of a self-measurement. Never change prescribed medication without consulting your physician. Consult your physician if you have any questions

GB

about your blood pressure.

• In case you will obtain unexpected readings, consult your physician.
• If you are taking medication, consult your physician to determine the most appropriate time to measure your blood pressure.
• Consult the physician if measurement errors occur in children or persons with arrhythmia.
• The pulse display is not suitable for monitoring the frequency of cardiac pacemakers.
• Common arrhythmias (such as atrial or ventricular premature beats or atrial fibrillation) and pe-

GB

ripheral artery disease / arteriosclerosis can affect the accuracy of this blood pressure monitor. Please consult your physician how to best use this blood pressure monitor if you suffer from any of these conditions. Blood pressure measurement is not suitable in cases of serious arteriosclerosis (hardening of the arteries).

• The effectiveness of this blood pressure monitor has not been established in pregnant women.
  • Always check the device and cuff before you use it. Do not use the device or cuff if one of them is damaged, because this may cause injury.

GB

• This device is not intended for use on extremities other than the arm or for functions other than obtaining a blood pressure measurement.
• Do not attach the cuff on the same wrist on which other monitoring medical electrical equipment is attached simultaneously, because this could cause temporary loss of function of those simultaneously-used monitoring medical electrical equipment.
• Never attach the cuff on injured skin, an injured arm or an arm under medical treatment as this can cause further injury.
• Do not forcibly crease the wrist cuff or the air tube

GB

excessively.

• Do not use the device in case of existing polyester or nylon material allergies.
• This device is not suitable for continuous monitoring during medical emergencies or operations.
• This device cannot be used with HF (High Frequency) surgical equipment at the same time.
• This device is hot washable. Never immerse the device in water and do not rinse it under the tap.
• This device should keep dry to prevent from moisture.
• The equipment is not AP/APG equipment and is

not suitable for use in the presence of a flammable anesthetic mixture with air, with oxygen or nitrous.

• To avoid measurement errors, do not use the device near strong electromagnetic fields, radiated interference signal or electrical fast transient/burst signal. For example magnets, radio transmitters, microwave ovens.
• If this device was stored in low temperature, leave it in room temperature for at least 1 hour.
• Repeated measurements with an interval of 5 minutes are recommended, so you can calculate the average to get a more accurate measurement. An

GB

interval of 5 minutes can also ensure that the operation of the device does not result in prolonged impairment of the circulation of the blood.

• Atherosclerosis patients may require longer interval (10-15minutes) as elasticity of patient's vessels decreases significantly with the disease. 10-15 minutes interval is also applicable for patients suffering from diabetes for a long period of time.
• Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

GB

- Connecting electrical equipment to mso effectively leads to creating a ME system, and can result in a reduced level of safety.

CONTRAINDICATIONS AND WARNINGS FOR USE

As it happens for all blood pressure monitors, some particular conditions might affect the measurement, among the others:

• Heart rhythm disorders
• Kidney disorders
• Very low blood pressure
• Very low blood perfusion

GB

• Patient in shock
• Diabetes
• Abnormalities of the blood vessel
• People with electrical systems like a cardiac pacemaker
• Pregnant women
• Women with preeclamptic pathology
• Patient movement during measurement
  These conditions can produce incorrect readings, which represent a danger to your health, as values can be misinterpreted. Always consult your doctor to assess your health appropriately.

GB

CLASSIFICATION

ME EQUIPMENT not intended for use in an oxygen rich environment or in the presence of flammable mixers.

Internally powered equipment.

Type BF applied part, recognize the cuff as applied part.

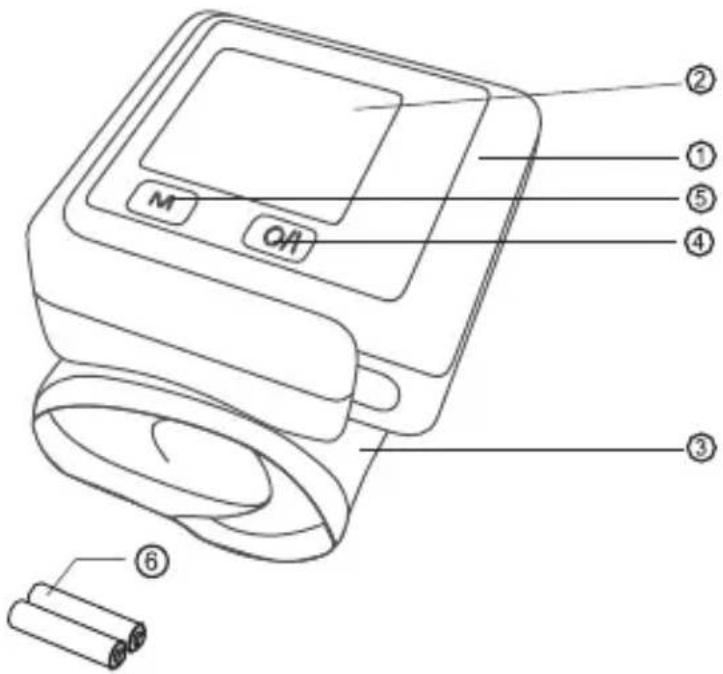

PARTS AND COMPONENTS

1. Main Body
2. Display
3. Wrist Cuff
4. Button O/I
5. Button M
6. Batteries

GB

BATTERY INSTALLATION

1. Open the battery cover and install two AAA type batteries into the battery compartment as indicated. Make sure the polarity is correct. See Pic. 1.
2. Close the battery compartment cover.

- Replace the batteries when the replacement indication

appears in the display or nothing after O/I button is pressed.

- Batteries included are intended to check work capacity of the

device and the life-span of the batteries can be shorter than the recommended time.

• Do not use rechargeable batteries.
• Only the same types of batteries are allowed to be used together.

Replace all batteries simultaneously.

• If the device is to be unused for a long time, please take out the batteries.
• Don't leave the worn batteries in the device.

CORRECT POSTURE FOR MEASUREMENT

Sit at the table and let the table support your arm as you take the measurement. See Pic. 2. Wrap the cuff around the left wrist as shown in the illustration, and make sure that the wrist cuff is attached to the wrist securely with display facing the user. If your sleeve restricts blood circulation of your wrist or you roll your sleeve up so as to result in such restriction. Please take off your clothes to get accurate measurement if necessary. If measurement on your left wrist is difficult, you can use right wrist for measurement.

Pic.2

GB

NOTE: Make sure that the wrist is at approximately the same level as the heart, and that the forearm is extended naturally with palm up on the table. See Pic. 3. If the cuff is too high above your heart, your blood pressure will read artificially low. If the cuff is too low below your heart, your blood pressure will be artificially high.

CARRY OUT MEASUREMENT

1. Wrap the wrist cuff around your left wrist. See .
2. Before the measurement, take a deep breath 3-5 times and relax yourself. Don't talk or move your arm.
3. Press the button O/I and all symbols will appear on display in 2 seconds as in Pic.4.

Then "0" will appear on the screen. The pump begins to inflate with display showing the reading of pressure. Generally the pressure will reach 190 mmHg, as in Pic.5.

Silhouette of a person seated at a desk with an arm and a heart symbol on the wrist, no text or symbols present.

Pic.3

Fig.4.4

Pic.5

GB

1. The pump stops inflating and pressure begins to decrease gradually, during which the user's blood pressure and pulse will be calculated as in Pic.6.
2. The air in the wrist cuff will deflate quickly and the blood pressure reading and pulse reading will show in the display as in picture 7. Moreover, the measuring time will also display together in two screens alternately.
3. Press the button O/I to return to standby mode. Please

rest for at least 3 minutes for another measurement. If the device keeps unused for 3 minutes, the device will be returned to standby mode automatically.

Pirg66

Pirg.77

CAUTION

Make sure, you are comfortable, in an relaxed position with leg-uncrossed, feet flat on the floor, back and arm supported, middle of the cuff at the level of the right atrium of the heart and do not move or constrict your muscles and talk during measurement. Use a cushion to support your arm if necessary. Keep position in normal use.

RAPID DEFLATION DURING MEASUREMENT

If you don't fell well during measurement or want to stop the measurement for any reason, you can press the button O/I. The device will quickly release the air in wrist

GB

cuff and the device will be returned to standby mode.

FUNCTION OF MEMORY

Memory recall

1. The device can store 90 sets of reading and will automatically calculate the average value of the latest 3 readings. When the memory is full (90 sets of readings are stored), the oldest reading will be replaced by a new one. Readings in the memory will not clear away even if power supply is removed.

Fig.88

1. When a measurement is finished or the device stands by, the user can press button M to recall memory. Press button M, the display will show the

average value of the latest 3 readings as in Pic.8.

1. Press again, the display will show '01', which means the latest reading, then turns to another screen to show readings and measuring time as in Pic.9.

2. Press again, the display will show '02', which means the seconds to the latest reading.

Fig99

Memory clearance

When a measurement is finished or when the device stands by, hold down button M for at least 5 seconds, the display will show 'Clr' which means the stored reading is removed as in Pic.10.

Pic.10

GB

TROUBLESHOOTING
SYMPTOM CHECK POINT	REMEDY
No display after pressing the button O/I	The batteries have run down.The polarity of installed batteries is wrong.The contact of battery compartment is polluted.	Replace all the batteries with new ones.Install the batteries correctly.Clean the battery terminals with dry cloth.
Inflation stops and reinflates later.	190mmHg is not enough or the device has moved excessively.Did you talk or move your arm (or hand) during measurement?	See AUTOMATIC INFLATION.Keep quit and silent during the measurement.

GB

TROUBLESHOOTING
SYMPTOM CHECK POINT REMEDY
The reading is extremely low or high.	Is the cuff at the same level as the heart.Is the cuff wrapped right?Did you strain your arm during measurement?Did you talk or move your arm (or hand) during measurement?	Make sure that your posture is right.Wrap the cuff correctly.Relax during measurement.Keep quit and silent during the measurement.
Pulse rate is too low or too high.	Did you talk or move your arm (or hand) during measurement?Did you make measurement right after exercise?	Keep quit and silent during the measurement.Take measurement again after resting for more than 5 minutes.
The batteries are run down soon.	Faulty batteries are used Suggest to use alkaline batteries of known manufacturers.
The device is automatically turned off.	It is the result of automatically turn off system.	This is to save the power consumption of the device, and it is not a fault.

ERROR AND LOW BATTERY INFORMATION

SYMBOL POSSIBLE REASON CORRECTION METHODS
	The wrist cuff is put on wrongly or the tube plug is inserted loosely.Arm/hand movement or talking occurred during measurement	Make sure that the cuff is put on correctly and the tube plug is inserted tightly and repeat the measurement.Entirely follow the recommendations in this manual and repeat the measurement.
	The batteries are weak	Replace all 2 batteries with new ones.

GB

MAINTENANCE, STORING, REPAIR AND RECYCLING

1. It is necessary to protect this device against high moisture, direct sunlight, shock, solvent, alcohol and gasoline.
2. Move the batteries if the device is being stored for a long time, and keep the batteries far away from children.
3. Keep the wrist cuff away from sharp objection and don't extend or twist the cuff.
4. This device is not washable. Never immerse the device in water and do not rinse it under the tap. Use only soft and dry cloth to clean the device.
5. Do not serve or maintain the wrist cuff and the device when in use with patient. Use only soft and dry cloth to clean the device.
6. The cuff is sensitive and must be handled with care. You can clean the cuff with damp cloth for daily maintenance. To avoid cross infection when sharing the cuff, you can sterilize the fabric cover of the cuff with tampons moistened by 3% solution of hydrogen dioxide. After long use there will be a partial discoloration on the fabric surface of the cuff. Do not laundry the cuff as well as ironing with a hot flatiron.

WARNING: Under no circumstances may you wash the inner components!

1. Since neither the device nor batteries are household waste, follow your local recycling rules and dispose them at an appropriate collection site.

2. Do not open the device, or delicate electrical components as an intricate air unit could be damaged. If you can not fix the problem using the TROUBLESOOTING INSTRUCTION, please request service from your dealer.

WARNING: Do not repair the device without manufacturer's authorization. Do no carry out maintenance when using the device.

CAUTION: Generally, we recommend having the device inspected every 2 years to ensure proper function, accuracy and safety. Please contact your dealer for maintenance.

GB

SPECIFICATIONS

Model: INN-008

Size: 62(L) x 61 (P) X 25 (H) mm

Weight: approximately 110g without batteries

Measuring method: oscillometric.

Measuring Range: 40 to 180mmHg(DIA,diastolic pressure)

60 to 260mmHg(SYS,systolic pressure)

40 to 160 beats/minute (PUL,pulse rate)

Measuring Accuracy: ±3mmHg for static pressure

±5% of reading for the pulse rate

Inflation: automatic by the pump

Rapid deflation: automatic electronic valve

Batteries: included 2 "AAA" x 1,5V

Memory: 90 sets of memory

Operation Temperature and humidity: +10°C to +40°C; 85% and below (>10%)

Storage/Transportation temperature and humidity: -20°C to +50°C; 85% and below (>10%)

Cuff Size: applicable for wrist size 12,5\~20,5 cm

RATED range of CUFF pressure: 290 mmHg.

Complete Kit: Main Body, wrist cuff, 2xAAA batteries,

instruction manual, warranty card.

The product is designed with features rated to operate up to an altitude of 2000 m

RATING LABEL

innoliving

Innoliving Spa Via Merloni, 2/B

60131 Ancona - Italy

INN-008 MISURATORE DI PRESSIONE

BLOOD PRESSURE MONITOR

Apparecchio alimentato internamente Internally powered equipment

POWERED:DC3V/1,5W

3V = (1,5V x 2AAA Batt.)

RANGE MISURAZIONE:

da 40 a 180mmHg (pressione diastolica)

The device complies with the European directive 93/42/CEE concerning the medical device and all the other applicable EU norms.

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

GB

The batteries used in this device must be disposed of in the special bins at the end of their life. Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps preventing potentially negative consequences on the environment and human health.

TYPE BF applied parts

IP21

Ingress Protection level

Read carefully the user manual

Temperature range for storage and transportation

Humidity range for storage and transportation

Air Pressure range for storage and transportation

INN-008 requires special precautions regarding EMC and must be installed and put into service according to the EMC information contained in this user manual;

Portable and mobile radiocommunication equipment may affect the operation of INN-008;

The appliance or system must not be used near other appliances and, if it is necessary to use it near other appliances, the electro-medical device must be observed to check normal functioning in the configuration in which it is used.

The electro-medical device has been tested and found to comply with the emission and immunity limits of electromedical equipment according to IEC60601-1-2:2014. These limits are designed to provide adequate protection against harmful interference in a typical medical installation. However, there is no guarantee that interference will not occur in a particular installation. If the electro-medical device, interacting with another device, causes or receives detectable interference, the user is invited to limit interference by adopting one or more of the following measures:

1. reorient or relocate the receiving device;
2. increase the distance between the appliances;
3. contact the manufacturer or local technician for assistance.

Guidance and declaration of manufacturer – electromagnetic emmissions
INN-008 is intended to be used in the electromagnetic environment specified below. The customer or user of device must assure it's used in this environment.
Emissions tests Compliance Electromagnetic environment
Emissions at RF CISPR 11 Group 1		INN-008 uses RF energy only for its internal operation. As a result, RF emissions are very low and are unlikely to cause any interference in nearby electronic devices
CISPR 11 emissions Class B INN-008 is suitable for use in		all environments, including domestic and those directly connected o a public low-voltage power supply, that supplies buildings used for domestic purposes.
IEC 61000-3-2 harmonic emissions	Not applicable
Voltage fluctuations emissions/flicker IEC 61000-3-3	Not applicable

GB

Guidance and declaration of manufacturer – electromagnetic immunity
INN-008 is intended to be used in the electromagnetic environment specified below. The customer of user of INN-008 must assure it's used in this environment
Immunity test IEC	60601 test level Compliance level Electromagnetic environment
Electrostatic discharge (ESD) IEC 61000-4-2	+- 8 kV contact +- 8 kV contact		Floors must be made of wood, concrete or ceramic tiles. If the floors are covered with synthetic material, the relative humidity should be at least 30%
	+- 2; 4; 8; 15 kV air	+- 2; 4; 8; 15 kV air
Campo magnetico ad alta frequenza (50/60Hz) IEC 61000-4-8	30 A/m 30 A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

Guidance and declaration of manufacturer – electromagnetic immunity
INN-008 is intended to be used in the electromagnetic environment specified below. The customer of user of INN-008 must assure it's used in this environment Portable and mobile RF communications equipment should be used no closer to any part of the blood pressure monitor including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter
Immunity test IEC 60601 test level Compliance			level	Recommended separation distance d:
RF IrradiateIEC 61000-4-3	3 V/m e 10 V/mda 80 MHz a 2,7 GHz		3 V/m e 10V/m	d = 30 cm
IEC 61000-4-3Proximity fieldimmunity fromwireless RFcommunicationdevices	TETRA 400380 – 390 MHz	27 V/m 27 V/m		d = 30 cm
	GMRS 460FRS 460430 – 170 MHz	28 V/m 28 V/m
	LTE Band 13, 17704 – 787 MHz	9 V/m 9 V/m
	GSM 800/900, TETRA800, iDEN 820, CDMA850, LTE Band 5800 960 MHz	28 V/m 28 V/m

GB

GB

IEC 61000-4-3 Proximity field immunity from wireless RF communication devices	GSM 1800; CDMA 1900; GSM 1900; DECT; LTE Band 5 1700 – 1990 MHz	28 V/m 28 V/m	d= 30 cm
	Bluetooth, WLAN, 802.11 b/g/n, RIFD 2450, LTE Band 70 2400 – 2570 MHz	28 V/m 28 V/m
	WLAN 802.11 a/n 5100 – 5800 MHz	9 V/m 9 V/m

NOTE

• Use of this equipment adjacent to or stacked with other equipment should be avioded because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
• Portable RF communications equipment(including peripherals such as antenna cables and external antennas) should be used no closer than 30cm(12 inches to any part of this devie, including cables specified by the manufacturer.
  Otherwise, degradation of the performance of this equipment could result. Under the test condition specified in immunity, the product can provide the basic safety and essential performance.
• If the essential performance is lost or degraded, additional measures are necessary, such as reorienting or relocating the device.

Simple gray rectangular shape with two vertical lines above and two horizontal lines below, no text or symbols present.

innoliving

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE 1936

Rev.05 07.2021
