QKC4D41901 - Security Camera Qian - Free user manual and instructions

Product Type	Security Camera
Brand	Qian
Model	QKC4D41901
Dimensions	120 x 80 x 70 mm
Weight	300 g
Power Supply	DC 12V or PoE (802.3af)
Resolution	1080p Full HD (1920x1080)
Night Vision	IR LEDs up to 30 m
Field of View	90° diagonal
Connectivity	Wi-Fi 802.11 b/g/n, Ethernet (PoE)
Storage	microSD card up to 128 GB or NVR
Audio	Built-in microphone and speaker
Motion Detection	Yes, with customizable zones
Weatherproof Rating	IP66
Operating Temperature	-20°C to 50°C
Installation	Indoor/Outdoor, wall or ceiling mount
Included Accessories	Mounting kit, power adapter, Ethernet cable
Maintenance	Clean lens with soft dry cloth; check connections periodically
Safety	Use only with certified power supply; avoid water ingress
Spare Parts & Reparability	Contact Qian support for spare parts; not user-serviceable
General Information	User manual included; warranty 1 year

Frequently Asked Questions - QKC4D41901 Qian

How do I reset the camera to factory defaults?

Press and hold the reset button on the camera for 10 seconds using a paperclip. The camera will restart and all settings will be restored to factory defaults.

How can I connect the camera to my Wi-Fi network?

Use the Qian Security app (available on iOS and Android). Follow the in-app instructions to connect the camera to your 2.4 GHz Wi-Fi network. Ensure the camera is powered on and in pairing mode (indicator light flashes rapidly).

What storage options are supported?

You can insert a microSD card (up to 128 GB) directly into the camera, or connect the camera to a Network Video Recorder (NVR) via Ethernet. Cloud storage may also be available through the app.

Does the camera support night vision?

Yes, the camera is equipped with IR LEDs that provide black-and-white night vision up to 30 meters in complete darkness.

Can I receive motion detection alerts?

Yes, the camera supports motion detection with customizable zones. You can set up alerts to be sent to your phone via the Qian Security app.

Is the camera compatible with third-party smart home systems?

The camera works with its own app and may support ONVIF for integration with select NVRs. It does not natively support Amazon Alexa or Google Assistant.

How do I mount the camera outdoors?

Use the included mounting kit to attach the camera to a wall or ceiling. Ensure the mounting surface is strong enough to hold the camera’s weight. The camera is IP66 rated, so it can withstand rain and dust.

What should I do if the camera stops streaming video?

First, check the power supply and network connection. Restart the camera and router. If the issue persists, try resetting the camera to factory defaults and reconfigure it via the app.

Can I use the camera without an internet connection?

The camera requires a Wi-Fi or Ethernet connection to stream video and receive alerts. For local recording to a microSD card, the camera can function without internet but remote access will be unavailable.

How do I clean the camera lens?

Use a soft, lint-free cloth slightly dampened with water or lens cleaner. Gently wipe the lens in a circular motion. Do not use abrasive cleaners or spray directly onto the lens.

USER MANUAL QKC4D41901 Qian

Exterior view of a security camera system with three surveillance cameras and a control panel (no readable text or symbols)

MODELO/MODEL QKC4D41901

Salida Alta Definición High Definition Output

Analógico + Digital Analogical + Digital

Monitoreo en Dispositivos Móviles Monitoring in Mobile Devices

AHD/TVI/CVI /CVBS/IP

Resolución HD 720P Resolution HD 720P

Please read carefully before using your equipment and save it for future use. (Page 15)

MANUAL DE USUARIO / USER MANUAL

Interface Specification

Symbol Specification Specification
DC 12V DC 12V	VDC 12V
/ USB	USB Port, for USB drive and mouse etc
LAN LAN Port	LAN Port
HD-OUT HD-OUT	HTP-OUT Port
VGA VGA Port	VGA Port
V-OUT	AV video output, Such as the video output from DVD/Digital TV
AUDIO IN	Audio in,use RCA to connect audio input device such as pick-up
AUDIO OUT	Audio output,use RCA to connect audio output device,such as active speaker
BNC Analog signal output port	signal output port
RS485 PTZ control	PTZ control

Network Phone	Chapp, NapWork, Email, Neil, Service
Mode switch Digital Network	Analog, Hybrid
Info Version	Hod, infdd info
Record Encode	Reorder, Back
Alarm	Motion Detect, Video Blind, Video Loss Alarm Input/Output etc.
System Genec	Display, Batch title, Storage etc

1. System Login

* When you start the DVR, user name is "admin", no password and then click "OK". As picture shows:

2. Format Storage

*When you install the new hard disk, you should format storage first. Right-click "Main Manu→System→General→Storage". Choose the Hard Disk, click "Format Storage". As picture shows:

3. Record Mode

*Choose "Record Mode" by right-click the mouse, the DVR records 24 hours by default. As picture shows:

4. Playback

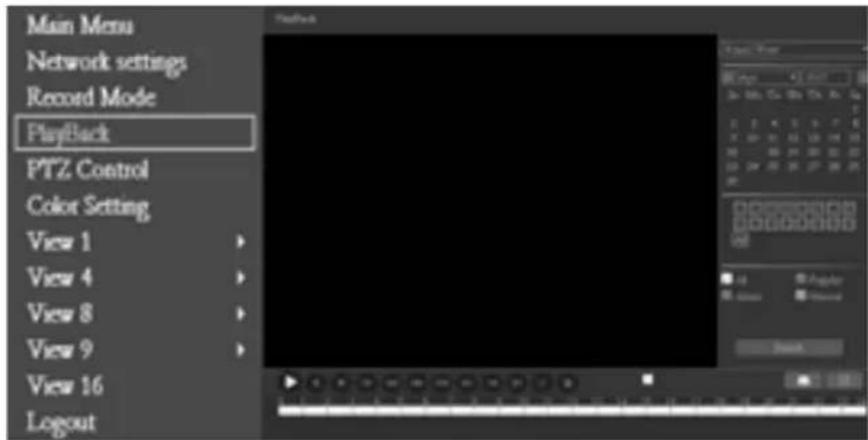

*Right-Click and Click the " playback", choose the channel and day that you want to play. And Click the "Search", As the pictures show

5. Email Setup

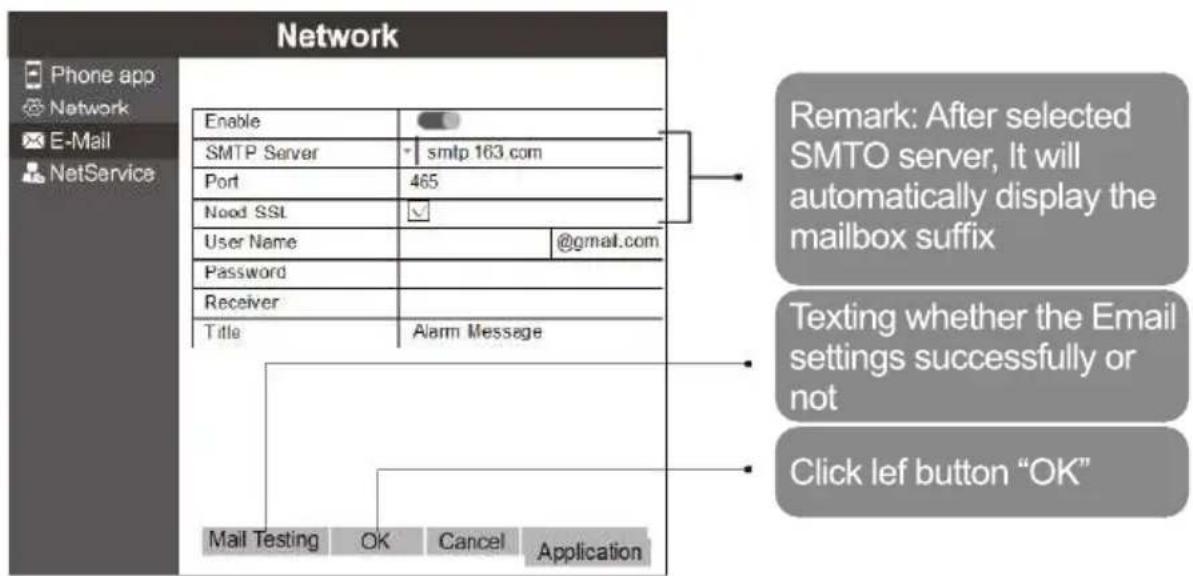

*Right-Click and Click the “Network settings→Email”, Click the “Enable”, choose “SMTP Sever” that you need. “Type user name-password-Receiver”. Then Click “ok”, As the pictures show:

6. Network setup

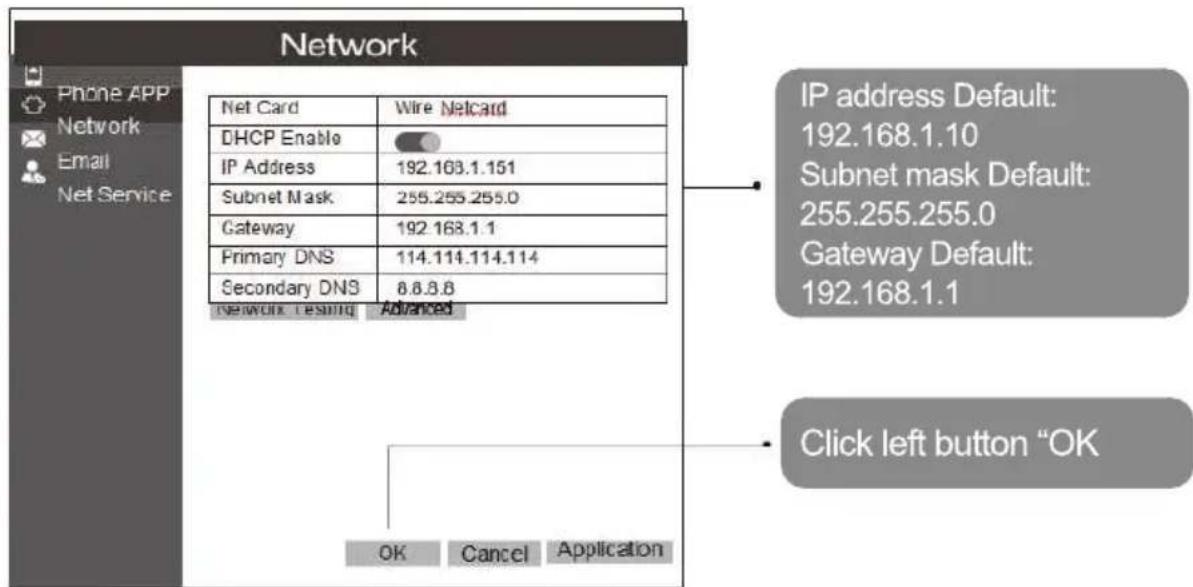

1. Connect internet, Right-Click and Choose the "Network settings→Network". Choose "DHCP Enable", Then Click "ok". As Pictures show:

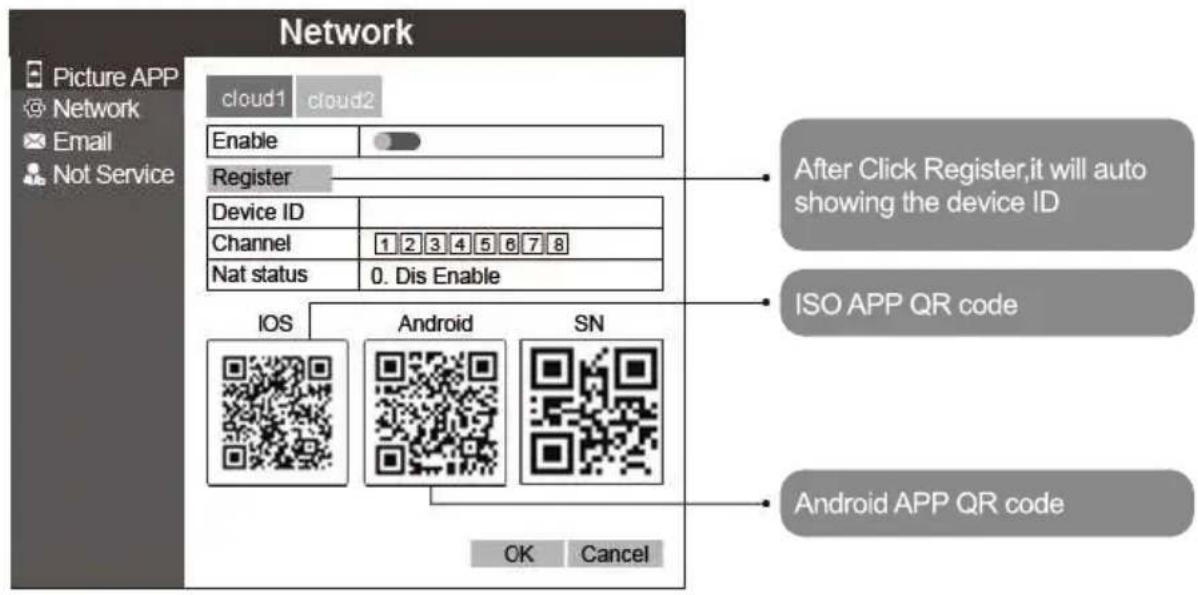

1. Click "Phone APP→Cloud 1", Click "Enable" and "Register", it will auto getting the Device ID, After connected internet, Nat Satatus showing Connected, As picture show:

1. Open the smart phone, Scan the specified QR code, download and install APP. As picture shows :

IOS APP

(Iphone users recommend using the UC browser or Wechat)

Android APP

(Android user recommend using the UC browser,

Don't use Wechat)

4. Open“Danale” app

on the phone's desktop, Follow the steps to

register an account, As picture shows:

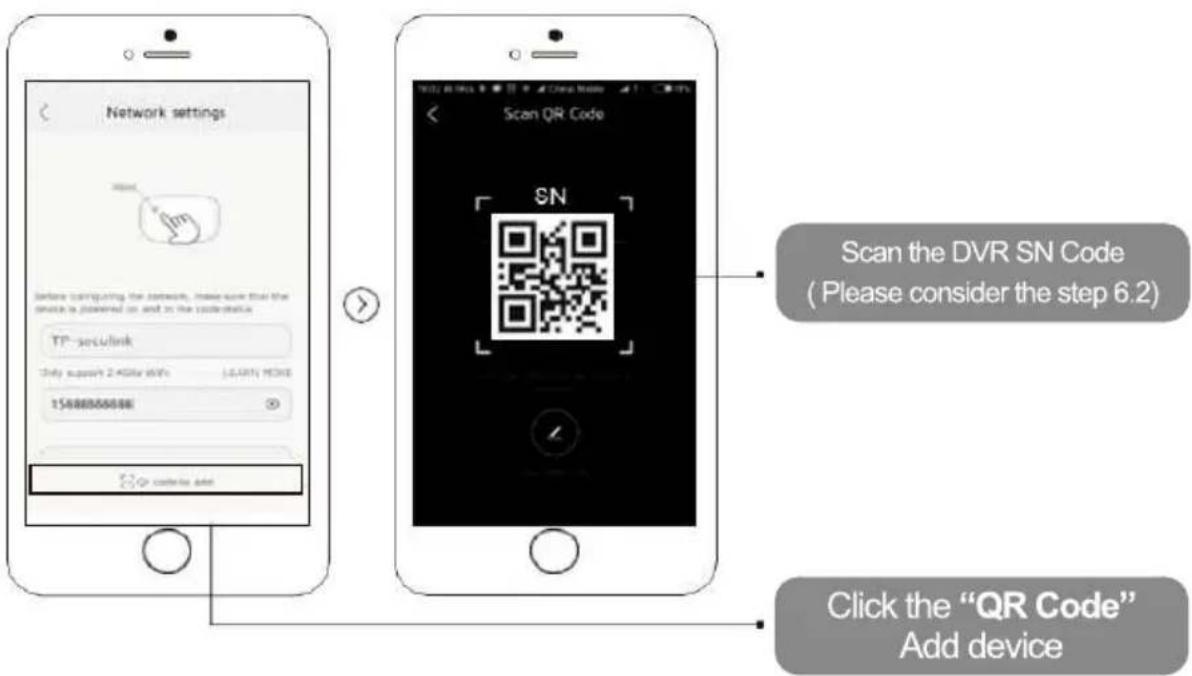

1. Use the registered account to login, Click "Add Device". As shown below:

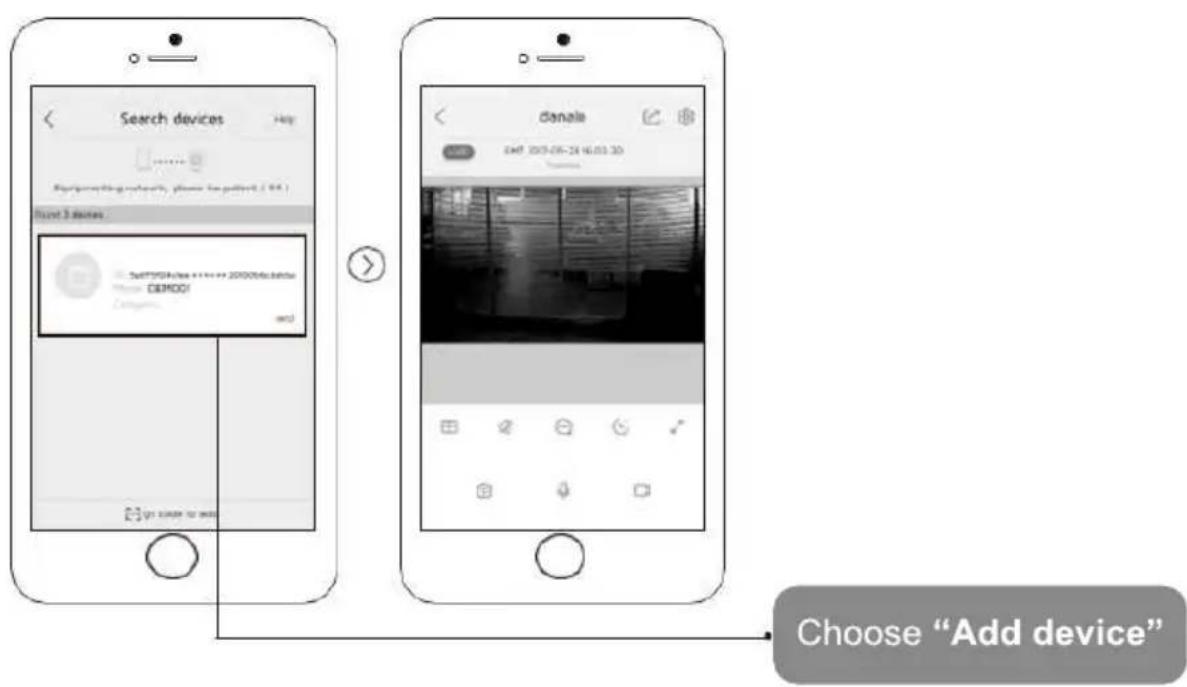

1. Click "Add" then can remote control DVR. As picture shows:

1. Click "Add" then can remote control DVR. As picture shows:

7. CMS

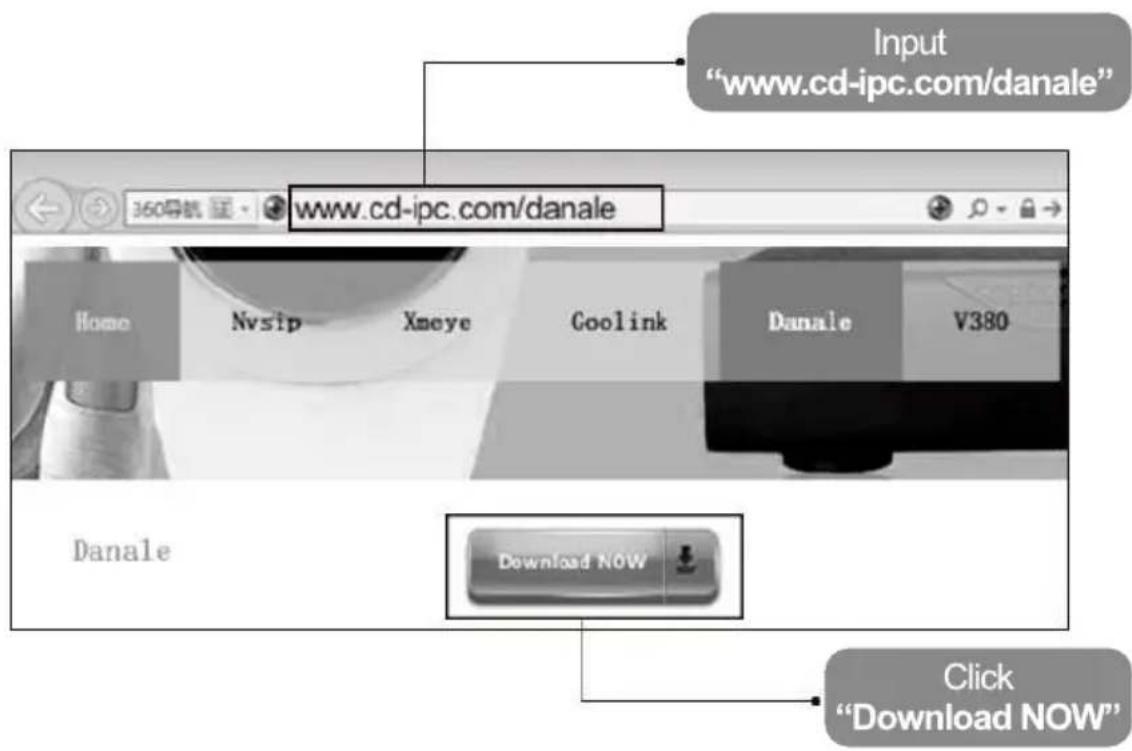

1. Input "www.cd-ipc.com/danale" to IE, Click the "CMS", to download and install this software. As picture shows:

1. Open the "Danacms", input the account and password as you just registered. As picture shows:

1. Login successfully, enter the software main interface, click "My device". As picture shows:

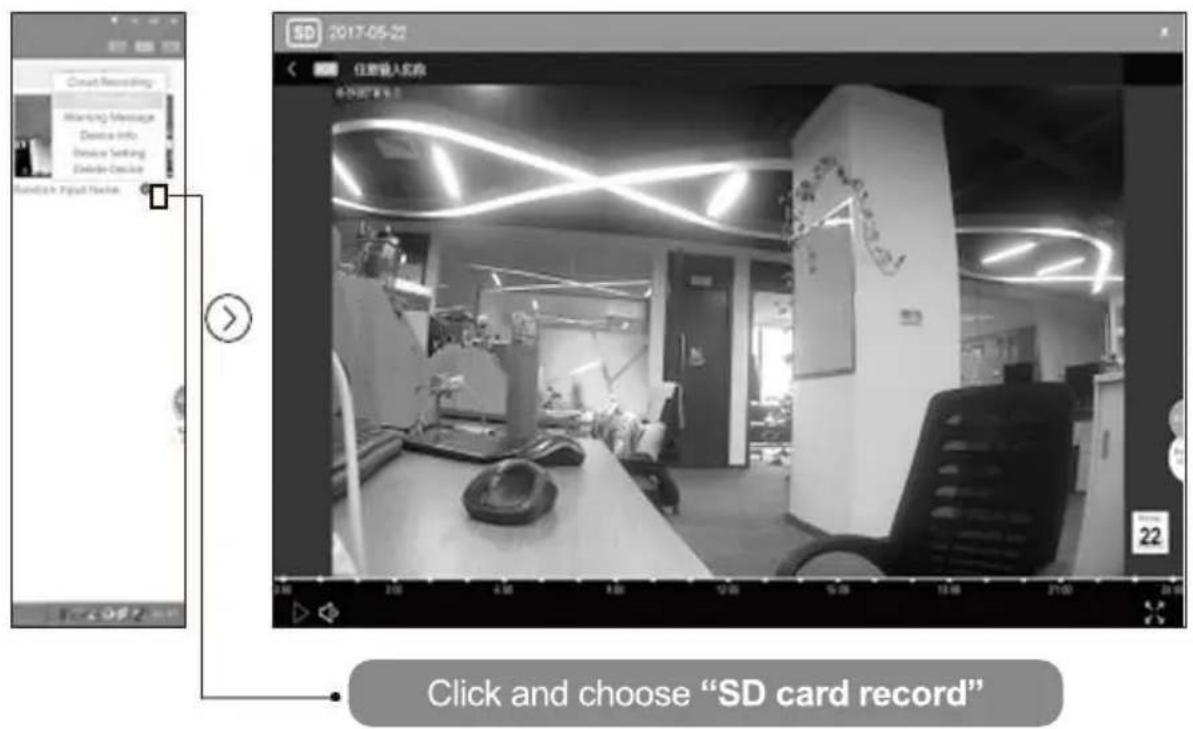

1. Playback: Click icon ☐, select "SD card record" can play back. If customers purchase Cloud Storage, select "Cloud Record" can paly back. As picture shows:

Q 1: The DVR can not start normally

A: 1. Non-compatible power supply.
2. Failure in the power supply.
3. Damage to the power adapter.
4. Damage to the hard disk or problem with the hard drive cable.

Q 2: Forget the password.

A: 1. Contact Qian technical support at Tel. [phone] and / or [e-mail]

Q 3: The DVR reboots automatically or stops working after boot up a few minutes

A: 1. The input voltage is unstable or too low.
2. The hard drive cable may be incorrectly connected, or the hard disk may be damaged.
3. Overheating of the unit, too much dust, the unit may be in an unfavorable operating environment.

Q 4: After booting, my DVR does not detect the hard drive

A: 1. Check the power connection of the hard disk in the DVR
2. Check for possible damage to the hard drive cables.
3. Check that the hard drive cables are connected correctly.
4. Damaged hard drive.

Q 5: There is no video signal on a channel, multiple channels or all channels

A: 1. The software does not match. Please update the new software.
2. The brightness option in the DVR menu is 0, restore the default setting.
3. No video input signal or the signal is too weak.

Q 6: Video files can not be found in local playback mode

A: 1. Check that hard drive cables are connected correctly.
2. Damaged hard drive.
3. Update the software.
4. The recording function is disabled.
5. Do not enable the recording function.

Q 7: There is no audio signal in the surveillance channels

A: 1. Audio disabled.
2. The audio does not match the video channel.
3. Damaged audio cable.

Q 8: Wrong date and time format

A: 1. The time settings are incorrect.
2. Badly installed internal battery.
3. Low voltage.

Q 9: The DVR can not control the PTZ camera

A: 1. PTZ camera failure.
2. Configuration, connection or installation of the wrong PTZ decoder.

1. Incorrect configuration in the PTZ function of the DVR.
2. PTZ decoder and DVR protocols do not match.
3. Too much distance between PTZ camera and DVR.

Col. Agua Blanca Industrial, Zapopan

Col. Agua Blanca Industrial, Zapopan

Qian S.A. de C.V., will warranty this product in all its parts and workmanship for the period of 12 months, counting from the date of purchase against defects in manufacture and operation during normal and domestic use of this product.

Qian S.A. de C.V. warranty the buyer the absence of manufacturing and operation anomalies including parts and components of the product or in relation to materials.

1. This policy covers only products marketed by Qian S.A. de C.V., through its authorized distributors within the Mexican Republic and United States of America.
2. For the validation of this, the defective product must be presented together with this warranty policy completely filled out and stamped by the distributor that made the sale or the invoice, receipt, or proof of purchase in the place where the product was purchased, or in the National Service Center.

1. Qian S.A. de C.V. may use new parts, refurbished or used in good condition to repair or replace any product at no additional cost to the consumer, as long as the warranty period specified in this policy has not been completed.
2. If the product does not have repair, change a similar product or superior characteristics is generated.
3. The repair time will not exceed 30 calendar days from the date of receipt of the product by Qian S.A. de C.V. or its Authorized Service Center.
4. Qian S.A. de C.V. will cover shipping costs required for presentation of the product within the network of authorized service centers.

Exclusions:

Qian S.A. de C.V. will not validate this warranty policy in the following cases:

• When the product has been used under normal conditions..
• When the product had not operated according to the instructions of use that accompanies it.
• When the product has been altered or repaired by unauthorized persons

by Qian S.A. de C.V.

For warranty purposes, as well as procurement of components, consumable parts and accessories www.qian.mx can request information or contact any Authorized Service Center Qian S.A. de C.V.

Col. Agua Blanca Industrial, Zapopan

Col. Agua Blanca Industrial, Zapopan

Warnings regarding the safety of Direct Current (DC)

WARNING: Place the Kit 4 Cameras 4 Channels near a DC outlet. The DC power cord is the primary means of disconnecting your DVR Kit and cameras and should always be within reach. Connect the power cord only to grounded outlets to avoid the risk of electric shock.

WARNING: Always disconnect the DC power cord when installing or removing the DVR or camera cover.

WARNING: Do not operate the 4 Cameras 4 Channels Kit without the cover of the DVR or cameras.

WARNING: The user should not perform any type of repair of the power supply. To avoid damage to the power source, entrust your repair or replacement to only a qualified person. The user can carry out the maintenance of the rest of the components.

CONSUMPTION INPUT12VDOC
