Product Type	Dash Cam (Dashboard Camera)
Model	Xblitz S8
Dimensions (HxWxD)	67 x 58 x 41 mm
Display Screen	2 inch
Processor	NTK96675
Image Sensor	Sony IMX335 Starvis
Lens	6G+IR
Viewing Angle	140 degrees
Video Resolution	Up to 2560x1440p (1440p)
Video Format	MP4
Loop Recording	Yes, selectable intervals (e.g., 1/3/5 min)
G-Sensor	Yes, with adjustable sensitivity; auto-protects recordings on impact
Parking Mode	Yes, records when motion/shake detected while parked
Motion Detection	Yes, triggers recording on motion in standby
Sound Recording	Yes, built-in condenser microphone
Time-Lapse Recording	Yes
Memory Card Support	microSD up to 256GB, Class 10 or higher
Power Supply	5V via car charger (12/24V socket) or mini USB
Battery	Built-in rechargeable; up to 5 minutes of recording
Package Contents	Camera, Charger, Holder, USB cable, Memory card reader, Manual
Warranty	24 months
Manufacturer	KGK Trade, Poland

Frequently Asked Questions - S8 Xblitz

Why won't the camera turn on?

Charge the battery before first use. If the screen flickers or doesn't turn on, ensure the battery is sufficiently charged and the power cable is connected properly.

Why does the camera not turn on/off automatically with the car?

This may be due to a constant power supply in the lighter socket. If the socket stays powered even when the car is off, the camera will remain on. Use a switched socket or manually turn off the camera.

Why does the camera restart while driving?

Check the power connection: ensure the charger is firmly plugged in and the cable is not loose. A poor connection can cause intermittent power loss.

Why does the camera not record in loop or records randomly?

Verify that Motion Detection and Parking Mode are turned off while driving. These modes can interfere with loop recording because they trigger recordings based on motion.

Why does the camera display 'Memory card full'?

Check the G-Sensor and Parking Mode settings; set sensitivity to minimum to prevent protecting unimportant files. Also, format the memory card to FAT32 on a computer, then format it again in the camera.

Why is the recorded sound distorted or noisy?

The camera has a sensitive condenser microphone. Avoid placing the camera near air conditioning vents, as airflow can cause distortion. Overlapping sounds from the surroundings may also degrade quality.

What should I do if the camera becomes unresponsive?

Press the RESET button on the camera using a paperclip, or restore factory settings via the menu. This will reboot the device and clear any temporary glitches.

Why do vertical stripes appear on the video?

This is caused by an incorrect screen refresh rate setting. Change the frequency to 50 Hz or 60 Hz depending on your local power grid frequency.

How do I install the memory card?

Ensure the camera is turned off before inserting or removing the microSD card. Insert the card with the metal contacts facing the screen until it clicks. Use a class 10 card formatted to FAT32.

Can I use a different charger?

Only use the original charger included in the package, which outputs 5V. Using a non-original or higher voltage charger can damage the camera or battery and poses a safety risk.

USER MANUAL S8 Xblitz

User's manual in English lanugage - EN

Abstract geometric shape with diagonal light gray fill on white background, no text or symbols present

Xblitz®

[S8]

INSTRUKCJA OBSŁUGI

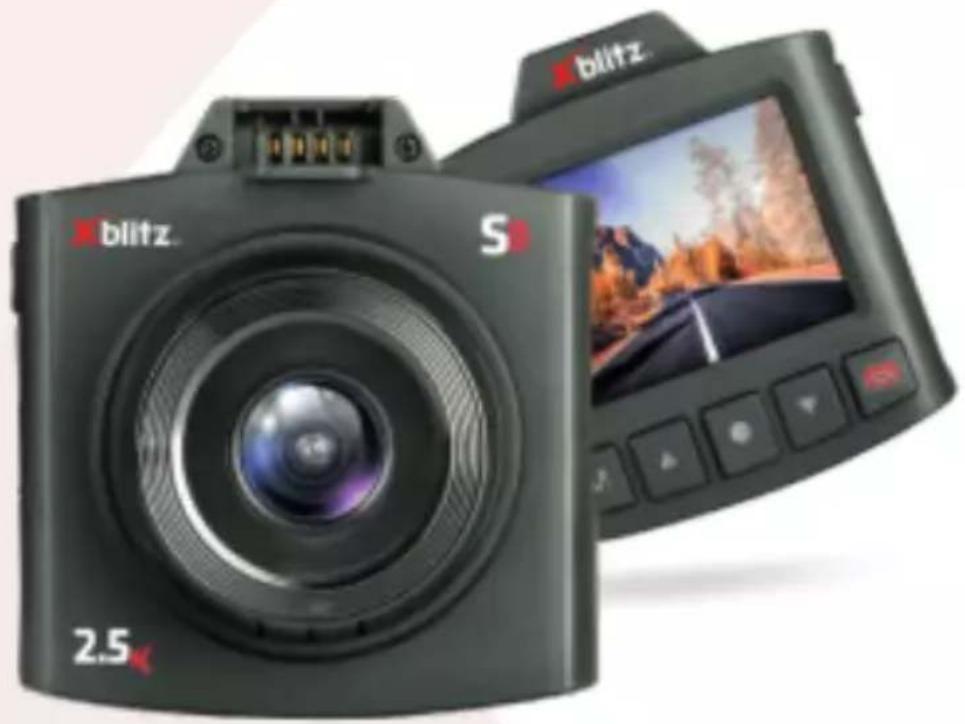

Two black BLITZ brand telephoto cameras with camera lens and display screens, no visible text or symbols on the devices themselves.

PL

Xblitz.

Close-up of a black mechanical device with a red label showing the number 4 (no visible text or symbols on the device itself)

Xblitz®

02. PRZED UŻYCIEM

Producent:

KGK Trade sp. z o.o. sp. k.

ul. Ujastek 5B

31-752 Kraków

Polska

Two black BLITZ brand telephoto cameras with camera lens and display screen (no visible text or symbols on main body)

Xblitz®

Thank you for purchasing our product - we hope it will satisfy your expectations.

This product is a dashboard camera, powered by a 12/24V socket, designed for use in cars for recording the vehicle's path. Additionally, it has an active holder providing power to the camera, which makes for easy assembly and disassembly of the set. The product is made out of materials of the highest quality.

Please read the user's manual before use.

01. PACKAGE CONTENTS

1. Camera
2. Charger
3. Memory card reader
4. Holder
5. USB cable
6. User's manual

Black camera with lens and control panel, no visible text or symbols on body

Close-up of a black cable with a red label '2' on the right side (no other text or symbols visible)

3

Close-up of a black mechanical device with a red label showing the number 4 (no visible text or symbols on the device itself)

Close-up of a black USB cable with a red square label containing the number 5 (no text or symbols on the cable itself)

Xblitz®

02. BEFORE USE

1. Using brand microSD memory cards (from 16GB to 256GB of memory) with speed class 10 is recommended.
2. Before putting the card into the camera, it needs to be formatted to FAT32 file system on your computer, and then again in your camera..
3. The memory card should be installed when the device is turned off, otherwise you can damage the card and the device. The same is true for taking out the memory card.
4. A fully charged battery lets the camera record video with no power supply for maximally 5 minutes. The battery's primary purpose is ensuring that the device's settings won't be reset due to lack of power.
5. When the memory card gets full, the oldest unprotected recordings will be overwritten.
6. It is recommended that you use the device's functions as intended. Do not use MOTION DETECTION and PARKING MODE when driving, as it can cause the device to turn on and off by itself, e.g. when you stop at a crossroads.
   It is recommended to set the G-SENSOR option to minimum to avoid protecting unimportant files and loss of space on your memory card.
   The memory card has to be formatted to FAT32 file system, first on a computer and then in the camera.
7. Sound: The device has a condenser microphone that continuously records all of the surrounding sounds. The sounds can overlap and cause distortion.

POWER	Hold for 3 sec. to turn the camera on and off.
MODE	A short press outside of menu (when the camera isn't recording), switches betweenVIDEO/PHOTO/VIDEO PLAYmodes.When playing video, pressing the button stops the video playback.
UP	InMENUandVIDEO PLAYmode, the button is used to navigate through options.Invideo mode, ashort press turns parking mode on and off.During video playback, the buton rewinds the video.
OK	Invideo mode, short press turns video recording on and off.Inphoto mode, short press takes a photo.Invideo playmode, short press works as PLAY/ PAUSE.In menu and video play mode, short press confirms choices.
DOWN	InMENUandVIDEO PLAYmode, the button is used to navigate through options.In video mode, the button turns sound recording on and off.
MENU	Pressing the button opens a contextual menu (unless the camera is recording). Pressing it again takes you back to the general menu.During video recording, pressing the button protects the current recording from being overwritten.
RESET	Pressing the button resets the camera and restores default settings.

Xblitz®

05. CAMERA ASSEMBLY

CAMERA ASSEMBLY MANUAL

1. Pick a spot to place your camera. It is best to place your camera in a place that makes as much space in front of the vehicle as possible visible on the display screen. Make sure that the camera will not obscure the driver's line of sight when driving.
2. Mount the holder on the windshield and then place the camera in the holder.
3. Place the USB cable as shown in the picture above.
4. Connect the miniUSB plug to the camera.
5. Connect the charger to the 12V lighter socket.

1. Mount the camera and connect it to the power supply
2. Put in a microSD memory card, formatted to FAT32 file system.

WARNING!

The card should be put in and take out only when the device is turned off.

The manufacturer does not guarantee compatibility with all micro SD cards on the market. A list of recommended cards can be found at www.Xblitz.pl in the S8 tab.

Xblitz®

1. Set the:

a. Time and date.
b. Loop recording (set the time of recordings). If you turn loop recording off, files will not be overwritten.
c. Set the highest resolution available.
d. Set the G-Sensor to the lowest sensitivity available, so that the camera doesn't save unnecessary video files when you drive on uneven roads.
4. Make sure that MOTION DETECTION and PARKING MODE are turned off. If they remain turned on when you're driving, they will interfere with your recording. Turning the parking mode on is recommended only when you leave your vehicle parked.

PARKING MODE can be quickly turned on and off when recording by using the UP button.

1. The camera will start recording automatically when you turn the engine on (unless your car has a constant power supply in its lighter socket).

EN

07. MAIN FEATURES OF THE CAMERA

1. Camera mode

The camera has 3 modes of operation:

a. Recording mode: the camera records video.
b. Photo mode: the camera takes pictures.
c. Video Play mode: browsing the footage recorded by the camera.

2. Loop recording

The camera divides the recordings into files of length of your choice. When the memory card is full, the oldest recording will be overwritten.

3. Resolution

The camera can record in many resolutions. The higher the resolution, the better the quality of recordings, at the cost of more space on the memory card being taken. It is recommended that you use the highest resolution available.

4. G-Sensor

Gravity sensor. When the sensor is turned on and your car is hit, the recording from the event will be protected from overwriting. Using the lowest sensitivity setting is recommended, as at higher settings the sensor can trigger when you drive on uneven roads and fill up your memory card with files that won't be overwritten.

5. Parking mode

When it's turned on, the camera left in your car (if connected to power supply) registers the car shaking (for example, due to a parking crash), turns on and starts recording (the recordings are automatically protected from being overwritten). Turning the parking mode off when driving is recommended. It can block the loop recording function.

Xblitz®

6. Motion detection mode

When it's turned on and you leave the camera in standby mode, plugged to power supply, the camera will turn on and record a short video if it detects motion.

7. Sound recording

The camera can record sound along with video footage.

8. Time-lapse recording

In this mode, the camera records time-lapse videos instead of regular ones.

08. SAFETY MEASURES

1. Do not disassembly or interfere with the camera. If the device is faulty, contact the service point.
2. Only use the original accessories.
3. Use only the original charger, included in the set. Using a different power supply can affect the battery negatively.
4. Do not use the device for purposes that are against the law of the country or region you are in.
5. The operating temperature of the device is 0 - 35°C. Storage temperature is 5°C to 45°C. Operating air humidity is 5-90% without condensation.
6. Avoid damaging the device with physical force.
7. Clean the device, especially the lens. Do not use detergents or other chemicals when cleaning the device.
8. Clean the device only when it's disconnected from the power supply.
9. Keep the device away from children.
10. Do not expose the device to very high temperatures and fire.

09. FAQ

1. The device doesn't turn on, the screen is flickering.

Charge the device's battery before using the device.

1. The device doesn't turn on/off automatically.

This can be caused by a constant power supply in the car's lighter socket.

1. The device restarts when driving.

Check the power supply.

1. The device doesn't record in loop (or records randomly).

Check the "Motion detection" and "Parking mode" settings - both should be turned off when driving.

1. The device displays a "Memory card full" message.

Check "G-sensor" and "Parking mode" settings and set them to minimum.

The memory card should be formatted to FAT32 file system, first on a computer and then in the camera.

1. The device records noise or distorted, unclear sound.

The device has a very sensitive microphone that records sound from the surroundings. The recorded sounds can overlap. Air conditioning blowing air on your front windshield can also affect the sound recorded.

Xblitz®

7. The device doesn't respond.

Press the RESET button or restore factory settings.

8. There are vertical stripes on the recording.

Wrong screen refresh rate setting. Change the frequency to "50Hz" or "60Hz", depending on the local settings.

Due to constant improvement of our products, the manufacturer reserves the right to making changes in the device and its set without prior information, some of the functions described in this manual can slightly differ in reality.

EN

WARNING! Use only the original charger with 5V power output. (Do not connect directly to a 220V/230V power socket).

Not following the instructions can lead to damaging the camera or dangerous situations.

WARNING! Playing files on a computer:

The camera does not have a mass memory drive mode. To play the files on a computer, take the memory card out of the device and use a memory card reader to connect it to a computer.

WARNING! The camera can heat up when recording, it's normal and not a fault of the product.

Xblitz®

10. SPECIFICATION

CPU	NTK96675
Video resolution	Max 2569x1440p
Sensor	SONY IMX335 Starvis
Lens	6G+IR
View angle	140 degrees
Dimensions: height/width/depth	67x58x41mm
Display screen	2 inch
Memory	Micro SD cards, up to 256GB; speed class 10
Video format	MP4
Power supply	5V
USB	Mini USB (alternative power supply)
Microphone/Speaker	Built-in
Battery	YES, built-in

Full version of the manual can be downloaded on www.Xblitz.pl in the S8 product tab.

11. WARRANTY CARD/ COMPLAINTS

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: https://xblitz.pl/warranty/

Complaints should be reported using the complaint form located at: http://reklamacje.kgktrade.pl/

Details, contact and website address can be found at: www.xblitz.pl

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

Xblitz®

EN

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19 / EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

Manufacturer:

KGK Trade sp. z o.o. sp. k.

Ujastek 5B

31-752 Cracow

Poland

Made in P.R.C.
