AP-545MV - Headphones Sven - Free user manual and instructions

Type	Over-ear headphones with microphone
Connectivity	Wired, 3.5 mm jack
Driver Diameter	40 mm
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω
Sensitivity	105 dB
Microphone Sensitivity	-42 dB
Cable Length	1.5 m
Weight	180 g
Dimensions (W x H x D)	200 x 180 x 90 mm
Power Supply	Passive (no battery required)
Features	Adjustable headband, padded ear cushions, rotatable microphone, volume control on cable
Care & Cleaning	Wipe with a soft dry cloth. Do not use solvents.
Safety	Do not use at high volume for extended periods to prevent hearing damage.
Spare Parts & Repairability	Replaceable ear pads and cable (standard 3.5 mm plug). Contact Sven support for spare parts.
General Information	Manufacturer: Sven. Model: AP-545MV. Compatible with PCs, laptops, smartphones, and other devices with 3.5 mm jack.

Frequently Asked Questions - AP-545MV Sven

How do I connect the Sven AP-545MV headphones?

Plug the 3.5 mm jack into the audio port of your device. If your device has separate microphone and headphone jacks, use the adapter if included.

The microphone is not working. What should I do?

Check that the microphone plug is fully inserted. Ensure the mute switch on the cable is off. Test on another device to isolate the issue.

Can I use these headphones with my smartphone?

Yes, the AP-545MV works with any device that has a standard 3.5 mm headphone jack, including most smartphones and tablets.

How do I clean the headphones?

Wipe the ear cushions and headband with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth, but avoid getting moisture into the drivers.

Are the ear cushions replaceable?

Yes, the ear pads are removable and can be replaced if worn out. Contact Sven customer service for compatible replacements.

What is the cable length?

The cable length is approximately 1.5 meters (5 feet), which provides ample freedom of movement.

Does the headphone have a volume control?

Yes, there is a volume adjustment slider on the cable, as well as a microphone mute switch.

Can I use the headphones without the microphone?

Yes, you can use them as regular headphones. The microphone does not affect audio playback if not used.

How do I store the headphones when not in use?

Store them in a dry, cool place, preferably in a pouch or case to protect from dust and damage. Avoid folding the headband excessively.

What should I do if the sound is distorted?

Check the volume level on both the device and the headphone cable. Ensure the jack is fully inserted. If distortion persists, try another audio source.

USER MANUAL AP-545MV Sven

Black Sveni headset with earbuds and microphone (no visible text or symbols)

Congratulations on your purchase of the SVEN headphones!

APPLICATION

Sven AP-545MV stereo headphones with a microphone are designed for operation with PC sound cards and other compatible systems. They can be also used in VoIP telephony, video conferencing, multimedia applications, interactive games, for speech recognition and learning foreign languages.

SAFETY PRECAUTIONS

• Don’t use the stereo headphones while driving.
• Don’t use the stereo headphones at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.

SPECIAL FEATURES

• 2*3.5 mm (3 pin) connector for PC
• Unilateral connection of the cable
  • Volume control on the left headphone
• Adjustable headband
• Heavy-duty non-tangling cable with fabric braid
• Extra cable attachment support

• Connect the headphones connector to the audio output jack of your audio source (PC, laptop, MP3 player), as shown in Fig. 1.
• Insert the microphone connector into the microphone input jack of your audio source.
• Adjust the headphones volume level as desired with the volume control wheel on the left headphone.

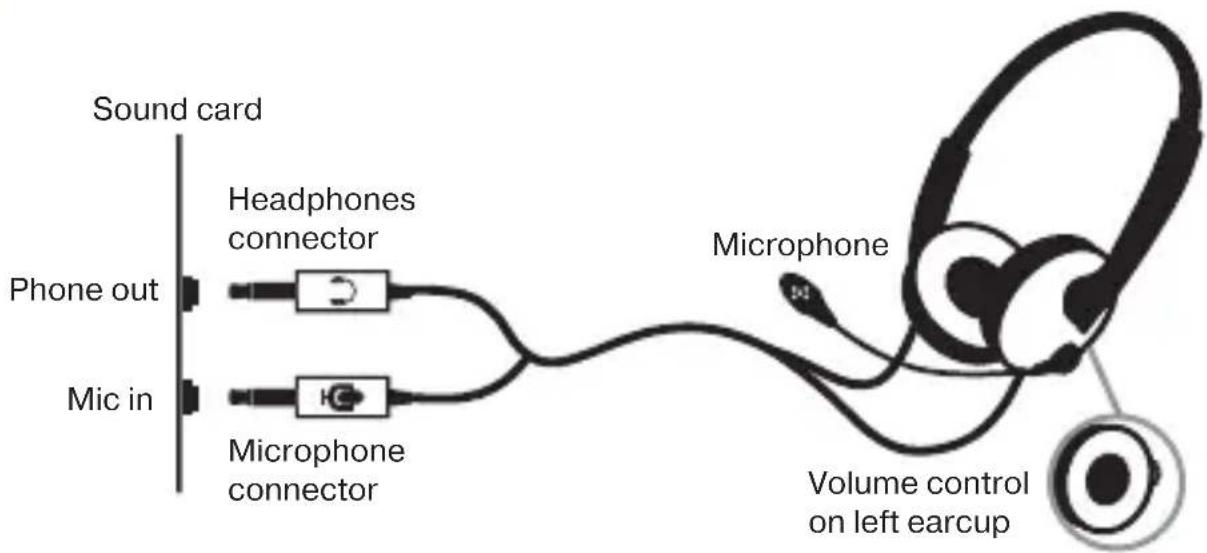

Fig. 1. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensitivity, dB	headphones: 106 ± 2microphone: -48 ± 3
Frequency range, Hz	headphones: 20 – 20,000microphone: 50 – 16,000
Membrane, mm	∅ 40
Connector type	∅ 3.5 mm (3 pin) stereo mini-jack
Cable length, m	2.2
Weight, g	160

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

Stereo Headphones with Microphone

SVEN®

YOU WANT - WE CAN

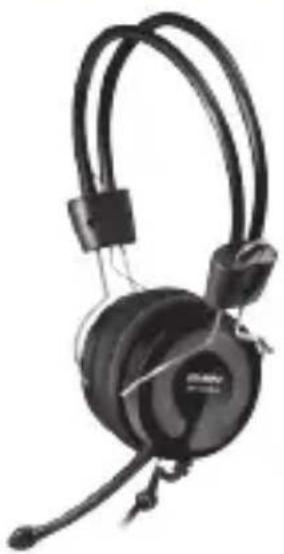

Black and white photo of a portable electronic headset with earbuds and microphone (no visible text or symbols)

Model: AP-545MV

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.

AP-545MV
