Product Type	Air Purifier
Brand	Samsung
Model	AX34T3020WW
Dimensions (H x W x D)	Approx. 500 x 400 x 200 mm
Weight	Approx. 6 kg
Power Supply	220-240V ~ 50Hz
Power Consumption	50W (max)
Filtration System	Pre-filter, HEPA H13, Activated Carbon
CADR (Smoke/Dust/Pollen)	250 m³/h
Coverage Area	Up to 30 m²
Fan Speeds	4 (Sleep, Low, Medium, High)
Auto Mode	Yes, with PM2.5 sensor
Timer	1-8 hours
Filter Replacement Indicator	Yes
Noise Level	20-50 dB
Maintenance	Clean pre-filter every 2 weeks; replace HEPA/carbon filter every 6-12 months
Safety Features	Auto shut-off when front cover is opened; overheat protection
Spare Parts	Replacement filter: Samsung Certified (model CFX-034)
Repairability Index	7.5 / 10

Frequently Asked Questions - AX34T3020WW SAMSUNG

How often should I clean the pre-filter?

The pre-filter should be cleaned every 2 weeks with a vacuum or water to maintain airflow. If it's very dirty, clean more frequently.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the 'Filter Reset' button (or a combination of buttons depending on model) for 3 seconds until the indicator light turns off. Refer to the manual for exact steps.

What is the recommended room size for this purifier?

This model is designed for rooms up to 30 m² (approx. 323 sq ft). For larger rooms, consider a higher CADR unit or use multiple units.

Can this air purifier remove smoke and odors?

Yes, the activated carbon filter effectively absorbs smoke, cooking odors, and VOCs. The HEPA filter captures fine particles from smoke.

Is the Samsung AX34T3020WW energy efficient?

With a maximum power consumption of 50W, it's energy efficient. On low speed, it uses even less power. It complies with EU energy regulations.

How often do I need to replace the HEPA and carbon filters?

Under normal use, replace the combined HEPA/Carbon filter every 6-12 months. The actual lifespan depends on air quality and usage. The filter replacement indicator will alert you.

Is the purifier loud on high speed?

On high speed, the noise level is around 50 dB, similar to a quiet conversation. On sleep mode, it's as low as 20 dB, so it's suitable for bedrooms.

Where can I purchase replacement filters?

Replacement filters can be bought from Samsung's official website, authorized retailers, or online marketplaces. Use model CFX-034 or check compatibility with AX34T3020WW.

Does the purifier have a timer function?

Yes, you can set a timer from 1 to 8 hours. After the set time, the unit will automatically turn off. This helps save energy.

What safety certifications does this device have?

It has CE and RoHS certifications. It also features automatic shutdown if the front cover is opened, preventing accidents.

USER MANUAL AX34T3020WW SAMSUNG

• Thank you for purchasing this Samsung air purifier.
• Before operating this unit, please read this user manual carefully and retain it for future reference.

Directory

Safety Precautions 3

Confirmations before use 9

Accessories / Product specification 9

Checking the air purifier 10

Main body 10

Displayandbuttons11

Disassembling the filter 12

Assembling the filter 13

Using the air purifier 15

Turning the power on/off / Fan speed / Sleep mode / Filter reset function / 15 Lock function / Checking the air cleanness 16

Cleaning and maintenance 17

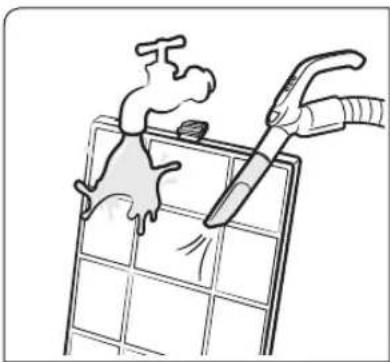

Clean and dry pre filter / 17

Cleaning the exterior of the air purifier / Cleaning the sensors 18

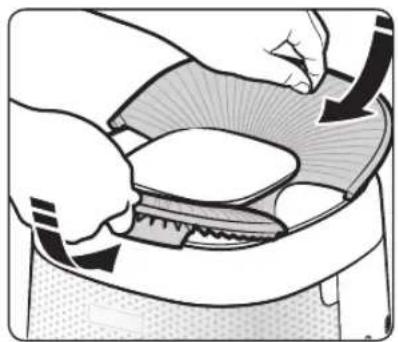

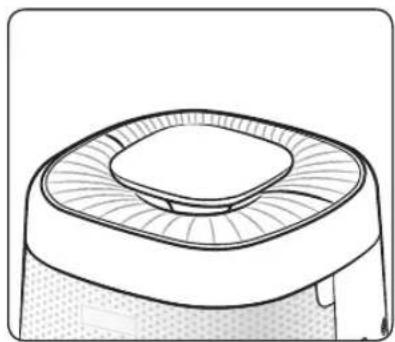

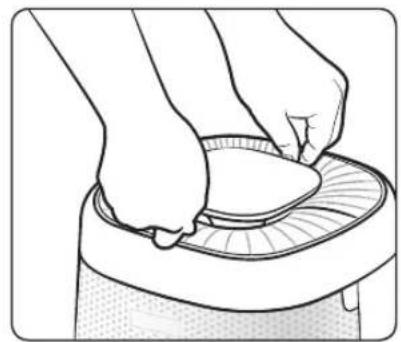

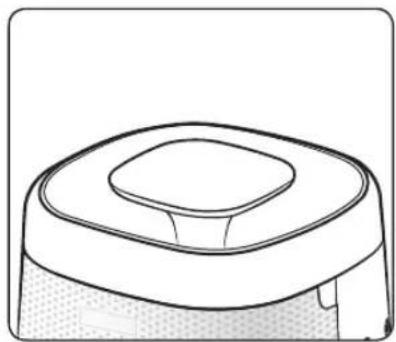

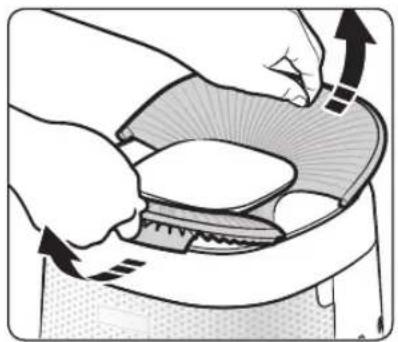

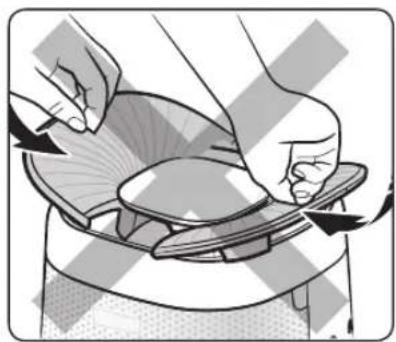

Cleaning the air outlet / Grille removal and assembling 19

Others 20

Troubleshooting 20

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Safety Precautions

These safety precautions are for owner's safety and preventions of property damage. Therefore, please read this manual thoroughly before using your product.

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Followdirections.

Do NOT attempt.

Unplug the power plug from the wall socket.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Plug the power cord into a wall socket with the power specifications of the product or higher and use the socket for this appliance only. Also, do not extend the power cord on your own.

• Sharing a wall socket with other appliances using a multi outlet power strip or extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or fire.
• If the voltage/frequency/rated current condition is different, it may cause electric shock or fire.

Do not install this appliance near a heater, inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where gas may leak.

- Failure to do so may result in electric shock or fire.

CAUTION

The appliance should be installed in a place where the power cord of the product can be easily pulled out.

- Failure to do so may result in electric shock or fire due to electric leakage.

Install your appliance on a level and hard floor that can support its weight.

- Failure to do so may result in abnormal vibrations, noise, or problems with the product.

When installing the appliance, allow enough space around the appliance.

• Space between both sides of the product and the wall: At least 60 cm or more, Space in front of the product: 25 cm or more
• If enough space for air intake is not provided, purifying capacity may deteriorate.
• Make sure obstacles such as a curtain do not block air inlet or outlet of the appliance.

When installing the product, make sure that no heavy objects are on the power cord (or cable).

- Failure to do so may result in electric shock or fire.

For power supply

WARNING

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

- Failure to do so may result in electric shock or fire.

When plugging in the appliance, the power plug should face downward.

- If the power plug faces in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.

When the product, power plug or power cord is damaged, contact your nearest service center.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

These instructions shall also be available in an alternative format, e.g. on a website.

Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord or loose wall socket.

- Failure to do so may result in electric shock or fire.

When unplugging the product, do not pull the power cord. Grip the power plug, and then pull the power plug.

- Failure to do so may result in electric shock or fire.

Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Do not hook the power line over a metal object, place a heavy object on the power cord, insert the power line between objects, or push the power cord into the space behind the appliance.

- This may result in electric shock or fire.

CAUTION

When the air purifier will not be used for a long period of time or during a thunder or lightning storm, disconnect the power supply.

- Failure to do so may result in electric shock or fire.

It is dangerous when the power cable gets damaged, therefore contact a service center or qualified experts for the repair.

Before cleaning or repairing the appliance, unplug the appliance.

For operation

WARNING

If the appliance is flooded, turn off the appliance and contact a service center.

- Failure to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke, disconnect the power supply immediately and contact a service center.

- Failure to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the appliance or power cord and contact a service center or a qualified technician.

• Do not use a ventilating fan.
• If there is a spark, explosion or fire may occur.

Do not unplug the appliance during operation.

- When plugging the appliance in again, flame may occur and it may result in electric shock or fire.

When a repair is needed, contact the service center.

- Failure to do so may result in a product malfunction, water leakage, electric shock or fire.

Do not touch the power plug with wet hands.

- This may result in electric shock.

Do not apply a force to or pull the product using excessive force.

- This may result in fire, injury, or a problem with the product.

After unpacking the air purifier, keep all packaging materials out of the reach of children.

- If a child places a bag over its head, it may suffocate.

Do not insert your fingers or a foreign substances into the air outlet while product is operating.

- Take special care that children do not injure themselves by inserting their fingers into the product.

Do not place an object near the product that makes it possible for children to climb onto the machine.

- The child could fall and injure themselves or the product may fall over and injure the child.

If water has entered the power supply module, unplug the power cable and dry the product completely before use.

- Failure to do so may result in electric shock or fire.

Do not put other foreign materials such as metal into the product.

- This may result in electric shock or injury.

Do not place heavy objects on the product.

- Failure to do so may result in a product malfunction or noise.

If a foreign substance such as water has entered the product, disconnect the power supply and contact the service center.

- Failure to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the product yourself.

• Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Failure to do so may result in electric shock, fire, a product malfunction or injury.

CAUTION

Keep a distance of about 2 m from other electric appliances such as a TV, video or audio device etc.

- Failure to do so may result in reduced video quality or noise.

Leave enough space between the product and a wall.

• Space between both sides of the product and the wall: At least 60 cm or more, Space in front of the product: 25 cm or more
• This products is designed to take the room air from the front side of the product for purifying process. Therefore, make sure there is no obstacles in front of the product and near air intake and outlet.

Do not stand on top of the product or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the product.

- This may result in electric shock, fire, a product malfunction or injury.

Do not tilt or turn the product upside down while the product is connected to the wall outlet.

- Failure to do so may result in a malfunction or fire.

Do not spray volatile material such as insecticide onto the product.

- As well as being harmful to humans, this may also result in electric shock, fire or a product malfunction.

Do not put the product into water.

- This may result in a product malfunction.

Do not operate the product with wet hands.

- This may result in electric shock.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For cleaning

WARNING

Do not clean the product by spraying water directly onto it. Do not use benzene, thinner, acetone or alcohol to clean the product.

- This may result in discoloration, deformation, damage, electric shock or fire.

Disconnect the power supply and stop the fan operation before cleaning the product.

- Potential risk of electric shock or fire.

CAUTION

Unplug the power plug before cleaning the product.

Confirmations before use

Accessories

Pure electrical circuit lines without any symbols

Pre filter 1EA

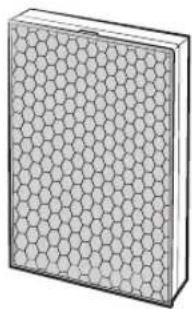

3D illustration of a rectangular block with a honeycomb pattern on top (no text or symbols)

2-in-1 filter 1EA (Deodorization Filter+Dust Collecting Filter)

User manual 1 EA

Product specification

Dimension of the product is based on maximum value of the measurement. Measurement may vary depending on the side.

For product improvement purposes, design and specifications of the product are subject to change without prior notice.

Model & Name	AX34T3020WW
Product dimension (W*H*D)	350 mm*540 mm*350 mm
Effective area	34 m^2^1)

^1) The area coverage value is in accordance with the Korea Air Cleaning Association (KACA) standard.

Checking the air purifier

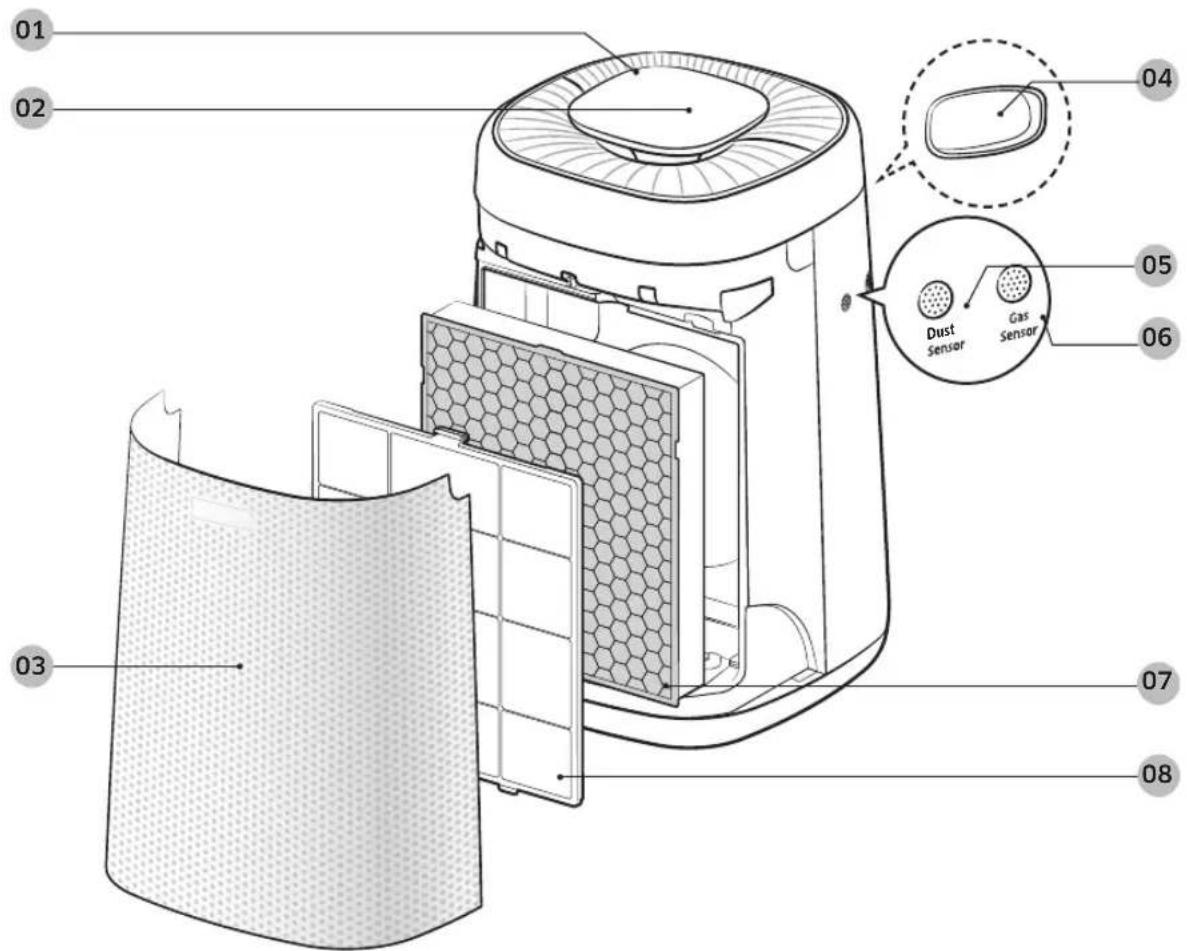

Main body

01 Air outlet

02 Display and buttons

03 Air inlet/ front panel

04 Handle (at the rear side)

05 Dust sensor

06 Gas sensor

07 2-in-1 filter (Deodorization Filter+Dust Collecting Filter)

08 Pre filter

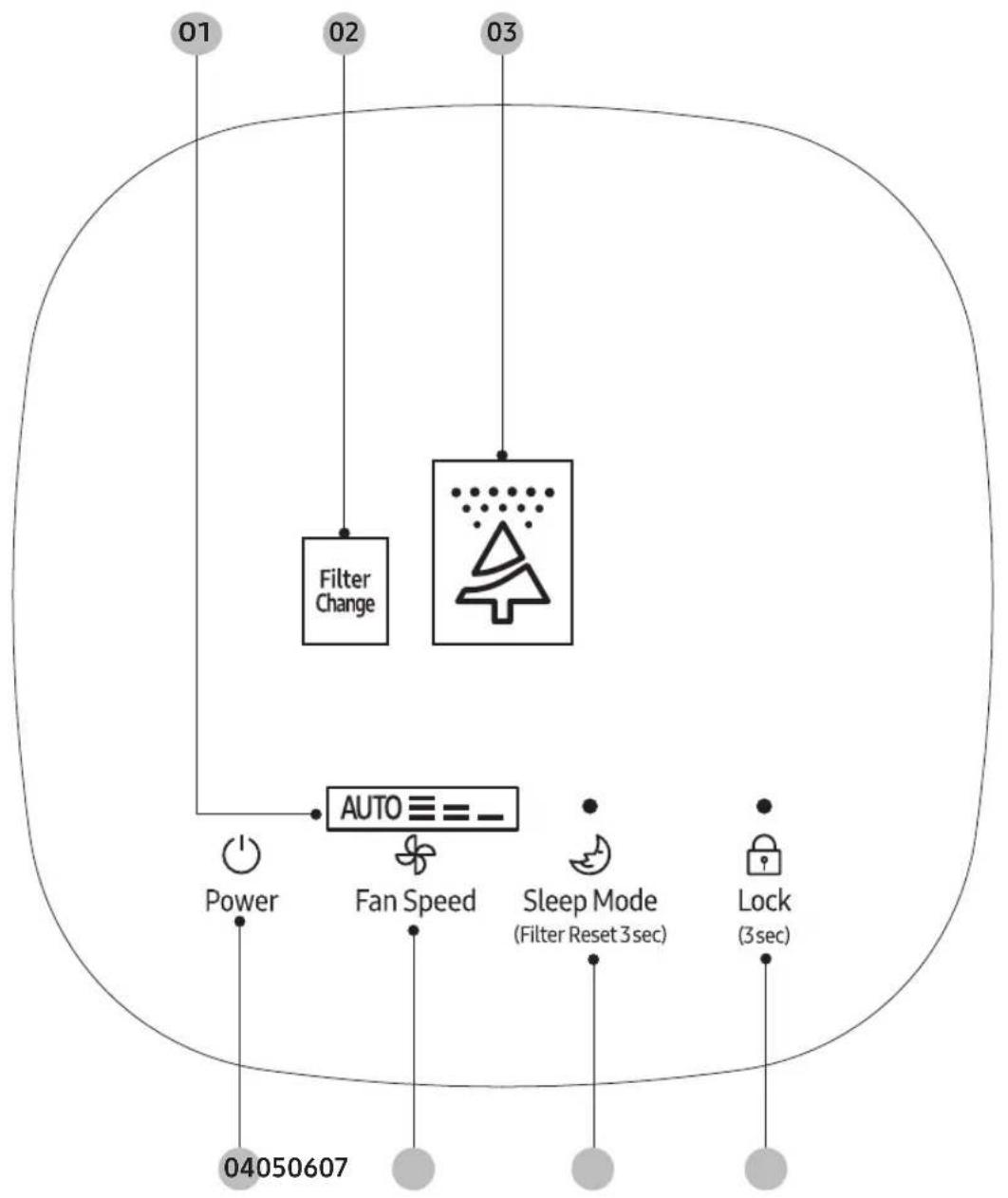

Display and buttons

01 Fan speed indicator
02 Filter replacement indicator
03 Comprehensive Air-quality indicator
04 Start/Stop button

05 Fan speed button
06 Sleep mode / Filter Reset button
07 Child-Lock button

Checking the air purifier

Disassembling the filter

When using the 2-in-1 filter for the first time or replacing them with a new set, remove the vinyl packaging first.

Illustration of hands adjusting a garment with a black arrow indicating a step (no text or symbols present)

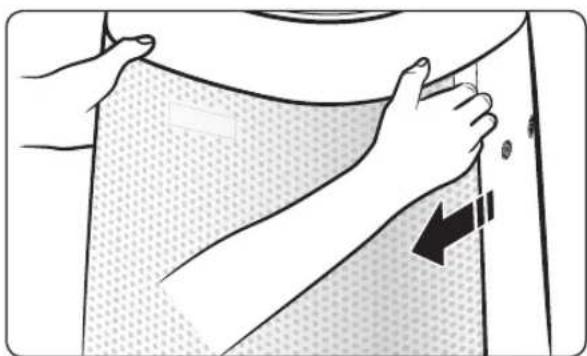

STEP 1 Open the cover front

▶ Press the top part of the product with your thumb and pull the cover front with other fingers.

Hand inserting a filter into a device panel with a black arrow indicating the direction (no text or symbols present)

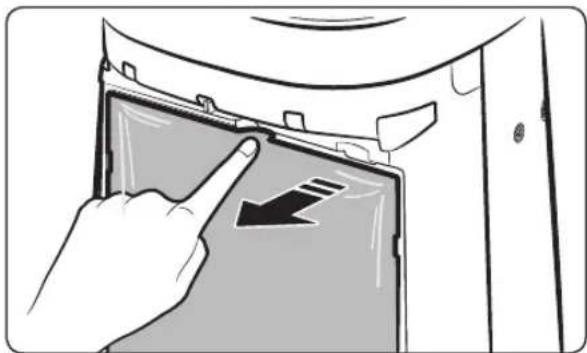

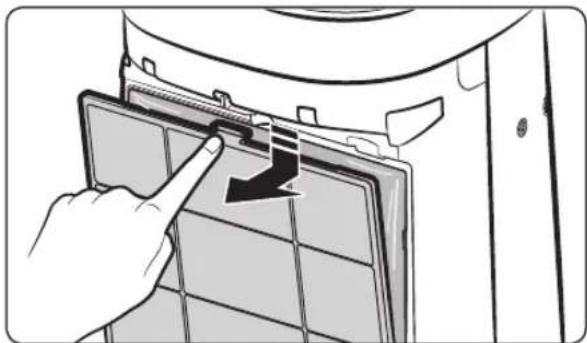

STEP 2 Disassemble the Pre filter

Illustration of a hand pressing down on a device panel with a black arrow indicating the button (no text or symbols present)

STEP 3 Disassemble the 2-in-1 filter

Illustration of two hands performing a task on a flat surface, no text or symbols present

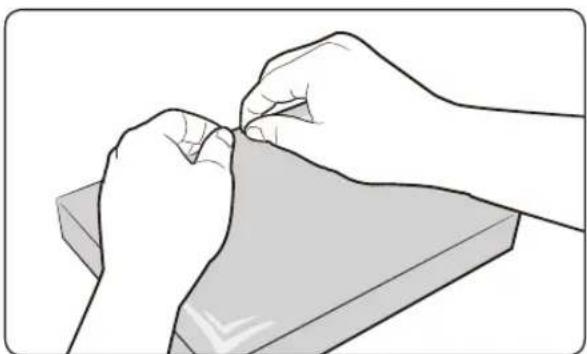

STEP 4 Replace the 2-in-1 filter

▶ Remove the vinyl packaging of the new 2-in-1 filter.

Assembling the filter

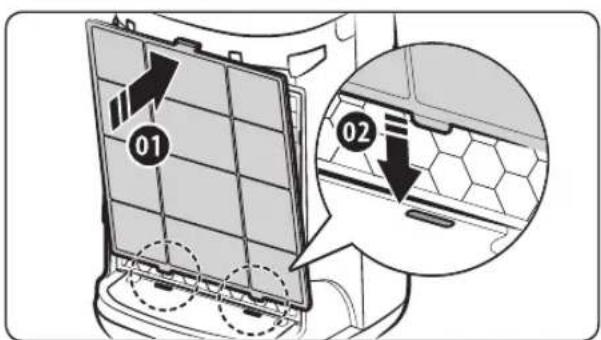

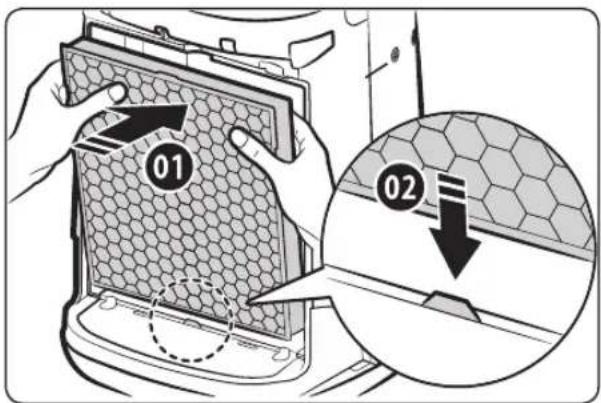

STEP 1 Put the 2-in-1 filter

▶ Insert the filter on the grooves at the bottom to fix the filter.

STEP 2 Put the Pre filter

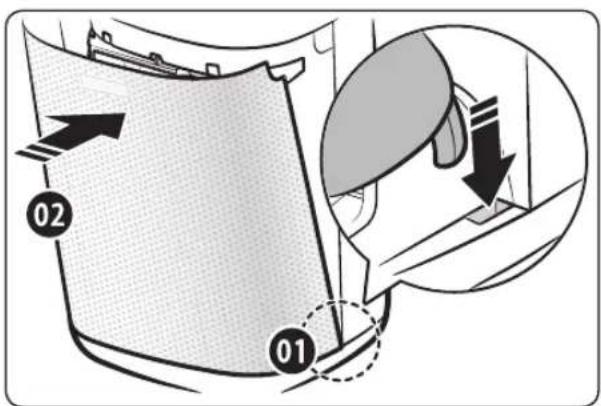

STEP 3 Close the cover front

▶ Insert the hooks on the grooves at the bottom first.

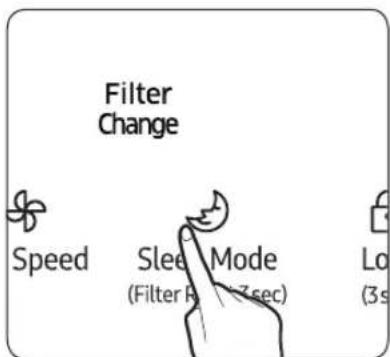

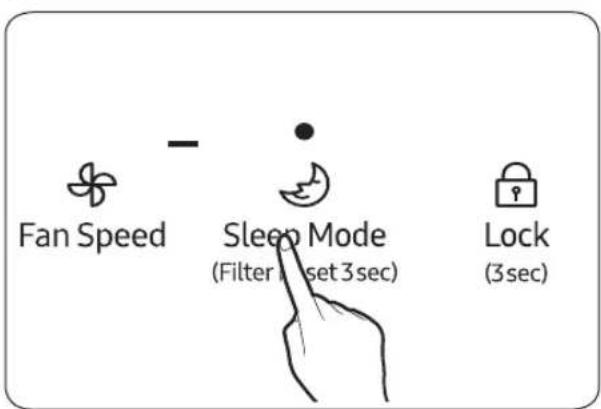

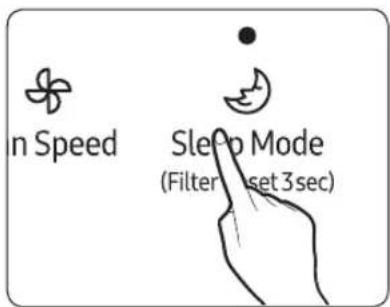

STEP 4 Insert the filter and reset the filter

▶ Press the[ ] button for more than 3 seconds.

Checking the air purifier

Using the filter

▶ If you operate the air purifier without the filters, air purification performance will decrease.
▶ New filter may smell strange when you operate the product for the first time after purchasing it.
- However, it will disappear naturally in few days.
▶ Please close the windows and doors when operating the product. However, concentration level of carbon dioxide may increase if you operate the product for a long time with windows closed. Therefore, ventilate the room regularly between use. When filter is saturated with just a weak odor, ventilating the room will help get rid of saturated odor.
▶ Carbon monoxide (CO) is a major harmful gas that cannot be filtered by the air purifier and it usually gets indoor from outside.
▶ Cleaning and replacement interval of the filter may vary depending on the operating environment.
▶ When using or replacing 2-in-1 filter, be sure to remove the plastic covered on the filter.
▶ If you operate the product without 2-in-1 filter, sound of the air flow can be abnormally loud. Make sure to insert the 2-in-1 filter before using the product.
▶ Deodorization function of the air purifier is effective when air is penetrates through the filter. Therefore when there's excessive odor in your room, ventilate the room first and use the air purifier afterwards to eliminate remaining odors for more effective deodorization.
▶ If you operate the air purifier during cooking a food that generates strong odor, lifetime of the Deodorization filter will be shortened significantly. Also if the odor is too strong, Deodorization filter may get saturated with the odor and you may smell that odor when you use the product after ventilating the room. Use the air purifier for eliminating the remaining odor after ventilating the room.
The filter replacement indicator will light up when the product has reached the maximum usages hours which was initially programmed. Therefore replacement cycle may vary depending on the operating environment.
▶ Do not wash the 2-in-1 filter with water. Always keep them away from moisture while the air purifier is in use.
▶ If you use the 2-in-1 filter for 24 hours per day, you can use it for six months to one year maximum. (If you use it less than that, the lifespan will be longer.) The lifespan is depended on the degree of air pollution. The more dust is accumulated, the shorter the lifespan of filter is.
▶ If the lifespan approaches to the end, the light is on. However, even before the light indicates the replacement timing, please replace it with new filter, if the filter is severely polluted, generates heavy odor or the wind is rapidly weakened.
The antibacterial ultra-fine filter is a high performance filter to remove fine dust and smoke particles in the air.
▶ The antibacterial ultra-fine filter is treated with anti-allergy process. It is effective to remove allergic materials.
▶ The charcoal deodorizing filter is high performance filter to effectively remove odor from toilet or cooking.
▶ If the 2-in-1 filter is saturated with odor and the air purifier stinks, please replace the new 2-in-1 filter.
▶ User needs to undertake filter replacement cost produced during the period of free maintenance.
▶ Replacement filters are available for sale from a Samsung retailer or a Samsung Service Centre.

Using the air purifier

Turning the power on/off

▶ The air purifier turns on with a ringing sound and begins purification.
▶ If you turn off the power and turn it back on, the product will operate in the last fan speed you used.

Fan speed

You can select desired fan speed when purifying the air.

▶ Press the [ ] Button to select the desired fan speed. Fan Speed
- Fan speed will be selected in following order repeatedly: Low→Auto→High→Medium→Low.

▶ If you select Auto, the air purifier will adjust the fan speed automatically according to dust and odor in the surrounding area to maintain clean indoor air quality.

Sleep mode

You can sleep comfortably in a quiet and comfortable indoor environment with the sleep mode.

▶ When the sleep mode runs, the sleep mode indicator light is on at the display.
▶ When the sleep mode runs, the lock function will not work.

Cancel

▶ Press the [ ] button or [ ] button. Sleep Mode (Filter Reset 3sec) Fan Speed

Filter reset function

This function let users know when to change the filter.

During operation of the air purifier, change with a new 2-in-1 filter if the [Filter] indicator is on and emits a beep; after change, long press the [Size Mode] button for more than 3 seconds to reset, during which the [Filter] indicator flashes twice while emitting the "Ringing" sound.
▶ In case of changing the filter due to other reasons even if the [Filter] indicator is not on, long press the [ ] button for more than 3 seconds to reset.

Lock function

You can lock the buttons to prevent the button from being pressed unwillingly, or by children.

▶ Press the [Lock] button for over 3 seconds, you can hear 'Ding' and the buttons will be locked.
▶ When buttons are locked, all the buttons will not work.
▶ Press the [Lock (3sec)] button for over 3 seconds.

Cancel

Checking the air cleanness

Comprehensive air-quality confirmation

The comprehensive air-quality indicator identification will be divided into four levels according to the cleanness of dust and gaseous pollutants (smell) and performed with different colors.
▶ Identification level of the comprehensive air-quality indicator:
Blue → Green → Yellow → Red
(Clean Polluted)

Remark

• In case of using fragrance, smell-removal spray, cleaning agent and other volatile odor products, the comprehensive air-quality indicator identification may vary.
• The comprehensive air-quality indicator is judged comprehensively according to the concentration level of dust and gaseous pollutants.
• The comprehensive air-quality indicator identification is displayed in color corresponding to the worst level amongst the dust and gaseous pollutant concentration. That is, the indicator is displayed in red when the concentration of gaseous pollutants appears serious pollution with the dust concentration in good condition.
• In the environment under the influence of electromagnetic wave, the comprehensive air-quality indicator identification may also be temporarily displayed in red.

Cleaning and maintenance

Clean and dry pre filter

Illustration of a hand using a tool to clean or remove a grid panel, with no text or symbols present.

Clean pre filter

▶ Remove big dust through dust collector in case of serious dust pollution, and then softly wash through warm water with neutral washing agent. - Pre Filter (clean intervals: two weeks, 24 hours each day)

CAUTION

- Brush or similar tools may damage the pre filter.

3D rendering of a rectangular solar panel with grid pattern, placed on a plain wall (no text or symbols)

Dry pre filter

· Dry completely in shade.

Cleaning the exterior of the air purifier

CAUTION

• Please make sure the air purifier is stopped, and pull out the plug from the power socket in the wall while cleaning.
  ▶ Dip a towel in warm water and wring it out before using it to clean the product.
  ▶ Use a cotton swab or exclusive cleaning (superfine fiber) cloth to clean the groove.
  ▶ If it's too hard to clean the dust on the cover front, remove the cover and wash it with water.

CAUTION

· Do not clean the air purifier with an alkali detergent.
- Do not clean the surface of the air purifier with sulfuric acid, hydrochloric acid or organic solvent (thinner, kerosene, acetone, etc.), or attach a sticker to the unit. This may damage the surface of the air purifier.

Cleaning the sensors

• If there's dust or foreign substances on the sensor, use a vacuum cleaner to clean the sensor and its surrounding.
• If there's any foreign substances on the sensor, it may not perform properly.

CAUTION

· Do not put any dust in the sensor parts.

Cleaning the air outlet

• If the air outlet is dirty, re-assemble it after removal and cleaning of the grille.
• If other matters fall into the air outlet, re-assemble it after removal of the air outlet grille.

Grille removal and assembling

Disassembling the grille

Illustration of hands using a circular tool to press down a surface (no text or symbols)

STEP 1 STEP 2 STEP 3

Grip the front and rear grille as shown.

Illustration of hands using a tool to lift a small object, with arrows indicating motion (no text or symbols)

Take the grille out to form the V type.

Line drawing of a robotic vacuum cleaner (no text or symbols)

Remove the grille completely.

Assembling the grille

Illustration of hands cleaning a small bowl with a lid and whiskers (no text or symbols)

STEP 1 STEP 2

Insert the grille in the front and rear direction of the display as shown.

Line drawing of a mechanical component with a circular top and textured base (no text or symbols)

Flatten the inserted grille.

Illustration of hands performing a shoe repair operation on a jacket (no text or symbols visible)

Remark

- Do not insert the grille in the left and right direction of the display.

Troubleshooting

Refer to the following chart if the air purifier operates abnormally. This may save time and unnecessary expenses.

Problem Solution
Product is not working	Check if the power is on and try to turn on the air purifier again.Check if the power plug is connected properly and turn on the air purifier again.If the product still don't work, try connecting the power plug to other power outlets.
Abnormal noise	You may hear abnormal noise if moving the running product, please power off before moving.You may hear sensor running sound while operating the air purifier, it is a normal phenomenon, you can use it reassurance.
There is a strange odor	Check the Pre filter and clean it if it's dirty.If the 2-in-1 filter is saturated with strange odor, please replace a new 2-in-1 filter. User needs to undertake filter replacement cost produced during the period of free maintenance.
The Comprehensive Air-quality indicator always is fixed on red.(Something is wrong with the Comprehensive Air-quality indicator)	Check the sensors for any foreign substances and clean them if necessary.In winter season if you operate the product immediately after product was delivered, dew may form on the sensor due to temperature difference (between outdoor and indoor). In this case, the comprehensive Air-quality indicator may be turned red. In this case, indicator will become normal after 1~2 hours of operation.If you cook or if outside air gets indoor and affects changes in odor, gas sensor may detect odor and the Comprehensive Airquality indicator may become red. Ventilate the room for 1 ~ 2 hours.Disconnect the power plug and connect it back on after a minute and operate the product. (Reset the sensors)If you have followed all the solution indicated in this section and the Comprehensive Air-quality indicator is still red, there might be a problem with sensor or wires. Please contact the service center.
Fan speed is not changing according to the Comprehensive Air-quality.	Set the fan speed to Auto. When the fan speed is set to High, Medium, Low, or Sleep, the fan speed will not change automatically.
Filter replacement indicator not turning off	After replacing the 2-in-1 filter, press the [ ] over 3 seconds to reset the filter replacement alert.
Strange indication is displayed	If the Fan speed indicator, the Sleep mode indicator and the Lock function indicator twinkle at the same time, please contact the service center.
Air out only from the rear side	The design is intended for purifying the air efficiently with the wind rising through whirling. As the wind flows in the clockwise direction, you may feel that the front side is weaker while the rear side is stronger for the wind flown out from the upper air outlet.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRALIA	1300 362 603 (Other)1300 425 299 (HHP)	www.samsung.com/au/support
NEW ZEALAND	0800 726 786 (All Product)0800 6 726 786 (Support for Smart Mobile Devices)	www.samsung.com/nz/support
