USER MANUAL VR250 PHILIPS

Digitaler VoiceRecorder Digital VoiceRecorder

Operating instructions .... 19

SICHERHEITSHINWEISE

Bedienungsanleitung

VOLLVERANTWORTLICH, DASS DAS PRODUKT

MODEL: VR 250

Name: MANFRED ZINNOW

Installing the batteries 21

Operational elements 22

Display symbols.... 23

Operation 24

Switching on the VR250 24

VR250 Storage Facilities.... 24

Recording Memos 25

Starting next recording directly.... 26

Display remaining recording time 26

Direct Recording.... 26

Replaying Memos.... 27

Searching for a memo automatically (Auto Scan) ...... 28

Searching for a memo manually.... 28

Erasing individual memos 29

Erasing complete archive files.... 29

Important Information.... 30

User Lock 30

External Microphone/Loudspeaker Jack 30

Recording other signal sources.... 30

Playback via other equipment 31

Fault Finding.... 32

Care Instructions 32

Guarantee 33

Technical Data 34

Declaration of Conformity.... 35

SAFETY INFORMATION

Operating Instructions

Please read these operating instructions carefully. If you should have any questions, please contact our service department on the Hotline number 0180 5 00 13 88. Under no circumstances open the unit yourself and do not try to carry out your own repairs. For any claims under the guarantee, please refer to your dealer.

Batteries/Rechargeable Batteries

The required batteries are included in the scope of supply. When the batteries have to be changed, you will need two type AAA 1.5 V batteries. Please use new, high quality alkaline or NiMH batteries.

Disposal

If the useful life of the batteries or the complete equipment has expired, please dispose of these carefully in accordance with the statutory requirements and in a manner friendly to the environment. Never open used batteries, short circuit them or throw them into the fire.

CE marking

The unit is approved for use on the European market. This unit fulfils the requirements of the EU Directives. Conformity of the unit with these directives is confirmed by the CE mark. You will find the CE mark on the backside of the AUDIOLINE VR250.

PREPARATION

UNPACKING

The following parts will be found in the package:

VR250
■ Operating instructions
Batteries
Ear piece
■ Audio connection cable

INSTALLING THE BATTERIES

■ Slide the battery cover on the rear of the unit downwards with a light pressure and open the battery compartment.
■ Now insert the two batteries and check that the polarity is correct. The wrong polarity can damage both the batteries and the unit.
■ Close the battery compartment.

Note:

When the batteries become weak and need to be replaced, the battery symbol will flash in the display. Never change the batteries while recording as otherwise a total loss of data could occur.

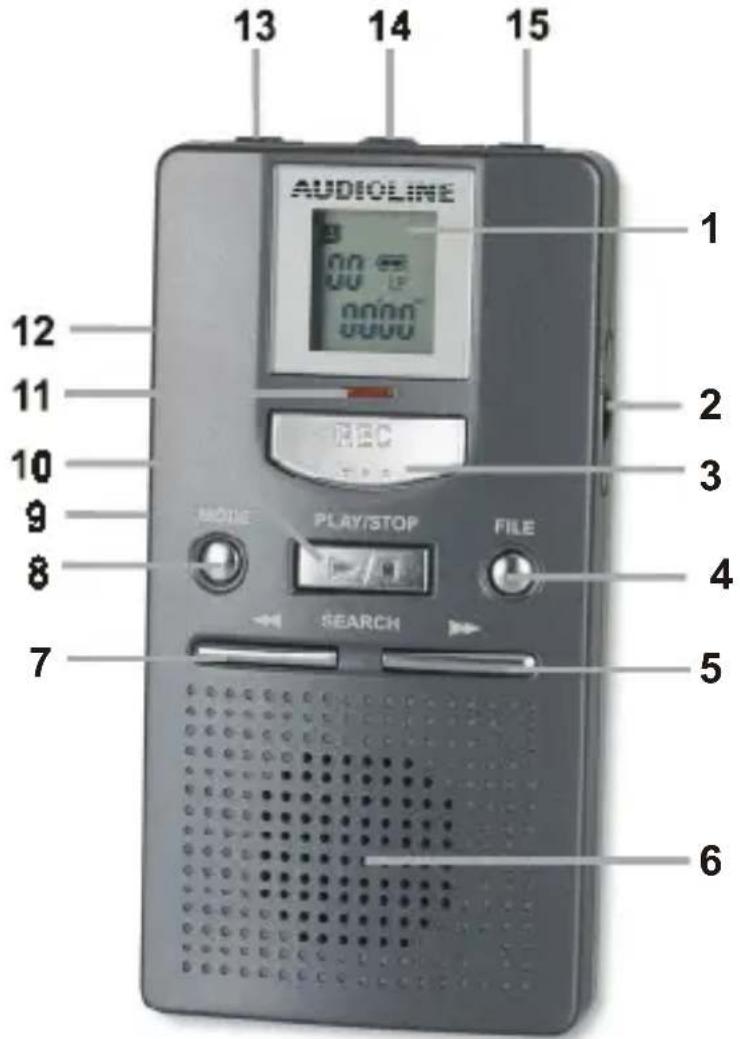

OPERATIONAL ELEMENTS

1 Display 9 ERASE button
2 Loudspeaker VOL 10 PLAY/STOP button
3 REC button 11 Record LED
4 FILE button 12 Slide control HOLD
5 Forward button 13 MIC connection
6 Loudspeaker 14 Microphone
7 Rewind button 15 EAR connection
8 MODE/PAUSE button

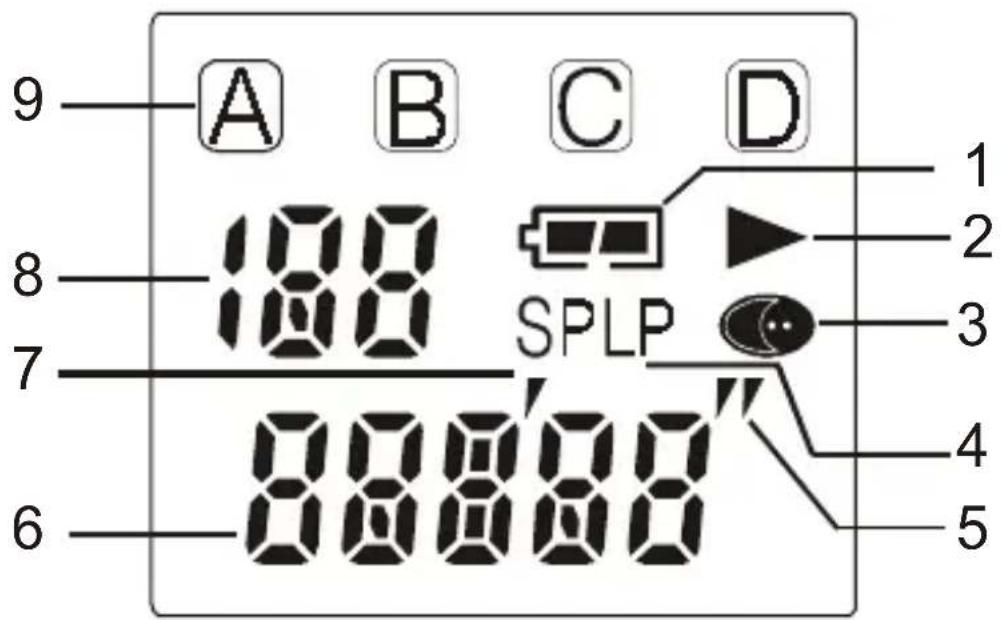

DISPLAY SYMBOLS

1 Battery capacity indicator
2 Appears during playback
3 Appears during recording
4 Appears in Long Play Mode
5 Seconds symbol
6 Recording time in minutes and seconds
7 Appears in Standard Mode
8 Memo number indicator from 1 to 100 in the selected archive file
9 Selected archive file indicator A, B, C, D

OPERATION

SWITCHING ON THE VR250

To switch on the AUDIOLINE VR250 press the REC button once. Ensure that the HOLD slide switch on the left-hand side has not been moved to the top position. Otherwise, it will not be possible to switch on the AUDIOLINE VR250 and the display will show the message HOLD for a few seconds.

The AUDIOLINE VR250 is equipped with a circuit to increase the battery life. If no activity takes place within one minute, the unit switches itself off automatically. The display goes off and the unit must be switched on again.

VR250 STORAGE FACILITIES

You can store memos, messages, ideas, confidential information, etc. in the AUDIOLINE VR250 in four separate archive files. The archive files are identified by the letters A, B, C and D. Each archive file can store up to 100 recordings.

The maximum recording time for the AUDIOLINE VR250 is 60 minutes in standard mode and 126 minutes in long play mode. You will get the better recording quality in standard mode.

RECORDING MEMOS

■ Ensure that the HOLD slide switch is in the OFF position (slide switch down).
■ Press REC to switch the unit on.
■ Using the FILE button select the required archive file A, B, C or D.
■ Now select the required recording mode SP (Standard) or LP (Long-Play) using the MODE button. The selection will be shown in the display.
To start recording, press the REC button once more. The display shows the message “REC” and the red recording LED illuminates. During recording, the length of the message and the number of the message will be shown in the display. Now speak into the microphone on the top of the unit.
■ You can break off recording using the MODE/PAUSE button. If the recording is paused for more than 30 minutes, the recording will be stopped.
■ Recording is ended by means of the REC button or the multi switch ▶/□. Every recording will be identified automatically with a number between 1 and 100.

If the maximum capacity of the selected archiving file is reached or if the maximum recording time is exceeded, the display will show the message “FULL”. In order to be able to record new memos you must first erase old or unimportant recordings.

STARTING NEXT RECORDING DIRECTLY

You can start the next recording directly while making the current recording. To do this, press the multi button. The current recording will be stopped and the next recording started immediately under a new number.

You can find out the remaining memory capacity during a recording. To do this, press and hold the FILE button and the display will show you the recording time remaining in minutes and seconds.

DIRECT RECORDING

To start recording directly even when the unit is switched off, press the REC button for 2 seconds.

REPLAYING MEMOS

■ Ensure that the HOLD slide switch is in the OFF position (slide switch down).
■ Using the FILE button select the required archive file A, B, C or D.
■ Now use the buttons◀ and ▶ to select the required message. The memo number will be shown in the display.
■ The memo can be played back by pressing button ▶/□.
■ You can interrupt play back by using the MODE/PAUSE button and then continue once more with the multifunction switch ▶/□.
■ To end play back, press the multi switch ▶/□ again or press the REC button.
■ The volume can be adjusted using the small rotary control on the right-hand side of the unit.

Note: If you want to fast forward or rewind a long memo, please use the buttons ◀ and ▶

SEARCHING FOR A MEMO AUTOMATICALLY (AUTO SCAN)

If you want to find a particular memo within an archive file, you can use the SCAN function. Here, only the first 5 seconds of the memo are played back before switching automatically to the next memo.

■ To do this, press the multi switch ▶/□ for one second. The display shows SCAN. The SCAN function always starts from the number currently set.
■ When you have found the right message, press the multi switch ▶/□ once more to hear this memo in its entirety.

SEARCHING FOR A MEMO MANUALLY

■ To select a different memo, use the buttons ◀ and ▶. If you want to search quickly within the archive file, hold the or ▶ until you see the required number in the display.

■ You can change automatically to the previous or next memo while you are listening to a memo. To do this, simply use the or

ERASING INDIVIDUAL MEMOS

■ First select the message that you want to erase. To do this, use the FILE button and the buttons
and ▶.

■ Then press the ERASE button for one second. The memo will be played back and the message “ERASE” will flash in the display.

■ Press the ERASE button once more to erase the memo. If however you want to break off the erasing process, press any button other than the ERASE button.

ERASING COMPLETE ARCHIVE FILES

■ First select the required file A, B, C or D that you want to erase by using the FILE button.

■ Now press both the REC and ERASE buttons simultaneously for three seconds. The display shows the message “AL ERASE”.

■ Press the ERASE button once more to erase the memo. If however you want to break off the erasing process, press any button other than the ERASE button.

IMPORTANT INFORMATION

USER LOCK

The HOLD slide switch can be found on the left-hand side of the unit. If the function is switched on (switch in the direction of the arrow), the unit can no longer be used. This prevents any unintentional recording or play back when carrying, for example. The display shows the message “HOLD” if any button is pressed.

Your AUDIOLINE VR250 can be used with an external microphone (optional) and ear piece. The connection for the microphone MIC and the EAR piece can be found on the top of the AUDIOLINE VR250.

RECORDING OTHER SIGNAL SOURCES

Using your AUDIOLINE VR250, you can record signals from other sources such as stereo equipment or a radio, for example. To do this, connect the provided cable between the microphone input MIC and the appropriate audio output connection on the required equipment. With these units, use either the headphones output or an audio output and never a loudspeaker connection.

PLAYBACK VIA OTHER EQUIPMENT

You can also reproduce recorded memos on other audio equipment or, for example, save them digitally on a computer. To do this connect the provided cable between the ear piece connector EAR and the appropriate audio input connection on the required equipment. The volume can be adjusted using the VOL control.

FAULT FINDING

The display is blank.

• Switch the unit on using the REC button.
• Check the battery capacity.
• Check the correct polarity of the batteries.

Memos are not recorded.

• Check the position of the HOLD switch.
• Check whether the maximum storage capacity or the maximum number of memos within one archive file has been exceeded.
• Check the battery capacity.

Memos are not played back.

• Check the position of the volume control.
• If you want to listen to the memos using the inbuilt loudspeaker then an ear piece or headphones must not be connected.
• If you want to listen to the memos using a different loudspeaker then the connection cable must be connected correctly.

CARE INSTRUCTIONS

If used correctly, you will get many years of enjoyment from your AUDIOLINE VR250. The surface of the case can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents, particularly aggressive solvents. Never put the unit down in a damp or dusty place. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

GUARANTEE

AUDIOLINE equipment is manufactured and tested in accordance with the most up to date production methods. Selected materials and highly developed technology ensure trouble-free operation and long life. If your unit should develop a fault within the guarantee period, however, please contact the shop where you bought your AUDIOLINE equipment exclusively and have your purchase receipt available for inspection. The guarantee period is 24 months from the day of purchase under the following conditions: within the guarantee period, all defects due to material or manufacturing faults will be repaired free of charge. The guarantee is invalidated if the equipment has been tampered with by the purchaser or third parties. Any damage caused by improper handling or operation, by incorrect positioning or storage, by improper connection or installation or by excessive force or other external influences is not covered by the guarantee. In the case of complaint, we reserve the right to repair or replace defective parts or to exchange the equipment. Exchanged parts or exchanged equipment become our property. Claims for compensation are excluded insofar as they do not relate to criminal intent or gross negligence on the part of the manufacturer. All guarantee claims according to these conditions must be raised exclusively with your dealer. Rights under the guarantee can no longer be enforced after the expiry of one year from purchase and delivery of our products. In the case of unnecessary or unjustified demands on the customer service department, we will levy our usual service charges for materials, time, postage and packing. Any complaints must be reported as soon as a problem is found. The guarantee is valid within the German Federal Republic.

TECHNICAL DATA

Recording time Standard	mode (SP): 60 min. Long play mode (LP): 126 min.
Size	45 x 21.5 x 88.2 mm (WxDxH)
Weight	38g without batteries
Power supply 3V (2 x 1.5V)
Operating time ca. 14 hours	in recording mode ca. 10 hours in play back mode via loudspeaker at medium volume ca. 12 hours in play back mode via ear piece at medium volume
Storage medium FLASH memory
Number of memos 100 in each archive file
Output power 80 mW at THD 10%, 8 Ohm
Frequency response 500 to 3,500 Hz
Recording source Inbuilt condenser microphone
Input	MIC
Output	Ear piece/earphones (mini plug Impedance greater than 16 Ohm
Loudspeaker	23 mm, 8 Ohm, dynamic
Ambient temperature	0 to 40°C

Technical data are subject to change without previous notice.

DECLARATION OF CONFORMITY

WE AUDIOLINE GmbH OF HELLERSBERGSTR. 2a 41460 NEUSS GERMANY

DECLARE UNDER OUR SOLE RESPONSIBILITY AS EU DISTRIBUTOR THAT THE PRODUCT

MODEL: VR250

DESCRIPTION: DIGITAL VOICE RECORDER

IS IN CONFORMITY WITH THE BASIC REQUIREMENTS OF DIRECTIVE: 1999/5/EC

AUTHORISED SIGNATORY:

Signature:

Name: MANFRED ZINNOW Position in the company: MANAGING DIRECTOR Date of issue: 27.09.2002

A copy of this declaration will be retained for 10 years after cessation of production.
