Product type	Digital photo printer
Brand	Sony
Model	DPP-EX5
Printing technology	Thermal dye sublimation printing (dye sublimation)
Resolution	403 x 403 dpi
Number of colors	256 levels per color (Yellow, Magenta, Cyan), approx. 16.77 million colors
Print sizes	Postcard (10 x 15 cm) borderless max 101.6 x 152.4 mm; 3.5 x 5 inches (9 x 13 cm) borderless max 89 x 127 mm; Small format (9 x 10 cm) max 71.7 x 95.5 mm
Print time per sheet	Postcard: approx. 90 s; 3.5 x 5 inches: approx. 75 s; Small format: approx. 60 s (excluding processing and transfer)
Built-in functions	Auto Fine Print 2, Super Coat 2, Effects (sepia, monochrome, painting), Card creation, calendars, stickers, multi-part images
Connections	USB (1), Video Out (1 phono jack), Memory Stick slot
Compatible file formats	JPEG, TIFF, BMP (DCF, Exif 2.2)
Power supply	100 - 240 V AC, 50/60 Hz, 1.1 A
Dimensions (without paper tray)	78 x 200 x 288 mm (W x H x D)
Weight	Approx. 2.2 kg (without paper tray)
Supplied accessories	Power cord, video cable, paper tray, driver CD-ROM, cleaning kit, instruction manual, warranty
Paper tray capacity	Up to 25 sheets postcard size, 30 sheets for 3.5 x 5 inches and small format
Super Coat 2	Protective coating for resistance to moisture and fingerprints
Auto Fine Print 2	Automatic image correction for optimal quality

Frequently Asked Questions - DPP-EX5 SONY

What types of ink cartridges can I use?

Use only the print kits designed for the DPP-EX5, available in postcard (10x15 cm), 3.5x5 inches (9x13 cm), and small format (9x10 cm). Each kit includes a cartridge and matching paper.

How to load the print paper?

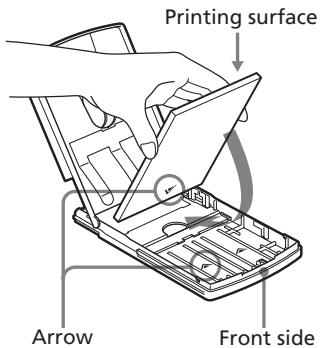

Open the paper tray cover, insert the paper print side up and the arrow in the direction of the tray's arrow. For 3.5x5 inch format, install the supplied adapter. Close the cover and insert the tray into the printer until it clicks.

What to do in case of a paper jam?

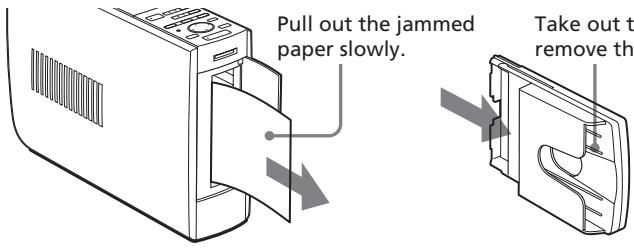

Turn off the printer. Gently remove the jammed paper from the output or by removing the tray. If you cannot, contact Sony customer service.

How to clean the inside of the printer?

Use the supplied cleaning kit. Remove the ink cartridge, insert the white cleaning cartridge, then place the cleaning paper in the tray. Press PRINT to start cleaning. Perform this only if there are white lines or dots on prints.

Can I print directly from a camera?

Yes, insert a Memory Stick containing photos into the slot. You can select and print images without a computer, or view them on a connected TV using the supplied video cable.

How to print without margins?

In the SETUP menu, set Borderless Print to ON. This option is available for postcard and 3.5x5 inch formats. For small format, borderless printing is not possible.

What to do if the cartridge/paper error light turns on?

Check that the ink cartridge is correctly installed and that the tray contains suitable paper. If the problem persists, remove and reinsert the cartridge or tray. Follow the on-screen instructions.

How to create a calendar with my photos?

Press CREATIVE PRINT, select CALENDAR, choose a template, set the start month and starting day of the week, then select one or more images. You can adjust position and scale before printing.

Can I use a Memory Stick Duo?

Yes, use a Memory Stick Duo adapter (not supplied). Insert the Duo into the adapter, then the adapter into the printer's slot. Check the insertion direction.

How to set the date and time?

In the MENU, select SETUP, then Clock Setting. Use the directional keys to adjust month, day, year, hour, and minute. The clock operates in 24-hour mode. It resets if the device is unplugged for several hours.

USER MANUAL DPP-EX5 SONY

Digital Photo Printer

Operating Instructions

Before operating this printer, please read this manual thoroughly and retain it for future reference.

GB

Mode d'emploi

Exterior view of a modern office building (no signage)

MEMORY STICK TM

SUPER COAT 2

digital photo printer

DPP-EX5

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

Pictures and/or Sound distortion may occur if this product is positioned in close proximity to equipment emitting electromagnetic radiation.

CAUTION

Sony shall assume no responsibility for any accidental or consequential damages or loss of the recording contents which may be caused by use or malfunction of the printer or "Memory Stick".

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to this number whenever you call upon your Sony dealer regarding this product.

Model No. DPP-EX5

Serial No. ____

WARNING

This unit has no power switch.

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power cord to socket-outlet which must be provided near the unit and easily accessible. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power cord.

For the customers in the U.S.A.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of Fcc Rules.

If you have any questions about this product, you may contact:

Sony's Customer Information Services Center (CISC) at 1-866-328-SONY (7669)

or Sony Web site at www.sony.com

Declaration of Conformity

Trade Name: SONY

Model No.: DPP-EX5

Responsible Party:

Sony Electronics Inc.

Address: 680 Kinderkamarck Road,

Oradell NJ 07649 U.S.A.

Telephone No.: 201-930-6972

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

- Microsoft, MS, MS-DOS and Windows® are registered trademarks of Microsoft Corporation in the United States and other countries.

- IBM and PC/AT are registered trademarks of International Business Machines Corporation.

- MMX and Pentium are registered trademarks of Intel Corporation.

- Apple, Macintosh, Power Macintosh, and Mac OS are registered trademarks of Apple Computer, Inc.

- "Memory Stick", "TM", "Memory Stick PRO" and "MagicGate Memory Stick" are trademarks of Sony Corporation.

- "MagicGate" is the trademark of Sony Corporation.

- This printer uses Exif Print (Exif 2.2) technology.

- All other companies and product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, “TM” and “®” are not mentioned in each case in this manual.

Duplication, edition, or printing of a CD, TV programs, copyrighted materials such as pictures or publications, or any other materials except for your own recording or creation is limited to private or domestic use only. Unless you hold copyright or have permission of copyright holders for the materials to be duplicated, use of those materials beyond this limit may infringe the provisions of the copyright law and be subject to the copyright holder's claim for damages.

When using photo images with this printer, pay special attention not to infringe the provisions of the copyright law. Any unauthorized use or modification of others' portrait may also infringe their rights.

For some demonstrations, performances, or exhibits, photography may be forbidden.

Backup recommendations

To avoid potential risk of data loss caused by accidental operation or malfunction of the printer, we recommend that you save a backup copy of your data.

Information

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

Notice for users

Program © 2002 Sony Corporation Documentation ©2002 Sony Corporation

All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.

IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

By breaking the seal of the envelope of the CD-ROM package, you accept all the terms and conditions of this agreement. If you do not accept these terms and conditions, please return this disk envelope unopened, along with the rest of the package, immediately to the dealer where you obtained it.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice.

The software described herein may also be governed by the terms of a separate user license agreement.

User Registration

To receive customer services, complete and return the registration card included in your package.

Any design data such as sample pictures provided in this software cannot be modified or duplicated except for the purpose of personal use. Any unauthorized duplication of this software is prohibited under copyright law. Please note that unauthorized duplication or modification of others' portraits or copyrighted work could infringe the rights reserved by right holders.

Table of contents

Getting started

Features 6

Unpacking the printer 8

Identifying the parts 9

Setting up

1 Connecting the printer 12

Connecting to a television 12

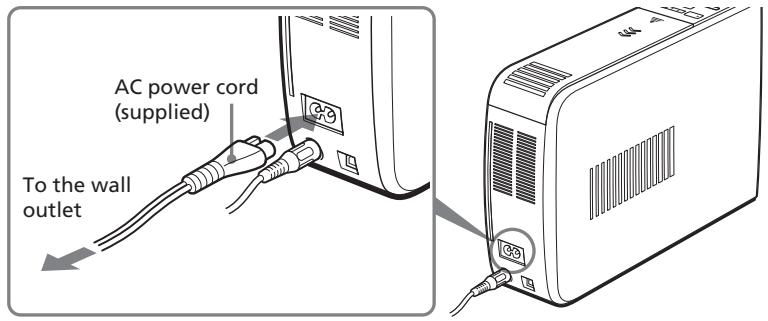

Connecting the AC power cord 13

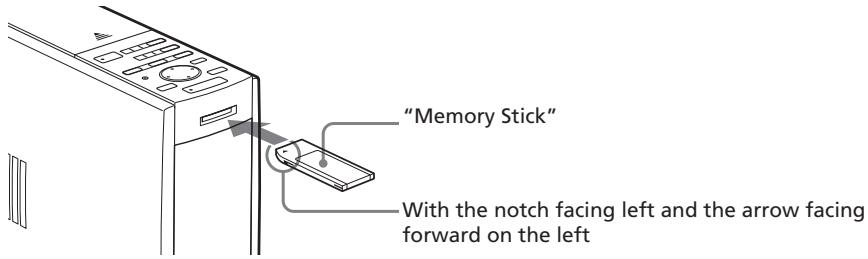

Inserting a "Memory Stick" 14

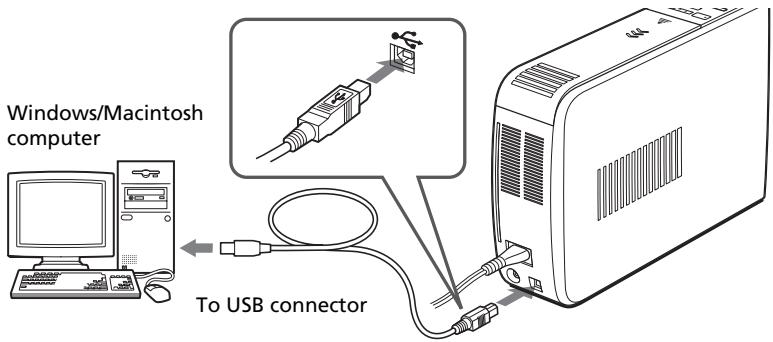

Connecting to a computer (optional) ..... 15

2 Preparing the printing pack ...... 16

3 Loading the print cartridge ...... 17

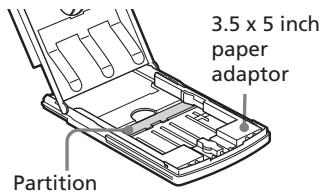

4 Inserting the print paper 19

Basic printing operations

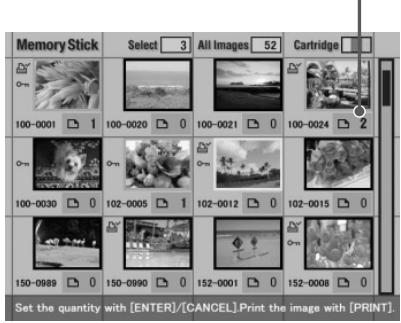

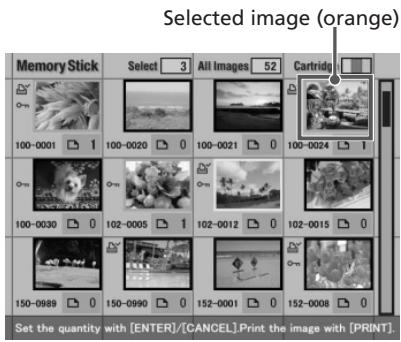

Printing selected "Memory Stick" images ...... 21

Printing all the images or DPOF preset images at one time 25

Advanced printing operations

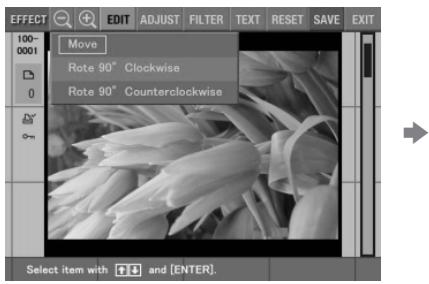

Adding effects to an image 27

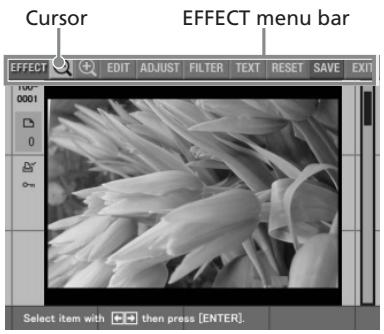

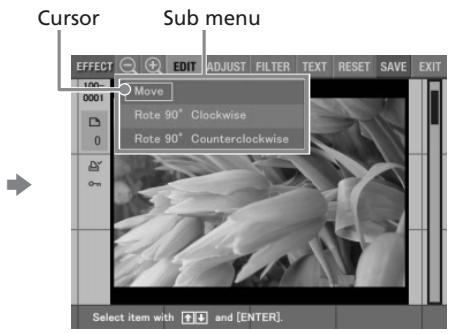

What you can do with the EFFECT menu .. 27

Changing an image size and position ..... 29

Changing an image position 29

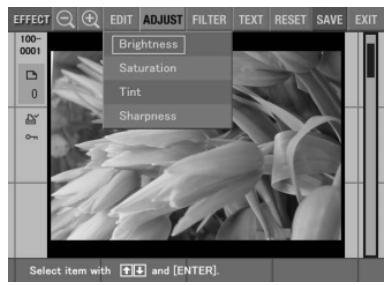

Adjusting the pictures 30

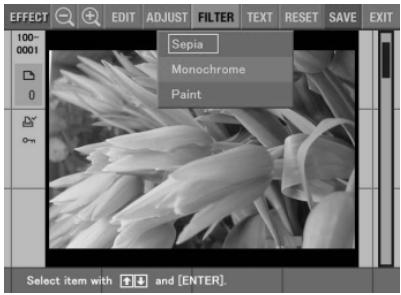

Adding a special filter to an image ...... 32

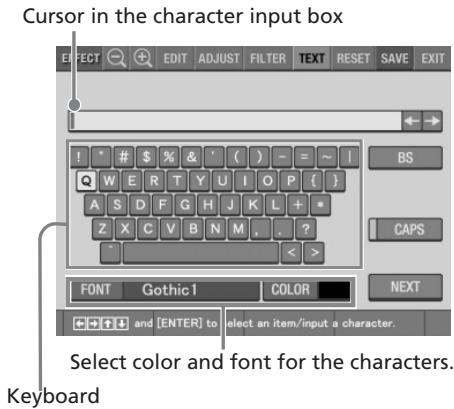

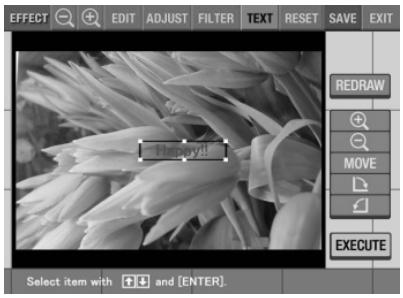

Entering characters on an image 33

Making various prints

(CREATIVE PRINT) 36

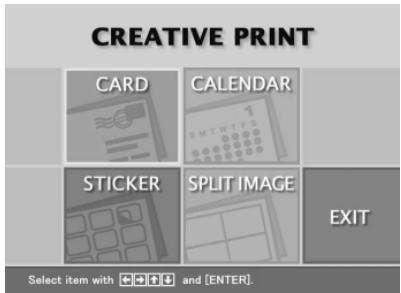

What you can do with the CREATIVE PRINT menu 36

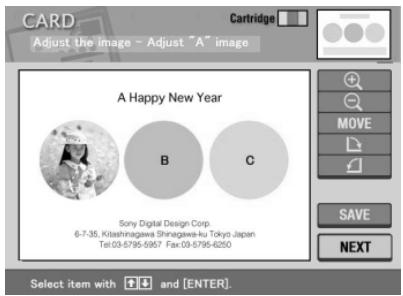

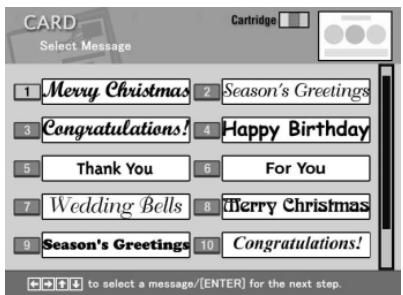

Making a card 38

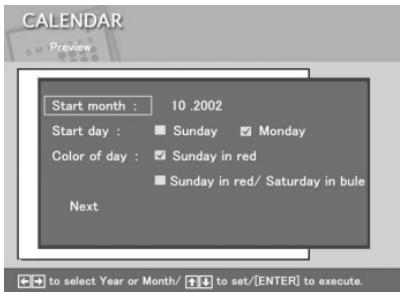

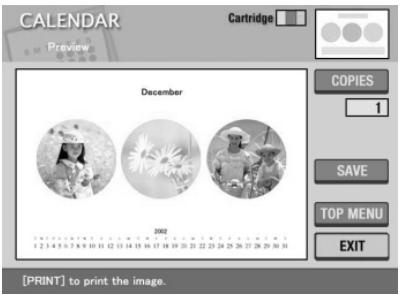

Making a calendar 42

Making a sticker 44

Making split images 45

Setting the printer (MENU) 47

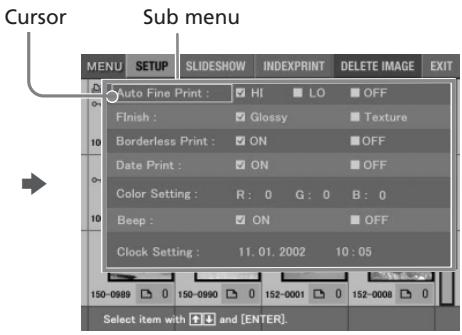

What you can do with the MENU 47

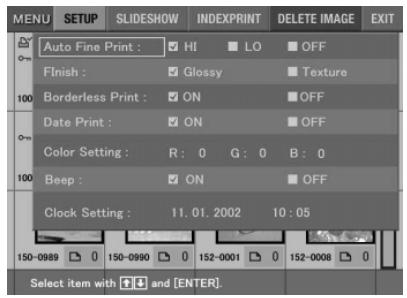

Changing the printer preferences (SETUP) 48

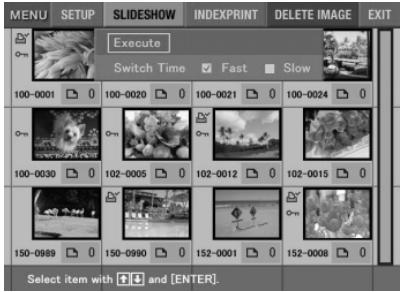

Viewing the slideshow 52

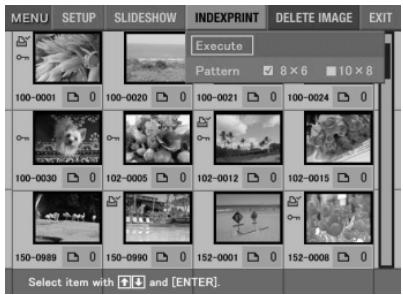

Making an index print 53

Deleting images 54

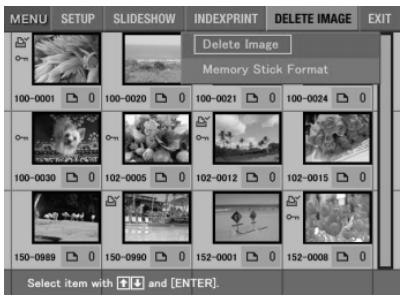

Deleting selected image(s) 54

Formatting a "Memory Stick" 55

Printing from your computer

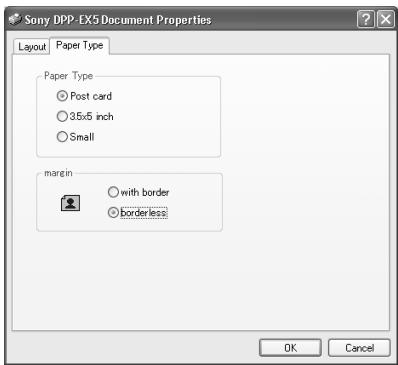

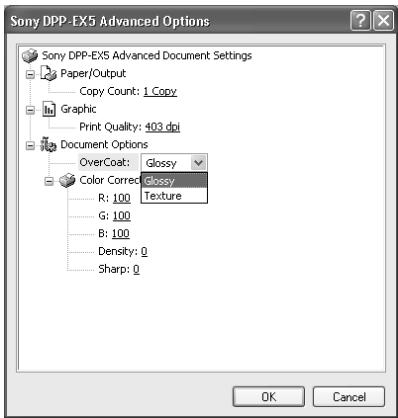

Using your printer with Windows computers 56

System requirements 56

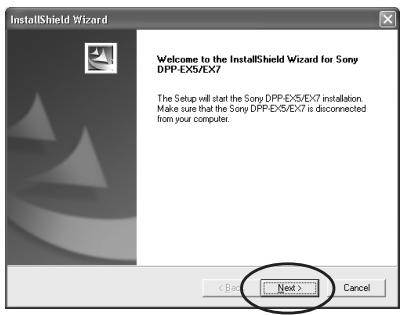

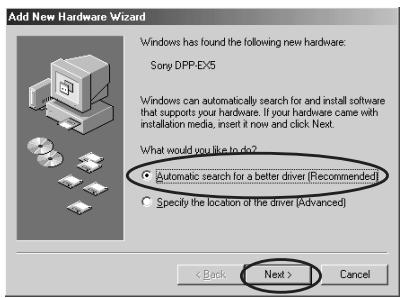

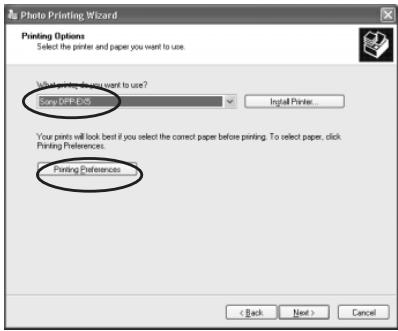

Installing the printer driver 57

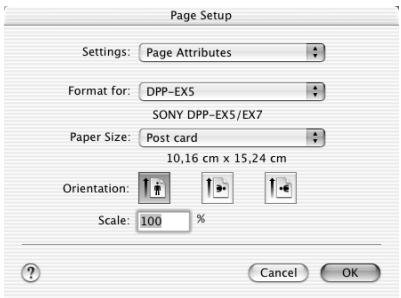

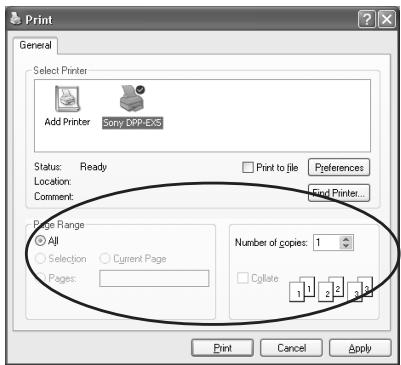

Printing from a application software ..... 60

Using your printer with Macintosh computers 66

System requirements 66

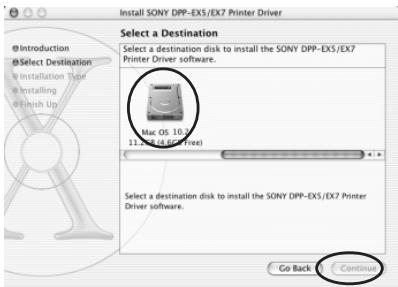

Installing the printer driver 67

Printing from a application software ..... 70

Additional information

Precautions 73

About the "Memory Stick" 75

What is "Memory Stick"? 75

Types of "Memory Stick" 75

Types of "Memory Stick" that the printer can use 75

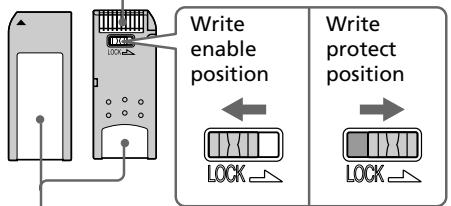

Notes on use 76

Troubleshooting 78

If paper jams 80

Cleaning the inside of the printer 80

Specifications 82

Glossary 84

Index 85

Features

With the Digital Photo Printer DPP-EX5, you can print images of a "Memory Stick" or a computer.

Photo-realistic printing

With its dye sublimation printing system, the printer can make photorealistic prints meeting a number of different requirements.

Super Coat 2 feature

The Super Coat 2 enables high durability and moisture or fingerprint resistance, keeping your prints in good picture quality for an extended period of time.

Auto Fine Print 2 feature (page 49)

The Auto Fine Print 2 analyses the picture information of an image and corrects it as vivid, clear, and natural picture.

Exif 2.2\* (Exif Print) support (page 49) Exif Print

The printer supports Exif 2.2. When the Auto Fine Print 2 is effective, the printer automatically adjusts an image saved by a digital still camera compatible with the Exif Print standard and then print it with optimal picture quality (for JPEG files only).

Selection of print sizes and border/borderless print (page 49)

You can select from a large, dynamic Post Card (4 x 6 inch) size/3.5 x 5 inch size print or an economical Small (3.5 x 4 inch) size print. For the Post Card (4 x 6 inch) size and 3.5 x 5 inch size prints, you can also select a borderless or border print.

Selection of print finish (page 49)

You can select the print finish from either glossy or texture.

Paper tray allowing bulk printing of 25/30 sheets (page 19)

With the supplied paper tray, you can print up to 25 sheets for Post Card (4 x 6 inch) size and 30 sheets for 3.5 x 5 inch size and Small (3.5 x 4 inch) size print paper at one time.

A wide variety of image processing and adjustments without using a computer (page 27)

A variety of image processing functions allow you to magnify/reduce, rotate, or move the image. You can also enter and overlay characters on an image or add a special effect to the picture to produce sepia, monochrome, or paint pictures. Adjustments of brightness, hue, and other elements of picture quality are possible.

A wider variety of prints of "Memory Stick" images without using a computer

• You can view the digital still camera images stored in a “Memory Stick” on your television screen and print them without using your computer.
  All the contained images or all the DPOF (Digital Print Order Format) preset images can be printed at one time (page 25).
• You can make various types prints such as a standard image print, a date print, or an index print of the images stored in a “Memory Stick”. You can also enjoy a slideshow of the images stored in a “Memory Stick” (page 52).

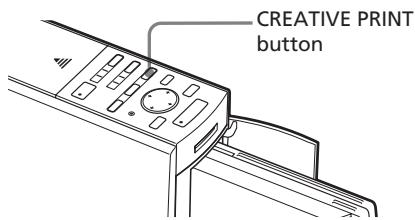

  The CREATIVE PRINT menu allows you to make even more types of prints such as an original card, calendar, split images, a sticker with framed images (page 36).

For the "Memory Stick", see page 75.

Printing from your computer with a convenient USB connection (page 56)

By connecting the printer and your computer with the USB cable supplied and installing the supplied DPP-EX5 printer driver software on your computer, you can print images from your computer.

Unpacking the printer

Make sure that the following accessories are supplied with your printer.

- AC power cord (1)

Line drawing of a coiled cable with two connectors (no text or symbols)

• Video connection cable (1)

Line drawing of a long, coiled cable with two connectors (no text or symbols)

- Paper tray (1)

Line drawing of a plastic tray or holder component (no text or symbols)

- CD-ROM (1)

- Sony DPP-EX5/EX7 Printer Driver Software for Windows® 98/98SE/Me/2000 Professional/XP Home Edition/XP Professional for MAC OS 8.6/9.0/9.1/9.2/X (v10.1/v10.2) - Operating Instructions

• Cleaning kit (a set of cleaning paper and cartridge) (1)
• Operating Instructions (1)
• Warranty (1)
• Owner registration card (1)
• Sony End User Software License Agreement (1)

Notes

• The AC power cord illustrated is for 120V only. The plug shape and specifications change depending on the region you use the printer.
• Never insert the CD-ROM supplied with the printer into a CD player or other audio player, which may cause serious damage to your ears, speaker system, or earphones, or malfunctions to the audio device.

Identifying the parts

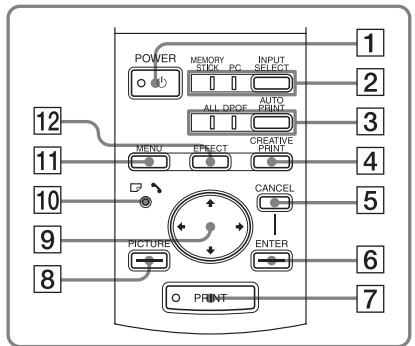

POWER MEMORY SICK PC INPUT SELECT 1 2 3 4 5 6 7 8 9 10 11 12 ALL DPOE AUTO PRINT MENU EFFECT CREATIVE PRINT PICTURE CANCEL ENTER PRINT

13 14

15 16 17

For details, see the pages indicated in the parentheses.

Printer front panel

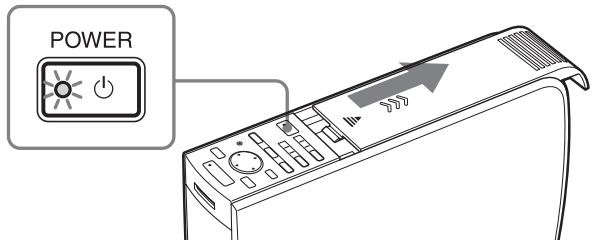

1 POWER button (pages 17)
② INPUT SELECT button/Input indicators (pages 15, 21)

Switches the input. The indicator for the current input signal lights ("MEMORY STICK"/PC).
3 AUTO PRINT button (page 26)
Each time you press the button, ALL and DPOF printing modes switch. The relevant indicator lights.
4 CREATIVE PRINT button (page 36)
5 CANCEL button
6 ENTER button
7 PRINT button (pages 22, 24)
8 PICTURE button (page 22)
9 Arrow (←/→/↑/↓) button
10 / (paper or cartridge error indicator) (pages 17, 20, 80)

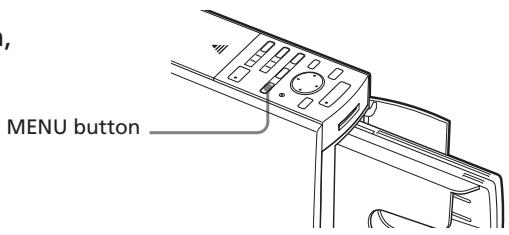

11 MENU button (pages 47)

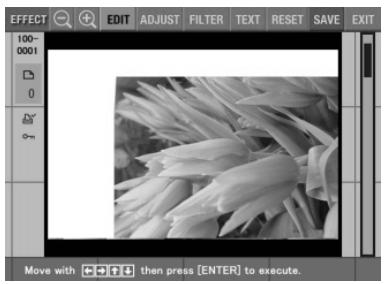

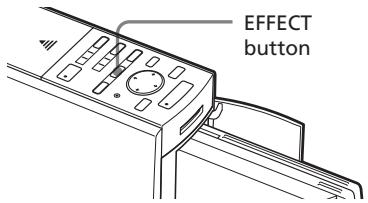

12 EFFECT button (page 27)

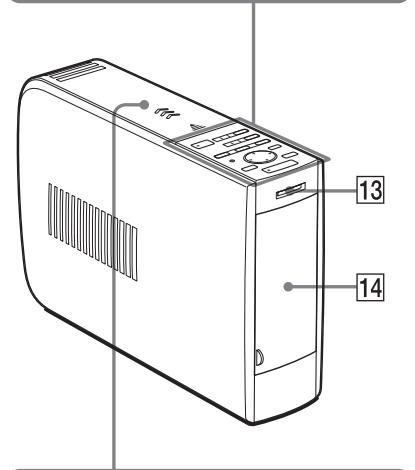

13 "MEMORY STICK" insertion slot (page 14)

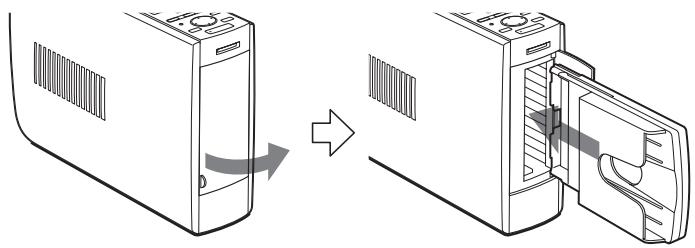

14 Paper tray compartment lid (page 20) Insert the supplied paper tray here.

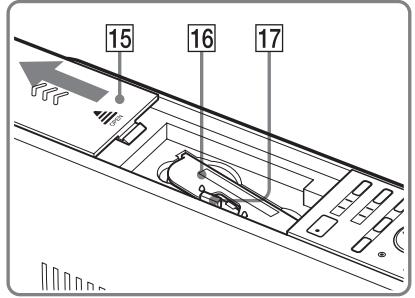

15 Cartridge compartment lid (page 17)
16 Print cartridge (pages 16, 17) (Not supplied)

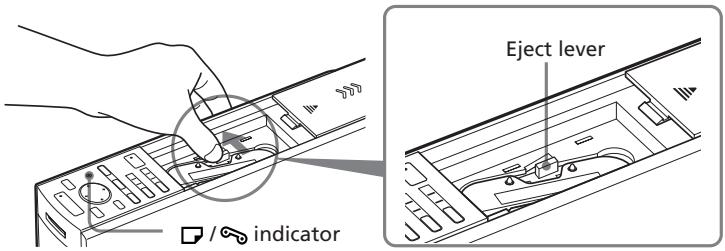

17 Print cartridge eject lever (page 17)

Identifying the parts

Diagram of a server unit with numbered labels pointing to ports and indicators

Diagram of a device casing with numbered parts labeled 1, 2, and 3

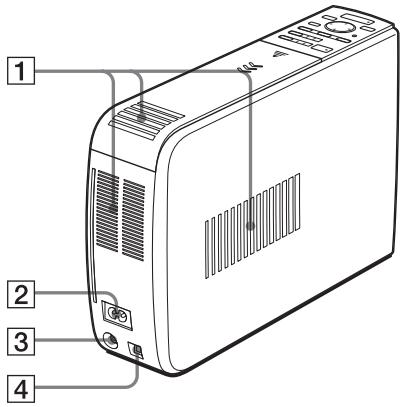

Printer rear panel

1 Ventilation holes
2 AC IN connector (page 13)

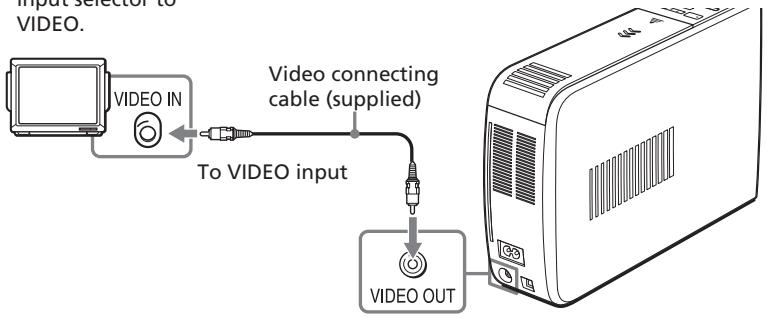

3 VIDEO OUT (output) connector (page 12)
Connects to the video input of your television.

4 USB connector (page 15)

Connects to the USB connector of your computer.

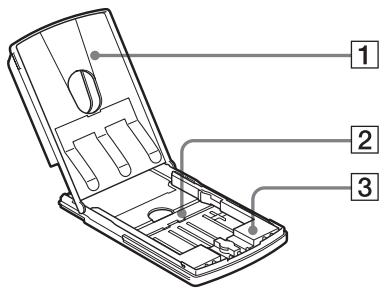

Paper tray

1 lid (page 19)
2 Partition (page 19)
3 3.5 x 5 inch paper adaptor (page 19)
Use the adaptor only when you feed 3.5 x 5 inch paper into the paper tray.

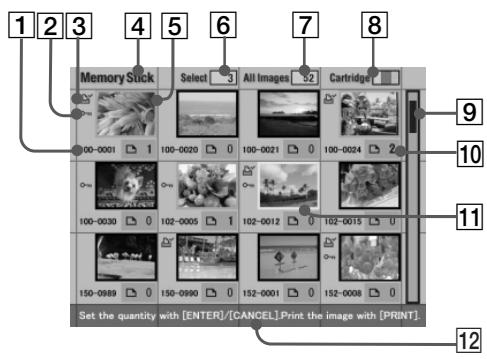

Image list

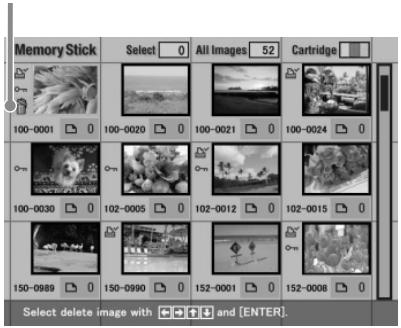

1 2 3 4 5 6 7 8 Memory Stick Select All Images 52 Cartridge 00-0001 1 100-0020 0 100-0021 0 100-0024 2 100-0030 0 102-0005 1 102-0012 0 102-0015 U 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Set the quantity with [ENTER]/[CANCEL]Print the image with [PRINT]

Preview image

10 1 4 6 7 8 Memory Stick Select 0 All Images 52 Cartridge 100- 0001 0 0m 9 Select image with 3 2 and ENTER 12

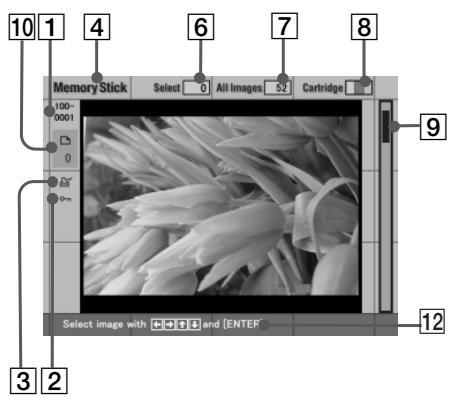

Screen

1 Image number
2 Protect indication

Indicates that the image is protected by a digital still camera.

3 Print mark (DPOF indication)
Indicates that the image is DPOF preset for printing from a digital still camera.
4 "Memory Stick" indication
Indicates that the images displayed are those of the “Memory Stick” inserted into the printer.
5 Selection (orange frame)
Indicates that the image has been selected by pressing ENTER.
6 The quantity of selected images
7 The total image quantity

Note

The displayed quantity may differ from the number of images actually saved on a "Memory Stick".

8 Print cartridge indication

Indicates the type of print cartridge currently loaded:

: Post Card (4 x 6 inch) size L : 3.5 x 5 inch size S : Small (3.5 x 4 inch) size

9 Scroll bar

Indicates the position of the image currently displayed or selected among the total number of images.

10 Print quantity indication

Indicates the print quantity specified by pressing ENTER.

11 Cursor (yellow frame)

Indicates the image with the cursor.

12 Guidance message

Displays simplified instructions for the next step.

1 Connecting the printer

Connecting to a television

Connect the VIDEO OUT (output) connector of the printer to the video input of the television to display the images to be printed.

Television

Set the VIDEO/TV input selector to VIDEO.

Notes

• Before making connections or plugging in a cable, turn off the power of the printer and the television.
• When you do not use the video connecting cable supplied, use a commercially available video connecting cable of shorter than 3m in length.
• When you connect your printer to a personal computer, you do not need to connect your printer to a television.
• Avoid connecting the video output connector of the printer to a device other than a television. The units may not operate properly.

Connecting the AC power cord

After you make the connections, connect the supplied AC power cord to the AC IN connector of the printer and then to an AC outlet.

The POWER indicator lights in red.

AC power cord (supplied) To the wall outlet

1 Connecting the printer

Inserting a "Memory Stick"

Insert the "Memory Stick" into the "MEMORY STICK" insertion slot until it clicks into place.

For the "Memory Stick" that you can use with the printer, see page 75.

"Memory Stick" With the notch facing left and the arrow facing forward on the left

To eject the "Memory Stick"

Push the "Memory Stick" further into the insertion slot and then remove it slowly.

Notes

• Insert the "Memory Stick" only. Do not insert any other objects.
• Do not attempt to force a “Memory Stick” into or out of the slot. If you do, the “Memory Stick” or the printer may be damaged.
• When the printer is accessing the “Memory Stick” or the MEMORY STICK indicator flashes, do not remove the “Memory Stick” from the printer. If you do, the “Memory Stick” or the printer may be damaged.
• For the "Memory Stick", see page 75.

Connecting to a computer (optional)

Connect the USB connectors of the printer and your computer (Windows PC or Macintosh) with a commercially available USB cable. By installing the supplied driver software on your computer, you can print an image from your computer. For details on how to install and operate the software, see "Printing from your computer" (pages 56–72).

Windows/Macintosh computer To USB connector

To USB connector (B-TYPE)

When you connect a computer that is already powered on to the USB connector of the printer

The PC input indicator lights and the printer enters the PC mode.

MEMORY STICK PC(INPUT SELECT

Notes

• Use a commercially available A-B TYPE USB cable of shorter than 3m in length. The type of a USB cable you should use may change depending on the computer. For details, see the instructions manual of your computer.
• Do not remove or connect the USB cable into or from the printer during the data communication or printing. The printer may not work properly.
• When you connect your printer to a television, no pictures are displayed on the television in the PC mode. This is not due to trouble with the printer.
• Refer to the instruction manual of your computer for further information.
• You cannot use the printer and the printer driver on a network or with a commercially available printer buffer.

2 Preparing the printing pack

You need an optional printing pack designed for the printer. The pack contains a set of print paper and a print cartridge for either Post Card (4 x 6 inch) size, 3.5 x 5 size, or Small (3.5 x 4 inch) size prints.

Select the printing pack according to the type of printing you intend to do:

Printing pack	Contents
SVM-25LS	25 sheets of Post Card (4 x 6 inch) size photo paper/Print cartridge for 25 prints
SVM-25LW	25 sheets of Post Card (4 x 6 inch) size sticker/Print cartridge for 25 prints
SVM-30MS	30 sheets of 3.5 x 5 inch size photo paper/Print cartridge for 30 prints
SVM-30SS	30 sheets of Small (3.5 x 4 inch) size photo paper/Print cartridge for 30 prints
SVM-30SW	30 sheets of Small (3.5 x 4 inch) size stickers/Print cartridge for 30 prints
SVM-30SW09	30 sheets of Small (3.5 x 4 inch) size 9-split stickers/Print cartridge for 30 prints

Notes

• Do not rewind the ink ribbon and use the rewound print cartridge for printing. Otherwise, proper printing result will not be obtained, or even a breakdown may occur.
• Use the printing pack for this printer only.
• Always use the print cartridge designed for the size of the print paper you use. If you mix cartridges and paper of different types or sizes, printing may not be possible, or a paper jam or other trouble may occur.
• Do not print on the used print paper. Printing an image twice on the same paper will not make the printed image thicker. This may even cause a malfunction or breakdown.
• Do not touch the ink ribbon of the print cartridge or the printing surface of the print paper. If there are fingerprints or dust on the printing surface or the ink ribbon, the printing quality may deteriorate.
• For high quality prints, avoid placing the printing pack in locations that are subject to high temperature, high humidity, excessive dust, or direct sunlight.
• When storing a partially-used pack of the print cartridge and print paper, store it in its original bag or in a similar container.

3 Loading the print cartridge

1 Press the POWER button to turn on the printer. The POWER indicator lights in green.
2 Slide open the cartridge compartment lid.

POWER

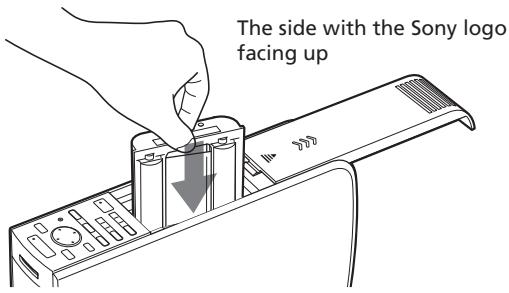

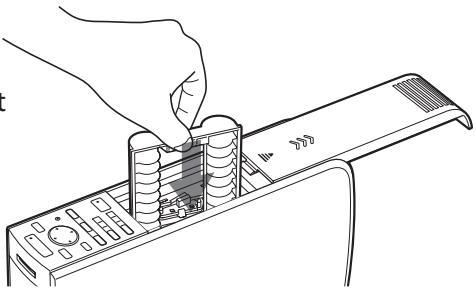

3 Insert the print cartridge into the printer firmly until it clicks into place and close the cartridge compartment lid.

The side with the Sony logo facing up

To replace the print cartridge

When the print cartridge runs out, the ☐ / ⚙ (paper/cartridge error) indicator lights and an error message appears on the screen.

Open the cartridge compartment lid, push the eject lever, remove the used print cartridge, and then insert a new cartridge.

Eject lever / indicator

3 Loading the print cartridge

Notes

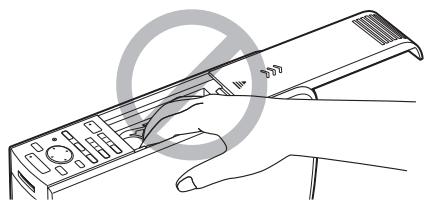

- Never put your hand into the cartridge compartment. The thermal head reaches high temperatures, especially after repeated printing.

Line drawing of a hand holding a remote control with a scroll wheel (no text or symbols)

• Do not rewind the ink ribbon and use the rewound print cartridge for printing. Otherwise, proper printing result will not be obtained, or even a breakdown may occur.
• If the print cartridge does not click into place, remove it and then re-insert it. If the ink ribbon is too slack to be loaded, wind the ink ribbon in the direction of the arrow to remove the slack.

Illustration of a hand pressing down on a cylindrical mechanical component (no text or symbols visible)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

• If the print cartridge is not loaded when you turn on the printer, the 📋 / 🔗 indicator lights up.
• Do not touch the ink ribbon or place the print cartridge in a dusty location. Fingerprints or dust on the ink ribbon may result in imperfect printing.
• Do not change the print cartridge while printing.

Notes on storing the print cartridge

• Avoid placing the print cartridge in a location subject to high temperatures, high humidity, excessive dust or direct sunlight
• When you are going to store a partially-used cartridge, store it in its original bag.

4 Inserting the print paper

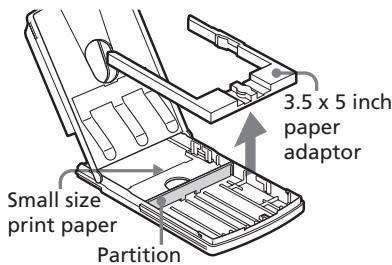

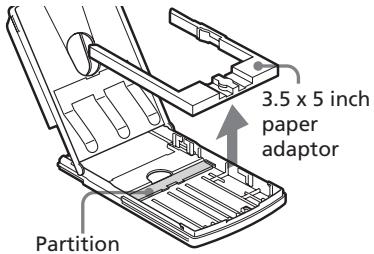

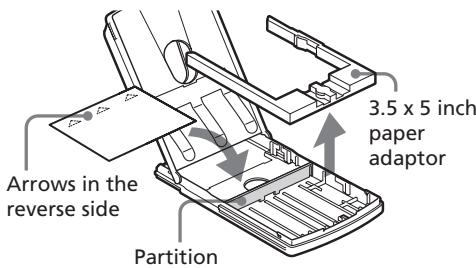

1 Open the paper tray lid and set the 3.5 x 5 inch paper adaptor and the partition according to the print paper size you want to use.

■ To use Post Card (4 x 6 inch) size print paper

Remove the 3.5 x 5 inch paper adaptor and leave the partition laid down.

3.5 x 5 inch paper adaptor Partition

■ To use 3.5 x 5 inch size print paper

Leave the 3.5 x 5 inch paper adaptor installed and the partition laid down.

3.5 x 5 inch paper adaptor Partition

■ To use Small (3.5 x 4 inch) size paper

Remove the 3.5 x 5 inch paper adaptor and stand the partition up. The Small (3.5 x 4 inch) size print paper is to be set behind the partition.

3.5 x 5 inch paper adaptor Small size print paper Partition

2 Set the print paper into the tray.

Riffle the print paper. Then insert the print paper with its printing surface (the side with no imprint) facing up and the arrow pointing in the same direction as the arrow in the tray. Insert the protective sheet together with paper, and then remove it after you have placed the paper.

You can set up to 25 sheets for Post Card (4 x 6 inch) size and 30 sheets for 3.5 x 5 inch size and Small (3.5 x 4 inch) size print paper.

Printing surface Arrow Front side

Note

Do not touch the printing surface. Fingerprints on the printing surface may result in imperfect printing. Continued

4 Inserting the print paper

3 Close the paper tray lid. Then push and open the printer's paper tray compartment lid and insert the paper tray into the printer.

Insert it firmly until it clicks into place.

Diagram showing a computer tower with ventilation slots and an open refrigerator, illustrating the process of ventilation or storage (no text or symbols present)

Notes

• Do not remove or insert the paper tray during printing.
• If print paper does not feed automatically, the ☐ / 🌐 indicator lights. Pull out the paper tray and check for a paper jam.
• When adding print paper to a partially full tray, make sure that the total number of sheets does not exceed 25 for the Post Card (4 x 6 inch) size or 30 for the 3.5 x 5 inch size and Small (3.5 x 4 inch) size print paper. Do not place different types or sizes of paper in the tray. Otherwise, a paper jam or malfunction may occur.
• Do not write or type on the printing surface of the paper before printing. You may not be able to proceed with printing. If you want to write greetings or draw on the printed surface after printing, use an oil ink pen.
• Do not attach stickers or anything else on the printing surface before printing.
• Do not remove the backing from sticker print paper before printing is completed. Otherwise, jams or printer damage may occur.
• Do not print on the used print paper. Printing an image twice on the same paper will not make the printed image thicker. This may even cause a malfunction or breakdown.
• Before printing, do not fold or bend the print paper.

Notes on storing the print paper

• Avoid placing the print paper in a location subject to high temperatures, high humidity, excessive dust or direct sunlight.
• Avoid storing the paper with the printed faces touching each other or in contact with rubber or plastic products including vinyl chloride or plasticizer for an extended period of time; color changes or deterioration of the printed image may occur.
• When you are going to store partially-used print paper, store it in its original bag.

Printing selected "Memory Stick" images

You can select an image recorded in the "Memory Stick" and print it at full-size.

Borderless standard print

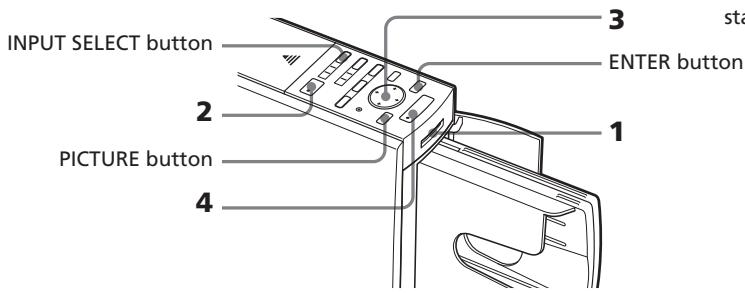

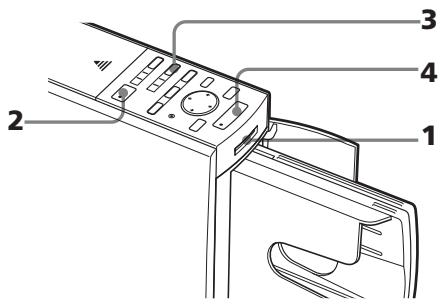

INPUT SELECT button 2 PICTURE button 4 3 sta ENTER button

1 Insert a "Memory Stick" with recorded images into the "Memory Stick" insertion slot (page 14).
2 Turn on the printer and television and set the input selector of your television to "VIDEO".

The POWER indicator of the printer lights in green. The “MEMORY STICK” input indicator flashes and then lights. The “Memory Stick” images are listed on the screen.

MEMORY STICK PC(INPUT SELECT

If PC input indicator is on

Press INPUT SELECT to light "MEMORY STICK" indicator.

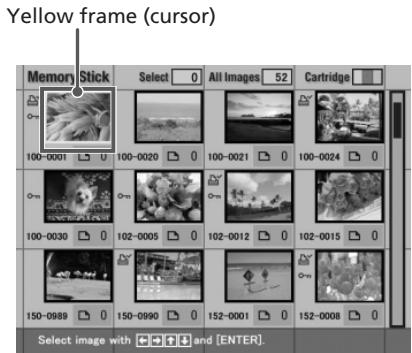

Yellow frame (cursor) Memory Stick Select 0 All Images 52 Cartridge 100-0001 100-0020 100-0021 100-0024 100-0030 102-0005 102-0012 102-0015 150-0989 150-0990 152-0001 152-0008 Select image with + + + and [ENTER]

To display another page

When multiple pages exist, you can switch pages. To display the next page, move the yellow frame to the bottom line of the image list and press

- To display to the previous page, move the yellow frame to the top line and press ↑.

Printing selected "Memory Stick" images

On demonstration mode

When the USB connector of the printer is disconnected and the "Memory Stick" is removed from the printer, pressing INPUT SELECT switches the printer into the demonstration mode. In the demonstration mode, an image is displayed on the screen. If you press PRINT, you can print the displayed image.

Note

If you do not want to print the image, do not press PRINT.

3 Press the arrow (◄/►/↑/↓) button to move the yellow frame (cursor) to the image you want to print.
4 Press PRINT.

The printing data is created and printing starts. During printing, the PRINT indicator lights. The printing process is displayed on the screen.

5 When printing ends and the print paper automatically emerges, remove the printed paper from the paper tray.

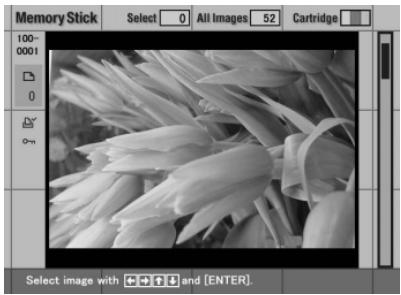

To display a preview image

Move the yellow frame to the desired image, then press PICTURE. The preview of the selected image is displayed.

To display the preview of the next image, press ➤. To display the preview of the previous image, press ◀. To display the image list again, press PICTURE.

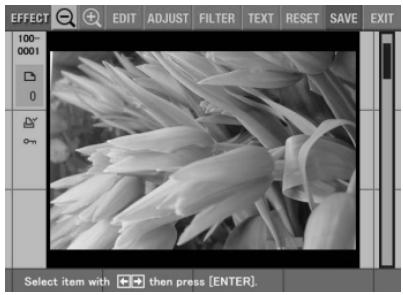

Black and white close-up of tulips in a photo editing interface (no text or symbols on the image itself)

Notes

• While the printer is accessing the “Memory Stick,” do not eject or insert it; it may crash.
• The displayed picture on the screen is not identical with the printed picture because phosphor methods or profiles of each television differ. Please regard the displayed picture as just a reference.

Printing multiple images

You can select multiple images and the number of copies to be printed.

1 Insert a "Memory Stick" with recorded images into the "Memory Stick" insertion slot (page 14).
2 Turn on the printer and television and set the input selector of your television to "VIDEO".
3 Press the arrow (◄/►/♠/↓) button to move the yellow frame (cursor) to the image you want to print, then press ENTER.

The image is selected and the print quantity indication becomes "1". The image frame becomes orange.

ENTER

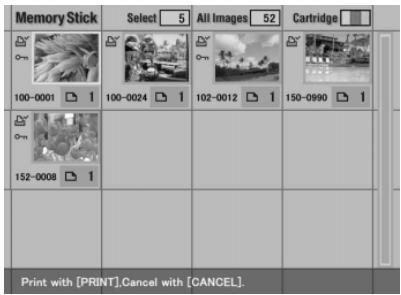

Selected image (orange) Memory Stick Select 3 All Images 52 Cartridge 100-0001 1 100-0020 0 100-0021 0 100-0024 1 100-0030 0 102-0005 1 102-0012 0 102-0015 0 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Set the quantity with [ENTER]/[CANCEL].Print the image with [PRINT].

To cancel the selection

Move the yellow frame to the image you want to cancel and press CANCEL. The image frame changes from orange to gray and the print indication becomes "0". The selection is canceled.

4 Press ENTER to set the print quantity.

Each time you press ENTER, the print quantity increases. To reset the print quantity to zero, press CANCEL.

To print multiple images at a time

Repeat steps 3 and 4 to select other images and set print quantity for each of them.

The print quantity changes.

Memory Stick Select 3 All Images 52 Cartridge 100-0001 1 100-0020 0 100-0021 0 100-0024 2 100-0030 0 102-0005 1 102-0012 0 102-0015 0 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Set the quantity with [ENTER]/[CANCEL].Print the image with [PRINT]

Continued

Printing selected "Memory Stick" images

5 Press PRINT.

When you start printing while the preview image is displayed

Only the preview image is printed.

To stop printing

Press CANCEL. Printing from the next print will be canceled.

6 When printing ends and the print paper automatically emerges, remove the printed paper from the paper tray.

Notes

• When the “MEMORY STICK” indicator blinks or the data access message appears, do not eject the “Memory Stick.” Otherwise, it may crash.
• While printing, never move or turn off the printer; the print cartridge or paper may become stuck. If this happens, turn the printer off and on, and resume printing from the beginning.
• While printing, the print paper is partially ejected from the paper outlet in stages. Never pull out the paper forcibly until the PRINT indicator turns off and the print paper emerges automatically.

- When the width or height of an image is smaller than 480 dots, the image is displayed in a small size. You can print the image but the printing quality is rough due to its small image size.

- An image without thumbnail data, such as those created with a computer application, is displayed as the mark shown right. If you select the mark and the preview image is displayed, you can print the image.

- The time required to display a preview image differs depending on the number of files contained in a “Memory Stick,” image size, or the file type.

- The time required to display the image list differs depending on the number of files contained in a “Memory Stick,” image size, file type or the digital still camera type.

- The printer cannot display the images saved in a folder of forth or higher hierarchy.

- The image number displayed in the screen is the same as those displayed in your digital still camera. For a file created with a computer application, the first 8 characters of its file name will be displayed as its image number with the printer.

- When you name or rename an image file on your computer and its file name includes characters other than alphanumeric characters, the file name may not be displayed correctly or the image may not be displayed (read error) on the printer.

Printing all the images or DPOF preset images at one time

You can print all the images stored in a "Memory Stick" at one time. You can also print all the images with the print mark (☐) in the image list that are DPOF (Digital Print Order Format) preset for printing with your digital still camera.

Notes

• For how to preset images for printing, see the manual of your digital still camera.
• Some types of digital still cameras do not support the DPOF function or the printer does not support part of the functions of the digital still camera.

Diagram of a device control panel with numbered labels pointing to different components

1 Insert a "Memory Stick" with recorded images into the "Memory Stick" insertion slot (page 14).
2 Press POWER to turn on the printer.

The POWER indicator lights in green. The “MEMORY STICK” input indicator flashes and then lights.

If PC input indicator is on

Press INPUT SELECT to light "MEMORY STICK" indicator.

To display the images on the screen

You can display and check the images to be printed on the screen. Connect the printer and the television and turn on the television. Then set the input selector of the television to "VIDEO".

Printing all the images or DPOF preset images at one time

3 Do either of the following:

• To print all the images, press AUTO PRINT until ALL indicator lights.
• To print all the preset images for printing, press AUTO PRINT until DPOF indicator lights.

ALL DPOF AUTO PRINT

To cancel operation

Press CANCEL.

When you connect your printer to the television

When you select All, all the images in the thumbnail list are displayed with the orange frame. When you select DPOF, the preset images are displayed with the orange frame.

Memory Stick Select 5 All Images 52 Cartridge 100-0001 1 100-0024 1 102-0012 1 150-0990 1 152-0008 1 Print with [PRINT].Cancel with [CANCEL].

4 Press PRINT.

Printing starts. When you select All, all the images in the "Memory Stick" are printed one by one in the order of their image numbers. When you select DPOF, the preset images with the print mark are printed with the preset number of copies in the order they were displayed.

To stop printing

Press CANCEL. Printing from the next print will be canceled.

5 When printing ends and the print paper automatically emerges, remove the printed paper from the paper tray.

For notes giving further information during or after printing, see page 24.

To return to the usual printing mode

Press CANCEL to turn off the ALL and DPOF indicators.

Tip

Even if a smaller number of sheets of print paper than the print quantity are installed in the paper tray, you can proceed with printing. If a message appears, follow the instructions on the screen to replace te printing pack and proceed with printing.

Adding effects to an image

What you can do with the EFFECT menu

The EFFECT menu allows you to edit, adjust or add special filters to an image in the "Memory Stick".

To display the EFFECT menu, press EFFECT.

EFFECT button

Cursor EFFECT menu bar EFFECT EDIT ADJUST FILTER TEXT RESET SAVE EXIT 100° 0001 0 0m Select item with + then press [ENTER]

Cursor Sub menu EFFECT EDIT ADJUST FILTER TEXT RESET SAVE EXIT Move Rote 90° Clockwise Rote 90° Counterclockwise Select item with + and [ENTER]

Press the arrow (◄/►) button to move the cursor to the desired sub menu and then press ENTER.

Item	Functions
/	Reduces or enlarges an image. (Page 29)
EDIT	Moves or rotates clockwise or counterclockwise an image. (Page 29)
ADJUST	Adjusts the brightness, tint, saturation, and sharpness of an image. (Page 30)
FILTER	Adds a special filter to an image to print monochrome, sepia, or painted pictures. (Page 32)
TEXT	Enters and overlaps characters on an image. (Page 33)
RESET	Cancels editions and resets an image to its original status.
SAVE	Saves the edited image.
EXIT	Exits the EFFECT menu.

Adding effects to an image

To cancel the editorial operations in the EFFECT menu

Select "RESET" in the main EFFECT menu and then press ENTER. The confirmation dialog box for cancelling editions is displayed. Press the arrow (◄/►) button to select "OK" and then press ENTER.

To exit the EFFECT menu screen

Select “EXIT” in the main EFFECT menu and then press ENTER. The confirmation dialog box for exiting the EFFECT menu is displayed. Press the arrow (◄/►) button to select “OK” and then press ENTER. The EFFECT menu bar disappears.

To redo operations midway

Press CANCEL. The screen of the preceding procedure appears.

To display another sub menu

Press until the current sub menu disappears.

To print an image

Press PRINT. The print dialog box is displayed. To increase the print quantity, press ENTER. To reset it, press CANCEL. Then press the arrow (◄/►/◄/▲) buttons to select "OK" and press ENTER. The image being displayed will be printed.

To save the edited image

Select "SAVE" in the main EFFECT menu and then press ENTER. The confirmation dialog box for saving an image is displayed. Press the arrow (◄/►) button to select "OK" and then press ENTER. The edited, adjusted, or processed image is saved on the "Memory Stick".

Notes

• If the “Memory Stick” is in write protect status, you cannot save an image in the “Memory Stick”.
• While saving the image, do not turn off the power or remove the "Memory Stick" from the printer. The "Memory Stick" may be damaged.
• It may take longer to process an edited image after you press the PRINT button.
• Do not remove the "Memory Stick" while in the EFFECT mode. If you do, the EFFECT mode ends forcibly and any editing you have done is canceled.
• If an extremely oblong image is edited, margins may appear in the upper or bottom parts of the image.

Changing an image size and position

1 Select an image to be edited in the image list or press PICTURE to display the preview of an image to be edited.
2 Press EFFECT.
The EFFECT menu bar is displayed (page 27).
3 Press the arrow (◄/►) button to select "⊕" to enlarge an image or "⊖" to reduce an image and then press ENTER.

Each time you press ENTER, the image is enlarged or reduced:

: up to 60%

⊕: up to 200%

For the operations to follow, see page 28.

Note

The picture quality of an enlarged image may be deteriorated depending on its size.

Black and white photo of flower petals with filter effect applied (no text or symbols on petals)

Changing an image position

The EDIT sub menu allows you to change the image position.

1 Select an image to be edited in the image list or press PICTURE to display the preview of an image to be edited.
2 Press EFFECT.
The EFFECT menu bar is displayed (page 27).
3 Press the arrow (◄/►) button to select "EDIT" and then press ENTER.
The EDIT sub menu is displayed.

Continued

Adding effects to an image

4 Press the arrow ( / ) button to move the cursor to the desired item on the EDIT sub menu and press ENTER.

Item	Procedures
Move	Move the picture with the arrow (◄/►/↓/↑) button, then press ENTER. The image is moved to the selected direction.
Rotate 90° Clockwise	Each time you press ENTER, the image rotates 90° clockwise.
Rotate 90° Counterclockwise	Each time you press ENTER, the image rotates 90° counterclockwise.

EFFECT 100- 0001 Move Rote 90° Clockwise Rote 90° Counterclockwise Select item with and [ENTER].

Black-and-white photo of a flower with visible petals, displayed within an image editing interface (no text or symbols on the flower image itself)

When "Move" is selected.

For the operations to follow, see page 28.

Adjusting the pictures

The ADJUST sub menu allows you to adjust brightness, saturation, tint, or sharpness levels of the image pictures.

1 Select an image to be edited in the image list or press PICTURE to display the preview of an image to be edited.
2 Press EFFECT. The EFFECT menu bar is displayed (page 27).
3 Press the arrow (◄/►) button to select "ADJUST" and then press ENTER. The ADJUST sub menu is displayed.

4 Press the arrow (♠/♦) button to move the cursor to the desired adjustment item and press ENTER.

The adjustment slider appears.

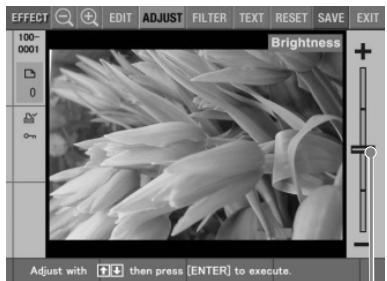

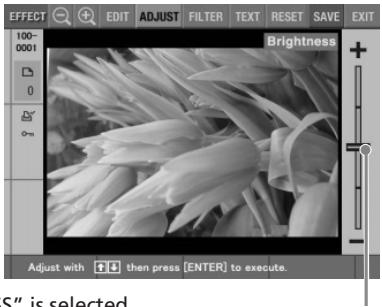

EFFECT 100- 0001 0 0m EDIT ADJUST FILTER TEXT RESET SAVE EXIT Brightness Saturation Tint Sharpness Select item with + + and [ENTER].

Black-and-white photo of flower petals in a flower field, displayed within an image editing interface (no text or symbols on the flower image itself)

When "BRIGHTNESS" is selected.
Adjustment slider

5 Adjust the level as follows:

Item	Adjustments
Brightness	Press ↑ to brighten the picture or ↓ to darken it.
Saturation	Press ↑ to deepen the colors or ↓ to lighten the colors.
Tint	Press ↑ to make the picture bluish or ↓ to make it reddish.
Sharpness	Press ↑ to sharpen the outlines or ↓ to reset them.

6 Press ENTER.

The adjustment takes effect. For the operations to follow, see page 28.

Note

The picture quality of the image being displayed on the screen may differ from that of the printed image.

Adding effects to an image

Adding a special filter to an image

The FILTER sub menu allows you to add a special effect to an image to print in monochrome, paint, or sepia tone.

1 Select an image to be edited in the image list or press PICTURE to display the preview of an image to be edited.
2 Press EFFECT.
The EFFECT menu bar is displayed (page 27).
3 Press the arrow (◄/►) button to select "FILTER" and then press ENTER.

The FILTER sub menu is displayed.

EFFECT EDIT ADJUST FILTER TEXT RESET SAVE EXIT 100- 0001 Sepia Monochrome Paint Select item with + + and [ENTER].

4 Press the arrow ( / ) button to move the cursor to the desired filter you want to add to the image.

Item	Filter
Sepia	Makes the image like an old photograph with faded colors.
Monochrome	Makes the image into a monochrome picture.
Paint	Makes the image like a painted picture.

5 Press ENTER.

The filter takes effect. For the operations to follow, see page 28.

Note

The picture of the image being displayed on the screen may differ from that of the printed image.

Entering characters on an image

The TEXT sub menu allows you to enter and overlay characters on an image. Characters are input one line by one.

1 Select an image to be edited in the image list or press PICTURE to display the preview of an image to be edited.
2 Press EFFECT.
The EFFECT menu bar is displayed (page 27).
3 Press the arrow (◄/►) button to select "TEXT" and then press ENTER.

The TEXT sub menu to enter characters is displayed.

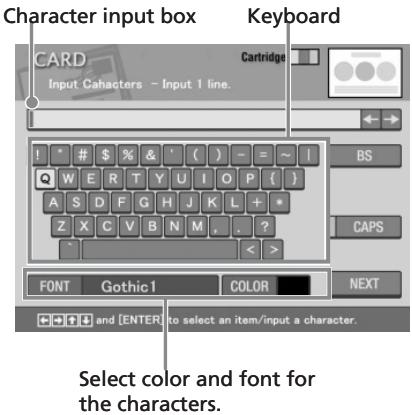

Cursor in the character input box ! * # $ % & ' ( ) - = ~ | Q W E R T Y U I O P { } A S D F G H J K L + * Z X C V B N M . ? - < > FONT Gothic1 COLOR NEXT + + + and [ENTER] to select an item/input a character. Keyboard Select color and font for the characters.

4 Press the arrow (◄/►/↑/↓) button to move the cursor to the desired character, then press ENTER to input a character.

The selected characters are input in the input box.

To input in a capital letter

Select “CAPS” and press ENTER to display the capital letters table. Then select the desired character and press ENTER. To enter a small letter, select “CAPS” again.

Adding effects to an image

To select the font and color for characters

The characters are input in the font displayed next to "FONT" and the color displayed next to "COLOR". To apply different font or color to the characters, select "FONT" or "COLOR" and then press ENTER. The font or color selection screen is displayed. Select the desired font or color and then press ENTER to return to the character input screen.

To correct characters in the input box

- To delete a character before the cursor (l) in the input box

Select "BS" and then press ENTER. Each time you press ENTER, a character before the cursor is deleted.

- To insert a character in the input characters

Select “◀” or “▶” on the screen and then press ENTER repeatedly until the cursor (1) moves to the position where you want to insert a character.

Note

You cannot apply different colors or fonts to a single line.

5 After you finish entering the remaining characters for the first line, press the arrow (◄/►/▲/▼) button to move the cursor to "NEXT", and then press ENTER.

The character input screen is closed and the preview image is displayed. The line of input characters is pasted onto the image.

EFFECT EDIT ADJUST FILTER TEXT RESET SAVE EXIT Happv! REDRAW MOVE EXECUTE Select item with and [ENTER].

6 Press the arrow (↓/↑) button to move the cursor to the desired adjustment item, then press ENTER to adjust the size and position of the characters.

To make multiple adjustments, repeat this step.

Item	Procedures
REDRAW	The character input screen is displayed again where you can enter characters again.
⊕	Each time you press ENTER, the characters are enlarged.
⊖	Each time you press ENTER, the characters are reduced.
MOVE	Move the characters with the arrow (◄/►/▲/↓) button, and then press ENTER.
[θTZY]	Each time you press ENTER, the characters rotate 90° clockwise.
[H2SY]	Each time you press ENTER, the characters rotate 90° counterclockwise.

7 Press the arrow (↓/↑) button to move the cursor to "EXECUTE", then press ENTER.

The characters are fixed to the image. For the operations to follow, see page 28.

Note

Once you select "EXECUTE", you cannot move or delete the characters.

Making various prints (CREATIVE PRINT)

What you can do with the CREATIVE PRINT menu

The CREATIVE PRINT menu allows you to make a variety of prints using an image of the “Memory Stick”.

To display the CREATIVE PRINT menu, press CREATIVE PRINT.

CREATIVE PRINT button

CREATIVE PRINT CARD CALENDAR STICKER SPLIT IMAGE EXIT Select item with + + + + and [ENTER].

Press the arrow (◄/►/↓/↑) button to select the desired sub menu.

Item	Functions
CARD	Adds a selected greeting and your input message to an image or images to make an original card. (Page 38)
CALENDAR	Add a calendar of selected month(s) to an image or images to make an original calendar. (Page 42)

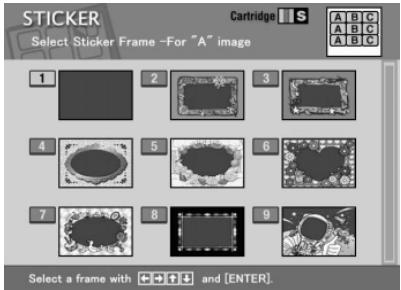

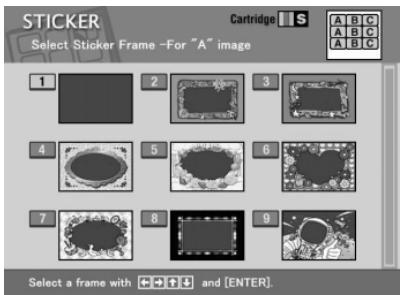

STICKER	Makes 9-split image sticker. (Page 44)

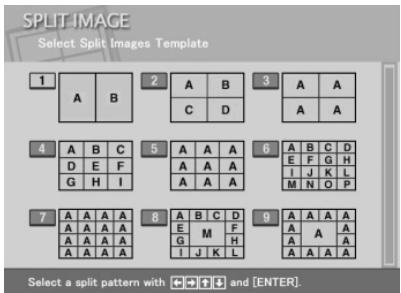

SPLIT IMAGE	Makes a 2-, 4-, 9-, 13-, or 16-split images print. (Page 45)
EXIT	Exits the CREATIVE PRINT menu.

To cancel and restart operations midway

Press CANCEL. The screen returns to the preceding procedure; do the procedure again.

To change the printer settings midway

You can press MENU and change the printer settings for "Finish", "Beep", and "Clock Setting". You cannot change the other items during the CREATIVE PRINT menu mode and the settings before the mode are effective.

To exit the CREATIVE PRINT menu

Select "EXIT" in the CREATIVE PRINT top menu and then press ENTER. The confirmation dialog box for exiting the CREATIVE PRINT menu is displayed. Press the arrow (◄/►) button to select "OK" and press ENTER to return to the previous screen.

To save the created CREATIVE PRINT image

Select "SAVE" in a preview screen in the CREATIVE PRINT menu and then press ENTER. The confirmation dialog box for saving an image is displayed. Press the arrow (◄/►) button to select "OK" and then press ENTER. The edited, adjusted, or processed image is saved on the "Memory Stick".

Notes

• If the "Memory Stick" is in write protect status, you cannot save an image in the "Memory Stick".
• While saving the image, do not turn off the power or remove the “Memory Stick” from the printer. The “Memory Stick” may be damaged.

Making various prints (CREATIVE PRINT)

Making a card

You can add a greeting and your own message to images and make an original card like the one shown on the right.

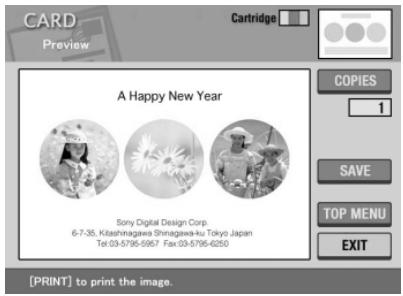

A Happy New Year Sony Corp. Kashinagawa Shinagawa Tokyo, Japan Tel:03-5539 **** Fax:03-5539 ****

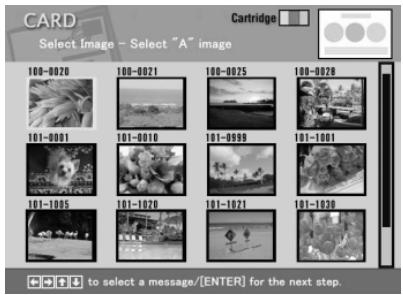

1 Press the arrow (↔/→/↓/↑) button to move the cursor to "CARD", then press ENTER.

The size selection screen is displayed.

CARD Select Paper Size POSTCARD 3.5 x 5 inch SMALL Select a paper sizewith + and [ENTER].

2 Press the arrow (◄/►/↓/♠) button to move the cursor to the size you use for printing, then press ENTER.

The card templates are displayed.

CARD Select Card Template 1 2 3 4 Select a Card template with + + + and [ENTER].

When you select "POSTCARD"

3 Press the arrow (◄/►/◄/▲) button to move the cursor to the desired template, then press ENTER.

The preview of the selected template is displayed.

CARD Preview A B C NEXT [ENTER] for next step/[CANCEL] for previous step.

4 Press ENTER.

The window for selecting a greeting is displayed.

CARD Select Message 1 Merry Christmas 2 Season's Greetings 3 Congratulations! 4 Happy Birthday 5 Thank You 6 For You 7 Wedding Bells 8 Merry Christmas 9 Season's Greetings 10 Congratulations! + + + + to select a message/[ENTER] for the next step.

5 Press the arrow (◄/►/◄/▲) button to move the cursor to the desired greeting, then press ENTER.

The color selection window for the greeting is displayed.

6 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired color, then press ENTER.

The preview reflecting your selections up to the preceding step is displayed.

The greeting is displayed in the selected color.

7 Make sure that the "Memory Stick" is inserted into the printer and then press ENTER.

The image list for selecting an image is displayed.

CARD Select Image - Select "A" image Cartridge 108-0020 108-0021 108-0025 108-0028 101-0001 101-0010 101-0999 101-1001 101-1005 101-1020 101-1021 101-1029 to select a message/[ENTER] for the next step.

8 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired image, then press ENTER.

The window to adjust the image position is displayed.

CARD Adjust the image - Adjust "A" image A Happy New Year B C Sony Digital Design Corp 6-7-35, Kitashinagawa Shinagawa-Ku Tokyo Japan Tel:[phone] Fax:[phone] Select item with F3 and [ENTER]

Continued

Making various prints (CREATIVE PRINT)

9 Press the arrow (↓/↑) button to move the cursor to the desired adjustment item, then press ENTER.

To make multiple adjustments, repeat this step.

Item	Procedures
⊕	Each time you press ENTER, the image is enlarged.
⊖	Each time you press ENTER, the image is reduced.
MOVE	Move the image with the arrow (◄/►/♠/▼) button, and then press ENTER.
	Each time you press ENTER, the image rotates 90° clockwise.
	Each time you press ENTER, the image rotates 90° counterclockwise.

10 Press the arrow ( / ) button to move the cursor to "NEXT", then press ENTER.

Repeat steps 8 through 10 until you select and adjust the remaining images and then character input window is displayed.

11 Press the arrow (◄/►/♠/↓) button to move the cursor to the desired character, then press ENTER to input a character for the first line.

The selected characters are input in the input box. If you do not want to input characters, skip this step.

For how to input capital letters, to select font and color, or to correct input characters, see “Entering characters on an image” on pages 33 to 35.

Character input box Keyboard CARD Cartridge Input Cahactors - Input 1 line. ! * # $ % & ' ( ) - = ~ | Q W E R T Y U I O P { } A S D F G H J K L + Z X C V B N M . ? < > BS CAPS FONT Gothic1 COLOR NEXT + + + and [ENTER] to select an item/input a character. Select color and font for the characters.

12 After you finish entering the remaining characters for the first line, press the arrow (◄/►/♠/↓) button to move the cursor to

"NEXT", and then press ENTER.

Repeat steps 11 and 12 to input the remaining lines. When you finish, the preview of the created print is displayed.

To do the printing quantity setting or other operations, press the arrow (♠/♦) button to select the item and then press ENTER:

CARD Preview A Happy New Year Sony Digital Design Corp. 6-7-35, Kitaishnagawa Shinagawa-ku Tokyo Japan Tel:[phone] Fax:[phone] COPIES 1 SAVE TOP MENU EXIT [PRINT] to print the image.

Item	Procedures
COPIES	Press ENTER to set the printing quantity. Each time you press ENTER, the quantity increases one by one. To reset it to “1”, press CANCEL.
SAVE	Displays the confirmation dialog box for saving the CREATIVE PRINT image being edited.
TOP MENU	Displays the confirmation dialog box to return to the CREATIVE PRINT top menu.
EXIT	Exits the CREATIVE PRINT menu.

13 To print the CREATIVE PRINT image, press PRINT.

Printing starts. When printing finishes, the screen of step 12 is displayed again. For the operations to follow, see page 37.

To stop printing

Press CANCEL. When multiple copies are being printed, the printing from the next print will be canceled.

Making various prints (CREATIVE PRINT)

Making a calendar

You can add a selected calendar to an image or images to make an original calendar.

Three circular black-and-white photos of flowers in January, February, and December (no text or symbols on the images themselves)

1 Press the arrow (◄/►/↓/↑) button to move the cursor to "CALENDAR", then press ENTER.

The size selection screen is displayed (page 38).

2 Press the arrow (◄/►/↓/↑) button to move the cursor to the size you use for printing, then press ENTER.

The calendar templates are displayed.

3 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired template, then press ENTER.

The preview of the selected template is displayed.

When you select "POSTCARD"

CALENDAR Preview December A B C 2002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 NEXT [ENTER] for next step/[CANCEL] for previous step.

4 Press ENTER.

The window for setting the calendar is displayed.

5 Set the calendar:

① Set the first month and the year starting the calendar:

Press the arrow (↓/↑) button to select "Start month" and press the arrow (←/→) to move the cursor to the year. To set the number, press the arrow (↓/↑) button. In the same way, set the month. Then press ENTER.

CALENDAR Preview Start month : 10 .2002 Start day : ■ Sunday ▼ Monday Color of day : ✓ Sunday in red ■ Sunday in red/ Saturday in bule Next to select Year or Month/ +8 to set/[ENTER] to execute.

② Set the day starting the week (placed furthest left in the calendar).
Press the arrow (↓/↑) button to select "Start day" and press the arrow (↔/→) button to move the cursor to "Sunday" or "Monday".
Then press ENTER.
Some templates do not have the "Start day" setting.
③ Set the color of days.

Press the arrow ( / ) button to select "Color of day" and press the arrow ( / ) button to move the cursor to "Sunday in red" or "Sunday in red/Saturday in blue". Then press ENTER.

6 Press the arrow (↓/↑) button to move the cursor to "Next", then press ENTER.

The preview of the selected calendar is displayed.

7 Make sure that the "Memory Stick" is inserted into the printer and then press ENTER.

The image list for selecting an image is displayed.

8 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired image, then press ENTER.

The window to adjust the image position is displayed. For adjustments procedures, see page 40.

9 Press the arrow (↓/↑) button to move the cursor to "NEXT", then press ENTER.

When you select a template with multiple images, repeat steps 8 and 9 until you select and adjust the remaining images. When you finish, the preview of the created print is displayed.

For print quantity setting and others, see page 41.

CALENDAR Preview Cartridge December 2002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 COPIES 1 SAVE TOP MENU EXIT [PRINT] to print the image.

Making various prints (CREATIVE PRINT)

10 To print the CREATIVE PRINT image, press PRINT.

When printing finishes, the screen of step 9 is displayed again. For the operations to follow, see page 37.

To stop printing

Press CANCEL. When multiple copies are being printed, the printing from the next print will be canceled.

Making a sticker

You can add a frame to each 9-split image to make a 9-split images sticker.

Note

To make a sticker, you can use the Small (3.5 x 4 inch) size print paper only. Before making a sticker, make sure to feed the Small (3.5 x 4 inch) size 9-split sticker print paper (SVM-30SW09) into the printer.

1 Press the arrow (◄/►/↓/↑) button to move the cursor to "STICKER", then press ENTER.
The sticker templates are displayed.

2 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired template, then press ENTER.

The preview of the selected template is displayed.

3 Press ENTER.

The screen for selecting a frame is displayed.

STICKER Select Sticker Template 1 A B C D E F G H I 2 A A A A A A A A A A A A 3 A B C A B C A B C Select a Sticker template with + and [ENTER].

STICKER Select Sticker Frame -For "A" image 1 2 3 4 5 6 7 8 9 Select a frame with + + + + and [ENTER].

4 Press the arrow (◄/►/↑/↓) button to move the cursor to the desired frame.
5 Make sure that the "Memory Stick" is inserted into the printer and then press ENTER.
The image list for selecting an image is displayed.
6 Press the arrow (◄/►/↑/↓) button to move the cursor to the desired image, and then press ENTER.
The window to adjust the image position is displayed. For adjustments procedures, see page 40.
7 Press the arrow (↓/↑) button to move the cursor to "NEXT", and then press ENTER.
The image is displayed with the frame. When you selected a template of multiple images, repeat steps 6 and 7 to select and adjust the remaining images. When you finish, the preview of the created print is displayed. For print quantity setting and others, see page 41.
8 To print the CREATIVE PRINT image, press PRINT.
When printing finishes, the screen of step 7 is displayed again. For the operations to follow, see page 37.

To stop printing

Press CANCEL. When multiple copies are being printed, the printing from the next print will be canceled.

Making split images

You can make a print with 2-split, 4-split, 9-split, 13-split, or 16-split images.

1 Press the arrow (◄/►/↓/↑) button to move the cursor to "SPLIT IMAGE", then press ENTER.

The size selection screen is displayed (page 38).

Making various prints (CREATIVE PRINT)

2 Press the arrow (◄/►/↓/♠) button to move the cursor to the size you use for printing, then press ENTER.

The split image templates are displayed.

SPLIT IMAGE Select Split Images Template 1 A B 2 A B 3 A A C D A A 4 A B C 5 A A A 6 A B C D D E F A A A E F G H G H I A A A I J K L M N O P 7 A A A 8 A B C D 9 A A A A A A E M F A A A A A A G H A A A A A A I J K L A A A Select a split pattern with ⚪⌘⌘ and [ENTER].

When you select "POSTCARD"

3 Press the arrow (◄/►/↓/↑) button to move the cursor to the desired template, then press ENTER.

The preview of the selected template is displayed.

4 Make sure that the "Memory Stick" is inserted into the printer and then press ENTER.

The image list for selecting an image is displayed.

5 Press the arrow (◄/►/↑/↓) button to move the cursor to the desired image, and then press ENTER.

The window to adjust the image position is displayed. For adjustments procedures, see page 40.

6 Press the arrow (↓/↑) button to move the cursor to "NEXT", and then press ENTER.

When you selected a template of multiple images, repeat steps 5 and 6 to select and adjust the remaining images. When you finish, the preview of the created print is displayed. For print quantity setting and others, see page 41.

7 To print the CREATIVE PRINT image, press PRINT.

When printing finishes, the screen of step 6 is displayed again. For the operations to follow, see page 37.

To stop printing

Press CANCEL. When multiple copies are being printed, the printing from the next print will be canceled.

Setting the printer (MENU)

What you can do with the MENU

The MENU allows you to change the printer settings, delete images, perform slideshow, or make an index print.

To display the MENU screen, press MENU.

MENU button

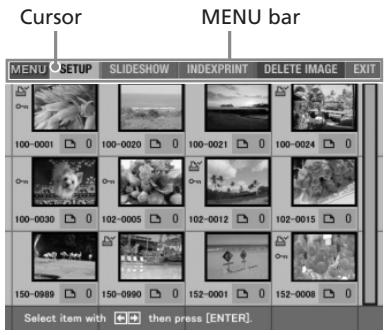

Cursor MENU bar MENU O SETUP SLIDESHOWN INDEXPRINT DELETE IMAGE EXIT 0-m 0 100-0020 0 100-0021 0 100-0024 0 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m 0-m Select item with + then press [ENTER]

Cursor Sub menu MENU SETUP SLIDESHOW INDEXPRINT DELETE IMAGE EXIT Auto Fine Print : ✓ HI LO OFF- Flnish : ✓ Glossy Texture Borderless Print : ✓ ON OFF Date Print : ✓ ON OFF Color Setting : R: 0 G: 0 B: 0 Beep : ✓ ON OFF Clock Setting : 11.01.2002 10:05 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Select item with +4 and [ENTER]

Press the arrow (◄/►) button to move the cursor to the desired sub menu and then press ENTER.

Item	Functions
SETUP	Changes the printing preferences including Auto Fine Print 2, finish, and clock setting. (Page 48)
SLIDESHOW	Performs a slideshow of the images in the “Memory Stick”. (Page 52)
INDEX PRINT	Makes an index print of all the images stored in the “Memory Stick”. (Page 53)
DELETE IMAGE	Deletes the selected images in the “Memory Stick”. Also formats the “Memory Stick”. (Page 54)
EXIT	Makes the settings effective and exits MENU.

Setting the printer (MENU)

To display another sub menu

Press until the current sub menu disappears.

To exit the MENU midway

Press CANCEL or MENU. The settings done are canceled and the screen returns to the one displayed before you entered the MENU.

Changing the printer preferences (SETUP)

The SETUP sub menu allows you to change the printing preferences including Auto Fine Print 2, date print, finish, or borderless print settings. You can also set clock and beep.

1 In the MENU screen (page 47), press the arrow (◄/►) button to select "SETUP" and press ENTER.

The SETUP sub menu is displayed.

MENU SETUP SLIDESHOW INDEXPRINT DELETE IMAGE EXIT Auto Fine Print : ✓ HI LO OFF Finish : ✓ Glossy Texture 100 Borderless Print : ✓ ON OFF Date Print : ✓ ON OFF Color Setting : R: 0 G: 0 B: 0 Beep : ✓ ON OFF Clock Setting : 11.01.2002 10:05 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Select item with ↑ and [ENTER].

Note

Items which cannot be changed are displayed in gray and cannot be selected.

To cancel operation midway in the MENU sub screen

Press CANCEL while the sub menu is displayed. The settings reset to the previous status and the MENU screen is displayed again.

2 Press the arrow (♠/♦) button to select the desired setting item and press the arrow (♦/→) button to change the setting.

The items are factory-set to the item with *.

Item	Settings	Contents
Auto Fine Print 2	HI/LO*	Corrects an image automatically for printing in better picture quality. You can select the level of adjustments between HI (higher) or LO (lower). When this function is on, an image shot by an Exif Print (Exif 2.2)-compatible digital still camera is automatically adjusted to its optimum picture quality and printed.NotesThe image on the screen is not corrected.When printing from a computer, the Auto Fine Print 2 function does not work.
	OFF	Prints an image without any corrections.
Finish	Glossy*	Prints an image vividly with glossy finish.
	Texture	Prints an image softly with a uniform and uneven finish.
Borderless Print	ON*	Prints an image without blank space around the image.NotesYou cannot make borderless prints with Small (3.5 x 4 inch) size print paper.When printing a standard 4:3 picture shot by a digital still camera, the top and bottom edges of the image are cut and it is printed as a 3:2 picture.
	OFF	Prints an image with borders around the image.NoteDepending on an image, its top and bottom edges or right and left edges may be cut and printed.

Continued

Setting the printer (MENU)

Item	Settings	Contents
Date Print	ON	Prints the shot date with an image when the image is a JPEG file recorded in the DCF (Design rule for Camera File system) format. To make a print with the shot date, please shoot an image in the JPEG file format. When the image is saved after edited with the printer, the saved date is printed.NoteTo record the date precisely, set the clock in advance.
	OFF*	Prints an image without the date print data.
Color Setting	Adjusts the colors of a print. Press the arrow (◄/►) button to select a color element among “R” (red), “G” (green), or “B” (blue), and then press the arrow (♠/♦) button to set the level to a higher value (+1, +2) or a lower value (-1, -2). (*R: 0/G:0/B:0)R: Adjusts the red and blue elements. The higher you set the level, the picture becomes reddish as if it receives red light. The lower you set the level, the picture becomes darker with red fading as if light blue is added.G: Adjusts the green and purple elements. The higher you set the level, the picture becomes greenish as if it receives green light. The lower you set the level, the picture becomes darker with green fading as if red purple is added.B: Adjusts the blue and yellow elements. The higher you set the level, the picture becomes bluish as if it receives blue light. The lower you set the level, the picture becomes darker with blue fading as if yellow is added.
Beep	ON*	The warning and operation sound beeps.
	OFF	No warning or operation sound beeps.
Item	Settings
Clock Setting	You can set the internal clock to record the date you saved the image in the “Memory Stick”.1Press the arrow (♠/♦) button to select “Clock Setting” and press ENTER.The printer enters clock setting mode. The cursor appears on the month (for NTSC) or the day (for PAL).2Press the arrow (♠/♦) button to set the month or day.Press ♦ to increase the number.Press ♦ to decrease the number.3Press ➔ or ENTER.The cursor moves to the day (for NTSC) or the month (for PAL).4Repeat steps 2 and 3 to set all of the items: month or day, year, hour and minute.If you want to set the previous item, press ◀. The hour is displayed in 24-hour system.5To release the clock setting mode, press ENTER or press ➔ to move the cursor to “Clock Setting”.When you press ♠ to move the cursor to the MENU bar, the clock starts working.NoteIf you unplug the AC power cord, the clock setting will become invalid within a few hours. In this case, please set the clock again.

3 Press the arrow (♠/♦/♦/♦) button to select "EXIT" and press ENTER.

The settings take effect until you change them even after you turn off the power. The previous screen is displayed.

To cancel settings

Press CANCEL. The settings done are canceled and the screen returns to the one displayed before you entered the MENU. The settings will not be saved until you select "EXIT" and press ENTER.

Viewing the slideshow

You can perform a slideshow of the images saved in a "Memory Stick".

1 Insert a "Memory Stick" into the printer.

The image list in the "Memory Stick" is displayed.

2 In the MENU screen (page 47), press the arrow (◄/►) button to select "SLIDESHOW" and press ENTER.

The SLIDESHOW sub menu is displayed.

MENU SETUP SLIDESHOW INDEXPRINT DELETE IMAGE EXIT Execute Switch Time Fast Slow 100-0001 100-0020 100-0021 100-0024 100-0030 102-0005 102-0012 102-0015 150-0989 150-0990 152-0001 152-0008 Select item with + and [ENTER].

3 In the Switch Time line, press the arrow (◄/►) button to select "Fast" to switch images quickly or "Slow" to switch them slowly.
4 Press the arrow (◄/►/↑/↓) button to move the cursor to "Execute", then press ENTER.

The images in the “Memory Stick” are displayed one after another with random patterns in the selected switch time like a slideshow.

To stop slideshow

Press CANCEL.

Notes

• Depending on the image, it may take time to be displayed.
• You cannot view the slideshow during the CREATIVE PRINT or EFFECT mode.
• You cannot display the images that are not displayed as thumbnails because they are damaged or for some other reason.

Making an index print

You can print a list of the images stored in a "Memory Stick" (Index print).

1 Insert a "Memory Stick" into the printer.

The image list in the "Memory Stick" is displayed.

2 In the MENU screen (page 47), press the arrow (◄/►) button to select "INDEX PRINT" and press ENTER.

The INDEX PRINT sub menu is displayed.

MENU SETUP SLIDESHOW INDEXPRINT DELETE IMAGE EXIT Execute Pattern 8 x 6 10 x 8 100-0001 0 100-0020 0 100-0021 0 100-0024 0 100-0030 0 102-0005 0 102-0012 0 102-0015 0 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Select item with ↑+ and [ENTER].

3 Press the arrow (◄/►) button to select the desired split pattern either from "8 x 6" or "10 x 8" and then press ENTER.

• When you select "8 x 6", 8 images horizontally and 6 images vertically are printed in a sheet of print paper.
• When you select "10 x 8", 10 images horizontally and 8 images vertically are printed in a sheet of print paper.

When the 3.5 × 5 inch size print paper is loaded, you can select the pattern either from “6 x 5” or “8 x 7”. For the Small ( 3.5 × 4 inch) size print paper, you can select either from “4 x 4” or “6 x 5”.

4 Press the arrow (◄/►/♠/↓) button to move the cursor to "Execute", then press ENTER.

The index of the images in a “Memory Stick” is printed in the selected pattern. Each image is printed with corresponding image number. When the “Date Print” is set to “ON”, the recorded date (year, month and day) is also printed.

Notes

• You cannot make an index print during the CREATIVE PRINT or EFFECT mode.
• You cannot print the images that are not displayed as thumbnails because they are damaged or for some other reason.
• The shot date is printed only when an image is a JPEG file recorded in the DCF (Design rule for Camera File system) format. To make a print with the shot date, please shoot an image in the JPEG file format.

Deleting images

You can delete images in the "Memory Stick". You can also format the "Memory Stick" (page 55).

Notes

• During deleting or formatting, do not turn off the power or remove the “Memory Stick” from the insertion slot. The “Memory Stick” may be damaged.
• If the “Memory Stick” is in write protect status, you cannot delete images or format the “Memory Stick”.
• When you select "Delete Image", you cannot delete an image protected or preset by DPOF.
• An image, once deleted, will be lost forever. Before deleting an image, double-check that it is the right one.
• When formatting a “Memory Stick”, all the files including the image files will be deleted.
• You cannot delete an image in the CREATIVE PRINT or EFFECT mode.
• You cannot format or delete an image in the "Memory Stick-ROM".

Deleting selected image(s)

You can select and delete images on a "Memory Stick".

1 Insert a "Memory Stick" into the printer.

The image list in the "Memory Stick" is displayed.

2 In the MENU screen (page 47), press the arrow (◄/►) button to select "DELETE IMAGE" and press ENTER.

The DELETE IMAGE sub menu is displayed.

MENU SETUP SLIDESHOW INDEXPRINT DELETE IMAGE EXIT Delete Image Memory Stick Format 100-0001 0 100-0020 0 100-0021 0 100-0024 0 100-0030 0 102-0005 0 102-0012 0 102-0015 0 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Select item with ⏻ and [ENTER].

3 Press the arrow ( / ) button to move the cursor to "Delete Image" and press ENTER.

The thumbnail list is displayed. When you displayed a preview image in step 1, the trash icon is attached to that image.

Trash icon

Memory Stick Select 0 All Images 52 Cartridge 100-0001 0 100-0020 0 100-0021 0 100-0024 0 100-0030 0 102-0005 0 102-0012 0 102-0015 0 150-0989 0 150-0990 0 152-0001 0 152-0008 0 Select delete image with + + + and [ENTER]

4 Press the arrow (◄/►/♠/↓) button to move the trash icon to the image you want to delete, then press ENTER.
5 Press ENTER.

A confirmation dialog box is displayed.

6 Press the arrow (◄/►) button to select "Yes" and press ENTER.

The selected image is deleted. To delete other images, repeat steps 4 through 6.

To cancel deletion

Press CANCEL. The MENU screen (page 47) appears.

Formatting a "Memory Stick"

You can format a "Memory Stick". In step 3, select "Memory Stick Format" and press ENTER. When the confirmation dialog box is displayed, press the arrow (◄/►) button to select "Yes" and press ENTER.

Note

When you format a "Memory Stick", all the images inside are deleted.

Using your printer with Windows computers

The supplied DPP-EX5 printer driver enables you to print an image stored on your computer with the Digital Photo Printer DPP-EX5. To print an image from the computer, you need commercially available printing application software.

System requirements

To use the supplied software, you need a computer that meets the following system requirements:

OS:	Microsoft Windows 98/Windows 98SE/Windows Me/Windows 2000 Professional/Windows XP Home Edition/Windows XP Professional should be pre-installed.
	NoteThe operating system should be factory-installed. We cannot guarantee the operations for the above operating systems if they are upgraded from a former version of Windows.
CPU:	MMX Pentium 233 MHz or above is recommended.
RAM:	64 MB or more is recommended.
Hard disk space:	200 MB or more is recommended. (It differs depending on the number of copies to be printed.)
Port:	A USB port should be installed as standard.
Drive:	CD-ROM drive (for software installation)

Notes

• We cannot guarantee printer operations when a hub is used or when two or more USB devices including other printer are connected to your computer.
• If you connect more than one DPP-SV88/SV77/SV55/MP1/EX7/EX5 printer at the same time, you cannot operate the printer.
• You cannot operate the printer from another USB device being used simultaneously.
• Do not remove or connect the USB cable from or into the printer during the data communication or printing. The printer may not work properly.
• The printer does not support system standby/hibernate mode of the computer. During printing, do not make your computer change to system standby/hibernate mode.
• We cannot guarantee operations with all the personal computers with the system requirements.

Installing the printer driver

Install the printer driver contained on the supplied CD-ROM to your computer.

1 Make sure that the printer is not connected to the computer.
2 Turn on your computer and start Windows.

- When installing or uninstalling the software in Windows® 2000

Professional, log on Windows as the user name of "Administrator" or "Power user".

- When installing or uninstalling the software in Windows® XP

Professional/Home Edition, log on as a user name with the “Computer administrator” user account.

Notes

• Be sure to close all running programs before installing the software.
• The dialog boxes in this section are those in Windows XP Professional, unless otherwise specified. The installation procedures and the dialog boxes shown differ depending on the operation system.

3 Insert the supplied CD-ROM into the CD-ROM drive of your computer and double-click "Setup" in the CD-ROM.

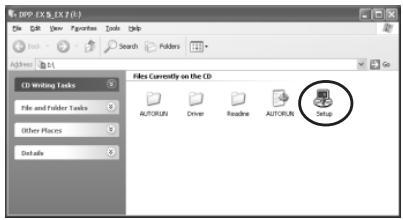

CD Writing Tools File and Folder Tasks Other Places Details Files Currently on the CD AUTORUN Driver Readine AUTORUN Default

Notes

• If you connect the printer to your computer before installing the driver, the dialog box to request the driver is displayed. If this occurs, click “Cancel” to close the dialog box. Then remove the printer from your computer and redo the installation procedures.
• If you cancel the installation midway, do the installation procedures from the step 3.
• If the installation fails, remove the printer from your computer, restart your computer, and then do the installation procedures from the step 3.

Continued

Using your printer with Windows computers

The "Sony DPP-EX5/EX7 Setup" dialog box appears.

4 Click "Next" to start installation.

Installation continues. When it is completed, the setup compete dialog box is displayed.

InstallShield Wizard Welcome to the InstallShield Wizard for Sony DPP-EX5/EX7 The Setup will start the Sony DPP-EX5/EX7 installation. Make sure that the Sony DPP-EX5/EX7 is disconnected from your computer. < Back Next > Cancel

5 Click "Finish".
6 Remove the CD-ROM from your computer.
7 Turn on the printer and then connect the USB connectors of the printer and your computer.

Note

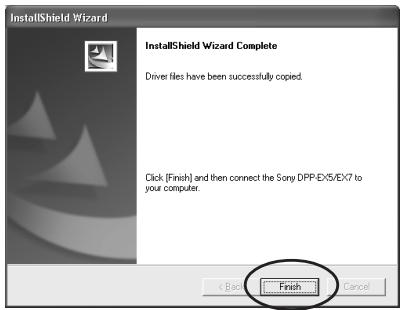

InstallShield Wizard InstallShield Wizard Complete Driver files have been successfully copied. Click [Finish] and then connect the Sony DPP-EX5/EX7 to your computer. Finish Cancel

Make sure to turn on your printer before connection.

8 Follow the instructions on the screen to set up the printer depending on the operating system you use.

The printer will be automatically set up.

Notes

• If you cancel the installation midway, do the installation procedures from the step 3.
• If the installation fails, remove the printer from your computer, restart your computer, and then do the installation procedures from the step 3.
• After installation, the "Sony DPP-EX5" is not set as the default printer. Set the printer you use for each application.
• The supplied CD-ROM will be required when you re-install or uninstall the printer driver. Keep it in good order for possible future use.
• Before you use the printer, read the Readme file (the Readme folder of the CD-ROM→English folder→Readme.txt).

To check the installation

Open the “Printers and Faxes” (Windows XP Home Edition/XP Professional only) or “Printers” from the “Control Panel”. When the “Sony DPP-EX5” is displayed in the “Printers and Faxes” or “Printers” window, the DPP-EX5 has successfully installed.

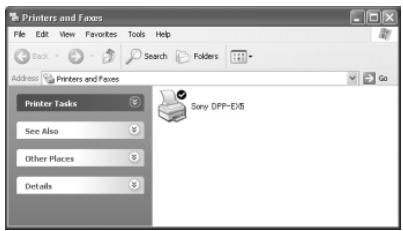

Printers and Faxes File Edit View Favorites Tools Help Back Search Folders Address Printers and Faxes Printer Tasks See Also Other Places Details Sony DPP-DS

When using the Windows Me

The “Add New Hardware Wizard” may be displayed during installation. If this occurs, follow the following procedures to proceed with installation:

① Check “Automatic search for a better driver” and then click “Next”. Insert the supplied CD-ROM into the CD-ROM drive of your computer.

The dialog box to select the driver language is displayed.

② Click the language of the driver you need to install, and then click "OK".

③ Click "Finish".

④ Remove the supplied CD-ROM from the CD-ROM drive of your computer.

Add New Hardware Wizard Windows has found the following new hardware: Sony DPP-EX5 Windows can automatically search for and install software that supports your hardware. If your hardware came with installation media, insert it now and click Next. What would you like to do? • Automatic search for a better driver (Recommended) • Specify the location of the driver (Advanced) < Back Next > Cancel

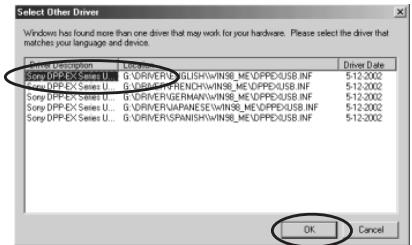

Select Other Driver Windows has found more than one driver that may work for your hardware. Please select the driver that matches your language and device. Drive Description Description Driver Date Sony DPP-EX Series U... G:\DRIVER\SPANISH\WIN8_ME\DPPEX\USB.INF 5-12-2002 Sony DPP-EX Series U... G:\DRIVER\SPANISH\WIN8_ME\DPPEX\USB.INF 5-12-2002 Sony DPP-EX Series U... G:\DRIVER\SPANISH\WIN8_ME\DPPEX\USB.INF 5-12-2002 Sony DPP-EX Series U... G:\DRIVER\SPANISH\WINS8_ME\DPPEX\USB.INF 5-12-2002 Sony DPP-EX Series U... G:\DRIVER\SPANISH\WINS8_ME\DPPEX\USB.INF 5-12-2002 OK Cancel

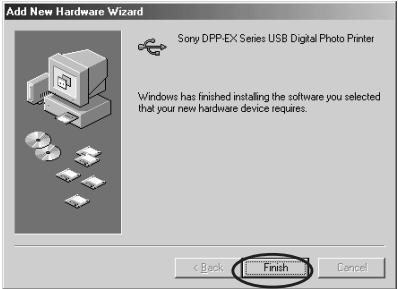

Add New Hardware Wizard Sony DPP-EX Series USB Digital Photo Printer Windows has finished installing the software you selected that your new hardware device requires. < Back Finish Cancel

Using your printer with Windows computers

Uninstalling the software

When the software becomes unnecessary, remove the software from your computer's hard disk as follows:

1 Disconnect the USB cable from your printer and the computer.
2 Open the "Printers and Faxes" (Windows XP Home Edition/XP Professional only) or "Printers" from the "Control Panel".
3 Right-click on "Sony DPP-EX5" in the "Printers and Faxes" or "Printers" window and select "Delete" from the short-cut menu.
The confirmation dialog box is displayed.
4 Click "Yes".
The relevant files are removed from your computer's hard disk.

Printing from an application software

You can use the "Print" command of an application software to print an image from your computer with the Digital Photo Printer DPP-EX5.

When using the Windows XP Home Edition/Professional, you can use My Pictures to print an image (page 63).

Notes

• Before printing, make sure to connect the USB connectors of the printer and the computer. If you connect it after you start printing, the printer or the computer may not work properly.
• This section explains the settings and operations with a typical application as an example. Depending on the application, print settings and operations may differ. For the details, refer to the manual of your application.
• The dialog boxes in this section are those in Windows XP Professional. They may differ depending on the operation system.
• To obtain the expected print performances, we suggest you use an application software that allows you to check the print preview. Use the application software to make the image size to 1644 x 2466 (dots) for the Post Card (4 x 6 inch) size, 1464 x 2064 (dots) for the 3.5 x 5 inch size, and 1137 x 1516 (dots) for the Small (3.5 x 4 inch) size. Also make the resolution to 403 dpi. Even after these adjustments, an image may be cut off or proper printed performances may not be obtained depending on the application software you use. If this occurs, adjust the image size smaller.

1 Start the application software that you use for printing, and select the image to be printed.
2 Click "Page Setup" from the "File" menu of the application.
The "Page Setup" dialog box appears.

3 Set the printer.

The dialog box differs depending on the application.

① Click "Printer".
The "Page Setup" dialog box is displayed.

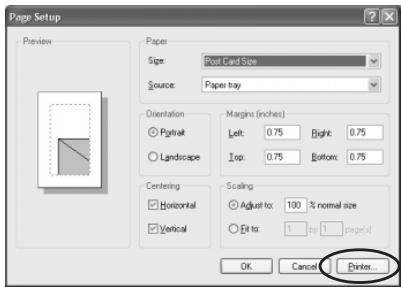

Page Setup Preview Paper Size: Post Card Size Source: Paper tray Orientation ● Portrait ○ Landscape Centering □ Horizontal □ Vertical Margins (inches) Left: 0.75 Right: 0.75 Top: 0.75 Bottom: 0.75 Scaling ○ Adjust to: 100 % normal size ○ Exit to: 1 Top 1 page(s) OK Cancel Printer...

② Select "Sony DPP-EX5" as the name of the printer.

③ Click "Properties". The document properties window is displayed.

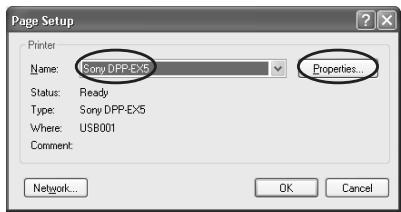

Page Setup Printer Name: Sony DPP-EX5 Status: Ready Type: Sony DPP-EX5 Where: USB001 Comment: Network... Properties... OK Cancel

④ In the “Layout” tab, select the Orientation of an image either from “Portrait” to print it in portrait (tall) format or “Landscape” to print it in landscape (wide).

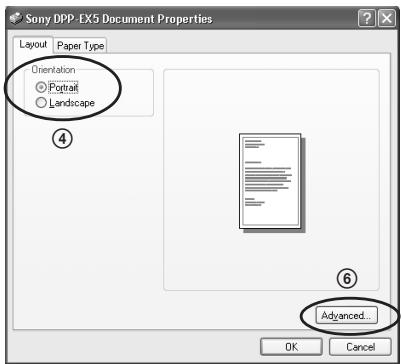

Sony DPP-EX5 Document Properties Layout Paper Type Orientation ● Portrait ○ Landscape ④ ⑥ Advanced... OK Cancel

Using your printer with Windows computers

⑤ Click "Paper Type" tab and then set the paper according to the print paper size you would like to use for printing.

Sony DPP-EX5 Document Properties Layout Paper Type Paper Type Post card 3.5x5 inch Small margin with border borderless OK Cancel

Paper Type	Select the paper size either from “Post card”, “3.5 x 5 inch” or “Small” according to the print paper size you use.
margin	When you select “Post card” or “3.5 x 5 inch” as the paper, select the print margin either from “with border” or “borderless”. (When you select “Small” paper, you cannot select borderless print.)

⑥ Click the "Layout" tab again and click "Advanced" in the dialog box in step ④.

The advanced options window is displayed.

⑦ Set the printer in details:

Sony DPP-EX5 Advanced Options Sony DPP-EX5 Advanced Document Settings Paper/Output Copy Count: 1 Copy Graphic Print Quality: 403 dpi Document Options OverCoat: Glossy Color Correct: Glossy R: 100 G: 100 B: 100 Density: 0 Sharp: 0 OK Cancel

OverCoat You can select finish from either "Glossy" or "Texture".

Color Correction You can set color tones, density and sharpness levels.

4 Click "OK".

5 Click "Print" from the "File" menu of the application.

The "Print" dialog box appears.

6 Set the print range and copies.

Print General Select Printer Add Printer Sony DPP-EXS Status: Ready Location: Comment: Page Range All Selection: Current Page Pages: Number of copies: 1 Collate 1 2 3 Print Cancel Apply

Page Range	In “Pages” text box, enter the page numbers to start and end printing. To print all the pages, select “All”. To print the current page, select “Current Page”.
Number of copies	Enter the number of copies to be printed.
Cancel	Stops printing.

7 Click "Print".

The printer starts printing. The DPP-EX5 printer monitor is displayed showing the printing process.

To print from My Pictures (when using the Windows XP Home Edition/Professional only)

1 Insert the images that you want to print into "My Pictures".
2 Select "My Pictures" from the "Start" menu.

The "My Pictures" window is displayed.

3 Select the folder that you want to print and then click "Print this picture".

The photo printing wizard is displayed.

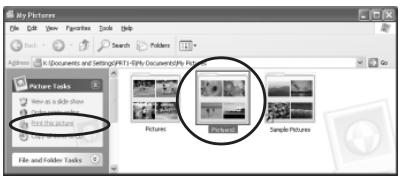

My Pictures File Edit View Favorites Tools Help Search Pottlers Pictures Tools View as a video view Find the image File and Folder Tasks Pictures Sample Pictures

Continued

Using your printer with Windows computers

4 Click "Next".

The picture selection window is displayed.

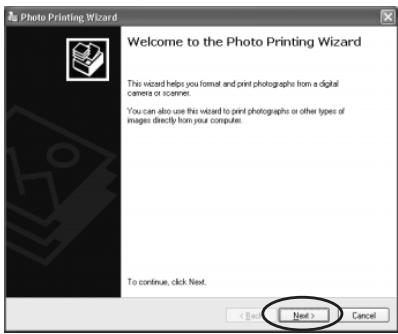

Photo Printing Wizard Welcome to the Photo Printing Wizard This wizard helps you format and print photographs from a digital camera or scanner. You can also use this wizard to print photographs or other types of images directly from your computer. To continue, click Next. Next > Cancel

5 Check the images that you want to print and then click "Next".

Please remove the checks for the images that you do not want to print.

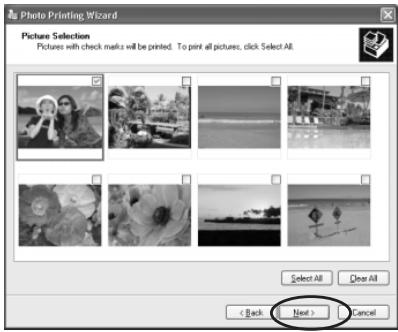

Photo Printing Wizard Picture Selection Pictures with check marks will be printed. To print all pictures, click Select All. Select All Clear All < Back Next > Cancel

6 Select "DPP-EX5" as the printer you use and then click "Printing Preferences".

The document properties window in step ④ in page 61 is displayed.

Set the layout, paper type and the printer details in the same way as in the steps ④ through ⑦ on pages 61 and 62.

Photo Printing Wizard Printing Options Select the printer and paper you want to use. How printing is your want to use? Copy OFF-ENS Install Printer... Your prints will look best if you select the correct paper before printing. To select papers, click Printing Preferences. Printing Preferences < Back Next > Cancel

7 Click "OK".

The photo printing wizard is displayed again.

8 Click "Next".

9 Select the layout and print quantity and then click "Next".

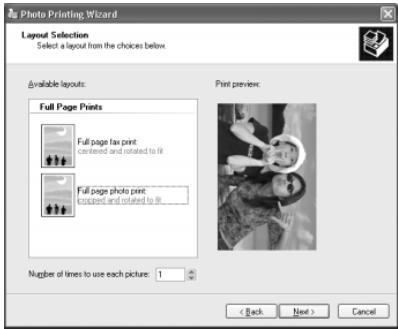

Photo Printing Wizard Layout Selection Select a layout from the choices below. Available layouts: Full Page Prints Full page tax print centered and rotated to fit Full page photo print cropped and rotated to fit Print preview: Number of times to use each picture: 1 < Back Next > Cancel

The data is transferred to the printer for printing. To stop printing, click "Cancel Printing".

10 When the completing photo printing wizard dialog box is displayed, click "Finish".

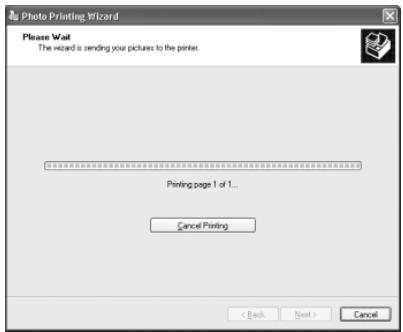

Photo Printing Wizard Please Wait The wizard is sending your pictures to the printer. Printing page 1 of 1... Cancel Printing < Back Next > Cancel

To stop printing

When a "printing" dialog box is on the screen

Click the "Stop" button or the "Cancel" button.

The printing job is canceled and the dialog box is closed.

When the data has already transferred to the printer queue

1 Open the "Printers and Faxes" (Windows XP Home Edition/XP Professional only) or "Printers" from the "Control Panel".
2 Double-click the "Sony DPP-EX5" icon.

The “Sony DPP-EX5” window is displayed. In the window, the documents in the queue for printing are listed.

3 Click the document you want to stop printing.
4 Click "Stop" or "Cancel" from the "Document" menu.

The document is removed from the list and the printing job is canceled. For the details, refer to the Windows documentation.

Note

If printing has already started and the print paper has already been loaded, do not cancel printing. Paper jam may occur. Please wait until the printing is completed.

Using your printer with Macintosh computers

The supplied DPP-EX5 printer driver enables you to print an image stored on your computer with the Digital Photo Printer DPP-EX5. To print an image from the computer, you need commercially available printing application software.

System requirements

To use the supplied software, you need a Macintosh computer that meets the following system requirements.

OS: Mac OS 8.6/9.0/9.1/9.2/X (v10.1/v10.2) should be pre-installed.

Port: A USB port should be installed as standard.

RAM: 128 MB or more is recommended.

Hard disk space: 100 MB or more is recommended. (It differs depending on the number of copies to be printed.)

Drive: CD-ROM drive (for software installation)

Notes

• We cannot guarantee the printer operations when a hub is used or when two or more USB devices are connected to your computer.
• If you connect more than one DPP-SV88/SV77/SV55/MP1/EX7/EX5 printer at the same time, you cannot operate the printer.
• You cannot operate the printer from another USB device being used simultaneously.
• Do not remove or connect the USB cable from or into the printer during the data communication or printing. The printer may not work properly.
• We cannot guarantee operations with all the personal computers with the system requirements.

Using your printer with Macintosh computers

Installing the printer driver

When using Mac OS 8.6/9.0/9.1/9.2

1 Make sure that the printer is not connected to the computer.
2 Turn on and start your Macintosh.

Note

Be sure to close all running programs before installing the software.

3 Insert the supplied CD-ROM into the CD-ROM drive of your computer.
4 Double-click the "Mac OS 8.6-9.x" folder.

5 Select the software language by double-clicking the corresponding folder.

The selected language folder opens.

6 Double-click "DPP-EX5_EX7 Installer".

7 Click "Install".

Installation starts. When the installation is completed, the dialog box to notify the successful installation is displayed.

8 Remove the supplied CD-ROM from the CD-ROM drive of your computer.

DPP-EX5_EX7 3 items, zero K available Mac OS 8.6-9.x Mac OS 10.1 Operating Instructions

Mac OS 8.6-9.x S items, zero K available English French German Japanese Spanish

2 items, zero K available DPP-EX5_EX7 Installer (English) DPP-EX5_EX7 Uninstaller (English)

DPP-EX5_EX7 Installer (English) The printer driver for the SONY DPP-EX5_EX7 will be installed. Install Location Mac 9.1x Switch Disk Quit Install on the disk "Max 9.1x"

Continued

Using your printer with Macintosh computers

Notes

• If you cancel the installation midway, do the installation procedures from the step 4.
• If the installation fails, remove the printer from your computer, restart your computer, and then do the installation procedures from the step 4
• The supplied CD-ROM will be required when you re-install or uninstall the printer driver. Keep it in good order for possible future use.

Uninstalling the printer driver

When the software becomes unnecessary, remove the software as follows: In step 6, click "Uninstaller".

When using Mac OS X (v10.1/v10.2)

1 Make sure that the printer is not connected to the computer.
2 Turn on and start your Macintosh.

Note

Be sure to close all running programs before installing the software.

3 Insert the supplied CD-ROM into the CD-ROM drive of your computer.

4 Double-click the "Mac OS X v10.1-10.2" folder.

5 Double-click "DPPEX5_EX7.pkg".

DPP-EX5_EX7 3 items, Zero KB available Operating Instructions Mac OS 8.6-9.x Mac OS X v10.1-10.2

Mac OS X v10.1-10.2 2 items, Zero KB available DPPEX5_EX7.pkg Readme

6 Click.

Notes

When you are using Mac OS X (v10.2), this dialog box will be not displayed.

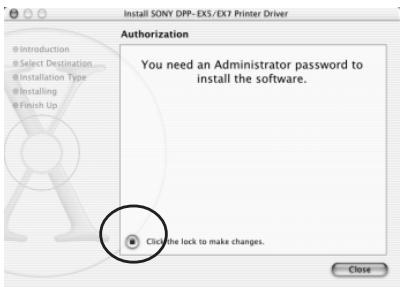

Install SONY DPP-EX5/EX7 Printer Driver Authorization You need an Administrator password to install the software. Click the lock to make changes. Close

7 Enter the name and password of the computer administrator, and then click "OK".

For the name and password, refer to the computer administrator.

8 Click "Continue".
9 Click the location you install the driver and then click "Continue".

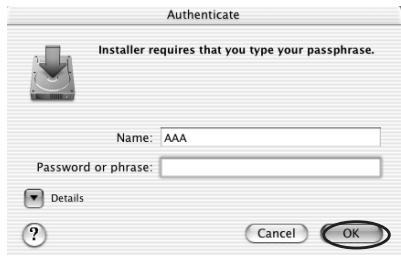

Authenticate Installer requires that you type your passphrase. Name: AAA Password or phrase: Details Cancel OK

Install SONY DPP-EX5/EX7 Printer Driver Select a Destination Select a destination disk to install the SONY DPP-EX5/EX7 Printer Driver software. Mac OS 10.0 $1.00 (as free) Select a destination disk to install the SONY DPP-EX5/EX7 Printer Driver software. Go Back Continue

10 Click "Install".

Installation starts. When it is completed, the dialog box to notify the successful installation is displayed.

Note

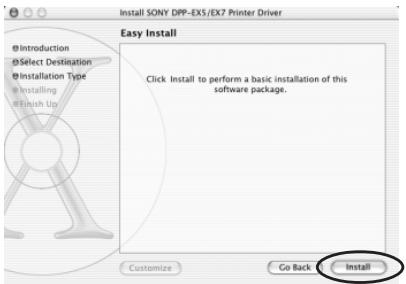

Install SONY DPP-EX5/EX7 Printer Driver Easy Install Click Install to perform a basic installation of this software package. Customize Go Back Install

If the driver has been previously installed, the "Upgrade" is displayed instead of "Install". To delete the past installation information, delete "/Library/Receipts/DPPEX5_EX7.pkg".

11 Click "Close".
12 Remove the supplied CD-ROM from the CD-ROM drive of your computer.

Notes

• If you cancel the installation midway, do the installation procedures from the step 4.
• If the installation fails, remove the printer from your computer, restart your computer, and then do the installation procedures from the step 4
• The supplied CD-ROM will be required when you re-install or uninstall the printer driver. Keep it in good order for possible future use. Continue
  Continued

Using your printer with Macintosh computers

Uninstalling the printer driver

When the software becomes unnecessary, remove the software as follows:

1 Disconnect the USB cable from your printer and the computer.
2 Open "Print Center", select "DPP-EX5" from the printer list and then click "Delete".

Note

The “Print Center” is located in the “Utilities” folder of the “Application” folder.

Printing from an application software

You can use an application software to print images stored in your computer with the Digital Photo Printer DPP-EX5.

Notes

• Before printing, make sure to connect the USB connectors of the printer and the computer. If you connect it after you start printing, the printer or the computer may not work properly.
• This section explains the settings and operations with a typical application as an example. Depending on the application, print settings and operations may differ. For the details, refer to the manual of your application.
• The dialog boxes in this section are those in Mac OS X (v10.2). They may differ depending on the operation system.
• To obtain the expected print performances, we suggest you use an application software that allows you to check the print preview. Use the application software to make the image size to 1644 x 2466 (dots) for the Post Card (4 x 6 inch) size, 1464 x 2064 (dots) for the 3.5 x 5 inch size, and 1137 x 1516 (dots) for the Small (3.5 x 4 inch) size. Also make the resolution to 403 dpi. Even after these adjustments, an image may be cut off or proper printed performances may not be obtained depending on the application software you use. If this occurs, adjust the image size smaller.

1 Connect the printer to your computer and turn on the printer.
In a while, the printer is detected and ready for printing. When the printer is ready, the “DPP-EX5” is displayed in the printer list of the “Print Center”.

2 Start the application software that you use for printing, and select the image to be printed.

When using Mac OS 9.x

Open “Chooser” from the Apple menu, click “DPP-EX5”, and then close the “Chooser”.

3 Click "Page Setup" from the "File" menu of the application.

The "Page Setup" dialog box appears.

4 Choose the print settings.

Page Setup Settings: Page Attributes Format for: DPP-EX5 SONY DPP-EX5/EX7 Paper Size: Post card 10,16 cm x 15,24 cm Orientation: Scale: 100 % Cancel OK

Settings	Select “Page Attributes”.
Format for	Select “DPP-EX5” from the drop-down list box.
Paper Size	Select either of the following paper size from the drop-down list box.Post card: When you use the Post Card (4 x 6 inch) size print paper to make a print with borders.Post card (borderless): When you use the Post Card (4 x 6 inch) size print paper to make a print without border.3.5 x 5 inch: When you use the 3.5 x 5 inch size print paper to make a print with borders.3.5 x 5 inch (borderless): When you use the 3.5 x 5 inch size print paper to make a print without borders.Small: When you use the Small (3.5 x 4 inch) size print paper to make a print with borders.

5 Click "OK" to close the dialog box and select "Print" from the "File" menu.

The "Print" dialog box appears.

6 Select the menu from the dropdown list box and make the print settings.

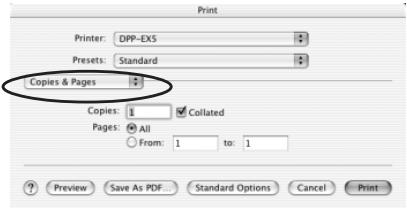

Print Printer: DPP-EX5 Presets: Standard Copies & Pages Copies: 1 Coliated Pages: All From: 1 to: 1 Preview Save As PDF... Standard Options Cancel Print

Continued

Using your printer with Macintosh computers

Menu	Item	Setting
Copies & Pages	Pages	To print all the pages, select “All”. To print part of the pages, specify the pages to start and end printing.
	Copies	Enter the number of copies to be printed.
Layout	Select the layout direction.
General	Select OverCoat either from “Glossy” or “Texture”.
Color Correction	You can set color tones, density and sharpness.
Preview	Displays a preview of the image for printing.

7 Click "Print".

Printing starts. To stop printing, click "Cancel".

Note

If printing has already started and the print paper has already been loaded, do not cancel printing. Paper jam may occur. Please wait until the printing is completed.

When an error occurs during printing in the Mac OS X (v10.1/v10.2)

If an error occurs, follow the procedures.

1 If the right dialog box is displayed, click "Show Printer".

The error description is displayed.

Note

When you are using Mac OS X (v10.1), click "Show Queue".

2 • To stop printing: Click "Delete Job".

- To resume printing: Click "Stop Job".

When you select "Stop Job", the following dialog box is displayed.

3 Remove the error and select the job from the list box and then click "Resume".

Note

When you are using Mac OS X (v10.1), click "Retry".

Printer Error An Error Occurred while Printing Show Printer OK

No print cartridge inside. Set the print cartridge for "Post card" size. Delete Job Stop All Jobs Stop Job

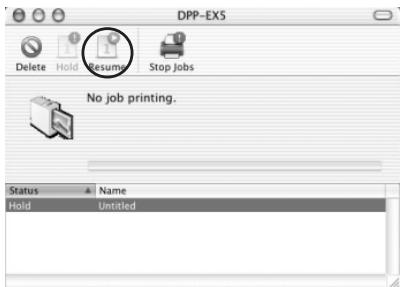

DPP-EXS Delete Hold Resume Stop Jobs No job printing. Status Name Hold Untitled

Precautions

On safety

• Be careful not to set or drop any heavy objects on the power cord, or to damage the power cord in any way. Never operate this printer with a damaged power cord.
• Should any solid object or liquid fall into the cabinet, unplug the printer and have it checked by qualified personnel before operating it any further.
• Never disassemble the printer.
• To disconnect the power cord, pull it out by the plug. Never pull the power cord itself.
• When the printer is not going to be used for an extended period of time, disconnect the power cord from the wall outlet.
• Do not handle the printer roughly.
• To reduce the risk of electrical shock, always unplug the printer from the electrical outlet before cleaning and servicing the printer.

On installation

• Avoid placing the printer in a location subject to:
• vibration
  – high humidity
• excessive dust
• direct sunlight

• extremely high or low temperatures

• Do not use electrical equipment near the printer. The printer will not work properly in electromagnetic fields.

• Do not place heavy objects on the printer.
• Leave enough room around the printer so that the ventilation holes are not blocked. Blocking these holes may cause internal heat build-up.

Precautions

On moisture condensation

If the printer is brought directly from a cold location to a warm location or placed in an extremely warm or humid room, moisture may condense inside the unit. In such cases the printer will probably not work properly and may even develop a fault if you persist in using it. If moisture condensation occurs, turn off the power and do not use the printer for at least one hour.

On transport

When you transport the printer, remove the print cartridge, paper tray, the "Memory Stick" from the printer and put the printer and its peripherals in the original box with the protective packaging.

If you no longer have the original box and packing parts, use similar packing material so that the printer will not be damaged while being transported.

On cleaning

Clean the cabinet, panel and controls with a soft dry cloth, or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine, which may damage the finish.

On restrictions on duplication

If duplicating documents with the printer, pay special attention to the following:

• Duplication of banknotes, coins, or securities is against the law.
• Duplication of blank certificates, licenses, passports, private securities, or unused postal stamps is also against the law.
• TV program, films, video tapes, others' portraits or other materials may be copyrighted. Unauthorized video printing of such materials may infringe the provisions of the copyright law.

About the "Memory Stick"

What is "Memory Stick"?

"Memory Stick" is small, light-weighted, and next-generation IC storage media with a larger capacity than a floppy disc. You can use the "Memory Stick" to exchange data among "Memory Stick" compatible devices. In addition, you can use the "Memory Stick" as a removable external storage device to save your data.

Types of "Memory Stick"

Following types of "Memory Stick" are available for versatile purposes.

- "Memory Stick": "Memory Stick" can store all types of data except for the one that requires the "MagicGate" copyright protection technology.

- "Memory Stick (with memory select function)": "Memory Stick (with memory select function)" incorporates multiple 128MB memory units, which can be selected by a user via a mechanical switch on the reverse side of the media. Each memory unit can be used to categorize various types of data. You cannot select multiple memory units together or continuously.

- "MagicGate Memory Stick": "MagicGate Memory Stick" employs the "MagicGate" copyright protection technology.

• "Memory Stick PRO": "Memory Stick PRO" employs the "MagicGate" copyright protection technology and can be used only with "Memory Stick PRO" compliant devices.
• "Memory Stick-ROM": "Memory Stick-ROM" is the read-only "Memory Stick" storing the data. You cannot save or delete its data.

On "Memory Stick Duo"

"Memory Stick Duo" is smaller than the standard-sized "Memory Stick". When inserted into the Memory Stick Duo adaptor, the "Memory Stick Duo" is the same size as the standard-sized "Memory Stick", and can be used with "Memory Stick" compliant devices.

- When using the “Memory Stick Duo” on the printer, make sure to insert the “Memory Stick Duo” into the Memory Stick Duo adaptor and then insert the adaptor containing the “Memory Stick Duo” into the printer.

- Before using the “Memory Stick Duo”, check the correct direction to insert the “Memory Stick Duo”. If you attempt to insert it in a wrong direction, the “Memory Stick Duo” and the printer may be damaged.

- Never insert the Memory Stick Duo adaptor that contains no "Memory Stick Duo" into a "Memory Stick"-compatible device. If you do, the device may be damaged.

About the "Memory Stick"

Types of "Memory Stick" that the printer can use

With the printer, you can do the following operations for each type of "Memory Stick":

	Read	Write/Delete/Format
"Memory Stick"/"Memory Stick (with memory select function)"/"Memory Stick Duo"*2	OK	OK
"MagicGate Memory Stick"/"MagicGate Memory Stick Duo"*2	OK*1	OK*1
"Memory Stick PRO"	OK*1	OK*1
"Memory Stick-ROM"	OK	NO

*1 The printer cannot read/write the data subject to "MagicGate" copyright protection.
*2 Use the adaptor designed for the "Memory Stick Duo" you use.

We cannot guarantee the operations of all the “Memory Stick” media.

On data read/write speed

The data read/write speed differs depending on the combination of the "Memory Stick" and the device you use.

What is "MagicGate"?

"MagicGate" is the copyright protection technology that works when both the "Memory Stick" and the device employ the technology. The "MagicGate"-compatible device and the "MagicGate Memory Stick" attest that each other supports the "MagicGate" technology and encode the data they exchange.

The printer does not support the "MagicGate" standards and cannot read or write the data subject to the "MagicGate" copyright protection.

Notes on use

• When you slide the write protect switch to the write protect position, you cannot record, edit, or delete the data.
• When you slide the write protect switch of the "Memory Stick Duo", use a thin-pointed device.

Connector

Write enable position Write protect position

Place the label here

• Avoid removing the "Memory Stick" from the printer while the printer is reading or writing data.
  • Data may be damaged in such occasions:

- “Memory Stick” is removed or the printer is turned off while the printer is reading or writing the “Memory Stick” data.

- “Memory Stick is used in a location subject to electrostatic or electronic noises.

• We recommend that you save backup of the important data.
- Attach the label designed for the "Memory Stick" only to the place for the label.
- When attaching the label, attach it to the place specified for the label. Make sure that the label does not overlap.
- When storing and carrying the "Memory Stick", keep it in its original case to ensure protection of important data.
- Avoid touching the connector of the "Memory Stick" or contacting it with a metal object.
- Do not drop, bend, or submit the "Memory Stick" to external shock.
- Do not disassemble or modify the "Memory Stick".
- Avoid getting liquids on the "Memory Stick" or using it in areas subject to high humidity.

- Avoid using or storing the "Memory Stick" in a location subject to:

• extremely high temperature such as the hot inside of a car or the outdoors exposed to direct sunlight, or a place near a heater.
• direct sunlight
• high humidity
• corrosive substances

- When formatting a "Memory Stick", use the format function of the printer or your digital still camera. If you format a "Memory Stick" with your computer, images may not be displayed properly.

Troubleshooting

If you run into any problems using the printer, use the following guidelines to solve the problem. If the problem persists, consult your Sony dealer. When you are printing from your computer, also refer to the computer manual.

Cannot operate the printer after the power switch is turned on.

→ Connect the AC power cord to an AC outlet securely.

The television displays no images.

→ Press INPUT SELECT to turn on the "MEMORY STICK" input indicator.
→ When printing from the “Memory Stick,” insert it securely into the printer. Check that images recorded by a digital still camera or other device are recorded.

Cannot print.

→ Insert the correct set of print cartridge and print paper.
→ Check that the paper tray has paper.
→ The thermal head may be overheated. Leave the printer until the head cools down and the printer resumes printing.
→ Remove the jammed paper, if any.

An image in thumbnail list is not properly displayed or printed.

→ If the image is displayed but can not be printed, the file used for printing is damaged.
→ If the mark shown on the right is displayed in the thumbnail list, the image is a JPEG file created with your computer, or the thumbnail data of the image is damaged.

Select the mark and press PICTURE. If a preview image is displayed, you can print the image. If the same mark is displayed again as a preview, the image is stored in an incompatible file format that the DPP-EX5 does not support or the image itself is damaged.

→ An image which is damaged or has some kind of problem will not appear in the image list. A file error message appears. If there are no images stored in the “Memory Stick”, the no file message appears.
→ If an image is not compatible with DCF (Design rule for Camera File system), it may not be printed with the printer even if it is displayed on the PC monitor.

→ The printer can handle and display up to 9999 image files. If there are more than 9999 images stored in a "Memory Stick," use the computer to display and handle the remaining images.
→ Depending on the type of digital still camera used, the aspect ratio of the recorded image differs, so the image may not be printed covering the entire printable area.
→ Depending on the type of digital still camera used, preview images may be displayed along with the primary images in the thumbnail list. The printed quality of the preview images will not be as good as the primary images. Note that if you delete the preview images, the data for the primary images may be damaged.
→ Depending on the type of digital still camera used, the image may be stretched vertically if it has been rotated or processed using your digital still camera. This is not because of trouble with the printer, but because the image was rewritten with your digital still camera.
→ When you name or rename an image file on your computer and its file name includes characters other than alphanumeric characters, the file name may not be displayed correctly or the image may not be displayed (read error) on the printer.

The beeps sound.

→ Check that you are following the correct procedures.

Cannot remove the print cartridge.

→ Turn the printer off then on. After the motor sound stops, try to remove the cartridge.

If this does not solve the problem, contact Sony service facilities or your Sony dealer.

The ☐ / 🔍 indicator is lit or an error message is displayed.

→ Follow the instructions on the screen.

There is a white line or dots in the printed pictures.

→ The print head or paper path may be soiled. Use the supplied cleaning kit to clean the head and path (page 80).

Troubleshooting

If paper jams

If the print paper jams, the ☐ / ⚙ (paper/cartridge error) indicator lights and an error message is displayed. Printing stops. Turn the printer off and remove the jammed paper from the paper outlet or take out the paper tray to remove the jammed paper.

Pull out the jammed paper slowly. Take out t remove th

Note

If you cannot remove the jammed paper, contact your Sony dealer.

Cleaning the inside of the printer

If white lines or dots are printed on the pictures, use the supplied cleaning cartridge and paper to clean inside the printer.

Notes

• Make cleaning only when there are white lines or dots on the print.
• When you can obtain proper printing performances, cleaning will not improve the printed picture quality.
• With the supplied cleaning kit, you can make cleaning for the maximum of about 20 times. As the number of cleaning times increases, the cleaning paper loses its cleaning effect.
• Do not place the cleaning paper on the print paper, which may cause paper jam or other troubles.
• If a cleaning does not improve printed picture quality, please make cleaning a couple of times.
• You can also make cleaning with the protective sheet contained in the printing pack designed for the DPP-EX5. To use the protective sheet for cleaning, insert the paper with its imprint surface facing down into the tray.

1 Open the cartridge compartment lid and remove the print cartridge (page 17).
2 Insert the supplied cleaning cartridge (white) into the printer and close the cartridge compartment lid.

Line drawing of a hand inserting a stack of coins into a computer monitor (no text or symbols)

3 Remove the paper tray from the printer. If there is print paper in the tray, remove the print paper from the tray.
4 Remove the 3.5 x 5 inch paper adaptor and stand the partition up. Place the supplied cleaning paper with the no-imprint side facing up and the arrow pointing in the same direction as the arrow in the tray. Insert the paper behind the partition.

5 Set the paper tray into the printer and press PRINT.

The cleaning cartridge and cleaning paper will clean inside the printer. After the cleaning is finished, the cleaning paper is automatically ejected.

6 Remove the cleaning cartridge and cleaning paper from the printer and set the print cartridge and print paper.

Keep the cleaning cartridge and cleaning paper together. With a sheet of cleaning paper, you can make cleaning for the maximum of about 20 times.

Arrows in the reverse side Partition 3.5 x 5 inch paper adaptor

Specifications

Printing method

Dye sublimation printing (Yellow/Magenta/Cyan 3 pass)

Resolution

403 (H) x 403 (V) dpi

Image processing per dot

256 levels (8 bits for each Yellow/Magenta/Cyan), approx. 16,770,000 colors

Printing size

Post Card (4 x 6 inch) size: 101.6 x 152.4 mm (maximum, borderless) 3.5 x 5 inch size: 89 x 127 mm (maximum, borderless) Small (3.5 x 4 inch) size: 71.7 x 95.5 mm (maximum)

Printing time (per sheet)

Post Card (4 x 6 inch) size: approx. 90 seconds 3.5 x 5 inch size: approx. 75 seconds Small (3.5 x 4 inch) size: approx. 60 seconds (excluding the time for data processing and data transferring from the computer or the "Memory Stick")

Input/Output connectors

USB connector (1) VIDEO OUT (output) connector (phono jack x 1) 1 Vp-p, 75 ohms (unbalanced), sync negative

Slot

"Memory Stick" insertion slot (1)

Compatible image file formats\*1

DCF ^2 : Exif Ver. 2.1/2.2 ^3 , JPEG compatible, TIFF ^4 -RGB (non- compressed) JPEG: 4:4:4, 4:2:2, 4:2:0 (baseline JPEG) BMP: 24 bits full color, Windows format JFIF (Note that some versions of the file formats may not be compatible.)

Recording image format

DCF compatible: Exif ver. 2.2, JPEG compatible

Maximum number of pixels to be handled

JPEG: 6,400(H) x 4,800(V) BMP: 5,400(H) x 4,050(V) TIFF: 4,800(H) x 3,600(V)

Maximum number of files to be handled 9999 files for a "Memory Stick"

Print cartridge/Print Paper

See "Preparing the printing pack" on page 16.

Power requirements

100 - 240 V AC, 50/60 Hz, 1.1A

Operating temperature

5^ C to 35^ C ( 41^ F to 95^ F)

Dimensions

Approx. 78 x 200 x 288 mm (w/h/d, excluding protruding parts) (3^1/8 × 7^7/8 × 11^3/8 inches) (396 mm (15^5/8 inches) of depth when the paper tray is installed.)

Mass

Approx. 2.2 kg (4 lb 14 oz) (excluding the 0.1 kg (4 oz) paper tray)

Supplied accessories

See "Unpacking the printer" on page 8.

Design and specifications are subject to change without notice.

*1: Some special file types are not compatible.
*2: "DCF" stands for Design rule for Camera File system.
*3: "Exif" is an image file format containing an image data added with its thumbnail data for viewing, shot date data and the shooting conditions data.
*4: The printer functions may be limited for a TIFF file.

Customer support home page

The latest support information is available at the following homepage addresses:

For the customers in the U.S.A.: http://www.sel.sony.com/SEL/service/conselec/ For the customers in Canada: http://www.sony.ca/service For the customers in Europe: http://www.sony-imaging.com/support For the customers in Singapore: http://www.css.ap.sony.com

Glossary

Auto Fine Print 2

The function automatically corrects the picture quality so that an image may be printed in more vivid, clear and beautiful pictures. It is especially effective for a darker image with low contrast. The pictures are corrected to reproduce natural skin colors, vivid tree leaf green, or clear sky blue.

DCF (Design rule for Camera File system)

The standard specified by JEIDA (Japan Electronic Industry Development Association) to maintain the file exchangeability and compatibilities between digital still cameras and related products.

DPOF (Digital Print Order Format)

The format used to record the information necessary for automatically printing images shot by a digital still camera at a printing shop or with a home-use printer. The printer supports DPOF printing and can automatically print the preset number of copies of the DPOF preset images.

Exif 2.2 (Exif Print)

Exif (Exchangeable image file format for digital still cameras) Print is a global standard for digital photo printing. A digital still camera supporting Exif Print stores the data relevant to the conditions of shooting as each shot is taken. The printer utilises the Exif Print data stored in each image file to ensure the printed result matches the original shot as closely as possible ^*1 .

*1 When the “Auto Fine Print 2” is enabled and an image (JPEG file) is shot by an Exif Print (Exif 2.2)-compatible digital still camera, the image is automatically adjusted to its optimum picture quality and printed.

"Memory Stick"

A next-generation, compact, light, removable storage media used with a digital still camera, video camera, or PC. In its compact body, it can record a larger volume of data than a floppy disc can. You can use it to exchange data among “Memory Stick” ready devices and also use it as removable and external storage medium.

Thumbnails

Miniature images for representing the original images that are stored in the image files taken by a digital still camera. The printer uses thumbnails in the image list.

Index

A

AC power cord 13

Adjusting an image 30

ALL 26

Auto Fine Print 2 49

AUTO PRINT 26

B

Beep 50

Borderless print 49

C

Calendar 42

Card 38

Cartridge error indicator 17

Changing

Image position 29

Printer preferences 48

Cleaning 74

Clock setting 51

Connections

AC power cord 13

Computer 15

Television 12

CREATIVE PRINT 36

D

Date print 50

Deleting images 54

DPOF 26

E

EFFECT menu 27

Eject lever 17

Exif Print 6

F

Features 6

Filter 32

Finish 49

Formatting Memory 55

Frame 44

|

Image list 11

Index print 53

INPUT SELECT 15, 21

Inserting

Paper tray 20

Print cartridge 17

Print paper 19

Installing the software

Macintosh 67

Windows 57

M

Memory Stick

Inserting/removing 14

Note on use 76

MENU 47

P

Paper jams 80

Paper tray 10, 19

PC mode 15

PICTURE 22

Preview image 11, 22

Print cartridge 17

Print paper 19

Printing

All or DPOF images 25

From a Macintosh

computer 70

From a Windows

computer 60

Multiple images 23

Selected image 21

Printing pack 16

Printing surface 19

R

Rear panel 10

Restrictions on

duplication 74

Rotating an image 29

S

Saving images 28, 37

Screen 11

Slideshow 52

Specifications 82

Split images 45

Sticker 44

Supplied accessories 8

System requirements

Macintosh 66

Windows 56

T

Transport 74

Troubleshooting 78

U

Uninstalling the software 62, 68, 70

USB connector 15

V

VIDEO OUT connector 12

Z

Zooming an image 29

AVERTISSEMENT

Programme © 2002 Sony Corporation Documentation ©2002 Sony Corporation

Line drawing of a cord with two cables, no text or symbols present

Line drawing of a coiled cable with two connectors (no text or symbols)

Line drawing of a plastic container or tray component (no text or symbols)

- CD-ROM (1)

– Pilote d'imprimante Sony DPP-EX5/EX7 pour Windows 98/98SE/Me/2000 Professional/XP Home Edition/XP Professional

Diagram of a portable electronic device with numbered labels pointing to ports and indicators

Diagram of a device casing with numbered parts labeled 1, 2, and 3

4 Indication "Memory Stick"

Line drawing of a hand holding a remote control with no text or symbols

Illustration of a hand pressing down on a cylindrical object with a curved arrow indicating motion (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Diagram showing a computer tower with an open door and a close-up view of its internal structure (no text or symbols)

Remarques

Black and white close-up photo of tulip flowers in a graphics editing interface (no text or symbols on the flower image itself)

Remarques

Diagram of a refrigerator control panel with numbered labels pointing to different parts

Black and white photo of tulips in a photo editing interface (no text or symbols on the image itself)

Black-and-white photo of a flower with visible petals, displayed within an image editing interface (no text or symbols on the flower itself)

EFFECT 100- 0001 0 Select item with ↑+ and [ENTER].

Black and white photo of flower petals with visible brushstrokes (no text or symbols)

EFFECT EDIT ADJUST FILTER TEXT RESET SAVE EXIT Hello!! REDRAW MOVE EXECUTE Select item with and [ENTER].

CREATIVE PRINT CARD CALENDAR STICKER SPLIT IMAGE EXIT Select item with + + + and [ENTER].

CARD Select Paper Size POSTCARD 3.5 x 5 inch SMALL Select a paper sizewith + and [ENTER].

CARD Select Card Template 1 2 3 4 Select a Card template with + + + 9 and [ENTER].

CARD Preview A B C NEXT [ENTER] for next step/[CANCEL] for previous step.

CARD Select Message 1 Merry Christmas 2 Season's Greetings 3 Congratulations! 4 Happy Birthday 5 Thank You 6 For You 7 Wedding Bells 8 Merry Christmas 9 Season's Greetings 10 Congratulations! + + + + to select a message/[ENTER] for the next step.

CARD Adjust the image - Adjust "A" image A Happy New Year B C Sony Digital Design Corp 6-7-35, Kitaoshinagawa Shinagawa-fu Tokyo Japan Tel:[phone] Fax:[phone] Select item with F4 and [ENTER]

Suite

Clavier CARD Cartridge Input Characters - Input 1 line. ! " # $ % & ' ( ) - = ~ | Q W E R T Y U I O P ( ) A S D F G H J K L + Z X C V B N M , . ? < > FONT Gothic1 COLOR NEXT ●●●● and [ENTER] to select an item/input a character.

Three circular black-and-white photos of flowers in January, February, and December (no text or symbols on the images themselves)

CALENDAR Preview December A B C 2002 NEXT [ENTER] for next step/[CANCEL] for previous step.

CALENDAR Preview Start month : 10 .2002 Start day : ■ Sunday ▼ Monday Color of day : ✓ Sunday in red ■ Sunday in red/ Saturday in bule Next to select Year or Month/ ↑ to set/[ENTER] to execute.

CALENDAR Preview Cartridge December 2002 COPIES 1 SAVE TOP MENU EXIT [PRINT] to print the image.

Suite

STICKER Select Sticker Template 1 A B C 2 A A A 3 A B C Select a Sticker template with G and [ENTER]

STICKER Select Sticker Frame -For "A" image 1 2 3 4 5 6 7 8 9 Select a frame with +1+4 and [ENTER]

SPLIT IMAGE Select Split Images Template 1 A B 2 A B 3 A A C D A A 4 A B C 5 A A A 6 A B C D E F G H I J K L M N O P 7 A A A A 8 A B C D 9 A A A A A A A A E M F A A A A A A A G H A A A I J K L A A A A Select a split pattern with + + + and [ENTER].

New Images File Edit View Tools Help Format Tools Documents and Settings(FRT) (Plan documents/Plan images) Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images Photograph images

Mac OS 8.6-9.x 5 estimators: 0 - unavailable English French German Japanese Spanish

2.6gments, 0 to disposable DPP-DS_EQ1 Installer (French) DPP-DS_EQ1 (installer (French)

Impression impossible.

Line drawing of a hand inserting a stack of coins into a monitor (no text or symbols)

http://www.sel.sony.com/SEL/service/conselec/

http://www.sony.ca/service

http://www.sony-imaging.com/support

DCF (Design rule for Camera File system)

DPOF (Digital Print Order Format)
