GE-4020 - Grill Concept - Free user manual and instructions

Brand	Concept
Model	GE-4020
Product Type	Electric Grill
Power	2000 W
Voltage	230 V ~ 50 Hz
Temperature Control	Adjustable knob with positions 1 (keep warm) to 5 (maximum)
Heating Indicator	Red light indicates heating; turns off when set temperature is reached
Grill Surface	Non-stick coated grid
Water Collection Tray	Removable tray with MAX level mark for water (for steam and grease collection)
Safety Features	Integrated safety switch prevents heating if thermostat not properly snapped; automatic shut-off
Assembly Required	Yes, set heating element into bowl, then place grid on top with metal lugs into tray slots
First Use	Clean with damp cloth; heat at maximum for 20 minutes to eliminate odors
Cleaning	Unplug, cool down; wipe surface with wet cloth; wash dripping tray with warm water and mild detergent; do not use dishwasher; do not immerse control module
Materials	Grill bowl and grid: metal with non-stick coating; control module: plastic
Accessories	Grid, heating element, collection tray, temperature controller (thermostat)
Usage	Indoor domestic use only; not for commercial use
Temperature Presets	Position 1: keep warm; 2: bread; 2-3: fruit/vegetables; 3-4: fish; 3-5: meat; 4-5: seafood
Repair	Only by authorized service center; do not attempt self-repair
Environmental Disposal	Recycle packaging; dispose of appliance at designated collection point for electronic waste

Frequently Asked Questions - GE-4020 Concept

How do I assemble the GE-4020 grill?

Insert the collection tray into the grill bowl. Then place the heating element into the bowl, ensuring the thermostat fits into the slide-in part and the pins on the heating element align with the slots at the front. Finally, put the grid on top with its metal lugs fitting into the openings in the tray.

What should I do before first use?

Clean the grill surfaces with a wet cloth. Then turn it on at the maximum temperature for about 20 minutes with no food. This will burn off any manufacturing residue. Some smoke may appear; ventilate the room.

How do I set the temperature?

Use the temperature control knob. The dial has positions 1 to 5, with 1 for keeping food warm and 5 for the highest heat. A red indicator light shows when the grill is heating; it turns off when the set temperature is reached. Refer to the manual for ideal settings for different foods.

Can I use metal utensils on the grill?

No, avoid sharp metal objects as they can scratch the non-stick coating. Use wooden or heat-resistant plastic utensils instead.

How do I clean the grill?

Unplug the unit and let it cool completely. Wipe the grill surface with a damp cloth. For the collection tray, wash it in warm water with mild detergent and rinse; do not put it in the dishwasher. The control module should only be wiped with a damp cloth; do not immerse in water.

Why does the grill not heat up?

The grill has a safety switch. Ensure the control module (thermostat) is snapped correctly into place on the grill bowl. The heating element will only work if properly positioned. Also check that the appliance is plugged in and the power supply is active.

Do I need to add water to the tray?

Yes, the collection tray should be filled with water up to the "MAX" mark before use. This helps collect grease and produces steam for moist grilling. Replenish water during use, but never let it touch the heating element.

Can I use the grill outdoors?

No, the grill is designed for indoor domestic use only. Using it outdoors or on wet surfaces creates an electric shock hazard.

What is the maximum cooking time for meat?

According to the manual, at temperature positions 3-5, meat typically takes 10-30 minutes. Always check that food is cooked to a safe internal temperature.

How should I store the grill?

After cleaning and drying all parts, reassemble the grill or store components separately. Keep the appliance in a dry place away from heat sources and direct sunlight. Make sure the power cord is not strained.

USER MANUAL GE-4020 Concept

Black rectangular kitchen grater with a mesh grille and control knob, labeled 'GE4020' at the bottom (no other text or symbols visible)

CZ LV EN DESK PL

PODĚKOVÁNÍ

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 230 V ~ 50	Hz
Power input 2000	W

IMPORTANT SAFETY INSTRUCTIONS:

• Use the unit only as described in this operating manual.
- Remove all the packaging and marketing materials from the unit before the first use.
• Make sure the mains voltage corresponds to the values on the rating plate. Use grounded wall outlets only.
• Do not install the unit just under the wall outlet.
• Do not leave the unit unattended while it is turned on or even only plugged into the wall outlet.
- Do not connect or disconnect the supply cable from the wall outlet until the control module is mounted correctly!
• The appliance can be used only with the supplied type of control module!
- Place the unit on a stable and heat-resistant surface out of the reach of other heat sources.
- Keep the minimum safe distance of at least 15 cm between the unit and flammable materials, such as furniture, curtains, lace, blankets, paper, clothing, and so on.
• Do not move a unit that is switched on or has hot contents in it.
• Do not touch hot surfaces. Use the handles and buttons.
• Unplug the appliance from the wall outlet when not in use.
- When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.
• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
• Take extra care when using the unit near children.
- Don't let anyone use the unit as a toy.
- Persons with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should only use the appliance when under the supervision of a responsible person aware of the appliance use.
• Make sure the power does not overhang the working area, and that children cannot reach it.
• Do not use the product outdoors or on wet surfaces. Electric shock hazard!
• Use only accessories recommended by the manufacturer.
- Never use an appliance with a damaged power cord or plug. Contact an authorized service center immediately to have defective components repaired or replaced.
• It is forbidden to pull and move the product by grasping the power cord.
- Keep the unit away from heat sources, such as radiators, ovens etc. Do not expose the unit to direct sunlight or moisture.
• Do not touch the unit with wet or damp hands.
- Turn off the product and disconnect the plug from the mains outlet before installing accessories, performing maintenance, or in the case of any failure.
- The unit is suitable for domestic use only. It is not designed for commercial operation.

• Do not immerse the power cord, plug, or appliance into water or any other liquid.
• Check the appliance and power cord for damage regularly. Do not switch on a damaged unit.
• Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool down before cleaning and after use.
  • Do not repair the appliance yourself. Contact an authorized service center.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

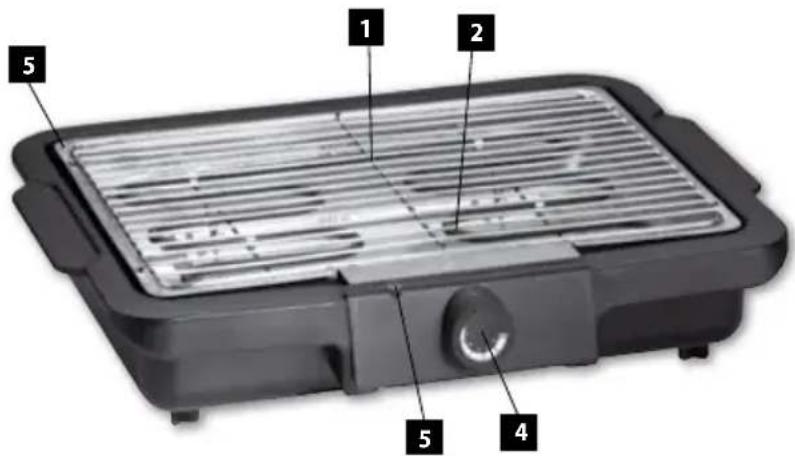

PRODUCT DESCRIPTION

1. grid
2. heating element
3. collection tray
4. temperature controller
5. heating indicator

NOTE

Prior to using a new unit, wipe the surface and the inside with a wet cloth for hygienic reasons.

Then turn on the unit without food at maximum temperature for 20 minutes (see the Operating Instructions below). It's possible that the unit will emit a slight smell and smoke, which should disappear after a while. Air the room well during this process.

ASSEMBLY INSTRUCTIONS

The appliance is supplied assembled. If not, please follow these assembly instructions.

1. First, insert the collection tray (3) into the grill bowl (6).
2. Set the heating element (2) into the grill bowl (6).
3. When assembling the grill, please take care that the thermostat fits directly into the slide-in part at the front of the appliance. The pins on the integrated heating element must be set into both respective slots at the front of the appliance.

WARNING

The grill is equipped with an integrated safety switch to prevent the heating element from warming unless it is properly set into the grill bowl. In order to ensure smooth operation of the appliance, the thermostat must be snapped exactly into its place on the grill bowl. Otherwise, the heating element will automatically shut off or not turn on.

1. Put the grid (1) on the grill bowl. The grid has metal lugs on the sides. Set these lugs into the openings in the collection tray.
2. Before using the table grill, please make sure all parts are securely assembled.

OPERATING INSTRUCTIONS

1. Remove the thermostat unit with the heating element (2) from the base. The grill can only be used with the collection tray (3). Fill the collection tray (3) with cold water up to the "MAX" mark on the level gauge. The water level will decrease during grilling. Add water regularly to ensure that the collection tray is never completely empty. Make sure the water never comes into contact with the heating element (2).

2. Connect the heating element (3) according to the assembly instructions.

3. Put the deep fryer on a level and steady surface. Uncoil the whole supply cable. Make sure it does not touch any close sources of heat.

4. Set the temperature controller to the minimum and connect the fryer to the mains.

5. When grilling food which does not contain fat, we recommend that you grease the grilling grid with a thin layer of oil or other fat.

6. Select the required temperature according to the food. Information values are provided in the table below. The red heating indicator (5) will illuminate. Once it turns off, the grilling surface has reached the preset temperature.

7. Put the food on the grilling surface. The dripping bowl will collect juices and fat.

8. Set the temperature controller (4) to the minimum after grilling. If you set it to position 1, the food will be kept warm.

9. Set the temperature controller to the minimum and disconnect the unit from the mains.

	Temperature control position P	Preparation time (min)
Reheating food 1 As needed
Bread and pastry 2 2-5
Fruit and vegetable slices 2-3 2-8
Fish 3-4 5-10
Meat 3-5 10-30
Sea food 4-5 3-6

WARNING!

Do not use sharp metal objects on the grilling plate and do not cut anything on it. The non-stick surface can be scratched and damaged. Use wooden or heat-resistant kitchenware.

CLEANING AND MAINTENANCE

Clean the unit after each use to prevent the accumulation of grease, burned-on remnants of food, and unpleasant smells.

Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool before cleaning and after use.

Do not immerse the power cord, plug, or appliance into water or any other liquid.

Clean the surface with a wet cloth.

Do not use steel wool, abrasive agents or solvents to clean the unit.

Clean the grilling surface with a wooden scraper or other kitchen tool that will not scratch the non-stick surface.

Wash the dripping bowl in tepid water with detergent and rinse in clean water; do not use a dishwasher.

Wipe the removable control module with a damp cloth or absorbent paper. Do not immerse this part into water or any other liquid. Clean the part on a dry surface so that the part cannot accidentally fall and become damaged.

Let all the parts dry before assembling the accessories.

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.
