USER MANUAL HR7770/00 PHILIPS

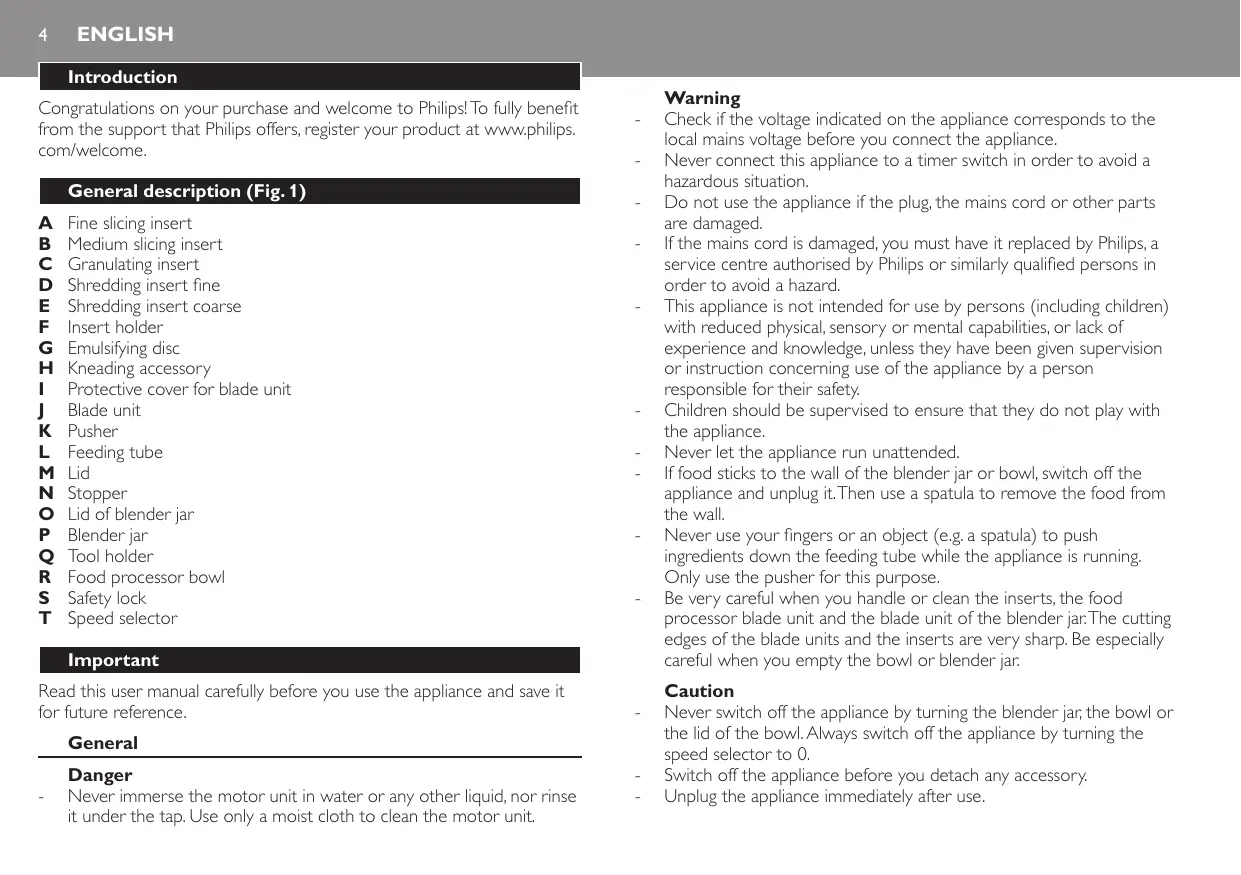

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome. General description (Fig. 1)

A B C D E F G H I J K L M N O P Q R S T Fine slicing insert

Medium slicing insert Granulating insert Shredding insert fine Shredding insert coarse Insert holder Emulsifying disc Kneading accessory Protective cover for blade unit Blade unit Pusher Feeding tube Lid Stopper Lid of blender jar Blender jar Tool holder Food processor bowl Safety lock Speed selector Important

Read this user manual carefully before you use the appliance and save it for future reference.

General Danger -- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Use only a moist cloth to clean the motor unit.

-- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. -- Never connect this appliance to a timer switch in order to avoid a hazardous situation. -- Do not use the appliance if the plug, the mains cord or other parts are damaged. -- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard. -- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -- Children should be supervised to ensure that they do not play with the appliance. -- Never let the appliance run unattended. -- If food sticks to the wall of the blender jar or bowl, switch off the appliance and unplug it. Then use a spatula to remove the food from the wall. -- Never use your fingers or an object (e.g. a spatula) to push ingredients down the feeding tube while the appliance is running. Only use the pusher for this purpose. -- Be very careful when you handle or clean the inserts, the food processor blade unit and the blade unit of the blender jar. The cutting edges of the blade units and the inserts are very sharp. Be especially careful when you empty the bowl or blender jar. Caution -- Never switch off the appliance by turning the blender jar, the bowl or the lid of the bowl. Always switch off the appliance by turning the speed selector to 0. -- Switch off the appliance before you detach any accessory. -- Unplug the appliance immediately after use.

-- Always unplug the appliance before you reach into the blender jar with your fingers or an object (e.g. a spatula). -- Wait until moving parts stop running before you remove the lid of the bowl or jar. -- Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid. -- Do not exceed the maximum level indication on the jar and the bowl. -- Consult the table in this user manual for the correct quantities and processing times. -- Certain ingredients may cause discolourations on the surface of the parts. This does not have a negative effect on the parts. The discolourations usually disappear after some time. -- Never fill the blender jar or food processor bowl with ingredients hotter than 80ºC. -- If you use the blender jar to process a hot liquid, always place the lid on the jar to avoid the risk of scalding due to hot liquid splashing out of the jar. -- This appliance is intended for household use only. Electromagnetic fields (EMF) This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. Safety features Built-in safety lock This feature ensures that you can only switch on the appliance if you have assembled the blender jar or the bowl correctly on the motor unit and the lid correctly on the bowl. If the blender jar or bowl and its lid are assembled correctly (see chapter ‘Using the appliance’), the built-in safety lock will be unlocked.

Thoroughly clean the parts that come into contact with food before you use the appliance for the first time (see chapter ‘Cleaning’). Using the appliance General -- The appliance is equipped with a built-in safety lock that prevents it from functioning if the blender jar or food processor bowl and its lid are not assembled properly. Food processor 1 Put the bowl on the motor unit (1) and turn it clockwise to fix it (2) (Fig. 2). Note:The bowl is assembled correctly when the handle is directly above the closed lock symbol. 2 Put the tool holder with the desired accessory in the bowl (blade unit, kneading accessory, emulsifying disc or the insert holder with one of the inserts). See the appropriate section below. 3 When you use the blade unit or the kneading accessory, put the ingredients to be processed in the bowl. Note: Do not fill the bowl beyond the MAX indication. 4 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it (‘click’) (Fig. 3). Note: Make sure the projection on the lid locks into the slot of the bowl handle. 5 When you use the insert holder with one of the inserts, add the ingredients through the feeding tube and push them down with the pusher. 6 Select the speed setting that corresponds with the colour of the accessory you choose. See the appropriate section below.

7 When you have finished processing, turn the speed selector to

0 (Fig. 4). Feeding tube and pusher -- Use the feeding tube to add liquid and/or solid ingredients. (Fig. 5) -- Use the pusher to push solid ingredients down the feeding tube. (Fig. 6) Tip:You can also use the pusher to close the feeding tube.This prevents ingredients from escaping through the feeding tube. Blade unit You can use the blade unit to chop, mix, blend or puree ingredients. 1 Remove the protective cover from the blade (Fig. 7). The cutting edges are very sharp. Do not touch them. 2 Put the tool holder in the bowl. (Fig. 8) 3 Put the blade unit on the tool holder in the bowl (Fig. 9). 4 Put the ingredients in the bowl. Pre-cut large pieces of food into pieces of approx. 3 x 3 x 3cm (Fig. 10). Note: Always put the tool holder with the blade unit in the bowl before you add the ingredients. 5 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it (‘click’) (Fig. 11). Note: Make sure the projection on the lid locks into the slot of the bowl handle. 6 Put the pusher in the feeding tube. 7 Select the speed that corresponds with the colour of the accessory (Fig. 12). 8 When you have finished processing, turn the speed selector to 0 and unplug the appliance (Fig. 4).

-- When you chop onions, turn the speed selector to P (pulse position) a few times to prevent the onions from becoming too finely chopped (Fig. 13). -- Do not let the appliance run too long when you chop (hard) cheese or chocolate. Otherwise these ingredients become too hot, start to melt and turn lumpy. -- Do not use the blade unit to chop very hard ingredients like coffee beans, turmeric, nutmeg and ice cubes, as this may cause the blade to get blunt. -- If food sticks to the blade or to the wall of the bowl, switch off the appliance and unplug it. Then use a spatula to remove the food from the blade or from the wall of the bowl. Kneading accessory You can use the kneading accessory to knead yeast dough for bread and pizzas. 1 Put the tool holder in the bowl (Fig. 8). 2 Put the kneading accessory on the tool holder. (Fig. 14) Note: Always put the tool holder with the kneading accessory in the bowl before you add the ingredients. 3 Put the ingredients in the bowl (Fig. 15). 4 Put the lid on the bowl (1). Turn the lid clockwise (2) to fix it (‘click’) (Fig. 16). Note: Make sure the projection on the lid locks into the slot of the bowl handle. 5 Put the pusher in the feeding tube. 6 Select the speed that corresponds with the colour of the accessory (Fig. 17). 7 When you have finished processing, turn the speed selector to 0 and unplug the appliance (Fig. 18).

Slicing, shredding and granulating inserts Never process hard ingredients like ice cubes with the inserts. The cutting edges of the inserts are very sharp. Do not touch them. 1 Put the tool holder in the bowl (Fig. 8). 2 Place the metal shredding, slicing or granulating insert in the insert holder. -- Place the opening of the insert over the shaft of the insert holder (Fig. 19). -- Push the opening of the insert over the projection on the shaft (Fig. 20). -- Press the insert onto the insert holder until it locks in position with a click (Fig. 21).

-- When you shred or granulate soft ingredients, use a low speed to prevent the ingredients from turning into puree. -- Do not let the appliance run too long when you shred (hard) cheese. If you do, the cheese becomes too hot, starts to melt and turns lumpy. -- Do not use the inserts to process chocolate. Only use the blade unit for this purpose. Emulsifying disc You can use the emulsifying disc to whip cream and to whisk eggs, egg whites, instant pudding, mayonnaise and sponge cake mixtures. 1 Put the tool holder in the bowl (Fig. 8). 2 Place the emulsifying disc on the tool holder (Fig. 25).

3 Place the insert holder with insert on the tool holder (Fig. 22).

3 Put the ingredients in the bowl. (Fig. 26)

Note: Make sure the projection on the lid locks into the slot of the bowl handle.

Put the ingredients in the feeding tube. (Fig. 24)

Pre-cut large ingredients into chunks that fit in the feeding tube. Fill the feeding tube evenly for the best results. When you have to process a large amount of ingredients, process small batches and empty the bowl between batches.

6 Select the speed that corresponds with the colour of the accessory (Fig. 17).

7 Press the pusher lightly onto the ingredients in the feeding tube. 8 When you have finished processing, turn the speed selector to 0 and unplug the appliance (Fig. 18).

5 Put the pusher in the feeding tube.

6 Select the speed that corresponds with the colour of the accessory (Fig. 17). 7 When you have finished processing, turn the speed selector to 0 and unplug the appliance (Fig. 18). Tips -- Do not use the emulsifying disc to prepare cake mixtures with butter or margarine or to knead dough. Use the kneading accessory for these jobs. -- Make sure the bowl and the emulsifying disc are dry and free from grease when you whisk egg whites. Make sure the egg whites are at room temperature.

The blender is intended for:

-- Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes. -- Mixing soft ingredients, e.g. pancake batter or mayonnaise. -- Pureeing cooked ingredients, e.g. for making baby food. 1 Place the blender jar on the motor unit (1) and turn it clockwise to fix it (2). There are four possible positions to fix the blender onto the motor unit (Fig. 28). Do not exert too much pressure on the handle of the blender jar. 2 Put the ingredients in the blender jar (Fig. 29). Never fill the blender jar with ingredients hotter than 80ºC. To avoid spillage, never fill the jar above the maximum level indication, particularly not when you blend hot liquids. 3 Place the lid on the blender jar (1) and turn it clockwise to fix it (2) (Fig. 30). 4 Select the speed that corresponds with the colour of the accessory (Fig. 12). Never open the lid to put your hand or any object in the jar while the blender is running. Always let the appliance cool down to room temperature after you have processed two batches. 5 When you have finished processing, turn the speed selector to 0 and unplug the appliance (Fig. 4). Tips -- While the appliance is running, you can put liquid or solid ingredients in the blender jar through the opening in the lid (Fig. 31). -- The longer you let the appliance run, the finer the blending result will be.

-- Pre-cut solid ingredients into smaller pieces before you put them in the blender jar. If you want to prepare a large quantity, process small batches of ingredients instead of a large quantity at once.

-- To crush ice cubes, put the cubes in the jar, close the lid and turn the speed selector to P (pulse position). -- Some ingredients, e.g. fruits, are easier to blend if you add some liquid e.g. lemon juice. -- When you blend soup, use cooked ingredients. -- If you are not satisfied with the results, let the appliance run briefly a number of times by turning the speed selector to P (pulse position). You can also try to get a better result by stirring the ingredients with a spatula (not while the blender is running), or by pouring out some of the contents in order to process a smaller amount. -- When you process a liquid that is hot or tends to foam (e.g. milk), do not put more than 500ml in the blender jar to avoid spillage. -- If food sticks to the wall of the blender jar, switch off the appliance and unplug it. Then use a spatula to remove the food from the wall. Cleaning 1 Switch off the appliance and remove the mains plug from the wall socket. 2 Clean the motor unit with a moist cloth. Never immerse the motor unit in water nor rinse it under the tap. 3 Clean the parts that have come into contact with food in hot water with some washing-up liquid immediately after use. Clean the blade unit of the food processor, the blade unit of the blender and the inserts very carefully. The cutting edges are very sharp. Note: All parts, except the motor unit, can also be cleaned in the dishwasher. -- Make sure that the cutting edges of the blades and the inserts do not come into contact with hard objects. This could cause them to become blunt.

Quick-cleaning the food processor bowl and blender jar 1 Pour lukewarm water (not more than 0.5 litres) and some washingup liquid into the food processor bowl or blender jar. 2 Place the lid on the food processor bowl or blender jar and turn it clockwise to fix it. 3 Select the speed setting that corresponds with the colour of the accessory (Fig. 18). 4 Let the appliance run until the food processor bowl or blender jar is clean or for 30 seconds.

When I turn the speed selector to a speed or to P

(pulse position) the appliance does not operate.

Make sure the food processor bowl and its lid or the blender jar are assembled correctly (‘click’). Make sure that the tool holder has been inserted properly if you are using any accessory with the food processor bowl. If you use the blender jar, make sure it is locked in one of its four locking positions. Keep the lid fixed to avoid spillage. If you use the food processor, make sure that the bowl handle is directly above the closed lock symbol. The bowl lid is correctly assembled when the projection is locked into the slot of the bowl handle. If all parts are assembled correctly, the appliance starts to operate when you select a speed with the speed selector or press the pulse button.

I have selected the wrong speed for the accessory I am using.

Check the colour of the accessory and choose the corresponding speed with the speed selector.

The emulsifying disc or kneading accessory does not turn.

Make sure the emulsifying disc or kneading accessory is assembled properly onto the tool holder. Also make sure the food processor bowl and the lid are assembled properly (‘click’).

5 Detach the blender jar or food processor bowl and rinse it with clean water.

Storage 1 You can wind the cord around the bottom of the appliance. Environment -- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 32). Service and guarantee If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer. Troubleshooting This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Pizza dough Ingredients: -- 250g white flour -- 1/2 teaspoon sugar -- 1/2 teaspoon salt -- 1/2 packet of quick yeast -- 140g warm water -- 25g oil

1 Put the tool holder in the bowl and place the kneading accessory on the tool holder.

2 Put all the dry ingredients in the bowl and add the water and the oil. 3 Put the lid on the bowl and fix it (‘click’). Select the speed that corresponds to the kneading accessory and let the appliance run until the dough has become a well-mixed ball. This takes about 30 seconds. 4 Put the dough in a bowl, cover it with a damp cloth and let it rise for about 40 minutes until it has doubled in volume. 5 Dust your worktop with flour, roll the dough and create two pizza dough bases and put them on a greased baking tray. 6 Cover the pizza dough bases with tomato sauce and your favourite topping.You can use cheese, ham, salami, bacon, mushrooms, tuna fish, onions, artichokes, bell pepper etc. Spread some oregano and pour olive oil over the pizzas and bake them. Tip:You can use the shredding insert to shred about 200g cheese (Parmesan or Gouda).Put the tool holder in the bowl and place the insert holder with the shredding insert on the tool holder. Close and lock the lid (‘click’). Cut the cheese into pieces that fit into the feeding tube and shred the cheese. Cucumber salad with yoghurt sauce Ingredients: -- 1 cucumber -- 2 cups parsley leaves -- 1 cup natural yoghurt -- 1 tablespoon mustard -- Salt and black pepper to taste 1 Put the tool holder in the bowl and place the insert holder with slicing insert on the tool holder. Tip: Use the fine slicing insert to cut thin slices.

2 Put the lid on the bowl and fix it (‘click’). Slice the cucumber. See chapter ‘Using the appliance’ under ‘Slicing and shredding inserts’ for the appropriate speed.

Note: Do not exert too much pressure on the pusher when you press the cucumber down the feeding tube. 3 Put the sliced cucumber into a serving bowl. 4 Put the tool holder in the bowl and place the blade unit on the tool holder. 5 Put the parsley in the bowl. Close and lock the lid (‘click’). 6 Chop the parsley. Turn the speed selector to P (pulse position) to have better control over the chopping process. 7 Add the yoghurt, mustard, salt and pepper and process for a few more seconds until a homogeneous mixture is obtained. 8 Mix the sauce with the cucumber slices and refrigerate the cucumber salad before serving. Whipped cream Ingredients: -- 250ml fresh cream 1 Chill the cream for at least 2 hours before processing. 2 Put the tool holder in the bowl and place the emulsifying disc on the tool holder. 3 Put the cream in the bowl. 4 Put the lid on the bowl and fix it (‘click’). Process the cream until the desired consistency is obtained. Select the speed setting that corresponds with the colour of the accessory. Tip: Refrigerate the whipped cream before serving.You can serve whipped cream on cakes, ice cream, fruits, coffee, or use it as a filling for cakes, etc.
