Product Type	Solo Microwave Oven
Brand	Hyundai
Model	H-MW3620
Capacity	20 Liters
Microwave Power	700 W
Dimensions (W x H x D)	440 x 260 x 360 mm
Net Weight	10.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1200 W
Cooking Modes	Microwave, Defrost
Control Type	Mechanical Knobs (Timer & Power)
Turntable	Yes, 245 mm diameter
Timer	Up to 30 minutes
Interior Light	Yes
Door Type	Side Opening with Handle
Material	Stainless Steel/Enamel interior
Cleaning	Wipe with damp cloth; do not use abrasives
Safety Features	Child lock, automatic shutoff when door opens
Spare Parts Availability	Turntable, glass tray, fuse via authorized service
Repairability Index	Not rated by manufacturer

Frequently Asked Questions - H-MW3620 HYUNDAI

How do I set the cooking time on the H-MW3620?

Turn the timer knob clockwise to the desired time (up to 30 minutes). The microwave starts immediately after setting.

What power levels are available?

The power knob has several settings: Low (approx. 170W), Medium (350W), Medium-High (500W), and High (700W).

Can I use metal containers in this microwave?

No. Metal can cause arcing and damage the microwave. Use only microwave-safe glass, ceramic, or plastic containers.

How do I defrost food?

Set the power knob to 'Defrost' (usually around 30% power) and set the timer based on food weight. For best results, turn food halfway through.

The turntable is not rotating. What should I do?

Ensure the glass tray is correctly seated on the drive hub. If still not rotating, check if the turntable motor is faulty; contact service.

How do I clean the microwave interior?

Wipe with a damp soft cloth and mild detergent. Avoid abrasive pads. For odors, heat a bowl of water with lemon juice for a few minutes.

Is there a child lock feature?

Yes. To activate, press and hold the 'Stop' button for 3 seconds (if applicable). Refer to manual for exact procedure as controls may vary.

What should I do if the microwave stops working mid-cycle?

Check if the door is fully closed. If the timer runs out, the microwave stops automatically. If it stops randomly, unplug and wait 1 minute, then try again.

Can I cook popcorn in this microwave?

Yes, use microwave-safe popcorn bags. Follow package instructions and never leave unattended to avoid burning.

How do I replace the microwave fuse?

Unplug the microwave. Remove the outer cover (screws). Locate the fuse (usually near power cord). Replace with same rating (e.g., 20A/250V). If unsure, call a professional.

USER MANUAL H-MW3620 HYUNDAI

White Hyundai microwave oven with control panel and digital display (no visible text or symbols on main body)

Two glossy spheres with reflections, no text or symbols present

MICROWAVE OVEN

ПЕЧЬ МИКРОВОЛНОВАЯ

БЫТОВАЯ

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

To reduce the risk of burns, electric shock, fire, injury to persons:

• Read all instructions before using microwave oven.
• The microwave oven is for household use only. Do not use for industrial purposes.
• Some products such as whole eggs and sealed containers (for example, close glass jars and sealed baby bottles with teat) may explode and should not be heated in microwave oven.
• Use this microwave oven only for its intended use as described in this manual.
• Close supervision is necessary, when used by children.
• Do not operate this microwave oven, if it doesn't work properly.
• To reduce the risk of fire in the oven cavity it is necessary to follow the bellow rules:
• Do not overcook food. Carefully attend microwave oven if paper, plastic or other combustible materials are placed inside oven.
• Remove wire twist-ties from bags before

placing food into the oven.

• If materials inside the oven should ignite, keep oven door closed, turn oven off at the wall switch or shut off power at the fuse of circuit breaker panel.
  • Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
• Do not use the oven for any reason other than food cooking. Never use it for drying clothes, paper or any other nonfood items or for sterilizing purposes.
• Do not operate the oven when empty. Do not keep any foreign object inside.
• Do not use the oven for home canning. Microwave ovens are not designed to permit proper canning.
• Do not cook eggs in the shell, as they will burst. Puncture eggs before cooking to prevent “explosion”, occasionally a poached egg may burst during cooking. Be sure to cook covered and let stand one minute after cooking before removing the cover.

• Do not cook any food surrounded by a membrane, such as potatoes, chicken livers, etc without first piercing several times with a fork.

• Do not cook foods directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
  • Cookware not to use in microwave oven:

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered with twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material, which will absorb microwave energy. This way cause the dishes to crack or char and will slow down the cooking speed.
• Do not use burnable container such as paper, wooden, bamboo willow container.
• The glaze is not suitable for microwave use.
• Do not cook in a container with a restricted opening, such as a soft drink bottle or salad oil bottle, as they may explode if heating in microwave oven.

• Do not use conventional meat or candy thermometers. These are thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Please remember that a microwave oven heats the liquid in the container quicker that the container itself. Therefore, though the lid of a container is not hot to touch when removed from the oven please remember that the food/liquid inside will be hot.
  • Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven, but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat or water, e.g. should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
  • Always follow the cooking instructions, when preparing/cooking food/liquid and remember that there are certain food, e.g.

Christmas puddings, jam and mincemeat, which heat up very quickly.

• The contents of feeding bottles and baby food jars are to be stirred and shaken and the temperature is to be checked before consumption, in order to avoid burns.
• If the door or door seals are damaged, the oven must not be operated, until, it is repaired by a trained person.
• It is hazardous for anyone other than a trained person to carry out any service or repair operation. Repair the unit only by qualified specialists.

Before you call for service

• If there is no light in the cavity:
- the bulb blown out;
- the door of the oven is not closed.
• If the oven fails to operate:
- check to ensure that the control panel is programmed correctly and the timer is set.
- check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact a qualified technician. Do not try to adjust or repair the oven yourself.

Radio interference

• Operation of the microwave oven can cause interference to your radio, TV or similar equipment.
- When there is interference, it may be reduced or eliminated by taking the following measures:

- clean door and sealing surface of the oven.

- reorient the receiving antenna of radio or television.

- relocate the microwave oven with respect to the receiver.

- move the microwave oven away from the receiver.

- plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Installation

• Make sure that all the packing materials are removed from the oven cavity.
• Check the oven for damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges, latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

- This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

- Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.

- For correct operation, the oven must have sufficient airflow. Keep the oven at least 8 cm away from both side walls and 10 cm away from rear wall to ensure the correct ventilation.

- Do not cover or block any openings on the appliance. Do not remove feet.

- The accessories include the distance limiter intended for ensuring the proper distance between the back panel of the oven and the wall for the purpose of ventilation.

How to install: the lower part of the back panel has two rectangular holes. Install the limiter into these holes and press to latch it until a click (Pic. 1). After the oven is installed, bring the limiter into operating condition (bent under 90^irc angle (Pic. 2)).

Cookware suitability identification

Put the intended cookware together with a glass of water (300 ml) inside the oven cavity, and then set the oven at the "HIGH" stage for one minute. Applicable microwave cookware will be as cool as ever, while the water will absorb the energy and become warmer.

Applicable

Sort Instruction
Heat-proof glassware	It most suitable for microwave cooking.
Earthenware or chinaware	Conventional utensils of these materials allowed unless firmed with gold, silver.
Heat-resistant plastic container	Tightly closed containers are forbidden, cannot be used for containing foods with high fat or sugar contents.
Film for fresh preservation and heat-resistant	Only suitable for packing vegetable or being used as a lid. Never apply to packing meat or frying foods.

Inapplicable

Sort Instruction
Metal wares (aluminum, stainless steel)	May spark or ignite while touching the cavity wall during cooking.
Lacquer ware May	flaw or peel off.
Paper, bamboo or wooden ware	May be burnt in a while of (cooking) heating.
Combustible plastic wares	Inapplicable.
Non-heat-proof glassware	May deform/flaw in highly hot medium. Curved or strengthened glassware is not applicable.
Aluminum foil May	spark or ignite while touching the cavity wall during cooking.

Description

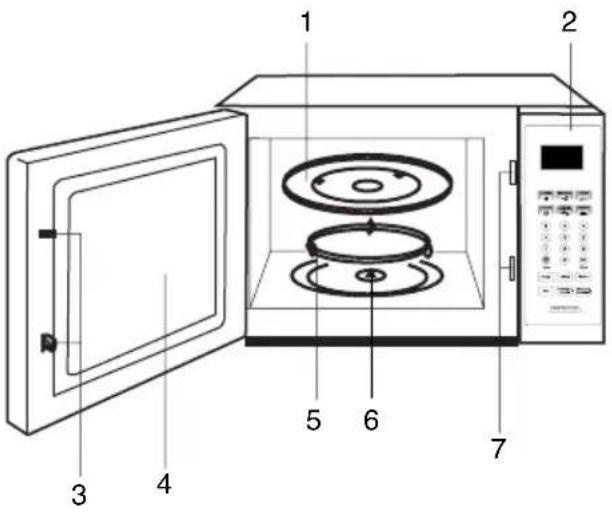

General view

1. Glass tray
2. Control panel
3. Door lockers
4. Oven window
5. Roller ring
6. Rotating shaft
7. Lockers

Control panel

To lock the control panel when you are cleaning so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

To set child lock, press and hold C6poc button about 3 seconds until "OFF" is displayed. To cancel child lock, press and hold C6poc button about 3 seconds until colon or clock is displayed.

Beeps during oven setting

1 BEEP: Oven accepts the entry.
2 BEEPS: Oven does not accept the entry, check and try again.

Setting clock state and standby state

After plugging power outlet, the display will show "ENTER", "TIME", "CLOCK"; the colon is flashing, the system will enter state of setting clock. Press C6poc button or wait for 30 seconds, "ENTER" and "TIME" will disappear; "CLOCK" and the colon will stay on. The oven will enter standby state.

Setting the clock

• In standby state, press Часы button.
• Use number buttons to enter the correct time. You should press at least three numbers to set the clock (one for hours and two for minutes).
• Press Часы button again. The system will enter clock state.

This is a 24-hour clock. When the oven is first plugged in or when power resumes after a power interruption, the display will show "ENTER", "CLOCK", "TIME", if you prefer not to have the clock displayed, press Сброс button. You can check the clock time while cooking is in progress by pressing Часы button.

Setting the oven timer

• Press Tаймер button.
• Enter the amount of time you want to

count down by pressing the number buttons. Digit time is in minutes and seconds and is set left to right. Set one digit (a 5 for 5 seconds) or up to four digits (2405 for 24 minutes, 5 seconds). The maximum time that be entered is 99 min, 59 sec.

- Press CTAPT/CTOP button confirm.

Time countdown can be seen on the display for 3 seconds before clock or cooking time is returned to display. Press Время and then press Сброс button to cancel timer during timing process.

Cooking operations

Microwave cooking

A. One-stage cooking

- In standby state or clock state, use number buttons to set a cooking time. You can set the cooking time from 1 second to 99 minutes and 59 seconds. If you are setting a time greater than 1 minute, you must enter numbers for both minutes and seconds.

For example: to set 20 minutes, enter 2, 0, 0, 0.

• If you want to set a power level other than 100% power, press Микро button and then press number buttons to enter the power level. You can set the power level from 1 to 9.
• Press CTAPT/CTOP button to start cooking. Use these single digits to represent power levels:

Button % of power Display		Microwave instruction
Микро 100 P1	100 and P90/H	High (100% and 90%) microwave power	Applicable for quick and thorough cooking such as meat, vegetable
Микро and 9	90
Микро and 8	80 P80 and P70	Medium High (80% and 70%) microwave power	Applicable for medium express cooking, such as eggs, fish, congee, rice, soup
Микро and 7	70
Микро and 6	60 P60 and P50	Medium (60% and 50%) microwave power	Applicable for steaming food
Микро and 5	50
Микро and 4	40 P40 and P30	Medium Low (40% and 30%) microwave power	Applicable for defrosting food
Микро and 3	30
Микро and 2	20 P20 and P10	Low (20% and 10%) microwave power	Applicable for keeping warm
Микро and 1	10

Example: To cook at 80P for 10 and half minutes.

• After power-up, the colon flashes, then press C6poc button once or wait for 30 sec.
• Set cooking time by pressing the number buttons "1", "0", "3", "0", the display will show 10:30.
• Press Микро button once, then select the desired microwave power by pressing number button “8”, the display will show P80.
• Press CTAPT/CTOP button to start, the display will count down to show the remaining time.

- Never operate the oven empty.

• If you turn the food during operation, close the door and then press CTAPT/CTOP button once and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you must press C6poc button once to clear the preset procedure to avoid unintended operation of next time use.

B. Two-stage cooking

Some recipes require different stages of cooking at different temperatures.

- Set stage 1:

Follow steps 1 and 2 in "One-stage

Cooking". Do not press CTAPT/CTOP button.

- Set stage 2:

Press Mikro 2 button, then enter proper cooking time and power level. (For 2-stage recipes, use lower power for the second stage.)

- Press CTAPT/CTOP button.

For example: You want to cook food with 100P microwave for 3 minutes, then 20P microwave for 9 minutes. You may program your menu as follows:

STAGE 1:

• After power-up, the colon flashes. Press Cópoc button once or wait for 30 sec.
• Press the number buttons "3", "0", "0" in turn to set cooking time, the display will show "3:00".
• Press Микро button once. The display will show 100P.

STAGE 2:

- Press Микро 2 button.

• Press the number buttons "9", "0", "0" in turn to set cooking time, the display will show "9:00".
• Press Микро button once, then press the number button "2" to select power level, the display will show P20.
• Press CTAPT/CTOP button to start cooking.

After total time has elapsed, 4 beeps sound and "End" appears on the display. Press C6poc button or open the oven door to clear "End" from the display before starting another cooking function.

Defrost by time

In this mode the oven automatically divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.

• In standby state or clock state press

- Enter desired defrosting time by pressing number buttons. Digital timer sets minutes and seconds from left to right so a single digit can be set (5 for 5 seconds) or up to 4 digits (2405 for 24 minutes 5 seconds).

- Press CTAPT/CTOP button.

Example: To speed defrost 0.2 kg poultry with 2 min 50 sec.

• After power-up, the colon flashes. Then press C6poc button once or wait for 30 sec.
• Press Разморозка по времени button.
• Set defrost time by pressing the number buttons "2, "5", 0" in turn, the display will show "2:50".
• Start cooking by pressing CTAPT/CTON button and the display will count down to show running time.

After time has elapsed, four beeps sound and "End" appears on the display. Press C6poc button or open the door to clear "End" before starting another cooking function.

After setting Defrost by time, the oven can be programmed to automatically switch to one- or two-stage cooking.

For defrost by time and one-stage cooking, follow steps above. Before pressing CTAPT/CTOP button, press Микро 2 button and enter time and power level. Then press START/STOP button.

For defrost by time and two-stage cooking, follow steps above. Before pressing CTAPT/CTOP button, enter two-stage cooking programs.

Defrost by weight

• In standby state or clock state, press

Разморозка по весу button.

• Enter weight by pressing number buttons.
• Press CTAPT/CTOP button.

Weight must be in Kg; you can set the food weight from 0.1 to 3.0 Kg. Turn the food over when oven beeps twice. Then close the door and press CTAPT/CTOP button to resume defrosting. After total defrosting time, 4 beeps sound and "End" appears on the display. Press C6poc button or open the oven door to clear "End" before starting following procedure.

Example: To defrost 1.15 Kg beef.

• After power-up, the colon flashes. Press
C6poc button once or wait for 30 seconds.
- Press Разморозка по весу button.
- Set defrosting weight by pressing the button numbers “1”, “1”, “5” in turn, after that the programmed cook time will appear automatically.
- Start cooking by pressing CTAPT/CTOP buttons, and the display will count down to show running time.
- During cooking two beeps will sound reminding you to turn over the food. After turning over the food, press CTAPT/CTOP button to resume cooking.

Auto Menu

This function has several modes. Each of them allows you to cook depending on the kind of product.

1. Auto menu cooking mode for meat

2. In standby state or clock state, press ABCO button.

3. Enter the one-digit food code by pressing the corresponding number button.
4. Enter the weight.
5. Press CTAPT/CTOP button.

Example: To cook 1.2 Kg beef.

- After power-up, the colon flashes. Press C6poc button once or wait for 30 seconds.

• Press AUTO button once.
• Select the food kind by entering "1".
• Set the food weight by pressing the button numbers “1”, “2”, “0” in turn, after that the programmed cook time will appear automatically.

- Start cooking by pressing CTAPT/CTOP button.

During cooking, two beeps will sound, reminding you to turn over the food. After turning over the food, press CTAPT/CTOП button to resume cooking.

Please see below the Automenu chart for meat:

Code/number button	Kind of meat Weight range
1 Beef From	100g to 3 kg in 5 g intervals
2 Mutton From	100g to 3 kg in 5 g intervals
3 Pork From	100g to 3 kg in 5 g intervals

Your microwave oven makes cooking easy. Once you set the type and weight of food, the oven automatically sets the cooking time and power level.

Meat must be defrosted and at refrigerated temperature.

1. Auto menu cooking mode for other kinds of food

2. "Popcorn"

• In standby state or clock state, press

Попкорн button. Попкорн automatically sets the cooking time for a 85 to 100g bag of microwave popcorn.

- Press CTAPT/CTOP button.

To reset "Popcorn time": press

Попкорн button twice. "ENTER" and "TIME" appears in display. Press number buttons to enter minutes and seconds. Press СТАРТ/СТОП button. This new cooking time will remain whenever you press Попкорн button until you reset it.

1. "Baked Potato"

For potatoes (110 to 170 g per entries):

• In standby state or clock state, press

- Enter number or potatoes by pressing number buttons from 1 to 4, the corresponding cooking time will appear on the display.

- Press CTAPT/CTOP button.

1. "Pizza"

Reheating a slice (or two thin ones) of leftover pizza:

• In standby state or clock state, press

Пицца button once, the corresponding cooking time will appear on the display.

- Press CTAPT/CTOP button.

1. "Beverage"

For coffee cups (140 to 200 g per share):

• In standby state or clock state, press

Напитки button once.

- Enter number of cups by pressing number buttons from 1 to 4, the corresponding cooking time will appear on the display.

- Press CTAPT/CTOP button.

1. "Frozen Dinner"

Microwaving one or two small (200-250 g per share) frozen dinner:

• In standby state or clock state, press

- Press 1 or 2 button to select 1 entree or 2 entrees, the corresponding cooking time will appear on the display.

- Press CTAPT/CTOP button.

1. Setting "Reheat"

• In standby state or clock state, press

Подогрев button, the corresponding cooking time will appear on the display.

- Press CTAPT/CTOP button.

This setting lets you reheat a dinner plate of chilled leftovers with good results.

Microwave cooking tips

1) Arranging food

Place thicker areas toward outside of dish and the thinner meat in the center and spread them evenly. Do not overlap if possible.

2) Cooking time

Start cooking with the shorter period of time and extend it according to the actual need.

Overcooking may result in smoking and burning.

3) Cover foods before cooking refer to the recipe

Use paper towels, microwave plastic wrap or a cover to cover food so that prevent spattering and help foods to cook evenly. (Helps keep oven clean).

4) Partial shielding of food

Use small pieces of aluminum foil to cover thin areas of meats or poultry to avoid overcooking.

5) Stir foods

From outside to center of dish once or twice during cooking, if possible.

6) Turn foods

Foods such as chicken, hamburgers or steaks should be turned over once during cooking.

7) Rearrange foods

Please change the positions of food in half way during cooking such as: from top to bottom and from the center of the dish to the outside.

8) Allow standing time

After cooking ensure adequate standing time. Remove food from oven and stir if possible. Cover for standing time which allows the food to finish cooking without overcooking.

9) Check for doneness

Observe the food color and hardness to determine whether the food is cooked. Doneness signs include:

• Steams throughout food, not just at edge part.

- Joints of Poultry move easily.

- Pork and poultry show no evidence of blood.

- Fish is opaque and flakes easily with a fork.

10) Condensation

It is a normal case of microwave cooking.

The humidity and moisture of food will influence the amount of moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods. Ensure that the ventilation openings are not blocked.

Care and cleaning

• Unplug oven and be sure oven is cool before cleaning.
• To maintain the appearance of your oven, never use abrasive cleaning agents (such as cleaning powders, scouring pads or steel wool pads), spray. Also, never use commercial oven cleaners on any part or your microwave oven.
• If the microwave is very dirty, otherwise, use a damp cloth.

Outside surfaces

Cover

- Clean the outside of the oven with a glass-cleaning agent, a liquid cleaner or mild detergent and water. Use a damp cloth or sponge, rinse and dry.

Plastic

- Use a liquid or glass-cleaning agent and a sponge or cloth. To prevent scratching the plastic surface, do not use paper toweling.

Door and control panel

- Clean with a damp cloth or sponge. Use dishwashing detergent and water or liquid glass-cleaning agent to remove soil. Rinse with a damp cloth and dry with a soft cloth to prevent scratching the plastic outer door panel. Some paper towels can scratch the plastic door panel, therefore, use a soft cloth to dry the door. When cleaning the control panel, keep oven door open to prevent oven from accidentally turning on.

Power cord

- Be sure oven is unplugged. Wipe cord with a damp sudsy cloth, rinse and dry thoroughly before plugging cord back into outlet.

Interior surfaces

• Wash with hot sudsy water, rinse and dry. Do not use excessive amounts of water when cleaning the oven.
• Never use abrasive cleaner on any part of your microwave oven.

Oven walls

- Use a mild liquid dishwashing detergent and water, rinse and dry. To loosen microwave on HIGH for 3 minutes. Leave hot water in the oven and allow the steam to soften the soil. Then, wash with hot sudsy water, rinse and dry.

• To keep oven clean and odor free, open oven door for a few minutes after cooking. Allow moisture to evaporate or wipe interior with dry clothes.
• Occasionally, wipe walls with a solution of baking soda and water to keep interior fresh.

Oven floor and turntable

- Especially around turntable. Do not allow

water or cleaning agents to seep into turntable gears located underneath.

- If a stain should still remain, remove stain with a paste of two parts braking soda and three parts water. Apply paste to stain, let stand one or two hours, then wipe with a clean damp cloth, rinse and dry.

Accessories

1. Microwave oven 1 pc
2. Glass tray 1 pc
3. Roller ring 1 pc
4. Distance limiter 1 pc
5. Instruction manual 1 pc
   6 Warranty card 1 pc
6. Consumer information 1 pc

Specifications

Power source 220 V, 50 Hz
Nominal power consumption 1150 W
Nominal output power 700 W
Power efficiency 61 %
Operating frequency 2450 MHz
Electric shock protection I
Ingress protection level IPX0
Inner volume 20 litres
Net weight	10.5 kg
Unit dimensions	424 mm x 338 mm x 263 mm

Specifications are subject to change without notice. Dimensions are approximate.

Technical line drawing of a mechanical assembly with circular components and a central shaft (no text or symbols)

Рис. 1

Technical line drawing of two mechanical bracket components (no text or symbols)

Рис. 2
