POAC7024 - Air-conditioner Point - Free user manual and instructions

Product Type	Portable Air Conditioner
Brand	Point
Model	POAC7024
Cooling Capacity	9000 BTU (approx. 2.6 kW)
Power Supply	230 V / 50 Hz
Power Consumption (Cooling)	Approx. 900 W
Air Flow Rate	300 m³/h (max)
Noise Level	52 dB (A) (max)
Dimensions (W x D x H)	450 x 370 x 710 mm
Weight	25 kg
Refrigerant	R32 or R410A (check label)
Main Functions	Cooling, Dehumidification, Fan, Sleep Mode, Timer
Controls	Control panel and remote control
Display	LED display with temperature and mode
Dehumidification Capacity	1.2 L/h (approx.)
Installation Kit Included	Window sealing plate, exhaust hose, adapter
Filter Type	Washable mesh filter
Maintenance	Clean filter every 2 weeks; drain condensate if needed
Safety Features	Auto shut-off on overheat, tip-over protection
Spare Parts Availability	Filters, remote control, exhaust hose

Frequently Asked Questions - POAC7024 Point

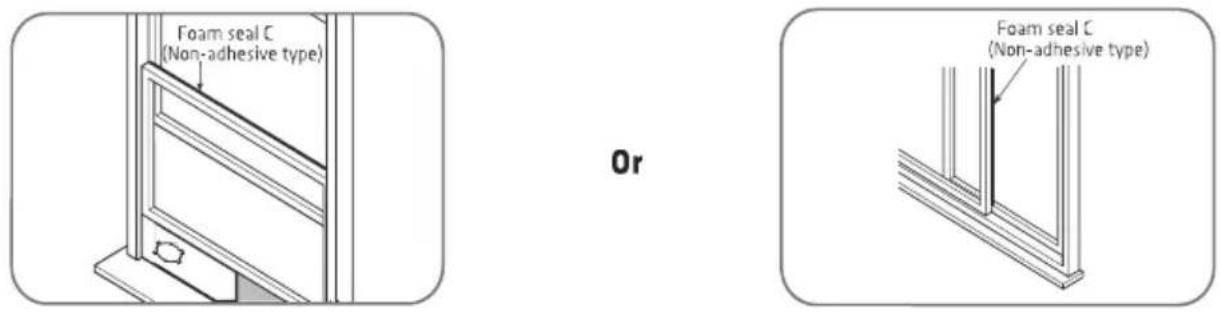

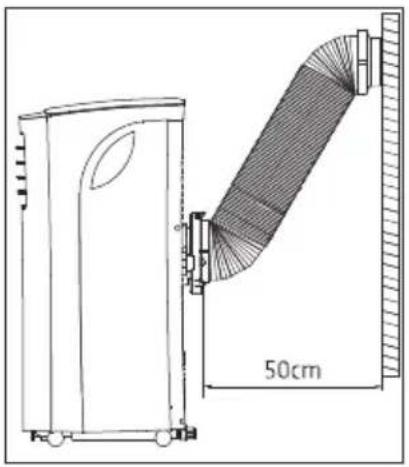

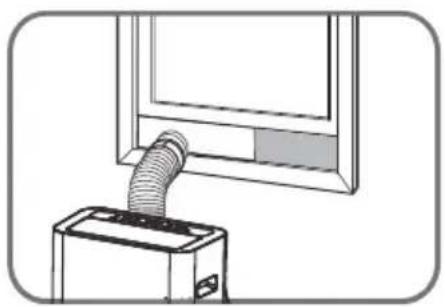

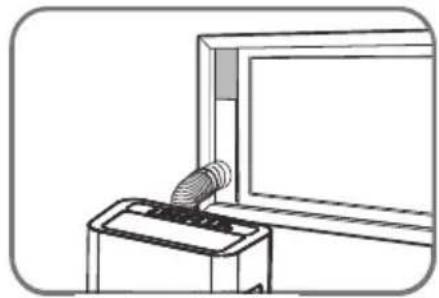

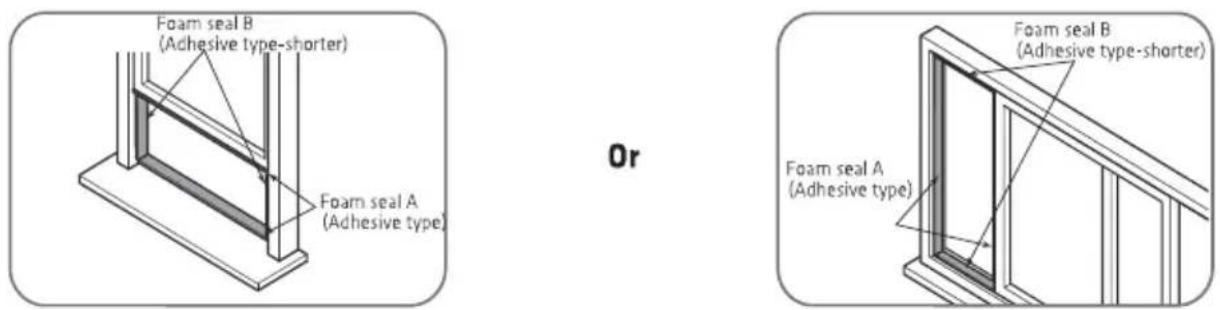

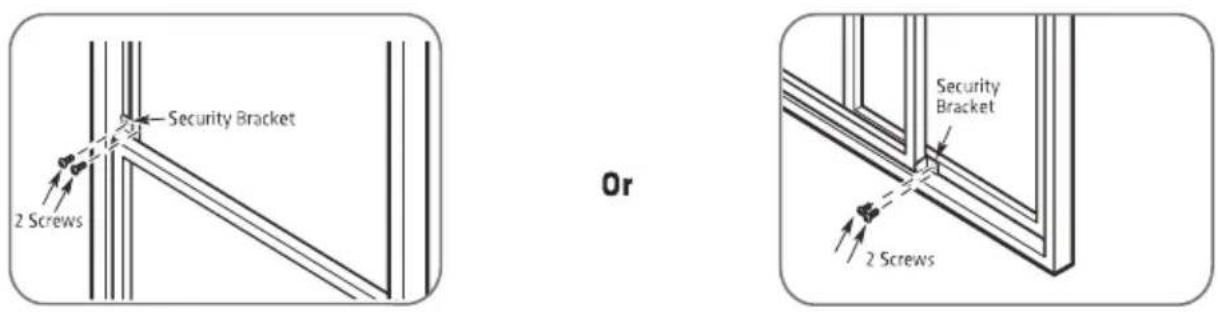

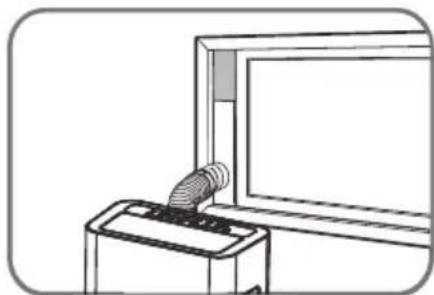

How do I install the Point POAC7024 air conditioner?

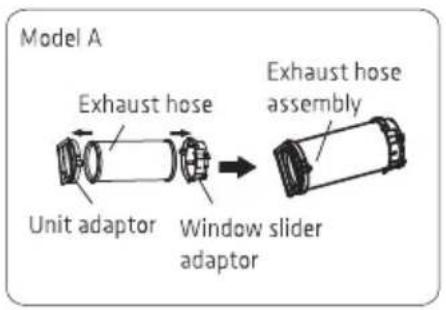

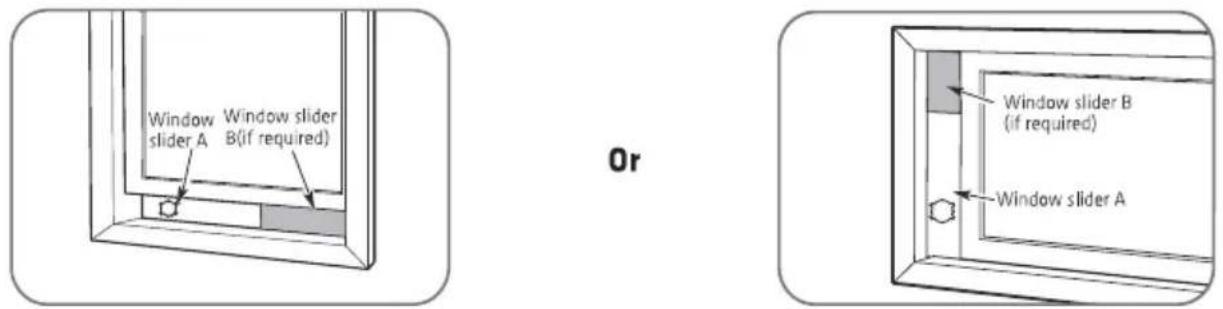

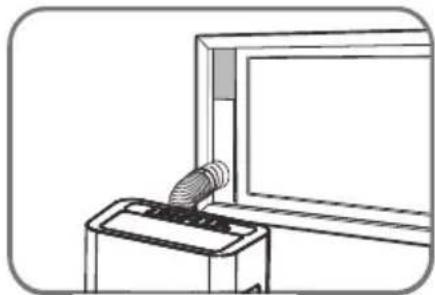

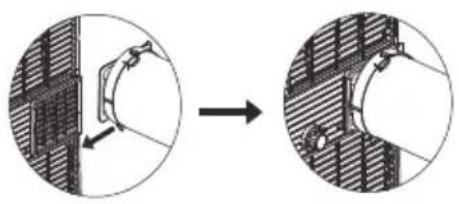

Install the window sealing plate, attach the exhaust hose to the unit and the plate, and plug into a grounded outlet. Ensure the hose is not bent sharply. Refer to manual for detailed steps.

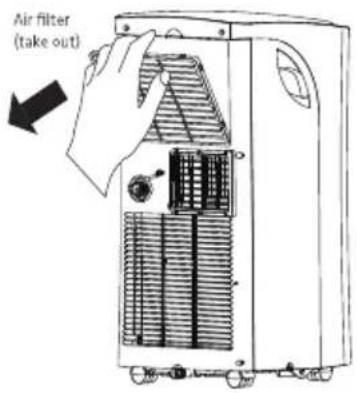

How do I clean the filter?

Turn off and unplug the unit. Remove the filter grille, take out the filter, and wash with warm water and mild detergent. Let it dry completely before reinstalling. Clean every two weeks for optimal performance.

What should I do if the air conditioner trips the circuit breaker?

Check that the unit is plugged into a dedicated outlet. Avoid using extension cords. If problem persists, contact a qualified electrician or customer support.

Can I use the air conditioner without the exhaust hose?

No, the exhaust hose must be properly vented outside to remove hot air. Operating without it can damage the unit and reduce cooling efficiency.

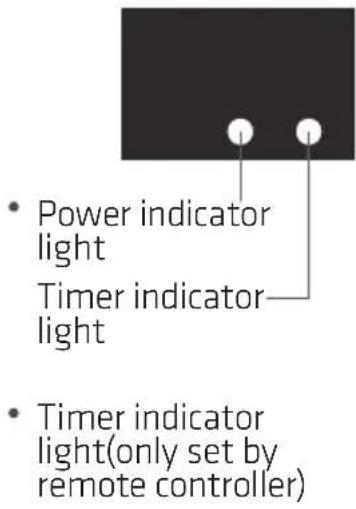

How do I set the timer?

Press the Timer button on the remote or control panel. Use + or - to set hours (0-24). Confirm and the unit will turn off or on accordingly. See manual for specifics.

Why is water dripping from the unit?

During operation, condensate accumulates. In humid conditions, the unit may need to be manually drained via the bottom drain plug. Some models have auto-evaporation. Check the water tank if present.

How do I switch between modes?

Press the Mode button to cycle through Cool, Dry (dehumidify), Fan, and Sleep modes. The LED will show the active mode.

What is the best temperature setting for energy saving?

Set the thermostat between 24-26°C (75-78°F) for comfort and efficiency. Each degree lower increases energy consumption by about 6-8%.

How do I store the air conditioner in winter?

Clean the filter and unit, drain any water from the tank, store in a dry place. Keep the exhaust hose and accessories together. Cover to prevent dust.

Where can I find spare parts or accessories?

Spare parts like filters, remote control, and exhaust hose can be ordered from Point authorized service centers or online retailers. Use model POAC7024 for compatibility.

USER MANUAL POAC7024 Point

Thank you for purchasing your new POINT Portable Air Conditioner.

These operating instructions will help you use it properly and safely.

We recommend that you spend some time reading this user manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this user manual for future reference.

B

Read Safety Precautions Before Operation and Installation

To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

WARNINGThis symbol indicates the possibility of personnel injury or loss of life.

CAUTIONThis symbol indicates the possibility of property damage or serious consequences.

WARNING

• Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.
- Use only the included accessories and parts, and specified tools for the installation. Using nonstandard parts can cause water leakage, electrical shock, fire, and injury or property damage.
• Make sure that the mains power outlet you are using is grounded and has the appropriate voltage. Mains power cable is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit.
- The appliance must be used in a properly grounded wall outlet. If the wall outlet you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the appliance. The maximum current is indicated on the nameplate located on the appliance), have a qualified electrician install the proper receptacle.
• Install the appliance on a sturdy surface. Failure to do so could result in damage or excessive noise and vibration.

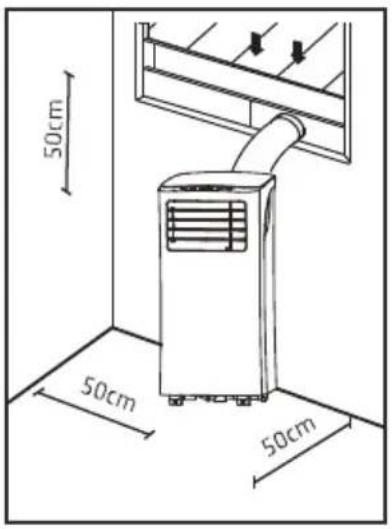

- The appliance must be kept free from obstruction to ensure proper function and to mitigate safety hazards.
- Do not modify the length of the main power cable or use an extension cable to power the appliance.
- Do not share main power outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.

• Do not install the appliance in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.
• Do not install the appliance in a location that may be exposed to combustible gas, as this could cause fire.
• The appliance has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll over objects, as these could cause tipping.
• Do not operate an appliance if it has been dropped or damaged.
• Ensure that any appliance with an electric heater is placed at least 1 meter away from any combustible materials.
• Do not touch the unit with wet or damp hands or when barefoot.
• If the appliance is knocked over during use, turn it off and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.
• In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
• The appliance should be used in such a way that it is protected from moisture. e.g. condensation, splashed water etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
• All wiring must be performed strictly in accordance with the wiring diagram located inside of the appliance.
• The appliance's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.

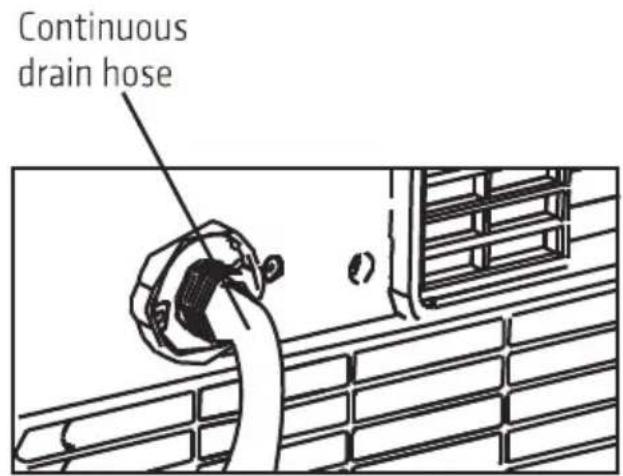

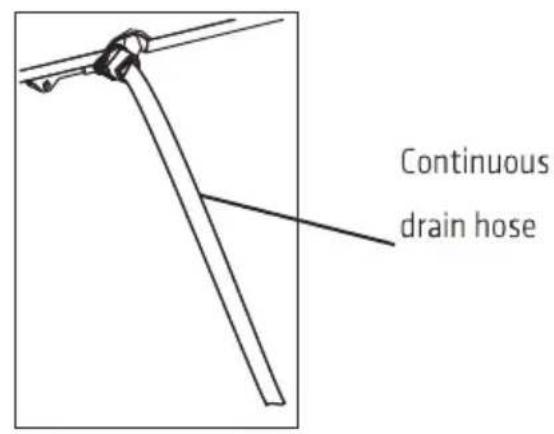

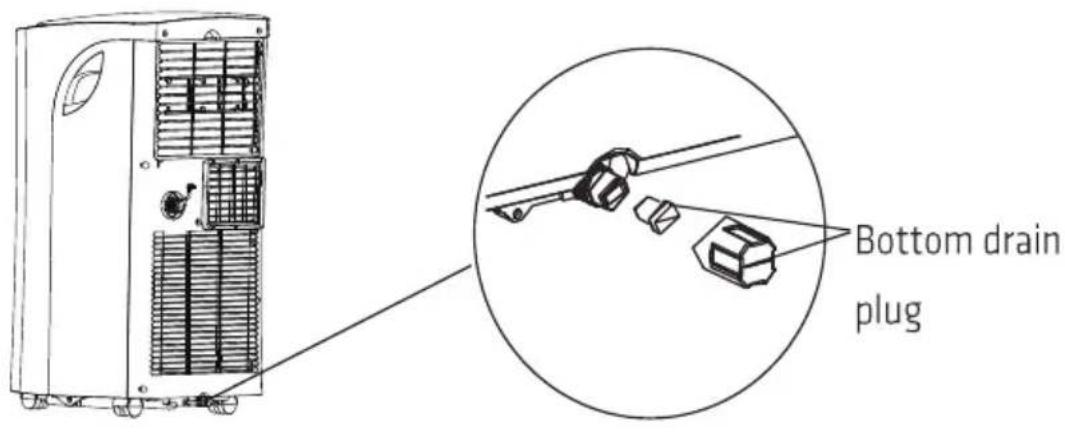

• When the water drainage function is not in use, securely attach both the upper and lower drain plugs to the appliance to prevent choking hazards. Store the drain plug safely when not in use to keep it out of reach of children.

CAUTION

• This appliance can be used by children aged 8 years and older and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or instructed on the safe use of the appliance and understand the hazards involved.
  Children shall not play with the appliance. Cleaning and user maintenance shall not be carried out by children without supervision. (be applicable for the European Countries)
• If the main power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the main power supply.
• Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Do not run the main power cable under carpeting.
• Do not cover main power cable with throw rugs, runners, or similar coverings.
• Do not route main power cable under furniture or appliances. Position the main power cable away from high-traffic areas to prevent tripping hazards.
• Do not operate the appliance with a damaged main power cable, plug, power fuse or circuit breaker. Discard the appliance or return to an authorized service facility for examination and /or repair.
  • To reduce the risk of fire or electric shock, do not use the appliance with any solid-state speed control device.

• The appliance shall be installed in accordance with national wiring regulations. Contact the authorised service technician for repair or maintenance of this unit.

• Do not cover or obstruct the inlet or outlet grilles.

• Do not use this appliance for functions other than those described in this instruction manual.
• Before cleaning, turn off the power and unplug the appliance.
• Disconnect the power if strange sounds, smell, or smoke comes from the appliance.
• Do not press the buttons on the control panel with anything other than your fingers.
• Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Do not operate or stop the appliance by inserting or pulling out the main power cable plug.
• Do not use hazardous chemicals to clean or come into contact with the appliance.
• Do not use the appliance in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
  • Always transport the appliance in a vertical position and stand on a stable, level surface during use.
  • Always contact a qualified person to carry out repairs. If the main power cable is damaged, it must be replaced with a new one obtained from the product manufacturer and not repaired.
• Hold the plug by the head of the power plug when taking it out.
• Turn off the appliance when not in use.

Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)

1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas (on some models), please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this appliance must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DISPOSAL: Do not dispose of this appliance as unsorted municipal waste.

Separate collection for special treatment is necessary. Disposal in household waste is prohibited.

For disposal, consider these options:

• Municipal collection systems: Dispose of electronic waste free of charge.
• When buying a new appliance, retailers will take back the old one at no cost.
  • Manufacturers may accept old appliances for free disposal. Sell old appliances to scrap metal dealers due to their valuable resources.
• Improper disposal in forests and landscapes endangers health by allowing hazardous substances to contaminate groundwater and enter the food chain.

WARNING for Using R32/R290 Refrigerant

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not contain an odour.
• Appliance should be installed, operated and stored in a room with a floor area according to the amount of refrigerant to be charged. For specific information on the type of gas and the amount, please refer to the relevant label on the appliance itself. When there are differences between the label and the manual on the Min. room area description, the description on label shall prevail.

For R290(Not applicable for North America)

amount of refrigerant (kg)	Min. room area( m^2 )	amount of refrigerant (kg)	Min. room area( m^2 )
≤ 0.0836	4	>0.1881 and ≤0.2090	10
>0.0836 and ≤0.1045	5	>0.2090 and ≤0.2299	11
>0.1045 and ≤0.1254	6	>0.2299 and ≤0.2508	12
>0.1254 and ≤0.1463	7	>0.2508 and ≤0.2717	13
>0.1463 and ≤0.1672	8	>0.2717 and ≤0.2926	14
>0.1672 and ≤0.1881	9	>0.2926 and ≤0.3040	15

For R32 refrigerant models:

Appliance shall be installed, operated and stored in a room with a floor area larger than 4 m ^2 .

Appliance shall not be installed in an unventilated space, if that space is smaller than 4 m^2 .

• Compliance with national gas regulations shall be observed. Keep ventilation openings clear of obstruction.
  • The appliance shall be stored so as to prevent mechanical damage from occurring.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
• Follow the instruction carefully to handle, install, clear, service the appliance to avoid any damage or hazard. Flammable Refrigerant R32 is used within the appliance. When maintaining or disposing the appliance, the refrigerant (R32 or R290) shall be recovered properly, shall not discharge to air directly.

• No any open fire or device like switch which may generate spark/arcing shall be around the appliance to avoid causing ignition of the flammable refrigerant used. Follow the instruction carefully to store or maintain the appliance to prevent mechanical damage from occurring.

• Flammable refrigerant -R32 is used in the appliance. Please follow the instruction carefully to avoid any hazard. For specific information on the type of gas and the amount, please refer to the relevant label on the appliance itself.

• The appliance shall be stored in a room without continuously operating open flames (for example anoperating gas appliance) and potential ignition sources (for example an operating electric heater).

Caution: Risk of fire/flammable materials

Explanation of symbols displayed on the appliance:

	WARNING	This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

1. Transport of equipment containing flammable refrigerants. See transport regulations
2. Marking of equipment using signs. See local regulations
3. Disposal of equipment using flammable refrigerants. See national regulations.
4. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions.

1. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

1. Information on servicing

1) Check to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimized the risk of a flammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6) No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.

7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8) Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence

of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

1. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or

sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

1. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

1. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

1. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

1. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 %

maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.

Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

12. Removal and evacuation

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used.

However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the appliance safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.

When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to

minimize the amount of refrigerant contained in them. Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system. It shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.14.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.

Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.

b) Isolate system electrically.

c) Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly;

The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the

recovery machine and operate in accordance with manufacturer's instructions.

h) Do not overfill cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15.Labelling

Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release.

Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Installation Instructions

Preparation

NOTE:

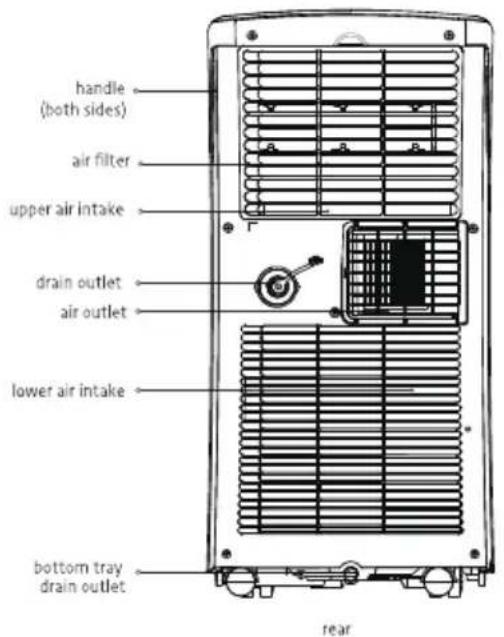

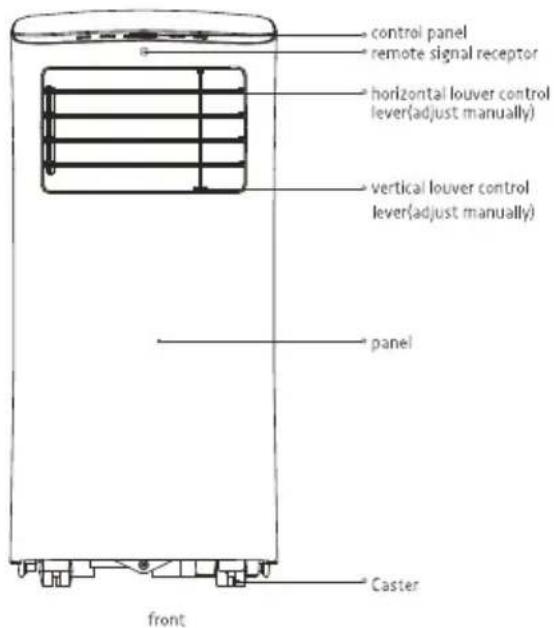

All the illustrations in the manual are for explanation purpose only. Your appliance may be slightly different.

The actual shape shall prevail. The appliance can be controlled by the control panel alone or with the remote controller. This manual does not include Remote Controller Operations, see the <> packed with the appliance for details.

Design Notice

In order to ensure the optimal performance of our products, the design specifications of the appliance and remote control are subject to change without prior notice.

Ambient Temperature Range For Appliance Operating

MODE	Temperature Range
Cool	17-35°C (62-95°F)
Dry	13-35°C (55-95°F)

Exhaust Hose Installation

The exhaust hose and adaptor must be installed or removed based on the usage mode. For COOL, or AUTO mode, the exhaust hose must be installed. For FAN, DRY, the exhaust hose must be removed.

Choosing The Right Location

Recommended Installation

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the device itself)

The appliance installation location should meet the following requirements:

-Make sure to install the appliance on an even surface to minimize noise and vibration.

-The appliance must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.

-The appliance should be located at least 30cm from the nearest wall to ensure proper air conditioning. The horizontal louver blade should be at least 50cm away from obstacles.

-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the appliance, as this could cause damage to the appliance.

Energy Rating Information

The energy rating and noise information for this appliance are based on standard installation with an un-extended exhaust duct, without a window slider adaptor (refer to the Installation section of this manual). The appliance should be operated in COOL MODE and HIGH FAN SPEED using the remote controller.

For models with a 3-meter extended exhaust duct, two exhaust ducts are used (Diameter: 150mm, Length: 1.5m + Diameter: 130mm, Length: 1.5m). Energy rating and noise information for these configurations have not been assessed.

NOTE:

We recommend operating the appliance at room temperatures below 35^ C. There is a risk that with a 3-meter extended exhaust duct, the appliance may not function properly above 35^ C under certain conditions, such as when the lower air intake is blocked by 50%.

Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;

-Saw (optional, to shorten window adaptor for narrow windows)

Accessories

NOTE: Items with (*) are on some models. Slight variations in design may occur.

Shape	Name of Accessories	Qty.	Shape	Name of Accessories	Qty.
(K42Y)	Unit Adaptor	1 pc
(B42A)	Exhaust Hose	1 pc		Security Bracket and 2 Screws	1 set(*)
(AK4A8)	Window Slider Adaptor	1 pc(*)		Drain Hose	1 pc
(ATZT)	Window Slider A	1 pc(*)		Bolt	1 pc(*)
(ZTZ0)	Window Slider B	1 pc(*)		Remote Controller and Battery (only for remote control models)	1 set(*)
	Foam Seal A (Adhesive)	2 pc(*)
(CC3Y)	Foam Seal B (Adhesive)	2 pc(*)
	Foam Seal C (Non-adhesive)	1 pc(*)
(CCCC)	Drain Hose Adaptor (only for heat pump mode)	1 pc(*)

Window Installation Kit

Type window installation:

Step One: Preparing the Exhaust Hose assembly

Press the exhaust hose(or extended exhaust hose) into the window slider adaptor(or wall exhaust adaptor) and unit adaptor, clamp automatically by elastic buckles of the adaptors.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Step Two: Install the Exhaust hose assembly to the unit

Push the Exhaust hose into the airoutlet opening of the unit along the arrow direction.

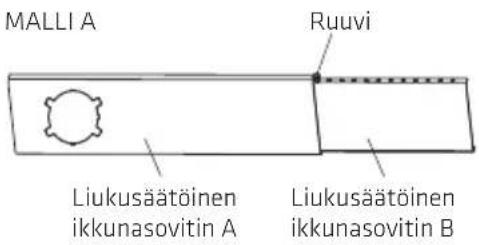

Step Three: Preparing the Adjustable Window Slider

1. Choose the window sliders according the size of your window. Sometimes, it needs to be cut short to meet the window size, please take extra care to cut it properly.

2. Use bolts to fasten the window sliders once they are adjusted to the Proper length.

Installation

NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods.

Type 1: Hung Window or Sliding Window Installation(For some models)

1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.

1. Insert the window slider assembly into the window opening.

1. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal between the glass and the window frame to prevent air and insects from getting into the room.

1. If desired, install the security bracket with 2 screws as shown.

Line drawing of a device with a coiled hose inserted into a window frame (no text or symbols)

Or

Line drawing of a printer with a bulb inserted into a screen (no text or symbols)

1. Insert the window slider adaptor into the hole of the window slider.

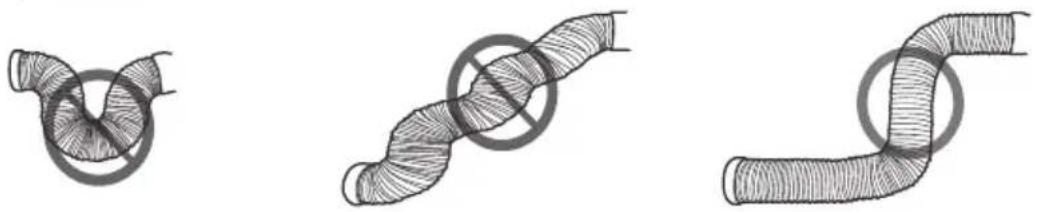

NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

Three hand-drawn pipe fittings with different internal patterns and shading, no text or symbols present

Operating Instructions

Control Panel Features

Note: The control panels shown are for illustrative purposes only. Your appliance's control panel may vary slightly depending on the model and may not include all indicators or buttons.

MODE MODE button

Press to select the desired operating mode in sequence: COOL, FAN, DRY, and AUTO (available on some models). The mode indicator light will illuminate to show the selected mode.

Note: In these modes, the appliance automatically adjusts fan speed.

Up (+) and Down (-) buttons

Use these buttons to adjust the temperature settings in increments of 1^ C, within a range of 17^ C to 30^ C.

Note: You can switch between Fahrenheit and Celsius by pressing and holding both Up and Down buttons simultaneously for 3 seconds.

Power button

Power switch on/off.

LED display

Shows the set temperature while in, COOL or AUTO mode.

While on DRY and FAN modes, it shows the room temperature.

Shows Error codes:

EO-EEPROM error.

E1-Room temperature sensor error.

E2-Evaporator temperature sensor error.

E3-Condenser temperature sensor error (on some models).

E4-Display panel communication error.

EC-Refrigerant leakage detection malfunction(on some models).

Shows protection code:

P1-Bottom tray is full--Connect the drain hose and drain the collected water away.

If protection repeats, call for service.

NOTE: If a malfunction occurs, turn off the appliance and check for obstructions. Restart the appliance. If the issue persists, turn it off again and unplug it from the main power supply. Contact the manufacturer, service agents, or a qualified professional for assistance.

Operation Instructions

COOL operation

• Press the "MODE" button until the "COOL" indicator light comes on.
• Press the ADJUST buttons "+" or "-" to select your desired room temperature.
  The temperature can be set within a range of 17°C\~30°C.
• Press the "FAN SPEED" button to choose the fan speed.

DRY operation

• Press the "MODE" button until the "DRY" indicator light comes on.
• The fan speed or the temperature cannot be adjusted. The fan motor operates at LOW speed.
  NOTE: Keep windows and doors closed for the best dehumidifying effect. Do not put the duct to window.

FAN operation

• Press the "MODE" button until the "FAN" indicator light comes on.
• Press the "FAN SPEED" button on the remote controller to choose the fan speed.
  The temperature can not be adjusted.
• Do not put the duct to window.

Other features

SLEEP/ECO operation

This feature can only be activated using the remote control. To activate the SLEEP feature, the set temperature will adjust by 1°C every 30 minutes—increasing for cooling. After an hour, this new temperature will be maintained for 7 hours before reverting to the original setting. This concludes Sleep mode, and the unit will resume its normal operation.

NOTE: This feature is unavailable under FAN or DRY mode.

FOLLOW ME/TEMP SENSING feature (on some models)

Note: This feature can only be activated using the remote control.

The remote control acts as a thermostat, allowing precise temperature control at its location. To activate this feature, point the remote at the unit and press the Follow Me/Temp Sensing button. The remote will continuously send signals to the air conditioner

until you press the button again. If no signal is received by the unit within a 7-minute interval, it will exit Follow Me/Temp Sensing mode.

NOTE: This feature is unavailable under FAN or DRY mode.

AUTO-RESTART

If the appliance shuts off unexpectedly due to a power cut, it will automatically restart with the previous settings once power is restored.

AIR FLOW DIRECTION ADJUSTMENT

Adjust the air flow direction manually:

• Set the louver to your desired position manually.
• Avoid placing heavy objects or loads on the louver to prevent damage.
• Keep the louver fully open during use.

WAIT 3 MINUTES BEFORE RESUMING OPERATION: After stopping, do not restart the appliance within 3 minutes to protect it. It will automatically resume after this period.

POWER MANAGEMENT feature(On some models)

During cooling, if the ambient temperature falls below the set temperature for a while, the appliance will activate power management. The compressor and fan motor will stop. When ambient temperature rises above the set level, power management will deactivate, and the compressor and/or fan motor will run again.

WATER DRAINAGE

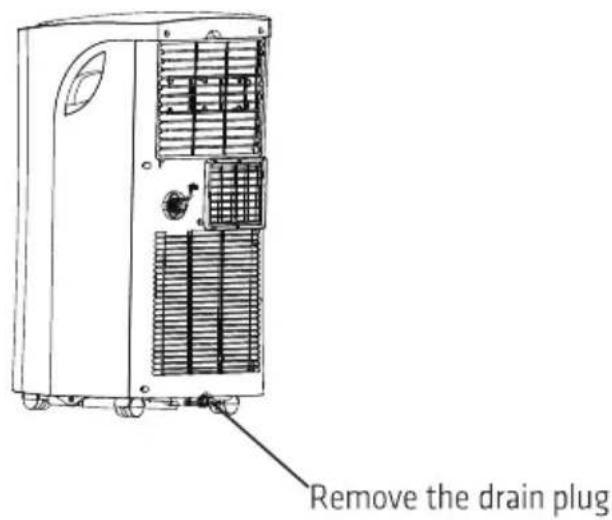

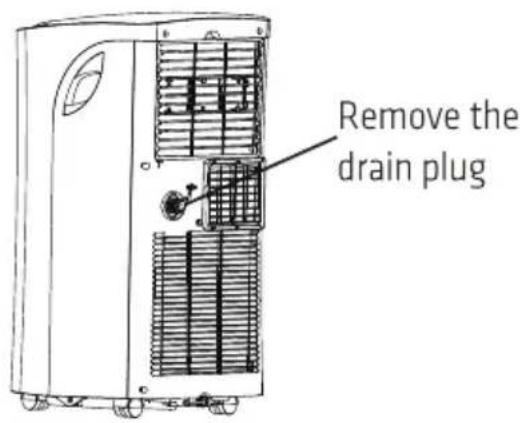

- During dehumidifying modes, remove the drain plug from the back of the appliance. Install a drain connector (5/8" universal female mender) with a 3/4" hose (sold separately). For models without a drain connector, attach the drain hose directly to the hole. Place the open end of the hose over a drainage area in your basement floor.

Note: Ensure the drain hose is lower than the bottom tray drain outlet.

NOTE: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. When the continuous drain hose is not used, ensure that the drain plug and knob are installed firmly to prevent leakage.

When the water level in the bottom tray reaches a certain point, the appliance beeps 8 times and displays "P1." The air conditioning/dehumidification process will stop immediately, but the fan motor will continue to run (this is normal). Carefully move the appliance to a drainage location, remove the bottom drain plug, and let water drain out. Reinstall the bottom drain plug and restart once "P1" disappears. If errors persist, contact service.

NOTE: Be sure to reinstall the bottom drain plug firmly to revent leakage before using the appliance.

Maintenance

Safety Precautions

· Always unplug the appliance before cleaning or servicing.
· DO NOT use flammable liquids or chemicals to clean the appliance.
· DO NOT wash the unit under running water. Doing so causes electrical danger.
· DO NOT operate the appliance if the power supply was damaged during cleaning.
A damaged power cord must be replaced with a new cord from the manufacturer.

Air Filter Cleaning

Remove the air filter

CAUTION

DO NOT operate the appliance without filter because dirt and lint will clog it and reduce performance

Maintenance Tips

• Be sure to clean the air filter every 2 weeks for optimal performance.
• The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
  · In households with animals, you will have to periodically wipe down the grill to prevent blocked airflow due to animal hair.

Appliance Cleaning

Clean the appliance using a damp, lint-free cloth and mild detergent. Dry the appliance with a dry, lint-free cloth.

Store the appliance when not in use

• Drain the unit's water collection tray according to the instructions in the corresponding section.
• Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
  · Turn off the appliance and unplug it.
• Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before storing.
• Remove the batteries from the remote control.

NOTE: Always store the appliance in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the appliance.

NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the appliance.

Troubleshooting Tips

Problem	Possible Causes	Solution
Appliance does not turn on when pressing ON/OFF button	P1 Protection Code	The Water Collection Tray is full. Turn it off, drain the water from the Water Collection Tray and restart the appliance.
	In COOL mode: room temperature is lower than the set temperature	Reset the temperature
	E0 EEPROM error	Contact the manufacturer or its service agents or a similar qualified person for service.
Appliance does not cool well	The air filter is blocked with dust or animal hair	Turn it off and clean the filter according to instructions
	Exhaust hose is not connected or is blocked	Turn it off, disconnect the hose, check for blockage and reconnect the hose
	The unit is low on refrigerant	Call a service technician to inspect the appliance and top off refrigerant
	Temperature setting is too high	Decrease the set temperature
	The windows and doors in the room are open	Make sure all windows and doors are closed
	The room area is too large	Double-check the cooling area
	There are heat sources inside the room	Remove the heat sources if possible
The appliance is noisy and vibrates too much	The ground is not level	Place the appliance on a flat, level surface
	The air filter is blocked with dust or animal hair	Turn it off and clean the filter according to instructions
The appliance makes a gurgling sound	This sound is caused by the flow of refrigerant inside the appliance	This is normal

Correct Disposal of this product
	This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.For more information, please contact the local authority or your retailer where you purchased the product.

Power International AS, PO Box 523, N-1471 Lørenskog, Norway

Power Norge: https://www.power.no/kundeservice/ T: 21 00 40 00

Expert Danmark: https://www.expert.dk/kundeservice/ T: 70 70 17 07

Power Danmark: https://www.power.dk/kundeservice/ T: 70 33 80 80

Punkt 1 Danmark: https://www.punkt1.dk/kundeservice/ T: 70 70 17 07

Power Finland: https://www.power.fi/tuki/asiakaspalvelu/ T: 0305 0305

Power Sverige: https://www.power.se/kundservice/ T: 08 517 66 000

Sikkerhetstiltak

Symbol of a trash bin with no visible text or labels

Advarsel: Fare for brann/brennbare materialer

Forklaring av symbolene som vises på apparatet:

Technical line drawing of a device with a 50cm dimension label, showing no readable text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Trinn to: Monter avtrekksslangen inn i enheten

Line drawing of a washing machine with a coiled hose attached to a window (no text or symbols)

Eller

Line drawing of a printer emitting a paper airplane into a computer monitor (no text or symbols)

1. Sett vindusgilder-adapteren inn i hullet på vindusglideren.

Three hand-drawn pipe illustrations showing different types of pipe connections (no text or symbols)

Bruksinstrukser

Symbol of a waste bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Technical line drawing of a device with a 50cm dimension label, showing no readable text or symbols.

Diagram showing a mechanical assembly or mounting process with two views of a pipe fitting (no text or symbols present)

Line drawing of a washing machine with a coiled hose attached to a window (no text or symbols)

Tai

Line drawing of a printer emitting a cable from a screen (no text or symbols)

Three hand-drawn pipe fittings with different internal shapes and shading patterns, no text or symbols present.

Käyttöohjeet

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Advarsel: Fare for brand/brændbare materialer

Technical line drawing of a device with a 50cm dimension label, showing no readable text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Line drawing of a washing machine with a coiled hose attached to a window (no text or symbols)

Eller

Line drawing of a printer emitting a paper airplane into a computer monitor (no text or symbols)

Three hand-drawn pipe fittings with no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no visible text or labels

Technical line drawing of a mechanical device with a 50cm dimension label (no text or symbols on the device itself)

Line drawing of a washing machine with a coiled hose attached to a window (no text or symbols)

Eller

Line drawing of a printer emitting a horn to a screen (no text or symbols)

Abstract line drawing of a twisted rope or fiber with a circular gap (no text or symbols)

Diagram of a bent pipe with a circular hole, no text or symbols present

Bruksanvisning

Kontrollpanelens funktioner

Demontera luftfiltret

FÖRSIKTIGHET

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
