Product Type	Cordless Electric Kettle
Model	5KEK1222A
Brand	KitchenAid
Capacity	1.7 liters
Material	Brushed stainless steel
Power	220-240 V, 50/60 Hz, 3000 W
Base	360° swivel base with cord storage
Heating Element	Concealed, rapid boil
Auto Shut-off	Yes, after boiling
Boil-Dry Protection	Yes, automatic shut-off if boiled dry
Lid	Wide opening, push-button release
Spout	Gooseneck for precise pouring
Filter	Removable scale filter
Water Level Indicator	Transparent window with markings
Dimensions (W x D x H)	23 x 21 x 27 cm
Weight	1.2 kg (kettle only)
Power Cord Length	Approximately 75 cm
Cleaning	Wipe with damp cloth; descale regularly
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Warranty	2 years limited warranty
Repairability	Replaceable base and filter; professional service recommended

Frequently Asked Questions - 5KEK1222A KITCHENAID

What is the capacity of the KitchenAid 5KEK1222A kettle?

The kettle has a capacity of 1.7 liters, ideal for brewing multiple cups at once.

How do I descale the kettle?

Mix equal parts water and white vinegar, boil, let sit for 30 minutes, then rinse thoroughly. Alternatively, use a commercial descaler.

Can I use the kettle on a 120V outlet?

No, this model is designed for 220-240V. Using it on 120V may damage the kettle or cause slow boiling.

Does the kettle have auto shut-off?

Yes, the kettle automatically shuts off once the water reaches a rolling boil.

How do I clean the filter?

Remove the filter from the spout, rinse under running water, and scrub gently with a soft brush if needed.

What should I do if the kettle doesn't turn on?

Ensure the base is plugged in and the kettle is properly seated. Check if the reset button (if present) has tripped. If the issue persists, contact KitchenAid support.

Is the kettle safe to leave unattended?

The kettle has boil-dry protection and auto shut-off, but always exercise caution and avoid leaving it unattended for long periods.

Can I boil milk or other liquids?

This kettle is intended for water only. Boiling milk or other liquids may cause damage and void the warranty.

How long does it take to boil water?

Approximately 3-4 minutes to boil 1 liter of water at full capacity, depending on starting temperature.

What is the warranty period?

KitchenAid offers a 2-year limited warranty from the date of purchase against defects in materials and workmanship.

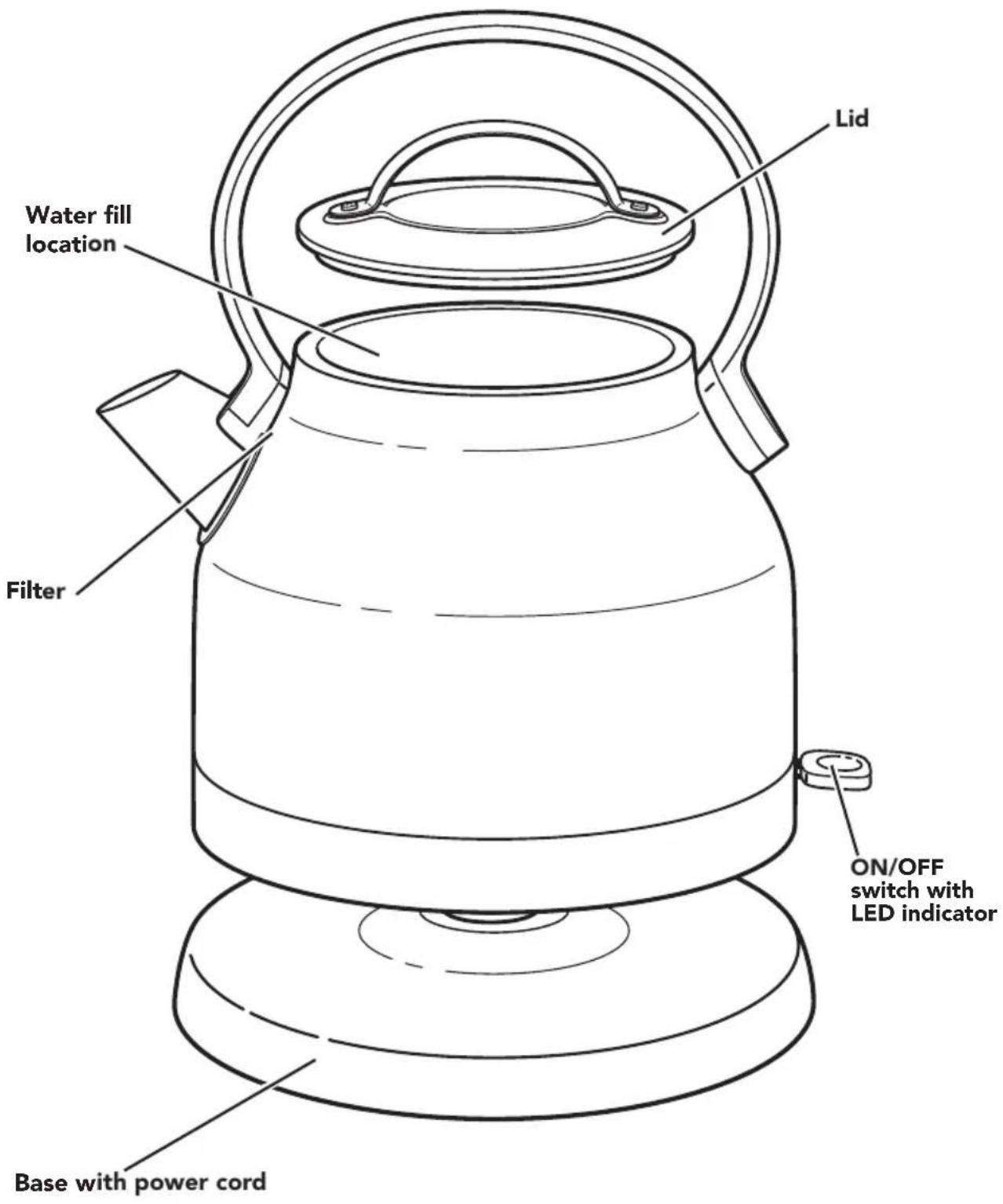

USER MANUAL 5KEK1222A KITCHENAID

Black KitchenAid kettle with silver handle and label (no additional text or symbols visible)

KitchenAid

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Warning: Misuse may cause potential injury.
3. Do not touch hot surfaces. Use handles.
4. To protect against fire, electrical shock and injury to persons do not immerse base, cord, plug, or Electric Kettle in water or other liquids.
5. Warning: Avoid spillage on the connector.

ELECTRIC KETTLE SAFETY

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. The heating element surface is subject to residual heat after use. Unplug Electric Kettle from outlet and allow to cool before cleaning or removing parts.
3. Do not operate Electric Kettle with a damaged cord, plug, or other malfunction. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. The Electric Kettle is only to be used with the base provided. Use of replacement parts not recommended by manufacturer may result in fire, shock, or injury to persons.
5. Do not use outdoors.
6. Do not let cord hang over counter or table edges, or allow to come into contact with heated surfaces.
7. Do not use near or on a hot gas or electric burner stove.
8. The Electric Kettle should only be used to heat water.
9. Do not use the Electric Kettle without lid properly closed.
10. Do not use the Electric Kettle with a loose or weakened handle.
11. Do not use the appliance for other than intended use.

ELECTRIC KETTLE SAFETY

1. Do not clean Electric Kettle with abrasive cleaners, steel wool, or other abrasive materials.

2. This appliance is intended to be used in household and similar applications such as:

3. staff kitchen areas in shops, offices and other working environments;

4. farm houses;
5. by clients in hotels, motels and other residential type environments;

6. bed and breakfast type environments. Not designed for commercial use.

7. Do not overfill Electric Kettle. If the Electric Kettle is overfilled, boiling water may be ejected.

SAVE THESE INSTRUCTIONS

WARNING

Electrical Shock Hazard

Plug into a grounded outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Volts: 220–240 V.A.C.

Hertz: 50/60 Hz

Watts: 1850–2200

NOTE: The Electric Kettle has a grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

USING THE ELECTRIC KETTLE

BEFORE FIRST USE

Before first use, fill the Electric Kettle to the maximum level, then boil and discard the water.

NOTE: The Electric Kettle is designed for water only. Do not put any other liquids or substances in the Electric Kettle.

HEATING WATER

Diagram showing a bucket with an upward arrow above a sink, against a brick wall background (no text or symbols)

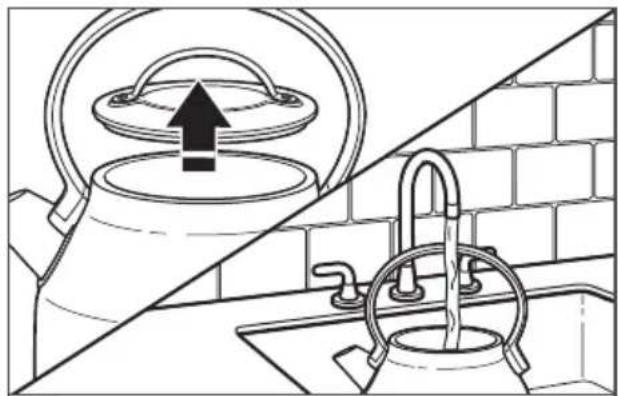

1 Remove the lid from the kettle. Fill the Electric Kettle with water.

Line drawing of a kettle with a lid and handle, showing a downward arrow indicating cooling or movement (no text or symbols)

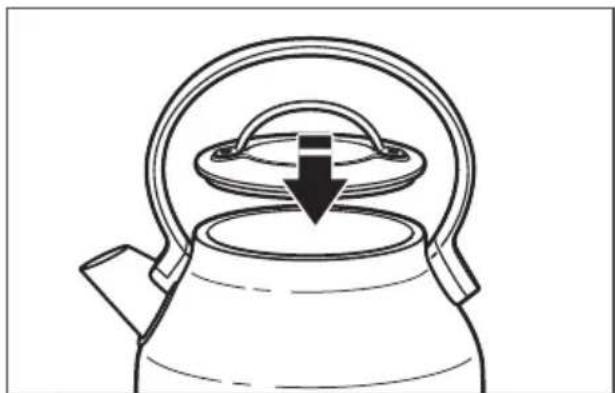

2 Replace the lid. Do not use the Electric Kettle without lid properly closed.

Diagram of a mechanical press or stamping device with a downward arrow indicating force or movement (no text or symbols present)

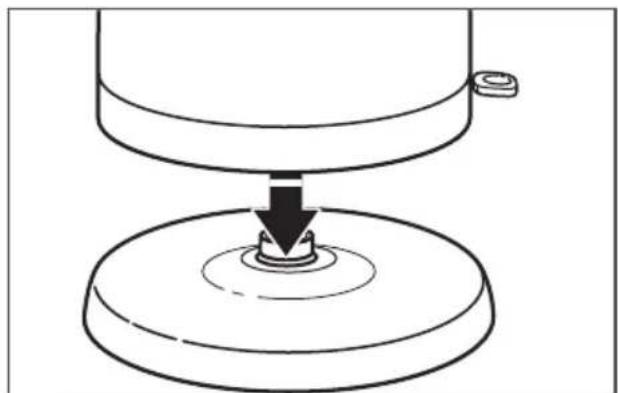

3 Place the Electric Kettle on the base.

Line drawing of a hand pressing down on a cylindrical object (no text or symbols)

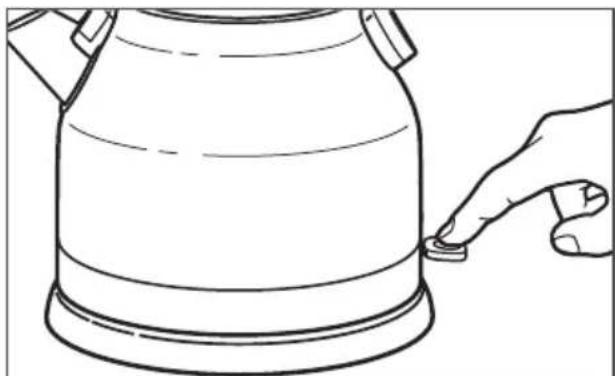

Turn the Electric Kettle ON by pressing the ON/OFF switch down. The LED indicator will light. Electric Kettle will automatically turn OFF when water has finished boiling.

Line drawing of a kettle with an arrow indicating upward motion (no text or symbols)

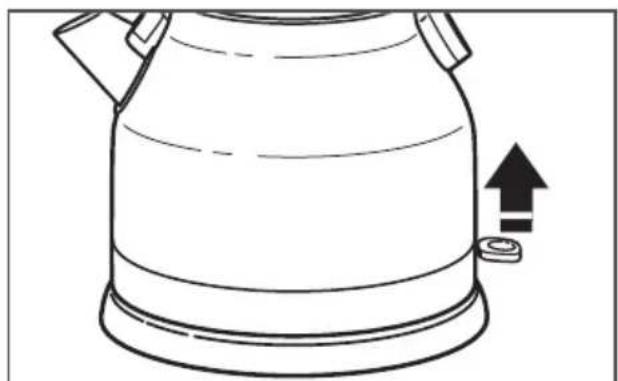

5 You may also turn the Electric Kettle off by raising the switch to the OFF position.

IMPORTANT: Unplug cord when Electric Kettle is not in use.

CARE AND CLEANING

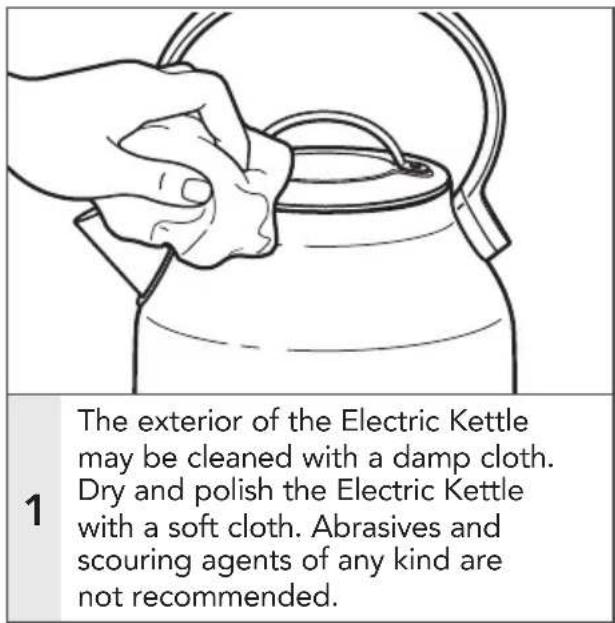

CLEANING THE EXTERIOR

IMPORTANT: Before cleaning always disconnect the Electric Kettle from electrical outlet. Make sure the Electric Kettle has cooled completely.

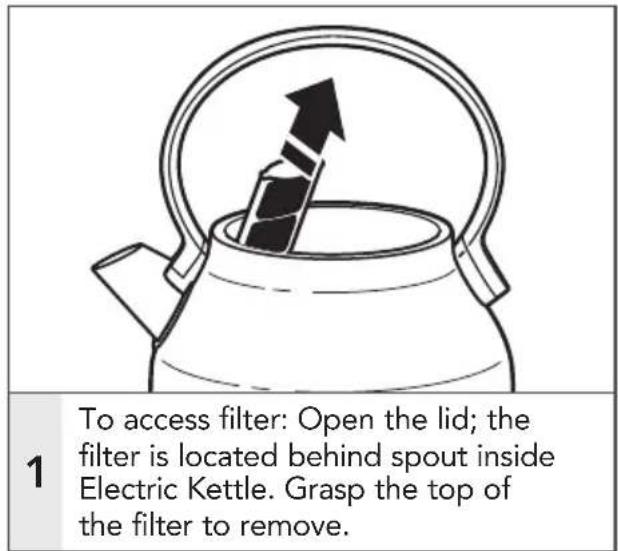

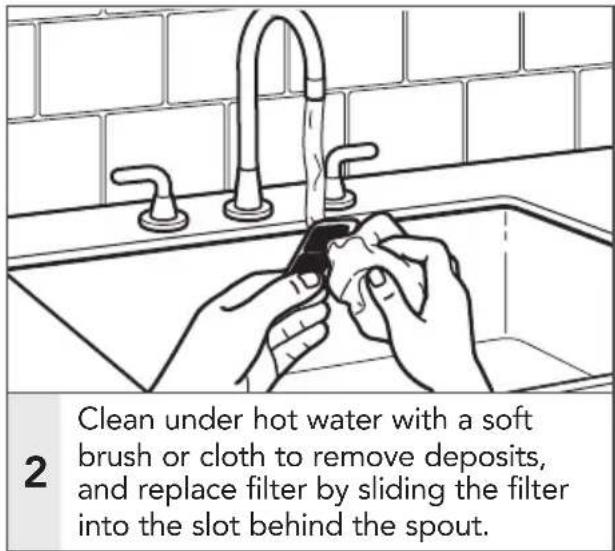

CLEANING THE FILTER

The Electric Kettle features a removable mesh filter that traps scale deposits for cleaner water. The filter will need to be cleaned periodically—more often if you have hard water.

NOTE: If calcium deposits remain on the filter, let it stand overnight in a solution of water and white vinegar. Rinse the filter thoroughly and replace in the Electric Kettle.

CARE AND CLEANING

REMOVING MINERAL DEPOSITS FROM THE INTERIOR

To get the best performance from your Electric Kettle, decalcification will be necessary. Calcium deposits may form on the interior metal parts of the Electric Kettle. The cleaning interval will depend on the hardness of the water you put in the Electric Kettle.

KitchenAid

© 2015. All rights reserved.

Specifications subject to change without notice.

W10817240A

07/15
