Product Type	Induction Hob
Brand	Candy
Model	HI624TCT
Cooking Zones	4
Heating Technology	Induction
Power Supply	220-240 V ~ 50-60 Hz
Installed Electric Power	2.5 kW - 7.4 kW (adjustable)
Zone Power (left front & right front)	2000 W (Boost 2600 W)
Zone Power (left rear & right rear)	1500 W (Boost 2000 W)
Product Dimensions (L x W x H)	590 x 520 x 55 mm
Building-in Dimensions (A x B)	560 x 490 mm
Net Weight (approx.)	8.5 kg
Timer	Yes, up to 99 minutes
Boost Function	Yes, 5 minutes
Pause Function	Yes
Key Lock	Yes
Automatic Shutdown	Yes, after preset time
Over-Temperature Protection	Yes
Over-Spillage Protection	Yes
Pan Detection	Yes
Control Type	Touch control
Surface Material	Glass-ceramic
Energy Consumption (EC per zone)	192.3 - 197.2 Wh/kg (per zone)
Energy Consumption (hob)	194.7 Wh/kg
Cleaning	Use cooktop cleaner; avoid abrasive scourers
Warranty	Standard 2 years (check local)

Frequently Asked Questions - HI624TCT CANDY

How do I unlock the controls if they are locked?

Ensure the hob is turned on. Touch and hold the keylock control for a few seconds until the indicator turns off. The controls will be unlocked.

Why does the display show 'U' and the hob not heat?

This indicates no pan is detected or the pan is unsuitable. Ensure you are using a magnetic pan (check with a magnet) and place it centered on the zone. The pan must have a minimum diameter of 120 mm for the smaller zones.

Can I use the timer to turn off a zone automatically?

Yes. Select the zone, press the timer control, set the time using '+' or '-', and the zone will switch off when the countdown ends. The remaining time is shown on the display.

What is the Boost function and how long does it last?

Boost provides maximum power for fast heating. It lasts for 5 minutes then automatically returns to power level 9. To activate, select a zone and press the Boost button.

Why does the hob make a humming noise?

A humming noise is normal when using high heat settings, caused by the induction technology. It usually quiets down when reducing the power level. The cooling fan may also make noise.

What does the error code 'E3' mean?

E3 indicates the induction coil temperature sensor is too hot. This is a protection feature. Let the hob cool down; if repeated, contact a qualified technician.

How do I adjust the total power limit of the hob?

With the hob off, press and hold the Pause button for 5 seconds, then press '+' and '-' together for 3 seconds. Use '+' and '-' to cycle through power levels (2.5 to 7.4 kW). Press Pause for 5 seconds to confirm.

Can I use cookware made of glass or aluminum?

No. Induction cooking requires magnetic cookware such as iron or stainless steel with a magnetic base. Glass, aluminum, copper, ceramic, and earthenware are not suitable unless they have a magnetic layer.

The glass surface is cracked. What should I do?

If the glass is cracked, immediately switch off the hob at the mains and do not use it. Contact a qualified technician for replacement. Electric shock hazard exists.

How do I clean the hob without damaging it?

First, switch off the power and let the surface cool. For everyday soiling, apply a cooktop cleaner with a soft cloth. For burnt spills, use a razor blade scraper held at 30° angle. Never use abrasive scourers.

USER MANUAL HI624TCT CANDY

Instruction Manual For Induction Hob

ENGLISH

Thank you for purchasing the HOOVER induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory. Alterations to the domestic wiring system may only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

Take care - panel edges are sharp. Failure to use caution could result in injury or cuts.

Important safety instructions

Read these instructions carefully before installing or using this appliance.

No combustible material or products should

placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance, as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these installation instructions.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a supply which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and Maintenance - Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic

safety standards.

• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that implants will not be affected by the electromagnetic field.

• Failure to follow this advice may result in Hot Surface Hazard.

- During use, accessible parts of this appliance will become hot enough to cause burns. - Do not let your body, clothing, or any item other than suitable cookware contact the induction glass until the surface is cool.

- Metallic objects such as knives, forks, spoons, and lids should not be placed on the hard surface since they can get hot.

- Keep children away.

- Handles of saucepans may be hot to touch. Check that saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.

- Failure to follow this advice could result in burns and scalds.

Cut Hazard

- The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely out of reach of children.

- Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual (by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability that limits their ability to use the appliance should have a responsible and competent person to instruct them in its use.

The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on the cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag them across the Induction glass surface, as this may scratch the glass.

- Do not use scourers or other abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and working environments; farm houses; by clients in hotels, motels, and other residential type environments; bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, switch off the appliance and then cover flames with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

A steam cleaner is not to be used.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable, or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

This appliance incorporates an earth connection for functional purposes only.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate. For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction Manual for future reference.

Product Overview

Top View

1. 2000 W zone, boost to 2600 W 2. 1500 W zone, boost to 2000 W 3. 2000 W zone, boost to 2600 W 4. 1500 W zone, boost to 2000 W 5. Glass plate 6. Control panel

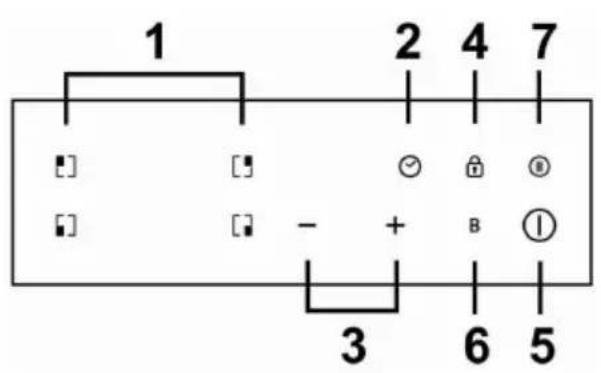

Control Panel

1. Heating zone selection controls
2. Timer control
3. Power/Timer regulating key
4. Keylock control
5. ON/OFF control
6. Boost function control
7. Pause function control

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass is hot only because the pan eventually warms it up.

Iron pot Magnetic circuit Ceramic glass plate Induction coil Induced currents

Before using your New Induction Hob

- Read this guide, taking special note of the marriage section.

- Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

- The controls respond to touch, so you don't need to apply any pressure.

- Use the ball of your finger, not its tip.

- You will hear a beep each time a touch is registered.

- Make sure the controls are always clean, dry, and that there is no utensil or cloth covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

- If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If it does not flash in the display and the water is heating, the pan is suitable.

Cookware made from the following materials is not suitable: pure stainless steel, aluminum, copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

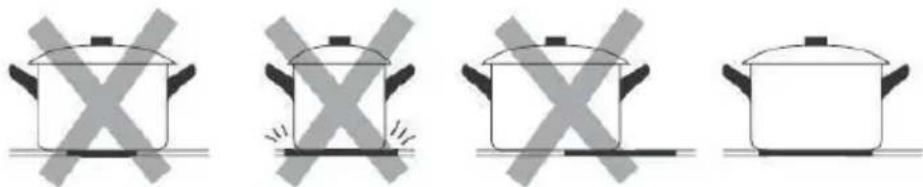

Make sure that the base of your pan is smooth, sits flat against the cooking zone, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot that is slightly wider will give maximum efficiency. If you use a smaller pot, efficiency could be less than expected. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob - do not slide, or they may scratch the surface.

Pan dimensions

The cooking zones are up to a limit, automatically adapted to the diameter of the pan. However, the bottom of this pan must have a minimum diameter corresponding to the cooking zone. To obtain the best efficiency of your hob,

please place the pan in the centre of the cooking zone.

The base diameter of induction cookware

Cooking zone	Minimum (mm)
1, 2 , 3, 4 (180mn	120

The above may vary according to the quality of the pan used.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF control.

After power on, the buzzer beeps once, all displays show " - " or " - - ", indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touching the heating zone selection control, and an indicator next to the key will flash.

1. Set a power level by touching the control. "+"

a. If you don't select a heat zone within 1 minute, the induction hob will automatically switch off. You will need to start again at step

b. You can modify the heat setting at any time during cooking.

If the display flashes alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the heating zone selection control that you wish to switch off.

1. Turn the cooking zone off by touching the “-” and scrolling down to holding the “+” and “-” button at the same time for 1 second, it will directly.

Make sure the power display shows "0", then shows "H".

1. Turn the whole cooktop off by touching the ON/OFF control.

1. Beware of hot surfaces

'H' will show which cooking zone is hot to touch. It will disappear once the surface has cooled down to a safe temperature. It can also be used as an energy saving function: if you want to heat further pans, use the hot zone that is still hot.

In case of a power interruption while "H" is on, please pay attention not to touch the cooking surface even if "H" is no longer shown when the power comes back.

Using the Power Management

Using power management you can set the total power to 2.5kW, 3.0kW, 6.5kW and 7.4kW. The default total power setting is the maximum power.

Setting the total power level to fit your requirements

1. Make sure the cooktop is turned off.

Note: you can only set power management when the cooktop is turned off.

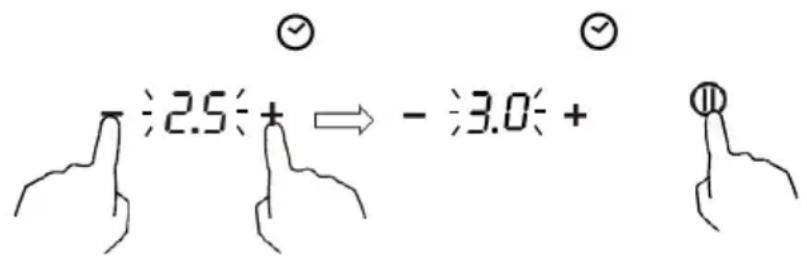

1. Touch the button "Pause function" and hold for 5 seconds. You can hear the buzzer beeps one time.
2. After you hear the beep, touch "+" and "-" button at the same time for 3 seconds. The timer indicator will show flashing previous total power level '2.5'. Touch and hold "+" and "-" for again 3 seconds to switch to other power level, for example 3.0. When the power that you want is flashing, touch the "Pause function" and hold for 5 seconds. The buzzer will beep 10 times when you have finished the setting.

Note:

1. After step 2, you must touch the "+" and "-" within 3 seconds after you hear the beep. Otherwise you will need to start again from step 2.
2. Once finish setting, wait till the end of 10 beeps. Do not touch any button during this period. Otherwise the setting will be invalid.

Power management Rules

If total power exceeds the limitation of 2.5kW, 3.0kW, 4.5kW, 5.5kW, 6.5kW, 7.4kW (depending on which level you've set), you are not able to increase the stage of any zone. If you increase it by touching '+', the cooktop will beep and the indicator will show a flashing 'Pn'. Thus you need to decrease the stage of other zones before increasing the power of the objective zone.

Using the Boost

Boost is the function that one zone rises to a larger power in one setting lasting for 5 minutes. Thus you can get a more powerful and faster cooking.

Using the Boost to get larger power

1. Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash.
2. Touch the Boost button, the heating zone will begin to work at Boost mode.

The power display will show "P" to indicate that the zone is boosting.

1. The Boost power will last for 5 minutes and then the zone will go to power stage 9.

1. If you want to cancel the Boost during this 5 minutes, touch the heating zone selection button, an indicator next to the key will flash. And then touch the Boost button, the heating zone will go back to the power stage 9.

Restrictions when using

The four zones were divided into two groups. In one group, if using both zones, first make sure that the other zone is working on/below 5 power level.

Using the Pause function

Pause function can be used at any time during cooking. It allows to stop the induction cooktop and come back to it.

1. Make sure the cook zone is working.
2. Touch the Pause function button. The cooking zone indicator will show. Then the operation of the cooktop will be activated within the scope of all cooking zones, except the Pause function, on/off, and lock keys.

1. To cancel the pause status, touch the Pause function button. Then the zone will go back to the power stage which you set before.

Locking the Controls

• You can lock the controls to prevent unintended use (for example, children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock control. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disabled except you can always turn the induction hob off with the ON/OFF control. But you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will operate automatically.

Over-spillage Protection

Over-spillage protection is a safety protection function. It switches off the appliance automatically within 10 seconds if water flows onto the control panel, while beeping for 1 second.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g., aluminium), or some small item (e.g., knife, fork, key) has been left on the hob, the hob will go on to standby in 1 minute. The fan will keep cooling down the hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shuts down automatically if you ever forget to turn off your cooking. The default times for various power levels are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9	II
Default working timer (hour)	8	8	8	4	4	4	2	2	2	2

When the pot is removed, the induction hob can stop heating immediately. The hob automatically switches off after 2 minutes.

People with a heart pacemaker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn the cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting a zone.

1. Touch timer control, The minder indicator will start flashing and "30" will show in the timer display.

30

1. Set the time by touching the "-" or "+" control

Hint: Touch the "-" or "+" control once to decrease or increase by 1. Hold the "-" or "+" control of the timer to decrease or increase minutes.

1. Cancel the time by touching the timer control and the "00" will show in the minute display.

1. When the time is set, it will begin to count down

immediately. The display will show the remaining

time and the timer indicator will flash for 5 seconds

1. Buzzer will beep for 30 seconds and the timer

indicator shows "- -" when the setting time

finished.

Setting the timer to turn one cooking zone off

Cooking zones set for this feature will:

1. Touching the heating zone selection control

that you want to set the timer for. (e.g. zone 1#)

1. Touch timer control, the minder indicator

will start flashing and "30" will show in the

timer display.

1. Set the time by touching the “-” or “+” control.

Hint: Touch the "-" or "+" control once will decrease or increase by 1 minute. Touch and hold the "-" or "+" control, the timer will decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

1. When the time is set, it will begin to count down

immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator

will illuminate indicating that zone is selected.

1. To cancel the timer, touch the heating zone selection control, and then the timer control, the timer is cancelled, and the "00" will show in display, and then "--".

1. When cooking timer expires, the corresponding

cooking zone will be automatically switch off and show "H".

Other cooking zones will keep operating if they are turned on previously.

Setting the timer to turn off more than one cooking zone.

1. If this function is used for more than one heating zone, the timer indicates the shortest time.

(e.g., zone 1# setting time of 3 minutes, zone 2# setting time of 6 minutes) the timer indicator shows "3".)

NOTE: The flashing red dot next to the power level indicator means the indicator is showing the time of the heating zone.

If you want to check the set time of another heating zone, touch the zone selection control. The timer will indicate its set time.

(set to 6 minutes)

(set to 3 minutes)

1. When the cooking timer expires, the corresponding heating zone will automatically switch off and show "H".

NOTE: If you want to change the time after the timer is set, you have to start from step 1.

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still w (but not hot!)3. Rinse and wipe dry with clean cloth or paper towel4. Switch the power to the cooktop back on.	·When the power to the cooktop switched off, there will be no surface' indication but the cooki zone may still be hot! Take e care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scoure suitable.·Never leave cleaning residue the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills o the glass	Remove these immediately with a fish slice, palette kr razor blade scrap suitable for Induction glass cooktops, bu beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utens 30° angle and scrape the soiling or spill to a cool of the cooktop.3. Clean the soiling or spill with a dish cloth or pap towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts a sugary food or spillovers as so as possible. If left to cool on glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety is retracted, the blade in a sc is razor-sharp. Use with extrem care and always store safely a out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control with a clean damp spong cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and tu itself off, and the touch contro may not function while there is liquid on them. Make sure you the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The induction hob cannot be turned or	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. I you've checked everything and the problem persists, call a qualified technician.
The touch controls a unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your induction cooktop' for instructions.
The touch controls a difficult to operate.	There may be a slight film water over the controls or may be using the tip of yo finger when touching the controls.	Make sure the touch control area dry and use the ball of your fi when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer c cleaning products being used.	Use cookware with flat and smo bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes how humming noise when used on a high heat setting.	This is caused by the techn of induction cooking.	This is normal, but the noise sh quieten down or disappear completely when you decrease th heat setting.
Fan noise coming fr the induction hob.	A cooling fan built into you induction hob has come on prevent the electronics from overheating. It may continue run even after you've turned induction hob off.	This is normal and needs no ad Do not switch the power to the induction hob off at the wall wh fan is running.
Pans do not become hot and appears in display.	The induction hob cannot detect the pan because it is suitable for induction cooking.The induction hob cannot de the pan because it is too s for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure base matches the size of the co zone.

The induction hob of cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two dig in the cooking timer display).

Technical fault. Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality occurs, the induction hob will enter protective mode automatically and display corresponding protective codes:

Problem	Possible causes	What to do
F3/F4	Temperature sensor of the induction coil failure	Please contact the supplier
F9/FA	Temperature sensor of the IG failure.	Please contact the supplier
E1/E2	Abnormal supply voltage	Please inspect whether power supply is normal.Power on after the power supply is normal.
E3	High temperature of the induced coil temperature sensor	Please contact the supplier
E5	High temperature of the IGBT temperature sensor	Please restart after the heating cools down.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers to the induction hob.

Technical Specification

Cooking Hob	HI624TCT
Cooking Zones	4 Zones
Supply Voltage	220-240V~, 50-60Hz
Installed Electric Power	2.5kw:2250-2750W or3.0 kw:2700-3300W or4.5kw:4050-4950W or6.5kw:5850-7150W or7.4kw:6600-7400W
Product SizeL×W×H(mm)	590X520X55
Building-in Dimensions A×B(mm)	560X490

Weight and Dimensions are approximate. Because we continually strive to improve our products, we may change specifications and designs without notice.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space should be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please use heat-resistant work surface material to avoid larger deformation caused by heat radiation from the hotplate. As shown below:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	55	51	560	490	50 mini

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker is in good working state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with the space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations

- a suitable isolating switch providing full disconnection from the mains supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm contact separation in all poles (or in all active [phase] conductors if the wiring rules allow for this variation of the requirements).

- the isolating switch will be easily accessible to the customer with the installed

- you consult local building authorities and by-laws if in doubt regarding installation

- you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) on wall surfaces surrounding the hob.

When you have installed the hob, make sure that

- the power supply cable is not accessible through cupboard doors or drawers

- there is adequate flow of fresh air from outside the cabinetry to the hob

- if the hob is installed above a drawer or cupboard space, a thermal barrier is installed below the base of the hob

- the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a smooth surface (use packaging). Do not apply force onto the controls protruding from the hob.

Adjusting the bracket position

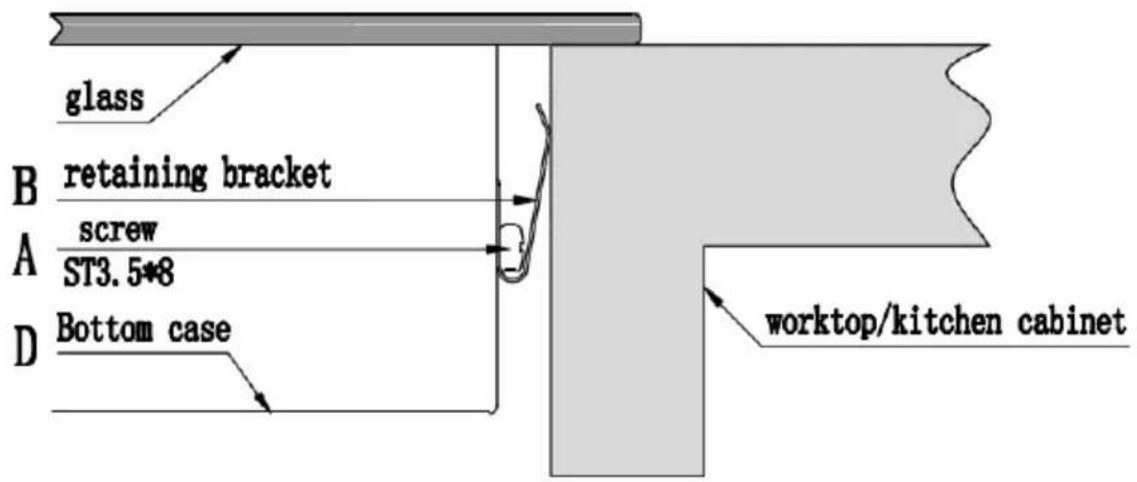

Fix the hob on the work surface by screwing 4 brackets on the bottom (see picture) after installation.

A	B	C	D
Screw	Bracket	Screw hole	Bottom case

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation yourself.
2. The hob will not be installed directly above a dishwasher, fridge, washing machine, or clothes dryer, as the humidity may damage the electronics.
3. The induction hotplate shall be installed such that better heat radiation is ensured to enhance its reliability.
4. The wall and indicating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistive to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate. To connect the hob to the mains supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that the temperature will not exceed 75°C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations.

Any alterations must only be made by a qualified electrician.

The power supply should be connected in compliance with the relevant standards or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or to be replaced, the operation must be carried out by an after-sales agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.

This appliance is labelled in accordance with European Directive 2012/19/E regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- The WEEE should not be treated as domestic waste;

- The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge on a one-for-one basis, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Product Information for Domestic Electric Hobs Compliant to Commission Regulation 66/2014
		Position	Symbol	Value	Unit
Model identification				HI624TCT
Type of hob:				Electric Hot
Number of cooking zones and/or areas	zones			4
	areas
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	Induction cooking zones			X
	Induction cooking cooking areas
	radiant cooking zones
	solid plates
For circular cooking zones: diameter of useful surface p electric heated cooking zone, rounded to the near 5mm		Rear left	∅	18,0	cm
		Rear central	∅	-	cm
		Rear right	∅	18,0	cm
		Central le	∅	-	cm
		Central central	∅	-	cm
		Central right	∅	-	cm
		Front left	∅	18,0	cm
		Front central	∅	-	cm
		Front right	∅	18,0	cm
For non-circular cooking zones areas: length and widthuseful surface area per electricated cooking zone or area, round the nearest mm		Rear left	LW	-	cm
		Rear central	LW	-	cm
		Rear right	LW	-	cm
		Central le	LW	-	cm
	Central central	LW	-	cm
	Central right	LW	-	cm
	Front left	LW	-	cm
	Front central	LW	-	cm
	Front right	LW	-	cm
Energy consumption for cooki zone or area calculated per	Rear left	ECElectric cooking	193,5	Wh/kg
	Rear central	ECElectric cooking	-	Wh/kg
	Rear right	ECElectric cooking	197,2	Wh/kg
	Central le	ECElectric cooking	-	Wh/kg
	Central central	ECElectric cooking	-	Wh/kg
	Central right	ECElectric cooking	-	Wh/kg
	Front left	ECElectric cooking	192,3	Wh/kg
	Front central	ECElectric cooking	-	Wh/kg
	Front right	ECElectric cooking	195,6	Wh/kg
Energy consumption for the calculated per kg		ECElectric hob	194,7	Wh/kg
Standard applied EN 60350Household electric cooking appliances - Part 2: Hobs - Me measuring performance
Suggestions for Energy Saving:To obtain the best efficiency of your hob, please place the pan in the centreUsing a lid will reduce cooking times and save energy by retaining the heat.Minimise the amount of liquid or fat to reduce cooking times.Start cooking on a high setting and reduce the setting when heated for doughasUse pans whose diameter is as large as the graphic of the zone selected.

Safety warnings

Cast iron pot

If the display blinks alternately with the heat setting

This means that:

L (mm)	B (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560	490	50 mini

A	B	C	D
Skrue	Beslag	Skruehul	Bundkasse

Cast iron pot

Choosing the right cookware

Cookware dimensions

The cooking zones automatically adapt to the diameter of the cookware, up to a certain limit. However, the cookware must have a minimum diameter according to the corresponding cooking zone. For the best efficiency of your hob, place the cookware in the center of the cooking zone.

1. Beware of hot surfaces

L (mm)	B (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560	490	50 mini

A	B	C	D
Skru fast	Brakett	Skruehull	Bunndeksel

Caution

iron pan

magnetic circuit

ceramic glass plate

induction coil

induced currents

Choosing the right cookware

Pan dimensions

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560	490	min 50

iron pan

magnetic circuit

ceramic glass plate

induction coil

induced currents

Pan dimensions

1. Beware of hot surfaces

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	55	51	560	490	50 mini
