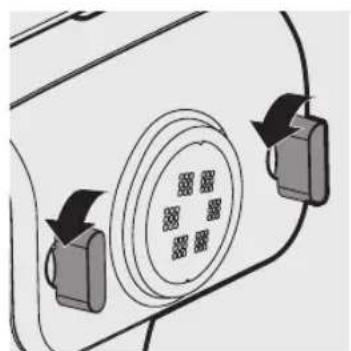

3 前面パネルのつまみを緩めます。

Diagram of a vehicle front view showing circular component with four patterned elements and directional arrows (no text or symbols)

Hand cleaning a device with a cloth, showing the clean interior and button (no text or symbols)

Illustration of hands pouring liquid into a circular container (no text or symbols)

Illustration of a mechanical device with a pipe and explosion effect (no text or symbols)

Line drawing of a kitchen machine with a cloth cover and handle (no text or symbols)

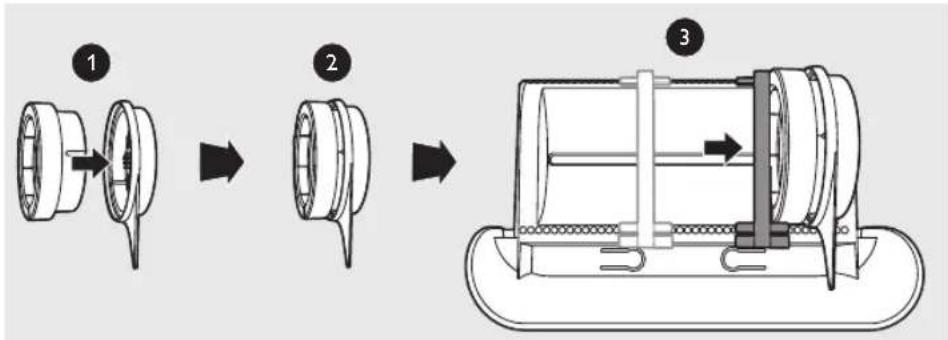

製麺用キャップ収納トレイ

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.Philips.com/welcome.

Read this user manual carefully before you install and use the unit. Save it for future reference.

What's in the box

Main unit

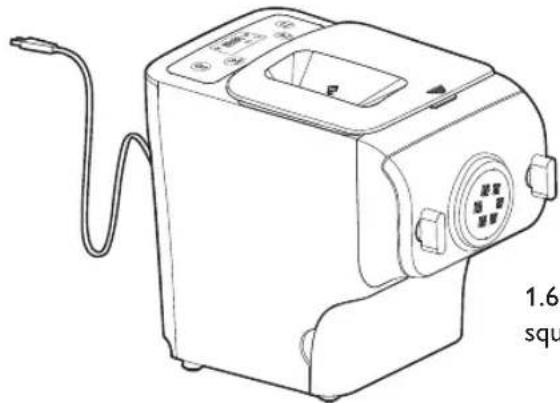

Line drawing of a small kitchen appliance with control panel and attached cable (no text or symbols)

Shaping discs

1.6mm square

Cleaning tool

User manual

Recipe book

2.5mm square

2mm round

Flour cup

Water cup

0.8mm flat sheet

None

Specifications are subject to change without notice.

The 1.6mm shaping disc is assembled on the appliance upon purchase.

Contents

What's in the box 22

Contents 23

Important 24

Overview 26

Disassembling and cleaning before first use 28

Assembling 30

Using the noodle maker 32

Cleaning 36

Recipes 39

Troubleshooting 40

Product information 42

Recycling 42

Guarantee and service 42

Important

Safety

- Read this user manual carefully before you use the appliance, and save it for future reference.

Warnings

● Before you connect the appliance to the power, make sure that the voltage indicated on the bottom of the appliance corresponds to the local power voltage.

● Make sure that the plug is firmly inserted into the power outlet.

● Make sure that your hands are dry before you insert the plug into the power outlet.

● Never connect this appliance to a timer switch, to avoid a hazardous situation.

● Before you insert the plug into the power outlet, make sure that the appliance is assembled correctly.

● If the power cord, the plug, or other parts are damaged, do not use the appliance.

- If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips or similarly qualified persons to avoid a hazard.

- Do not replace parts of the appliance yourself.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- For their safety not allow children to play with the appliance. Keep the appliance and its power cord out of the reach of children.

● To prevent any accidents, do not use the appliance if it is damaged for any reasons.

EMF

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Safety

● Before using the appliance for the first time, disassemble and wash the accessories thoroughly (see "Disassemble and cleaning before first use" section.)

● The appliance is intended for household use only.
- Do not use this appliance on an unstable or uneven surface.
- Keep the appliance and its power cord out of the reach of children.
- Do not disconnect the power cord before processing is complete, you have to stop processing, disconnect the power cord before you perform other operations.

● To better protect the lifetime of the appliance, we recommend the continuous working time to be less than 45 minutes. You can restart using the appliance after 15 minutes.
- If you intend to use the appliance continuously, clean the shaping disc with the supplied cleaning tool each time after use. For cleaning ease, do not soak the shaping disc into the water directly.
- Do not bent the power code forcibly, jerk, twist, bundle nor put a heavy goods.

• When hearing thunder, do not touch the appliance or power plug.
• Do not put metal or flammable objects in the mixing chamber.
  ● Plug off the power cord when you are not using the appliance.
• Do not use the appliance near flammable objects suitable cloth or draper.
  ● Pull out the power plug immediately when you detect smoke.

- When taking off the power cord, do not pull the cable but grab the plug part.

• Keep the power plug clean.
  ● Do not put heavy objects on the appliance.

● This appliance is designed as consumer kitchen appliance. Do not use for the purpose.

• Do not move the appliance while it is operating.
• Disconnect the power and above the power cord before cleaning or disassembling this appliance.
• Do not immerse the main unit in water.
  ● Place the appliance to a dry and well ventilated place after use.

● To prevent a short circuit or an electric shock, do not pour water or any liquid into the safety switch.

- Do not use dish washer to clean the machine and the accessories.

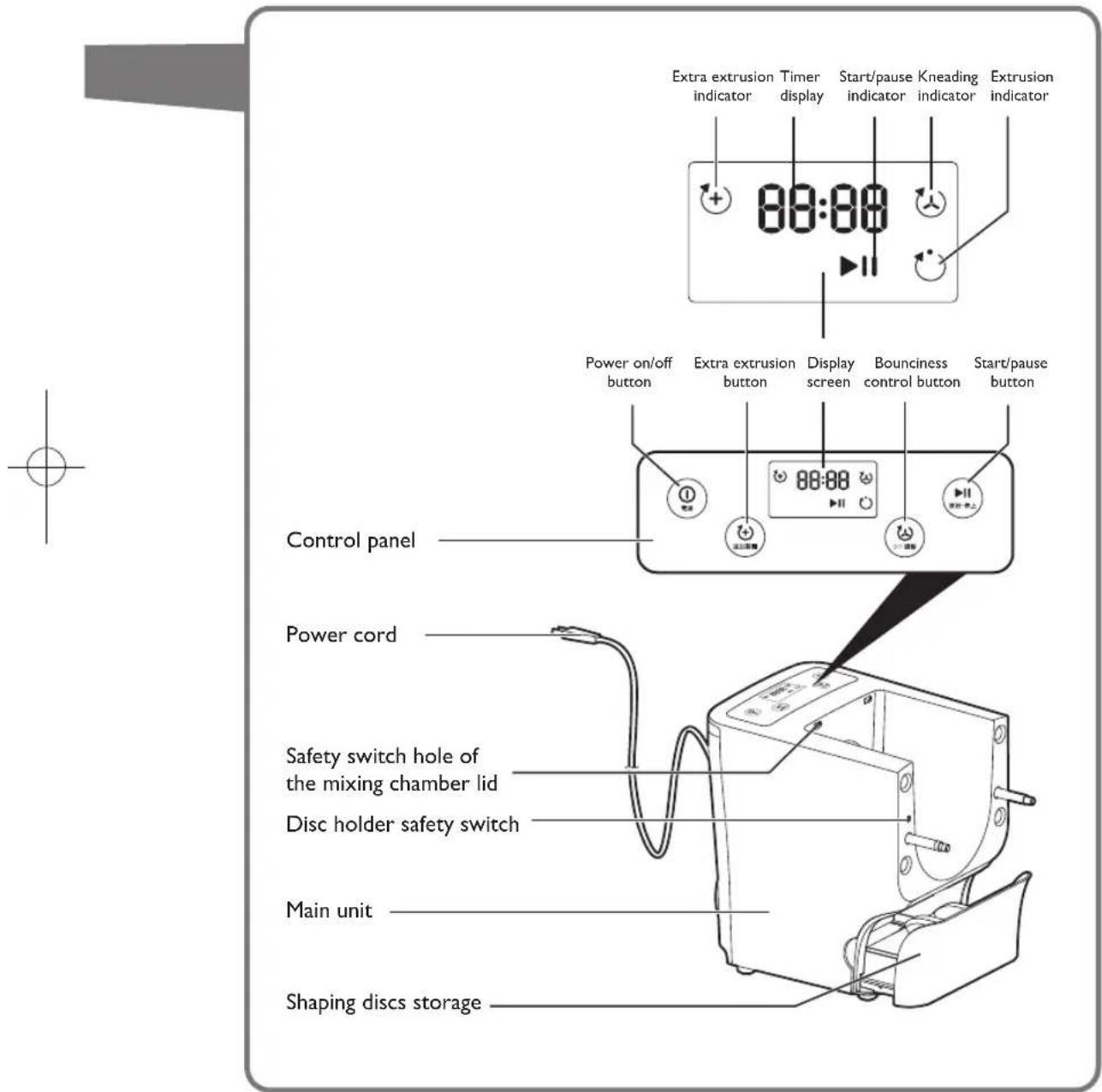

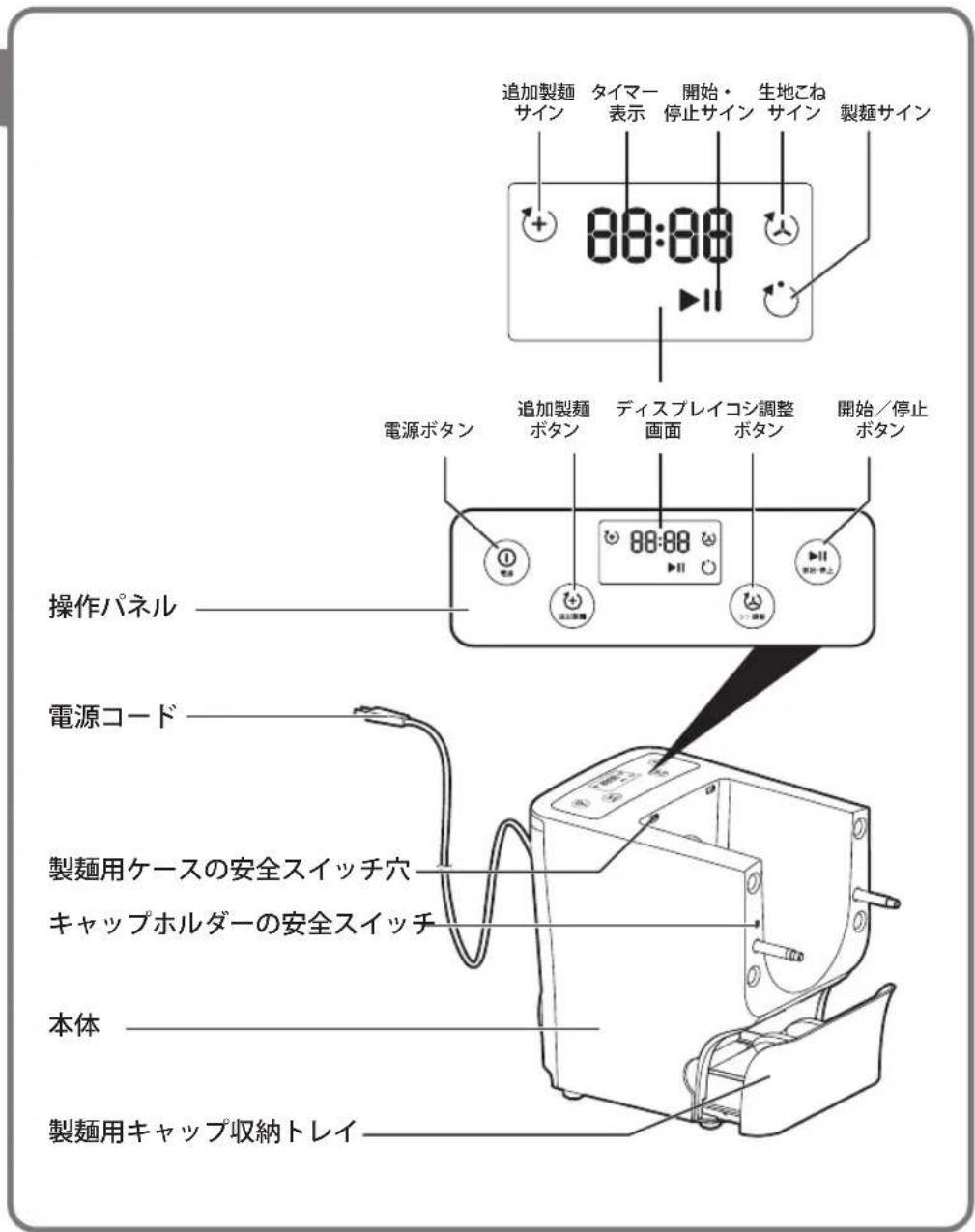

Overview

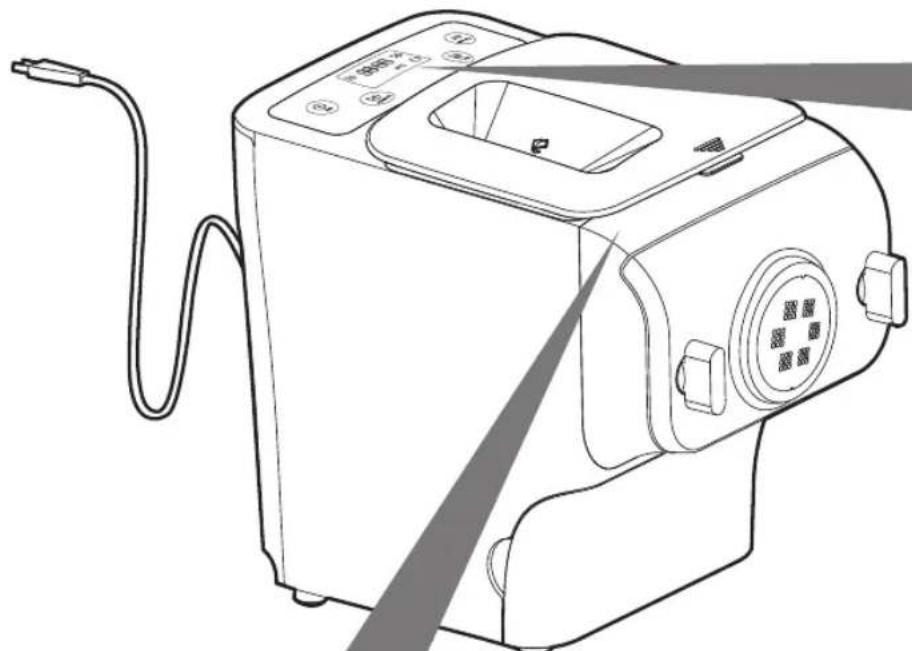

Line drawing of a kitchen washing machine with attached cable and control panel (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

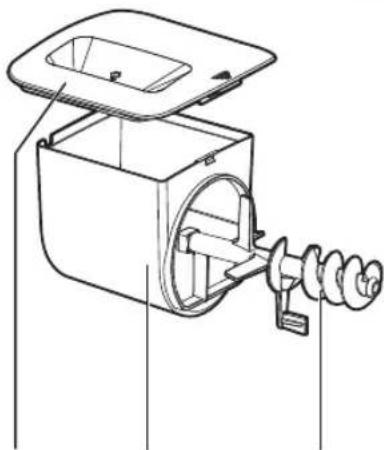

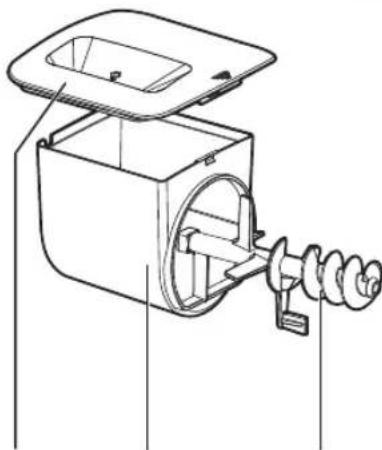

Mixing chamber lid
Mixing chamber
Mixing paddle

Disc holder Front panel

Technical line drawing of a fan or impeller assembly (no text or symbols)

switch lever

Technical line drawing of a mechanical component with mounting holes and a central cylindrical feature (no text or symbols)

Shaping discsDisc holofr safety panel knob

Disassembling and cleaning before first use

Caution

- Do not use water to rinse nor soak the main unit.

- Do not use a scourer or similar cleaners as these will scratch the plastic surface and affect the lifetime of the noodle maker.

● Take extra caution when cleaning the parts to avoid getting cut by the edges.

Take out all the parts and accessories.
- Clean the parts and accessories before first use (cleaning" section).
- Do not use dish washer to clean the machine and the accessories.

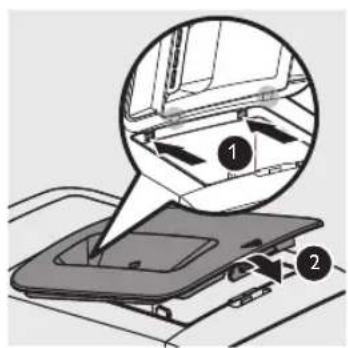

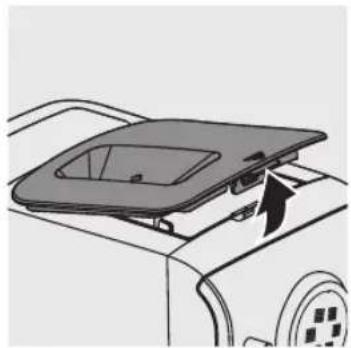

1 Remove the chamber lid from the appliance.

Diagram of a car interior showing a lid and vent, with an arrow indicating direction (no text or symbols)

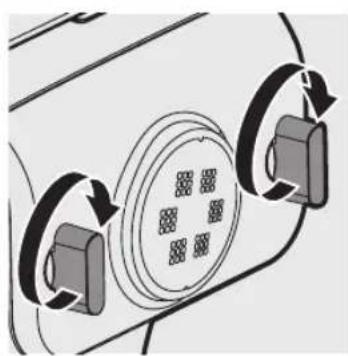

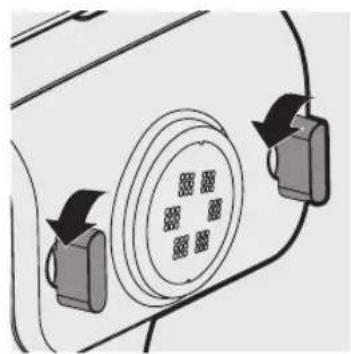

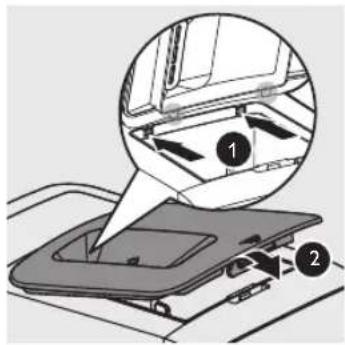

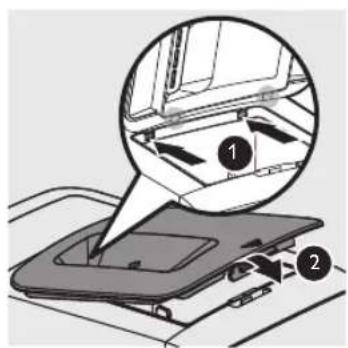

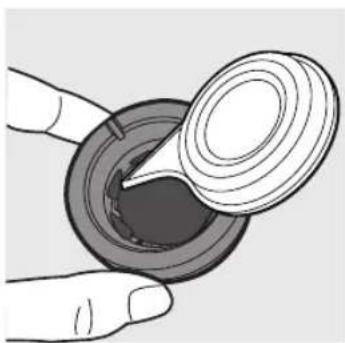

2 Loosen the front panel control knob.

※ The front panel is heavy. Take extra caution when removing it.

Diagram of a device component with circular vent and directional arrows indicating motion (no text or symbols)

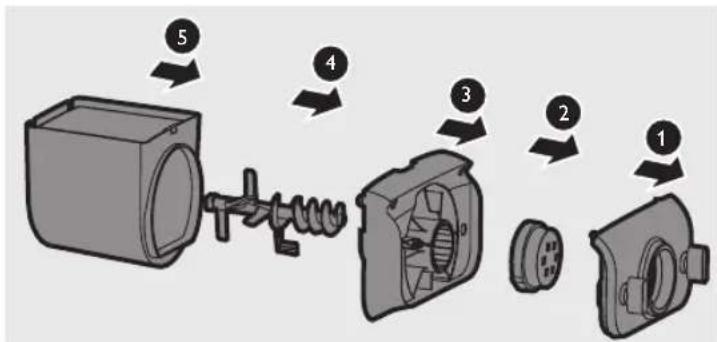

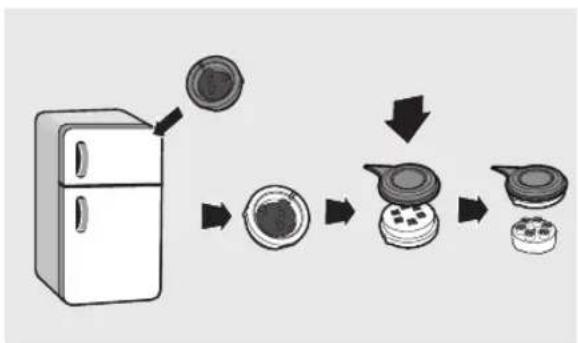

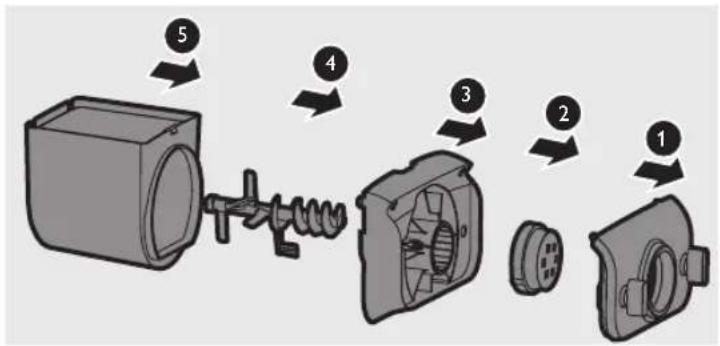

3 Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order.

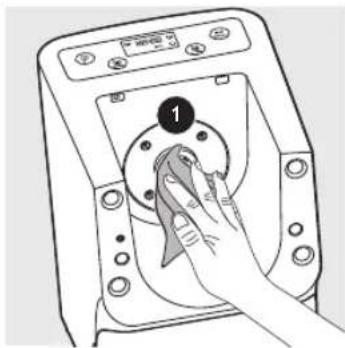

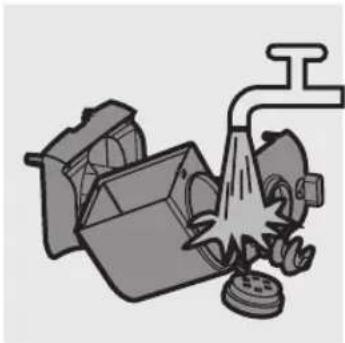

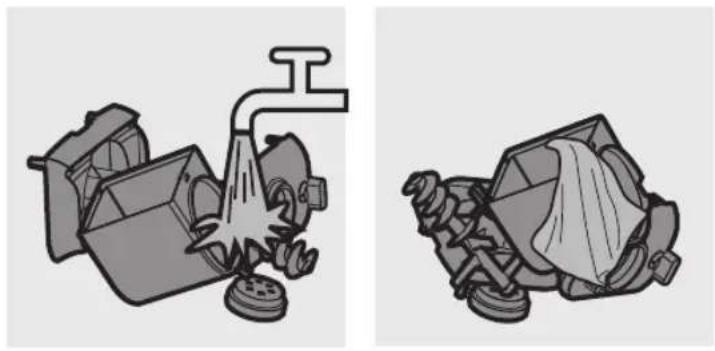

4 Clean all detachable parts, and wipe them dry.

Two grayscale illustrations of industrial waste sorting machines, one with a funnel and dust drop, the other with a meshed pile (no text or symbols)

Assembling

Follow below assembling steps to install the noodle maker.

Caution

● Make sure to tighten the front panel knob during assembling.
● Make sure the appliance is not plugged in when assembling the appliance.
● Before using the noodle maker, make sure all parts and accessories are completely dry.

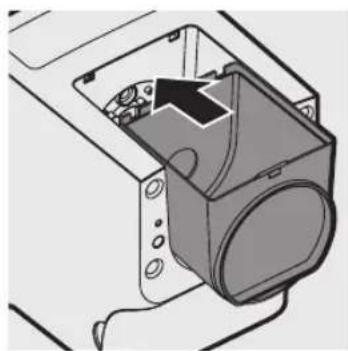

1 Push the mixing chamber into the appliance.

Diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

2 Point the mixing paddle to the hole in the main unit. Insert the mixing paddle all the way into the main unit.

Mechanical assembly diagram showing a bracket with gears and a highlighted circular component (no text or symbols)

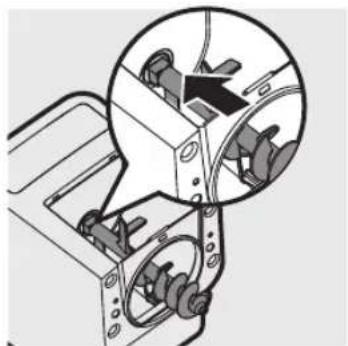

3 Attach the disc holder onto the appliance.

※① Disc holder safety switch
※② Disc holder safety switch lever

※ Check that the safety switch ① and safety switch lever ② are set as shown in the right image.

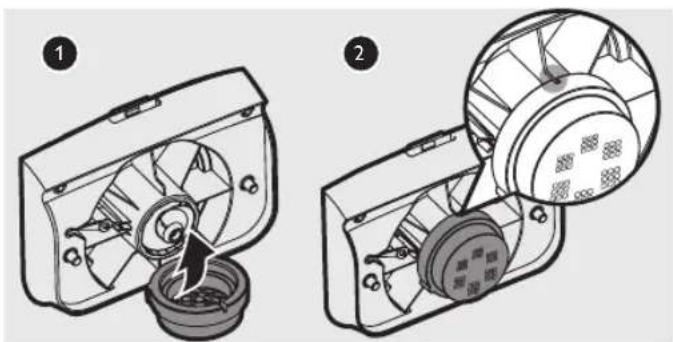

4 Put the shaping disc onto the disc holder ①, and make sure it is firmly fixed on the disc holder ②.

※ Make sure the abyss of the shaping disc and the disc holders is properly fitted.

Two technical diagrams showing a fan assembly process: one with internal components and the other with a fan blade (no text or symbols present)

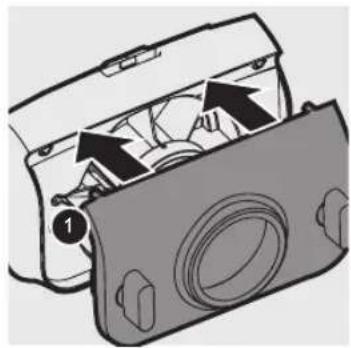

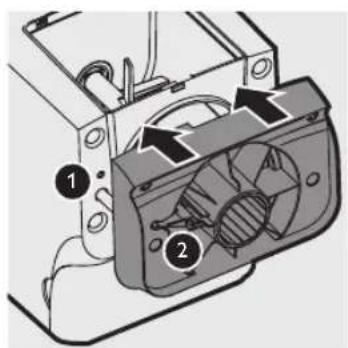

5 Attach the front panel to the main unit.

※① Disc holder safety switch lever

※ Make sure the front panel is completely fastened before using the appliance.
※ The front panel is heavy. Take extra caution when assembling it.

Diagram of a camera case with internal components and directional arrows indicating movement (no text or symbols)

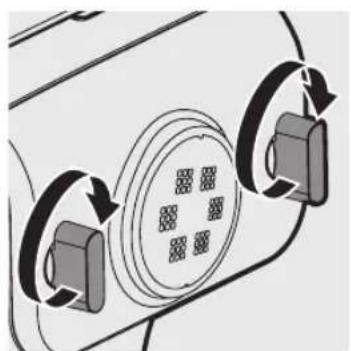

6 Fasten the front panel control knob.

※ If the front panel or the shaping disc is not properly assembled, the safety switch will prevent the appliance from working.

Diagram of a vehicle's rearview mirror with circular components and directional arrows indicating rotation (no text or symbols)

7 Close the chamber lid properly.

※ If the chamber lid is not properly installed, the safety switch will prevent the appliance from working.

Using the noodle maker

● Make sure to follow the right order to add flour and water into the chamber. Put in the flour into the chamber first, then place the chamber lid onto the chamber. Start the noodle maker, and then slowly pour water along the entire length of the opening in the lid.
- Do not pour water into the mixing chamber before turning on the noodle maker. Follow the instruction carefully to enjoy home madenoodles.

Cautions

● Never put in excessive ingredients in the noodle maker. Otherwise, it will damage the appliance. The maximum amount of flour used for each batch is 500g.
- Do not put in any ingredients that are 60^ C or above to the noodle maker, nor place the noodle maker in surroundings with high temperature ( 60^ C), for instance in a high temperature sterilization. This will deform the appliance.
● Never powder before you place the chamber lid onto the chamber. Do not pour in any liquids into the safety switch hole.

※ After processing, it is normal to find some leftover dough inside the mixing chamber.

Preparing the ingredients

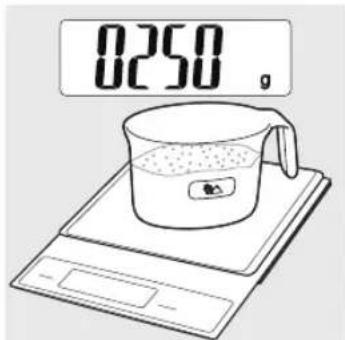

1 Use a kitchen scale to measure the flour. For instance, 250g flour is for 1-2 servings; 500g flour is for 3-4 servings.

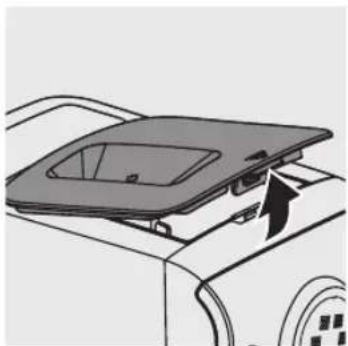

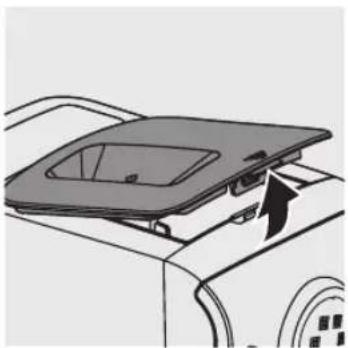

2 Remove the chamber lid.

Diagram of a car interior showing a lid and air vent with an arrow indicating direction (no text or symbols)

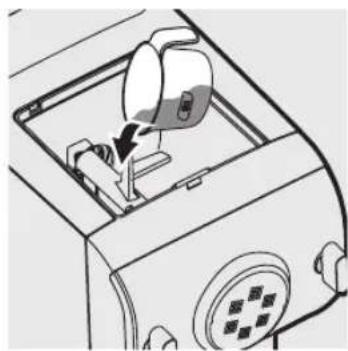

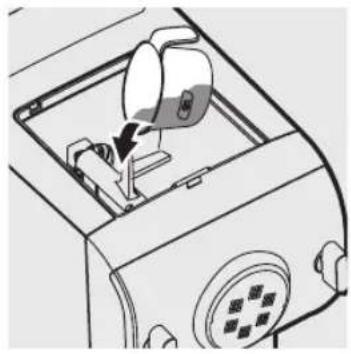

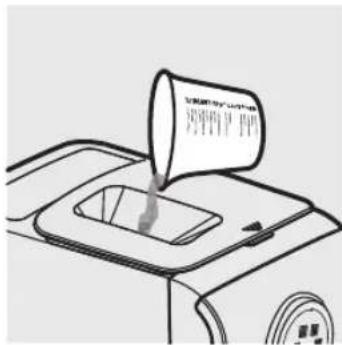

3 Pour the flour into the chamber.

Line drawing of a device interior showing a fan or button with a magnified view (no text or symbols)

4 Close the chamber lid properly.

※ If the chamber lid is not closed properly, the appliance will not start processing. If the chamber lid is open or loose during processing, the appliance will automatically pause the processing.
※ The appliance will not work if the chamber lid is not properly closed. During the noodle making process, if the chamber lid becomes loose, the appliance will automatically stop working.

5 Refer to the "Noodle-making recipe table" on page 39 and measure the required amount of water by using the provided water cup. For instance, measure 90cc water to make Undo noodles with 250g flour.

※ Do not pour water into the mixing chamber before turning on the noodle maker.
※ To measure the water volume accurately, please use a kitchen scale.
※ Do not put flour or liquid into the noodle maker as this may damage the appliance.

Selecting the noodle making program

1 Connect to the power. The noodle maker will sound once, and all indicators will flash once. Press the power on/off button ( )to switch on the noodle maker. The display light up.

2 The default kneading time is 5 minutes. Press the bounciness control button (④) to set the kneading time from 5 to 8 minutes. You can adjust the kneading time for different types of noodles and your own preference.

3 Press the start/pause button ( ) to start processing.

※ The appliance beeps once, and the kneading indicator (💡) starts flashing. ※ The selected kneading time starts to count down.

4 After the kneading starts, slowly pour in the liquid along the entire length of the slot in the lid.

※ Do not add in other ingredients after you have poured in the water during kneading. Otherwise, it will affect the result of the noodle texture.

※ When the kneading process is finished, the appliance beeps and pauses for 10 seconds to prepare for extruding. The extruding indicator (○) starts flashing. After 10 seconds, the appliance will automatically start extruding noodles. Put the dish or tray under the shaping disc to collect the extruded noodles.

※ Noodles cannot be extruded when the dough is stiff and sticks to the mixing paddle. Adjust The flour/liquid ratio based on the flour you are using, or the seasonality which affects the dough quality.

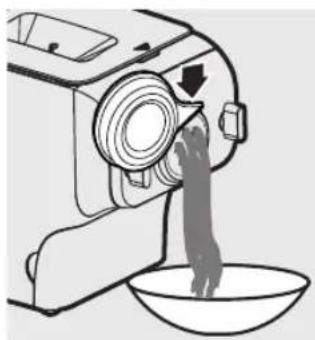

5 After the program is finished, cut the noodles into the desired length with the supplied cleaning tool.

※ Move the cleaning tool downwards to cut the noodles.
※ The extruding time depends on the amount of ingredients in the mixing chamber.
※ Due to the auto-sensing technology during extrusion, the total extrusion time varies from 6 mins to 14 mins, and the mixing paddle will be moving backward one to three times to pick up dough for further extrusion. This is not a machine error.
※ You may find some the noodle threads on the noodle surface. This is normal.
※ If the ratio of water and flour is not correct, the extrusion will not succeed. In this case please prepare the ingredients from scratch.

Illustration of a sewing machine pouring liquid into a bowl (no text or symbols)

6 After the noodle making is complete, if you notice there are some leftover doughs inside the chamber, you can press the extra-extruding button ( ) and press start/pause ( ) for extra extrusion. The countdown timer of the extra-extruding program is 3 minutes.

Using 0.8mm sheet (for dumpling skin)

1 After the dumpling skin is extruded from the noodle maker, put it on a flour dusted surface, and then cut circles with the disc cleaning tool.

Diagram showing a droplet falling into a circular pattern with concentric rings, accompanied by a magnified inset (no text or symbols)

Cleaning

Cautions

• Disconnect the power and remove the power cord before cleaning or disassembling this appliance.
• Do not immerse the main unit in water.
• Do not use a scourer, caustic cleaners, or abrasive cleaners (for examples, gasoline, alcohol, and propanol) to clean the appliance.
  ● Clean the appliance each time after use, or the appliance might have malfunctions.
  Take extra caution when cleaning appliance to avoid getting cut the edges.
• Do not use dish washer to clean the machine and the accessories.

1 Press the power on/off button (☐to turn off the noodle maker, and then disconnect it from the power outlet.

Do not unplug the appliance while it is operating, as it may cause damage to the appliance.

2 Remove the chamber lid from the appliance.

Diagram of a car interior showing a lid and vent, with an arrow indicating direction (no text or symbols)

3 Loosen the front panel control knob.

※ The front panel is heavy. Take extra caution when removing it.

Diagram of a vehicle front panel with circular vent and directional arrows indicating movement (no text or symbols)

4 Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order.

5 Use a dry cloth to clean flour residue in the hole (1) where the mixing paddle is placed.

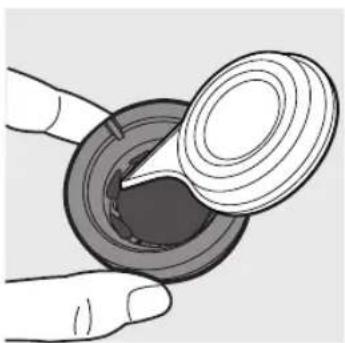

6 Clean the shaping disc with the supplied cleaning tool to remove the dough residues. After that, you can clean it with water.

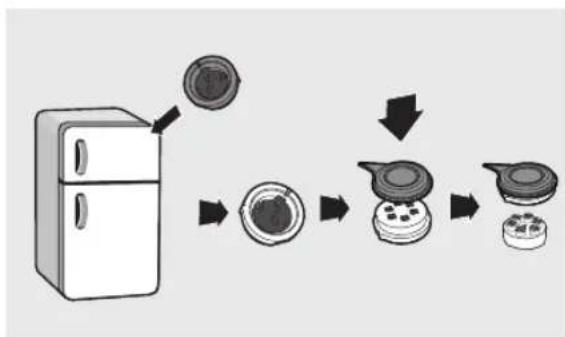

※ For better cleaning result, put the shaping disc into the freezer for 2 hours. Then use the cleaning tool to poke the dough in the holes out.

Illustration of a hand cleaning a device with a cloth (no text or symbols visible)

Illustration of a hand pouring liquid into a circular container (no text or symbols)

7 Clean all detachable parts.

Illustration of a mechanical device with a pipe and explosion effect (no text or symbols)

8 Use a dry cloth to clean the main unit, control panel, and the exterior of the noodle maker.

※ After cleaning, make sure all parts and the shaping disc storage are dry. Assemble the noodle maker back for next use.

Line drawing of a manual kitchen machine with handle and control knob (no text or symbols)

Storing the shaping discs and cleaning tools

1 Insert the shaping disc ① and cleaning tool ② together. Put ① and ② into the storage drawer. Move the sliding bar ③ to fasten the shaping discs and cleaning tools.

※ Make sure the cleaning tools and shaping discs are dry before putting them into the storage drawer.

Refer to the recipe booklet for detailed recipes.

Recipes

※ To guarantee the quality of the noodle, use gluten flour to make noodle. Follow the recommended proportion to add the ingredients.
※ Seasonal changes and using ingredients from different regions may affect the flour/water ratio. You may adjust based on the recommended proportion.
※ When making the egg noodle or vegetable noodle, make sure you whisk the egg mixture or vegetable juice evenly before pouring into the chamber.
※ When making Ramen, mix hot water with the baking powder first, and then pour the hot water into the suggested amount of cold water. Do not pour the hot water directly into the mixing chamber.
※ To add salt, you can either mix it with the flour or liquid.
※ The 1.6mm flat shaping disc is sold separately (HR2445/01).

Flour/water ratio table
Noodle type Shaping disc* Flour	Liquid		Other ingredients	noodle/pasta quantity
Udon	2.5mm square	250g Udon flour 90cc cold water 2g salt		300g(For 1-2 servings)
		500g Udon flour 180cc cold water 4g salt		600g(For 3-4 servings)
Ramen	2mm round	250g Hard/bread flour	Cold water 70ccHot water 20cc with the baking powder	2g salt2g baking powder	300g(For 1-2 servings)
		500g Hard/bread flour	Cold water 140ccHot water 40cc with the baking powder	4g salt4g baking powder	600g(For 3-4 servings)
Pasta	1.6mm flat	75g Soft/weak flour175g Hard/ bread flour	Mix 1 medium size egg into cold water 40cc. the total amount to be 90cc.	1g salt	300g(For 1-2 servings)
		150g Soft/weak flour350g Hard/ bread flour	Mix 2 medium size eggs into cold water 80cc. the total amount to be 180cc.	2g salt	600g(For 3-4 servings)
Soba	1.6mm square	175g Hard/break flourSoba flour 75g	Cold water 90cc 3g salt		300g(For 1-2 servings)
		350g Hard/ bread flourSoba flour 150g	Cold water 180cc 6g salt		600g(For 3-4 servings)
Dumpling skin	0.8mm flat sheet	250g Hard/bread flour Cold water 95cc 3g salt

※ The recipes can be shared among different shaping discs except the one for the dumpling skin.
※ For recipes other than the above, please refer to the recipe booklet or adjust the flour and water ratio based on the above recipe.

Troubleshooting

Check this chapter if you encounter problems when using the appliance.

The indicators do not light up.

The power plug is connected incorrectly.
Check whether the power plug is plugged correctly.
The power button is not pressed.
Press the power on/off button ( Ⓞ ).

After pressing the start/pause button ( )the appliance sounds but it does not work.

The chamber is assembled incorrectly.
The shaping disc, or the front panel is assembled incorrectly.
Make sure you follow the user manual to assemble all parts correctly.

The safety switch is triggered and the appliance suddenly stops or suddenly restarts during the processing.

The front panel knob is loosen.
Make sure the front panel is securely assembled.

▶ Excessive ingredients in the noodle maker.

The maximum amount of flour used for each batch is 500g. If more than 500g is added, please reduce the amount of flour before next batch.

During processing, the appliance stops. There is no alarm sound or flashes.

The noodle maker is overheat due to long continuous working time.
Disconnect from the power, and allow the noodle maker to cool down. To better protect the lifetime of the appliance, the continuous working time should be less than 45 minutes. You can restart using the appliance after 15 minutes.

The appliance stops during processing, then EEEE is displayed on the screen, the indicators are flashing quickly, and the alarm sounds.

The mixing paddle can be blocked by some foreign objects.

The dough can be too dry.

The wrong program is selected.

Disconnect from the power, clean the noodle maker, and follow the user manual again to restart the noodle making.

Too much leftover dough inside the chamber.

The flour is either exposed to moisture before use, or the dough is too wet.

Keep your flour dry during storage. Follow the user manual to restart the noodle making.

The chamber, the mixing paddle, the shaping disc are not cleaned properly before use.

Make sure all parts are clean before use.

The mixing paddle or the chamber is still wet.

Make sure all parts are dry before use.

▶ Water is poured in the right order.

The flour type is not suitable.

Follow the user manual to make noodle.

Small amount of water is leaking out from the appliance.

▶ Water is added before the program starts.

Follow the user manual to add water right after the program starts.

The mixing paddle is running idle, and there is no noddle coming out.

The ratio of the flour and water is incorrect.

Disconnect from the power, clean the noodle maker, and follow the user manual again to restart the noodle making.

Product information

Model HR2369/01
Motor power 200W
Rated voltage AC100V (50/60Hz)
Dimensions (L x W x H) 215mm x 343mm x 300mm
Weight 7.8kg

※ For rated voltage and frequency information, refer to the typeplate on the product. Product information is subjected to change without prior notice.

Recycling

Do not throw away the appliance with normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee and service

If you have a problem, need service or need information, see www.philips.com/support or contact the Philips Consumer Care Center in your country.
