ECO pro-line 2300W - Heating Heat1 - Free user manual and instructions

Product Type	Electric Fan Heater
Model	ECO pro-line 2300W
Brand	Heat1
Power Rating	2300 W
Voltage	220-240 V
Frequency	50/60 Hz
Heating Element	Ceramic
Coverage Area	Up to 25 m²
Adjustable Thermostat	Yes, with ECO mode
Eco Mode	Yes, energy-saving automatic mode
Oscillation	Yes, 70° wide
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Dimensions (W x H x D)	250 x 150 x 200 mm
Weight	2.5 kg
Material	ABS plastic
Color	White
Cord Length	1.8 m
Noise Level	< 45 dB
Maintenance	Wipe with a dry cloth; clean air inlet filter monthly
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - ECO pro-line 2300W Heat1

How do I use the ECO pro-line 2300W heater?

Plug into a suitable power outlet, press the power button, and use the thermostat dial to set the desired temperature. The ECO mode automatically adjusts power to save energy.

What does ECO mode do?

ECO mode optimizes heating cycles to maintain a comfortable temperature while reducing energy consumption. The heater will cycle on and off as needed.

How do I clean the heater?

Unplug the heater and allow it to cool. Wipe the exterior with a dry cloth. For the air inlet, carefully vacuum or use a soft brush to remove dust. Do not use water or chemicals.

Is it safe to leave the heater unattended?

The heater has overheat protection and a tip-over switch that automatically shuts it off if knocked over. However, it is always safer to turn it off when leaving the room.

Can I use this heater in a bathroom?

No, this heater is not rated for damp environments. It should only be used in dry indoor areas away from water sources.

How do I store the heater when not in use?

Allow it to cool completely, clean it, then store in a dry, dust-free place. Keep the cord loosely coiled and avoid crushing the unit.

What is the maximum room size for this heater?

The recommended coverage area is up to 25 m² for effective heating. Larger rooms may require additional heating.

Does the heater come with a remote control?

No, the ECO pro-line 2300W does not include a remote control. All controls are on the unit itself.

Why does the heater turn off suddenly?

This may be due to the thermostat reaching the set temperature, or the overheat protection activating if airflow is blocked. Ensure the heater has space around it and is not covered.

How do I reset the heater after a safety shutdown?

Unplug the heater and wait 10-15 minutes for it to cool. Remove any blockages, then plug back in and turn on. It should resume normal operation.

USER MANUAL ECO pro-line 2300W Heat1

Exterior view of a modern heat exchanger with visible heat pipes and a digital display (no text or symbols on main body)

Instructions

Brugsanvisning

Instruktions manual

Ohjeet

General safety instructions

Read the instructions carefully before installing the patio heater and then store the instruction manual in a safe place. Keep the instructions for use for any future questions about using your product.

The patio heater is designed and manufactured in accordance with European standards: CE, RoHS. The product complies with the essential requirements of the directives:

EN 60335-2-30:2009, EN 60335-1: 2012.

• The patio heater can be used by children from 8 years and upwards if they are supervised or have received instructions in using the patio heater safely and understand possible hazards. Children are not allowed to play with the patio heater. Cleaning and user maintenance must not be carried out by unsupervised children. Children under 3 years of age must be kept away from the patio heater unless continuously supervised. Children over 3 years of age and younger than 8 years of age may only turn the patio heater on off if they are supervised or have been trained on how to use the patio heater safely and have understood the resulting hazards; This provided that:

- The patio heater is located or installed in its normal place of use. Children over 3 years old and younger than 8 years old should not plug the patio heater into the wall outlet, adjust the heater, clean the patio heater and/or perform any maintenance.

- Extreme caution is necessary when the patio heater is used by or near children or disabled persons, as well as whenever the patio heater is left on and unattended.

- CAUTION – Some parts of this product can get very hot and cause burns. Particular attention must be paid where children and vulnerable people are present.

- The user may only connect the patio heater to a power outlet using the standard cable of the device. If standard cable needs to be changed or if the patio heater needs to be permanently connected to an electrical outlet, the installation must be done by a licensed electrician. While the installation is being carried out, the main power should always be interrupted. Turn on the patio heater only when all cables are connected correctly.

- The patio heater must only be connected to a timer that turns off the unit after the set time. Do not connect the patio heater to a timer that starts the patio heater automatically.

- When using electrical appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock or injury, including the following;

- This patio heater is warm when in use. To avoid burns, do not let the bare skin touch the hot surfaces. If possible, use lift handles or brackets when moving the patio heater. Store flammable materials, such as furniture, pillows, bedding, papers, clothing and curtains at least 90 cm from the front of the patio heater.

• Always unplug the heater from the wall socket when not in use.

- Do not use the patio heater if the cord or plug is damaged. Also, do not use the patio heater after a malfunction or if it is dropped or otherwise damaged. Discard the patio heater in case of severe damage or contact the dealer for possible repair of the damage.

- Do not run the cord under blankets. Do not cover the cord with solid blankets, runners or similar coatings. Do not run the cord under furniture or appliances. Place the cord away from hallways to avoid tripping over the wire.

- Do not use the patio heater in the immediate vicinity of a bath, shower or swimming pool.

- Do not use the patio heater outdoors in bad weather, such as rain, snow or storm.

- Connect only to grounded sockets/power outlets.

- Do not place or install the patio heater directly under an electrical outlet /power outlet.

- To disconnect the patio heater, turn off the switch and then remove the plug from the wall outlet.

- Do not insert or allow foreign objects to enter any ventilation or grille opening, as this may cause electric shock, fire or damage the patio heater.

- To prevent a possible fire, air intakes or grilles must not be blocked in any way. Do not place the patio heater on soft surfaces such as a bed where the vents may become blocked.

• Do not use the patio heater in areas where gasoline, paint or flammable liquids are used or stored.
• Check whether the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before connecting the patio heater.
• Do not touch the appliance. Warning! Risk of burning!
• In case of improper use, there is a risk of electric shock and / or fire hazard. The operation of the appliance must be interrupted and the plug must be unplugged immediately. Do not attempt to repair the appliance yourself. Contact the dealer or a licensed electrician for repair.

Cleaning and maintenance.

• The patio heater consists of a robust and maintenance-free aluminum / metalhousing with protective grilles. Contains no replaceable or serviceable parts.
• Before cleaning, pull the plug out of the socket. Wait for the patio heater to cool completely before starting any cleaning.
• The patio heater is wiped with lint-free cloth, skin cloth or brushed off with a soft brush.
• Never use detergents, abrasives or hard brushes for cleaning.
• Never attempt to disassemble the patio heater to clean the reflector or change pipes.
• To avoid electric shock, the cord, plug or patio heater must never come into contact with water or other liquid.
• When replacing the infrared tube, please contact the place where the item was purchased or the importer.

Troubleshooting

Follow the troubleshooting steps below:

• Make sure that the mains lead is connected correctly.
• Check if the cable is damaged.
• The ON/OFF switch must be on.
• Check if the pipe is burst.
• If the product is turned off due to improper use, disconnect the product from the wall outlet and cool. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try connecting the product again. Please contact the dealer if this does not solve your problem.

Storage

Store in a dry place and free of dust. Take the patio heater inside and store it dry, possibly in a bag or get a cover, which can be purchased for most models.

Disposal

The European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) requires that old household appliances are not thrown into the normal municipal waste stream. The appliances must be assembled to maximise the recovery/recycling of materials and reduce the impact on human health and the environment. The “crossed out bin” symbol is stamped on the product to help them remember collection obligations. Consumers should contact their distributor or local authorities regarding the procedure to be followed when disposing of their product.

Customer service / Warranty

• Repairs must be carried out by a licensed installer/electrician, ensuring electrical safety.
- Please contact the dealer or an authorized installer/electrician.
- Improper repair can lead to danger to the user.
- Warranty period begins from date of purchase. Invoice or proof of purchase must be shown in all warranty cases. In case of a warranty matters, please contact dealer of the product or the place the product is purchased.
- This warranty does not cover damage caused by defects caused by alteration, accident, misuse, neglect or improper maintenance.
- In accordance with our policy on continuous product development, we reserve the right to change product and documentation specifications without notice.

Specifications

Model: 212-324

Voltage (V): 220-240V\~50/60HZ

Power consumption (W): 2300W (4 steps) (800W, 1250W, 1800W, 2300W)

IP-class: IP65

Remote control: Yes

Battery type: 2 x AAA

Function instruction

Chrome - Nickel grill Heating element Special design parabolic reflector Aluminium body Manual control panel Remote control eye
Name Function
Aluminium body Cover the heater
Heating element Heater
Chrome - Nickel grill	Avoid damage
Remote control eye Turn on / off / standby
Manual control panel	Turn on / off

5

Symbols used

	Installation by an authorized personnel		Installation with a phollips head screwdriver
	Aligning kit Installation with a dr
	Installation by an end user Marke
	Installation with allen screws

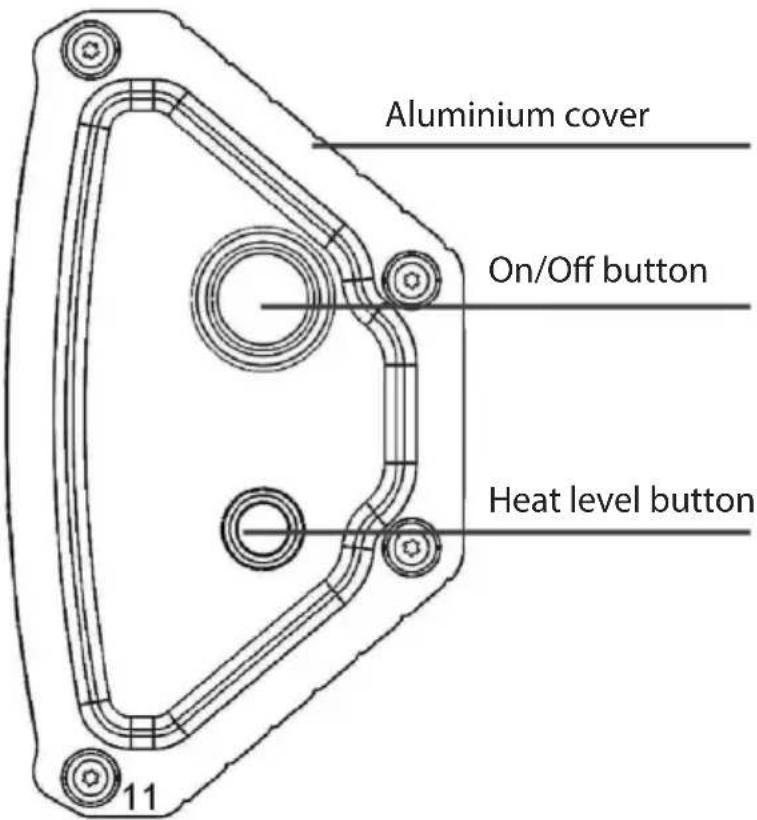

Digital appliance control panel

Appliance:

Connect the plug to the earthed outlet. The supply ky on the right side is turned on. Your device will be initiated.

Switching off the appliance

As you turn off the heater, first turn off the on/off button and then unplug.

Increase and decrease temperature:

As shown on the side, the heat level button controlling the heater by pressing the button, adjust the appliance temperature.

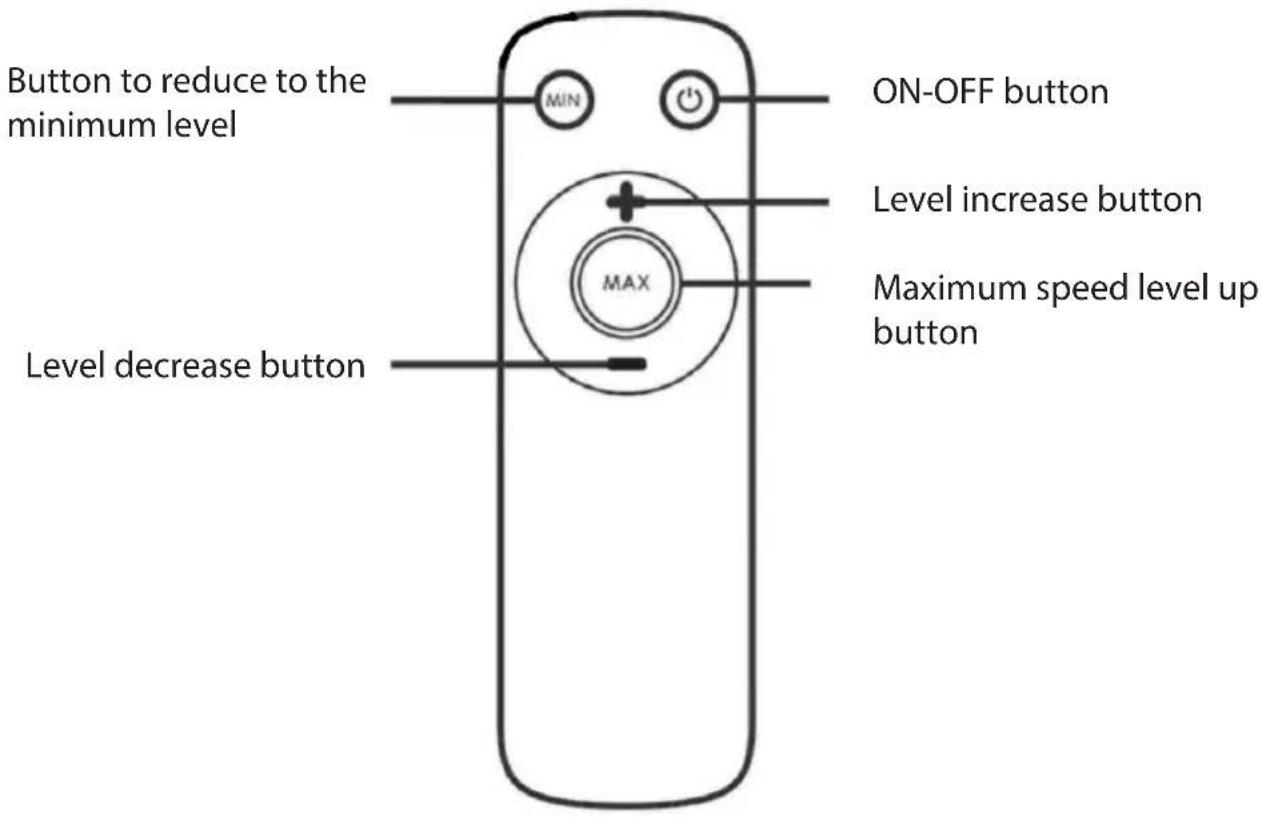

Remote Control Instructions

Putting the Batteries

Place two AAA/Alkaline type batteries inside the remote control.

To insert the batteries, turn

the remote control backwards and remove the cover of the battery compartment and put two new batteries according to the instructions on the battery compartment (marked with the + and - polarity symbols).

Replace the batteries as described

above.

CAUTION!

Please put the batteries before using the remote control.

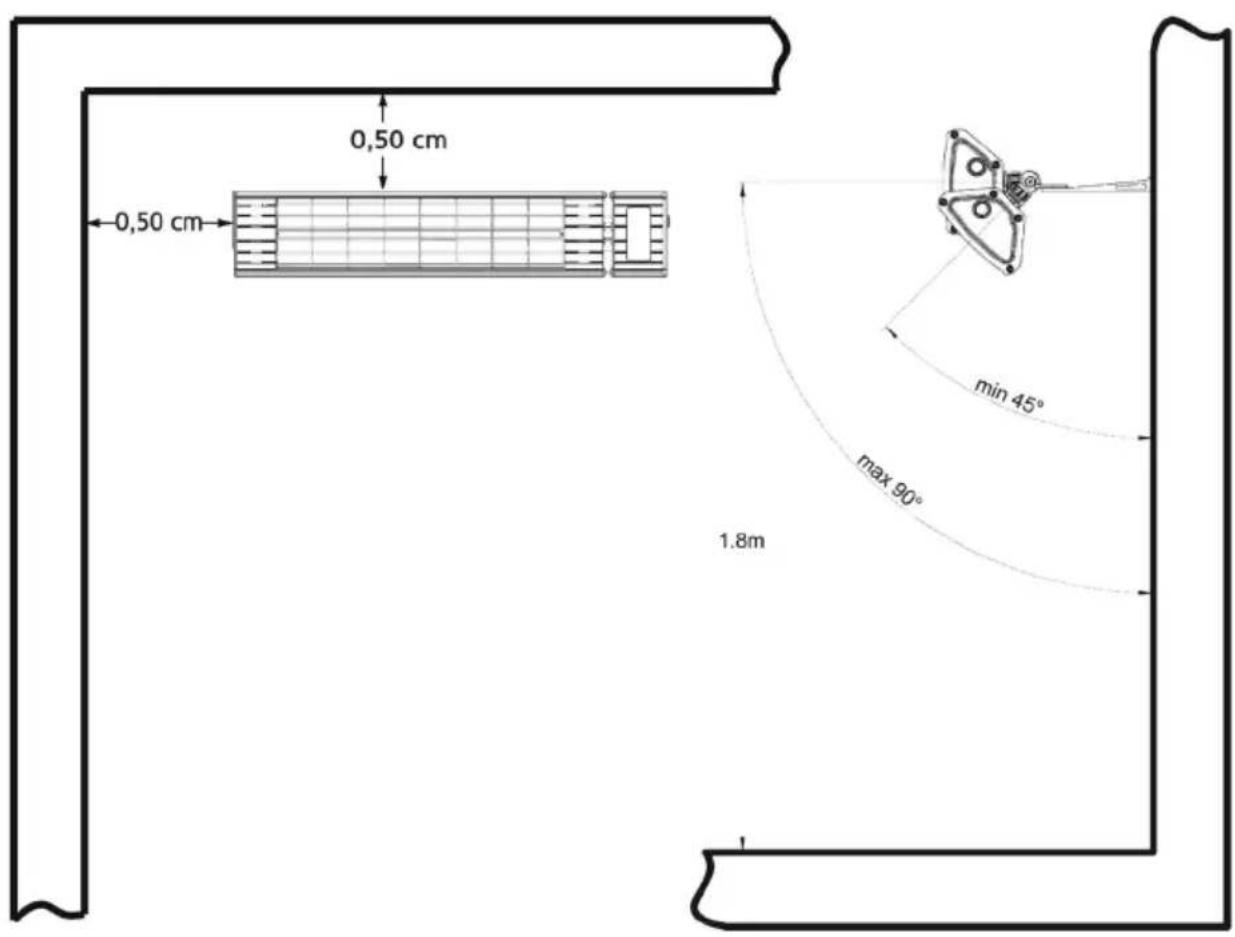

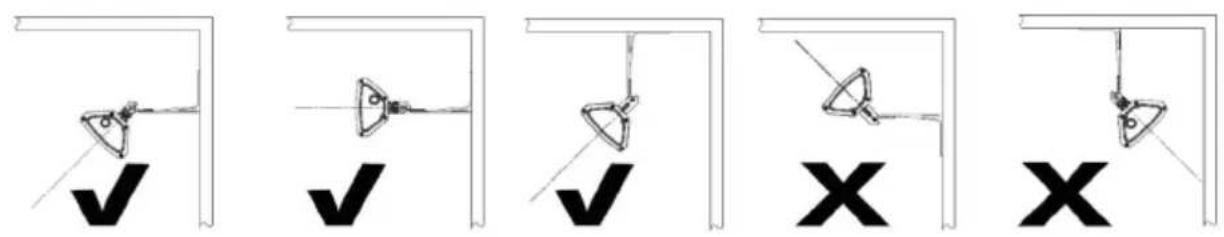

Diagram

There must be a minimum distance of 0,50 m between the heater and adjacent walls and ceiling. In both wall and ceiling installations, the heater must be at least 1,8 m high to avoid touching the heater during use. Before drilling, make sure that there are no cables or any water pipes in the area where the heater is to be installed. The heater must be connected with the installation equipment provided. When installing the heater horizontally on the wall, it should not be positioned at an angle of less than 70° and more than 90°. (Figure A)

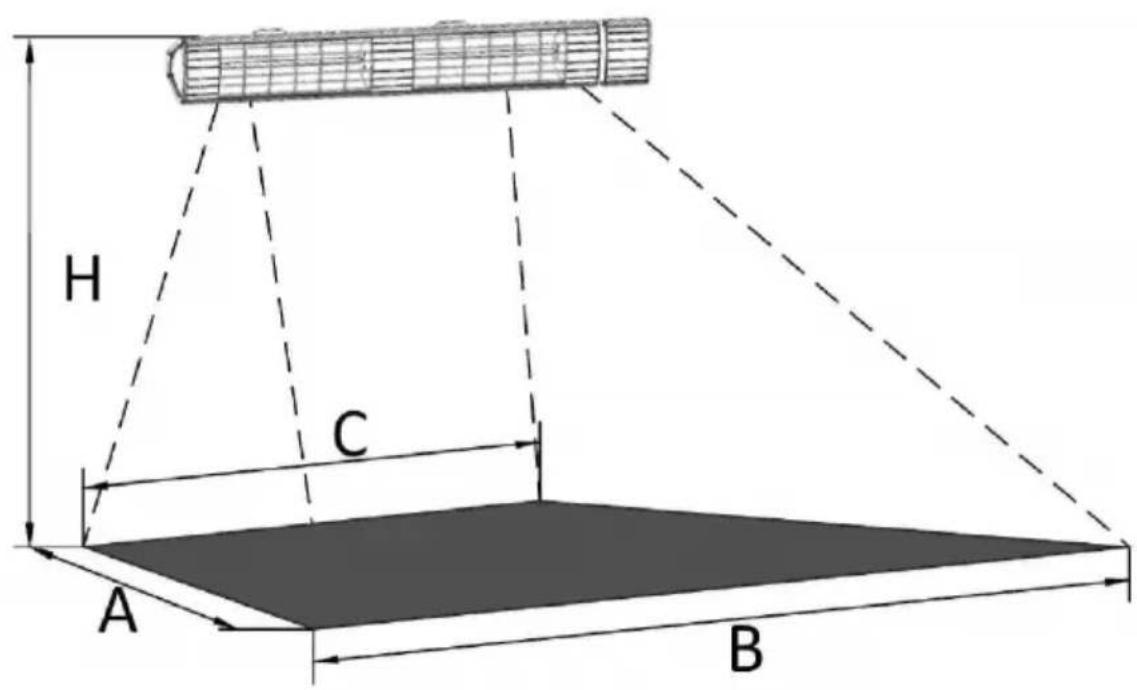

Heating projection

This table is prepared for model 212-324. Your appliance may not feature some functions specified in the table.

Model A B C H S
212-324 3,2 m 4,6 m 2 m		2,5 m			Up to 13 m^2

Heating projection (S)

Varmespredning

Värmespridning

Model A B C H S
212-324 3,2 m 4,6 m 2 m		2,5 m			op til 13 m^2

Värmespridning (S)

Lämmön leviäminen

Model A B C H S
212-324 3,2 m 4,6 m 2 m		2,5 m			Up to 13 m^2

Abstract geometric pattern with yellow and orange gradient blocks (no text or symbols)

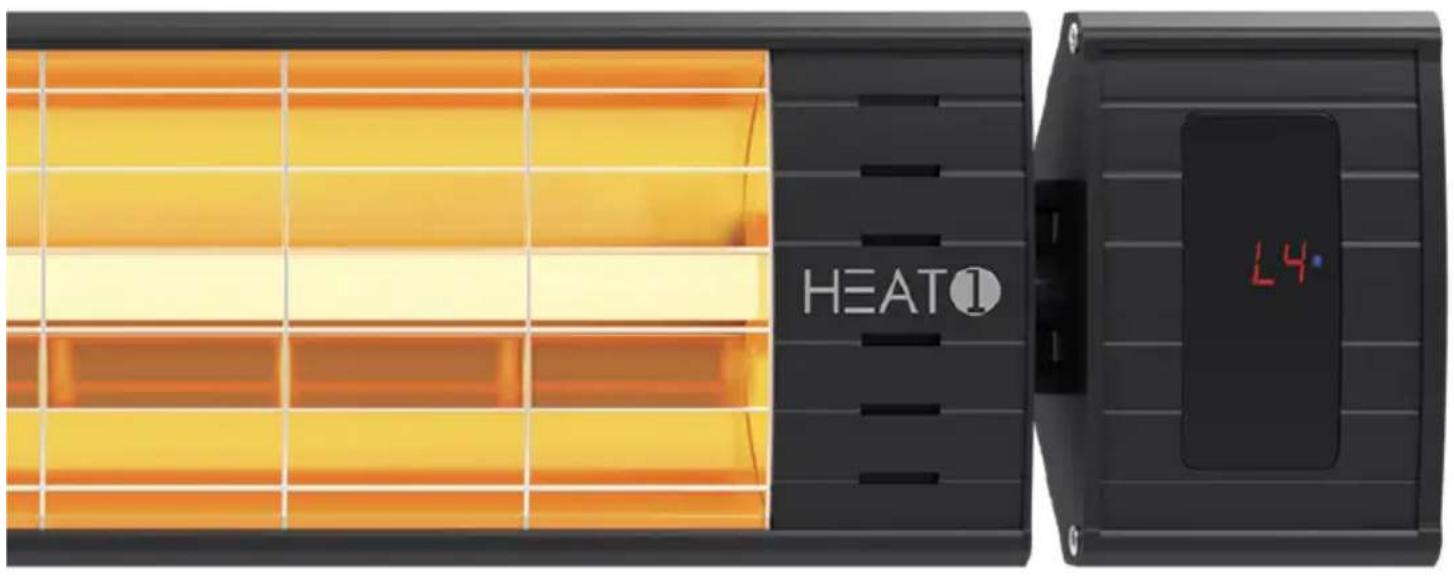

Exterior view of a modern heating device labeled 'HEAT1' showing heat distribution on a grid (no additional text or symbols)

Imported by/importeret af:

NSH NORDIC A/S
