Product Type	Fan Heater
Brand	Heat1
Model	ECO plus-line 1500W
Power	1500 W
Voltage	220-240 V ~ 50 Hz
Heat Settings	2 levels (750 W / 1500 W)
Thermostat	Adjustable thermostat with frost protection
Safety Features	Tip-over switch, overheat protection, cool-touch housing
Dimensions (H x W x D)	Approx. 25 x 20 x 15 cm
Weight	Approx. 1.8 kg
Cord Length	Approx. 1.5 m
Noise Level	~45 dB (low setting)
Heating Element	PTC ceramic
Coverage Area	Up to 20 m² (well-insulated room)
Control Type	Rotary dial and push button
Indication Light	Power on indicator
Maintenance	Clean with dry cloth; do not use water
Storage	Keep in dry place, unplug when not in use
Included Accessories	User manual, warranty card
Energy Efficiency Class	Class II (estimated)

Frequently Asked Questions - ECO plus-line 1500W Heat1

How do I adjust the thermostat?

Turn the thermostat dial clockwise to increase the desired temperature. The heater will automatically cycle on and off to maintain the setting.

What should I do if the heater stops working?

Check if the tip-over switch is activated. Ensure the heater is on a stable, level surface and the power cord is securely plugged in. Also check the overheat protection; if triggered, unplug the heater and let it cool for 15 minutes before restarting.

Can I use the heater in a bathroom?

No, this heater is not designed for damp or wet areas. Use only in dry indoor rooms and keep it away from water.

How to clean the heater?

Unplug the heater and allow it to cool completely. Wipe the exterior with a soft, dry cloth. Do not use water or cleaning agents. The air inlet can be gently vacuumed.

What are the different heat settings?

The heater has two power levels: 750 W (low) for gentle warmth and 1500 W (high) for quick heating. Use the mode selector switch to choose.

Is there a frost protection function?

Yes, when the thermostat is set to the minimum position, the heater will maintain a room temperature above freezing (approximately 5°C) to prevent frost damage.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended for extended periods. Always unplug when leaving the room or sleeping. The safety features provide protection but do not replace caution.

What does the ECO function do?

The ECO mode optimizes energy consumption by automatically adjusting the heating power and thermostat to maintain a comfortable temperature with minimal electricity usage.

Why does the heater emit a smell when first used?

A slight burning smell is normal during initial use as manufacturing residues burn off. Ensure good ventilation and run the heater on high in a well-ventilated room for 1-2 hours until the smell disappears.

How do I dispose of the heater at end of life?

Do not dispose of with household waste. Take the heater to a local WEEE collection point or follow your municipality's electronic waste recycling guidelines.

USER MANUAL ECO plus-line 1500W Heat1

Exterior view of a black rectangular heating element with vertical grating and heat-filled interior (no text or symbols visible)

Instructions

Brugsanvisning

Instruktions manual

Ohjeet

General safety instructions

Read the instructions carefully before installing the patio heater and then store the instruction manual in a safe place. Keep the instructions for use for any future questions about using your product.

The patio heater is designed and manufactured in accordance with European standards: CE, RoHS.

The product complies with the essential requirements of the directives:

EN 60335-2-30:2009, EN 60335-1: 2012.

- The patio heater can be used by children from 8 years and upwards if they are supervised or have received instructions in using the patio heater safely and understand possible hazards. Children are not allowed to play with the patio heater. Cleaning and user maintenance must not be carried out by unsupervised children. Children under 3 years of age must be kept away from the patio heater unless continuously supervised. Children over 3 years of age and younger than 8 years of age may only turn the patio heater on off if they are supervised or have been trained on how to use the patio heater safely and have understood the resulting hazards;

This provided that:

- The patio heater is located or installed in its normal place of use. Children over 3 years old and younger than 8 years old should not plug the patio heater into the wall outlet, adjust the heater, clean the patio heater and/or perform any maintenance.

• Extreme caution is necessary when the patio heater is used by or near children or disabled persons, as well as whenever the patio heater is left on and unattended.

- CAUTION – Some parts of this product can get very hot and cause burns. Particular attention must be paid where children and vulnerable people are present.

- The user may only connect the patio heater to a power outlet using the standard cable of the device. If standard cable needs to be changed or if the patio heater needs to be permanently connected to an electrical outlet, the installation must be done by a licensed electrician. While the installation is being carried out, the main power should always be interrupted. Turn on the patio heater only when all cables are connected correctly.

- The patio heater must only be connected to a timer that turns off the unit after the set time. Do not connect the patio heater to a timer that starts the patio heater automatically.

- When using electrical appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock or injury, including the following;

- This patio heater is warm when in use. To avoid burns, do not let the bare skin touch the hot surfaces. If possible, use lift handles or brackets when moving the patio heater. Store flammable materials, such as furniture, pillows, bedding, papers, clothing and curtains at least 90 cm from the front of the patio heater.

• Always unplug the heater from the wall socket when not in use.

- Do not use the patio heater if the cord or plug is damaged. Also, do not use the patio heater after a malfunction or if it is dropped or otherwise damaged. Discard the patio heater in case of severe damage or contact the dealer for possible repair of the damage.

- Do not run the cord under blankets. Do not cover the cord with solid blankets, runners or similar coatings. Do not run the cord under furniture or appliances. Place the cord away from hallways to avoid tripping over the wire.

• Do not use the patio heater in the immediate vicinity of a bath, shower or swimming pool.

• Do not use the patio heater outdoors in bad weather, such as rain, snow or storm.

- Connect only to grounded sockets/power outlets.

• Do not place or install the patio heater directly under an electrical outlet /power outlet.

• To disconnect the patio heater, turn off the switch and then remove the plug from the wall outlet.

- Do not insert or allow foreign objects to enter any ventilation or grille opening, as this may cause electric shock, fire or damage the patio heater.

• To prevent a possible fire, air intakes or grilles must not be blocked in any way. Do not place the patio heater on soft surfaces such as a bed where the vents may become blocked.

• Do not use the patio heater in areas where gasoline, paint or flammable liquids are used or stored.
• Check whether the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before connecting the patio heater.
• Do not touch the appliance. Warning! Risk of burning!
• In case of improper use, there is a risk of electric shock and / or fire hazard. The operation of the appliance must be interrupted and the plug must be unplugged immediately. Do not attempt to repair the appliance yourself. Contact the dealer or a licensed electrician for repair.

Cleaning and maintenance.

• The patio heater consists of a robust and maintenance-free aluminum / metalhousing with protective grilles. Contains no replaceable or serviceable parts.
• Before cleaning, pull the plug out of the socket. Wait for the patio heater to cool completely before starting any cleaning.
• The patio heater is wiped with lint-free cloth, skin cloth or brushed off with a soft brush.
• Never use detergents, abrasives or hard brushes for cleaning.
• Never attempt to disassemble the patio heater to clean the reflector or change pipes.
• To avoid electric shock, the cord, plug or patio heater must never come into contact with water or other liquid.
• When replacing the infrared tube, please contact the place where the item was purchased or the importer.

Troubleshooting

Follow the troubleshooting steps below:

• Make sure that the mains lead is connected correctly.
• Check if the cable is damaged.
• The ON/OFF switch must be on.
• Check if the pipe is burst.
• If the product is turned off due to improper use, disconnect the product from the wall outlet and cool. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try connecting the product again. Please contact the dealer if this does not solve your problem.

Storage

Store in a dry place and free of dust. Take the patio heater inside and store it dry, possibly in a bag or get a cover, which can be purchased for most models.

Disposal

The European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) requires that old household appliances are not thrown into the normal municipal waste stream. The appliances must be assembled to maximise the recovery/recycling of materials and reduce the impact on human health and the environment. The “crossed out bin” symbol is stamped on the product to help them remember collection obligations. Consumers should contact their distributor or local authorities regarding the procedure to be followed when disposing of their product.

Customer service / Warranty

• Repairs must be carried out by a licensed installer/electrician, ensuring electrical safety.
• Please contact the dealer or an authorized installer/electrician.
• Improper repair can lead to danger to the user.
• Warranty period begins from date of purchase. Invoice or proof of purchase must be shown in all warranty cases. In case of a warranty matters, please contact dealer of the product or the place the product is purchased.
• This warranty does not cover damage caused by defects caused by alteration, accident, misuse, neglect or improper maintenance.
• In accordance with our policy on continuous product development, we reserve the right to change product and documentation specifications without notice.

Specifications

Model: LDHR018-150EKY LDHR018-200EKY Voltage (V): 220-240V\~ 220-240V\~

Power consumption (W): 1500W 2000W

IP-class: IP65

Remote control: Yes

Battery type: 2xAAA

IP65

Yes

2xAAA

I O II Switch function

I = Standby Use the remote control to turn ON/OFF the heater.

II = ON The heater works directly without remote control.

O = OFF Power OFF.

Remote control instructions

Button Function Feature

ON Turn ON 1. Turn ON the heater.

1. Receiver light in heater will turn red with 100% power output

OFF Turn OFF 1. Turn OFF the heater.

1. The receiver light will flash in red color if the heater

connects to the power supply there will be no

indication after cutting off the electricity.

Operation instruction

• Remove all package material (including anti-vibration object of the lamp) and check the appliance, supply cord and the plug for signs of damage.
• Pay attention to the mounting place and all mounting material (dowels and screws). Ensure they are suitable and stable enough for mounting and lastingly holding of the appliance.

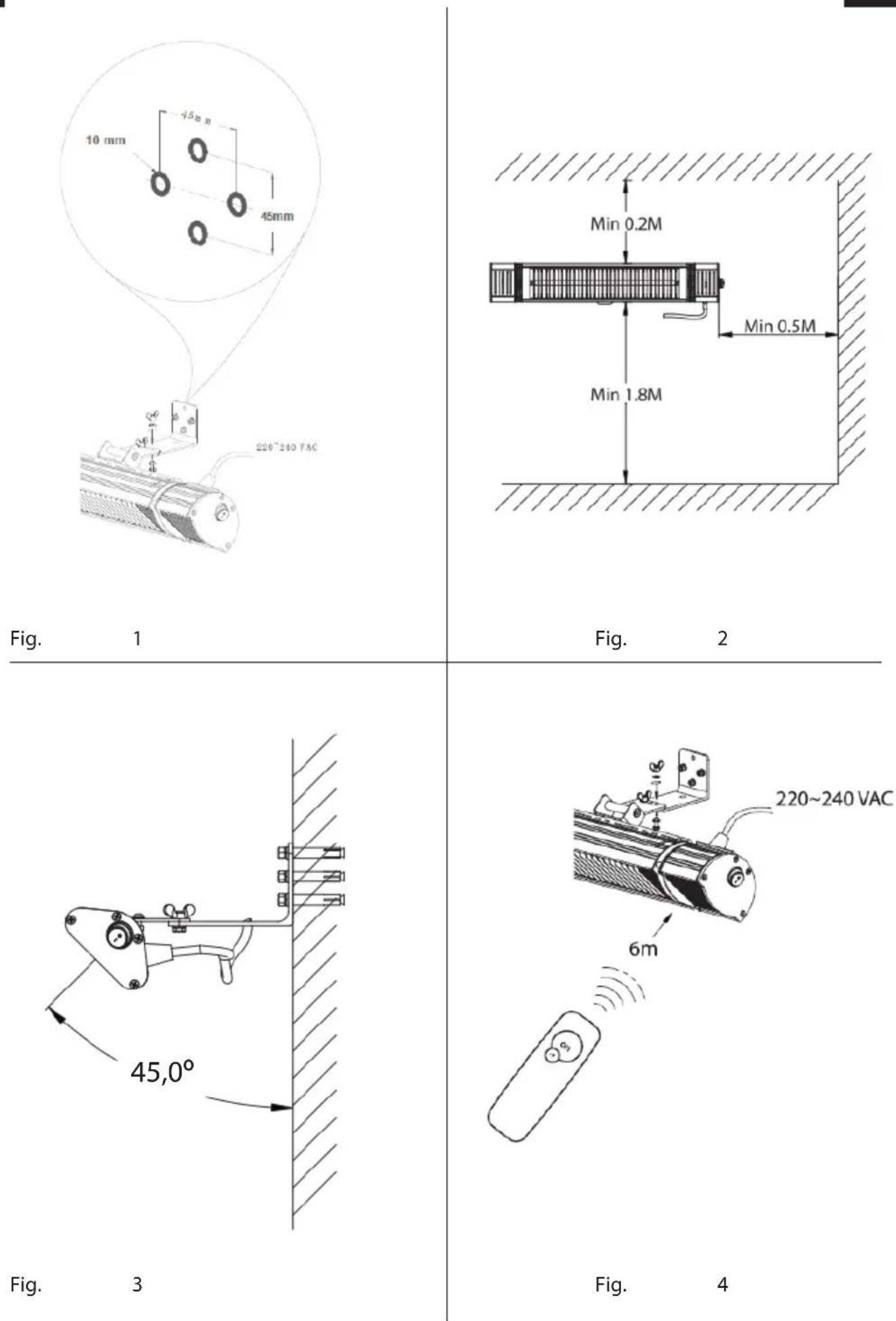

• Before mounting, the minimum safe mounting distances and tilt angles shown in the figures must be strictly followed.

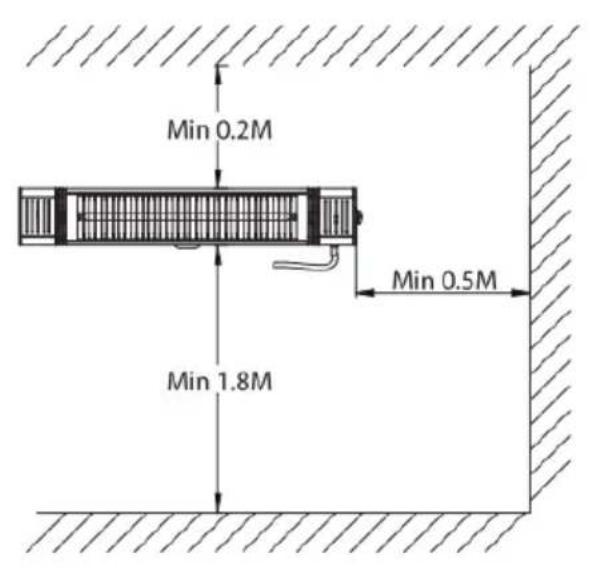

  • The distance between the bottom edge of the appliance and the floor must be at least 1.8 m. See figure 2.
• There must be a distance of at least 0.25 m between the appliance and the ceilings, roofs or other covers. See figure 2.
• There must be a distance of at least 0.5 m at each side between the appliance and walls or the like. See figure 2.

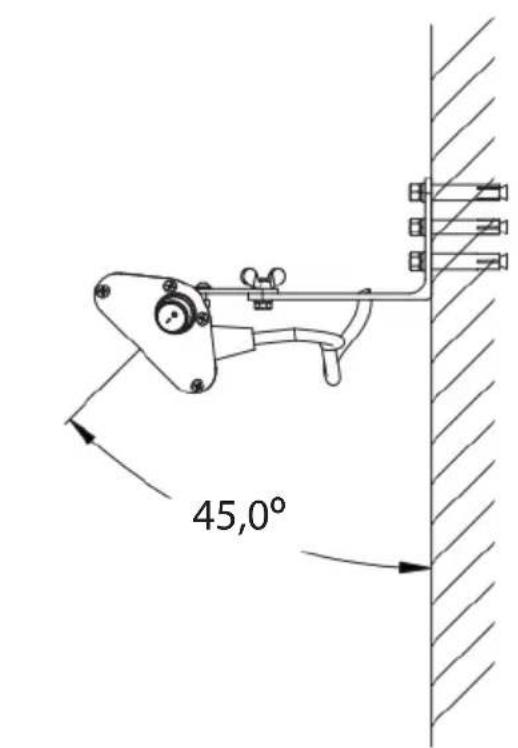

  • Recommended degree to mounting surface is 45^ . See figure 3.
  • Pay attention that the installation of the appliance must not add excessive wind load.
• First fix the mounting bracket on the wall. Ensure that the place to be installed is secure and firm if not install the appliance to a stand.
• Adjust the desired angle of radiation and tighten all screws. Check regularly the screw's connection. Mechanical bearing pressure and oscillation due to wind or rain could lead to loose.

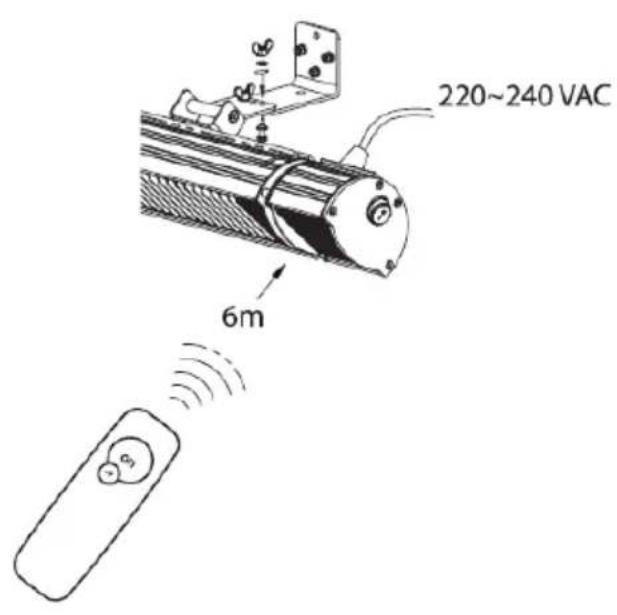

• Plug in the power source and operate the remote control. Then observe, whether during the first 10-15 minutes the appliance works trouble-free.
  • If you do not use, please remove battery socket from the remote control.

5
GB

Figur 1

Figur 2

Figur 3

Figur 4

Black vertical pole with a small handle and base, isolated on white background (no text or symbols)

Art. no. 212-380
Art. no. 212-381

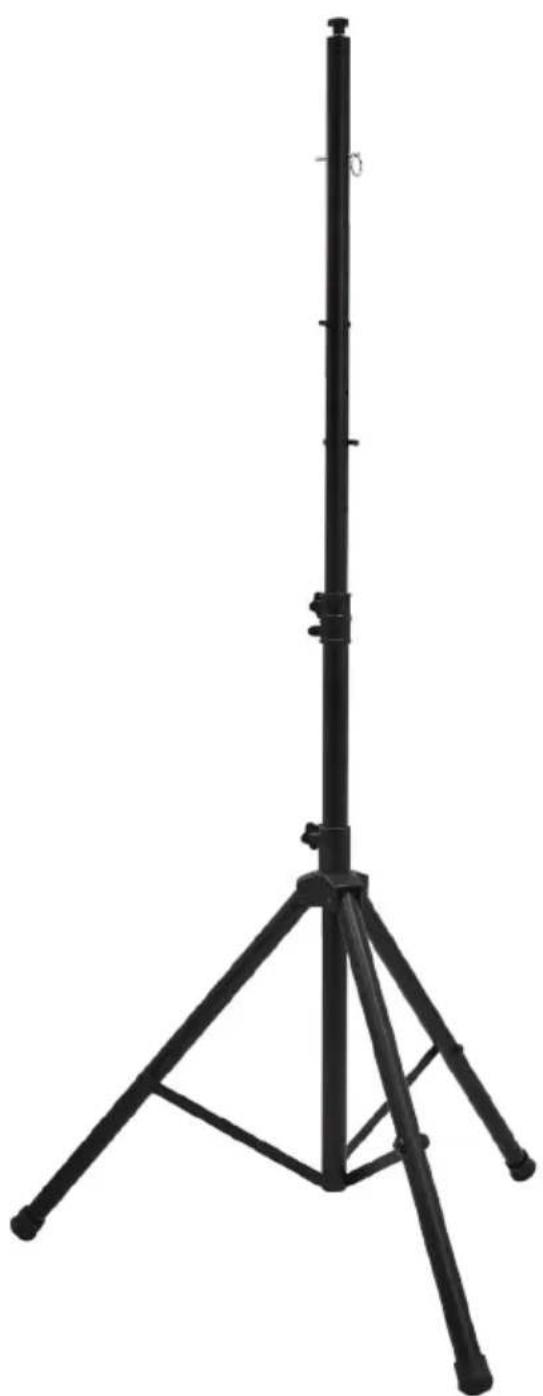

Black tripod-mounted antenna with metal frame and stand (no text or symbols visible)

Black metal bracket component with mounting holes (no text or symbols visible)

Art. no. 212-385 Art. no. 212-386

White plastic clamp bracket with black handle and black clip, no visible text or symbols

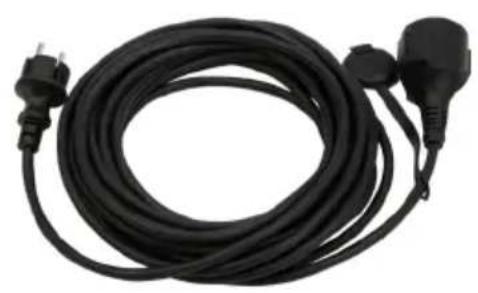

Black cable with two connectors and a power plug, isolated on white background (no text or symbols)

Exterior view of a white industrial electrical control box with cooling fins and a circular top (no text or symbols visible)

Art. no. 212-390 Art. no. 212-393

Imported by/importeret af:

NSH NORDIC A/S
