Product Type	Electric Heater
Brand	Hortus
Model	211-357
Dimensions (Approx.)	20 x 20 x 30 cm (7.9 x 7.9 x 11.8 in)
Weight (Approx.)	2 kg (4.4 lbs)
Power Source	220-240 V AC, 50/60 Hz
Heating Element	Ceramic or wire element (type not specified)
Heat Output (Approx.)	1500-2000 W
Thermostat	Adjustable thermostat
Fan Modes	Heat and fan-only (if applicable)
Overheat Protection	Yes
Tip-Over Switch	Yes
Safety Certification	CE compliant (assumed)
Maintenance	Clean with a dry cloth; do not use water
Storage	Store in a cool, dry place
Spare Parts Available	Not specified; contact manufacturer
Repairability	No user-serviceable parts; refer to manual

Frequently Asked Questions - 211-357 Hortus

What type of heater is the Hortus 211-357?

The Hortus 211-357 is an electric heater designed for indoor use. The exact heating technology (e.g., fan, oil, or infrared) is not specified, but it is typically a fan heater or convector heater.

What is the power consumption of the Hortus 211-357?

The heater is rated for 220-240 V and typically consumes between 1500 and 2000 W. Check the product label for exact specifications.

Does the Hortus 211-357 have overheat protection?

Yes, the heater includes overheat protection that automatically shuts off the unit if it becomes too hot, ensuring safe operation.

How do I clean the Hortus 211-357 heater?

Unplug the heater and allow it to cool. Wipe the exterior with a soft, dry cloth. Do not use water, abrasive cleaners, or immerse the unit.

What safety features does the Hortus 211-357 have?

The heater is equipped with overheat protection and a tip-over switch that cuts power if the unit is knocked over.

Can I use the Hortus 211-357 in a bathroom?

Electric heaters should only be used in dry areas. Unless the manual states it is suitable for bathrooms, avoid using it in humid environments to prevent electric shock.

What is the warranty for the Hortus 211-357?

Warranty information is not provided in the manual. Typically, Hortus products offer a 1-2 year warranty. Contact the retailer or manufacturer for details.

How do I adjust the thermostat on the Hortus 211-357?

Turn the thermostat dial to a higher number for more heat. The heater will cycle on and off to maintain the set temperature.

What should I do if the Hortus 211-357 does not turn on?

First, check that it is plugged in and the power outlet is working. Ensure the power switch is on. If the tip-over switch is activated, place the heater on a stable surface. If it still doesn't work, contact customer support.

Can I leave the Hortus 211-357 unattended?

It is not recommended to leave any heater unattended for long periods. Always follow safety instructions and never cover the heater.

USER MANUAL 211-357 Hortus

Exterior view of a black cylindrical outdoor heating element with red LED lighting (no text or symbols visible)

Exterior view of a black industrial air conditioner unit with hanging suspension and control knobs (no text or symbols visible)

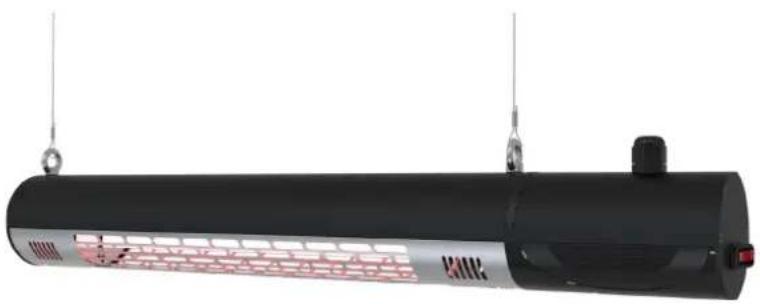

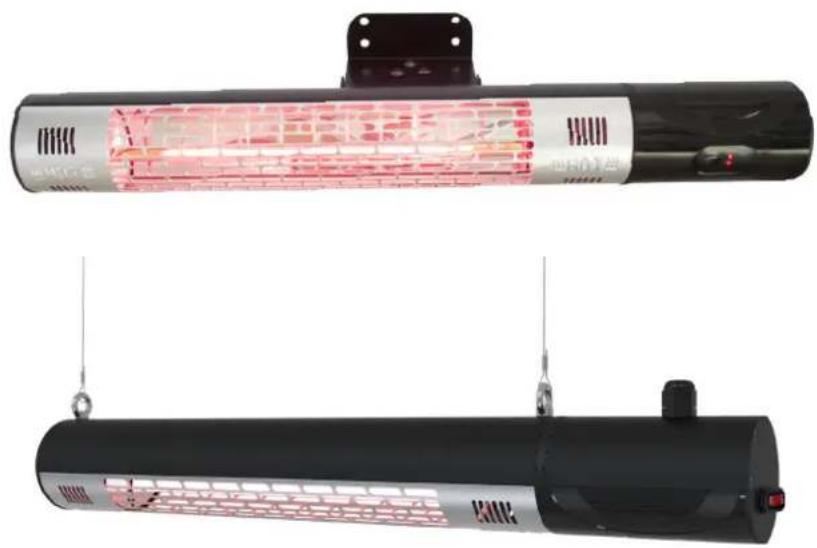

Golden Tube with remote control

DA

Brugsanvisning

Read the instructions carefully before installing the patio heater and then store the instruction manual in a safe place. Keep the instructions for use for any future questions about using your product. The patio heater is designed and manufactured in accordance with European standards: CE, RoHS. The product complies with the essential requirements of the directives: EN 60335-2-30:2009, EN 60335-1: 2012.

• The patio heater can be used by children from 8 years and upwards if they are supervised or have received instructions in using the patio heater safely and understand possible hazards. Children are not allowed to play with the patio heater. Cleaning and user maintenance must not be carried out by unsupervised children. Children under 3 years of age must be kept away from the patio heater unless continuously supervised. Children over 3 years of age and younger than 8 years of age may only turn the patio heater on off if they are supervised or have been trained on how to use the patio heater safely and have understood the resulting hazards;
  This provided that:

- The patio heater is located or installed in its normal place of use. Children over 3 years old and younger than 8 years old should not plug the patio heater into the wall outlet, adjust the heater, clean the patio heater and/or perform any maintenance.

- Extreme caution is necessary when the patio heater is used by or near children or disabled persons, as well as whenever the patio heater is left on and unattended.

- CAUTION – Some parts of this product can get very hot and cause burns. Particular attention must be paid where children and vulnerable people are present.

- The user may only connect the patio heater to a power outlet using the standard cable of the device. If standard cable needs to be changed or if the patio heater needs to be permanently connected to an electrical outlet, the installation must be done by a licensed electrician. While the installation is being carried out, the main power should always be interrupted. Turn on the patio heater only when all cables are connected correctly.

- The patio heater must only be connected to a timer that turns off the unit after the set time. Do not connect the patio heater to a timer that starts the patio heater automatically.

- When using electrical appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock or injury, including the following;

- This patio heater is warm when in use. To avoid burns, do not let the bare skin touch the hot surfaces. If possible, use lift handles or brackets when moving the patio heater. Store flammable materials, such as furniture, pillows, bedding, papers, clothing and curtains at least 90 cm from the front of the patio heater.

• Always unplug the heater from the wall socket when not in use.

- Do not use the patio heater if the cord or plug is damaged. Also, do not use the patio heater after a malfunction or if it is dropped or otherwise damaged. Discard the patio heater in case of severe damage or contact the dealer for possible repair of the damage.

- Do not run the cord under blankets. Do not cover the cord with solid blankets, runners or similar coatings. Do not run the cord under furniture or appliances. Place the cord away from hallways to avoid tripping over the wire.

- Do not use the patio heater in the immediate vicinity of a bath, shower or swimming pool.

- Do not use the patio heater outdoors in bad weather, such as rain, snow or storm.

- Connect only to grounded sockets/power outlets.

- Do not place or install the patio heater directly under an electrical outlet /power outlet.

- To disconnect the patio heater, turn off the switch and then remove the plug from the wall outlet.

- Do not insert or allow foreign objects to enter any ventilation or grille opening, as this may cause electric shock, fire or damage the patio heater.

- To prevent a possible fire, air intakes or grilles must not be blocked in any way. Do not place the patio heater on soft surfaces such as a bed where the vents may become blocked.

• Do not use the patio heater in areas where gasoline, paint or flammable liquids are used or stored.
• Check whether the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before connecting the patio heater.
• Do not touch the appliance. Warning! Risk of burning!
• In case of improper use, there is a risk of electric shock and / or fire hazard. The operation of the appliance must be interrupted and the plug must be unplugged immediately. Do not attempt to repair the appliance yourself. Contact the dealer or a licensed electrician for repair.

Cleaning and maintenance.

- The patio heater consists of a robust and maintenance-free aluminum / metalhousing with protective grilles. Contains no replaceable or serviceable parts.

- Before cleaning, pull the plug out of the socket. Wait for the patio heater to cool completely before starting any cleaning.

- The patio heater is wiped with lint-free cloth, skin cloth or brushed off with a soft brush.

- Never use detergents, abrasives or hard brushes for cleaning.

- Never attempt to disassemble the patio heater to clean the reflector or change pipes.

- To avoid electric shock, the cord, plug or patio heater must never come into contact with water or other liquid.

- When replacing the infrared tube, please contact the place where the item was purchased or the importer.

Troubleshooting

Follow the troubleshooting steps below:

- Make sure that the mains lead is connected correctly.

- Check if the cable is damaged.

- The ON/OFF switch must be on.

- Check if the pipe is burst.

- If the product is turned off due to improper use, disconnect the product from the wall outlet and cool. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try connecting the product again. Please contact the dealer if this does not solve your problem.

Storage

Store in a dry place and free of dust. Take the patio heater inside and store it dry, possibly in a bag or get a cover, which can be purchased for most models.

Disposal

The European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) requires that old household appliances are not thrown into the normal municipal waste stream. The appliances must be assembled to maximise the recovery/recycling of materials and reduce the impact on human health and the environment. The “crossed out bin” symbol is stamped on the product to help them remember collection obligations. Consumers should contact their distributor or local authorities regarding the procedure to be followed when disposing of their product.

Customer service / Warranty

• Repairs must be carried out by a licensed installer/electrician, ensuring electrical safety.
- Please contact the dealer or an authorized installer/electrician.
- Improper repair can lead to danger to the user.

Customer service / Warranty

• Warranty period begins from date of purchase. Invoice or proof of purchase must be shown in all warranty cases. In case of a warranty matters, please contact dealer of the product or the place the product is purchased.
• This warranty does not cover damage caused by defects caused by alteration, accident, misuse, neglect or improper maintenance.
• In accordance with our policy on continuous product development, we reserve the right to change product and documentation specifications without notice.

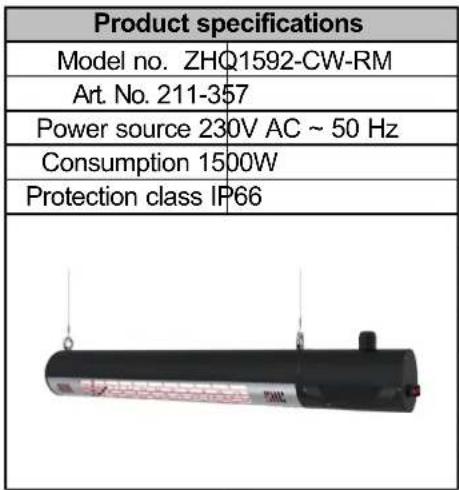

Product specifications Model no. ZHQ1592-CW-RM Art. No. 211-357 Power source 230V AC ~ 50 Hz Consumption 1500W Protection class IP66

OPERATING INSTRUCTIONS

1. Install the heater as shown on page 12/13 in the manual.
2. Connect the heater to a 230V \~ 50Hz power outlet.
3. Only use the heater when it is mounted as shown on page 12/13.
4. Adjust the angle as shown below (fig. 1).

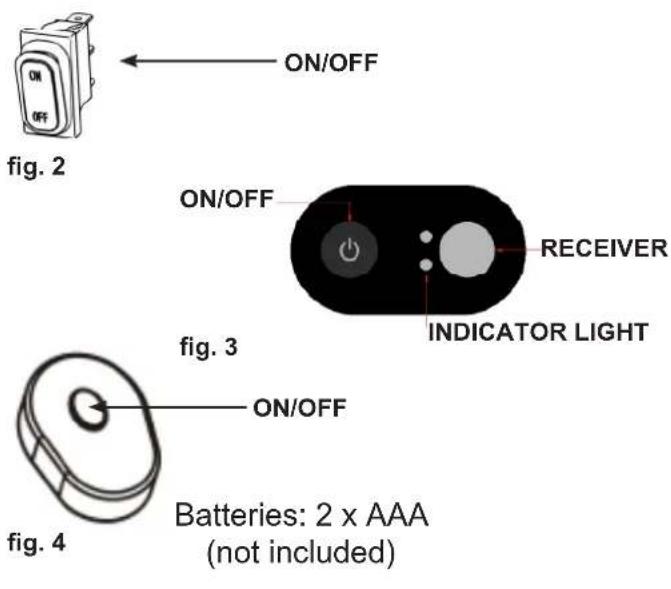

5. Activate/deactivate the heater by turning the button ON or OFF as shown below (fig. 2).
6. Push the ON/OFF button on the control panel to turn the heater ON or OFF (fig. 3) or use the included remote control to turn the heater ON or OFF (fig. 4).
7. When the heater is not is use turn the heater OFF on the control panel or the remote control and deactivate the heater by turning the button shown in figure 2 OFF.

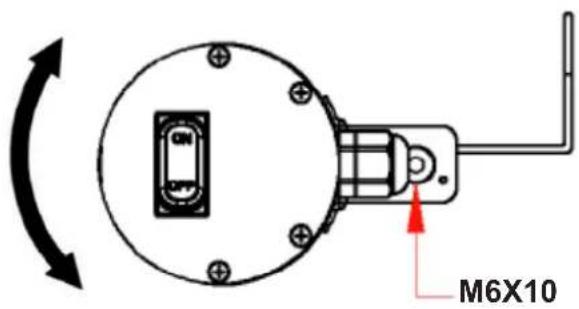

Adjusting the angle

M6X10

fig. 1

General safety instructions

• Bruk kun produktet på flatt og stabilt underlag.
• Produktet og ovnens gitter, må ikke tildekkes.
• Bruk ikke produktet tett på gardiner og andre brennbare materialer.
• Før ikke inn fremmedobjekter i varmekilden bak gitteret.
• Bruk ikke produktet ved dårlig vær som regn, storm eller snø.
• Bruk ikke produktet med en tidsstyring, timer eller annet automatisk utstyr som tenner og slår av produktet. Dette kan øke risikoen for brann, hvis produktet er tildekket eller plassert feil.
• Plasser ikke ovnen direkte under et strømuttak.
• Plasser ikke ovnen rett ved badebasseng, bad eller våtrom.
• Produktet må alltid tas inn etter bruk og la produktet avkjøle seg før eventuell nedpakking av produktet.

Diagram showing five labeled mechanical components with numbered parts, including springs, a tool, a housing, and two parallel cables.

3

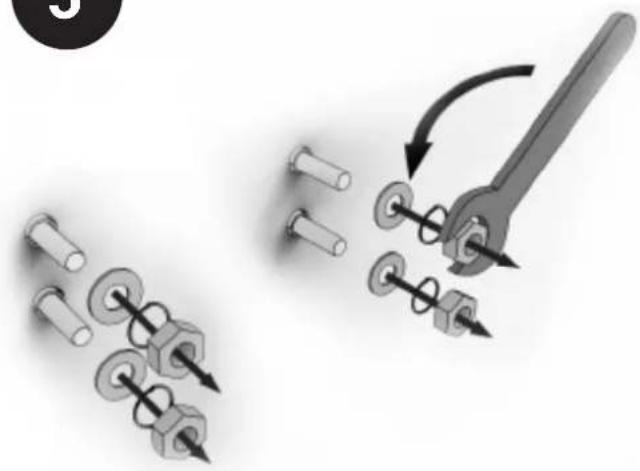

Illustration of mechanical fasteners and a wrench tool interacting with cylindrical components (no text or symbols)

1

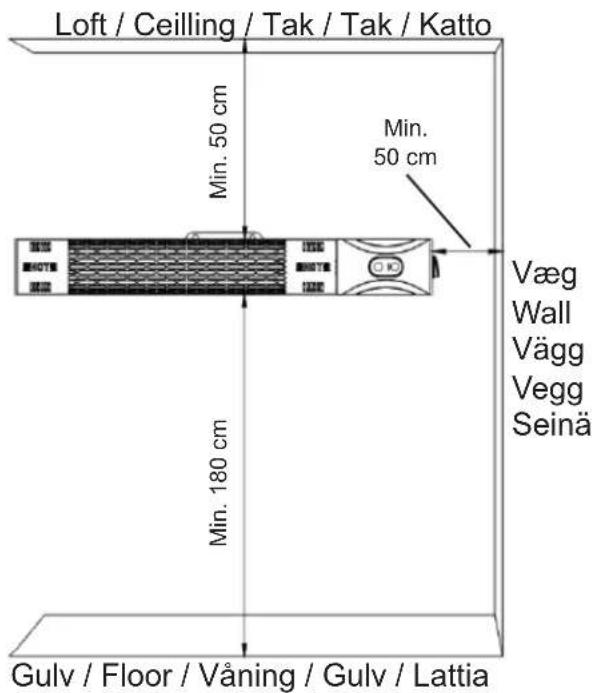

Loft / Ceiling / Tak / Tak / Katto Min. 50 cm Min. 50 cm Væg Wall Vägg Vegg Seinä Min. 180 cm Gulv / Floor / Våning / Gulv / Lattia

4

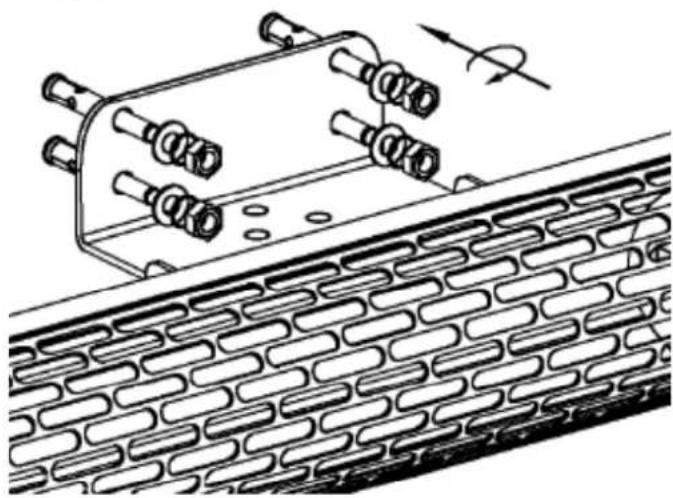

Technical line drawing of a mechanical assembly with rollers and a grid-patterned base (no text or symbols)

2

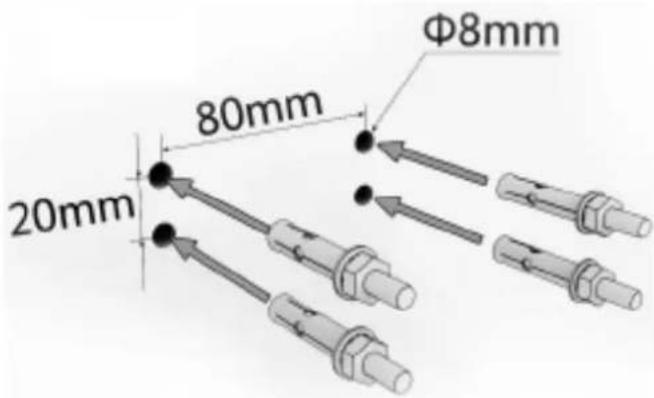

20mm 80mm Φ8mm

5

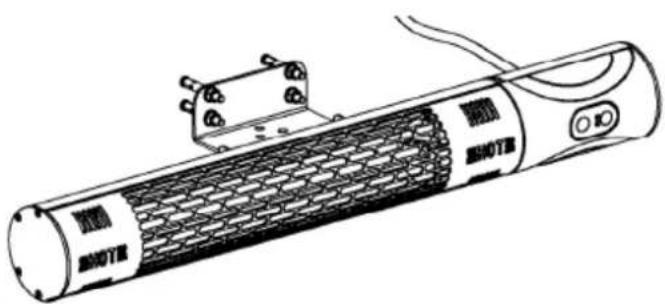

Line drawing of a cylindrical device with mesh pattern and attached electrical connector (no text or symbols)

1

Technical line drawing of a cylindrical mechanical component with two vertical posts and a base, no text or symbols present.

3

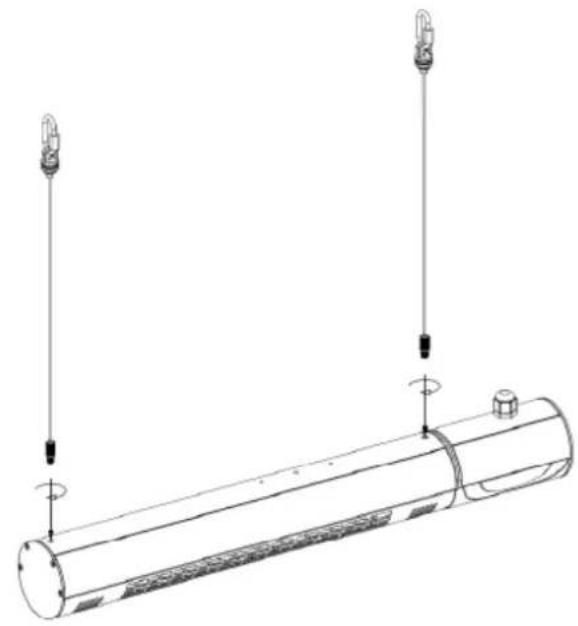

Adjust the length of the steel wire

Technical diagram of a mechanical device with no visible text or symbols

2

Unscrew the hook nut in direction of arrow.

Lossa muttern i pilens riktning.

Diagram showing two mechanical components with directional arrows indicating motion (no text or symbols)

Tigthen the nut in direction of rotation arrow.

Line drawing of a handheld electronic device with wires and connectors (no text or symbols)
