211-413 - Heating appliance Hortus - Free user manual and instructions

Product Type	Heating Appliance
Brand	Hortus
Model	211-413
Dimensions (approx.)	40 cm x 30 cm x 20 cm
Weight (approx.)	3.5 kg
Power	2000 W
Voltage	220-240 V
Frequency	50/60 Hz
Heating Type	Convection
Thermostat	Adjustable
Safety Features	Overheat protection, tip-over switch
Material	Plastic and painted metal
Cord Length	1.5 m
Control Type	Manual dial
Cleaning & Maintenance	Wipe with a damp cloth; do not immerse
Spare Parts & Repairability	Spare parts available from manufacturer; user repairable only by qualified personnel
General Information	Includes user manual; suitable for indoor use only

Frequently Asked Questions - 211-413 Hortus

How do I clean the Hortus 211-413 heating appliance?

Always unplug the heater before cleaning. Use a soft damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse in water.

Can I leave the heater unattended?

It is not recommended to leave the heater unattended. The unit has overheat protection and a tip-over switch, but for safety, always turn it off when leaving the room.

Is the Hortus 211-413 suitable for bathroom use?

No, this heater is designed for indoor dry areas only. It should not be used in bathrooms or other humid environments to avoid electric shock.

What is the energy efficiency of this heater?

The heater operates at 2000W with an adjustable thermostat. Energy efficiency depends on usage. For best efficiency, set the thermostat to a moderate temperature and use in a well-insulated room.

Does the heater make noise?

The convection heating type is virtually silent. You may hear the thermostat click on and off, but no fan noise.

What is the warranty period?

Typically, Hortus offers a 1-year warranty against manufacturing defects. Check the included manual for specific terms or contact customer support.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord rated for at least 2000W.

How do I adjust the temperature?

Turn the thermostat dial on the heater to your desired setting. The heater will cycle on and off to maintain the temperature.

The heater doesn't turn on. What should I check?

First, ensure it is plugged in and the outlet is working. Check if the thermostat is set above room temperature. If still not working, the tip-over switch may be activated—place the heater on a stable flat surface.

Where can I find spare parts?

Spare parts are available directly from the manufacturer. Contact Hortus customer service or visit their official website. Provide the model number 211-413 for accurate parts.

USER MANUAL 211-413 Hortus

Exterior view of a black cylindrical outdoor heater with grid pattern and heat sink (no text or symbols visible)

Infrared Carbon Golden Tube 1800W

DA

Brugsanvisning

Line drawing of a vertical cylindrical device with a grid-patterned panel and base (no text or symbols)

Produktspecifikationer
Model no. ZHQ	1848-RM
Varenr. 211-4	13
Strømkilde 230V	AC ~ 50 Hz
Strømforbrug 1800W
Kapslingsklasse IP	55

BRUGSANVISNING

Close-up of a black square button with white letter 'I' and circular mark (no text or symbols beyond basic design)

fig. 1

ON OFF

fig. 2

Close-up of a blue glowing object on a dark surface, resembling a droplet or lens (no text or symbols visible)

fig. 3

GB

Instructions

Read the instructions carefully before installing the patio heater and then store the instruction manual in a safe place. Keep the instructions for use for any future questions about using your product. The patio heater is designed and manufactured in accordance with European standards: CE, RoHS. The product complies with the essential requirements of the directives: EN 60335-2-30:2009, EN 60335-1: 2012.

• The patio heater can be used by children from 8 years and upwards if they are supervised or have received instructions in using the patio heater safely and understand possible hazards. Children are not allowed to play with the patio heater. Cleaning and user maintenance must not be carried out by unsupervised children. Children under 3 years of age must be kept away from the patio heater unless continuously supervised. Children over 3 years of age and younger than 8 years of age may only turn the patio heater on off if they are supervised or have been trained on how to use the patio heater safely and have understood the resulting hazards; This provided that:

- The patio heater is located or installed in its normal place of use. Children over 3 years old and younger than 8 years old should not plug the patio heater into the wall outlet, adjust the heater, clean the patio heater and/or perform any maintenance.

- Extreme caution is necessary when the patio heater is used by or near children or disabled persons, as well as whenever the patio heater is left on and unattended.

- CAUTION – Some parts of this product can get very hot and cause burns. Particular attention must be paid where children and vulnerable people are present.

- The user may only connect the patio heater to a power outlet using the standard cable of the device. If standard cable needs to be changed or if the patio heater needs to be permanently connected to an electrical outlet, the installation must be done by a licensed electrician. While the installation is being carried out, the main power should always be interrupted. Turn on the patio heater only when all cables are connected correctly.

- The patio heater must only be connected to a timer that turns off the unit after the set time. Do not connect the patio heater to a timer that starts the patio heater automatically.

- When using electrical appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock or injury, including the following;

- This patio heater is warm when in use. To avoid burns, do not let the bare skin touch the hot surfaces. If possible, use lift handles or brackets when moving the patio heater. Store flammable materials, such as furniture, pillows, bedding, papers, clothing and curtains at least 90 cm from the front of the patio heater.

• Always unplug the heater from the wall socket when not in use.

- Do not use the patio heater if the cord or plug is damaged. Also, do not use the patio heater after a malfunction or if it is dropped or otherwise damaged. Discard the patio heater in case of severe damage or contact the dealer for possible repair of the damage.

- Do not run the cord under blankets. Do not cover the cord with solid blankets, runners or similar coatings. Do not run the cord under furniture or appliances. Place the cord away from hallways to avoid tripping over the wire.

- Do not use the patio heater in the immediate vicinity of a bath, shower or swimming pool.

- Do not use the patio heater outdoors in bad weather, such as rain, snow or storm.

- Connect only to grounded sockets/power outlets.

- Do not place or install the patio heater directly under an electrical outlet /power outlet.

- To disconnect the patio heater, turn off the switch and then remove the plug from the wall outlet.

- Do not insert or allow foreign objects to enter any ventilation or grille opening, as this may cause electric shock, fire or damage the patio heater.

- To prevent a possible fire, air intakes or grilles must not be blocked in any way. Do not place the patio heater on soft surfaces such as a bed where the vents may become blocked.

- Do not use the patio heater in areas where gasoline, paint or flammable liquids are used or stored.

- Check whether the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before connecting the patio heater.

- Do not touch the appliance. Warning! Risk of burning!

- In case of improper use, there is a risk of electric shock and / or fire hazard. The operation of the appliance must be interrupted and the plug must be unplugged immediately. Do not attempt to repair the appliance yourself. Contact the dealer or a licensed electrician for repair.

Cleaning and maintenance.

- The patio heater consists of a robust and maintenance-free aluminum / metalhousing with protective grilles. Contains no replaceable or serviceable parts.

- Before cleaning, pull the plug out of the socket. Wait for the patio heater to cool completely before starting any cleaning.

- The patio heater is wiped with lint-free cloth, skin cloth or brushed off with a soft brush.

- Never use detergents, abrasives or hard brushes for cleaning.

- Never attempt to disassemble the patio heater to clean the reflector or change pipes.

- To avoid electric shock, the cord, plug or patio heater must never come into contact with water or other liquid.

- When replacing the infrared tube, please contact the place where the item was purchased or the importer.

Troubleshooting

Follow the troubleshooting steps below:

- Make sure that the mains lead is connected correctly.

- Check if the cable is damaged.

- The ON/OFF switch must be on.

- Check if the pipe is burst.

- If the product is turned off due to improper use, disconnect the product from the wall outlet and cool. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try connecting the product again. Please contact the dealer if this does not solve your problem.

Storage

Store in a dry place and free of dust. Take the patio heater inside and store it dry, possibly in a bag or get a cover, which can be purchased for most models.

Disposal

The European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) requires that old household appliances are not thrown into the normal municipal waste stream. The appliances must be assembled to maximise the recovery/recycling of materials and reduce the impact on human health and the environment. The “crossed out bin” symbol is stamped on the product to help them remember collection obligations. Consumers should contact their distributor or local authorities regarding the procedure to be followed when disposing of their product.

Customer service / Warranty

• Repairs must be carried out by a licensed installer/electrician, ensuring electrical safety.
- Please contact the dealer or an authorized installer/electrician.
- Improper repair can lead to danger to the user.

Customer service / Warranty

• Warranty period begins from date of purchase. Invoice or proof of purchase must be shown in all warranty cases. In case of a warranty matters, please contact dealer of the product or the place the product is purchased.
• This warranty does not cover damage caused by defects caused by alteration, accident, misuse, neglect or improper maintenance.
• In accordance with our policy on continuous product development, we reserve the right to change product and documentation specifications without notice.

Line drawing of a vertical rectangular device with internal grid pattern and a small button at the base (no text or symbols)

Product specifications
Model no. ZHQ	1848-RM
Art. no. 211-4	13
Power source 230V AC ~ 50 Hz
Consumption 1800W
Protection class IP	55

OPERATING INSTRUCTIONS

1. Install the heater as shown on page 12 in the manual.
2. Connect the heater to a 230V \~ 50Hz power outlet.
3. Only use the heater when it is mounted as shown on page 12.
4. Turn the heater ON or OFF by pressing the ON/OFF button as shown below (fig. 1).
5. Push the ON/OFF button on the control panel to turn the heater ON or OFF (fig. 1) and use the soft touch (fig. 3) or the included remote control (fig. 2) to turn the heater ON or OFF.
6. When the heater is not in use turn the heater OFF on the control panel, on the soft touch or on the remote control and deactivate the heater by turning the button shown in figure 1 OFF.
7. Always disconnect the power cable from the electrical supply, when the patio heater is not in use.

Turning ON/OFF

Close-up of a black square button with white lettering, no readable text or symbols beyond the 'I' and 'O' indicators.

fig. 1

ON OFF

fig. 2

Close-up of a blue glowing object on a dark surface (no text or symbols visible)

fig. 3

Line drawing of a vertical cylindrical device with internal grid structure (no text or symbols)

Close-up of a black square button with white lettering and an 'O' mark (no readable text or symbols beyond the letter)

fig. 1

ON OFF

fig. 2

Close-up of a blue glowing circular object on a dark surface (no text or symbols visible)

fig. 3

NO

Instruksjoner

General safety instructions

• Bruk kun produktet på flatt og stabilt underlag.
• Produktet og ovnens gitter, må ikke tildekkes.
• Bruk ikke produktet tett på gardiner og andre brennbare materialer.
• Før ikke inn fremmedobjekter i varmekilden bak gitteret.
• Bruk ikke produktet ved dårlig vær som regn, storm eller snø.
• Bruk ikke produktet med en tidsstyring, timer eller annet automatisk utstyr som tenner og slår av produktet. Dette kan øke risikoen for brann, hvis produktet er tildekket eller plassert feil.
• Plasser ikke ovnen direkte under et strømuttak.
• Plasser ikke ovnen rett ved badebasseng, bad eller våtrom.
• Produktet må alltid tas inn etter bruk og la produktet avkjøle seg før eventuell nedpakking av produktet.

Line drawing of a vertical industrial tower with ventilation grilles and a base (no text or symbols)

Close-up of a black square button with white letter 'I' and circular mark (no additional text or symbols)

fig. 1

ON OFF

fig. 2

Close-up of a blue glowing circular object on a dark surface (no text or symbols visible)

fig. 3

Line drawing of a vertical cylindrical device with internal grid structure (no text or symbols)

Close-up of a black square button with an 'I' and a small circle on the side (no text or symbols beyond basic markings)

Kuva 1

ON OFF

Kuva 2

Close-up of a blue glowing circular object on a dark surface (no text or symbols visible)

Kuva 3

1

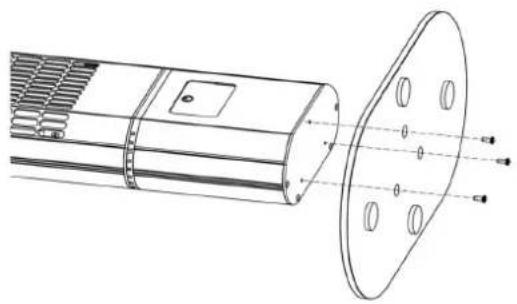

Technical line drawing of a mechanical component with internal features and dimension lines (no text or symbols)

2

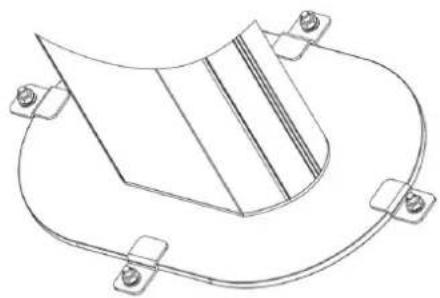

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

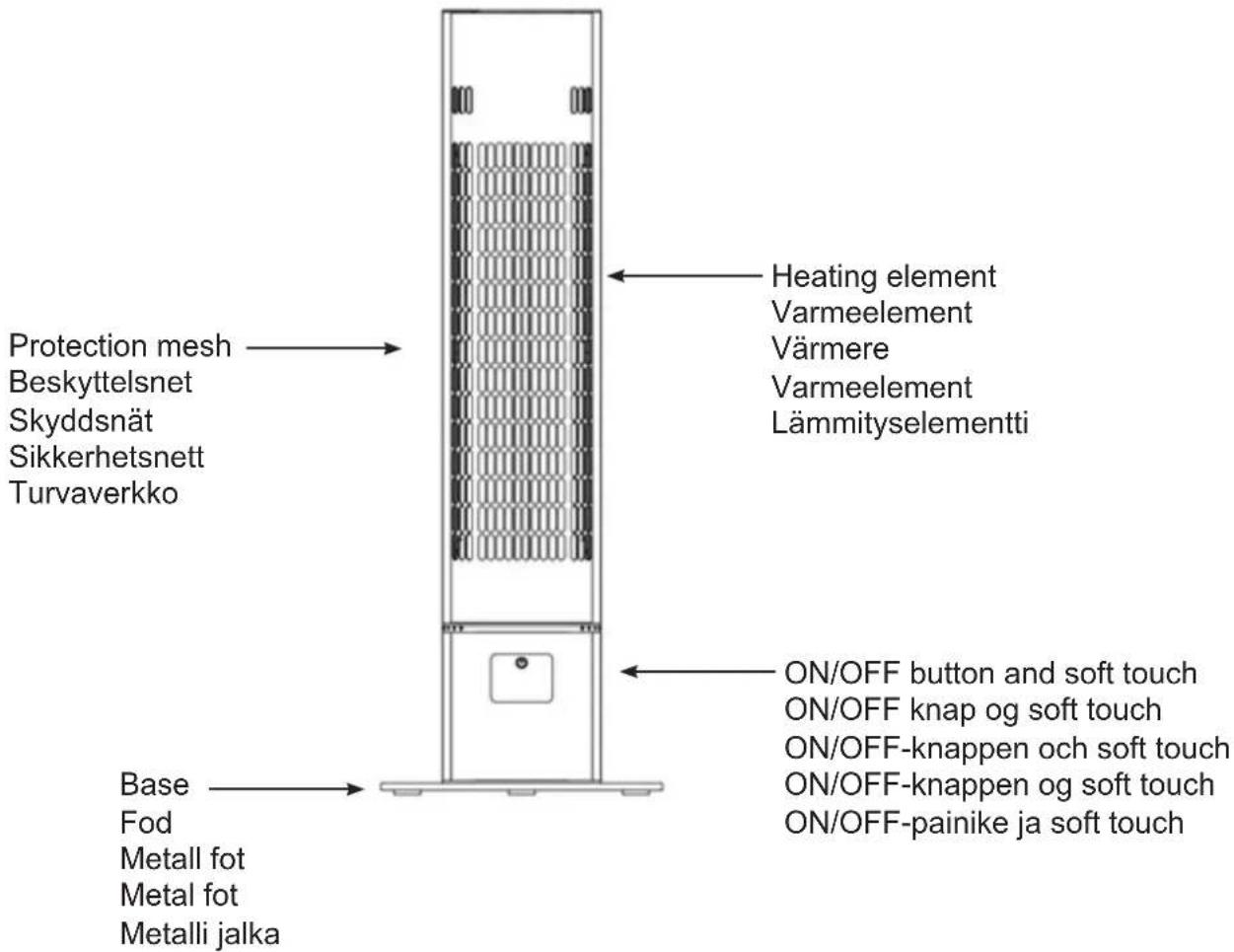

Protection mesh Beskyttelsnet Skyddsnät Sikkerhetsnett Turvaverkko Heating element Varmeelement Värmere Varmeelement Lämmityselementti ON/OFF button and soft touch ON/OFF knap og soft touch ON/OFF-knappen och soft touch ON/OFF-knappen og soft touch ON/OFF-painike ja soft touch Base Fod Metall fot Metal fot Metalli jalka

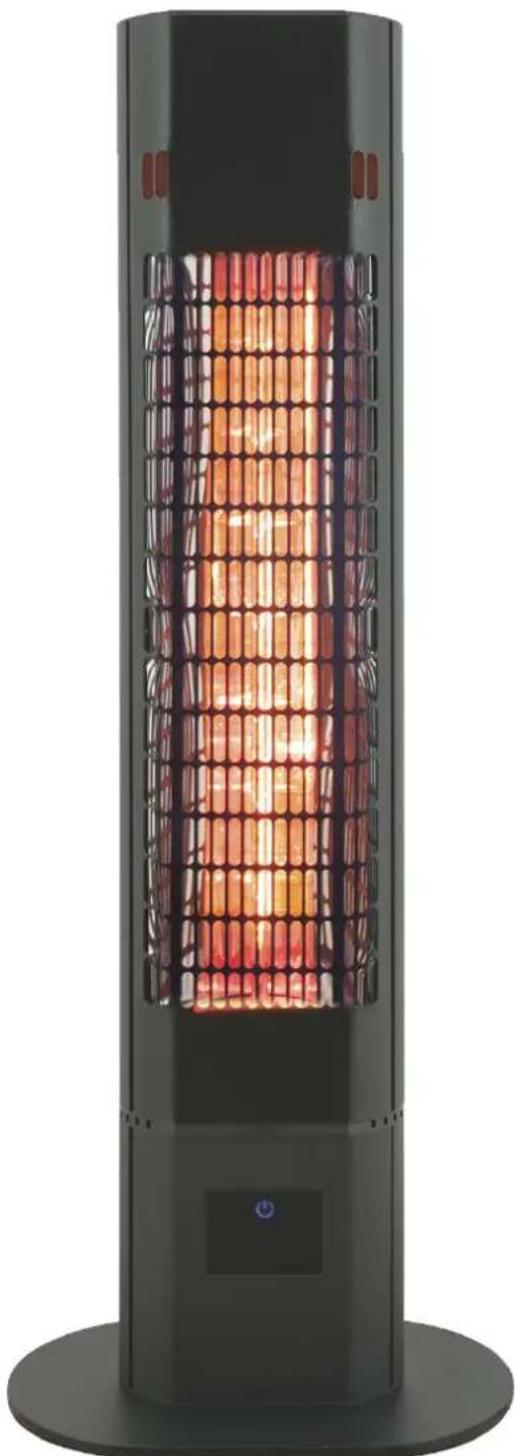

Exterior view of a black cylindrical outdoor heating tower with a grid-patterned interior and a digital display (no text or symbols visible)

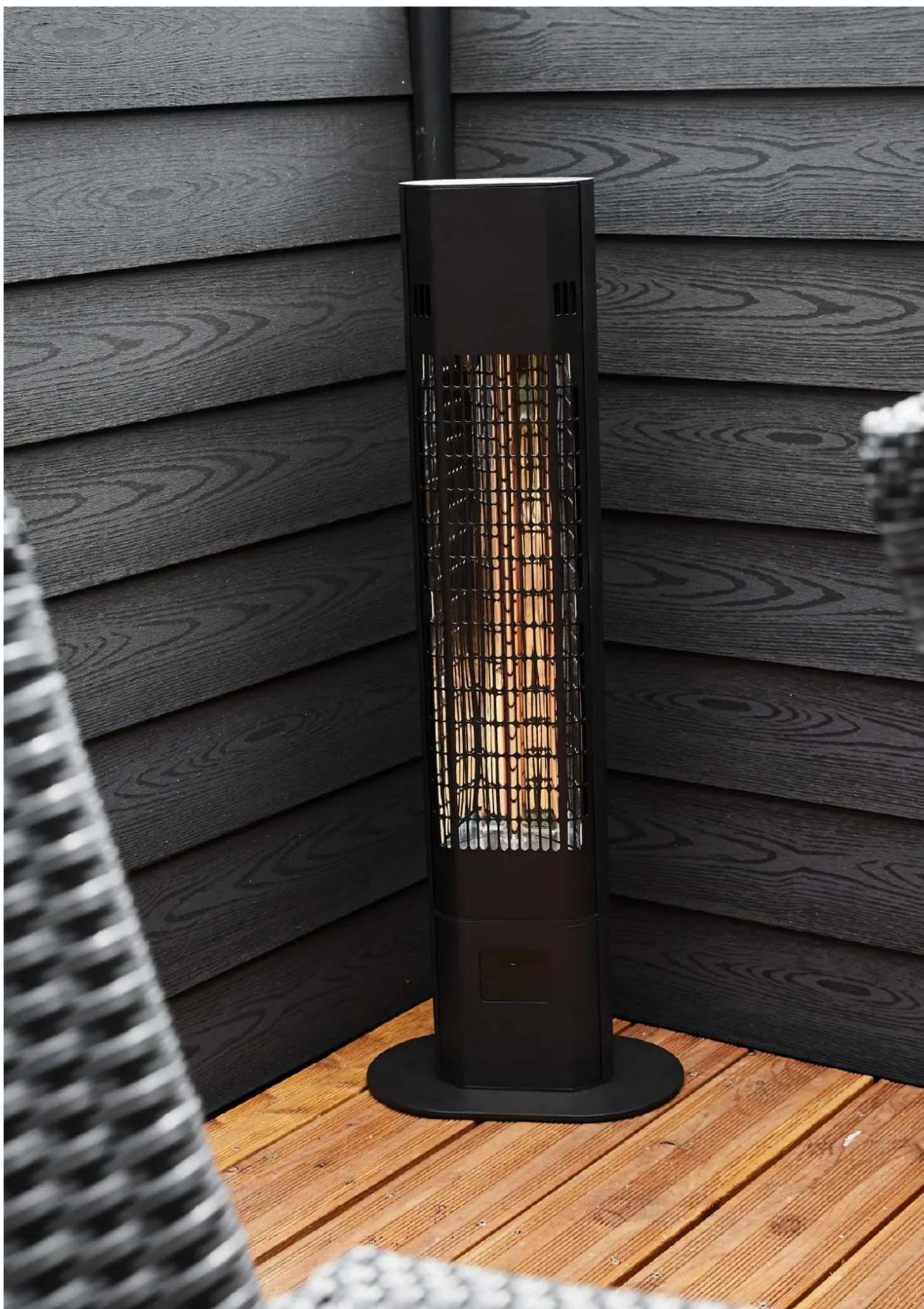

Exterior view of a black outdoor heating tower with lattice grating, placed on a wooden deck against a dark wood paneled wall (no text or symbols visible)
