Product Type	Heating Appliance
Brand	Hortus
Model	211-415
Power Source	Electric
Rated Power	1500 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	30 x 20 x 15 cm (approx.)
Weight	2.1 kg (approx.)
Heating Element	Ceramic / PTC
Thermostat	Adjustable
Overheat Protection	Yes
Tip-Over Switch	Yes
Fan Speed Settings	2 or 3 speeds
Timer (max)	12 hours
Safety Certifications	CE, RoHS
Cord Length	1.5 m
Material	Plastic and metal
Cleaning	Wipe with dry cloth, clean grille regularly
Spare Parts Available	Heating element, filter, cord, switch
Warranty	2 years

Frequently Asked Questions - 211-415 Hortus

How do I turn on the heater?

Plug the heater into a power outlet and press the power button on the unit or remote (if applicable). Adjust the thermostat to your desired temperature.

What is the recommended placement?

Place the heater on a flat, stable, non-flammable surface. Keep it at least 1 meter away from curtains, furniture, or other combustible materials. Do not use in wet areas like bathrooms.

Can I leave it on overnight?

Yes, models with overheat protection and tip-over switch are designed for safe use during sleep. However, always follow the manual and avoid covering the heater.

How do I clean the heater?

Unplug the heater and let it cool completely. Wipe the exterior with a soft, dry cloth. Use a soft brush or vacuum to clean the grille and air intake. Never use water or harsh chemicals.

What does the overheat protection do?

If the internal temperature exceeds a safe limit, the overheat protection automatically shuts off the heater to prevent fire risk. It will reset once the unit cools down.

Does it have a timer?

Yes, the heater includes a programmable timer that allows you to set the operating time from 1 to 12 hours. After the set time, the heater turns off automatically.

Is it suitable for bathrooms?

This heater is not rated for wet locations. It should not be used in bathrooms, near water, or in high humidity areas to avoid electric shock.

What if the heater doesn't blow hot air?

First, check that the thermostat is set above room temperature. If the heater still blows cold air, the heating element may be damaged. Contact customer support for replacement.

Can I repair it myself?

Basic maintenance like cleaning is safe. For electrical repairs, such as replacing the cord or switch, it is recommended to contact a qualified technician or the manufacturer.

Where can I find spare parts?

Spare parts can be ordered through Hortus customer service or from authorized dealers. Common parts include the heating element, filter, and power cord. Check the manual for part numbers.

USER MANUAL 211-415 Hortus

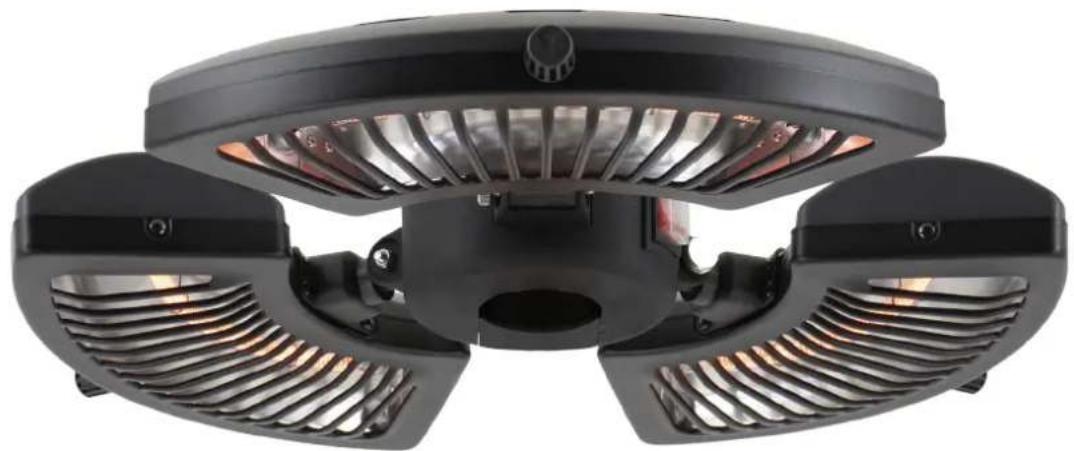

Black industrial fan with three side blades and a central fan blade, no visible text or symbols

2400W (3 x 800 Watt)

DA

Brugsanvisning

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or movement.

a) Position 1. (vandret).

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

Technical diagram of a mechanical device with labeled parts 1, 2, and 3, showing internal components and assembly lines.

Technical line drawing of a mechanical device with labeled parts (1, 2), showing internal components and assembly (no text or symbols beyond labels)

Anvendelse:

Read the instructions carefully before installing the patio heater and then store the instruction manual in a safe place. Keep the instructions for use for any future questions about using your product. The patio heater is designed and manufactured in accordance with European standards: CE, RoHS. The product complies with the essential requirements of the directives: EN 60335-2-30:2009, EN 60335-1: 2012.

- The patio heater can be used by children from 8 years and upwards if they are supervised or have received instructions in using the patio heater safely and understand possible hazards. Children are not allowed to play with the patio heater. Cleaning and user maintenance must not be carried out by unsupervised children. Children under 3 years of age must be kept away from the patio heater unless continuously supervised. Children over 3 years of age and younger than 8 years of age may only turn the patio heater on off if they are supervised or have been trained on how to use the patio heater safely and have understood the resulting hazards;

This provided that:

- The patio heater is located or installed in its normal place of use. Children over 3 years old and younger than 8 years old should not plug the patio heater into the wall outlet, adjust the heater, clean the patio heater and/or perform any maintenance.

- Extreme caution is necessary when the patio heater is used by or near children or disabled persons, as well as whenever the patio heater is left on and unattended.

- CAUTION – Some parts of this product can get very hot and cause burns. Particular attention must be paid where children and vulnerable people are present.

- The user may only connect the patio heater to a power outlet using the standard cable of the device. If standard cable needs to be changed or if the patio heater needs to be permanently connected to an electrical outlet, the installation must be done by a licensed electrician. While the installation is being carried out, the main power should always be interrupted. Turn on the patio heater only when all cables are connected correctly.

- The patio heater must only be connected to a timer that turns off the unit after the set time. Do not connect the patio heater to a timer that starts the patio heater automatically.

- When using electrical appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock or injury, including the following;

- This patio heater is warm when in use. To avoid burns, do not let the bare skin touch the hot surfaces. If possible, use lift handles or brackets when moving the patio heater. Store flammable materials, such as furniture, pillows, bedding, papers, clothing and curtains at least 90 cm from the front of the patio heater.

• Always unplug the heater from the wall socket when not in use.

- Do not use the patio heater if the cord or plug is damaged. Also, do not use the patio heater after a malfunction or if it is dropped or otherwise damaged. Discard the patio heater in case of severe damage or contact the dealer for possible repair of the damage.

- Do not run the cord under blankets. Do not cover the cord with solid blankets, runners or similar coatings. Do not run the cord under furniture or appliances. Place the cord away from hallways to avoid tripping over the wire.

- Do not use the patio heater in the immediate vicinity of a bath, shower or swimming pool.

- Do not use the patio heater outdoors in bad weather, such as rain, snow or storm.

- Connect only to grounded sockets/power outlets.

- Do not place or install the patio heater directly under an electrical outlet /power outlet.

- To disconnect the patio heater, turn off the switch and then remove the plug from the wall outlet.

- Do not insert or allow foreign objects to enter any ventilation or grille opening, as this may cause electric shock, fire or damage the patio heater.

- To prevent a possible fire, air intakes or grilles must not be blocked in any way. Do not place the patio heater on soft surfaces such as a bed where the vents may become blocked.

- Do not use the patio heater in areas where gasoline, paint or flammable liquids are used or stored.

- Check whether the voltage indicated on the nameplate of the appliance corresponds to the local mains voltage before connecting the patio heater.

- Do not touch the appliance. Warning! Risk of burning!

- In case of improper use, there is a risk of electric shock and / or fire hazard. The operation of the appliance must be interrupted and the plug must be unplugged immediately. Do not attempt to repair the appliance yourself. Contact the dealer or a licensed electrician for repair.

Cleaning and maintenance.

- The patio heater consists of a robust and maintenance-free aluminum / metalhousing with protective grilles. Contains no replaceable or serviceable parts.

- Before cleaning, pull the plug out of the socket. Wait for the patio heater to cool completely before starting any cleaning.

- The patio heater is wiped with lint-free cloth, skin cloth or brushed off with a soft brush.

- Never use detergents, abrasives or hard brushes for cleaning.

- Never attempt to disassemble the patio heater to clean the reflector or change pipes.

- To avoid electric shock, the cord, plug or patio heater must never come into contact with water or other liquid.

- When replacing the infrared tube, please contact the place where the item was purchased or the importer.

Troubleshooting

Follow the troubleshooting steps below:

- Make sure that the mains lead is connected correctly.

- Check if the cable is damaged.

- The ON/OFF switch must be on.

- Check if the pipe is burst.

- If the product is turned off due to improper use, disconnect the product from the wall outlet and cool. Check the product for defects after 30 minutes of cooling. If there are no visible defects, try connecting the product again. Please contact the dealer if this does not solve your problem.

Storage

Store in a dry place and free of dust. Take the patio heater inside and store it dry, possibly in a bag or get a cover, which can be purchased for most models.

Disposal

The European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) requires that old household appliances are not thrown into the normal municipal waste stream. The appliances must be assembled to maximise the recovery/recycling of materials and reduce the impact on human health and the environment. The “crossed out bin” symbol is stamped on the product to help them remember collection obligations. Consumers should contact their distributor or local authorities regarding the procedure to be followed when disposing of their product.

Customer service / Warranty

• Repairs must be carried out by a licensed installer/electrician, ensuring electrical safety.

- Please contact the dealer or an authorized installer/electrician.

- Improper repair can lead to danger to the user.

Customer service / Warranty

• Warranty period begins from date of purchase. Invoice or proof of purchase must be shown in all warranty cases. In case of a warranty matters, please contact dealer of the product or the place the product is purchased.
• This warranty does not cover damage caused by defects caused by alteration, accident, mis use, neglect or improper maintenance.
• In accordance with our policy on continuous product development, we reserve the right to change product and documentation specifications without notice.

Assembly Instruction

Unpack the Electric Patio Heater making sure that all the items are present.

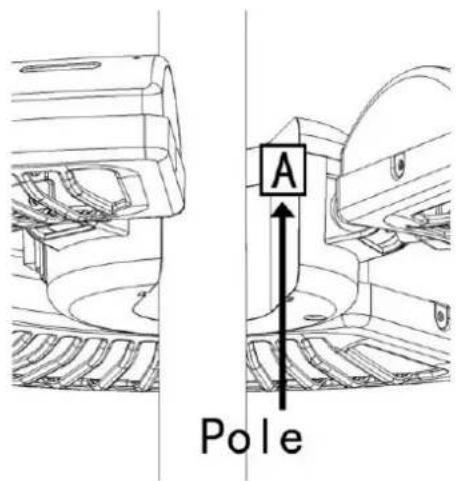

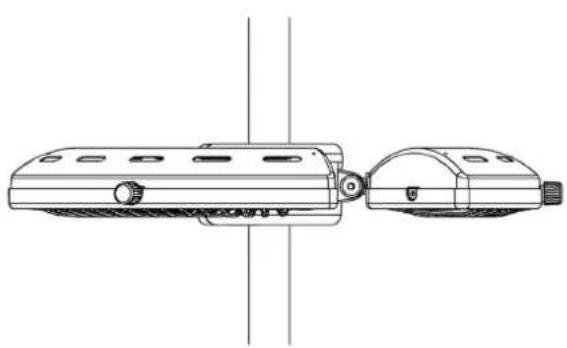

Step 1: Place the Heater Mounting Part A on a Pole which diameter is between 25 mm – 60 mm.

A Pole

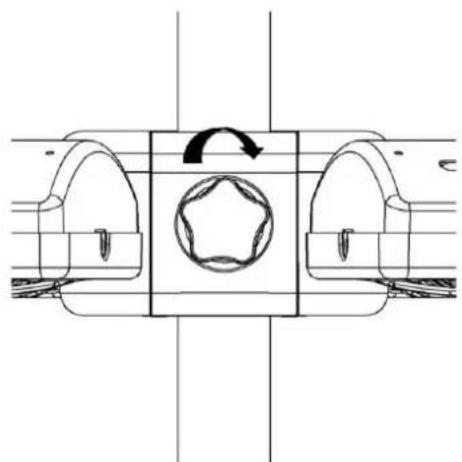

Step 3: Turn the Fixation Screw until the Mounting Part A is fixed on the pole

Technical line drawing of a mechanical component with no visible text or symbols

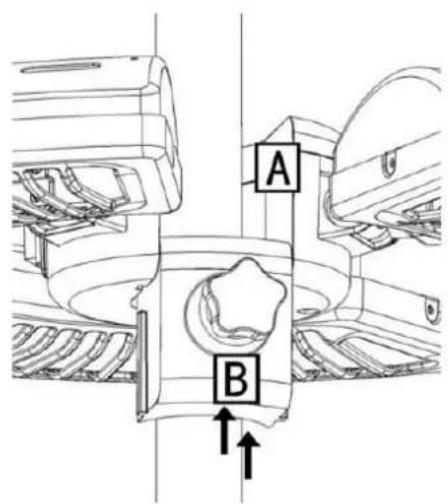

Step 2: Slip the Mounting Part B and fit it to the Mounting Part A from the bottom up.

A B

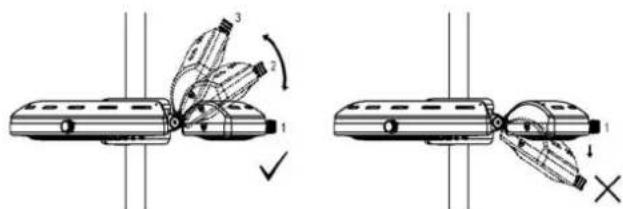

Step 4: The machine can use 3 swing angles.

• Note: Before making angle adjustment, the machine must be turned off and cooled down.
• Use the head horizontally, or swing it up (as shown on the left as shown below); be careful not to press down when the head is level (as shown on the right as shown below)

Technical diagram showing two mechanical assembly states with labeled components and directional arrows indicating movement or assembly.

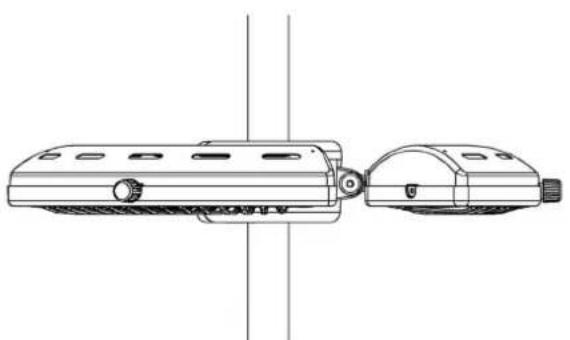

a) Head level is 1st gear.

Technical line drawing of a device with two views: top view shows a flat panel and bottom view shows a curved tray (no text or symbols)

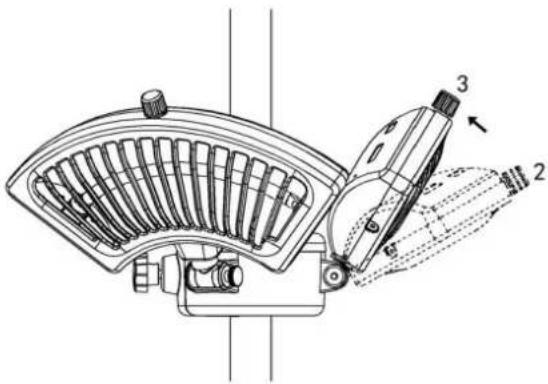

c) The left hand supports the switch box, and the right hand pushes up one more block to make three blocks.

Technical diagram of a mechanical device with labeled parts 2 and 3, showing internal components and assembly lines.

Storage

If the heater will not be used for a long period of time, store it in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.

Technical Specification

• Power supply 220-240V\~ 50Hz
- Wattage max 2400W
• Insulation class I

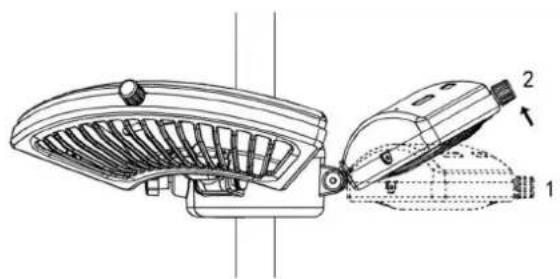

b) The left hand supports the switch box, and the right hand pushes up one block to form the second gear.

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal components and assembly lines.

Operation

Connect the power cable to supply that is located in a safe, dry area.

• The switch on the heater head is used to control the three heat settings. (I) for 800W – (II) for 1600W – (I&II) for 2400W. The 0 position is off.
• Although the patio heater is shower proof, do not use when raining or in wet conditions.
• Always disconnect the power cable from the electrical supply, when the patio heater is not in use.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing mechanical assembly steps with numbered components and directional indicators

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

Technical diagram of a mechanical device with labeled parts 2 and 3, showing internal components and assembly lines.

Technical line drawing of a mechanical device with labeled parts (1, 2), showing internal components and alignment lines (no text or symbols beyond labels)

Använding:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing two mechanical assembly states with labeled components and directional arrows indicating movement or force.

a) Asento 1 (vaakataso).

Technical line drawing of a mechanical device with two views (top and side), no text or symbols present.

Technical diagram of a mechanical device with labeled parts 2 and 3, showing internal components and assembly lines.

Technical line drawing of a mechanical device with labeled parts (1, 2), showing internal components and assembly (no text or symbols beyond labels)

Käyttö
