USER MANUAL SCF260 PHILIPS

US Thank you for choosing Philips AVENT

The Philips AVENT iQ Bottle and Baby Food Warmer is the only warmer with advanced iQ Technology, designed to smartly and accurately adjust warming time based on contents and amount. Whether warming milk or baby food that is frozen, chilled or at room temperature, the iQ Bottle and Baby Food Warmer heats quickly, safely and evenly – with no hot spots. The versatile design holds all AVENT Bottles, VIA Cups, Tempo and baby food jars.

Please take 5 minutes to read through the ENTIRE INSTRUCTION LEAFLET including the warnings before using your iQ Bottle and Baby Food Warmer for the first time. PLEASE RETAIN THESE INSTRUCTIONS for future reference. Instructions are also available at www.philips.com/AVENT.

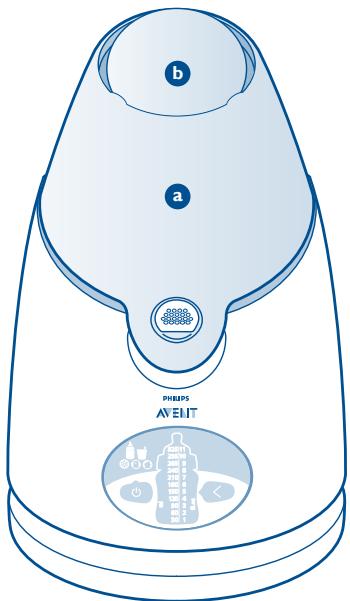

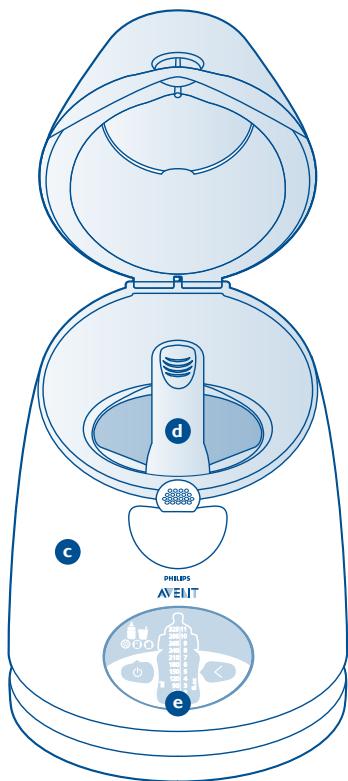

Contents:

a. Lid
b. Lid Flap - Lifts to accommodate larger bottles (11oz/330ml) and Tempo (8oz/236ml)
c. Warmer Base
d. Lifter
e. Interactive Electronic Display

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• To ensure continued protection against the risk of electric shock, connect to properly grounded outlets only.
• Pre-heating of this unit is not necessary.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord or plugs in water or other liquid.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. There are no serviceable parts inside the iQ Bottle and Baby Food Warmer. Do not attempt to open, service or repair the warmer yourself.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot liquids.
• Do not use appliance for other than intended use.
• A short power-supply cord has been provided to prevent the risk of becoming entangled or being tripped over.
• Extension cords may be used if care is exercised in their use.
• If an extension cord is used, its electrical rating must be as great as the rating of the appliance and not draped over the edge of the table top where it could be pulled by children or tripped over. The extension cord should be a grounded type 3 wire cord.

WARNING - Failure to follow instructions may cause scalding or damage to product.

• The iQ Bottle and Baby Food Warmer is fitted with a non-rewirable moulded plug. The power cord of the appliance CANNOT be replaced. If the cord is damaged, the appliance should be discarded. The supplied cord must not be

used on any other appliance and no other cord should be used with the iQ Bottle and Baby Food Warmer.

• This product is manufactured to comply with the Radio Interference Requirements and the EEC Directive 89/336/EEC.
• Always ensure water has been added before switching on the warmer.
• Always ensure that you are using the correct volume of water before beginning the warming cycle. The warmer should be emptied of residual water before each subsequent use.
• Heating food jars from frozen within this warmer is NOT RECOMMENDED.
• To avoid possible scalding, do not place hands over the lid flap or open the lid flap during the warming cycle.
• When warming an 11oz/330ml bottle or an 8oz/236ml Tempo, the lid flap will lift to accommodate the larger size. This will cause a small amount of steam to rise from the warmer.
• To avoid possible scalding, take care when opening the lid after a completed cycle as there may be some residual steam.
• When in use, the warmer contains hot water. Be careful to avoid spilling any water on yourself when removing contents from the warmer.
• Use the lifter to remove small bottles, VIA Cups and small food jars after the warming cycle is complete.
  Always use a cloth when removing bottles, cups and jars from the warmer.
• Always check feed temperature before feeding.
• For microbiological and hygienic reasons, once heated, milk and food should not be reheated again.
• Never immerse the warmer or power cord in water.
• Close supervision is necessary when this product is used near children or persons with disabilities.
• Failure to follow de-scaling instructions may cause irreparable damage.

SAVE THESE INSTRUCTIONS

Spoon

For age range 6m+
- Small-bowled spoons specially designed for small mouths and tender gums.
- Long handle - easy to hold, use and clean.
- Shaped for easier feeding without spills.

Warning! For your child's safety and health.

Before first use clean the product. Dishwasher safe. Sterilize using a Philips AVENT Steam Sterilizer or boil for 5 minutes. Before each use, inspect the product. Throw away at the first sign of damage or weakness. Do not leave in sunlight when not in use or for longer than recommended in heat or sterilizing solution, as this may weaken the product. Always use this product with adult supervision Always check food temperature before feeding.

Interactive Electronic Display Guide

Milk Mode (in ANY container)	Power/Mode Selection Button – Hold button for 3 seconds to switch the warmer on/off. Press repeatedly to select milk or baby food and starting temperature.
Baby Food Mode (in ANY container)
Freezer Temperature Mode (Select when warming from frozen)	Volume Selection/Start Button – Press repeatedly to select the volume of milk or food. Once desired selections are made, hold button for 3 seconds to start warming cycle.
Fridge Temperature Mode (Select when warming from chilled)
Room Temperature Mode (Select when warming from room temperature)	150 | 5 120 | 4 90 | 3 60 | 2 30 | 1 f1 oz | Volume Display – Displays the selected amount of liquid or food in both oz and ml.

Note: While pressing the Power/Mode Selection or Volume Selection/Start Button, please hold the warmer base to prevent the warmer from slipping.

Water Amount Required

	1oz / 30ml
	5oz / 150ml
	5oz / 150ml

Note: If you find that thicker foods are not warm enough at the end of the warming cycle, consult the Troubleshooting Guide.
Note: Warming food jars from frozen is NOT recommended. However, you can warm frozen food in VIA Cups within the warmer.

Approximate Warming Times

Milk 4oz/120ml from room temperature	2 mins
Milk 4oz/120ml from chilled	3 mins
Milk 9oz/265ml from room temperature	3 mins
Milk 9oz/265ml from chilled	4.5 mins
Food 8oz/240ml from room temperature	5 mins
Food 8oz/240ml from chilled	7 mins

i
ii
111
iv

Instructions for Use

1. Ensure that the warmer is placed on a firm level surface.

Open the lid using the front catch, and fill the warmer with the appropriate amount of water (i) - See chart on page 5 to determine water amount.

Place the fully assembled bottle or nurse (including dome cap to prevent overheating) or storage container with lid in the warmer. For food jars, please refer to manufacturer's instructions.

Note: When warming an 11oz/330ml bottle or an 8oz/236ml Tempo, the lid flap will lift to accommodate the larger size. This will cause a small amount of steam to rise from the warmer.

Close the lid ensuring that the front catch clicks' shut.

1. Plug in the warmer.
2. Switch on the warmer by holding the Power/Mode Selection Button for 3 seconds (ii).

The warmer will beep, and the milk, room temperature and oz/ml symbols will illuminate. It is now ready for use. If the lid has not been closed correctly, the symbols will flash.

When the unit is switched on, it automatically defaults to the milk/room temperature mode. If this is the mode you need, go to step 5. If not, proceed to step 4.

1. Choose milk or food, and select the starting temperature (iii) by pressing the Power/Mode Selection Button repeatedly until the desired symbols are illuminated.

Please note that there are 6 possible options: milk from room temperature, milk from chilled, milk from frozen, food from room temperature, food from chilled, and food from frozen. (See Display Guide on page 5 if needed.)

Note: Warming food jars from frozen is NOT recommended.

Note: Please ensure that the correct options are selected, as milk and food should not be heated for too long.

1. Select the amount of milk or food in the bottle or container by repeatedly pressing the Volume Selection/Start Button until the desired volume is illuminated (iv). If the desired amount is not shown on the display, please select the amount nearest to it.
   Note: For volumes in grams, select the same amount in ml (e.g. for 80g select 80ml).
   Note: The maximum volume that may be selected when warming food from frozen is 8oz/240ml.
2. Start the warming cycle (v): Once the desired settings are illuminated, hold down the Volume Selection/Start Button until the warmer beeps. The volume display will now flash ascending and descending lights up to the selected amount. The warming cycle is in progress – Do not open the lid.

V
vi
vii
viii

1. Completion of warming cycle (vi): When the cycle is complete, the warmer will beep intermittently for 30 seconds and all the volume display lights will continuously flash for 3 minutes. You can remove the contents as soon as the warmer begins beeping. After 3 minutes, the warmer will beep 5 times and will turn off automatically.

Note: Philips AVENT recommends removing and using the contents immediately when the warming cycle is complete, even before the warmer automatically turns off.

1. Open the lid carefully to avoid any residual steam.

Be careful when opening the lid as steam can escape and cause injury. Use a cloth when removing the container, as it may be hot (vii). Use the lifter to raise small bottles, VIA Cups or small food jars. Pull the lifter just above the circular rim. Rest the lifter on the rim where it naturally sits.

Note: Do not remove the lifter from the warmer.

1. Before feeding your baby: Always check feed temperature before feeding

(a) Milk - shake the bottle, n统er or milk storage container and check the temperature of the milk by sprinkling a few drops on the back of your hand.
(b) Food - stir the food thoroughly and test it yourself with a spoon to ensure it is not too hot. If food is not warm enough, consult the Troubleshooting Guide.

Note: Please ensure the lid of the container is tightly secured prior to shaking.

1. Unplug the warmer and empty any residual water (viii). Ensure that the plug does not come into contact with water. If warming an additional bottle or container, continue from step 1. Otherwise, clean the inside and outside of the warmer with a damp cloth (viii). To remove the lifter for cleaning purposes ONLY, lift vertically up until it naturally resists. Push the handle away from you and rotate 90^ or until it can naturally be removed, then lift out.

Note: For microbiological and hygienic reasons, once heated, milk and food should not be reheated again, and should be discarded if not used immediately. Please consult your health professional/ breastfeeding advisor for further guidance about safety recommendations on feeding.

Note: If at any time the warmer is switched on and not running a cycle, it will automatically turn off after 3 minutes if no selections have been made.

Care of your iQ Bottle and Baby Food Warmer

Always unplug the warmer and allow it to cool before cleaning. Wipe the inside and outside of the warmer with a damp cloth. DO NOT USE AN ABRASIVE CLEANER. Using cool pre-boiled or filtered water in your warmer may reduce limescale build-up. When the warmer needs de-scaling, the mode and starting temperature symbols will flash on the electronic display. To ensure maximum effectiveness, you should de-scale your warmer every time it is required. To acknowledge the de-scale warning, press and hold the Power/Mode Selection or Volume Selection/Start Button for 3 seconds. If you do not wish to de-scale, please be aware that the unit will not remind you to de-scale on your next use, but will instead begin re-counting cycles until the next de-scaling is needed.

IMPORTANT! DE-SCALING

Under no circumstances should anything other than citric acid or vinegar be used as it may cause irreparable damage. Avoid contact with eyes as this may cause irritation. Keep out of the reach of children.

EITHER:

Mix one pack of citric acid (10g) with 7oz/210ml of water. Pour solution into the empty warmer. DO NOT place a bottle, jar or cup into the warmer when de-scaling. Close the lid of the warmer and set the warmer to run with 11oz/325ml of milk from frozen. After the warming cycle has ended, leave the solution to cool for 30 minutes before emptying the warmer and rinsing with tap water. Wipe the inside and outside of the warmer with a damp cloth only.

OR:

Pour 3.5oz/100ml of vinegar mixed with 7oz/210ml of cold water into the warmer. Allow liquid to stand in the unit until any limescale has dissolved. DO NOT place a bottle, jar or cup into the warmer when de-scaling. DO NOT start the warming cycle. Empty the unit and rinse thoroughly. Wipe the inside and outside of the warmer with a damp cloth only.

Key to Product Label

FOLLOW OPERATING INSTRUCTIONS

Troubleshooting Guide

Food is not warm enough	The temperature of warmed food depends on the consistency of the food. Philips AVENT recommends that, ideally, pureed food only should be heated with this warmer. If you find that thicker food is not warm enough at the end of the warming cycle, fill the warmer with an additional 1oz/30ml of water. On step 4 and 5, choose the food from room temperature mode and program the warmer at the 1oz/30ml option. Before feeding your baby, stir the food. Always check food temperature before feeding.
Milk is not warm enough	If you find that milk is not warm enough at the end of a warming cycle, fill the warmer with an additional 1oz/30ml of water. On step 4 and 5, choose the milk from room temperature mode and program the warmer at the 1oz/30ml option. Before feeding your baby, shake the bottle, n统er or storage container gently and check the temperature of the milk by sprinkling a few drops on the back of your hand.
Display will not illuminate / Warmer will not turn on	Check that the lid is closed correctly. Check that the warmer is plugged in correctly. Then hold the Power/Mode Selection Button for 3 seconds.
Symbols on the display are flashing	• If the milk, room temperature and oz/ml symbols are flashing, then the lid has not been closed correctly. • If all volume symbols are flashing, and the warmer beeps intermittently for 30 seconds then the cycle is complete. Follow Step 8 onwards to remove the bottle or container from the warmer. • If all mode and starting temperature symbols are flashing, then the unit requires de-scaling. See section 'Care of your warmer' on page 8. To acknowledge the de-scale warning, press and hold the Power/Mode Selection or Volume Selection/Start Button for 3 seconds. If you do not wish to de-scale, please be aware that this may cause irreparable damage.
The warmer is beeping	• If oz/ml symbols flash, and the warmer beeps twice, insufficient water has been placed in the warmer. Unplug the warmer, discard the milk or food and empty any remaining water. Be careful as the warmer is hot. Follow instructions from Step 1 onwards. • If all volume symbols are flashing, and the warmer beeps intermittently for 30 seconds then the cycle is complete. Follow Step 8 onwards to remove the bottle or container from the warmer.
To stop the warming cycle	Press the Power/Mode Selection Button and the warmer will beep and return to default settings.
To start the warming cycle	Once the correct mode, starting temperature and volume have been selected, press and hold the Volume Selection/Start Button until the warmer beeps.
If the lid is opened during warming cycle	If the lid is opened at any time during the warming cycle, the lights on the display panel will flash and the warmer will stop and return to default settings. In order to reset the warmer after the lid has been opened, empty out any residual water, then follow instructions for use from step 1 onwards. Since this could occur at any stage of the warming cycle, milk or food should be discarded for safety reasons.
Difficulty setting the appropriate amount of frozen food	The maximum volume that may be selected when warming food from frozen is 8oz/240ml.

MEDIAS PREVENTIVAS IMPORTANTES

IMPORTANT MISES EN GARDE

Philips AVENT guarantees that the Philips AVENT iQ Bottle and Baby Food Warmer be free from manufacturers defects for 12 months from the date of purchase. In the event of a defect, Philips AVENT will repair or replace such parts free of charge with proof of purchase. The Philips AVENT iQ Warmer must be used according to the instructions. The claim must not be a result of an accident, misuse, dirt, neglect or normal wear and tear. For questions about this product or our guarantee please call Customer Service at 1.800.54.AVENT.

Garantía Limitada

Responding intelligently to meet your needs

The Philips AVENT iQ Range is designed with advanced iQ technology to make feeding and caring for your baby easier.
