Product Type	Vacuum Cleaner
Brand	Girmi
Model	AP91
Power Source	Cordless (rechargeable)
Battery Type	Lithium-ion, 22.2V, 2500mAh
Charging Input	DC 27V, 0.5A
Power Adapter	Input AC 100-240V~50/60Hz, Output DC 27V - 0.5A
Suction Power	9.5 kPa (120W)
Speeds	2 speeds (low/high)
Filtration System	HEPA filter + metal mesh pre-filter
Accessories Included	Motorized floor brush, motorized multi-function brush, nozzle with mobile brush, aluminium tube, wall mount
Charging Time	5 hours for full charge
Max Charging Duration	Do not exceed 8 hours
Brush Maintenance	Removable rotating brush, clean periodically
Container Capacity	Not specified by manufacturer
Weight	Not specified by manufacturer
Dimensions	Not specified by manufacturer
Protection Class	Class II (double insulated)
Usage	Household and similar applications
Spare Filters	Model GIRMI AP92

Frequently Asked Questions - AP91 GIRMI

How do I charge the vacuum cleaner?

Switch off the unit, plug the adapter into the power outlet, and connect the pin to the charging input on the back. The blue lights flash during charging and stay on when fully charged. Full charge takes 5 hours. Do not exceed 8 hours.

How do I empty the dust container?

Bring the product above a bin and press the release button on the bottom of the container. The door will open and drop the dirt. Close the lid afterward. Perform this outdoors to avoid spreading dust.

How do I clean the filters?

Release the container, open the lid, and remove the filter by rotating clockwise. Clean the metal mesh filter with running water. For the HEPA filter, shake it weekly and rinse with warm water every 2 months. Ensure both filters are completely dry before use.

Can I vacuum liquids with this vacuum cleaner?

No, the unit is not suitable for suction of liquids or wet surfaces. Using it on wet surfaces can damage the appliance.

What does the integrated motor in the brushes do?

Both the floor brush and multi-function brush have an integrated motor that rotates the brush to collect more dirt effectively. This improves cleaning performance on various surfaces.

How long does the battery last before needing replacement?

Battery has a limited lifespan. When the runtime shortens significantly even after a full charge, the battery is near end of life. Contact an authorized service center for replacement.

What should I do if the vacuum cleaner overheats?

If the unit produces smoke, smell, or unusual noises, turn it off immediately. Check the pipe for blockages. If clear, contact an authorized service center. Do not continue using.

How do I clean the motorized brush?

Remove the brush from the floor brush by moving the blocking lever to the left. Extract the rotating brush, clean it with a vacuum or wash with tap water, then dry thoroughly. Also clean the internal part and suction tube.

Can I use the vacuum cleaner with a damaged power cord?

No, if the power cord or adapter is damaged, stop using immediately. Contact an authorized service center for repair. Do not attempt to fix it yourself.

Where can I purchase spare filters?

Spare filter sets are available from your reseller under model number GIRMI AP92. Use only original parts to ensure performance.

USER MANUAL AP91 GIRMI

Technical model: YG-616-B

Black and white photo of a modern vacuum cleaner with handle and internal components (no visible text or symbols)

Rechargeable Vacuum cleaner

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 9

General information....p. 11

AP91....p. 12

Operating the unit.... p. 13

Maintenance and cleaning.... p. 13

Charging the unit.... p. 14

Technical features.... p. 15

Waste of electric and electronic equipment (WEEE

Directive).... p. 16

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ACCESSORIO SPAZZOLA PER PAVIMENTI

Technical line drawing of a mechanical device with two views: top shows a pin and side view, bottom shows a handle (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating transformation (no text or symbols present)

Two technical diagrams labeled 'a' and 'b' showing a cylindrical object with patterned top and ribbed base, respectively (no text or symbols beyond labels)

Dopo la pulizia:

Pure mechanical assembly diagram without any text, numbers, or symbols

RICARICA

AVVERTENZE PER UN BUON UTILIZZO DELLA BATTERIA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger;

always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household an similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

CAUTION: Do not vacuum sharp or pointed objects, flammable or harmful, acids, combustible materials such as cigarettes, burning embers, matches and ashes.

If you need to change a filter, make sure that the re-assembly is properly made; ensure the new filters are not

wet or damp. In this case, wait for it to dry completely.

The unit is not suitable for the suction of liquid or wet surfaces.

Do not expose the appliance to high temperatures and do not bring it close to heat sources.

CAUTION: while the unit is operating, do not approach the air inlet to the ears, eyes, or to fragile items such as vases, tools, electronic equipment etc.

Never leave the appliance unattended while it is running.

Always use the operation button to turn on or turn off the vacuum cleaner.

Do not obstruct the ventilation slots on the product.

Regularly clean the filtering system

Don't use the appliance if the filtering system is not properly and completely mounted.

Do not immerse the motor unit in water or other liquids: clean the appliance with a damp cloth.

To change attachments or perform cleaning and maintenance operations, switch off the unit.

In case of overheating, or if the unit produces smoke, smell or unusual noises, turn it off immediately and check that the pipe is free from obstacles. If it is, contact the service center for checking the appliance.

Regularly clean the unit for better performance and longer life.

If the adapter is broken or got lost, contact an authorized service center for replacing it.

For the warnings concerning the battery and the power supply, refer to the appropriate paragraph.

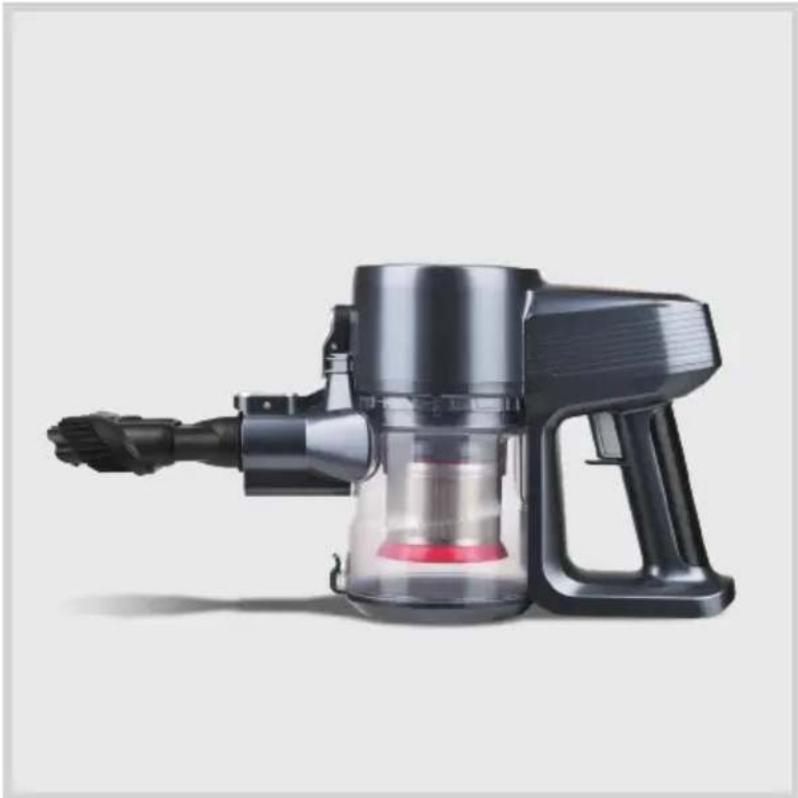

DESCRIPTION AP91

1. Working button

2. Charging input

3. Filtering system

4. Nozzle

5. Multi-function brush

6. Charge indicator

7. Suction port

8. Container release button

9. Wall mount

10. Container opening button

11. Main body

12. Dust container

13. Aluminium tube

14. Motorized brush

15. Accessory

OPERATING THE UNIT

The product includes several accessories that make it multi-function; after mounting the propoer accessory, as explained in following paragraphs, you will only have to switch on the appliance with the button (1).

The vacuum cleaner features 2 speeds: pressing power button (1), it switches from low speed to high speed. Periodically check the condition of the HEPA filter (19), cleaning or changing it if needed; it is also very important to empty the dust container often (6). These measures will preserve the life of the unit and improve the vacuum performance.

ACCESSORY FLOOR BRUSH

The brush (12) is suitable for vacuuming on every kind of floor and carpet. It has a 90^ pivot, to give more freedom of movement and to clean under furniture and sofa.

It also features an integrated motor, that moves the brush, to collect more dirt.

• The brush (12) can be mounted directly to the main housing (3), inserting the connector of the brush in the suction port (5). To clean floor and carpet we suggest to attach the brush (12) to the aluminium tube (9), and tube to the port (5).
• To remove accessories press release buttons on aluminium tube, and on port (5).

ACCESSORY MULTIFUNCTION BRUSH

The brush (13) is suitable for vacuuming on textile and surfaces: sofa, car, bed, pet hairs. It also features an integrated motor, that moves the brush, to collect more dirt.

Technical line drawing of a mechanical device with a separate schematic view (no text or symbols)

We suggest to attach the brush (13) directly to the main housing (3),

inserting the connector of the brush in the suction port (5). In this way you will have a powerful handy cleaner with multi-function brush.

ACCESSORY NOZZLE

The nozzle (10) is suitable for vacuuming in cracks, corners, tile joints and narrow places. It includes a mobile brush and can be used with or without it.

Technical line drawing of a mechanical device with an arrow indicating transformation (no text or symbols present)

• The nozzle (10) can be mounted directly to the main housing (3), inserting it in the port (5).
• Add the aluminum tube if you want to reach far surfaces like the ceiling. Mount nozzle to the tube (9), and the tube to the port (5).

MAINTENANCE AND CLEANING EMPTYING THE DUST CONTAINER

When dust reaches the maximum level inside the container (6), it is necessary to remove it.

To empty the container, bring the product above a bin and press the release button (14). This button will open the door dropping all the dirt. It is recommended to do this outdoors to avoid soiling the house when the dust comes out of the trash. Close the lid.

FILTERING SYSTEM MAINTENANCE

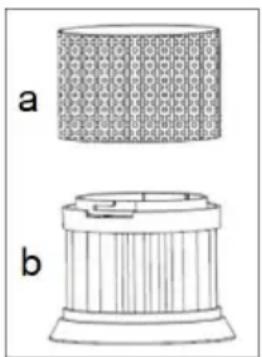

This vacuum cleaner is equipped with a metallic filter (a) and 1 HEPA filter (b), capable of retaining particles and small organisms such as mites and pollens. In this way the air re-emitted from the cleaner will be more healthy and clean. To maintain the performance of the vacuum cleaner is recommended to clean the filters regularly.

• Release the container (5) as described in the previous paragraph.
• Open the lid with the button (7). Extract the filter rotating clockwise.
• Place the filter on a bin.

a) Remove the metal mesh filter by pulling it upwards. This filter can be washed with running water.
b) Take the HEPA filter and clean it as described below.

At least once a week, shake the HEPA filter in the bin to get the dirt out.

Two technical diagrams labeled 'a' and 'b' showing a cylindrical component with patterned top and ribbed base (no text or symbols beyond labels)

At least once every 2 months, carry out a more thorough cleaning: rinse HEPA filter, metal filter and container with a soft brush and/or with warm water and DRY THEM THOROUGHLY.

CAUTION: Do not use detergent to clean the filter or the cover. The HEPA filter must be completely dry before using the vacuum cleaner.

After cleaning:

• Mount the metal filter on top of the HEPA filter, matching the mark on the plastic of the HEPA filter with the recess in the metal filter.
• Take the container and open the door.
• Insert the filter in its housing and turn anticlockwise until it stops.
• Close the door and refit the container to the motor body.

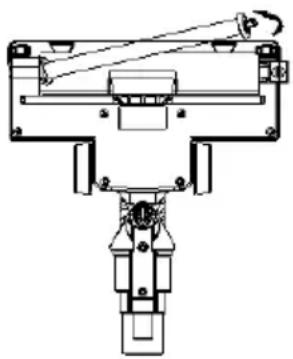

BRUSH MANTAINANCE

It is recommended to periodically check the condition of the brush and if it is dirty it should be cleaned.

• Take the motorized brush (12) and turn upside down.
• Move the blocking lever of the rotating brush to the left.
• Extract the rotating brush and clean it; use a vacuum cleaner or wash it with tap water and then dry it.
• Clean the internal part of the brush (12) and the suction tube.

Pure mechanical assembly diagram without any text, numbers, or symbols

CHARGING

WARNING FOR A GOOD USE OF THE BATTERY

During use the charging lights (2) indicate the charge level. When the battery is nearly discharged only one light is on. This indicate that is time to recharge.

For charging, switch off the product with power button (1), plug the adaptor to the power outlet and connect the pin to the charging input (4) on the back of appliance.

The charging lights (2) have the following behavior, if the appliance is properly connected. During charge the blue lights flash, while when the charge is full, the blue lights stay on without flashing.

WARNING: The following measures will preserve the battery life.

• When you first use the unit, and for following uses, complete charge is of 5 hours.
• ALWAYS charge and discharge completely the battery.
• NEVER leave battery uncharged: if the appliance is exhausted immediately proceed to charging.
• Do at least one charge every month.
• NEVER leave the appliance in charge for more than 8 hours.
• When charging operation is finished, unplug the power adapter and keep it in a dry place, taking care not to damage the power cord.
• WARNING: if you store appliance on its support, connect the adaptor to the electric socket ONLY when you want to charge the appliance. When charging is finished unplug the adaptor.

Battery has a limited duration. When the battery duration is shorter the charging time gets longer. If the battery is weak even after a complete recharge, it means that its lifetime is nearly finished and that replacing it is needed. In this case contact an authorized after sales service.

Battery can be removed, by pulling the lever on the back of housing and pulling out the battery, as shown in figure.

SAFETY WARNINGS ABOUT BATTERY

CAUTION: to recharge the unit, use only the supplied original adapter.

If the power adapter is damaged or get lost, contact an authorized service center; it is recommended not to use other adapters which may damage the battery and impair the functionality of the appliance.

• Do not give fire to battery, danger of explosion.
• In case you have to install batteries, do not force or press them, this may cause battery leakage, overheating, breaking or fire.

• Do not use wires, needles or other metallic objects to short-circuit the battery. Moreover, don't put battery near metallic objects as this may cause battery leakage, overheating, breaking or fire.

• Don't solder the contacts of battery, as this may cause battery leakage, overheating, breaking fire.

• If the battery liquid comes into contact with eyes, there is blindness risk. Do not eyes, but rinse immediately with plenty of clean water and go to hospital for treatment.
• In case of overheating, battery changes color or gets deformed, replace immediately.
• Replace battery only with same or equivalent battery.
• Do not waste battery and appliance as a normal waste. Bring the product to the appropriate "collection centers" of the municipal administrations.

TECHNICAL FEATURES

• Power adaptor: IN - AC 100-240V\~50/60Hz, OUT - DC 27V - 0.5A

• Lithium battery: 22.2V, 2500mAh

• Suction power 9.5kPa - 120W

SPARE FILTERS: ask to your reseller the spare filter set, model GIRMI AP92

TECHNICAL SHEET POWER POWER SUPPLY CS13A270050FGF

Information	Value	Unit
Input voltage	230	V
Input AC frequency	50	Hz
Output voltage	27.0 a.C.	V
Output current	0,5	A
Output power	13.5	W
Average active efficiency	85.52	%
Efficiency at low load (10 %)	73.91	%
No-load power consumption	0.08	W

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
17
17
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
