Product Type	Drill
Brand	Ferm
Model	PDM1047P
Power	650 W
Voltage	230 V
Frequency	50 Hz
No-Load Speed	0-3000 rpm
Chuck Type	Keyless
Chuck Capacity	13 mm
Max Drilling Capacity in Steel	13 mm
Max Drilling Capacity in Wood	25 mm
Weight	1.5 kg
Cord Length	2.5 m
Vibration Level	< 2.5 m/s²
Sound Pressure Level	80 dB(A)
Protection Class	Class II
Included Accessories	Auxiliary handle, depth stop
Warranty	2 years

Frequently Asked Questions - PDM1047P Ferm

How do I change the drill bit?

To change the bit, first ensure the drill is unplugged. Open the keyless chuck by rotating the chuck sleeve counterclockwise. Insert the bit fully, then tighten by rotating clockwise. For larger bits, use the chuck key if provided.

How do I adjust the speed?

Speed is controlled by the variable speed trigger. Light pressure gives low speed; full pressure gives high speed. The speed selector switch (if present) allows two ranges: low speed for high torque, high speed for drilling.

Is this drill corded or cordless?

The Ferm PDM1047P is a corded drill with a power cable. It requires a mains outlet for operation.

What is the maximum drilling capacity?

The maximum drilling capacity is 13 mm in steel and 25 mm in wood. For masonry, use a hammer drill if available; otherwise, a standard drill may handle up to 13 mm with carbide bits.

How do I maintain the drill?

Regularly clean the ventilation slots to prevent overheating. Check the power cord for damage. Lubricate the chuck occasionally. Replace carbon brushes when worn. Store in a dry place.

Can I use it for screwdriving?

Yes, you can use it for screwdriving with appropriate bits. Use the variable speed trigger for control and adjust the torque setting if a clutch is available. Otherwise, avoid over-tightening.

What safety precautions should I take?

Always wear safety glasses and hearing protection. Keep your hands away from the rotating chuck. Ensure the workpiece is secured. Unplug before changing accessories. Do not use in wet conditions.

How do I set the drilling depth?

Use the depth stop rod (if included). Loosen the side handle clamp, adjust the rod to the desired depth, and tighten. The rod stops forward movement when it contacts the workpiece.

What does the variable speed trigger do?

The variable speed trigger allows you to control the drill speed by varying the pressure on the trigger. This is useful for precise starts and different materials.

How to replace the carbon brushes?

Carbon brushes are located on the motor. Unplug the drill, remove the brush caps on the sides, and slide out the worn brushes. Insert new ones and secure the caps. Only use identical brushes recommended by Ferm.

USER MANUAL PDM1047P Ferm

PDM1047P

EN Original instructions 03
RU Перевод исходных инструкций 06
TR Orijinal talimatların çevirisi 09

ELECTRIC DRILL PDM1047P

Thank you for buying this FERM product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1.SAFETYWARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and

the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

ADDITIONAL SAFETY WARNINGS

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Class II machine - Double insulation - You don't need any earthed plug.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

2. MACHINE INFORMATION

Intended use

Your electric drill has been designed for drilling holes in wood, metal and plastics.

Technical specifications

Mains voltage 220-240V~

Mains frequency 50Hz

Power input 230W

No-load speed 0-4.500/min

Max. chuck size 6.5mm

Max. drill diameter

Wood 9mm

Steel 6.5mm

Weight 1.22kg

Noise values

Sound pressure (LPA) 93 + 3 dB(A)
Acoustic power (LWA) 94 + 3 dB(A)
Vibration values
Drilling into metal, aH,D	4.83 + 1.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on page 2.

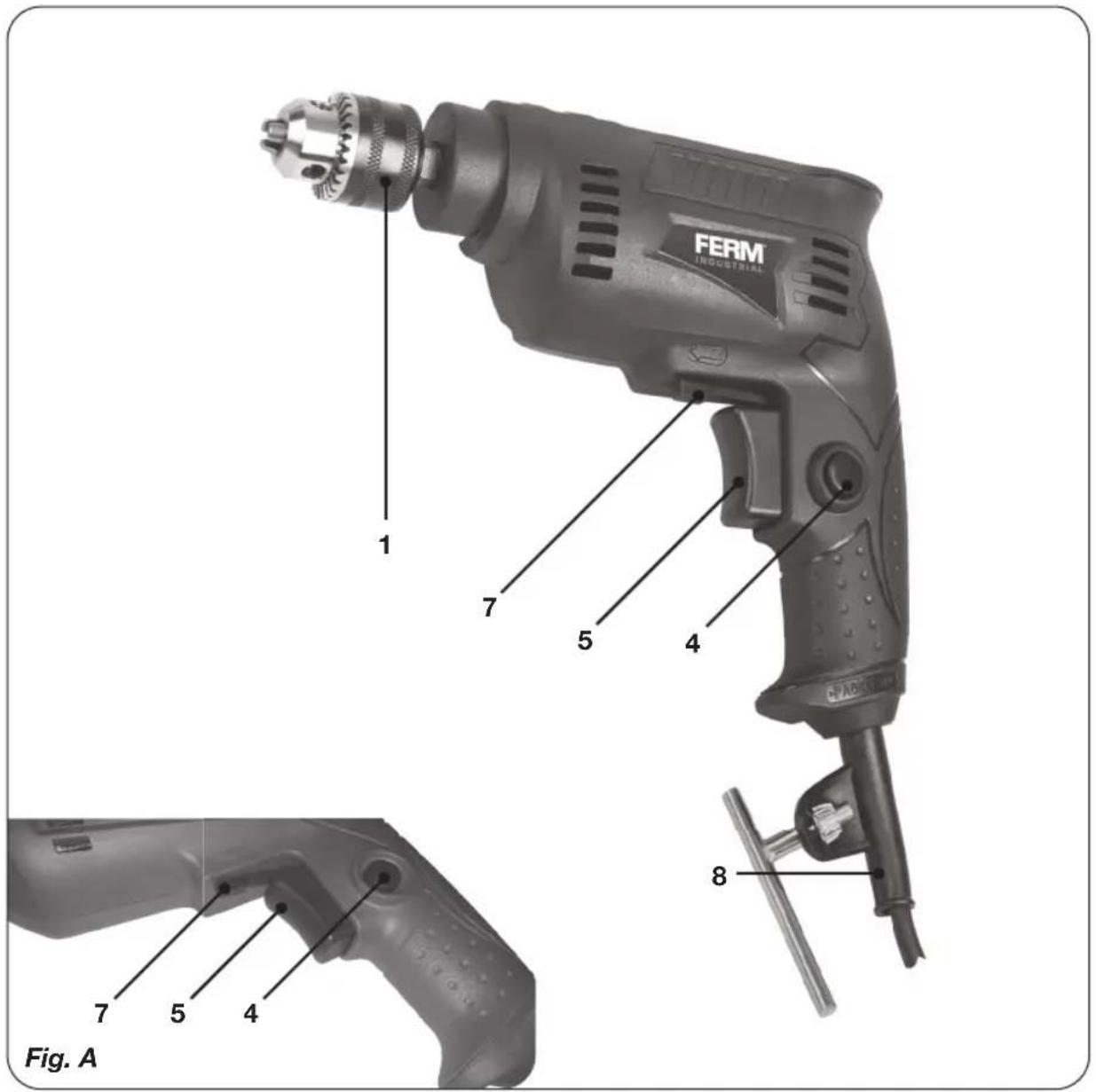

Fig. A

1. Chuck
2. Lock-on button
3. On/Off switch
4. Left/right rotation switch

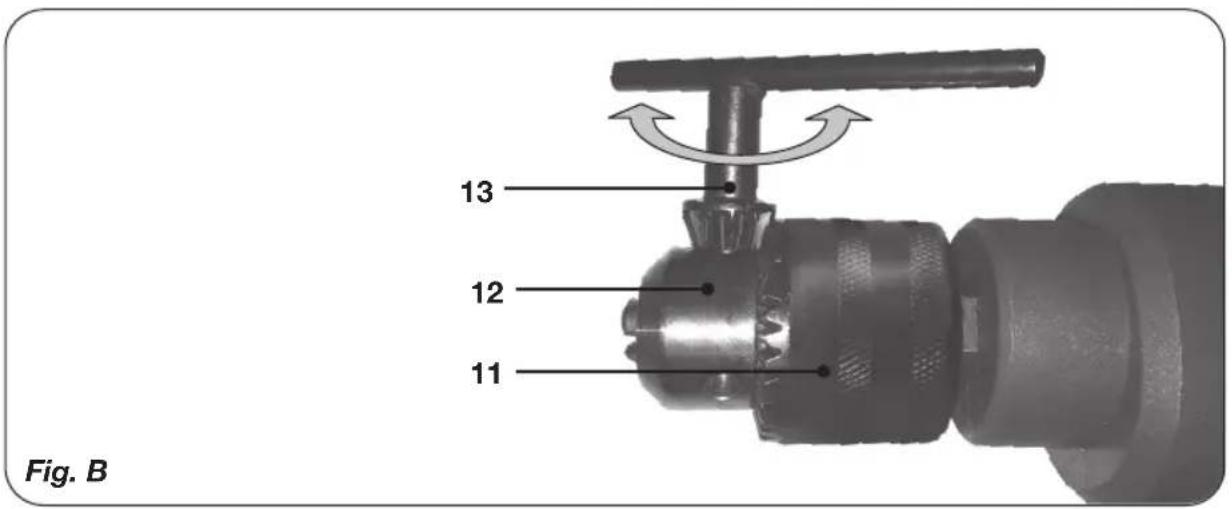

Fig. B

1. Rear sleeve
2. Front sleeve

3. OPERATING

Exchanging and removing drill bits

Fig. A - B

Before exchanging bits, first remove the power plug from the wall socket.

Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.

• Open the chuck (1) by turning the front sleeve (12) clockwise while simultaneously holding the rear sleeve (11) or turning it counterclockwise and insert the bit into the chuck opening.
• Tighten the bit by turning the front sleeve (12) counterclockwise while simultaneously holding the rear sleeve (11) or turning it clockwise.

The On/Off switch

Fig. A

• Switch the machine on by pressing the On/Off switch (5). When you release the On/Off switch (5) the machine will turn off.
• The rotation-speed can be adjusted by pressing the On/Off switch (5) harder for raising the rotation-speed or release pressure for lowering the rotation-speed.

Lock-on Button

Fig. A

• You can lock the On/Off switch (5) by pressing the On/Off switch (5) and then pressing the lock-on button (4).
• To release the switch-lock; shortly press the On/Off switch (5) again.

Adjusting of the maximum rotation speed Fig. A

• Switch the machine on by pressing the On/Off switch (5).
• Lock the On/Off switch (5) by pressing the lock-on button (4).

Switching the direction of rotation

Fig. A

Do not change the direction of rotation during use.

• Direction of rotation counter-clockwise: shift left/right rotation switch (7) to “.”
• Direction of rotation clockwise: shift left/right rotation switch (7) to “.”

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

DECLARATION OF CONFORMITY PDM1047P - ELECTRIC DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: az Európai Parlament és az EU Tanács 2011. június 8-i, 2011/65/EU sz., a bizonyos veszélyes anyagok elektromos és elektronikus berendezésekben való használatának korlátozásáról szóló rendelettel.
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: je v souladu se směrnici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európskeho parlamento a Rady z 8. juna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2011/65/EU Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου 2011 θης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επτικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) كيذاتنا ت当初جروتناو روياعجلا عم قفناوتي ججتحلا اللهنا اندح و انستيولوىكىم كلذع نلخىن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.
(MK) Изјавуваме со наша целосна одговорност дека производот е во согласност со Смерницата 2011/65/EU на Европскиот парламент и е во согласност според Советот од 9 јуни за ограничување на користење на одредени опасни супстанции во електричната и електронската опрема и дека е според следните стандарди и регулативи:

EN55014-1, EN55014-2, EN 62841-1, EN 62841-2-1, EN61000-3-2, EN61000-3-3

2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-12-2021

H.G.FRosberg CEO FERM

FERM - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands

Spare parts list

No. Description Position
480584 Screw M5+16 (left) 1
411617 6.5mm black chuck 2
480586 Output shaft 3
480587 Steel ball ∅3 4
480588 Bearing 6000 5
480589 Circlip ∅10 6
480590 Big gear 7
480591 Bushing 8
480592 Nut M5 9
480593 Right housing 10
480594 Label 11
480595 Screw 4.2*16 12
480596 Front rotor bearing 607 13
480597 Rotor	14
480598 Carbon brush set (2pcs)	15
480599 Brush holder set (2pcs)	16
480600 Rear rotor bearing 627	17
480601 Stator	18
480602 Wire	19
480603 Switch	20
480604 Cable	21
480605 Clamp screws (2pcs)	22
480606 Cable clamp	23
480607 Cable sheath	24
480608 Chuck key	25
480609 Left housing	26
480610 Label 2 27

Exploded view
