57933 - Garage door opener Craftsman - Free user manual and instructions

Product Type	Garage Door Opener
Brand	Craftsman
Model	57933
Power Supply	AC 120V/60Hz
Motor Type	AC Motor
Drive Type	Chain Drive

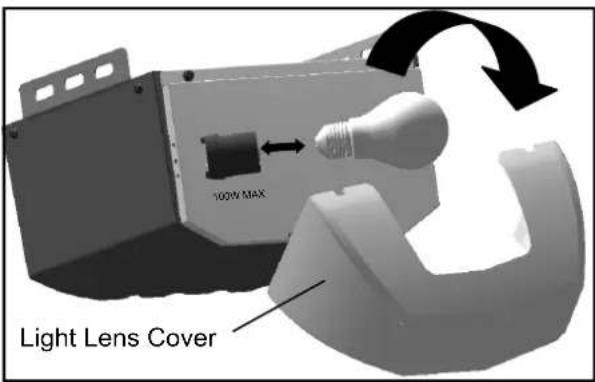

Light Bulb	A19 (E26), 100W max incandescent (CFL/LED compatible)
Remote Control	1-button remote included (optional 3-button mini remote)
Safety System	Photo Eye Safety System (infrared beam)
Emergency Release	Manual release handle with rope
Maximum Door Weight	Not specified (typical residential use)
Door Compatibility	Sectional doors only (not one-piece doors)
Travel Limits	Adjustable via screw on opener
Force Adjustment	12 levels for open/close, adjustable via buttons on rear panel
Remote Programming Capacity	Up to 20 remotes/keyless entry codes
Keyless Entry	Optional (model 57939)
Warranty	90-day in-home, 1-year parts, 4-year motor
Dimensions (approx.)	Rail length varies (typical ~10 ft), opener unit ~12x8x6 in.
Weight (approx.)	~30-35 lbs (opener unit plus rail)
Maintenance	Monthly safety test, semi-annual chain check, annual lubrication of door hardware

Frequently Asked Questions - 57933 Craftsman

How do I program a remote control to my Craftsman 57933 garage door opener?

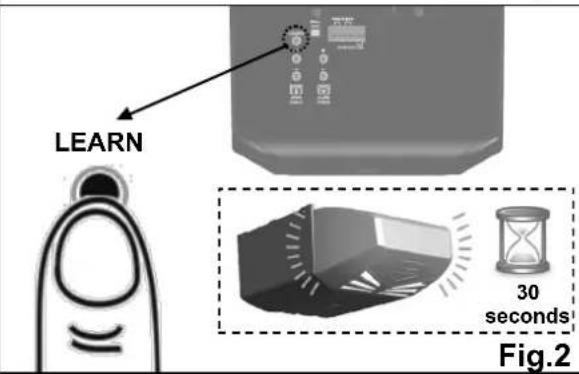

Press the LEARN button on the rear panel of the opener. The courtesy light will illuminate. Within 30 seconds, press the button on the remote. The light will flash twice to confirm successful programming.

What should I do if the garage door reverses before hitting the floor?

This is often due to misaligned photo eyes or incorrect force settings. First, check that the photo eyes are aligned and clean. If the issue persists, adjust the close force by pressing the '+' button on the rear panel. Always perform a safety reverse test after adjustments.

How do I manually operate the door if the power is out?

Pull the emergency release handle downward to disconnect the trolley from the opener. You can then raise or lower the door manually. To reconnect, flip the lever on the trolley back to the connect position and activate the opener.

Why does the courtesy light flash 5 times and the opener not start?

This indicates the motor has overheated due to thermal protection. Wait about 15 minutes for the motor to cool down before retrying operation.

Can I use LED or CFL bulbs in the opener?

Yes, but they may interfere with hand-held remotes. Use standard A19 (E26) incandescent bulbs up to 100W for best compatibility.

How often should I test the safety reverse system?

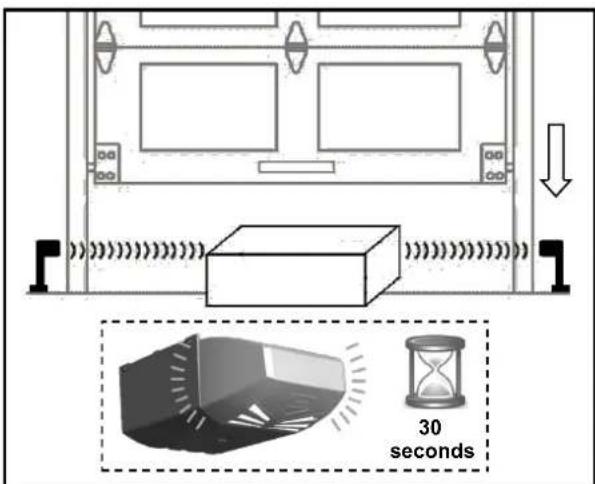

Test once a month. Place a 1.5-inch thick object (like a 2x4 laid flat) under the door. The door should reverse upon contact. If not, adjust the close travel or force settings.

What type of battery does the remote use, and how do I replace it?

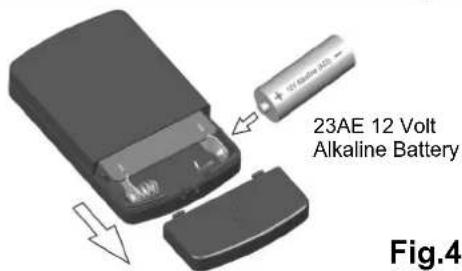

The remote uses a 23AE 12-volt alkaline battery. Remove the battery cover on the remote, replace with the correct polarity, and dispose of the old battery properly.

How do I adjust the travel limits?

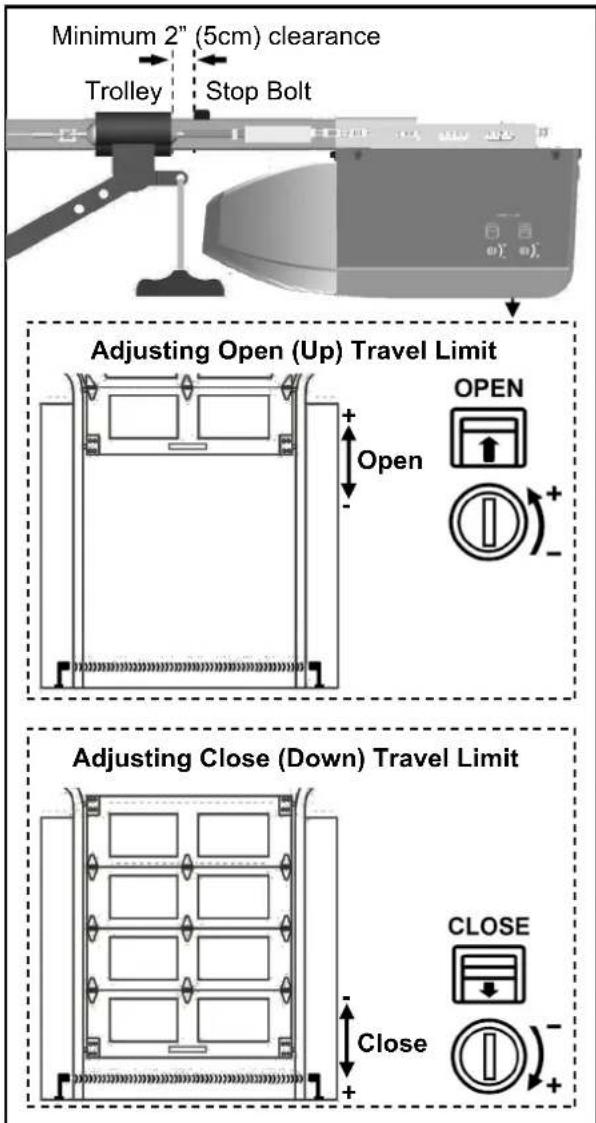

Locate the OPEN and CLOSE limit screws on the opener. Turn the screw clockwise to increase travel, counterclockwise to decrease. One full turn equals about 2 inches of door movement. Always perform a safety reverse test after adjustment.

What is the correct height for mounting the push button?

Mount the push button at least 5 feet (1.5m) above the floor and within sight of the door, out of reach of children and away from moving parts.

How do I clear all remote codes from the opener memory?

Press and hold the LEARN button on the rear panel for 5 seconds. The courtesy light will flash 7 times, indicating all remotes and keyless entry codes have been removed.

USER MANUAL 57933 Craftsman

GARAGE DOOR OPENER Abridor de puerta de cochera MODEL/MODELO 200.57933

For Residential Use Only Sólo para uso residencial

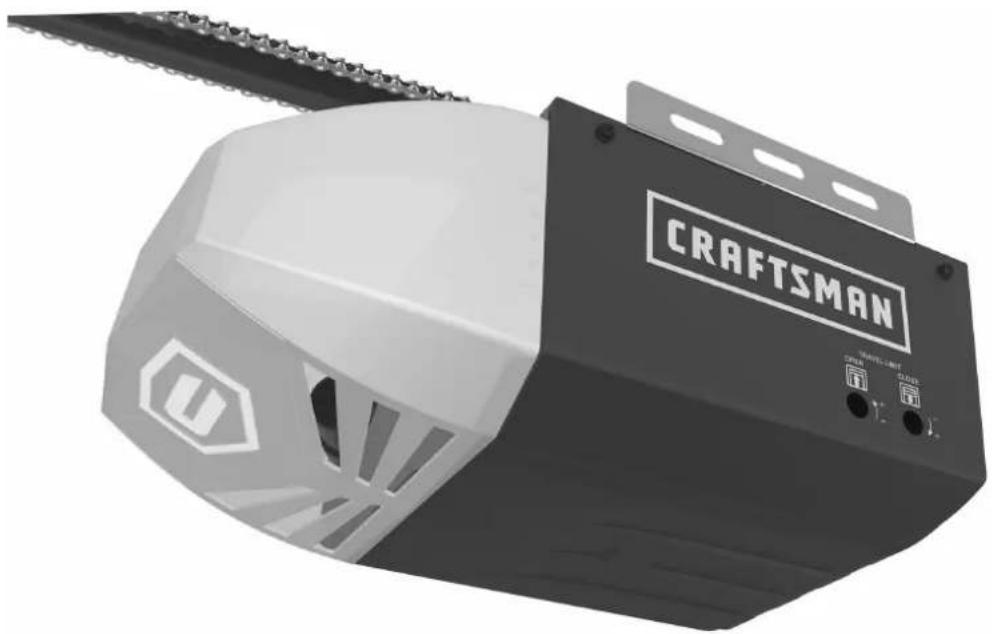

3D rendering of a Craftsman industrial machine with a chain and fan blade (no visible text or symbols on the device body)

Read and follow all safety rules and operating instructions before first use of this product.

Fasten the manual near the garage door after installation.

Periodic checks of the opener are required to ensure safe operation.

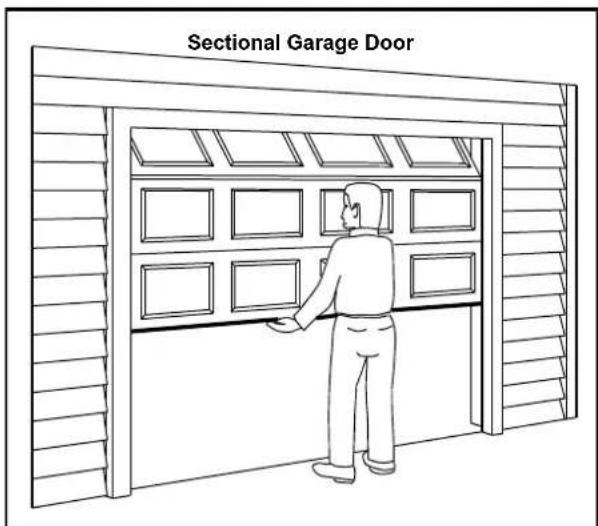

DO NOT install on a one-piece door.

Preparation / Tools Required 4

Assembly

Rail and Trolley Assembly 5

Installing the Cable and Chain 6

Important Installation Instructions 7

Mounting Header Bracket 8

Installation

Attaching Rail to Header Bracket and Mounting Door Bracket 9

Mounting Opener to Ceiling 10

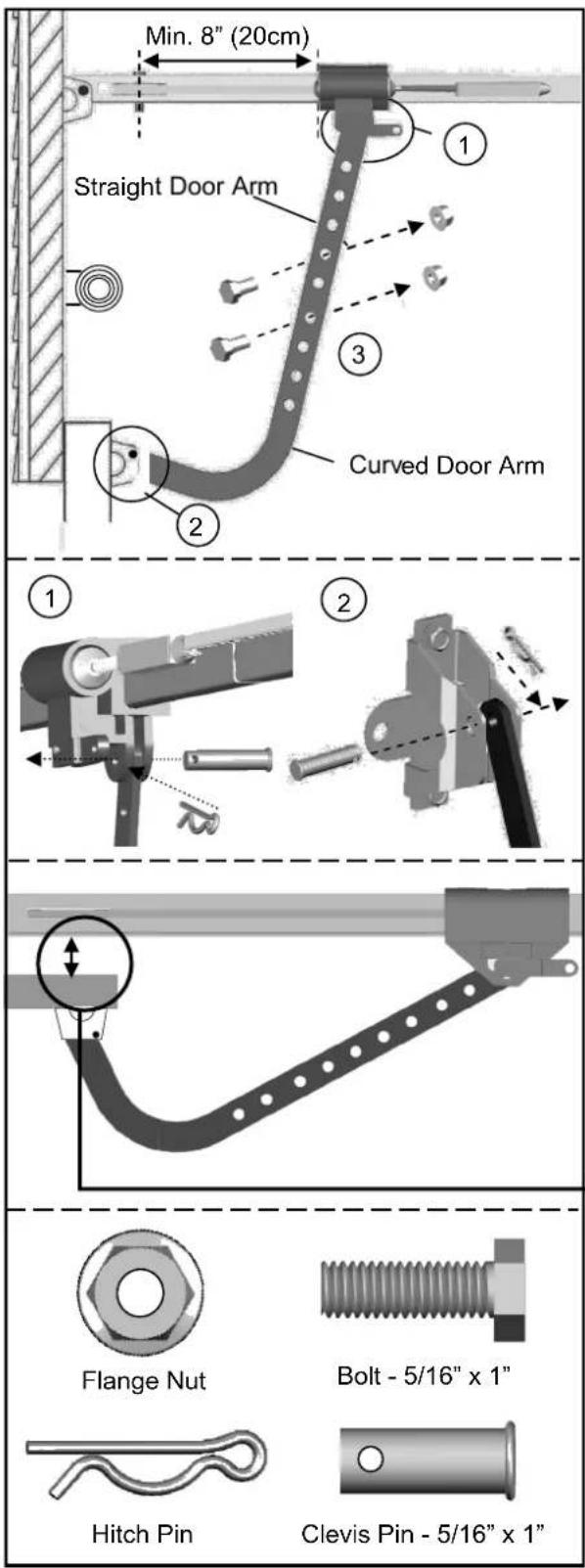

Attaching Door Arms 11

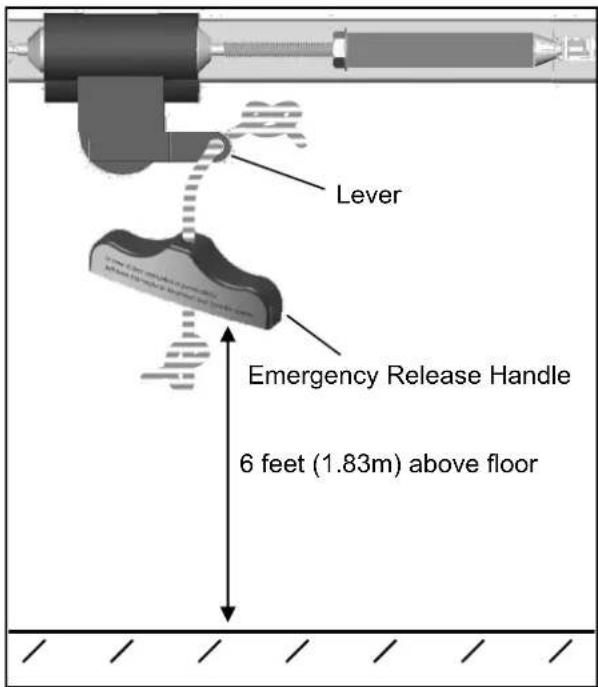

Installing Light and Emergency Release Handle 12

Wiring

Wiring Instructions 13

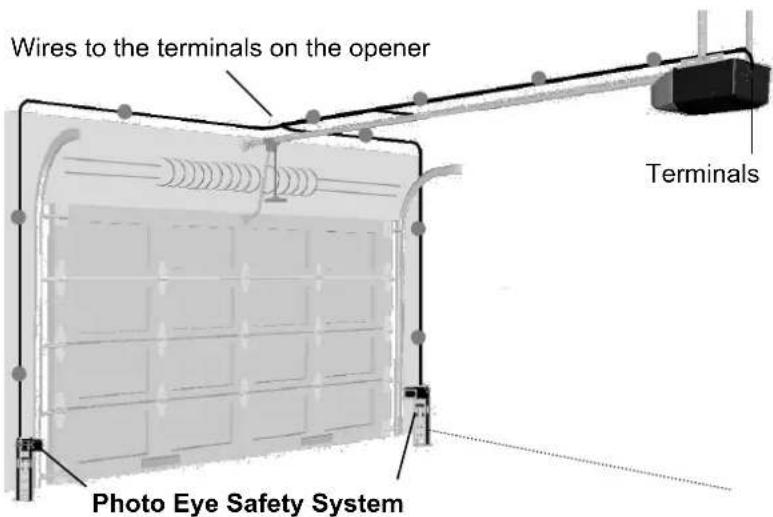

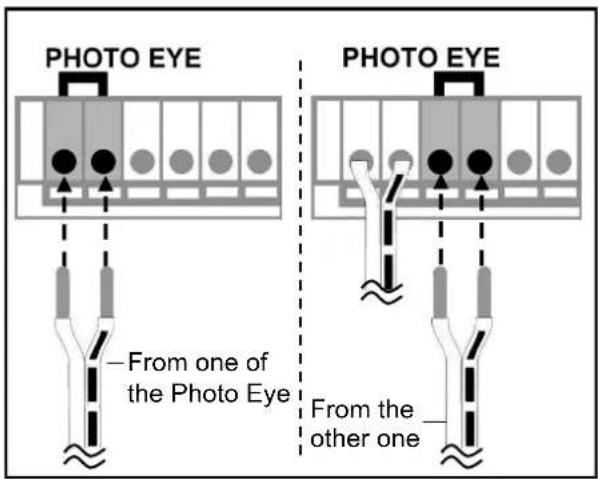

Connecting Photo Eye Safety System 14

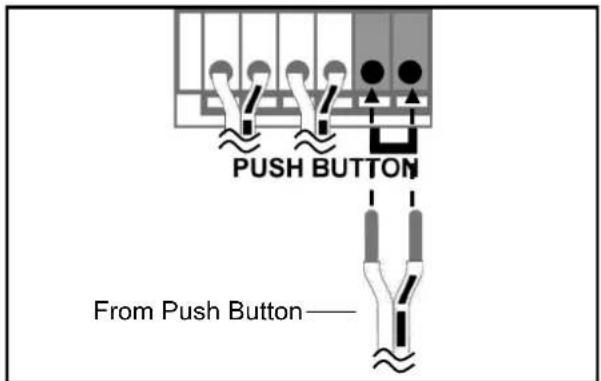

Connecting Push Button 15

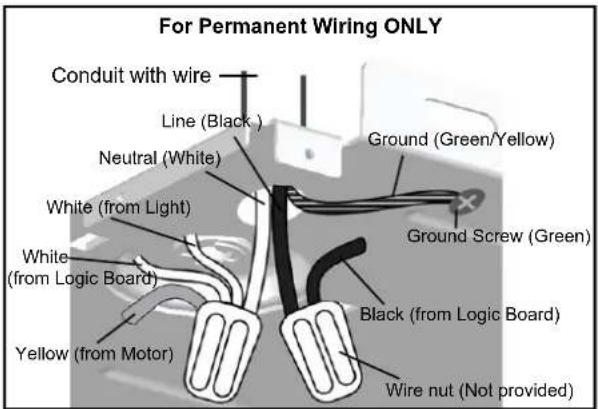

Connecting Power 16

Adjustment

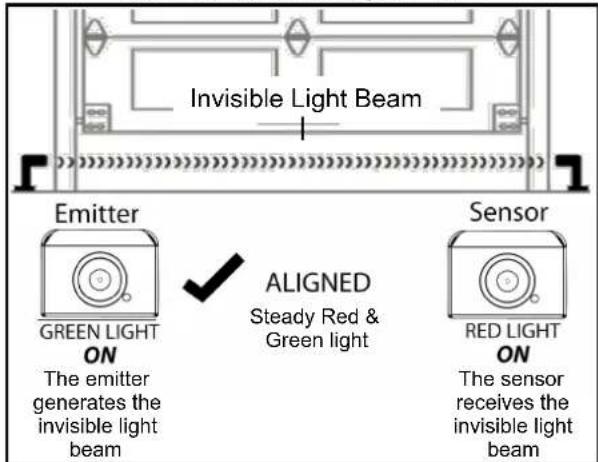

Aligning the Photo Eye Safety System 16

Travel Limit Adjustment 17

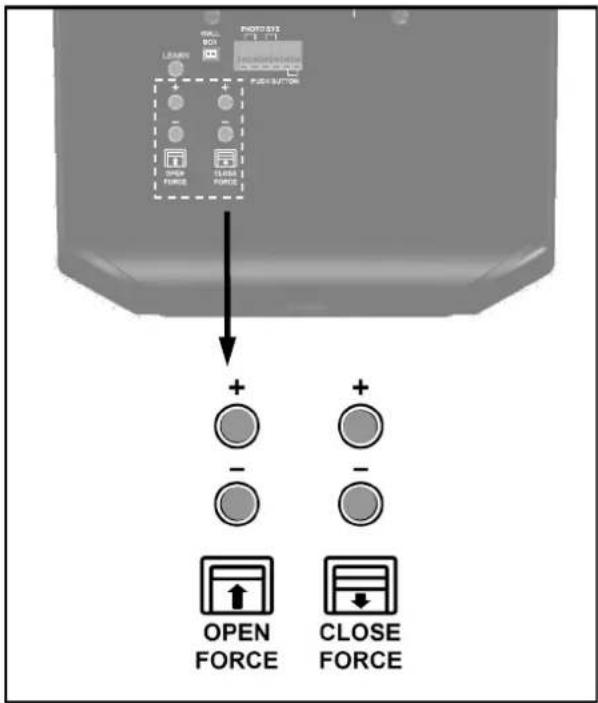

Force Adjustment 18

Final Adjustment and Testing 19

Operation

Programming 1 Button Remote 20

Programming Keyless Entry Pad* 21

Important Safety Instructions 22

Operating the Opener 23-24

Maintenance 25

Troubleshooting 25

Repair Parts and Service

Rail Assembly Parts / Installation Parts / Accessories 26

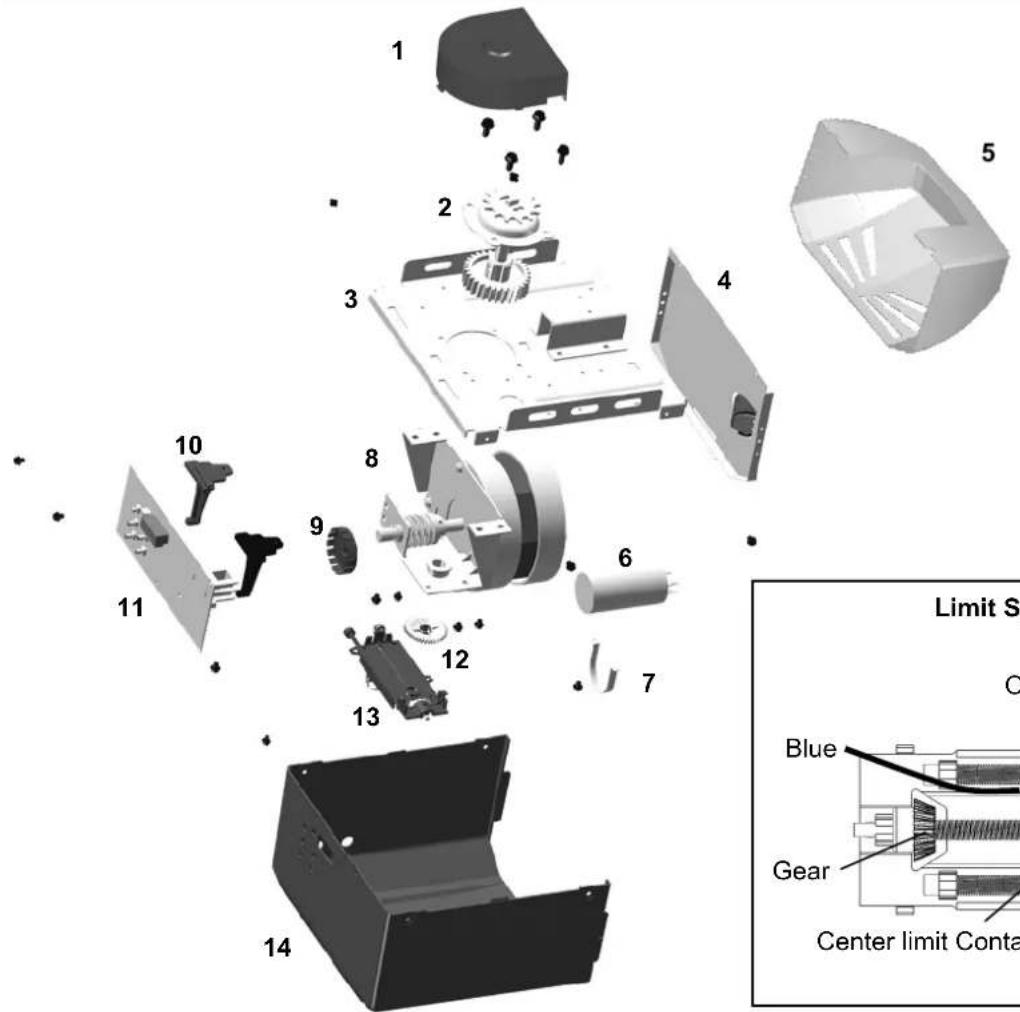

Opener Assembly parts 27

Warranty 28

Symbols and Icons

WARNING

READ WARNINGS CAREFULLY to prevent SERIOUS INJURY or DEATH caused by electrocution or mechanical hazard.

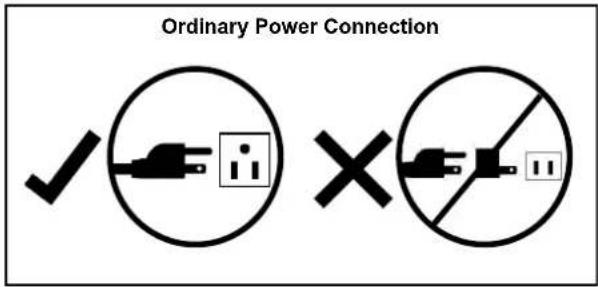

DO NOT connect power

Please connect power

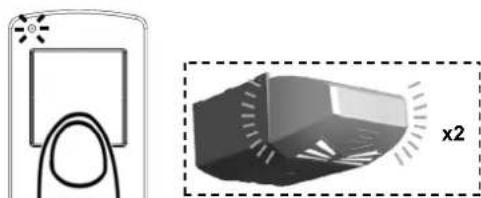

Courtesy light turns on/flashes with audible 'click'. (If light bulb is not installed, 'click' represents the light)

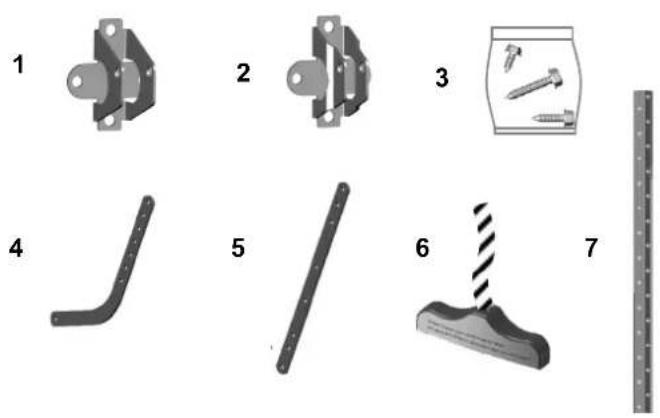

Installation hardware

*See Accessories in Repair Parts section of this manual for purchase information.

Inventory

3D rendered mechanical component with internal blades and mounting brackets (no text or symbols)

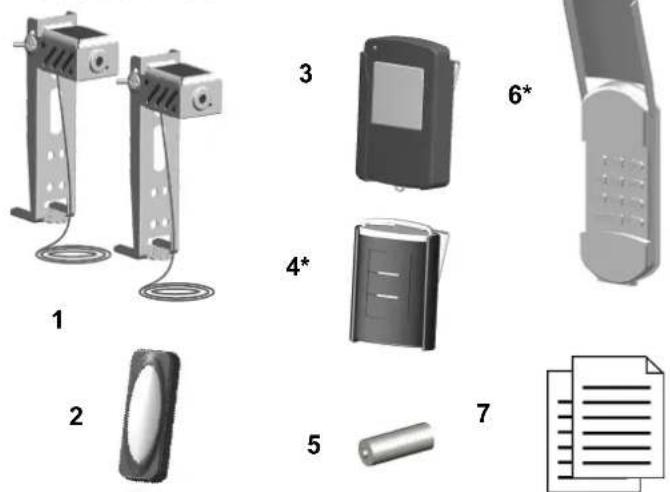

Opener Unit + Light Lens Cover

Two identical metal frame holders with mounting holes and connecting wires, no text or symbols visible.

Photo Eye Safety System

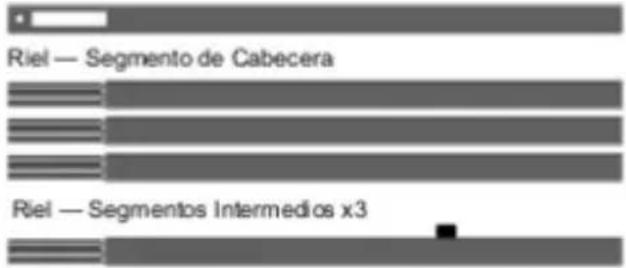

Rail — End Segment with Trolley Stop Bolt

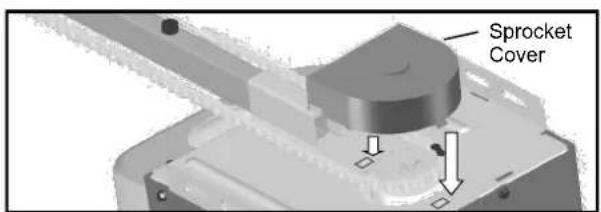

Sprocket Cover

1-Button Remote

Push Button

OPTIONAL

x 2

Screw #6 x 1"

x 2

Drywall Anchor

OPTIONAL

3-Button Mini Remote*

Emergency Release Handle + Rope

Literature + Safety Labels

Trolley

Trolley Shaft and Cable

Hanging Brackets

Chain

Door Bracket

Header Bracket

Pulley

Two black metal L-shaped bars with bolt holes, isolated on white background (no text or symbols)

Door Arms
*See Accessories in Repair Parts section of this manual for purchase information.

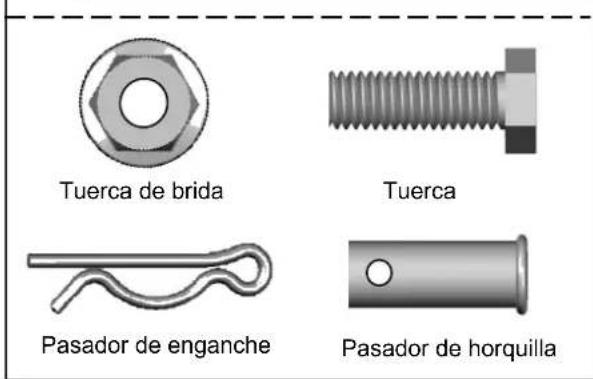

INSTALLATION HARDWARE, LOCATED IN HARDWARE BAG (SHOWN IN ACTUAL SIZE)

x 2

Clevis Pin — Door arms 5/16" x 1"

x 1

Clevis Pin — Header Bracket 5/16" x 1-1/2"

x 1

Clevis Pin — Pulley 3/8" x 1-3/4"

x 4

Hitch Pin — Locking Clevis Pins

x 2

Self-Threading Screw 1/4" x 5/8" Door Bracket

x 4

Lag Screw #12 x 1"— Photo Eye System

Close-up of a metallic screw with hexagonal head and threaded shaft (no text or symbols visible)

x 4

Lag Screw 5/16" x 1-1/2" — Header Bracket / Mounting Opener

x4

Bolt 5/16" x 1"

x 4

5/16" Flange Nut
— Door arms / Mounting Opener

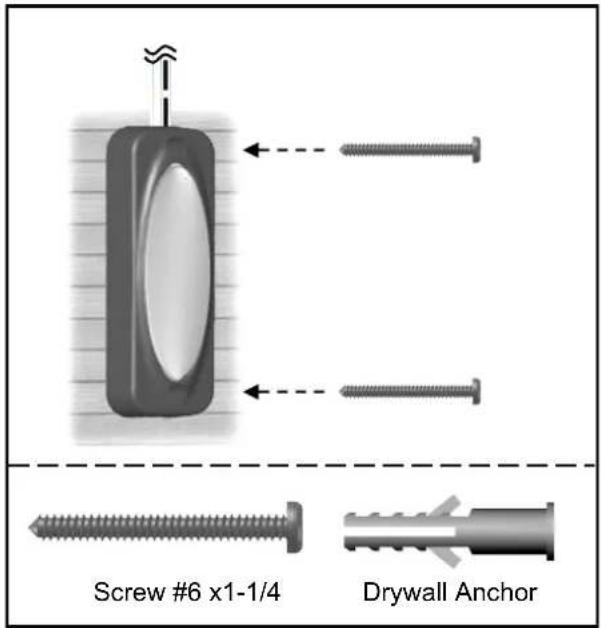

Screw #6 x 1-1/4" - Push Button

Drywall Anchor - Push Button

x 1

Master Link Set —Trolley Shaft

x 30

Insulated Staples — Securing wires

WARNING

To prevent SERIOUS INJURY or DEATH:

• Before beginning installation of the opener please complete the following test to ensure that your door is balanced and in good working condition.
• A poorly balanced door can cause serious injury and damage to the opener.
• Always have a qualified garage door service technician make any required adjustments and/or repairs to your door before proceeding with installation.
• DISABLE ALL LOCKS and REMOVE ALL ROPES connected to the garage door BEFORE installing and/or operating the opener.

To prevent damage to the door and opener:

• DO NOT connect power until instructed.
• Operate this opener with AC 120V/60Hz power supply ONLY.

DO NOT REUSE PARTS FROM ANOTHER BRAND OF OPENER!!!

BEFORE beginning Installation:

1. Disable locks and remove all ropes connected to the garage door.
2. Perform the following door test to ensure your door is balanced and in good working condition.

To Test Your Garage Door

1. Raise and lower the door to check if there is any sticking or binding.
2. Check for loose hinges, damaged rollers, frayed cables and damaged or broken springs.
3. Lift the door approximately halfway and release. The door should stay at the point under proper spring tension.

Call a qualified garage door service technician if your door binds, sticks or is unbalanced.

Tools Required

3D rendered image of a gray ladder-like structure with no text or symbols

Step Ladder

Level

Pencil

Screwdriver

Adjustable Wrench

Tape Measure

Pliers

Ratchet with
5/16", 7/16" and 1/2" sockets

Drill, 3/16" and 5/16" Drill Bits

Hack Saw

Hammer

To Assemble Rail and Opener

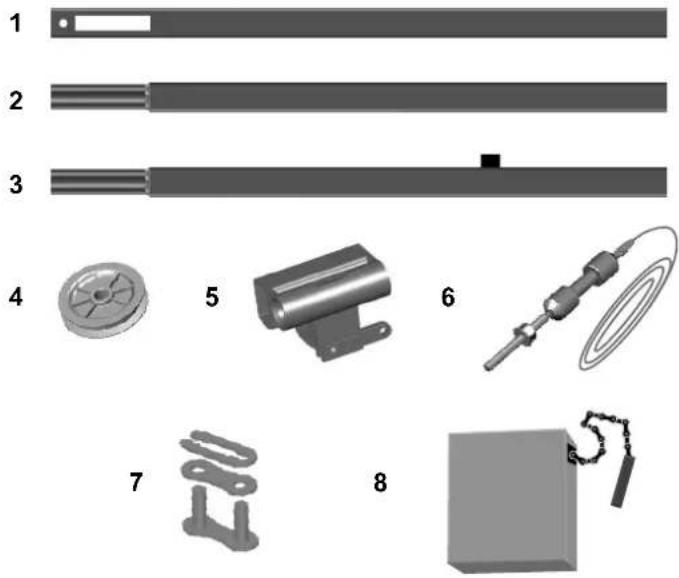

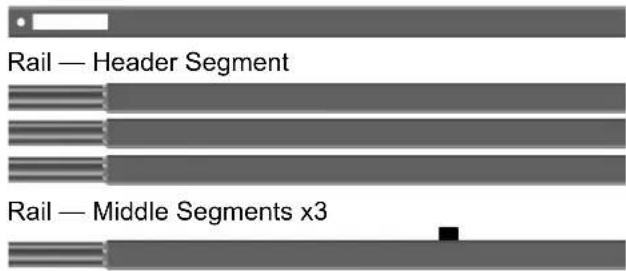

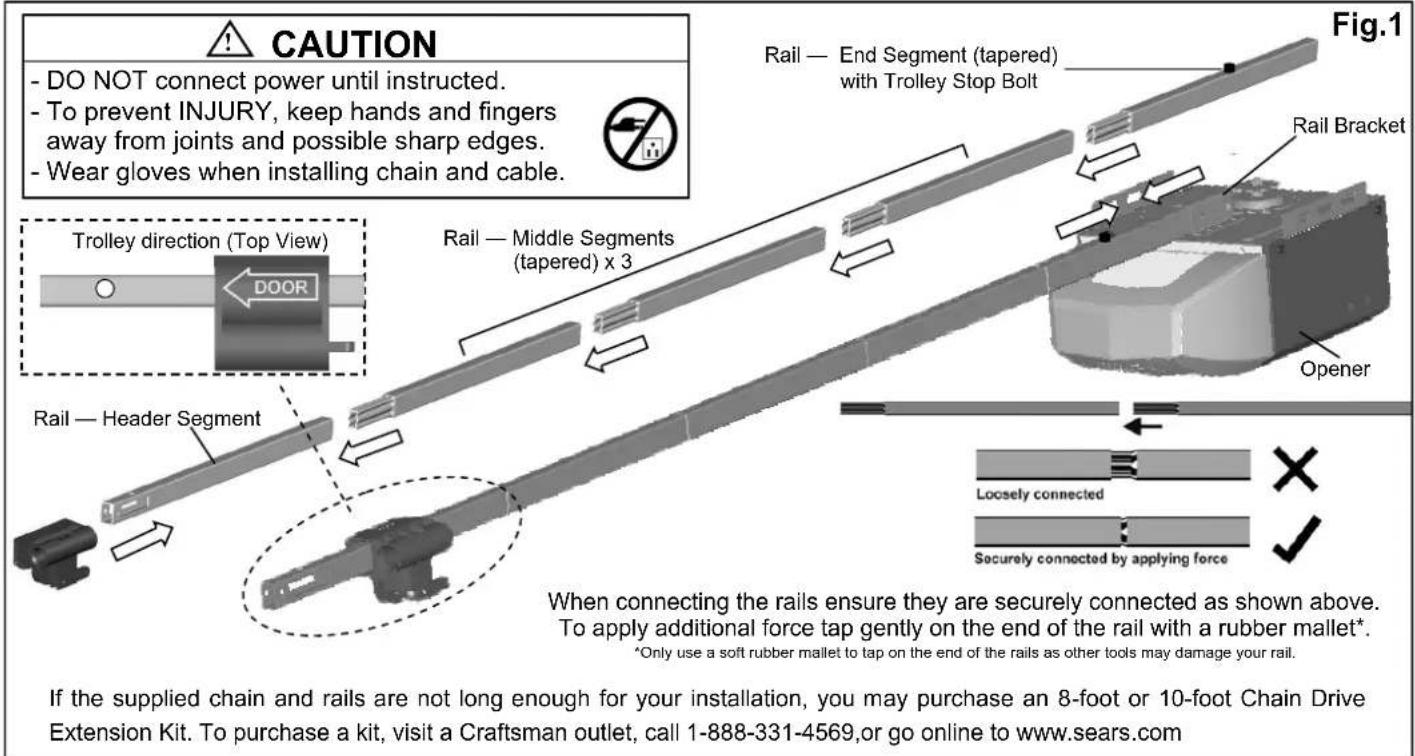

1. Prepare the rails as shown in Fig.1.
2. Connect the rails starting with the header segment. Insert the tapered ends into open ends, apply any additional force necessary by tapping the rail on padded flooring. Ensure the end segment has trolley stop bolt facing up. Make sure the rails are securely joined together as shown.
3. Slide the trolley onto the rail from the header segment. Make sure the arrow is pointing towards the door as shown in Fig.1.
4. Connect the rail assembly to the rail bracket on the opener.

To Assemble the Header Section of Rail

Follow steps shown in Fig.2:

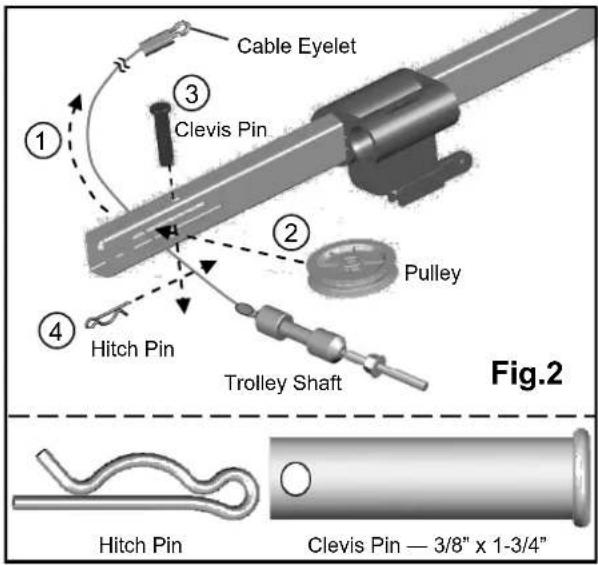

1. Remove the "trolley shaft and cable" from the chain carton and lay it beside the rail assembly. Hold cable eyelet on the end of cable and thread about 20" (50cm) through the slot on the Header Segment of the rail.
2. Insert the pulley into the opening while the cable is hanging.
3. Secure the pulley by inserting the 3/8" x 1-3/4" clevis pin through the top of the rail.
4. Lock the clevis pin with a hitch pin. Rotate the pulley to ensure it spins smoothly.

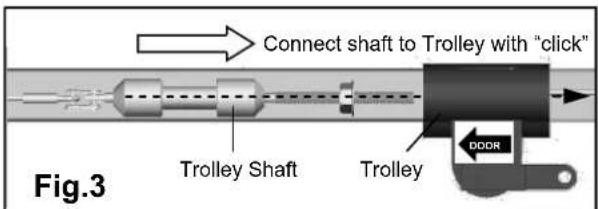

Refer to Fig.3 to connect the trolley shaft to the trolley. Slide both the trolley shaft and trolley towards each other. A "click" will be heard when they are connected.

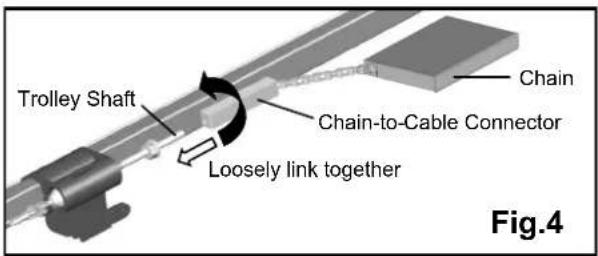

To Link Cable with Chain

Refer to Fig.4. Place the chain carton beside the rail, hold the "chain to cable connector" and pull about 8" (20cm) of chain from the box. Thread the chain to cable connector onto the trolley shaft so that they are loosely linked together.

WARNING

To prevent SERIOUS INJURY:

• DO NOT connect power until instructed.
• Keep hands and fingers clear from sprocket during operation.
• Wear gloves when installing chain and cable.
• Keep hands and fingers away from joints and possible sharp edges.

Fig.1

Fig.2

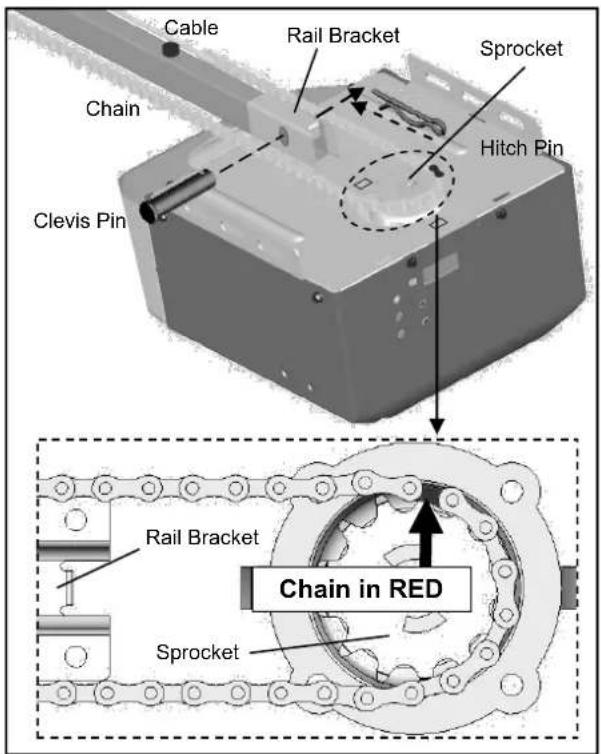

To Install Chain

1. Pull the remaining chain along the rail toward the opener.
2. A segment of chain marked in RED will be seen. Place this segment in the approximate location on the sprocket as shown in Fig.1.
3. When the chain is aligned properly around the sprocket, pull the chain-to-cable connector towards the trolley shaft.

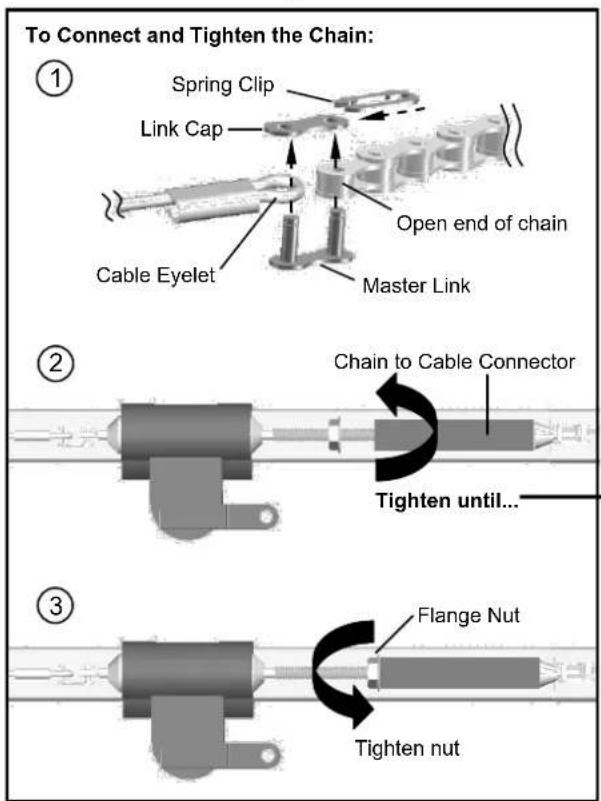

Follow steps shown in Fig.2 to connect & tighten the chain:

1. Align the open end of the chain to the cable eyelet and connect together using the master link set.

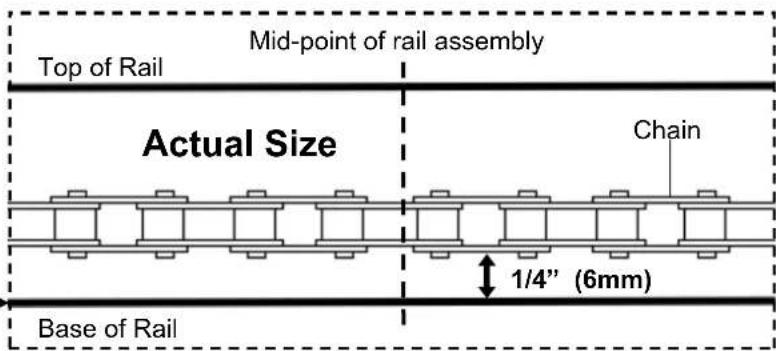

2. Turn the chain-to-cable connector on the trolley shaft until the chain is about 1/4" (6mm) above the base of the rail. Compare with the illustration below.
3. Tighten the flange nut on trolley shaft against the chain-to-cable connector.

When the chain and cable are tightened around the rail and sprocket on the opener, check and make sure the chain is properly aligned and not twisted. Attach the sprocket cover to the opener as shown in Fig.3.

Notice

During operation, it is normal for the chain to appear loose when the door is closed. If the chain returns to the position as shown below when the door is opened, the chain is adjusted properly. DO NOT re-tighten the chain.

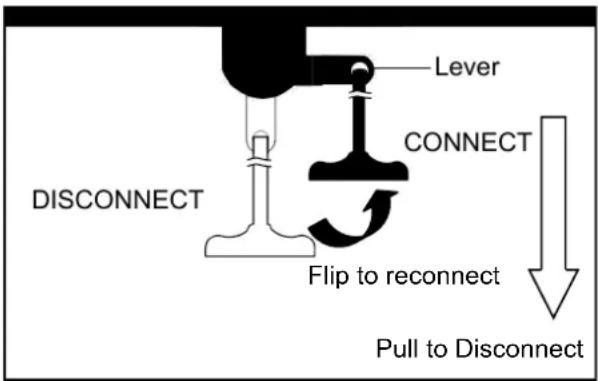

When performing maintenance, always PULL the emergency release to DISCONNECT the door from opener before adjusting the chain.

Fig.3

IMPORTANT INSTALLATION INSTRUCTIONS

⚠ WARNING

To reduce the risk of severe injury or death:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Install only on a properly balanced garage door. An improperly balanced door has the potential to inflict severe injury. Have a qualified service person make repairs to cables, spring assemblies, and other hardware before installing the opener.
3. Remove all ropes and remove or make inoperative all locks connected to the garage door before installing opener.

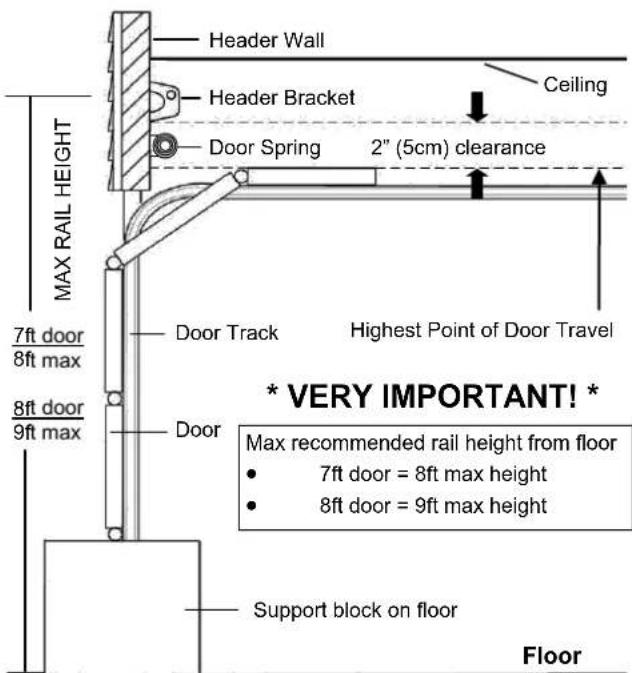

4. Where possible, install the door opener 7 feet or more above the floor. For products having an emergency release, mount the emergency release within reach, but at least 6 feet above the floor and avoiding contact with vehicles to avoid accidental release.
5. Do not connect the opener to source of power until instructed to do so.

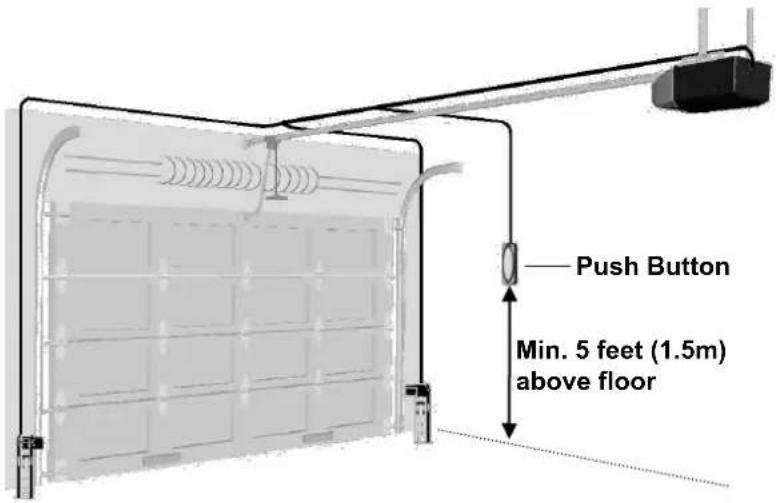

6. Locate the push button: (a) within sight of door, (b) at a minimum height of 5 feet so small children are not able to reach it, and (c) away from all moving parts of the door.
7. Install the Entrapment Warning Label next to the wall-mount push button in a prominent location. In case the adhesive does not adhere on the surface, the label should be attached to the surface by mechanical means.

Place entrapment warning label on wall next to garage door control.

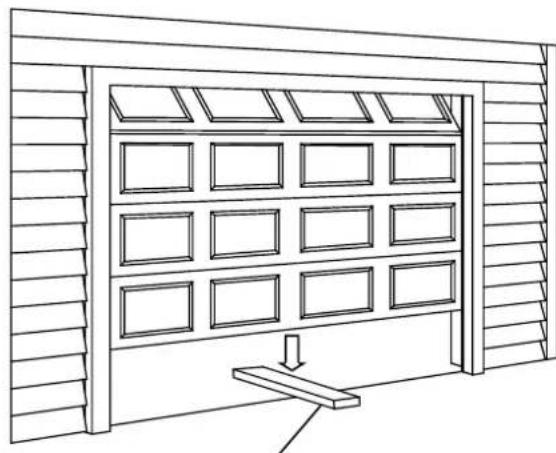

1. After installing the opener, the door must reverse when it contacts a 1-1/2-inch high object (or a 2 by 4 board laid flat) on the floor.

WARNING

To prevent SERIOUS INJURY:

• DO NOT connect power until instructed.

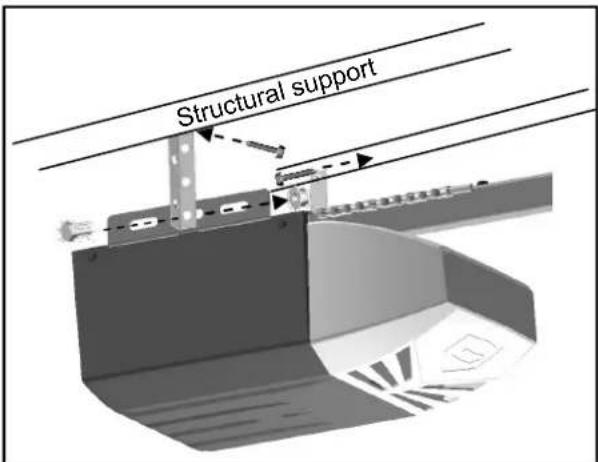

• The header bracket MUST be SECURELY fastened to the structural support on the mounting wall or ceiling, otherwise the door may not reverse when required. DO NOT install the header bracket over drywall.
• Concrete anchors MUST be used when mounting the header bracket into masonry.
• NEVER try to loosen, move or adjust garage door springs, cables, pulleys, brackets, or hardware.
• Contact a qualified garage door service technician if your door binds, sticks or is unbalanced. An unbalanced door might not reverse when required.

Fig.1

To Install Header Bracket

Note: Installation procedures may vary according to door type.

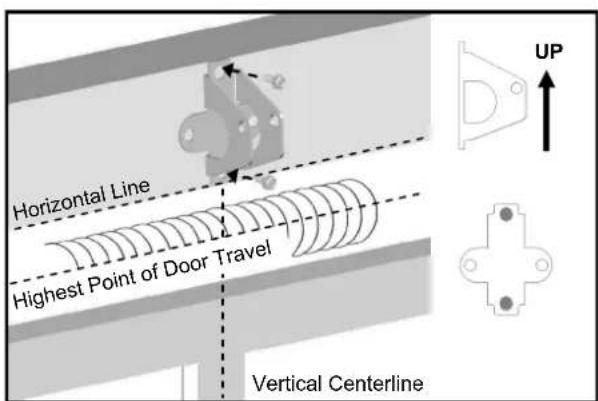

1. While inside your garage, close the door and mark the vertical centerline of the garage door. Extend the line onto the header wall above the door spring.
2. Open the door to the highest point of travel. Mark a line on the header wall 2" (5cm) above the highest point of travel.

Note: DO NOT install the header bracket over drywall. In some installations, it may be necessary to install a 2x4 across two wall studs to create a suitable location for the header bracket.

If installing into masonry, use concrete anchors (not provided).

Wall-Mounting

As shown in Fig.2, place the header bracket on the vertical centerline in direction shown.

Mark and drill two 3/16" holes. Fasten the header bracket securely to a structural support using two 5/16" x 1-1/2" lag screws.

Alternative Ceiling-Mounting

Ceiling-mounting is suggested ONLY when clearance is minimal.

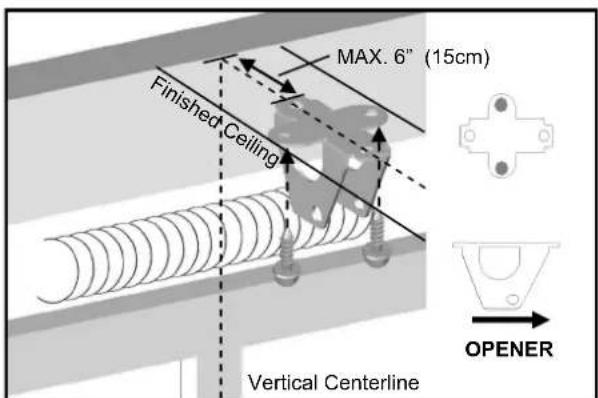

Extend the vertical centerline onto the ceiling as shown in Fig.3. Center the header bracket on the vertical mark, no more than 6" (15cm) from the header wall. Mark and drill holes to fasten the header bracket securely to a structural support.

Fig.2 (Wall-Mounting)

Fig.3 (Ceiling-Mounting)

Close-up of a metallic screw with hexagonal base and threaded shaft (no text or symbols visible)

Lag Screw 5/16" x 1-1/2"

Attaching Rail to Header Bracket and Mounting Door Bracket

CAUTION

To prevent SERIOUS INJURY:

• DO NOT connect power until instructed.
• Horizontal and vertical REINFORCEMENT is needed for fiberglass, aluminum or lightweight steel garage doors BEFORE installing the door bracket. Contact your door manufacturer for reinforcement options.

Fig.1

Fig.2

To Attach the Opener to the Header Bracket

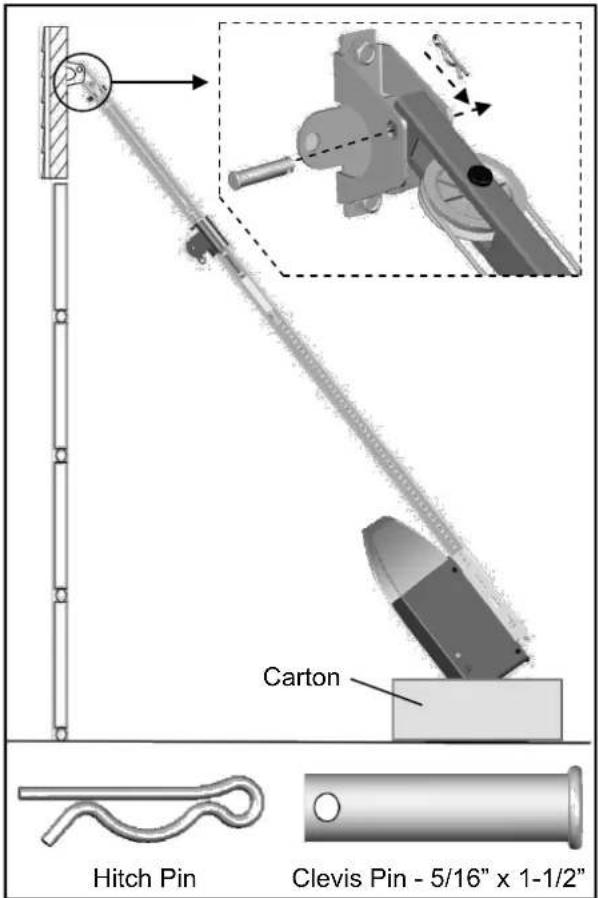

1. As shown in Fig.1, use the packaging carton as temporary support for the opener. Place the opener on carton to prevent damage.
2. Align the mounting hole on the header rail to the mounting hole on the Header Bracket.
3. Connect the header rail and the door bracket together with a 5/16" x 1-1/2" clevis pin and lock it in place with a hitch pin.

To mount the Door Bracket

Note: Some door reinforcement kits may provide direct attachment of the door arm to the reinforcement bracket. If you have a door reinforcement bracket with this option, skip this step and proceed with the next step "mounting opener to ceiling".

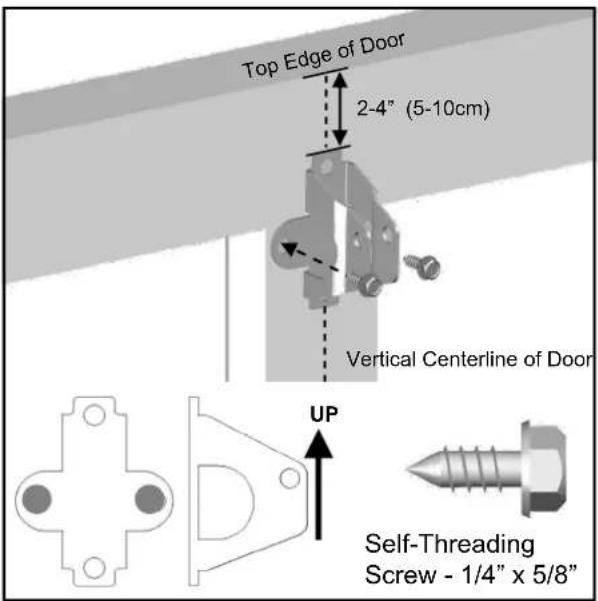

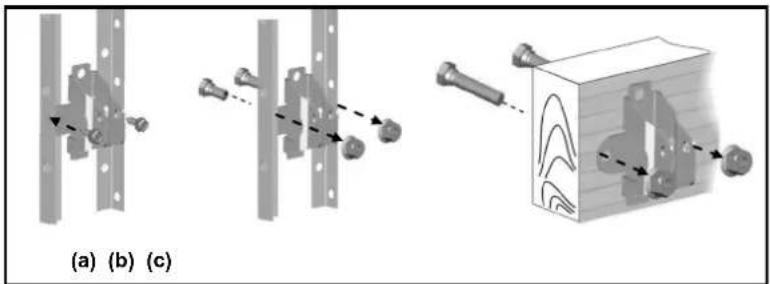

1. Position the door bracket on the centerline of the door approximately 2" - 4" (5-10cm) below the top edge of the door, as shown in Fig.2.
2. Depending on the construction of your door, install using one of the steps shown if Fig. 3 below:

For lightweight steel doors, with factory equipped vertical steel reinforcement and horizontal strut.

(a) Mark and drill two 3/16" holes. Make sure not to drill through the garage door. Secure the door bracket with two 1/4" x 5/8" self-threading screws (provided) as shown in Fig.3(a).
(b) Alternative installation: Drill two 5/16" holes through the door. Secure the door bracket using two 5/16" bolts, lock washers and nuts (not provided) as shown in Fig.3(b). The length of bolts will depend on the thickness of your door.

Wood door

(c) Mark and drill two 5/16" holes through the garage door. Secure the door bracket using two 5/16" carriage bolts, washers and nuts (not provided) as shown in Fig.3(c). The length of bolts will depend on the thickness of your door.

Note: DO NOT use Self-Threading Screws on a wood door.

Diagram showing three mechanical assembly steps: (a) fixed supports, (b) clamped joints, and (c) assembled with a wooden box (no text or symbols)

Fig.3

WARNING

To prevent SERIOUS INJURY or DEATH:

• DO NOT connect power until instructed.
• Install the opener at least 7 feet (2.13m) above the floor.
• Fasten the opener SECURELY to STRUCTURAL SUPPORTS of the garage to prevent falling.
• If installing brackets to masonry, concrete anchors (not provided) MUST be used.

Fig.1

Fig.2

Fig.3

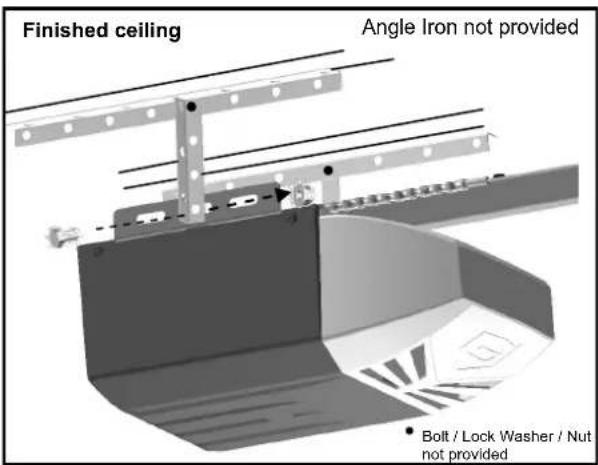

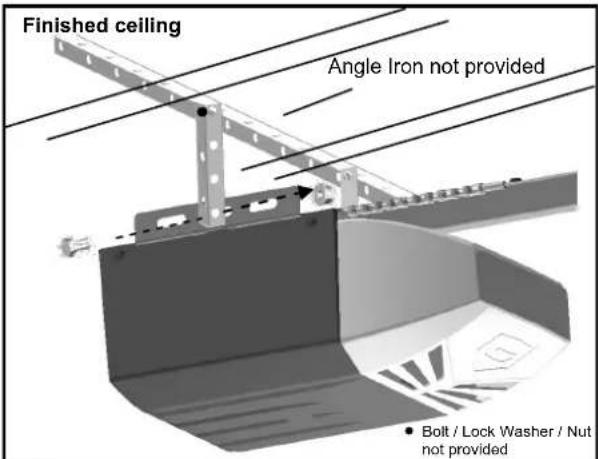

To Mount the Opener to Ceiling

The three most common installation options are shown in Fig.1-3.

Fig.1 shows mounting the opener directly to structural support on the ceiling. Fig.2 and 3 show mounting on a finished ceiling, with heavy duty angle iron ^ . ^ (angle iron not included)

Determine the mounting option that works best for your application and follow installation steps below:

1. Raise the opener and rail assembly and temporarily place it on a stepladder.
2. Position the opener and rail assembly so that it is aligned to the center line of the garage door. If the header bracket was mounted off center, align the opener with the header bracket.
3. Measure the distance from each side of the opener to the structural supports.
4. Cut both hanging brackets to appropriate length.
5. Drill 3/16" holes in the structural supports.
6. Secure one end of each of the hanging brackets to the structural supports using 5/16" x1-1/2" lag screws (provided).
7. Secure the opener to the hanging brackets and secure each side with a 5/16" x 1" bolt and flange nut (provided).
8. Move the door manually to check clearance between highest point of travel of the door and rail. If the door hits the rail, raise the header bracket or adjust the mounting of opener.
9. Remove the ladder ONLY when the opener is securely

Fastening Hanging Brackets to structural supports

Close-up of a metallic screw with threaded shaft and hexagonal end (no text or symbols)

Lag Screw 5/16" x 1-1/2"

Securing Opener to Hanging Brackets

Flange Nut

Bolt 5/16" x 1"

WARNING

To prevent SERIOUS INJURY:

• DO NOT connect power until instructed.
• Keep hands and fingers away from the sprocket during operation.
• Wear gloves when installing chain and cable.
• Keep hands and fingers away from joints and possible sharp edges.

Fig.1

NOTE: The trolley must be a minimum of 8" (20cm) away from the pulley.

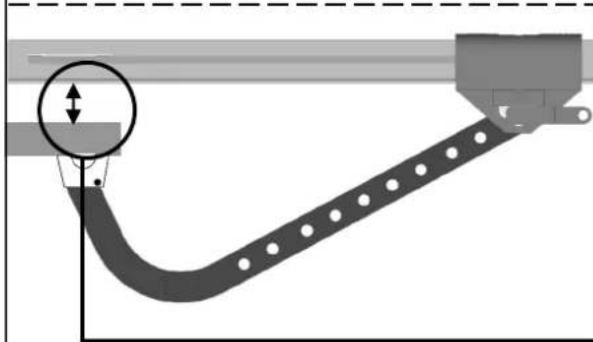

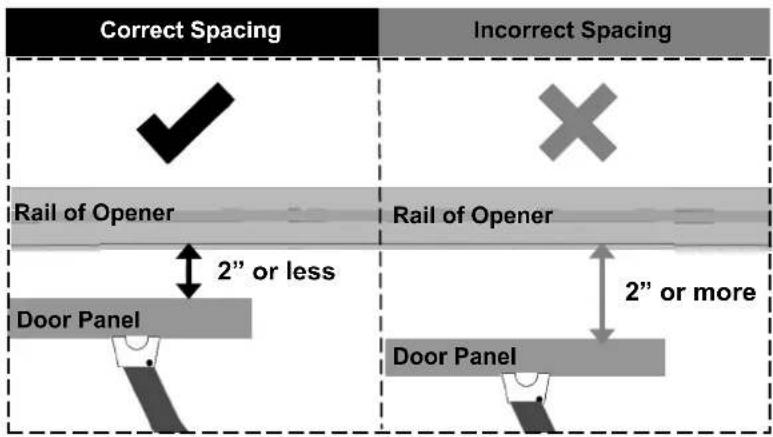

To Connect Door Arm

Follow the steps shown in Fig. 1

1. Fasten the straight door arm to the trolley with a 5/16" x 1" clevis pin and lock it with a hitch pin.
2. Fasten the curved door arm to the door bracket with 5/16" x 1" clevis pin and lock it with a hitch pin.
3. To connect the door arms together, choose two pairs of holes which are as far apart as possible. Fasten the arms using two 5/16" x 1" bolts and flange nuts.

Installing Light and Emergency Release Handle

WARNING

To prevent SERIOUS INJURY or DEATH from electrocution:

• Disconnect power cord before installing/replacing light bulb.
  To prevent possible OVERHEATING or damage to opener:
• Use ONLY A19 (E26) incandescent bulbs* (100W max.).
• DO NOT use short neck or specialty light bulbs.
• DO NOT use halogen bulbs.
  * CFL or LED light bulbs will work but may interfere with hand-held remotes.

Fig. 1

To install the light:

1. Insert screw driver between lens and the cover at the detents, pry and pull the light lens cover from the top and detach it from the opener.
2. Install a standard A19 (E26) 100 watt maximum light bulb.
3. Re-attach the light lens cover.

Notice

When replacing the light bulb, make sure the bulb on the opener has cooled down to prevent injury.

WARNING

To prevent SERIOUS INJURY or DEATH from a falling garage door:

• In case of power failure or door obstruction, PULL EMERGENCY HANDLE to release door from opener.
• When emergency release is in the released position, the door can be operated manually.
• To reconnect, flip the lever on the trolley towards opener, back to connect position, it will reconnect automatically upon pressing push button or remote control.
• DO NOT use emergency handle to pull the door open or closed.

Fig. 2

To attach the Emergency Release Handle:

1. Thread one end of the rope through the hole of the emergency release handle and secure with an overhand knot.
2. Thread the other end of the rope through the hole in the trolley lever.
3. Measure the rope length so that the handle is 6 feet (183cm) above the floor and is clear from the top of your vehicle. Secure with an overhand knot.

\* VERY IMPORTANT! \*

Emergency release handle must clear all vehicles. An emergency release handle set too low may get caught by the vehicle and cause damage to the door and opener. Measure from the floor to the top of your vehicle and set the emergency release handle above this measurement.

WARNING

To prevent SERIOUS INJURY or DEATH from electrocution:

• Power MUST NOT be connected until instructed.
• NO exposed part of the wire should be visible outside of the terminal for proper connection.

* VERY IMPORTANT! *

Fig. 1

Fig. 2

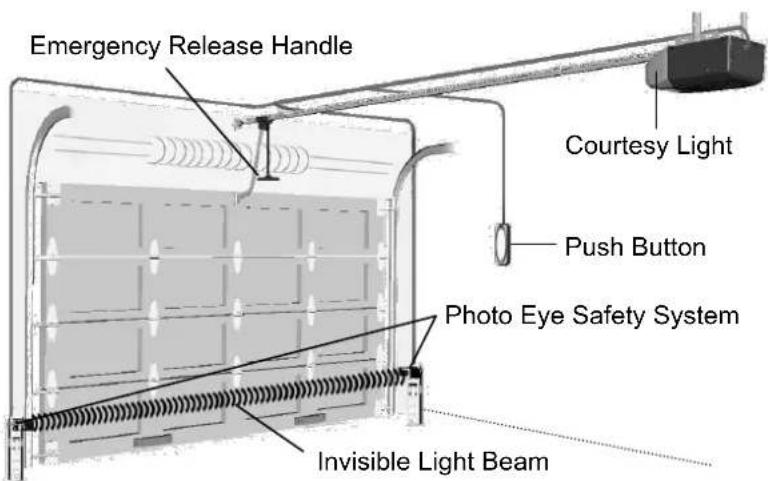

In the following section, the photo eye safety system and push button will be connected to the opener. Please read and understand the wiring instructions before connecting wires.

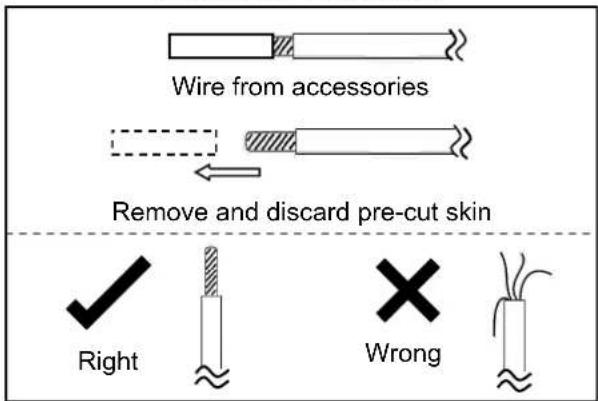

1. Remove the pre-cut skin on the open end of wire from accessories. Wires MUST NOT be frayed. Wires must be connected as shown in Fig.1.

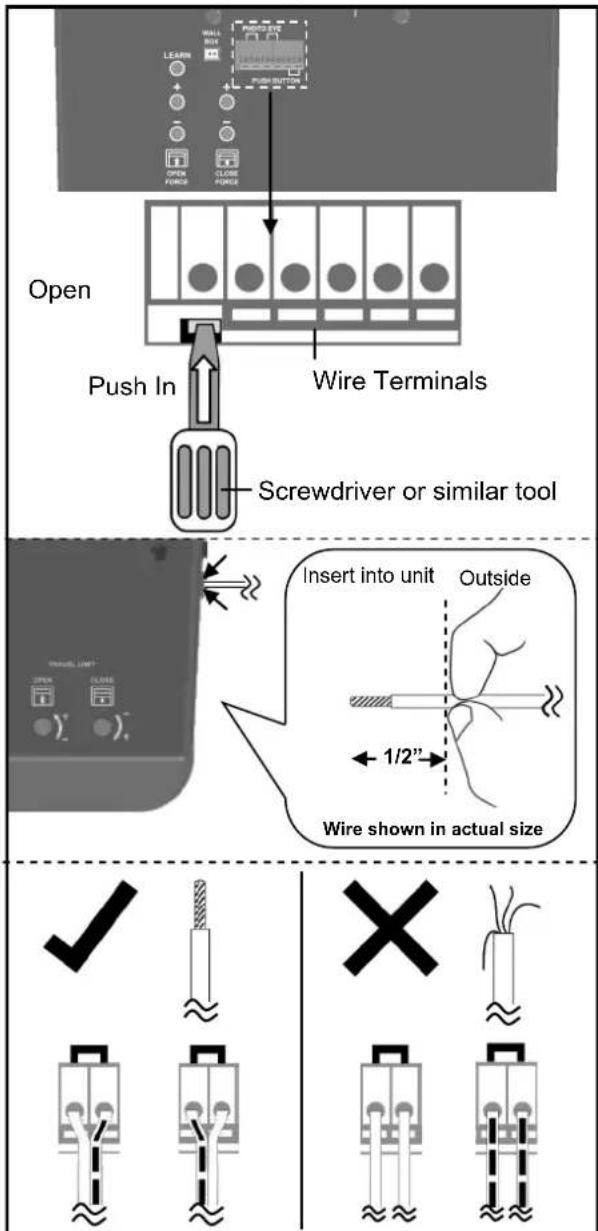

2. To connect a wire to an assigned terminal, use a small "flat head" screwdriver to push in the orange tab on the Wire terminal as shown in Fig.2.
3. Insert approximately 1/2" (13mm) of the wire into the terminal while pushing in the tab as shown in Fig.2.
4. Each accessory requires a pair of terminals. Each pair of terminals MUST be connected with one white wire and one striped wire (non-polarized) from the SAME accessory as shown in Fig.2.
5. Check for proper connection by gently pulling on the wire. The wire should not come out of the terminal. NO exposed part of the wire should be visible outside of the terminal.
6. Use the insulated staples provided to secure the wires to the wall and/or ceiling. Be careful not to damage the wires while securing the staples.

Suggested placement of insulated staples

Connecting Photo Eye Safety System

WARNING

To prevent SERIOUS INJURY or DEATH from electrocution:

- Power MUST NOT be connected BEFORE photo eye safety system is connected and aligned.

- The opener will not operate until the photo eye safety system is properly connected and aligned.

- Install the photo eyes NO higher than 6" (15cm) above the floor.

No part of garage door or other objects should obstruct the photo eye safety system during door-closing.

Fig. 1 (Wall Mount)

Fig. 3

About the Photo Eye Safety System

The photo eye safety system provides protection against entrapment while the door is closing. When properly connected and aligned, the emitter photo eye emits an invisible infrared light beam while the sensor photo eye monitors that beam.

If the beam is obstructed during door-closing, the entrapment protection will be triggered and the door will stop and reverse to the open position. The courtesy light will flash for 30 seconds indicating an obstruction.

Installing The Photo Eye Safety System

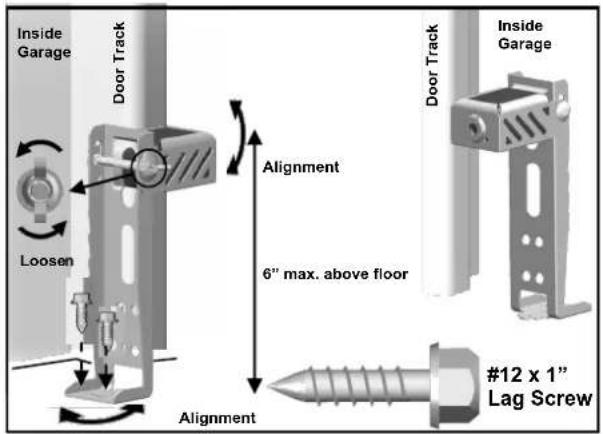

Wall-mounting

1. Place the photo eyes facing each other on each side of the garage door. Position the sensors so they are no higher than 6" (15cm) above the floor, as shown in Fig.1.
2. Drill 3/16" holes using the mounting holes on the bracket as a template. Secure with #12 x 1" lag screws (provided).
3. Be sure brackets, when mounted, are NOT in contact with the door track.

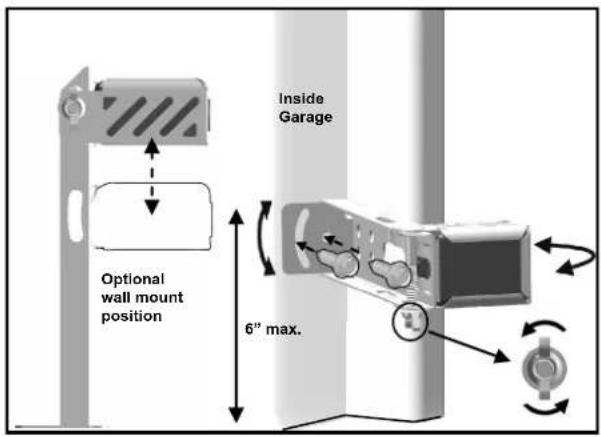

4. If necessary use the optional wall-mount position (Fig.1) to better fit your door-track and improve obstacle avoidance. To adjust the position, loosen the wing nut, disassemble the bracket and move the photo eye to the lower position on the holder.
5. If necessary, align the photo eyes by loosening the wing nut. (This step may be further required in Aligning the Photo Eye Safety System on page 16.)

Alternative Floor-mounting

1. Place the photo eyes facing each other on each side of the garage door, as shown in Fig.2.
2. If attaching to concrete, secure the photo eyes using concrete anchors and bolts (not provided).
3. Be sure brackets, when mounted, are NOT in contact with the door track.
4. If necessary, align the photo eyes by loosening the wing nut. (This step may be further required in Aligning the Photo Eye Safety System on page 16.)

To Connect Photo Eye Safety System

1. Connect a pair of wires from either one of the photo eyes to a pair of "PHOTO EYE" terminals on the rear of the opener as shown in Fig. 3. Refer to Wiring Instructions on page 13 for proper connections.
2. Repeat above step to connect the other photo eye.
3. Refer to Wiring Instructions on page 13 to ensure wires are connected properly.

WARNING

To prevent SERIOUS INJURY or DEATH from electrocution:

- Power MUST NOT be connected until instructed.

To prevent SERIOUS INJURY or DEATH from using the push button and a closing door:

• Install the push button within sight of the door at a minimum height of 5 feet (1.5m) above the floor. Make sure it is out of the reach of children and moving parts of door and hardware.
• NEVER permit children to access the push button or remote controls.
• Operate the door ONLY when it is adjusted properly with no obstructions present and is in clear sight.
• ALWAYS keep a moving door in sight until it's completely closed.
• NEVER cross the path of a moving door.

NOTICE: Only use the Push Button included with this GDO model or identical replacement part. See Accessories in Repair Parts section of this manual.

The push button is a wired, illuminated door control placed inside your garage.

To install the Push Button:

1. Inside your garage, install push button within sight of the door at a minimum height of 5 feet (1.5m) off the ground. Ensure it is installed out of the reach of children and free from the moving parts of the door and hardware.
2. Securely fasten it to a solid surface with 1" screws. If attaching to drywall or other hollow surface, drill 3/16" holes and use the provided drywall anchors.

To Connect the Push Button to the Opener

Connect the pair of wires from the push button to the pair of "PUSH BUTTON" terminals on the rear of the opener. Refer to Wiring Instructions on page 13 to ensure wires are properly connected.

Connecting Power

WARNING

To prevent SERIOUS INJURY or DEATH from electrocution or fire:

• Power MUST be DISCONNECTED BEFORE proceeding with permanent wiring procedures.
• Garage door opener installation and wiring MUST be in compliance with all local electrical and building codes. Make sure the opener is ALWAYS grounded.
• NEVER use an extension cord, 2-wire adapter or modify the power plug in any way to make it fit the outlet.

DO NOT OPERATE OPENER AT THIS TIME.

To Connect Power

Plug the opener into a grounded outlet ONLY. If there is no grounded outlet present, call a qualified electrician to replace the outlet. Use of a surge protector is highly recommended.

Permanent Wiring (If Required by Local Code)

1. Remove the enclosure by removing the 6 screws located on the sides and rear of the opener.
2. Cut the two cable pressure connectors connecting line (black) and neutral (white) wire from the power cord.
3. Remove the grounding screw connecting the green wire.
4. Remove the power cord.
5. Group neutral (white) wires from power source with 2 white wires from light cable, and logic board, and yellow wire from motor, inside the opener. Connect them with a wire nut.
6. Group line (black) wires from power source with another black wires from logic board inside the opener. Connect them with a wire nut.
7. Secure the ground (green or bare) wire from the power source with a grounding screw.
8. Reinstall the enclosure.
9. Turn on power supply. If the wiring is properly connected, a "click" should be heard and the light will illuminate (if a bulb is installed). If there is no response from the opener, check power source and wiring.

Aligning the Photo Eye Safety System

WARNING

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• The photo eye safety system MUST be installed BEFORE connecting power.
• The photo eye safety system MUST be properly connected and aligned BEFORE operating the opener.

NOTICE: The opener will not close until the photo eyes are installed. Photo eyes are required by federal law to be installed on all openers.

Aligning the Photo Eye Safety System:

1. When power is supplied, the green photo eye (Emitter) will flash until it is aligned with the red photo eye (sensor). The red photo eye will not light until it is aligned with the green eye.
2. When the photo eye system is properly aligned the green photo eye (emitter) will emit a steady green light and the red photo eye (sensor) will emit a steady red light.
3. If either of the photo eye lights are unsteady, flash or dim, check for an obstruction and carefully adjust the position of the photo eyes until they give a steady green light and steady red light.

Note: The path of the invisible light beam MUST NOT be obstructed. No part of the garage door or any hardware should interfere or block either sensor.

WARNING

To prevent SERIOUS INJURY or DEATH from improper force adjustment:

• Improper adjustment of travel limits will cause operation of safety reversal mechanism.
• If travel limit adjustment is made, force adjustment may also needed.
• After ANY adjustments, the safety reverse test MUST be performed to ensure the door reverses on contact with a 1-1/2" thick object (2x4 laid flat).

If the door reverses unintentionally during closing, check below symptoms:

1. The photo eye system may be improperly connected, misaligned or obstructed The courtesy light will flash continuously for 30 seconds. Refer to Troubleshooting on Page 25.
2. Binding door — disconnect the door from the opener by using the emergency release handle. Open and close the door manually and check the following steps.

2.1 If the door is balanced, refer to Force Adjustment on Page 18 to adjust Close force.
2.2 If the door is unbalanced, binding or jammed, call a trained service person to adjust the door.

About Travel Limits

Limit adjustments regulate the position at which the door will stop when opening and closing.

BEFORE making any adjustments, operate the door by using the push button or remote. Run the opener through a complete cycle.

If the door opens and closes completely without unintended reversing upon closing — NO adjustment is necessary.

If the door does not open or close at desired positions, proceed with the instructions below to adjust the travel limits.

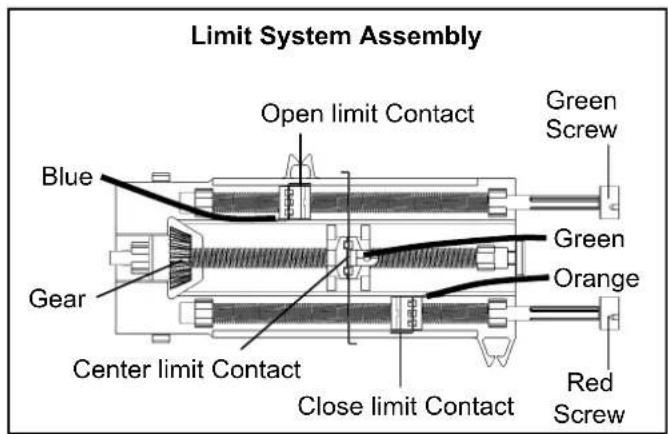

Adjusting Travel Limits

Open and close limits can be increased (+) or decreased (-) by turning the corresponding screws on the opener. Use a "flat head" screwdriver to make adjustments. One full turn of the screw is about 2" (5cm) of actual travel.

NOTE: The opener motor includes an automatic thermal protection system which will shut down the motor in an overheat situation. The thermal protector will reset itself once the motor cools down. Opening and closing the opener multiple times (in a short period of time) may cause the motor to overheat and shut down. If this happens, wait about 15 minutes for the motor to cool and retry operation.

Setting OPEN (UP) Travel Limit

1. CLOSE the garage door by using either the remote or push button.
2. Adjust the OPEN limit screw.
3. OPEN garage door and check for proper adjustment.
4. Repeat steps 1-3 until the door opens to the desired position. When the door is in the open position, make sure there is enough clearance for your vehicle(s), and there is a minimum 2" (5cm) gap between trolley and stop bolt.
5. Perform Safety Reverse Test on page 19.

If the door does not open past 5 feet (1.5m), follow Force Adjustment on page 18 to adjust the open force.

Setting CLOSE (DOWN) Travel Limit

1. OPEN the garage door by using either the remote or large push button.
2. Adjust the CLOSE limit screw.
3. CLOSE the garage door and check for proper adjustment.
4. Repeat steps 1-3 until door closes to the desired position.
5. Perform Safety Reverse Test on page 19.

WARNING

To prevent SERIOUS INJURY or DEATH from improper force adjustment:

• DO NOT adjust force to compensate for binding or sticking of the garage door. Call a qualified garage door service technician to make necessary adjustments in case of binding.
• DO NOT increase the force beyond minimum force required for closing the door. Too much force will cause improper operation of safety reversal mechanism.
• If either the force or travel limit adjustment is made, the other adjustment may also needed.
• After ANY adjustments, the safety reverse test MUST be performed to ensure the door reverses on contact with a 1-1/2" thick object (2x4 laid flat).

For safe operation, the force setting should always be set at the MINIMUM FORCE required to run the door.

Adjusting Force

1. Force adjustment controls are located on the rear panel of the opener. The force adjustments regulate the amount of force required to open or close the door.
2. Force adjustment is applied only to compensate for the minor resistance caused by weather or other conditions.

- Note: Force is preset at level 6 for both open and close adjustments. The size and operating conditions of the garage door will determine the correct level of force/sensitivity. Weather conditions may also affect the operation of the door requiring further adjustments as needed.

- Note: If the close force is set too light the opener will reverse the door during closing. If the open force is set too light the opener will stop the door during opening.

- Note: There are 12 levels for open and close force settings. When either the maximum or minimum level is reached, the light will flash 6 times.

- Never adjust the force setting by more than 1 level (1 press) at a time.

Setting Force

Setting Close Force

1. If the door completes a full close cycle without reversing, decrease (-) the close force by 1 level at a time until the door reverses. If the door reverses during closing, increase (+) close force by 1 level. The close force is now properly adjusted.
2. During the "door-close" cycle, the opener will reverse if the force required to close the door is exceeded.

Setting Open Force

1. If the door completes a full open cycle without stopping, decrease (-) the amount of force by 1 level until the door stops during the opening. Once the door stops during opening, increase (+) open force by 1 level. The close force is now properly adjusted.

2. During the "door-open" cycle the opener will stop if the force required to open the door is exceeded.

WARNING

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• The Safety Reversal Test MUST be conducted ONCE A MONTH.
• NO ONE should cross the path of moving door during operation and/or testing.
• If either force or travel limit adjustment is made, the other adjustment may also needed.
• After ANY adjustments to the door system, the Safety Reverse Test MUST be performed to ensure the door reverses on contact with a 1-1/2" thick (2x4 laid flat) object.
• The photo eye safety system MUST be properly aligned, and tested regularly.

Line drawing of a modular storage unit with 12 windows and a central load (no text or symbols)

1-1/2" (3.8cm) thick solid object (or 2x4 laid flat)

Illustration of a 3D object with light rays and a 30-second hourglass symbol (no text or labels on the objects)

Testing the Safety Reverse System

The Safety Reverse System prevents the door from closing when an obstruction is present.

1. Open the door by using the large push button or remote
2. Place a 1-1/2" (3.8cm) thick solid object (or 2x4 laid flat) on floor under the center of garage door.
3. Keeping the door in sight, use the push button or remote to close the door.
4. The door MUST REVERSE upon striking the object within 1.5 seconds, and stop at the fully opened position.
5. The courtesy light will start flashing for 30 seconds upon triggering the Safety Reverse System.

If the door just stops on the object, adjust the opener as follows:

The close travel maybe inadequate, Increase close travel limit by 1/4 turn (See Limit Adjustment on page 17)

Conduct the test again. If the door reverses on contact, remove the object and run at least 3 COMPLETE travel cycles to ensure proper adjustment.

If the door still does not reverse on the object, decrease the close force (see Force Adjustment on page 18) and repeat the test.

If the opener still fails the safety reverse test, call a qualified technician for door adjustment.

Testing the Photo Eye Safety System

1. Open the door by using the large push button or remote
2. Make sure both photo eyes steadily emit the green and red indicator lights. (If not, check alignment)
3. Place an object under the door about 8" (20cm) high by 12" (30cm) wide (the opener carton can be used),
4. The red indicator light on the sensor eye should be dimmed.
5. Keep the door in sight and use the push button or remote to try to close the door.
6. The door should NOT move more than 1" (2.5cm) and the courtesy light should flash for 30 seconds.

Programming 1- Button Remote

WARNING

To prevent SERIOUS INJURY or DEATH:

• Keep remote and battery out of reach of children.
• NEVER permit children to access the wall panel nor remotes.
• Operate the door ONLY when it is properly adjusted, and there are no obstructions present.
• ALWAYS keep a moving door in sight until completely closed. NEVER cross the path of a moving door.

To reduce risk of fire, explosion or electric shock:

• DO NOT short circuit, recharge, dissemble or heat the battery, batteries may explode or leak.
• NEVER allow small children near batteries.
• Replace with 23AE 12 volt batteries ONLY. Dispose of batteries properly.

Signal and Battery Indicator

Fig.1

Diagram showing a device connected to a 3D object with x2 label, no readable text or symbols present

Fig.3

To Program Remote(s):

1. See Fig.2 to add a remote. Press the "LEARN" button on the rear control panel of the opener. The courtesy light will illuminate with an audible click*. The unit is now ready to learn a remote.
2. Within 30 seconds, press the button on the remote.
3. The courtesy light will flash twice indicating remote has been stored successfully**.

Up to 20 remotes (including keyless entry pad codes) can be added to the unit by repeating the above procedures.

If more than 20 remotes are stored, the first stored remote will be replaced. (i.e. the 21st remote replaces the 1st stored remote.)

* If the courtesy light is already on, it will flash once and stay illuminated for 30 seconds.

** If a remote is not accepted, the courtesy light will stay on for 30 seconds, flash 4 times and then stay on for 2-1/2 minutes. Retry programming the remote by repeating the steps above.

Removing all Remotes:

To remove all remotes from memory, press and hold the "LEARN" button for 5 seconds. The courtesy light will flash 7 times indicating all remotes have been removed from memory.

Replacing Remote Battery:

When the battery of the hand held remote is low, the indicator light will become dim and/or the range of the remote will diminish. To replace the battery, remove the battery cover from the remote as shown in Fig 4. Replace with a 23AE 12 volt alkaline battery with polarity shown in Fig.4.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Programming Wireless Keyless Entry Keypad \*

To purchase a wireless keyless entry keypad, visit a Craftsman outlet, call 1-888-331-4569, or go online to www.sears.com

WARNING

To prevent SERIOUS INJURY or DEATH:

• Keep remote and battery out of reach of children.
• NEVER permit children to access the wall panel, push button nor remotes.
• Operate door only when it is adjusted properly with no obstructions to door travel and is in clear sight.
• ALWAYS keep a moving door in sight until completely closed. NO ONE should cross the path of a moving door. To reduce risk of fire, explosion or electric shock:
• DO NOT short circuit, recharge, dissemble or heat the battery, batteries may explode or leak.
• Replace with 1.5 volt AAA batteries ONLY. Dispose of batteries properly.

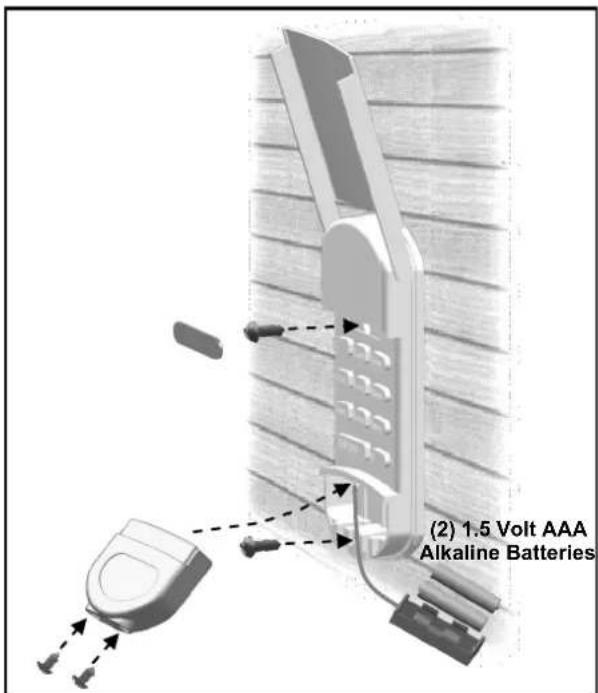

Fig.1

*Optional
Fig.2

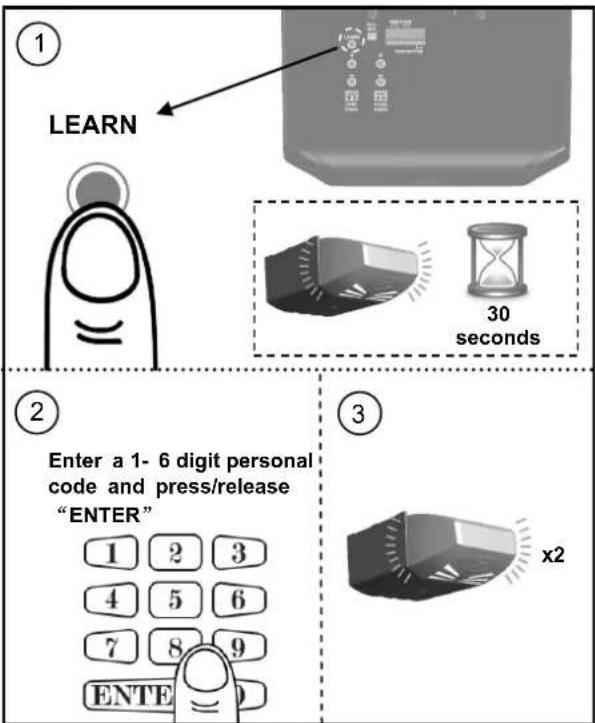

To Add Personal Codes:

1. Press the "LEARN" button on the rear control panel, "OK" LED will glow and beep. The unit is ready to accept a keypad code in the next 30 seconds as shown in Fig.1.
2. Enter a 1 - 6 digit personal code on the keyless entry within 30 seconds and press/release "ENTER" button. "OK" LED will flash and beep twice indicating personal code is stored in memory.

Up to 20 personal codes (including 1-button remotes) can be added to the unit by repeating the above procedures.

If more than 20 personal codes are stored, the previously stored one from the very beginning will be replaced, (i.e. the 21st code replaces the 1st stored one.)

Operation:

To access the door, enter a pre-stored personal code and press "ENTER" to transmit code, and within 20 seconds, "ENTER" button can be used to stop or reverse the door.

If the code is entered incorrectly, correction can be made by pressing "ENTER" to reset and re-enter code.

When dark, "ENTER" may be pressed in advance to turn on back light.

Removing ALL Personal Code(s):

To remove ALL personal code(s) from memory, press and hold the "LEARN" button for 5 seconds. "OK" LED will flash and beep, indicating all codes/remotes have been removed from memory.

Mounting the Keyless Entry:

Keyless entry may be secured on door jamb face outside your garage. Locate keyless entry within sight of door at minimum height of 5 feet (1.5m), ensure it is away from reach of children and moving parts of door and hardware. Test the reception of the keyless entry before mounting. Change location for better reception if necessary.

Use the mounting holes on the keyless entry as template to mark position on the mounting surface. To attach to a wooden surface use the screws provided. In case of a drywall surface, drill holes and use drywall anchors provided.

Replacing Keyless Entry Battery:

When the battery of keyless entry is low, dimmed illumination is observed. To replace battery, remove the battery cover by loosening the screws underneath, and replace the battery with two 1.5 volt AAA batteries.

IMPORTANT SAFETY INSTRUCTIONS

⚠ WARNING

To reduce the risk of severe injury or death:

1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with door controls. Keep the remote control away from children.
3. Always keep the moving door in sight and away from people and objects until it is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
4. NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR.
5. Test door opener monthly. The garage door MUST reverse on contact with a 1-1/2-inch high object (or a 2 by 4 board laid flat) on the floor. After adjusting either the force or the limit of travel, retest the door opener. Failure to adjust the opener properly increases the risk of severe injury or death.
6. Use the emergency release only when the door is closed. Use caution when using this release with the door open. Weak or broken springs are capable of increasing the rate of door closure and increasing the risk of severe injury or death.
7. KEEP GARAGE DOORS PROPERLY BALANCED. See owner's manual. An improperly balanced door increases the risk of severe injury or death. Have a qualified service person make repairs to cables, spring assemblies, and other hardware.

SAVE THESE INSTRUCTIONS.

Operating the Opener

WARNING

To prevent SERIOUS INJURY or DEATH:

- READ AND FOLLOW ALL INSTRUCTIONS AND WARNINGS IN THE OWNER'S MANUAL AND LABELS

- Keep remote and battery out of reach of children.

- NEVER permit children to access the push button or remotes.

- Operate the door ONLY when it is properly adjusted, and there are no obstructions and is in clear sight.

- ALWAYS keep a moving door in sight until completely closed. NEVER cross the path of a moving door.

- If travel limit adjustment is made, force adjustment may also needed.

- After ANY adjustments, the safety reverse test MUST be performed to ensure the door reverses on contact with a 1-1/2" thick object (2x4 laid flat).

- ALWAYS ensure that your door is balanced and in good working condition.

Actual Operating Scenario

Activating the Opener

Controls Operation
	Push Button(Indoor)	Press and hold the push button until the door starts to move, and controls as follows:- Open or close the door.- Reverse the door while it is closing- Stops the door while it is opening.- Close the door when the photo eye safety system is not installed, misaligned or obstructed INTENTIONALLY.
	1- Button Remote Control	Same functions* as the push button with remote distance up to 100 ft. in open field.*For safety concerns, the 1 - button remote WILL NOT work if the photo eye safety system is not properly installed and aligned.
	Wireless Keyless Entry Keypad *	Program the keyless entry pad accordingly and access the door using the PIN code.
	3-Button Mini Remote Control*	Remote distance up to 100 ft. in open field.For safety concerns, the hand-held remote WILL NOT work if the photo eye safety system is not properly installed and aligned.

\*Optional

See Accessories in Repair Parts section of this manual for purchase.

Door Status vs. Activation

Door status		Activation using Push Button / Remote
Door at fully open / close position	Door will move to fully close / open position
Door is closing	Door will reverse
Door is opening	Door will stop
Door is stopped as intended in partially open position	Close
Door is obstructed while closing	Door will reverse while flashing courtesy light
Door is obstructed while opening	Door will stop
Door is fully opened and photo eye system is obstructed	Door will not close

Courtesy Light Responses

Operation / Condition	Courtesy Light Response
Opener is initially plugged-in / Power restored	Flashes five times
Upon opener activation	Turns on for 4-1/2 minutes and turns off automatically
“LEARN” button is pressed Turns on for 30 seconds
Remote / Keyless entry PIN code accepted Flashes twice
The photo eye system is obstructed during door-closing or door is obstructed during opening	Flashes for 30 seconds (Re-align and clear obstruction)
Opener motor overheat (Thermal Protection)	Flashes 5 times (Wait about 15 minutes to cool down)

Manual Operation

		WARNING
To prevent SERIOUS INJURY or DEATH:- Use emergency release to disconnect trolley ONLY when the door is CLOSED to prevent unexpected rapid falling in case of a unbalanced / poor-conditioned door.- Use emergency release ONLY when doorway is clear of persons and obstructions.- DO NOT use emergency release to pull the door open or closed.

In case of a power failure or door obstruction, PULL EMERGENCY handle to release door from opener.

To Disconnect Trolley for Manual Operation

With the door closed, pull down the emergency release handle to the DISCONNECT position. The door can be raised / lowered manually.

To Re-connect Trolley

Pull the handle toward the opener so that the lever will flip up to the CONNECT position. The trolley will reconnect itself when the opener is activated or when the door is manually opened/closed

Maintenance

Schedule Maintenance
Once a month	Door balance test, refer to page 4.Safety reverse test, refer to page 19.
Twice a year	Check chain tension (refer to page 6 for adjustment if necessary).
Once a year	- Limit and force adjustment may be necessary due to weather conditions.Refer to pages 17-18 for adjustment. Conduct safety reverse test after ANY adjustments.- Lubricate door rollers, bearings and hinges. The opener is permanently lubricated, DO NOT lubricate or grease the opener, rail or door tracks.

Troubleshooting

Problem Possible Cause / Solution
Opener does not close and light flashes	The photo eye safety system is misaligned or obstructed, refer to pages 16 for proper alignment.
Opener does not respond to remote	- Refer page 20 to reprogram remote.- Check remote battery
Opener stops before reaching full open / close position	Either the travel limit or force is not properly adjusted, check adjustment referring to pages 17-18. Conduct safety reverse test after ANY adjustment.
The door reverses unintentionally	- Make sure the photo eye safety system is aligned and clear of obstructions.- Refer to page 4 to check the door balance- Refer to page 18 to re-adjust the force
The door reverses upon touching the floor and the courtesy light flashes	Refer to page 17 to decrease close limit by 1/4 turn until door stops as intended at the fully closed position. Conduct safety reverse test after ANY adjustment.
The courtesy light flashes 5 times and the Opener does not start	Opener motor overheat, please wait about 15 minutes and retry.
The opener does not close the door and the green LED on the photo eyes flashes	The photo eye safety system is misaligned or obstructed, refer to page16 for proper alignment.
The opener is working properly but the courtesy light does not turn on	Replace light bulb (A19 incandescent Max.100W).
The courtesy light does not turn off Defective logic board.
The opener hums as the trolley hits the trolley stop bolt in open travel	1. Make sure the trolley is towards the trolley stop bolt.2. Disconnect the trolley by using the emergency release.3. Close the door manually4. Relieve the chain tension by loosening both the chain-to-cable connector and the flange nut (see page 6)5. Operate the opener so the trolley shaft travels towards the door (Trolley should be kept disconnected)6. Refer to page 17 to decrease open travel limit by 2 full turns7. Refer to page 6 to re-tighten the chain until it is 1/4" (6mm) above the base of rail (reference the figure shown on page 6).8. Repeat the above steps if the trolley still hits the stop bolt.

To purchase repair parts, call 1-888-331-4569.

Rail Assembly Parts

Item	Part No.	Name / Description
1	RP-001	Rail—Header Segment
2	RP-002	Rail—Middle Segments
3	RP-003	Rail—End Segment with Stop Bolt
4	GUT-840	Pulley
5	RP-004	Trolley
6	RP-005	Trolley Shaft and Cable
7	GUT-410	Master Link Set
8 RP-006 Chain

Installation Parts

Item	Part No.	Name / Description
1	RP-007	Header Bracket
2	GUAT-022	Door Bracket
3 RP-008		Hardware Bag with Emergency Release Handle& Rope (Installation hardware shown on P.3)
4	GUAT-024	Curved Door Arm
5	GUAT-025	Straight Door Arm
6	GUAT-026	Emergency Release Handle + Rope
7	RP-009	Hanging Bracket

Accessories

Item	Part No.	Name / Description
1	GUAT-201	Photo Eye Safety System (Emitter + Sensor with Brackets)
2	STDPX	Push Button
3	58502	1-Button Remote
4	57938	3-Button Mini Remote
5	GUAT-203	23AE 12 Volt Alkaline Battery
6	57939	Keyless Entry Pad
7	CR-001	Owner's Manual

*Optional
To purchase optional accessories, visit a Craftsman outlet, call 1-888-331-4569, or go online to www.sears.com

Opener Assembly Parts

Item	Part No.	Name / Description
1	GUAT-327	Sprocket Cover
2	GUAT-323	Sprocket and Gear Assembly
3	GUAT-341	Chassis
4	GUAT-303	Light Plate
5	CR-003	Light Lens Cover
6	GUAT-305	Capacitor
7	GUAT-306	Capacitor Holder
8	CR-004	AC Service Motor & Bracket Assembly
9	GUAT-308	Garage Door Opener RPM Wheel
10	GUAT-309	Logic Board Holder
11	GUAT-310	Logic Board with Holder
12	GUAT-311	Limit System Driving Gear
13	GUAT-312	Limit System Assembly
14	CR-002	Opener Cover

* Should be replaced by qualified technician only

CRAFTSMAN WARRANTY

90-DAY IN-HOME LIMITED WARRANTY

FOR 90 DAYS from the date of sale this product is warranted against defects in material or workmanship. With proof of purchase a defective product will be repaired free of charge.

LIMITED WARRANTY ON PARTS

FROM THE 91st DAY THROUGH 1 YEAR from the date of sale this product is warranted against defective parts. With proof of purchase a new part will be furnished to replace a defective one free of charge. Any costs for professional installation are not included.

LIMITED WARRANTY ON MOTOR

FROM THE 91st DAY THROUGH 4 YEARS from the date of sale the motor on this product is warranted against defects in material or workmanship. With proof of purchase a new motor will be furnished to replace a defective one free of charge. Any costs for professional installation are not included.

WARRANTY SERVICE

For warranty coverage details to obtain product repair or replacement parts, call this number: 1-888-331-4569

WARRANTY RESTRICTION

This warranty does not cover light bulbs, which are expendable parts, or repair parts necessary because of operator abuse or negligence, including the failure to install, adjust and operate this garage door opener according to instructions contained in the owner's manual. This warranty also does not cover any problems caused by interference.

LIMITATION ON LIABILITY

Seller will not be liable for loss or damage to property or any incidental or consequential loss or expense from property damage due directly or indirectly to the use of this product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

DISCLAIMER OF IMPLIED WARRANTIES

Except for the motor, all implied warranties for this product, including but not limited to any implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the 90 day and 91st day through 1-year limited warranty period set forth above. All implied warranties with respect to the motor are limited in duration to the 91st day through 4-year limited warranty period set forth above. No implied warranties will exist or apply after such periods. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Transform SR Brands Management LLC, Hoffman Estates, IL 60179

Introducción

Símbolos e íconos 29

Inventario 30

3D rendered object resembling a stylized boat or container with a wave pattern (no text or symbols)

Two identical metal electrical connectors with mounting holes and wiring (no text or symbols visible)

Fotoelectrico

Riel — Segmento Final con perno de Parada del Carro

Two black curved lines with small circular markings, resembling stylized ice hockey sticks or pipes (no text or symbols)

Close-up of a metallic screw with threaded shaft and hexagonal head (no text or symbols visible)

×4
Tomillo Tirafondo 5/16" x 1-1/2" — Soporte Cabezal / Montaje Abridor

x4
Pemo 5/16" x 1"

3D rendered image of a gray ladder-like structure with no text or symbols

Escalera de mano

Nivelador

Lápiz

Destornillador

Llave inglesa ajustable

Cinta métrica

Pinzas

Diagram showing mechanical assembly steps: (a) fixed supports, (b) clamped joints, and (c) assembled with a wooden block (no text or symbols)

Fig.3

ADVERTENCIA

Close-up of a metallic screw with threaded shaft and hexagonal end (no text or symbols)

Tornillos de Tirafondo 5/16" x 1-1/2"

Diagram of a mechanical linkage system with a circular component and connecting rod (no text or symbols)

Fig.1

Para instalar la luz:

Fig.2

3D rendered object with angular features and a dimension label 'x2' (no text or symbols on the object itself)

Fig.3

Collection of mechanical parts and components, including elongated shafts, a motor, and various assembly or assembly tools (no text or symbols visible)

To order replacement parts or schedule repair service
