USER MANUAL LY9601H Cotech

Rechargeable 10 W LED Work Light

Laddbar arbetsbelysning LED 10 W Arbeidsbelysning LED 10 W, ladbar Ladattava työvalaisin LED 10 W Aufladbare LED-Arbeitsleuchte 10 W

Important:

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Technical line drawing of a mechanical device with gears and a base (no text or symbols)

Art.no Model 18-2940 LY9601H_UK 36-6944 LY9601H-S

Ver. 20171218

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Rechargeable 10 W LED Work Light

Art.no 18-2940

36-6944

Model

LY9601H_UK

LY9601H-S

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

The work light battery has integrated electronics which controls charging. The included mains adaptor just supplies the charging current but is referred to as the “charger” in this instruction manual.

Safety

• The LEDs in this work light have a very intensive light output. Do not look directly into the light or direct the light into another person's eyes, doing so could cause eye damage.
• Do not dismantle or modify the light.
• Never use the product if it, the charger or the charge cable is damaged in any way.
• Do not use the work light in environments where explosive or flammable gases are stored or used.
• The work light must only be used when it is mounted on the included stand. The work light must not be mounted on a wall or ceiling.

- Treat the work light with care and do not subject it to shocks or impacts.

- Never immerse the work light in water or other liquid.

- Only use the charger supplied with the work light.

- Never let children play with the work light.

Safety instructions for the battery and charger

• Never try to open, change or modify the battery in any way.
• Never subject the battery to naked flames or high temperatures.
• Never store a battery in direct sunlight or at temperatures above 40 °C.
• Only charge the battery when the ambient temperature is between +5 °C and 40 °C.
• Never expose the charger to water or other liquids.

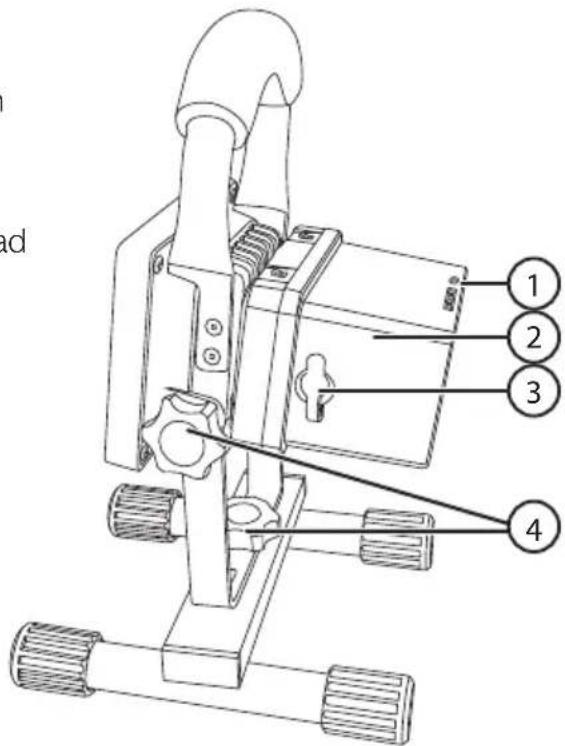

Product description

1. [ Dimmer, ON/OFF ] Light level/on/off switch and battery charge indicator
2. Battery
3. Charging socket for the included charger lead
4. Star knob hand screw
5. Battery lock catch

Assembly

Line drawing of a mechanical device with a central square component and a screw base (no text or symbols)

Charging

• Connect the charger to the work light and to a wall socket. Charge the battery completely before using the work light for the first time. Check the battery charge indicator to see when the battery is fully charged.
• Do not charge the work light for longer than 24 hours at a time.
• Do not switch the work light on while the battery is charging.
• The battery can be charged while it is attached to the work light or first removed from the light by opening the lock catch then charged separately.

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

On/off and brightness setting

• Press [💡] to switch the work light on. The default light setting when the light is switched on is 25% brightness.
• Pressing the power button repeatedly will change the light mode to 50%, 100%, flash strobe light or OFF.
• The light can also be switched off by holding in [ 🔍] regardless of the brightness or light mode.

Care and maintenance

• Switch the work light off before cleaning the exterior by wiping it with a clean, damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If it is not to be used for a long time, the work light should be charged every 6 months and stored in a dry, dust-free environment, out of children's reach.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Charger Input 100–240 V AC 50/60 Hz Output 12 V DC, 0.5 A

Battery Lithium-ion 7.4 V/2.2 Ah (Charging voltage 12–14 V DC)

Light source COB LED

Luminous flux Max. 650 lm

Colour temperature 4000 K

Colour rendition > 80 Ra

Charging time 4–5 hours

Rated operating time 2.5 hours at full brightness

IP rating IP54 (charger IP20)

Size 265 × 145 × 162 mm

Weight 1 kg

Laddbar arbetsbelysning LED 10 W

Art.nr 18-2940

36-6944

Modell LY9601H_UK

LY9601H-S

Montering

Line drawing of a mechanical device with a central square component and a bolted base (no text or symbols)

Laddning

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Laddare In 100–240 V AC 50/60 Hz Ut 12 V, 0,5 A

Batteri Litiumjon 7,4 V/2,2 Ah (Laddspänning 12–14 V DC)

Ljuskälla COB-LED

Montering

Line drawing of a mechanical device with a central square component and four wheels (no text or symbols)

Lading

• Laderen kobles til lampen og et strømuttak. Batteriet må lades opp før lampen brukes første gang. Se på batteriindikatoren, den viser når batteriet er fulladet.
• La ikke belysningen stå på i mer enn 24 timer av gangen.
• Ikke tenn lampen mens ladingen pågår.
• Batteriet kan lades mens det sitter i belysningen eller lades separat.

Technical line drawing of a mechanical assembly with gears and a rectangular housing (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Spesifikasjoner

Lader In 100–240 V AC, 50/60 Hz

Ut 12 V, 0,5 A

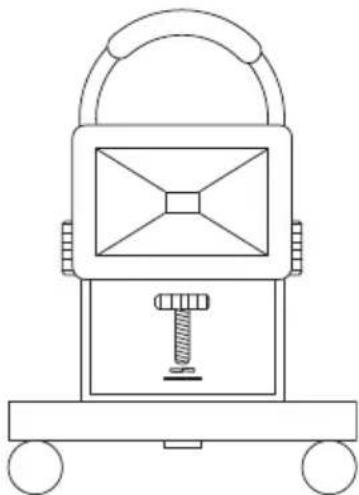

Asennus

Line drawing of a mechanical device with a handle, central square component, and screw base (no text or symbols)

Lataaminen

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Tekniset tiedot

Montage

Line drawing of a mechanical device with wheels and a central square component (no text or symbols)

Ladevorgang

Technical line drawing of a mechanical assembly with gears and a housing (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
