Product Type	Freestanding Refrigerator
Model Number	VCF 10186 - L
Brand	Vestfrost
Total Capacity (approx.)	101 liters
Energy Class	A+
Annual Energy Consumption (approx.)	120 kWh
Dimensions (H x W x D)	85.5 x 60.0 x 62.0 cm
Weight (approx.)	38 kg
Power Supply	220-240V, 50Hz
Noise Level (approx.)	40 dB
Temperature Control	Adjustable thermostat (1-5 dial)
Refrigerant Type	R600a
Climate Class	N/ST
Number of Shelves	3 adjustable glass shelves
Door Storage	3 door balconies + 1 egg tray
Crisper Drawers	1 drawer (humidity controlled)
Interior Light	LED, on/off switch
Defrost Type	Manual (refrigerator section)
Door Reversibility	Yes (user-reversible)
Compressor Type	Hermetic, low noise
Certifications	CE, RoHS

Frequently Asked Questions - VCF 10186 - L VESTFROST

How do I adjust the temperature in my Vestfrost VCF 10186 - L fridge?

The temperature is controlled by a dial inside the fridge, usually on the upper right wall. Turn the dial to a higher number for colder. We recommend setting it to medium (3) for normal use.

How can I clean the refrigerator?

Unplug the fridge and remove all food and shelves. Use a mild detergent and warm water to wipe interior and exterior. Avoid abrasive cleaners. Rinse and dry thoroughly before plugging back in.

Why is my fridge making noise?

Some noise is normal: compressor hum, refrigerant flow (gurgling), or defrost timer clicks. If the noise is loud or unusual, check if the fridge is level and not touching walls or cabinets. Also ensure the condenser coil is clean.

How do I reverse the door opening direction?

The door is reversible. You will need a screwdriver. Refer to the manual for step-by-step instructions. Typically, you unscrew the hinges, remove the door, move hinge brackets to the opposite side, and reattach the door. Keep handles and screws organized.

What is the annual energy consumption?

The approximate annual energy consumption is 120 kWh, based on standard testing conditions. Actual consumption may vary depending on usage and environment. This model is rated A+ for energy efficiency.

How do I defrost the refrigerator?

This model requires manual defrosting for the fridge section. When ice builds up (more than 5 mm), unplug the fridge, remove food, and leave the door open. Place towels to catch water. Do not use sharp objects to remove ice.

What should I do if the fridge is not cooling?

Check if the thermostat is set correctly and the door is fully closed. Ensure the condenser coil at the back is free of dust. If still not cooling, the compressor may have a fault. Contact a qualified technician or Vestfrost support.

What is the warranty period?

Vestfrost typically offers a 2-year warranty for domestic use. Check your purchase documents for exact terms. The warranty covers manufacturing defects, but not damage from misuse, natural wear, or unauthorized repairs.

Can I adjust the humidity in the crisper drawer?

Yes, the crisper drawer has a humidity slider. Slide to high for leafy greens (to retain moisture) or low for fruits that need less humidity. This helps keep produce fresh longer.

How do I access the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by selecting your language and providing your email on the manual page.

USER MANUAL VCF 10186 - L VESTFROST

Simple line drawing of a refrigerator with two vertical bars on the front panel (no text or symbols)

VCF 10186 - L

DK B	RAND Advarsel; Risiko for brand / brændbare materialer
EN FI	RE Warning; Risk of fire / flammable materials
FI TULIPALO Varoitus; Tulipalon / Syttyvien materiaalien vaara
SE BRAND Varning! Brandfara / brandfarligt material
NO BRANN Advarsel: Risiko for brann / brennbare materialer

Indhold

F∅R APPARATET TAGES I BRUG....3

Generelle adversler....3

Sikkerhedsadvarsler....6

DELE AF APPARATET OG RUMMENE....8

Mål....9

FORSKELLIGE FUNKTIONER OG MULIGHEDER.... 10

Termostatindstilling....10

Illustration showing three different techniques for using a tool to cut a cable or wire, with no text or symbols present.

Cartoon illustration of a charging plug with an angry face and a lightning bolt (no text or symbols)

Illustration of three cartoon scenes: a smiling refrigerator with arms, a hand holding a phone, and a bottle cleaning a container (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

DELE AF APPARATET OG RUMMENE

Two 3D-rendered plastic tray designs with circular cavities, labeled 15 and 16 (no text or symbols on the shapes themselves)

Three-step illustration showing a hand holding an abacus, no text or symbols present

Tilbehør

Frysedelen

Technical line drawing of a structural bracket or frame (no text or symbols)

Fig. 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Fig. 2

Cartoon illustration of a smiling refrigerator with thumbs up and a mortar (no text or symbols)

Cartoon illustration of a smiling refrigerator and two smaller figurines (no text or symbols)

Illustration of a hand holding a white object over a wire rack (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a server rack with a magnifying glass (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Old and out-of-order fridge-/freezers....27

Safety warnings....27

Installing and operating your fridge-/freezer 28

Before Using your fridge-/freezer 28

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 29

Dimensioner 30

THE VARIOUS FUNCTION AND POSSIBILITIES 31

Thermostat setting....31

Warnings about Temperature Adjustments....32

Accessories 33

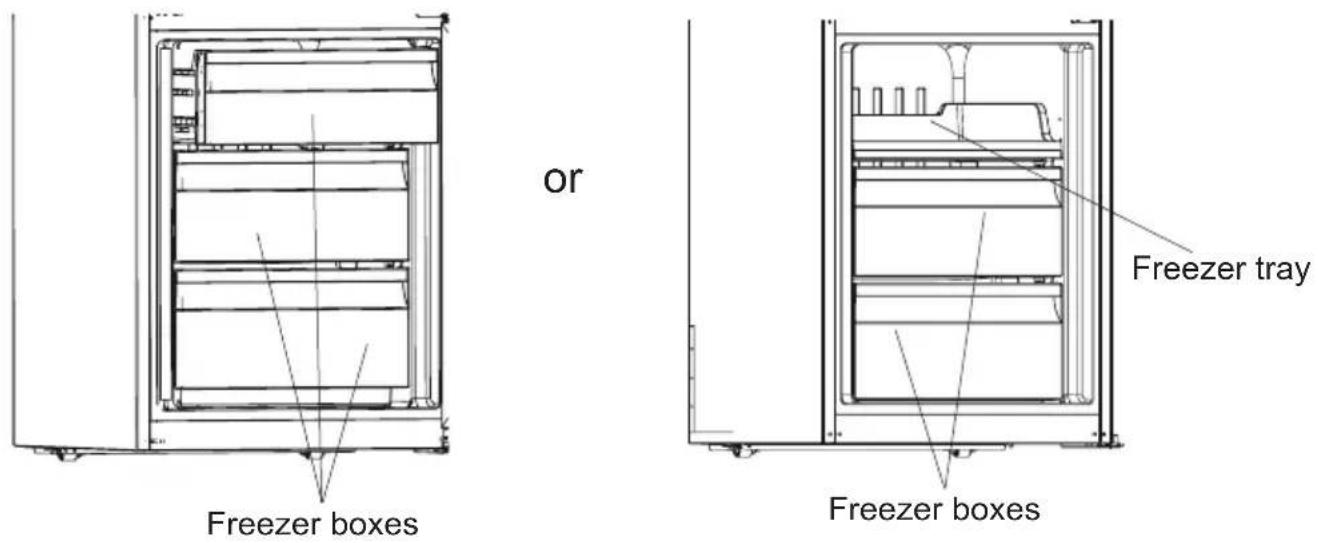

Freezer boxes 33

Adjustable door shelf....33

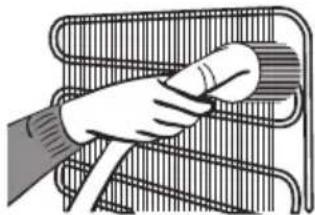

CLEANING AND MAINTENANCE 34

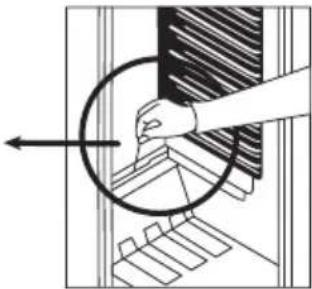

Defrosting 34

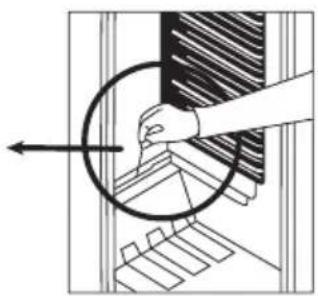

Defrosting the fridge compartment.... 34

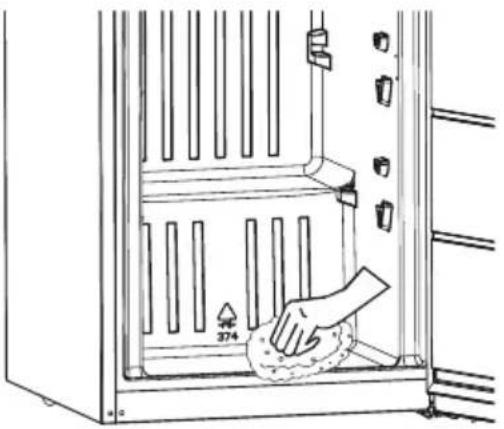

Defrosting the freezer compartment.... 35

ARRANGING FOOD IN THE APPLIANCE 36

Refrigerator compartment 36

Freezer compartment 37

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 40

Repositioning the door 40

BEFORE CALLING YOUR AFTER SALES SERVICE.... 40

If your fridge-/freezer is operating too loudly....41

Tips for saving energy 42

TECHNICAL DATA 43

INFORMATION FOR TEST INSTITUTES...... 43

CUSTOMER CARE AND SERVICE 43

BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

⚠ WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge-/freezer away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge-/freezer
  • , do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.
• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the fridge-/freezer plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your fridge-/freezer. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use

of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Old and out-of-order fridge-/freezers

- If your old fridge-/freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridge-/freezers.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your fridge-/freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of four hands performing a cable or wire manipulation technique (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

Cartoon illustration of a door with hands and a smiling face, accompanied by a crossed-out prohibition symbol (no text or labels)

• Do not cover the body or top of your fridge-/freezer with lace. This affects the performance of your fridge-/freezer.
• Secure any accessories in the fridge during transportation to prevent damage to the accessories.
• Do not use plug adapter.

Installing and operating your fridge-/freezer

Before using your fridge-/freezer, you should pay attention to the following points:

• The operating voltage for your fridge-/freezer is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge-/freezer where it will not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- Your fridge-/freezer should never be used outdoors or exposed to rain.

- When your fridge-/freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge-/freezer, and install your fridge-/freezer in a suitable place so that at least 5 cm of free space is available above it.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge-/freezer.

- Before using your fridge-/freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge-/freezer after cleaning.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.

- The fridge-/freezer should be placed against a wall with a free space not exceeding 75 mm.

Before Using your fridge-/freezer

- When using your fridge-/freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge-/freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge-/freezer starts to cool.

CHAPTER 2.

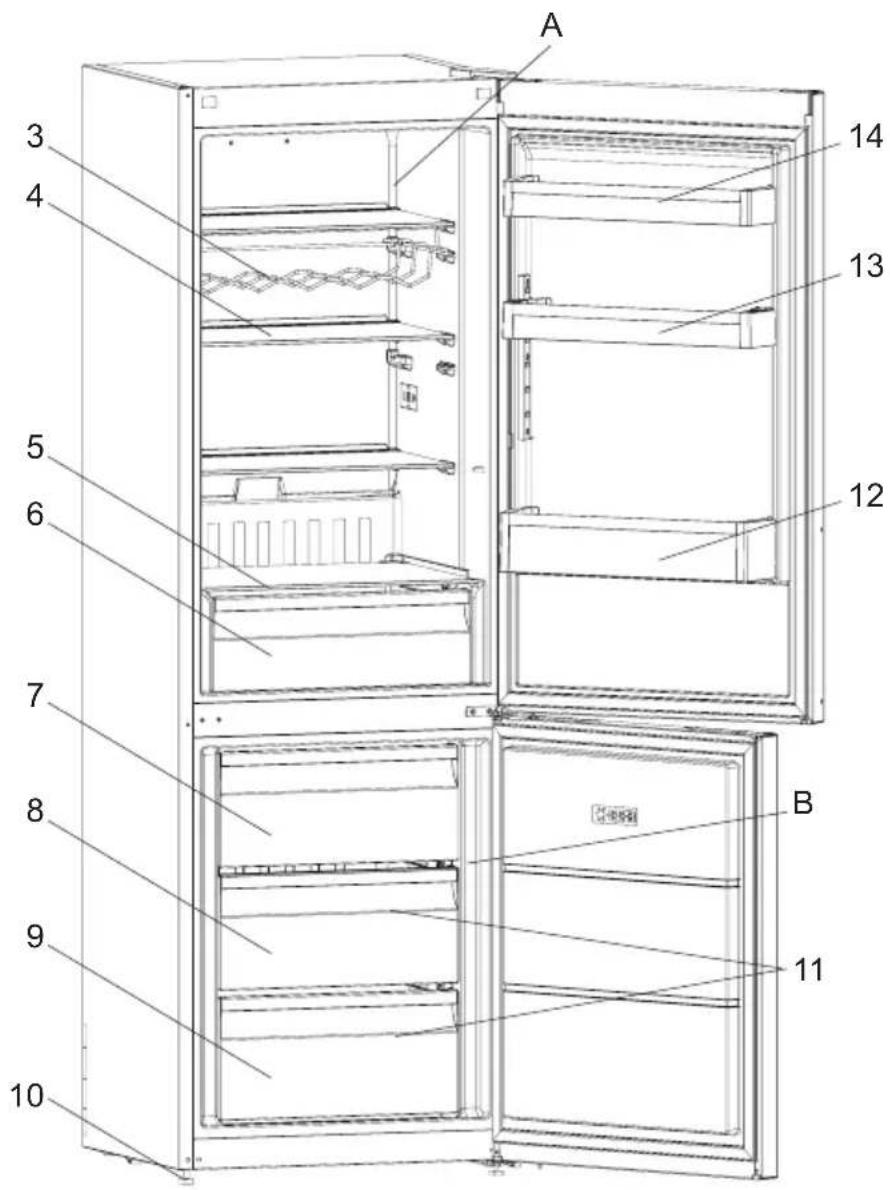

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This appliance is not intended to be used as a built-in appliance.

Two 3D schematic diagrams of a grid-like structure, labeled 15 and 16 (no text or symbols on the shapes themselves)

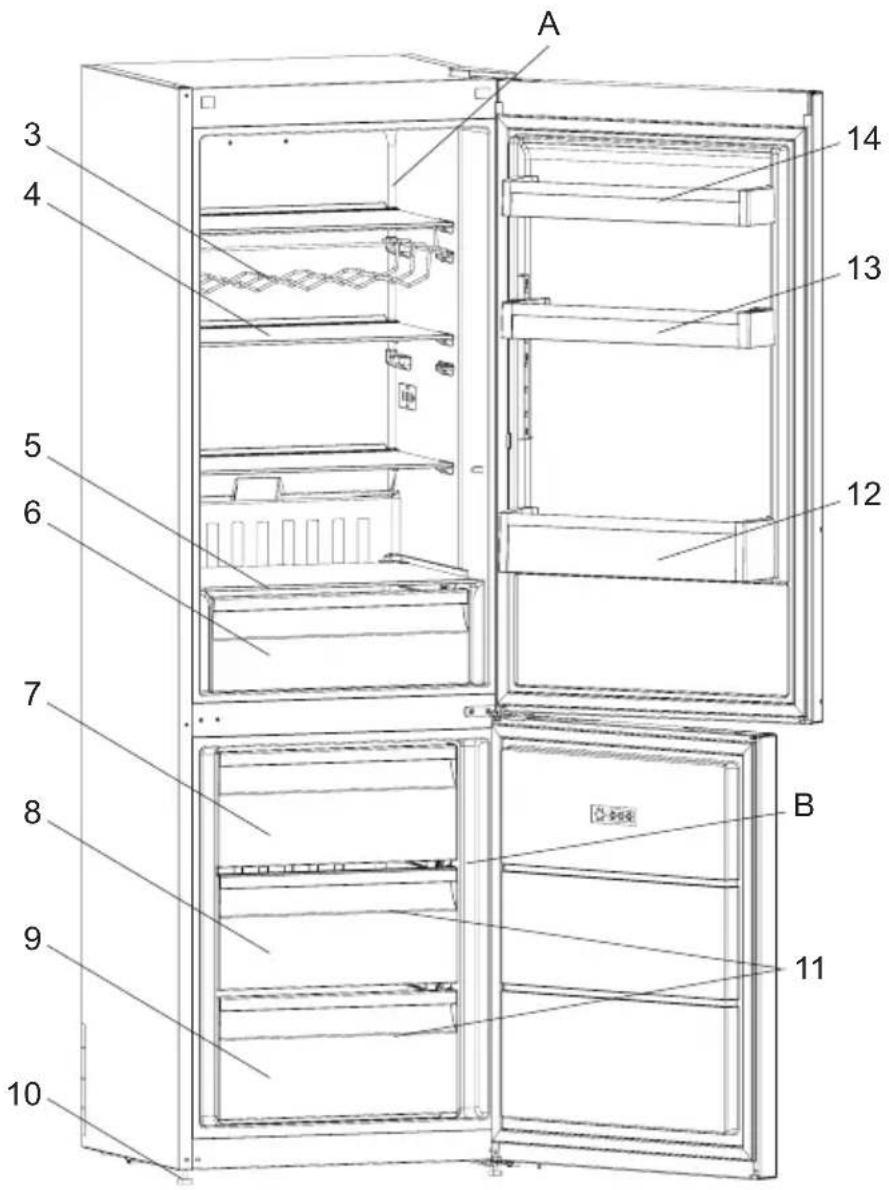

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A. Fridge compartment
B. Freezer compartment

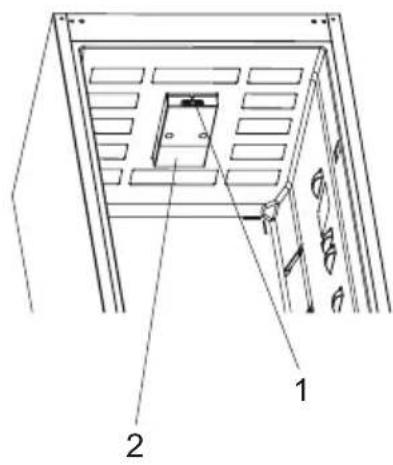

1. Thermostat knob
2. Lamp cover
3. Wine rack *
4. Fridge shelves
5. Crisper cover
6. Crisper

7. Freezer tray/ Upper basket*

8. Freezer middle basket

9. Freezer bottom basket

10. Levelling feet

11. Freezer glass shelves

12. Bottle shelf
13. Adjustable door shelf * / door shelf
14. Door shelf
15. Egg holder
16. Ice cube tray

* In some models

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

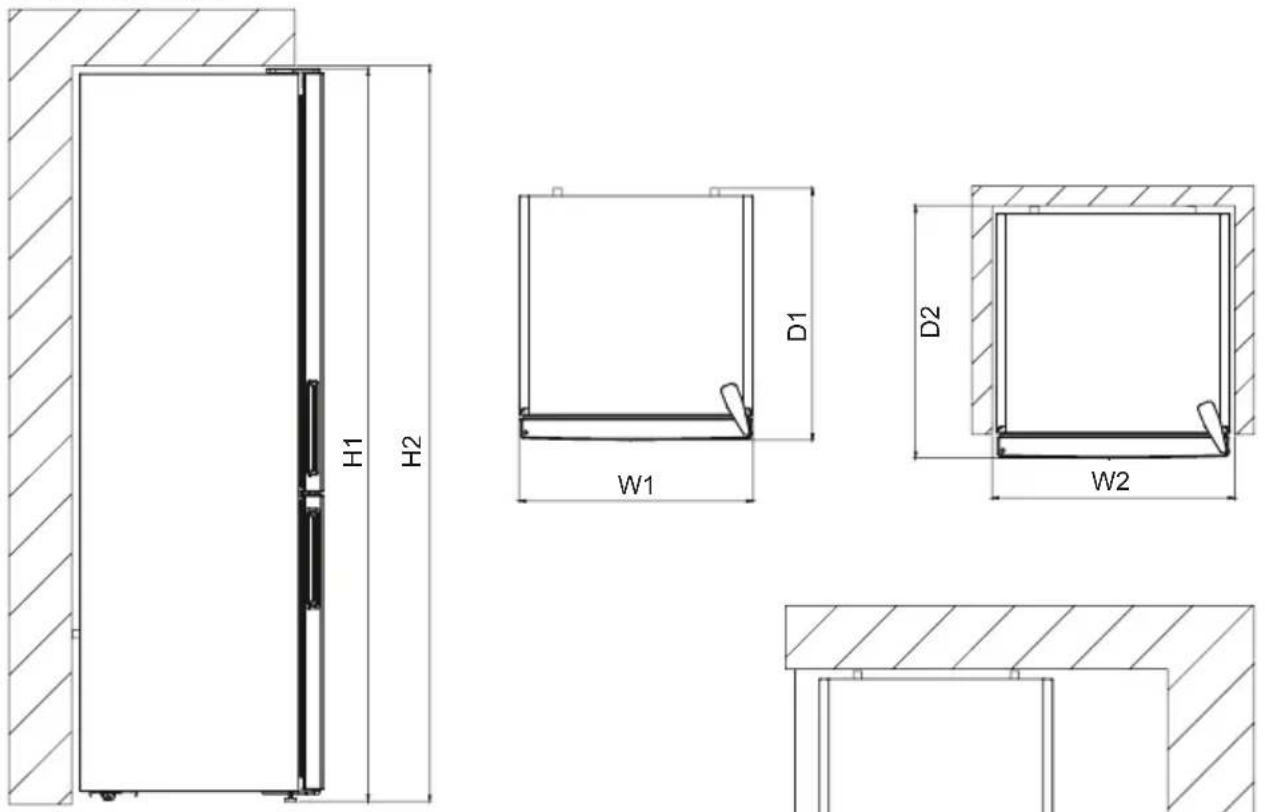

Dimensioner

Overall dimensions1

H1 mm 1860

W1 mm 595

D1 mm 570

Space required in use2

H2 mm 2010

W2 mm 695

D2 mm 664,1

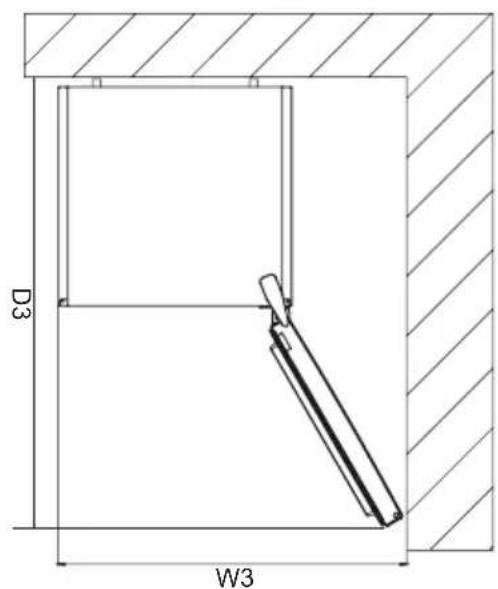

Overall space required in use3

W3 mm 981,6

D3 mm 1163

THE VARIOUS FUNCTION AND POSSIBILITIES

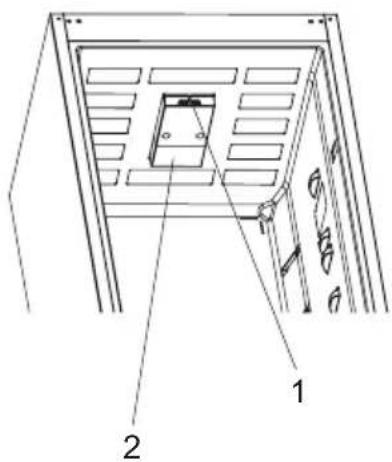

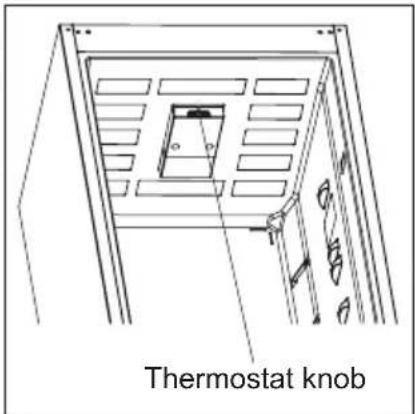

Thermostat setting

The fridge-/freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond position 1, it will stop your appliance from working.

Freezer & fridge thermostat setting;

1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position.

3-4: For long-term storage of food in the freezer compartment, you can set the knob to the medium position.

5: For freezing fresh food. The appliance will work for longer. So, after the desired condition is reached, return the knob to the previous setting.

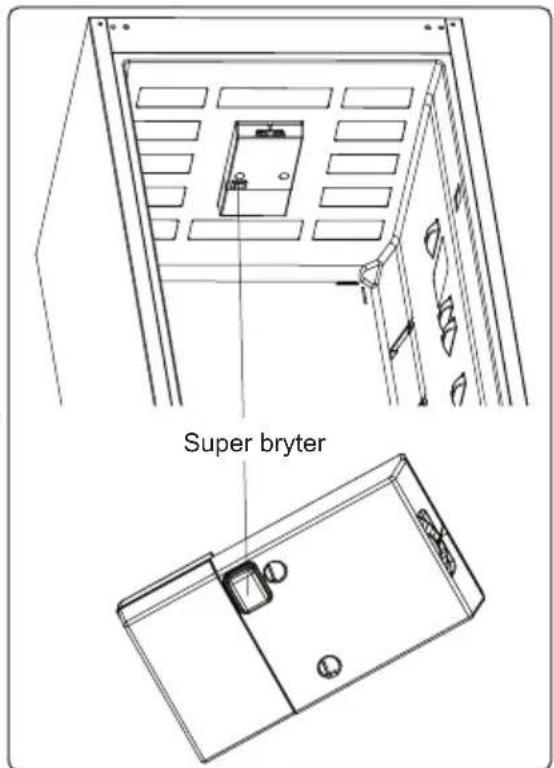

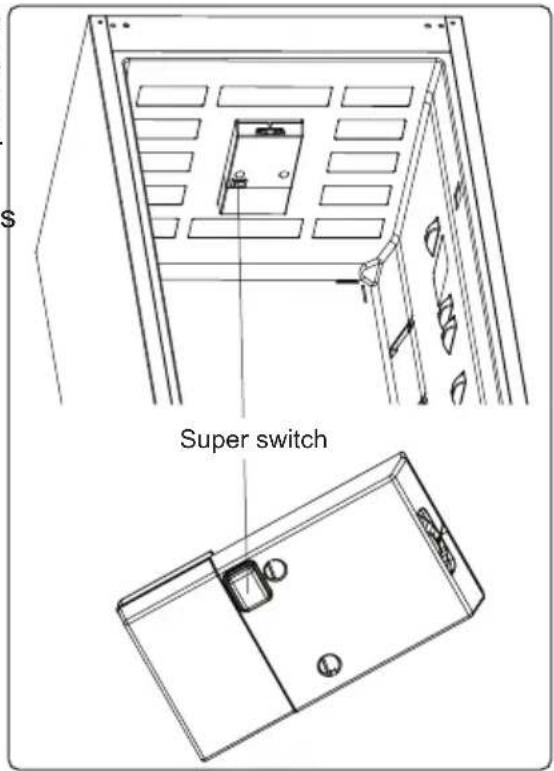

Super freezing: This switch shall be used as superfreeze switch. For maximum freezing capacity, please turn on this switch before 24 hours placing fresh food. After placing fresh food in the freezer, 24 hours ON position is generally sufficient. In order to save energy, please turn off this switch after 24 hours from placing fresh food.

Winter Switch: If ambient temperature is below 16 °C , this switch shall be used as winter switch and it keeps your fridge above 0 °C while freezer is below -18 °C in low ambiants.

Warnings about Temperature Adjustments

- We recommend that you do not operate your fridge-/freezer in environments where the ambient temperature is below 10^ because this will reduce its efficiency.

- Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge-/freezer.

- Do not pass to another adjustment before completing an adjustment.

- Your fridge-/freezer should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge-/freezer frequently and do not place much food inside it in this period.

- During power cut, to prevent any compressor problem you should unplug the refrigerator. You should delay plugging in 5 – 10 minutes after your power supply returns. If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator's components.

- Your fridge-/freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge-/freezer out of stated temperatures value limits in terms of cooling effectiveness.

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Accessories

Freezer boxes

The freezer box allows foods are maintained more regularly.

Removing The freezer box;

• Pull the box out as far as possible
• Pull the front of box up and out.

! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always Keep the handle of box while removing the box.

Adjustable door shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf ;

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Fig. 1

Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1). Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed.

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Fig. 2

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water onto it

• Make sure that no water enters the lamp housing and other electrical components.

- The fridge-/freezer should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Simple line drawing of a refrigerator with a black X symbol crossed out, no text or symbols present.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

Cartoon illustration of a smiling refrigerator with two baby silhouettes beside it (no text or symbols)

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand cleaning a metal rack with a circular object (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Defrosting the fridge compartment

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

- Defrosting occurs fully automatically in fridge compartment during operation; the defrosted water collected by the evaporating tray and evaporates automatically.

- The evaporating tray and water drain hole (back of the refrigerator crisper shelf) should be cleaned periodically to prevent the water from collecting on the bottom of the fridge instead of flowing out.

Defrosting the freezer compartment

- The frost, which covers the shelves of the freezer compartment, should be removed periodically.

- Do not use sharp metal objects for this operation. They could puncture the refrigerant circuit and cause irreparable damage to the unit. Use the plastic scraper provided.

- When there is more than 5 mm of frost on the shelves, defrosting must be carried out.

- Before defrosting, place the frozen food in a cool place after wrapping it in sheets of newspaper (this will help the food to maintain it's tempertaure for longer).

• To accelerate the defrosting process, place one or more bowls of warm water in the freezer compartment.

- Dry the inside of the compartment with a sponge or a clean cloth.

- Once the unit has been defrosted, place the food into freezer and remember to consume it in a short period of time.

Line drawing of a hand cleaning a server rack with a cloth, no text or symbols present

Replacing LED lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4^ .
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food Maximum	storage time How and where to store
Vegetables and fruits 1 week	week Vegetable bin
Meat and fish 2 - 3 Days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 Days On the designated door shelf
Butter and margarine 1 week	week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the designated egg shelf
Cooked food 2 Days All shelves

Freezer compartment

- The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.

- To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.

- Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

- For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

- Do not store fresh food next to frozen food as it can thaw the frozen food.

- Before freezing fresh food, divide it into portions that can be consumed in one sitting.

- Consume thawed frozen food within a short period of time after defrosting

- Never place warm food in the freezer compartment as it will thaw the frozen food.

- Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.

- When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

- Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

- Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

- The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be kept packaged even if it has a membrane	1-3
Chicken and turkey Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets 6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.
Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water 10	- 13
Beans Hull, wash and boil in water 12
Cabbage Clean and boil in water 6 - 8
Carrot Clean, cut into slices and boil in water 12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach Wash and boil in water 6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn Clean and pack with its stem or as sweet corn 12
Apple and pear Peel and slice 8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull	8 - 12
Cooked fruits	Add 10 % of sugar to the container	12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6	1 - 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

Dairy products	Preparation	Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3	Pure Milk – in its own packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

CHAPTER 6.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of installation position

- The original packages and foamed polystyrene (PS) can be retained if required. - During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Carry your fridge-/freezer in the upright position.

Repositioning the door

• It is not possible to change the opening direction of your fridge-/freezer door, if the door handle on your fridge-/freezer is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles or with handles on the side of the door.
• If the door opening direction of your fridge-/freezer may be changed, you should contact the nearest Authorised Service Agent to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your fridge-/freezer is not working properly, it may be a minor problem, therefore to save time and money, check the following, before calling an electrician.

What to do if your appliance does not operate

Check that:

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on the «•» position,
• The socket is not faulty. To check this, plug the appliance in to another socket which you know is working.

What to do if your appliance performs poorly

Check that:

• You have overloaded the appliance,
• The thermostat setting is on position "1" (if so set the thermostat dial to a suitable value).
  • The doors are closed properly,
  • There is no dust on the condenser,
• There is enough space at the rear and side walls.

If your fridge-/freezer is operating too loudly

Normal Noises

Cracking (Ice cracking) Noise: (For no frost/frost free appliances)

During automatic defrosting.

When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.-

Compressor noise

• Normal motor noise: This noise means that the compressor operates normally
• The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash:

- This noise is caused by the flow of the fridge freezer in the tubes of the system.

If your fridge-/freezer is operating too loudly

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge-/freezer at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically.

If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your fridge-/freezer?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes

if this is the case.

- Are the items placed on your fridge-/freezer vibrating?

If you hear any other noises check that:

• The appliance is level
• Nothing is touching the rear of the appliance
• The objects on the appliance are vibrating.

Water flow noise: (For NoFrost/frost free appliances) Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blow Noise: If the appliance has fan in freezer/cooler /bottom cabinet compartments.

This noise can be heard in fridges during normal operation of the system due to the circulation of air.

If there is water in the lower part of the fridge-/freezer,

Check that:

The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole).

Recommendations

• If you do not intend to use the appliance for long time (for example during the summer holidays) unplug and clean the appliance and leave the door open to prevent the formation of mold and smells.
• To stop the appliance completely, unplug it from the main socket (for cleaning and when the doors are left open).
• If a problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller ...etc) closed
7. Door gasket must be clean and pliable. Replace gaskets if worn.
8. Energy consumption is declared with maximum load and using only freezer bottom glass shelf.

TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.

ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

CHAPTER 9. INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. Subject to change without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.eico.eu

Sisältö

ENNEN LAITTEEN KÄYTTÄMISTÄ.... 45

TOIMINNOT JA MAHDOLLISUUDET 52

Termostaatti....52

TEKNISET TIEDOT....64

TIETOJA TESTAUSLAITOKSILLE 64

ASIAKASPALVELU JA HUOLTO....64

OSA -1: ENNEN LAITTEEN KÄYTTÄMISTÄ

Yleisiä varoituksia

Illustration of four hands holding ropes and a wire, illustrating a mechanical or electrical procedure (no text or symbols present)

Cartoon illustration of a character opening a door (no text or symbols)

Asennus ja käyttö

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Two 3D-rendered test tubes or trays with circular cavities, labeled 15 and 16 (no text or symbols on the tubes themselves)

OSA -2: TOIMINNOT JA MAHDOLLISUUDET

Termostaatti

Line drawing of a container being inserted into a grid tray (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol (no text or labels)

Illustration of hands holding a woven basket with curved arrows indicating rotation (no text or symbols)

Technical line drawing of a structural joint or bracket (no text or symbols)

Kuva. 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical double-headed arrow indicating rotation (no text or symbols)

Kuva. 2

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a mortar and pestle (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and two baby babies nearby (no text or symbols)

Illustration of a hand holding a white object over a wire rack (no text or symbols)

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand holding a circular object over a mechanical component, with an arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning server rack with a magnified inset showing a 374-degree angle (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

DELARNA I KYL-/FRYSET OCH FACKEN....71

Dimensions....72

OLIKA FUNKTIONER OCH MÖJLIGHETER....73

Termostat....73

PLACERA MATEN I KYLEN....78

Kylutrymme 78

Frysutrymme 79

TRANSPORT OCH FLYTTNING 82

INNAN DU KALLAR PÅ SERVICE EFTER FÖRSÄLJNING....82

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Cartoon illustration of an angry plug with a tail, emitting exhaust smoke (no text or symbols)

Cartoon illustration of a character peeking out of a door, no text or symbols present

Simple line drawing of two bottles and a glass with stars, no text or symbols present

Diagram showing two curved arrows indicating rotational or fluid flow paths between two coiled heat exchangers (no text or symbols)

DELARNA I KYL-/FRYSET OCH FACKEN

15

Illustration showing three different methods of using a dental abacus, no text or symbols present

Fryslåda

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl with a toothbrush (no text or symbols)

Illustration of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

Cartoon illustration of a smiling refrigerator with two smaller figurines beside it (no text or symbols)

Illustration of a hand holding a circular object over a wire rack (no text or symbols)

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand cleaning a server rack with a cloth, no text or symbols present

Simple line drawing of two children holding a large rectangular object (no text or symbols)

VASKING OG VEDLIKEHOLD 97

ORGANISERE MATVARENE I APPARATET....99

Cartoon illustration of an electric plug with a sad face and plug, no text or symbols present

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Cartoon illustration of a character inside a door, showing facial expression (no text or symbols)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Termostatbryter for fryserdel

5: For mer kjøling.

3-4: For normal bruk.

1–2: For mindre kjøling.

Advarsler for temperaturinnstillinger

Line drawing of a container being inserted into a grid tray (no text or symbols)

Illustration of two hands crossed out of a tooth with a black X symbol (no text or labels)

Illustration of hands holding a grid-patterned object with curved arrows indicating rotation (no text or symbols)

Fryseboks

Technical line drawing of a structural joint or bracket (no text or symbols)

Fig. 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical double-headed arrow indicating rotation (no text or symbols)

Fig. 2

DEL 5. VASKING OG VEDLIKEHOLD

- Sørg for å koble ut kjøl-/fryset før du vasker det.

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl of food (no text or symbols)

Cartoon illustration of a smiling refrigerator with two baby clothes nearby (no text or symbols)

Illustration of a hand cleaning a metal rack with a cloth (no text or symbols)

Sørg for at kjøl-/fryset ditt er frakoblet når du vasker det. Avising

Kjølskapsrum:

Simple line drawing of a metal bracket or support structure (no text or symbols)

Diagram showing a hand holding a circular object over a piano keyboard, with no visible text or symbols.

Line drawing of a hand cleaning a server rack with a magnified inset showing a 374-degree angle (no text or symbols)

ORGANISERE MATVARENE I APPARATET

Kjøleskapskammer

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Reposisjonere døren

Knuselyd (isknusing):
