Product Type	Hand Blender (Immersion Blender)
Brand	OBH Nordica
Model	Elite Mix Initial 7716
Power Consumption	600 W
Voltage	220-240 V ~ 50/60 Hz
Speed Settings	2 speeds + Turbo
Blade Material	Stainless steel
Shaft Material	Stainless steel
Housing Material	Plastic and stainless steel
Attachments Included	Blending shaft, whisk, measuring beaker (600 ml)
Ergonomic Handle	Yes, soft-grip
Cord Length	1.2 m
Dimensions (L x W x H)	38 x 7 x 7 cm
Weight	0.8 kg
Safety Features	Overheat protection, non-slip base
Dishwasher Safe Parts	Yes, detachable shaft and whisk
Cleaning	Wipe handle with damp cloth; attachments dishwasher safe
Repairability	Spare parts available; consult authorized service
Warranty	2 years

Frequently Asked Questions - Elite Mix Initial 7716 OBH NORDICA

How do I clean the hand blender?

Detach the blending shaft and whisk. Rinse them under running water or place them in the dishwasher (top rack). Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.

Can I blend hot liquids?

Yes, but allow them to cool slightly (max 80°C) and blend in short bursts. Ensure the blending shaft is fully submerged to avoid splashing.

What is the maximum capacity of the measuring beaker?

The included measuring beaker has a capacity of 600 ml, but you can use any suitable container. Do not overfill beyond the max mark.

How to use the Turbo function?

Press and hold the Turbo button for maximum blending power. Use for tough ingredients like ice or frozen fruits. Release to return to normal speed.

My hand blender stops working during use. What should I do?

Check if the appliance has overheated. If so, unplug and let it cool for 15-20 minutes. Also ensure the power cord is securely plugged in and the outlet is working.

Can I use the blender without the whisk attachment?

Yes, the blending shaft is for soups, sauces, and smoothies. The whisk is for eggs, cream, and light batters. Always attach the correct accessory.

Is the blade removable?

The blade is integrated into the blending shaft and is not removable. Clean it carefully to avoid injury.

Can I blend nuts or ice?

Yes, but use short bursts and the Turbo function. Do not run continuously for more than 30 seconds. Let the motor rest between cycles.

What does the warranty cover?

The 2-year warranty covers manufacturing defects. It does not cover normal wear, misuse, or damage from improper cleaning. Keep your receipt.

How do I store the hand blender?

Store the motor unit in a dry place. Attach the blending shaft or whisk for protection. Wrap the cord around the handle base. Keep out of reach of children.

USER MANUAL Elite Mix Initial 7716 OBH NORDICA

DESIGNING GOOD LIFE

Stick Mixer

ELITE MIX INITIAL

Blend with little effort

Making good!

Bruksanvisning - svenska ......sida 4 - 9

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

Tekniske data

OBH Nordica 7716

220-240 V \~, 50-60Hz

800 W

BEGRENSET GARANTI for OBH Nordica

Garantien

- Please read the instructions for use carefully before using the appliance for the first time. Save the instructions for use.

The manufacturer is not responsible for any use that deviates from the instructions for use.

- Check that the appliance's rated voltage corresponds to that of the wall socket. All connection faults void the warranty.

- The warranty becomes void if the commercial use is inappropriate or is not in accordance with the instructions for use.

- Always unplug the appliance from the wall socket if you leave it unattended and before installation, disassembly or cleaning.

- Beware of the risk of injury in the event of incorrect use of the appliance.

- Do not use the appliance if it is not working properly or is damaged. If this is the case, contact an authorised service centre.

- All maintenance, apart from cleaning and everyday care performed by the customer, must be carried out by an authorised service centre.

- Never use this appliance to blend or mix anything other than food items.

- Never use this appliance without ingredients.

- Do not use the receptacles as containers (for freezing, cooking, sterilisation, etc.).

- Do not shake the appliance while it is running.

- If blending hot foods or liquids, remove the cooking container from the heat before starting.

- In order to prevent overflow, it is recommended to not fill the container more than 2/3 of maximum level.

- Never touch the moving parts of the appliance (blades, etc.).

- The blades on the mixer shaft (depending on the model) and in the chopper (depending on the model) are very sharp. Handle them with care to prevent injury when

emptying the receptacle, when fitting/dismantling the blades, when fitting/dismantling the mixer shaft (depending on the model) and during cleaning.

- Never immerse the appliance, power cord or plug into water or any other liquid.

• Make sure the power cord is out of the reach of children.

- Never leave the power cord near or in contact with the hot parts of the appliance, near a source of heat or bent at a sharp angle.

- The power cord must not come into contact with the moving parts of the appliance (the blades) when in use.

- Do not unplug the appliance by pulling on the cord.

• Make sure that long hair, scarves, ties, etc. do not hang over the appliance and its accessories when in use.

- Do not use the appliance if the power cord or plug is damaged. Have the parts replaced by an authorised service centre to avoid any risk.

- For your own safety, you should only use the accessories and the loose attachments that have been adapted for this appliance.

- Be careful if hot liquid is poured into the container, as it may be ejected from the appliance due to sudden steaming.

- Do not pour boiling liquid (temperature above 80°C/176°F) into the container or receptacles (depending on the model).

- The appliance is not intended for use by persons (including children) with disabilities (physical, sensory or mental), or by persons who have no experience or knowledge of how to use the appliance. Exceptions can be made if the persons are supervised or if they are instructed in the use of the appliance by someone responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not allow children to use the appliance unsupervised.

- The appliance is not intended for household use and similar use (use not covered by the warranty) that occurs:

- at work areas in kitchens in shops, offices and other work environments;

- on farms;

- by guests in hotels and motels and in other residential-like environments;

- at bed & breakfast-like establishments.

- If the appliance “locks” during use, do the following: Switch off the appliance, unplug it and check that the accessory being used is not overloaded. If this is the case, remove the food. Be careful of the blades.

- The appliance has a built-in safety system that prevents overheating (depending on the model). If the appliance overheats, it will switch off automatically. Allow the appliance to cool down for approximately 20 minutes before continuing to use it.

- Switch off the appliance and unplug it before changing accessories or coming into contact with the parts that move when the appliance is running.

- Please refer to the instructions for use for information on controlling the speed and the operating time for each accessory.

- Please refer to the instructions for use for information on assembly and installing the accessories on the appliance.

- Please refer to the instructions for use for information on initial cleaning and regular cleaning of the parts that come into contact with food and for general cleaning and maintenance of the appliance.

ONLY FOR THE EUROPEAN MARKET

- The appliance and all accessories, except the whisk, must not be used by children. Keep the appliance and power cord out of the reach of children.

• Children must not play with the appliance.

- This appliance may be used by persons with disabilities (physical, sensory or mental), or by persons who do not have sufficient experience or knowledge of the use of the appliance, provided that they are supervised or instructed in how the appliance can be used safely and that they are full understand any risks this entails.

- The whisk attachment (depending on the model) may be used by children over 8 years of age, provided that they are

supervised or instructed in how the appliance can be used safely and fully understand the hazards involved. Cleaning and maintenance that may be carried out by the user must not be carried out by children, unless they are over 8 years of age and are aided by an adult. Keep the appliance and the cord out of the reach of children under 8 years of age.

Before use

Wipe the motor unit with a damp cloth before use and wash all loose parts. The stick mixer can be used for mixing and chopping quickly and simply. Perfect for purées, soups, dressings, baby food, milkshakes and sauces, for whipping cream or chopping nuts, etc. The stick mixer should be used in the container provided, but can also be used in bowls, pots or pans. If you use it with another bowl, you should be careful to avoid splashes.

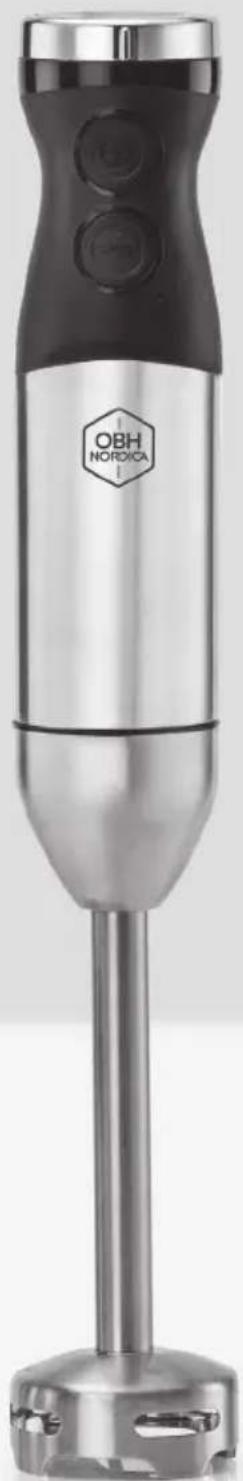

Main components (see image on page 3)

1. ON-button
2. Variable speed control
3. Turbo button
4. Motor part
5. Detachable mixer stick
6. Beaker for hand blender

Use with mixer shaft

Attach the mixer shaft to the motor unit by carefully twisting the shaft so that the arrow on the motor unit is lined up with the closed padlock symbol on the shaft (clockwise). Plug the appliance in. Make sure the cord does not get in the way.

Lower the mixer shaft into the ingredients before starting it to avoid splashes. Use a tall beaker and be careful when mixing hard ingredients (nuts etc) to avoid flying food particles.

Operate the unit at minimum level of speed when beaker is filled up to Max level to avoid splashing of food/liquid during use. Press the power switch and carefully move the stick mixer up and down along the sides of the container using rotating movements. To activate the turbo function, press the turbo button in short bursts. The motor then runs at the highest speed until the button is released. When you release the power switch/turbo button, the motor stops immediately.

As the stick mixer works quickly, most ingredients are ready in under a minute, so it is a good idea to work in short bursts, especially initially when you are not used to using the appliance. Note that the stick mixer may only be used continuously for a maximum of 30 seconds. Then pause for 3 minutes so that the appliance can cool down before starting again. After use, remove the stick mixer from the container and unplug it. Remove the mixer shaft by twisting the motor unit in the direction of the open padlock symbol (anticlockwise). For more instructions, see “Cleaning and maintenance”.

Cleaning and maintenance

Clean the parts as per the table below. Plastic parts may be discoloured by food such as carrots. Grease the parts with a little vegetable oil to remove the discolouring before cleaning them.

Accessories Dishwasher safe	Hand wash Damp cloth
Motor unit No No Yes
Mixer stick No Yes Yes
Container Yes* up to 65°C Yes Yes

* hand washing is recommended to preserve and extend the life of the containers.

Never leave the blades or mixer stick in water for a prolonged period.

Important!

The motor unit must never be rinsed under running water or dipped in water or other liquids. The motor unit must never be placed in the dishwasher.

Note: the container may not be used in a microwave oven.

The conformity according to EN60335 clause 11 was verified by using the following recipe: maltose: 80 g, honey 150 g, ice water 100 g, 8 sec ON + 1 min OFF.

Disposing of the appliance

By law, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading

• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification

• ingress of water, dust or insects into the product

• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 7716

220-240V \~, 50-60Hz

800W

We reserve the right to make changes without notice.
