Precision Mix 7713 - Hand blender OBH NORDICA - Free user manual and instructions

Type of product	Hand blender / immersion blender
Model	Precision Mix 7713
Brand	OBH Nordica
Power consumption	700 W
Voltage	220-240 V ~ 50/60 Hz
Speed settings	2 variable speeds + turbo boost
Shaft material	Stainless steel
Blade material	Stainless steel, 4-blade design
Attachments included	Blending shaft, whisk attachment, 600 ml measuring beaker
Dimensions (H x W x D)	Approx. 40 x 7 x 7 cm
Weight	0.85 kg
Cord length	1.2 m
Dishwasher safe parts	Yes: blending shaft, whisk, beaker (upper rack)
Safety features	Overheating protection, non-slip handle, release button for attachments
Warranty	2 years
Spare parts availability	Blending shaft, whisk, beaker, seal ring sold separately
Repairability	Modular design; motor unit replaceable by service center
Country of origin	China

Frequently Asked Questions - Precision Mix 7713 OBH NORDICA

How do I assemble the hand blender?

Attach the desired accessory (blending shaft or whisk) to the motor unit until it clicks. Ensure the release button is fully engaged.

Can I blend hot liquids?

Yes, but let them cool slightly to avoid splashing. Do not immerse above the maximum fill line.

How do I clean the hand blender?

Detach the shaft and whisk. Rinse under running water or place on the top rack of dishwasher. Wipe motor unit with a damp cloth.

What is the maximum operating time?

Do not use continuously for more than 1 minute. Allow the motor to cool for 3 minutes between cycles.

Can I crush ice with this blender?

No, the Precision Mix 7713 is not designed for ice crushing. Add ice to cold liquids and blend briefly at low speed.

The blender is not working. What should I check?

Ensure the power cord is plugged in and the speed dial is set to a non-zero position. Check if the attachment is locked correctly. If overheating, allow it to cool.

Is the blender BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free.

What is the warranty period?

OBH Nordica offers a 2-year warranty against manufacturing defects. Please keep your receipt.

Can I use the blender to make mayonnaise?

Yes, use the whisk attachment with a narrow container. Slowly drizzle oil while blending for emulsification.

Where can I purchase spare parts?

Spare parts are available on the OBH Nordica website or through authorized service centers. Common parts include the blending shaft and whisk.

USER MANUAL Precision Mix 7713 OBH NORDICA

DESIGNING GOOD LIFE

Stick Mixer 850 Wp

PRECISION MIX

Making good!

Bruksanvisning - svenska ......sida 3 - 11

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 7713

220-240V \~, 50-60 Hz

850 W

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The motor section must not be immersed into water or other liquids. The other parts of the blender must not be washed in a dish washing machine.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.

11. The appliance should only be used for preparation of food.

12. The appliance must not be used continuously without a break. Maximum time of use: 1 minute. Wait at least 1 minute before using the appliance again.

13. It is very important to clean the appliance and the vessel carefully after use, since they both get into contact with food.

14. The appliance should be handled with care, as the knives are very sharp! Do not touch the knives during use. Make sure that neither fingers nor utensils come into contact with the knives! Always pull out the plug before cleaning the knife.

15. Pay special attention when the vessel contains hot liquids, as drops over the rim may occur.

16. This appliance is only intended to blend small portions.

17. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.

18. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.

19. The appliance is for domestic use only.

20. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Wipe the motor unit with a damp cloth before use and wash all loose parts.

The stick mixer can be used for mixing and chopping quickly and simply. Perfect for purées, soups, dressings, baby food, milkshakes and sauces, for whipping cream or chopping nuts, etc.

The stick mixer should be used in the container provided, but can also be used in bowls, pots or pans. If you use it with another bowl, you should be careful to avoid splashes.

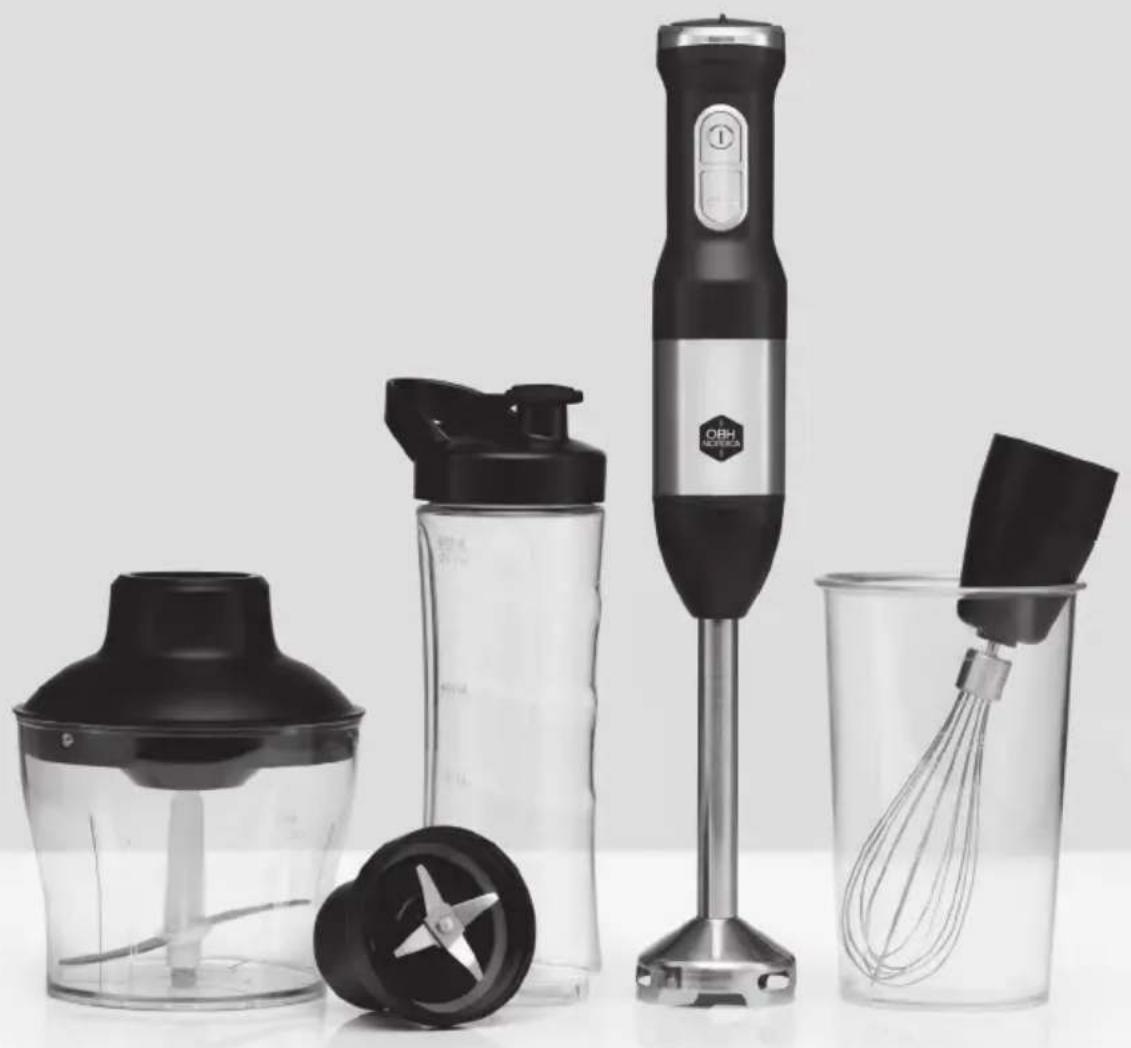

Main components (see image on page 3)

1. Variable speed control
2. Power switch/Turbo button
3. Motor unit
4. Mixer stick
5. Holder for whisk
6. Whisk
7. Lid for mini-chopper container, motor unit connection
8. Blade unit for mini-chopper
9. Mini-chopper container 500 ml
10. Container for stick mixer 700 ml
11. Bottle with drinking spout 600 ml
12. Blade unit for bottle

Using the stick mixer

Attach the mixer shaft to the motor unit by carefully turning the shaft so that the arrow on the motor unit is lined up with the closed padlock symbol. Plug the appliance in. Make sure the cord does not get in the way.

Immerse the stick mixer into the ingredients before starting it to avoid splashing. Press the power switch and carefully move the stick mixer up and along the sides of the bowl in rotating movements. The speed can then be continuously adjusted by turning the speed control at the top of the motor section. To activate the turbo function, press the turbo button in brief intervals. The motor then runs at the highest speed until the button is released.

When you release the power switch, the motor stops immediately. Press and hold the button in intervals of around 10 seconds. Release the button briefly and start again. Continue until you achieve the required consistency.

As the stick mixer works quickly, most ingredients are ready in under a minute, so it is a good idea to work in short intervals, especially initially when you are not used to working with the appliance. Note that the stick mixer may only be used continuously for a maximum of 1 minute. Then pause for 1 minute so that the appliance can cool down before starting again.

After use, remove the stick mixer from the container and unplug it.

Remove the mixer shaft by turning the motor unit in the direction of the open padlock symbol (anticlockwise). Then rinse it under running water. Use a soft washing-up brush and hot soapy water to clean the blade. Never leave the blade to lie in water, as the water may penetrate the casing and damage the blade.

Mixing in the bottle

Fill the bottle with the ingredients to be mixed (max 400 ml). Screw the blade securely to the bottle and make sure that it is correctly positioned. Then turn the motor unit securely into the blade connection. Plug the appliance into a wall socket and turn the bottle with the motor unit upside down. Start mixing by pressing the power switch. Press the turbo button is short intervals. The motor runs at the highest speed until the button is released.

When you release the power switch/turbo button, the motor stops immediately. Press and hold the button in intervals of around 10 seconds. Release the button briefly and start again. Continue until you achieve the required consistency.

As the mixer works quickly, most ingredients are ready in under a minute, so it is a good idea to work in short intervals, especially initially when you are not used to working with the appliance. Note that the mixer may only be used continuously for a maximum of 1 minute. Then pause for 1 minute so that the appliance can cool down before starting again.

Remove the cord after use and remove the motor unit from the connection by turning it. Unscrew the blade from the bottle and then twist the lid securely on the bottle opening.

Clean the parts as instructed in "Cleaning and maintenance".

How to use the mini-chopper

The mini-chopper is perfect for chopping ingredients such as meat, hard cheese, herbs, garlic, carrot, nuts, etc.

NOTE! The blade is very sharp. Never touch the blade directly. Instead use the plastic part.

Place the container on a flat surface, then attach the blade to the axle in the middle of the container.

Fill with the ingredients to be chopped. Put on the lid and turn clockwise until it clicks properly into place.

Then lock the motor unit securely to the lid by turning the motor unit until the arrow is lined up with the closed padlock symbol on the mini-chopper lid.

The mini-chopper is intended for use with smaller quantities, and so it should only be used with the quantities specified in the table in order to guarantee optimum results and to avoid overloading the appliance.

Type of ingredient	Preparations	Max. quantity	Approx. time
Meat Cut into 2 cm pieces 150 g 10 sec.
Fresh herbs Rinse and dry 50 g 10 sec.
Nuts/almonds	Only the nuts, not the shells	150 g 10 sec.
Cheese Cut into smaller pieces 100 g 10 sec.
Onion	Peel and cut into pieces of about 3 cm	200 g 10 sec.
Garlic Peel and dvide 5–8 fedd 5 sec.
Carrots, raw	Peel and cut2 cm pieces 240 g		5 short presses and 10 sec.
Chocolate	Cool and cut2 cm pieces	5 korte trykk og 10 sek.	5 short presses and 10 sec.

IMPORTANT!

To avoid damaging the blade and container, the mini-chopper should not be used to chop the following: barley, ice, nutmeg and coffee beans. Damage arising from use for this purpose is not covered by the right of return.

Plug the appliance into a wall socket. Switch on the appliance by pressing and holding the power switch as long as you wish to mix. It is recommended to start with small short presses of the button, and then allow the appliance to work uninterrupted until the required results are achieved. However, the minichopper must not be run continuously for more than 15 seconds. Then leave the appliance to cool for 2 minutes before using it again.

For a quicker speed, press the turbo button in short intervals.

During use, hold the motor unit with one hand and the container with the other hand.

After use, turn the motor unit away from the lid and the lid away from the container. Carefully remove the blade.

IMPORTANT!

The blade is very sharp and therefore must be handled with care. Never remove the lid until the blade has stopped completely.

How to use the whisk

The whisk can only be used to whip cream, egg whites, light batter, such as pancake batter or cake mixes, and ready-made dessert mixes.

Attach the whisk to the whisk holder and then fit the whisk holder to the motor unit so that it clicks in place. Place the whisk in the container before starting the appliance. Press the power switch to start whisking.

Note: the whisk should only be used for 1 minute at a time. You must then pause for 1 minutes.

After use, remove the whisk from the motor unit by pressing the two buttons at the bottom of the motor unit. Then remove the whisk from the holder. Unplug the appliance.

Cleaning and maintenance

Clean the parts as per the table below. Plastic parts may be discoloured by food such as carrots. Grease the parts with a little vegetable oil to remove the discolouring before cleaning them.

Accessories Dishwashers	safe	Hand wash Damp cloth
Motor unit No No Yes
Mixer stick No Yes Yes
Whisk Yes Yes Yes
Whisk holder No Yes Yes
Lid for mini-chopper No No Yes
Mini-chopper container Yes	Yes Yes
Bottle	Yes Yes Yes
Storage lid No Yes Yes
Mini-chopper blade	Yes Yes Yes
Container Yes Yes Yes

Important!

The motor unit must never be rinsed under running water or dipped in water or other liquids. The motor unit must never be placed in the dishwasher.

Note: The containers may not be used in a microwave oven.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This

guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone.: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 7713

220-240V \~, 50-60 Hz

850 W

We reserve the right to make changes without notice.
