Know these

safety symbols

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This "bolt of lightning" indicates uninsulated material within your unit

may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The "exclamation point" calls attention to features for which you should read the

enclosed literature closely to prevent operating and maintenance problems.

For Customer Use

Enter below the Serial No. which is located on the bottom of the set. Retain this information for future reference.

Model No.

Serial No.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure.

ATTENTION

The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

English: This digital apparatus does not exceed the Class B limits for noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

IMPORTANT SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read these instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions - All operating and use instructions should be followed.
5. Do not use this apparatus near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.
6. Clean only with a damp cloth. The appliance should be cleaned only as recommended by the manufacturer.
7. Install in accordance with the manufacturers instructions. Do not block any of the ventilation openings. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

2. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

EL 4562-E004:99/3

PORTABLE AUDIO

One Year Free Exchange

This product must be carried in for an exchange.

WHO IS COVERED?

You must have proof of purchase to exchange the product. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Attach it to this owner's manual and keep both nearby.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year thereafter, a defective or inoperative product will be replaced with a new, renewed or comparable product at no charge to you. A replacement product is covered only for the original warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires.

WHAT IS EXCUSED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
  product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna systems outside the unit.
• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• a product used for commercial or institutional purposes.

WHERE IS EXCHANGE AVAILABLE?

You may exchange the product in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide a replacement product (although there may be a delay if the appropriate product is not readily available).

BEFORE REQUESTING EXCHANGE...

Please check your owner's manual before requesting an exchange. Adjustments of the controls discussed there may save you a trip.

EXCHANGING A PRODUCT IN U.S.A., PUERTO RICO OR U.S.VIRGIN ISLANDS...

Contact your dealer to arrange an exchange. Or, ship the product, insured and freight prepaid, and with proof of purchase enclosed, to the address listed below.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743

(In U.S.A., Puerto Rico and U.S.Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

EXCHANGING A PRODUCT IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)

1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

TO GET OUT-OF-WARRANTY EXCHANGE...

In U.S.A., Puerto Rico or U.S.Virgin Islands, contact Philips Service Company at [phone] to obtain the cost of out-of-warranty exchange. Then carefully pack the product and ship it to the Small Product Service Center (address listed above). In Canada, call the phone number listed above under "Exchanging a Product in Canada" to obtain the cost of out-of-warranty exchange.

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL #

SERIAL #

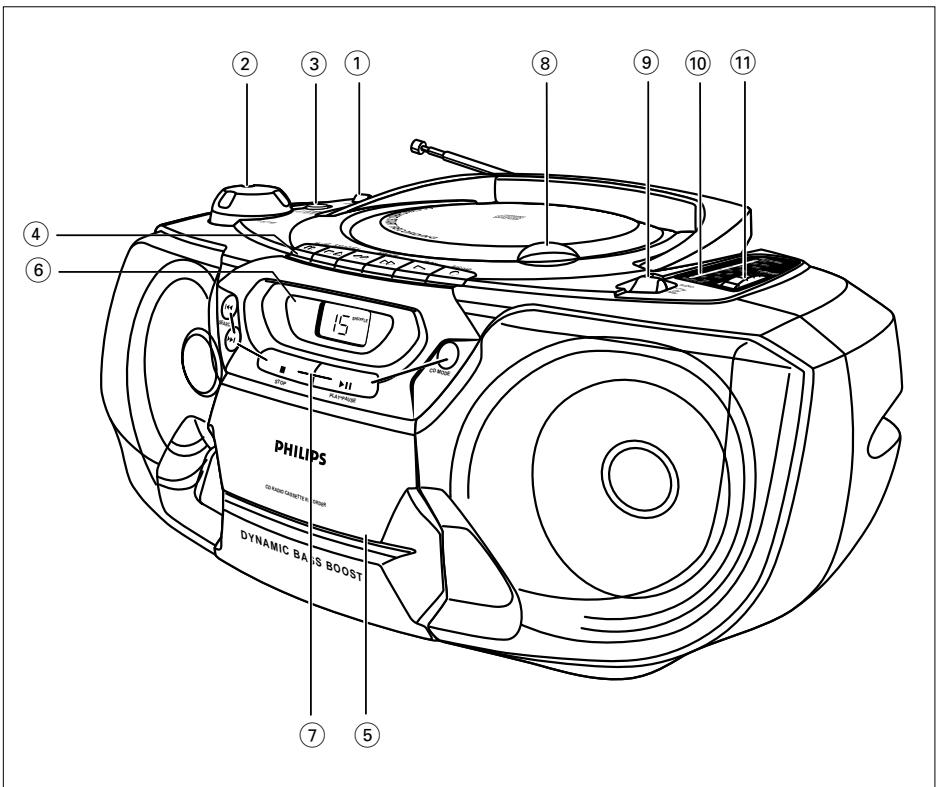

TOP AND FRONT PANEL

① Source selector - to select source of sound: CD-RADIO-TAPE and also the POWER OFF switch.
② VOLUME - to adjust volume level.
③ DBB - Dynamic Bass Boost: for a more vivid bass response.

CASSETTE REORDER:

④ PAUSE II - to interrupt recording or playback.

STOP-OPEN -To stop the tape and to open the cassette holder.

SEARCH or- to fast forward/rewind the tape.

PLAY - to start playback.

RECORD - to start recording.

⑤ Cassette compartment

CD PLAYER:

⑥ CD Display - to show the CD functions.
⑦ PLAY·PAUSE▶II - To start or interrupt CD play.

STOP - to stop playback or erase a program.

CD MODE - to select a different play mode.
e.g. SHUFFLE/REPEAT; to program and review programmed track numbers
SEARCH or - to skip or search a passage/ track backwards or forward

Lift TO OPEN - to open/ close the CD door RADIO:
(9) BAND - to select FM/AM wave band
10 Tuning dial pointer
TUNING - to tune to radio stations

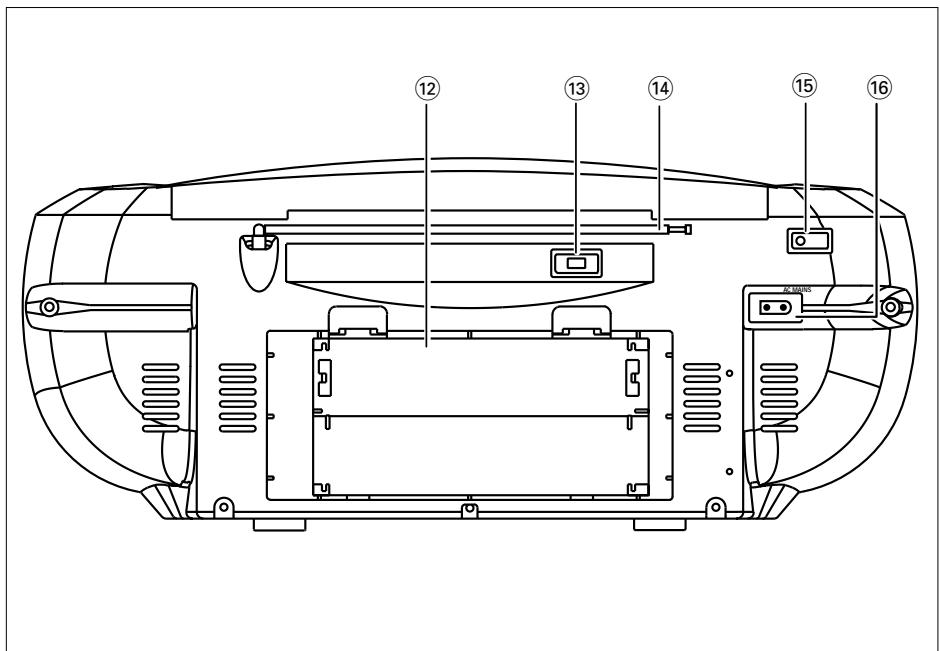

BACK PANEL

⑫ Battery door - to open the battery compartment
BEAT CUT switch - To eliminate any whistle tones during AM recordings.
14 Telescopic antenna - to improve FM reception
15 3.5 mm stereo headphone jacket

Note: Connecting headphones will switch off the loudspeakers

16 AC MAINS - inlet for mains cord

Batteries

Whenever convenient, use the mains supply if you want to conserve battery life. The battery supply will be switched off when the set is connected to the mains. Make sure you remove the plug from the set and wall outlet before inserting batteries.

Batteries (optional)

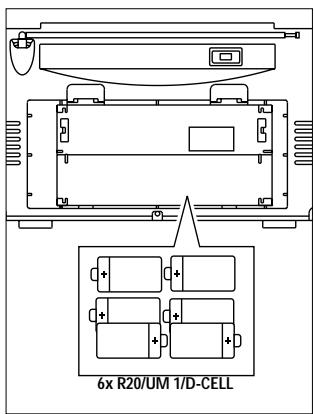

1. Open the battery compartment and insert six batteries, type R20, UM1 or D-cells (preferably alkaline) with the correct polarity as indicated by the (+) and (-) symbols inside the compartment.
2. Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.

3. Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. Therefore:

4. Do not mix battery types, e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.

5. When inserting new batteries, do not try to mix old batteries with the new ones.
6. Remove the batteries if the set is not to be used for a long time.

Batteries contain chemical substances, so they should be disposed of properly

AC MAINS

1. Check if the mains voltage as shown on the type plate on the base of the set, corresponds to your local mains voltage. If it does not, consult your dealer or service organisation.
2. If your set is equipped with a voltage selector, adjust it so that it matches with the local power.
3. Connect the power cord to the MAINS outlet and the MAINS inlet.

The mains supply is now connected and ready for use.

1. To switch off completely, withdraw the power cord from the mains outlet.
2. Disconnect the power cord from the wall outlet to protect your set during heavy thunderstorms.

GENERAL OPERATION

1. To switch on the set, adjust the source selector.
2. Adjust the sound using the VOLUME and DBB controls.
   3 To switch off the radio, adjust the source selector to the TAPE/POWER OFF position, with the cassette buttons released.

RADIO RECEPTION

1 Set the source selector to RADIO.
2 Adjust the sound using the VOLUME and DBB controls.
3. Select the wave band FM/AM using BAND.
4. Tune to a radio station using TUNING.
5. To switch off, set the source selector to the TAPE/POWER OFF position (with the cassette buttons released).

To improve radio reception

• For FM, pull out the telescopic antenna.
  Incline and turn the antenna. Reduce its length if the signal is too strong (very close to a transmitter).
• For AM, the set is provided with a built-in antenna so the telescopic antenna is not needed. Direct the antenna by turning the whole set.

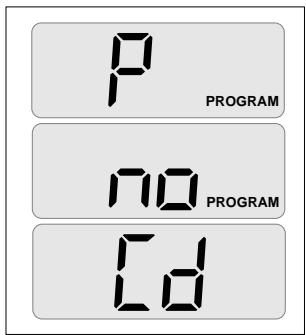

CD DISPLAY INDICATION

• Cd: CD door open/scanning for CD.
• Total track number: in stop mode.
• Current track number: during CD play.
• Current track number flashes: in Pause mode.
• SHUFFLE/REPEAT modes: when the respective mode is activated.
• PROGRAM: When active. P also appears briefly when you store a track.
• no: no disc/ error in CD operation or with the CD (see Troubleshooting)
• E: error in CD operation.
• F: program memory full

PLAYING A CD

1. Set the source selector to CD
2. To open the CD door, lift the CD door edge marked LIFT TO OPEN.
3. Insert a CD with the printed side facing up and press the CD door gently to close.

The CD player scans the contents of the CD and the total number of tracks is displayed.

1. Press PLAY·PAUSE to start playback.
2. Adjust the sound using the VOLUME and DBB controls.
3. To interrupt playback press PLAY·PAUSE▶II. To resume, press PLAY·PAUSE▶II again.

The current track number flashes in the display

1. To stop CD play, press STOP
2. To switch off the set, adjust the source selector to TAPE/POWER OFF position (with the cassette buttons released)

Note: CD playback will also stop when:

• the CD door is opened;
• the source selector is in the TAPE/RADIO positions;
• the CD has reached the end.

SELECTING A DIFFERENT TRACK

During playback, you can use the SEARCH buttons to select a particular track.

1. Press SEARCH once for the next track, or press repeatedly until the desired track number appears in the display.

Press SEARCH once to return to the beginning of a current track. Press SEARCH more than once for a previous track.

1. If you have selected a track number in the stop or pause position, you will need to press PLAY·PAUSE to start playback.

Finding a passage within a track

1. Press and hold down SEARCH or

The CD is played at high speed and low volume.

1. When you recognize the passage you want, release the SEARCH button.

Different play modes: SHUFFLE/REPEAT

The CD MODE button allows you to select 4 different play modes which can also be combined with a CD program. The modes can be selected or changed during playback and will flash for two seconds before playing your selected mode.

1. During playback, select your play mode by pressing

CD MODE once or more until the desired play mode appears in the display.

SHUFFLE - All tracks or program are played in random order.

REPEAT ALL SHUFFLE - Repeats the entire CD or program in random order.

REPEAT - Plays the current track continuously.

REPEAT ALL - repeats the entire CD or program

→You can use SEARCH or to skip tracks during CD MODE playback.

1. To return to normal playback press CD MODE until the various

SHUFFLE/ REPEAT modes are no longer shown in the display.

→You can also press STOP to quit the play mode.

REPEAT ALL

SHUFFLE PROGRAM

PROGRAMMING TRACK NUMBERS

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

1. In the STOP position, press SEARCH or for your desired track.
2. As soon as your chosen track number is displayed, press CD MODE once to store the track.

→The display will show P^ briefly and PROGRAM, followed by your selected track number.

1. Select and store all desired tracks in this way.

To review your set program

• In the stop position, press and hold down CD MODE for more than two seconds.
  →The display will show in sequence all your stored track numbers.
• Start playback of your program by pressing

PLAY·PAUSE II.

Erasing a program

You can erase the contents of the memory by:

• lifting the CD door open;
• moving the source selector position;
• pressing STOP twice during playback / in stop position.

→ The display will show 'no' briefly and PROGRAM, which disappear when the program is cancelled.

PROGRAM

PROGRAM

PROGRAM

PLAYING A CASSETTE

1. Set the source selector to TAPE.
2. Press STOP-OPEN to open the cassette holder and insert a recorded cassette.
3. Close the cassette holder.
4. Press PLAY to start playback.
5. Adjust the sound using the VOLUME and DBB controls.
6. To interrupt playback press PAUSE II. To resume, press the button again.
7. By pressing or , fast forwarding of the tape is possible in both directions. To stop fast forwarding, press STOP-OPEN
8. To stop the tape, press STOP·OPEN ▲

→ The buttons are automatically released at the end of the tape, except if PAUSE II has been activated.

1. With the source selector in TAPE/POWER OFF position, the set is switched off when all the cassette buttons are released.

General information on cassette recording

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording you should use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The recording level is set automatically. Altering the VOLUME and DBB controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

SYNCHRO START CD RECORDING

1. Set the source selector to CD.
2. Insert a CD and if desired, program track numbers.
3. Press STOP·OPEN ▲ to open the cassette holder.
4. Insert a blank tape.
5. Close the cassette holder.
6. Press RECORD to start recording.

Playing of the CD program starts automatically from the beginning of the program. It is not necessary to start the CD player separately.

1. For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again.
2. To stop recording press STOP·OPEN ▲

To select and record a particular passage within a track

1. During playback, press and hold down the SEARCH button or to find your passage.
2. Press PLAY·PAUSE to put the CD player on pause at the selected passage.

Recording will begin from this exact point in the track when you press RECORD

1. Set the source selector to RADIO.
2. Tune to the desired radio station (See RADIO RECEPTION).
3. Press STOP·OPEN ▲ to open the cassette holder and insert a blank tape.
4. Close the cassette holder.
5. Press RECORD to start recording.

Note: If you are recording an AM station, adjust the BEAT CUT switch to eliminate any whistle noises.

1. For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again.
2. To stop recording, press STOP·OPEN ▲

PRECAUTIONS & GENERAL MAINTENANCE

• Place the set on a hard, flat surface so that the system does not tilt.
• Do not expose the set, CDs, batteries or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Always shut the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.
• Do not cover the set. Adequate ventilation with a minimum gap of 15 cms between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

CD PLAYER AND CD HANDLING

• The lens of the CD player should never be touched.
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
• Use only Digital Audio CDs.
• To take a CD out of its box, press the centre spindle while lifting the CD. Always pick up the CD by the edge and replace the CD back in its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach stickers to it.

To ensure a good recording and playback of the tape deck, clean parts A, B and C show in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

• Open the cassette holder by pressing STOP·OPEN ▲
• Press PLAY and clean the rubber pressure rollers (C).
• Press PAUSE II and clean the magnetic heads (A) and also the capstans (B).
  After cleaning, press STOP-OPEN ▲

Cleaning of the heads can also be done by playing a cleaning cassette through once.

If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.

PROBLEM

-POSSIBLE CAUSE
- REMEDY

No sound/power

• VOLUME is not adjusted.

• Adjust the VOLUME.

• Headphones are connected.

• Disconnect headphones.

• power cord not securely connected.

• Connect the AC power cord properly.
• Batteries exhausted.
• Insert fresh batteries.
• Batteries incorrectly inserted.
• Insert the batteries correctly.

Display does not function properly

• Electrostatic discharge.
• Switch off set, disconnect the mains plug and reconnect after a few seconds.

CD playback does not work

• CD is badly scratched or dirty.
• Replace or clean the CD, see Maintenance.
• Laser lens steamed up.
• Wait until lens has acclimatized.

The CD skips tracks

• CD is damaged or dirty.
• Replace or clean the CD.
• SHUFFLE or PROGRAM is active.
• Quit SHUFFLE/PROGRAM mode(s).

Poor cassette sound quality

• Dust and dirt on the heads, etc.
• Clean deck parts etc., see maintenance.
• Use of incompatible cassette types (METAL or CHROME).
• Only use NORMAL (IEC I) for recording.

Recording does not work

• Cassette tab(s) may be broken out.
• Apply a piece of adhesive tape over the missing tab space.

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Small Product Service Center

Philips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743 E.-U.

Small Product Service Center Phillips Service Company

907 Snapps Ferry Road, Plant 2, Building 6

Greeneville, TN 37743 USA

• CAUSA POSIBLE
  SOLUCION

A Division of Philips Electronics North America Corporation

Knoxville, Tennessee 37914-1810, U.S.A.

Meet Philips at the internet http://www.philipsusa.com

CLASS 1 LASER PRODUCT
