KC-G40EU - Humidifier SHARP - Free user manual and instructions

Product Type	Air Purifier and Humidifier
Brand	Sharp
Model	KC-G40EU
Color Variants	Black (KC-G40EU), White (KC-G40EUW)
Dimensions (W x D x H)	34.5 x 26.2 x 63.1 cm (packing)
Weight	9.2 kg
Power Consumption	Average 40 W
Noise Level	14 dB(A) (sleep mode), 20-46 dB(A) (min/max)
Purification Airflow Rate	240 m³/h
Humidification Capacity	400 ml/h
Water Tank Volume	2.5 L
Filter Types	HEPA filter (FZ-D40HFE), Deodorizing filter (FZ-G40DFE), Humidifying filter (FZ-G60MFE)
Filter Life	Up to 10 years
Technology	Plasmacluster (ion generation), 4 sensors (dust/PM2.5, temperature, humidity, light)
Operating Modes	Intelligent, Spot, Pollen, Ion Shower, Sleep
Special Features	Auto Louver, Auto Restart, Child Lock, Timer ON/OFF, Casters with lock
Humidification Method	Evaporation with water filtration
Certifications	British Allergy Foundation (BAF) approved, GLP safety tested

Frequently Asked Questions - KC-G40EU SHARP

What does the Plasmacluster technology do?

Plasmacluster technology generates positive and negative ions like those found in nature to remove airborne mold, viruses, allergens, and odors. It is patented by Sharp and certified safe.

How do I clean the filters?

The HEPA filter and deodorizing filter should be replaced when the indicator shows. The humidifying filter can be rinsed with water. Refer to the manual for specific intervals.

What do the different sensors detect?

The device has 4 sensors: dust (including PM2.5), temperature, humidity, and light intensity. They automatically adjust operation to maintain optimal air quality.

Can I use the humidifier without the air purifier?

The unit combines both functions. You can select purification-only mode, humidification-only mode, or both simultaneously via the control panel.

How often should I replace the water?

The water tank should be emptied and refilled daily to prevent bacterial growth. The device alerts when the tank is empty.

What is the Ion Shower mode?

Ion Shower is an intensive purification program that releases high-density Plasmacluster ions for rapid cleaning, ideal before sleeping.

Is the device safe for pets and children?

Yes, the Plasmacluster technology has been tested for safety (GLP compliant). The child lock feature prevents accidental operation.

How do I enable the Spot mode?

Spot mode directs a focused airflow through an adjustable horizontal outlet to remove odors from closets or corners. Select it on the control panel.

What is the pollen mode?

Pollen mode uses high-density Plasmacluster ions (HD7000) to combat allergens like pollen. It's designed for allergy sufferers.

How do I clean the exterior?

Wipe the exterior with a soft, dry cloth. Do not use water or abrasive cleaners. Clean the air intake and outlet grilles regularly with a vacuum brush.

USER MANUAL KC-G40EU SHARP

4-sensor intelligent air purifier and humidifier with Plasmacluster technology

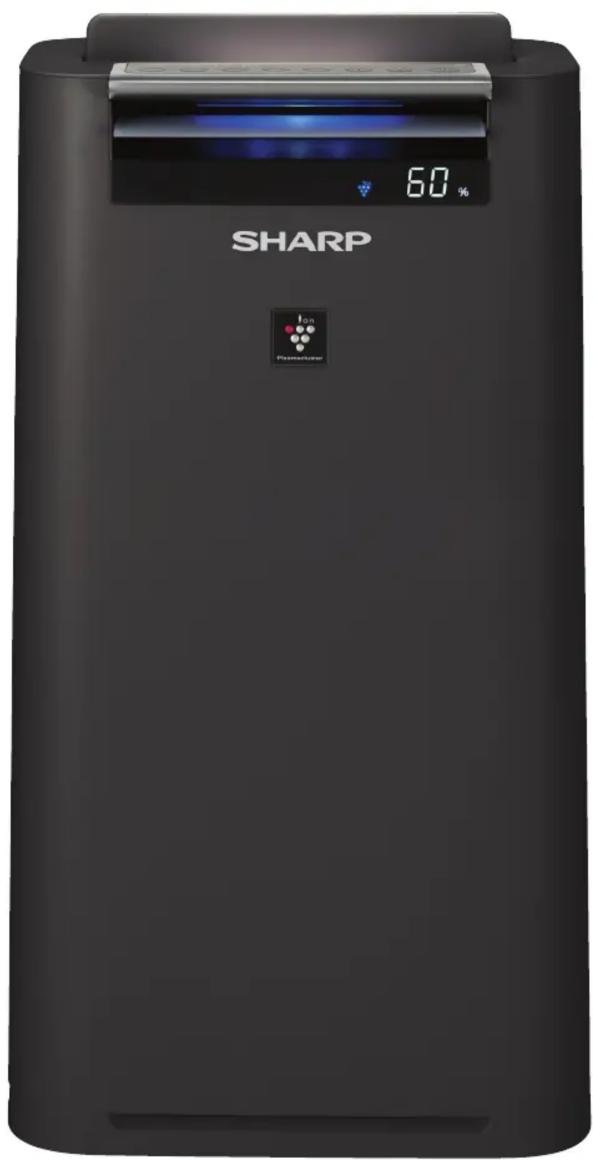

Black Sharp air purifier device with digital display showing 60% power and indicator lights (no text or symbols on main body)

Main features and functions

• Intelligent purification and humidification mode based on input from 4 sensors: dust (also PM2.5) – sensitivity, temperature and humidity, light intensity control;
• Spot Mode
• Pollen Mode
• Ion Shower Mode
  • Plasmacluster Technology
  • Evaporation humidification
  • Water filtration before humidification
  • Water tank empty notification display
  • Filter replacement or cleaning necessity notification
  • Very silent operation – 14 dB(A) (sleep mode)
• Low energy consumption – average 40 W
  • Filter life up to 10 years
• Casters with a lock for an easy relocation
• ON/OFF Timer
• Auto Restart
• Auto Louver
• Child Lock

Key parameters

• 240 ~m^3 / h : purifying efficiency
  • 400 ml/h: humidifying efficiency
  • 2,5 l: water tank volume
  • 20-46 dB(A): min. /max. noise level
• 9,2 kg: unit's weight
• Packing dimensions (W x D x H) (mm): 34.5 x 26.2 x 63.1

Consumables

Models
FZ-D40HFE HEPA filter
FZ-G40DFE Deodorizing Filter
FZ-G60MFE Humidifying Filter

KC-G40EUW

Purify Air with the Same Ions As in Nature

Plasmacluster - Only from SHARP

Plasmacluster ions are positive and negative ions that occur in nature.

Plasmacluster is air-purifying technology. Its effectiveness has been supported by test data, and Plasmacluster is thus increasingly finding applications in various areas of activity, such as in businesses, in addition to household use. Plasmacluster provides you with natural and safe air. This unique technology from Sharp applies the power of nature.

SHARP's Original Technology

Plasma discharge generates and emits the same positive and negative ions that occur in nature. Plasmacluster technology is Sharp's original air purifying technology that removes airborne mold and viruses.

Winner of the 2008 Invention Prize

National Invention Awards Ceremony held by the Japan Institute of Invention and Innovation (JIII)

Patented by Sharp (patent number 3680121)

Assured Safety

GLP ^* -compliant test facilities have gathered highly reliable safety data on Sharp's Plasmacluster technology.

* GLP (good laboratory practice) is a system of management controls for test facilities and test procedures designed to ensure the reliability of chemical safety assessment tests. Testing institution: LSI Medience Corporation

Purpose	Test name (abbreviation)	Ion density setting
Skin irritancy (general condition)	Acute skin irritation/ corrosion	Approx. 1,000,000 ions/cm3
Eye irritancy (general condition)	Acute eye irritation/ corrosion	Approx. 13,000,000 ions/cm3
Gene toxicity (general condition)	Inhalation toxicity (evaluation of genetic effect on pulmonary tissue)	Approx. 7,000,000 ions/cm3
Body and organ toxicity (general condition)	Inhalation toxicity	Approx. 7,000,000 ions/cm3
Pregnant woman and fetus toxicity (general condition)	Inhalation toxicity	Approx. 7,000,000 ions/cm3

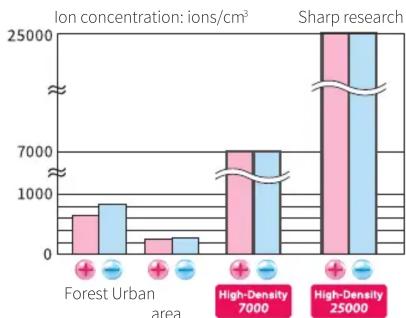

The Same Safe Ions As in Nature

The safety of Plasmacluster ions has been verified, and so a high density of ions can be used. With more positive and negative ions in a room than even in a forest, Plasmacluster provides an environment of even greater effectiveness.

Numbers of + and ions per 1 cm ^3 when measured near the center of a room (at a height of 1.2 m from the floor) with the product placed at a wall:

+ - ions each 25,000 or more

each of the ions 7,000 or more

Removal of Airborne Mold

Result after approx. 49 minutes in a testing space of approx. 25 m ^3 .

Reducing Growth of Adhering Mold

Result after approx. three days (one day as 24 hours) in a testing space of approx. 20 m^3 .

Reducing Growth of Adhering Mold

Result after approx. three days (one day as 24 hours) in a testing space of approx. 20 m ^3 .

Suppressing the Activity of Airborne Microbe

Result after approx. 51 minutes in a testing space of approx. 25 m ^4 .

Suppressing the Activity of Airborne Allergens from Dust Mite Feces and Remains

Result after approx. 51 minutes in a testing space of approx. 25 m ^4 .

Suppressing the Activity of Adhering Viruses

Result after approx. 10 minutes in a testing space of approx. 25 m ^3 .

KC-G40EUW

Plasmacluster Ions and Air-Purification Technology Remove Haze

• It was proven in Collaboration with University Putra Malaysia that Sharp's Plasmacluster Ion and Air Purifying Technology has the effect on a haze.
  • Plasmacluster Ions Reduce 98% of Toluene and 70% of Pentanone
  • Air-Purification technology removes 99% of haze particles as small as 0.06 μm in size

Reduction of Static Electricity

• Reduction of Static Electricity

Removing Stubborn Odors with Plasmacluster

• Breakdown and Elimination of Clinging Odors
• Breakdown and Removal of Clinging Cigarette Odor
- Spot Deodorization of Sweat Odor Clinging to Clothing in Approx. Six Hours
- Spot Deodorization of Damp-dry Odor on Clothes Drying Indoors in Approx. Three Hours

Skin-Beautifying Effects of High-Density Plasmacluster Ions

• Beautifying Skin with a Lustrous Sheen
  • Result after approx. 20 minutes in a testing space of approx. 41 m ^3 .

Technology and unique solutions

Plasmacluster – certified method of generating heavy ions into the air (elimination of viruses, bacteria, allergens and fungi); a natural air purifying system. The effectiveness of this unique solution developed by Sharp in 2000 has been confirmed with over 90 patents.

British Allergy Foundation (BAF) – Allergy UK works with manufacturers throughout the world to test and promote products and devices that can benefit those suffering from allergies. All products labelled with the BAF logo have been scientifically tested. All product tests and evaluations are carried out by Allergy Research Limited.

Auto Louver – automatic closing of the shutter when the device is turned off to keep the inside of the device clean.

Auto Restart – once power has been restored after power failure, the device continues working in the latest mode.

Child lock – control panel can be locked.

Monitor function – during operation, the sensor detects if it is necessary to address the temperature and humidity in the room, signalling it with the indicator light. The monitoring function detects “low humidity and temperature” and “high humidity and temperature”.

Intelligent Mode – intelligent purification and humidification mode based on information provided by 6 sensors - 7 indications: PM2.5, dust, unpleasant odour, temperature, humidity, light sensor, motion sensor.

Ion Shower – an intensive purifying programme that can be used for preparing the bedroom before going to sleep.

Pollen -anti-allergy mode based on high-density ion beams (Plasmacluster HD7000).

Timer ON/OFF – the device can be programmed to be temporarily switched on or off

Spot mode – a separate horizontal and adjustable air exhaust can be used removing unpleasant odours and bacteria from the closet.

KC-G40EUW

White air purifier with water droplets spraying through its mist, no visible text or symbols

Spot mode

efficiently

Exterior view of a white air conditioner unit with a fan and cooling fan assembly (no text or symbols visible)

Turning humidifying system Three filters remove dust, gas and

Unique design

Black SHARP portable air purifier device with a white top and control panel (no visible text or symbols on the device body)

Hand holding a black plastic device with a white plastic container, against a plain background (no text or symbols visible)

Front view of a Sharp air conditioner unit with control panel and display (no visible text or symbols on main body)

Black rectangular device with a grid pattern and a plus symbol on the side (no text or symbols visible)

Black Sharp industrial scanner with blue internal component and paper clip (no visible text or symbols)

Grid-patterned panel with black and beige panels, no text or symbols visible
