Type de produit	Free-standing cooker
Modèle	HR40
Marque	Eldom
Source d'énergie	Electricity (with gas option available)
Nombre de brûleurs/plaques	4 ceramic hobs
Type de four	Electric oven with fan assist
Capacité du four	65 liters
Dimensions (L x P x H)	60 cm x 60 cm x 85 cm
Poids	Approximately 45 kg
Puissance totale	7.5 kW
Tension d'alimentation	220-240 V, 50/60 Hz
Fonctions du four	Convection, grill, bottom heat, defrost
Porte du four	Double glass door for insulation
Verrouillage enfants	Yes
Arrêt de sécurité	Automatic shut-off for oven and hob
Nettoyage	Enamel interior, easy-clean ceramic hob
Accessoires fournis	Baking tray, wire shelf, grill grid
Garantie	2 years

Frequently Asked Questions - HR40 Eldom

How do I set the clock on my Eldom HR40 cooker?

Press the Clock button and use the +/- buttons to set the hour and minute. Confirm with Clock again.

What is the maximum oven temperature?

The oven can reach up to 250°C (482°F).

Can I use aluminum foil in the oven?

Yes, but avoid covering the oven bottom or heating elements. Use foil only on racks or trays.

How do I activate the child lock?

Press and hold the Lock key for 3 seconds until a lock icon appears. To deactivate, repeat.

Why are my hob burners not heating evenly?

Ensure the pan base is flat and matches the burner size. Uneven heating can also occur if the hob surface is dirty.

How often should I clean the oven?

Clean the oven interior after each use to prevent buildup. Use a mild detergent and avoid abrasive cleaners.

What should I do if the oven door fails to close properly?

Check if the door hinges are loose or obstructed. If needed, tighten the screws or contact service.

Is the cooker energy efficient?

Yes, it features energy class A for the oven and efficient induction-style hob elements.

Can I replace the power cord myself?

It is recommended to have a qualified electrician replace the cord to ensure safety and compliance.

Where can I download the user manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL HR40 Eldom

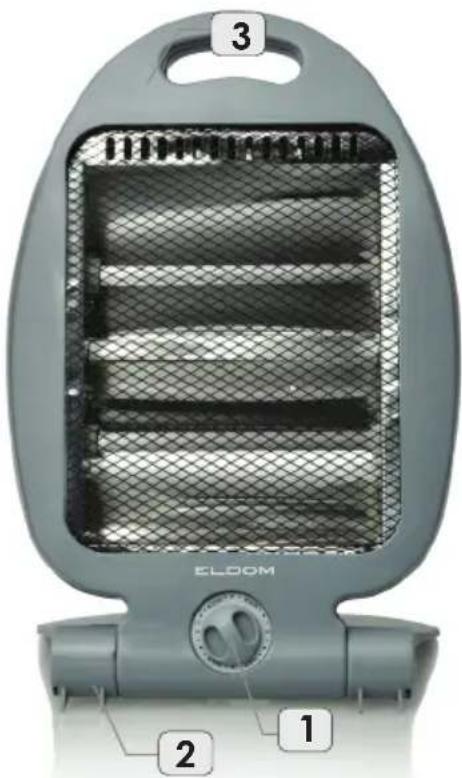

Exterior view of a Eldom electric heater with mesh grille and handle (no text or symbols on body)

Eldom Sp. z o.o.

UŻYTKOWANIE URZĄDZENIA

1. ON/OFF switch (operation mode)
2. Base
3. Carrying handle

TECHNICAL DATA

• power: 800 W
• supply voltage: 230 V \~ 50 Hz

HOW TO USE THE APPLIANCE

• After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre.
• Unfold the base (2) and place the appliance on a flat, hard and stable surface resistant to high temperatures.
• Turn the switch (1) to position "0" (appliance turned off).
• Connect the appliance to a power source with parameters in accordance with the Instructions for Use.

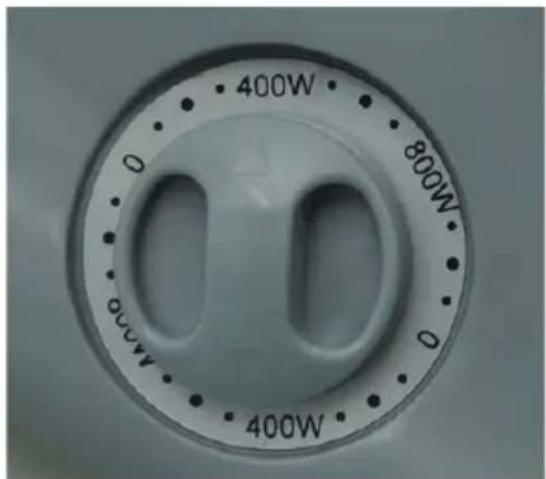

• Select power mode with the switch (1).

When used for the first time, the heating elements and insulation can emit characteristic smell. It is a normal phenomenon.

The appliance works in a vertical position only.

In the base of the appliance there is a switch which cuts off power supply in case of overturning.

Do not cover outlets when the appliance is in operation.

CLEANING AND MAINTENANCE

• Before cleaning remove the power cord from the socket.
• The appliance cannot be immersed in water.
• Do not use any cleansing agents which are strong or may damage the surface.
• Wipe the casing with a moist cloth.

SAFETY INSTRUCTIONS

• before first use familiarise with the whole instruction manual
• the device should be plugged in the socket with the working parameters described on the shell
• the device works only in vertical setting
• the device should be unplugged before cleaning and maintenance and in case
  of improper working or after using the device
• the device should be unplugged by pulling the plug not the cable
• do not use close to shower, bath, washbasin, pool, etc.
• do not use close to combustible materials such as furniture, bedding, paper, clothes, curtains, carpets, etc.
• do not operate in with high risk of gas explosion or when flammable solvents, lacquers or adhesives are used
• do not use outdoors
• do not touch with wet or moistened hands or feet
• do not immerse in water or sprinkle
• move only using the handle (3)
• do not let children or animals to have access to the device. While operating the device the surface temperature may be high.
• do not use for drying clothes
• do not cover outlets while operating the device
• do not direct the cord over the heater and outlets
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety
• do not leave working device without supervision
• let heater cool down before putting it to a hide
• check regularly whether the device or the cord have any damages. Do not operate if any damages are noticed.
• do not use if the cord is damaged, when the device fell over or was otherwise damaged. Any mending of the device should be let to authorised service providers. List of service providers can be found in the annex or on website www.eldom.eu
• Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

- the device is made of materials which can be reused or recycled

- the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the guarantee expires when device is used improperly
• the heating part is not subject to guarantee

Detailed warranty description in the annex.
