HR50 - Cooker Eldom - Free user manual and instructions

Product Type	Portable Electric Heater
Brand	Eldom
Model	HR50
Power	1200 W
Voltage	230 V ~ 50 Hz
Heating Elements	Three minor heaters (upper, lower, middle) controlled by separate switches
Oscillation	Automatic oscillating function (70° left-right), activated by a switch
Safety Features	Tip-over switch that cuts power if device falls; thermal cut-off? (not specified but implied)
Handle	Yes, for moving the device
Foot	Removable foot attached with screws
Placement	Must be used in vertical position on a flat, stable, firm, heatproof surface
Cleaning	Wipe shell with damp cloth; do not immerse in water; do not use abrasive cleaners
Maintenance	Unplug before cleaning; do not use if cord damaged; repairs by authorized service only
Usage Restrictions	Indoor use only; keep away from water, combustible materials, children, animals
Environmental Protection	Made of recyclable materials; dispose at designated WEEE collection point
Warranty	Household use only; heating elements not covered; improper use voids warranty
Dimensions	Not specified in manual
Weight	Not specified in manual

Frequently Asked Questions - HR50 Eldom

What should I do if the heater emits a strange smell during first use?

It is normal for new heaters to emit a smell from heating elements and insulation during initial use. Ensure proper ventilation.

Can I use the heater in a bathroom or near water?

No, the instructions explicitly forbid using the heater near showers, baths, washbasins, pools, or other water sources to avoid electric shock.

How do I clean the Eldom HR50 heater?

First, unplug the device. Wipe the shell with a moistened cloth. Do not immerse in water or use abrasive cleaners.

What does the tip-over safety switch do?

The tip-over switch automatically cuts power to the device if it falls over, preventing accidents.

Is the heater suitable for professional or commercial use?

No, the Eldom HR50 is designed for household use only. Professional use voids the warranty.

Can I cover the heater or use it to dry clothes?

No, never cover the heater's outlets while it is operating, and do not use it for drying clothes. This poses a fire risk.

How do I replace a damaged power cord?

If the cord is damaged, do not use the heater. Contact an authorized service provider for repair; do not attempt to replace it yourself.

Can I use an extension cord with the heater?

The manual does not recommend extension cords. Plug the heater directly into a wall socket with the correct voltage and current rating.

What are the different heating settings?

The heater has three switches: a main switch (middle minor heater), and two additional switches for upper and lower minor heaters. You can combine them to adjust heat output.

How does the oscillation feature work?

Press the oscillate lever to activate the automatic oscillation function, which rotates the heater left and right (70°) to distribute heat more evenly.

USER MANUAL HR50 Eldom

Exterior view of a black ELDOM portable solar heater with mesh grille (no text or symbols on body)

Eldom Sp. z o.o.

Close-up of a gray plastic component with a numbered label '1' and serrated edges (no readable text or symbols beyond the number)

Close-up of a mechanical component with a numbered label '2' pointing to a small white object (no readable text or symbols)

OPIS OGÓLNY

Close-up of a button labeled '1' on a textured surface with side grooves (no other text or symbols)

Close-up of a mechanical component with a numbered label '2' on the side (no readable text or symbols beyond the number)

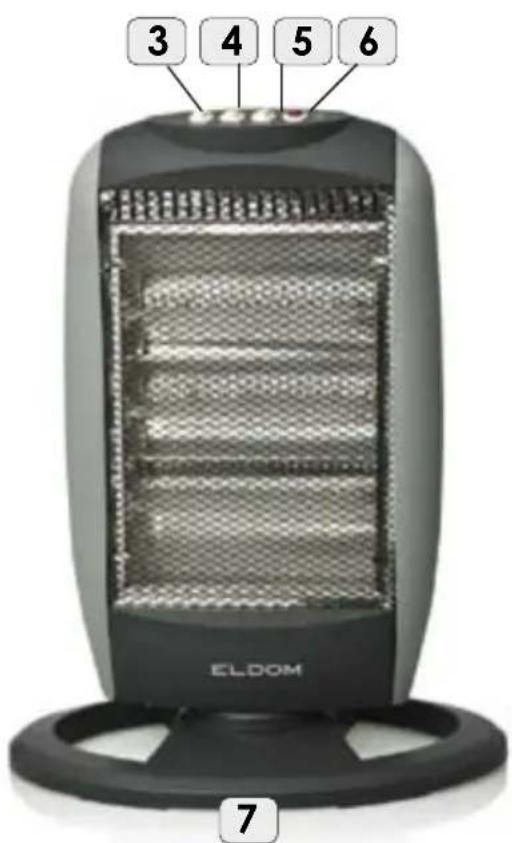

GENERAL DESRIPTION

1. Handle
2. Safety tip-over switch
3. Oscillate lever
4. Switch-lower minor heater
5. Switch- upper minor heater
6. Device's switch- middle minor heater
7. Foot

TECHNICAL DATA

• power: 1200 W
• voltage: 230V\~50Hz

USING THE HEATER

• after unwrapping the device make sure it has not been damaged during transport. In case of any doubts you should refrain from using it until you contact the authorised service provider.
• fix the foot (7) with added screws
• place the device on flat, stable, firm and heatproof surface
• plug the device to the electric mains with parameters compliant to the instruction
• switch on the device (6)
• additional power is set by pressing switches (4) and (5)

Heater has automatic oscillating function (right-left, 70°) which can be started by pressing a switch.

During the initial use you may notice a specific odour from heating elements and isolation. This is normal.

In the feet of the device there is a safety tip-over switch cuts the power supply in case the device falls over.

Do not cover outlets while the device is working.

CLEANING AND MAINTENANCE

• before cleaning the device unplug it
• the device should not be immersed in water
• do not use abrasive or harsh cleaners and cleaning products
• shell should be wiped with moistened cloth

SAFETY INSTRUCTIONS

• before first use familiarise with the whole instruction manual
• the device should be plugged in the socket with the working parameters described on the shell
• the device works only in vertical setting
• the device should be unplugged before cleaning and maintenance and in case of improper working or after using the device
• the device should be unplugged by pulling the plug not the cable
• do not use close to shower, bath, washbasin, pool, etc.
• do not use close to combustible materials such as furniture, bedding, paper, clothes, curtains, carpets, etc.
• do not operate in with high risk of gas explosion or when flammable solvents, lacquers or adhesives are used
• do not use outdoors
• do not touch with wet or moistened hands or feet
• do not immerse in water or sprinkle
• move only using the handle (1)
• do not let children or animals to have access to the device. While operating the device the surface temperature may be high.
• do not use for drying clothes
• do not cover outlets while operating the device
• do not direct the cord over the heater and outlets
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety
• do not leave working device without supervision
• let heater cool down before putting it to a hide
• check regularly whether the device or the cord have any damages. Do not operate if any damages are noticed.
• do not use if the cord is damaged, when the device fell over or was otherwise damaged. Any mending of the device should be let to authorised service providers. List of service providers can be found in the annex or on website www.eldom.eu
• Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the guarantee expires when device is used improperly
• the heating part is not subject to guarantee

Detailed warranty description in the annex.

Close-up of a mechanical component with a numbered label '1' on its surface (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '2' on the side (no readable text or symbols beyond the number)

POPIS HLAVNÍCH ČÁSTÍ

Close-up of a mechanical component with a numbered label '1' on its surface (no other text or symbols visible)

Close-up of a mechanical component with a numbered label '2' on the side (no readable text or symbols beyond the number)

Close-up of a white plastic component with a numbered label '1' and serrated edges (no readable text or symbols)

Close-up of a mechanical component with a numbered label '2' pointing to a small white object (no readable text or symbols)

ОБЩЕЕ ОПИСАНИЕ
