Product Type	Paper Shredder
Brand	Wallner
Model	JP 820S
Shredding Size	4 x 35 mm (P-3)
Shredding Capacity	8 sheets (70 gsm)
Bin Capacity	15 liters
Dimensions (W x D x H)	300 x 200 x 350 mm
Weight	4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	120 W
Shredding Speed	3 m/min
Noise Level	65 dB
Shreds Credit Cards	Yes
Shreds Staples	Yes
Auto Start/Stop	Yes
Anti-Jam Feature	Auto Reverse
Overload Protection	Yes
Safety Switch	Power Switch
Maintenance	Oil blades every 30 minutes of use
Spare Parts Available	Cutting blades, bin
Warranty	2 years
User Manual Language	English, Polish, Russian

Frequently Asked Questions - JP 820S Wallner

How many sheets can the Wallner JP 820S shred at once?

The Wallner JP 820S can shred up to 8 sheets of 70 gsm paper at a time. Overloading may cause jams.

Can it shred credit cards and staples?

Yes, the Wallner JP 820S can shred credit cards and staples. For credit cards, insert them in the center of the feed slot.

What type of oil should I use for maintenance?

Use a special shredder oil (vegetable-based) or light machine oil. Apply a few drops across the cutter and run the shredder in reverse for 10 seconds.

How often should I oil the shredder?

Oil the shredder after every 30 minutes of continuous use or when you notice reduced performance. Regular oiling extends blade life.

What should I do if the shredder jams?

First, press the reverse button to clear the jam. If that fails, unplug the unit and gently remove jammed paper using tweezers. Avoid using excessive force.

Is the Wallner JP 820S safe for children?

The shredder has a power switch but no child lock. Keep out of reach of children. Do not insert fingers or loose clothing near the feed slot.

What bin capacity does the JP 820S have?

The waste bin has a capacity of 15 liters. Empty it regularly to avoid overfilling, which can cause jams.

Can I shred CDs or DVDs?

No, the Wallner JP 820S is designed for paper, credit cards, and staples only. Shredding CDs or DVDs may damage the blades.

What is the noise level of this shredder?

The noise level is approximately 65 dB, similar to a normal conversation. It is suitable for office use.

Where can I find replacement parts?

Replacement parts such as cutting blades and bins are available through Wallner service centers or authorized retailers. Check the manual for contact details.

USER MANUAL JP 820S Wallner

		The machine can not be operated by more than one person at any given time! The machine was designed for safe operation by „one person only”.
		During the shredding process no other work may be performed on the machine (for example cleaning, etc).
		Keep children away from the machine. This machine's design and safety concept are based on adult dimensions to ensure that it can be operated safely by adults only.
		Repairs must be executed by a qualified service personnel.
		Keep all loose articles of clothing, ties, jewelry, long hair or other loose objects away from opening, injury may result!
		Never insert fingers into opening. Serious injury may result!
		In case of danger unplug the machine.
		Always unplug the machine from the main power supply before opening the machine.
		This machine shreds only paper, plastic cards, CDs. The shredding of any other materials may result with serious damages.
		When the machine is equipped with a plug with grounding, then it has to be connected to a socket with grounding!
		Shredder is to be used indoor.
		Do not use canned air on shredder. Never use aerosol, petroleum based or other flammable products on or near shredder.

NOTE!

• read the manual carefully before starting to work
- check whether the voltage and frequency given in the table at the bottom of the equipment are the same as in your socket
• do not use the machine if the waste basket is not installed
• do not use the machine if the waste basket is full

© ARGO S.A. www.argo.pl

• pull the plug from the socket:

a) before emptying the waste basket
b) before any servicing or preservation actions are taken
c) before opening the equipment in case of repair

• take note of the warning plate on the top of the machine to avoid serious injury when your jewellery, tie or hand are too close to the machine
• the machine may not be operated by children

INSTALLATION:

• Unpack and set machine upright.
• Take the machine by the holdings on each side and put it onto the horizontal surface.
- Plug in the machine. See „TECHNICAL DATA“ for necessary precautions.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.

PARTS AND FUNCTION

OPERATION

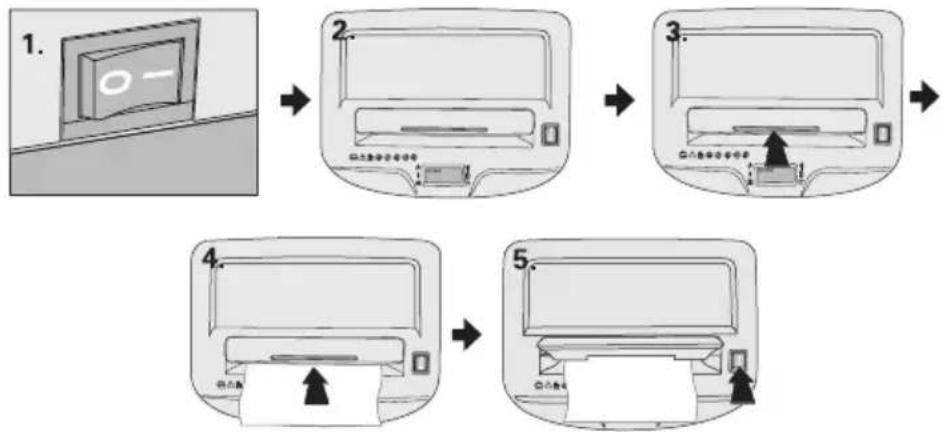

FEEDING THE PAPER

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch.
2. Set to "I" and "Auto Start" displays on screen, the shredder is going to standby.
3. Touch the paper entry by hands carefully to check the Safe Touch function.
4. Make sure the Safe Touch function normally, feed into entry and release.
5. If you want to stop shredding the paper, please set to „R“. the machine will reverse automatically and turn back the papers. Set to „I“, naow the shredder is going to stanby again.

⚠️ CAUTION: It is forbidden to place more sheets of paper then the maximum amount indicated by the producer. If the machine will be overloaded, then please proceed according to the information given in the "paper jam" section.

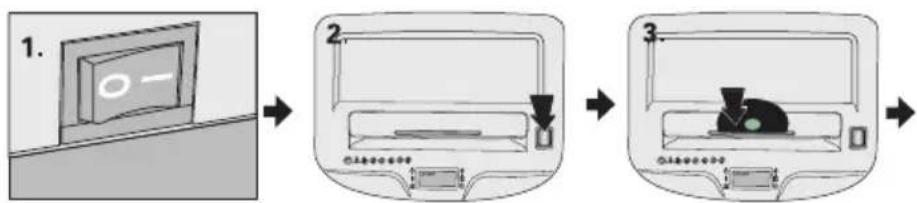

FEEDING CREDIT CARDS OR CDS

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch.
2. Set to „I“ and „Auto Start“ displays on screen, the shredder is going to standby.
3. Feed the credit card/CD into the proper entry and the machine will start automatically.

⚠️ CAUTION: Never attempt to shred more than one credit card/CD at a time or the shredder will jam. Never attempt to shred BOTH paper and credit cards/CDs at the same time. Doing so will damage the shredder.

MOTOR PROTECTION

When the wording „Machine overheat." is shown on LCD, unplug the machine from the main power source. Allow the motor to cool down to room temperature before resuming operation.

CUTTER OILING INSTRUCTIONS

To ensure proper operation and function, periodic oiling of the cutting system is required. Failure to oil your cutting system could result in reduced sheet capacity performance, excess noise, paper jams and possibly machine failure. Oil your cutters every 5th or 6th time you empty the basket, if excess squeaking and rubbing noise is coming from the machine or if the shredders sheet capacity has diminished.

Squeeze the lubricant across the full width of the cutters. Insert paper into sensor (fig.2) to activate the cutting system forward for 3 seconds. Then press „REV“ to make shredder reverse for 3 seconds. Alternate between forward and reverse at least three times or until all paper clears the cutters.

⚠️ CAUTION: Never use flammable synthetic oil, petroleum based or aerosol lubricants to oil your cutting system. Use only a vegetable oil based lubricant in a non-aerosol container with extension nozzle:

BASIC EXPLOITATION RULES

It is not advised to cut as many sheets as indicated as the maximum capacity of the shredder. By exploiting the machine at it's top capacity we significantly reduce it's vitality. Therefore, to maintain a durable and faultless work of the shredder, it is advised to place no more than 70% of the maximum amount of sheets to be shred at one time indicated for each model by the producer. The maximum amount of sheet should be used only occasionally.

It is forbidden to shred more sheets then the maximum amount of sheets to be shred at one time indicated by the producer. It may cause the blockade of the machine and massive engine overloading, which will diminish shredder's durability or even damage it. Also you should not shred soft objects such as foil, paper towels, toilet paper or fabrics. Nor paper with self-adhesive tape should be placed into the shredder. Those materials wrap around and jam the knives.

IMPORTANT RECOMMENDATIONS / WARNINGS

For your own safety please maintain particular care while installing and using the machine.

GENERAL

• Keep hands, long hair, loose articles of clothing, jewellery and ties away from device to avoid serious injury.
  • Unstable surfaces may cause the fall of the device, which can result in body injuries.
• Please avoid fast stopping, use of additional force or surface unevenness while transporting the device on trolley, casters or table.
• Do not remove mechanical and electrical securities such as locks, covers or others. It is forbidden to use objects not dedicated to do so or liquids.

ELECTRICAL

• The machine should be plugged to the electric circuit only as presented in the manual.
- The socket must be in close vicinity with easy access to the device. While moving the machine, pull the plug from the socket.
- To turn off the appliance unplug it from the socket. Socket should be in close vicinity with easy access to device.
- Do not use the machine when the wire or plug are damaged or after noticing symptoms of machine's damage. Please contact seller to obtain help.
- When the device is equipped with a plug with grounding, then it has to be connected to a socket with grounding!

SERVICE

Proceed only with routine actions according to the manual. Do not repair or service machines on your own. Unplug the machine from the circuit and contact seller when one or more of the following faults occur:

• liquid gets into the machine
• machine malfunctions as a result of improper use
• machine does not work accordingly to the manual

PROBLEM SOLVING

problems checklists solutions
No operation The power plug	is properly inserted to main supply?	Fully put the power plug to the outlet.
	Switch is set at „I” position? Set switch to „I” position for operation.
	Switch at „I” position but power light off.	Check basket is out of stand.Put basket back to stand.
	Basket at stand but power light off.	Basket should be put into stand to trigger the safety interlock switch for operation.
	No operation when insert paper?	Paper should be inserted to trigger the sensor at center.
	Checked above but no operation and no power light.	Send back to your local service for repair.
No operation after long time operation	Power lamp is on? Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Stop at shredding Machine is continuously shredding for a long time?		Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Excess squeaking and rubbing noise	Without oiling to the cutting system periodically.- Squeaking and rubbing noise at shredding.	Perform the cutter oiling instruction to lubricate the cutting system.
Paper jam - Exceeding the shredding capacity- The paper is not fed squarely into the feed opening.		Set switch to „R” for reverse running and frees excess paper. Then set to „I” for cutting the remainder of paper left in the cutting system. If serious jim occurred, send back to local service for repair.

If any faults should appear, please pass the machine along with the warranty card to the seller or closest authorised dealer. The machine might be passed further, thus the user should maintain the original and complete packaging. In cases when the machine is passed for repair in a not original or incomplete package, the risks of further damages that might arise in transportation are on the user's side. Thus, in such a case, it is in the user's best interest to make the best possible replacement packaging.

TECHNICAL DATA

model: JP 820S JP 826C JP 830C
Shred type strips shreds shreds
Shred size (mm) 3,9 3,8x40 1,9x10
Security level DIN 32757 2 3 4
Security level DIN 66399	P-2/ O-2/ T-3/ E-2	P-4/ O-1/ T-2/ E-2/ F-1	P-5/ O-4/ T-5/ E-4/ F-2
Entry Width (mm)	230	240	230
Shred Capacity	25	18	17
Automatic on/off	+	+	+
Reverse function +	+	+
Accepts credit card	+	+	+
Accepts CD	+	+	+
Accepts Floppy Discs	-	+	-
Basket Volume (l)	35	35	35
Machine Size (mm)	390x305x645	390x305x645	390x305x645
Power (V)	230-240 V ~50 Hz	230-240 V ~50 Hz	230-240 V ~50 Hz

NOTE ON ENVIRONMENTAL PROTECTION

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste.

Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or

point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
