Product Type	Paper Shredder
Brand	Wallner
Model	RS6600-C
Feed Width	220 mm (8.7 inches)
Sheet Capacity	10-12 sheets (70 gsm)
Bin Capacity	20 liters
Shred Size	4 x 40 mm (cross-cut)
Security Level	P-3 (DIN 66399)
Dimensions (W x D x H)	345 x 240 x 480 mm
Weight	4.5 kg
Power Source	AC 220-240V, 50/60 Hz
Motor Power	180 W
Noise Level	≤ 65 dB
Auto Start/Stop	Yes
Reverse Function	Yes (jam release)
Overheat Protection	Yes, automatic shutoff
Shreds	Paper, credit cards, staples, paper clips
Maintenance	Oil blades every 30 minutes of use
Warranty	2 years

Frequently Asked Questions - RS6600-C Wallner

What is the sheet capacity of the Wallner RS6600-C shredder?

The RS6600-C can shred up to 10-12 sheets of 70 gsm paper at a time.

Can it shred credit cards and staples?

Yes, the shredder can handle credit cards, staples, and small paper clips. However, avoid shredding adhesive labels or continuous forms.

How do I oil the shredder blades?

Apply shredder oil across the paper entry and run the shredder in reverse for 10 seconds. Repeat monthly or after every 30 minutes of use.

What should I do if the shredder jams?

Press the Reverse button to clear the jam. If jam persists, unplug the unit and gently remove paper from the cutter.

Does the shredder have automatic start/stop?

Yes, the auto-start sensor activates when paper is inserted, and auto-stop turns off the motor after shredding.

What is the bin capacity?

The waste bin holds 20 liters of shredded paper. Empty it frequently to prevent overflow.

Is the shredder safe for continuous use?

The RS6600-C has overheat protection that shuts off the motor after prolonged use. Allow 30 minutes cooldown before restarting.

What power supply does it require?

It operates on AC 220-240V, 50/60 Hz. Do not use with voltage converters.

What is the security level?

The shredder meets DIN 66399 P-3 security level, producing 4x40 mm cross-cut particles suitable for confidential documents.

Where can I find spare parts?

Spare parts like blades and motors are available through Wallner authorized service centers. Contact customer support for details.

USER MANUAL RS6600-C Wallner

Black and white photo of a refrigerated industrial machine with visible branding (no text or symbols on the device itself)

NISZCZARKI WALLNER RS6600-S / RS6600-C / RS6600-B

PARAMETRY TECHNICZNE

PANEL FUNKCYJNY (Rys. 2)

Rys. 2

• read the manual carefully before starting to work
• check whether the voltage and frequency given in the table at the bottom of the equipment are the same as in your socket
  • do not use the machine if the waste basket is not installed
  • do not use the machine if the waste basket is full
  • pull the plug from the socket:
  a) before emptying the waste basket
  b) before any servicing or preservation actions are taken
  c) before opening the equipment in case of repair
• take note of the warning plate on the top of the machine to avoid serious injury when your jewellery, tie or hand are too close to the machine
  • the machine may not be operated by children

IMPORTANT SAFETY NOTES

		The machine can not be operated by more than one person at any given time! The machine was designed for safe operation by „one person only”.
		During the shredding process no other work may be performed on the machine (for example cleaning, etc).
		Keep children away from the machine. This machine's design and safety concept are based on adult dimensions to ensure that it can be operated safely by adults only.
		Repairs must be executed by a qualified service personnel.
		Keep all loose articles of clothing, ties, jewelry, long hair or other loose objects away from opening, injury may result!
		Never insert fingers into opening. Serious injury may result!
		In case of danger unplug the machine.
		Always unplug the machine from the main power supply before opening the machine.
		This machine shreds only paper, plastic cards, CDs. The shredding of any other materials may result with serious damages.
		When the machine is equipped with a plug with grounding, then it has to be connected to a socket with grounding!
		Do not use canned air on shredder. Never use aerosol, petroleum based or other flammable products on or near shredder.

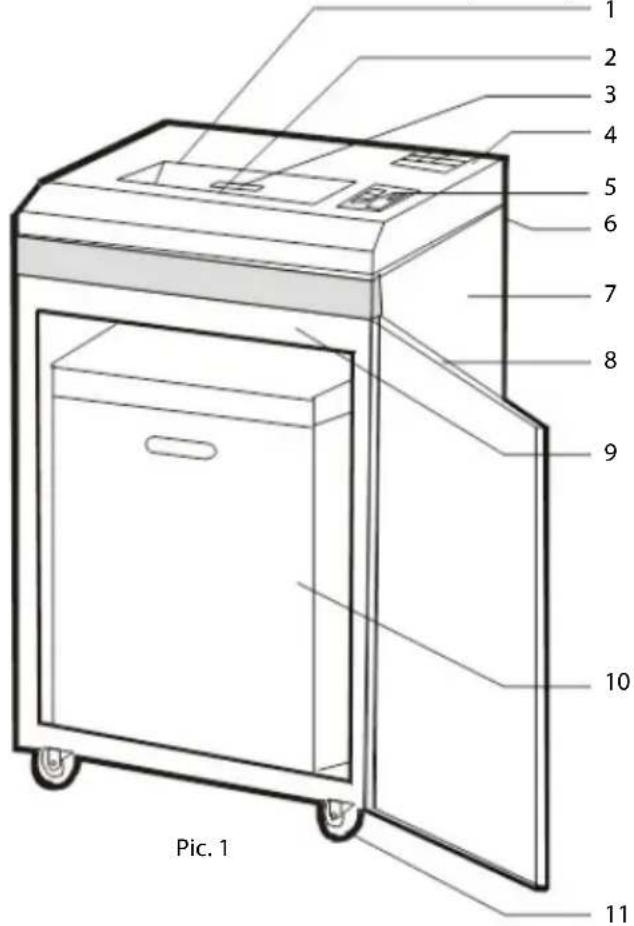

PARTS AND FUNCTIONS (Pic. 1)

1. Paper entry
2. Automatic feed sensor
3. CD/plastic card's entry
4. Top casing
5. Operating panel
6. Vent
7. Botton casing
8. Door
9. Open-door signalizator
10. Wastebasket
11. Movable casters

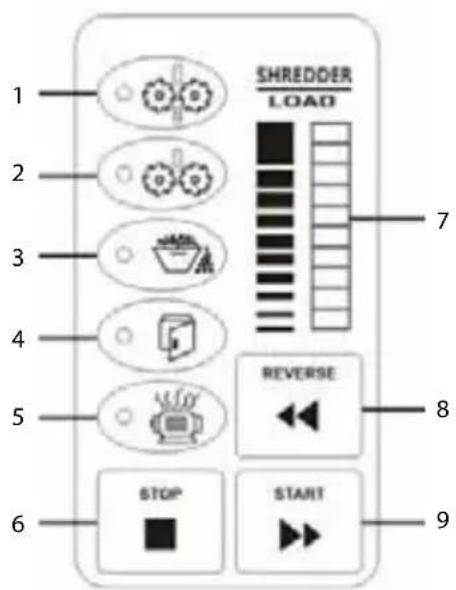

OPERATING PANEL (Pic. 2)
Pic. 2

1	Start indicator It will lighten up when paper is inserted, and the machine will start to work automatically.
2	Reverse indicator It will lighten up if the machine is in reverse mode or too much paper is inserted.The machine will eliminate paper jams.
3	Full-bin indicator It will lighten up when the box is filled with shreds. After emptying the wastebasket, the machine will automatically return to the stand-by mode.
4	Open-door indicator It will lighten up when the door is open. And the machine will not work for your safety.
5	Over-heating indicator Continuous work cannot exceed 60 minutes. After this time the over-heating indicator will lighten up. Allow the shredder to cool for 20 to 30 minutes before restarting.
6	Stop button Press this button to stop the machine's work.
7	Loading indicator Indicates amount of inserted sheets of paper. The inserted amount of sheets exceeds indicated maximum amount of sheets, the machine will automatically start to work in reverse mode
8	Reverse button In case of pressing this button, the machine will work in reverse mode in order to eliminate paper jams. The machine overturns for 4 seconds and returns the paper when pressing Reverse button.
9	Start button After this button is pressed, the machine starts to rotate cutting blades. If the paper is not inserted into the entry within 1 minute, the blades are being stopped automatically.

INSTALLATION:

• Unpack and set machine upright.
• Take the machine by the holdings on each side and put it onto the horizontal surface.
• Install the plastic bag on te rack.
- Plug in the machine.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.

OPERATION

FEEDING THE PAPER

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch, the power light is now on.
2. Feed the paper into the proper entry and the machine will start automatically. When the shredding will be over it will stop automatically.
3. If you want to stop shredding the paper, please set it to Reverse. The machine will reverse automatically and turn back the papers.

CAUTION:

It is forbidden to place more sheets of paper then the maximum amount indicated by the producer.

If the machine will be overloaded, then please proceed according to the information given in the "paper jam" section.

FEEDING CREDIT CARDS/CDS

1. Plug in the machine.
2. Feed the credit card/ CD into the proper entry and the machine will start automatically.

CAUTION:

Never attempt to shred more than one credit card/CD at a time or the shredder will jam. Never attempt to shred BOTH paper and credit cards/CDs at the same time. Doing so will damage the shredder.

MOTOR PROTECTION

The shredder is equipped with a motor overload device.

After 30 minutes of continuous work allow the unit to cool for 30 minutes before restarting.

CUTTER OILING INSTRUCTIONS

To ensure proper operation and function, periodic oiling of the cutting system is required. Failure to oil your cutting system could result in reduced sheet capacity performance, excess noise, paper jams and possibly machine failure. Oil your cutters every time you empty the basket, if excess squeaking and rubbing noise is coming from the machine or if the shredders sheet capacity has diminished. Squeeze the lubricant across the full width of the cutters. Press the Start button, insert paper into sensor to activate the cutting system forward for 3 seconds. Then press „REV“ to make shredder reverse for 3 seconds. Alternate between forward and reverse at least three times or until all paper clears the cutters.

CAUTION:

Never use flammable synthetic oil, petroleum based or aerosol lubricants to oil your cutting system. Use only a vegetable oil based lubricant in a non-aerosol container with extension nozzle.

BASIC EXPLOITATION RULES

It is not advised to cut as many sheets as indicated as the maximum capacity of the shredder. By exploiting the machine at its top capacity we significantly reduce its vitality. Therefore, to maintain a durable and faultless work of the shredder, it is advised to place no more than 70% of the maximum amount of sheets to be shred at one time indicated for each model by the producer. The maximum amount of sheet should be used only occasionally.

It is forbidden to shred more sheets then the maximum amount of sheets to be shred at one time indicated by the producer. It may cause the blockade of the machine and massive engine overloading, which will diminish shredder's durability or even damage it. Also you should not shred soft objects such as foil, paper towels, toilet paper or fabrics. Nor paper with self-adhesive tape should be placed into the shredder. Those materials wrap around and jam the knives.

IMPORTANT RECOMMENDATIONS / WARNINGS

For your own safety please maintain particular care while installing and using the machine.

GENERAL

• Keep hands, long hair, loose articles of clothing, jewellery and ties away from device to avoid serious injury.
  • Unstable surfaces may cause the fall of the device, which can result in body injuries.
• Please avoid fast stopping, use of additional force or surface unevenness while transporting the device on trolley, casters or table.
• Do not remove mechanical and electrical securities such as locks, covers or others. It is forbidden to use objects not dedicated to do so or liquids.

ELECTRICAL

• The machine should be plugged to the electric circuit only as presented in the manual.
- The socket must be in close vicinity with easy access to the device. While moving the machine, pull the plug from the socket.
- To turn off the appliance unplug it from the socket. Socket should be in close vicinity with easy access to device.
- Do not use the machine when the wire or plug are damaged or after noticing symptoms of machine's damage. Please contact seller to obtain help.
- When the device is equipped with a plug with grounding, then it has to be connected to a socket with grounding!

SERVICE

Proceed only with routine actions according to the manual. Do not repair or service machines on your own. Unplug the machine from the circuit and contact seller when one or more of the following faults occur:

• liquid gets into the machine
• machine malfunctions as a result of improper use
• machine does not work accordingly to the manual

PROBLEM SOLVING

problems checklists solutions
No operation The power plug	is properly inserted to main supply?	Fully put the power plug to the outlet.
	Switch is set at „l” position? Set switch to „l” position for operation.
	Switch at „l” position but power light off?	Check if the basket is out of stand. Put basket back to stand.
	Basket at stand but power light off?	Take the basket out, check the plug and put it back to place.
	No operation while inserting paper?	Paper should be inserted to trigger the sensor at center.
	Checked above, but still no operation and no power light?	Send back to your local service for repair.
No operation after long time operation	Power lamp is on? Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Stop at shredding Machine was continuously shredding for a longer time?		Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Excess squeaking and rubbing noise	Without oiling to the cutting system periodically, - squeaking and rubbing noise at shredding may appear.	Perform the cutter oiling instruction to lubricate the cutting system.
Paper jam - Exceeding the shredding capacity- The paper is not fed squarely into the feed opening.		Set switch to „Reverse” for reverse running and to free excess paper. Then set to „l” for cutting the remainder of paper left in the cutting system. If serious jam occurred, send back to local service for repair.

If any faults should appear, please pass the machine along with the warranty card to the seller or closest authorised dealer. The machine might be passed further, thus the user should maintain the original and complete packaging. In cases when the machine is passed for repair in a not original or incomplete package, the risks of further damages that might arise in transportation are on the user's side. Thus, in such a case, it is in the user's best interest to make the best possible replacement packaging.

NOTE ON ENVIRONMENTAL PROTECTION

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste.

Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
