Qualcore 1021 3G - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Qualcore 1021 3G
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Expandable Storage	microSD up to 64 GB
Operating System	Android (version unknown)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, 3G
SIM Card	Micro-SIM
Rear Camera	2 MP
Front Camera	0.3 MP
Battery Capacity	6000 mAh
Weight	510 g
Dimensions	240 x 170 x 10.5 mm
Power Supply	DC 5V, 2A via micro USB
Main Functions	Web browsing, media playback, apps, calls (3G), messaging
Cleaning Instructions	Wipe with a soft, dry cloth; avoid liquids
Safety Precautions	Do not disassemble, avoid extreme temperatures
Spare Parts / Repairability	Battery and screen replaceable by qualified service
General Information	User manual included; support available online

Frequently Asked Questions - Qualcore 1021 3G Overmax

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset. Confirm to erase all data.

How to insert a SIM card?

Locate the SIM card slot on the side. Use a paperclip to open the tray. Insert the Micro-SIM with gold contacts facing down, then close the tray.

How to expand storage?

Insert a microSD card into the dedicated slot up to 64 GB. It will be automatically recognized.

Why is the battery draining quickly?

Reduce screen brightness, turn off unused Wi-Fi or Bluetooth, close background apps, and check for battery-draining apps in Settings.

How to connect to Wi-Fi?

Open Settings > Wi-Fi, turn it on, select your network, and enter the password.

Can I make phone calls with this tablet?

Yes, with a 3G SIM card inserted, you can make calls using the dialer app.

The screen is unresponsive. What to do?

Try a forced restart by pressing and holding the power button for 10 seconds. If still unresponsive, contact support.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds.

Where can I find the user manual?

The manual is available for download from the product page at notice-facile.com in multiple languages.

What should I do if the tablet won't turn on?

Charge the tablet for at least 30 minutes, then try pressing the power button. If no response, perform a hard reset (see manual).

USER MANUAL Qualcore 1021 3G Overmax

To switch on the tablet, press and hold the power button for several seconds.

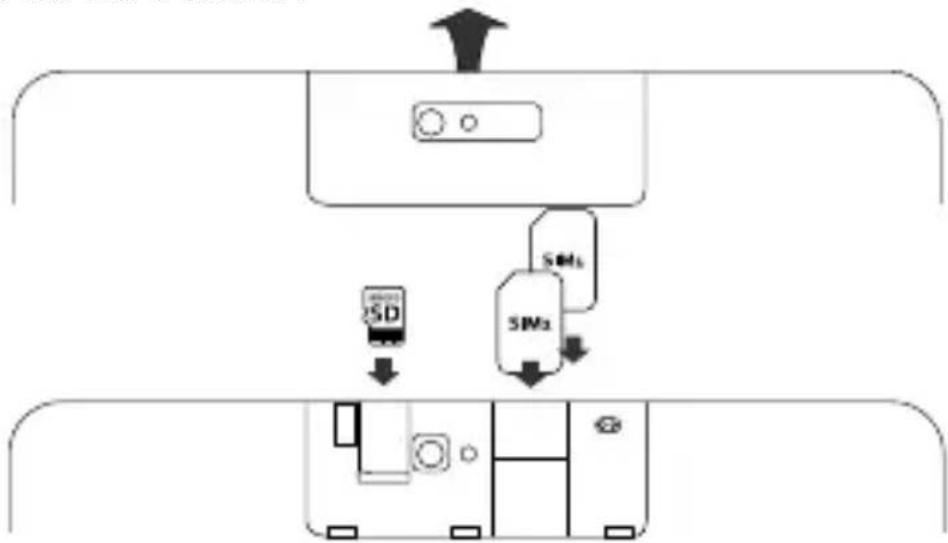

Opening the device

1. Switch off your tablet before installing or replacing the battery, SIM, or memory card.
2. Remove the back cover.
3. Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

1. Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

2. Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.

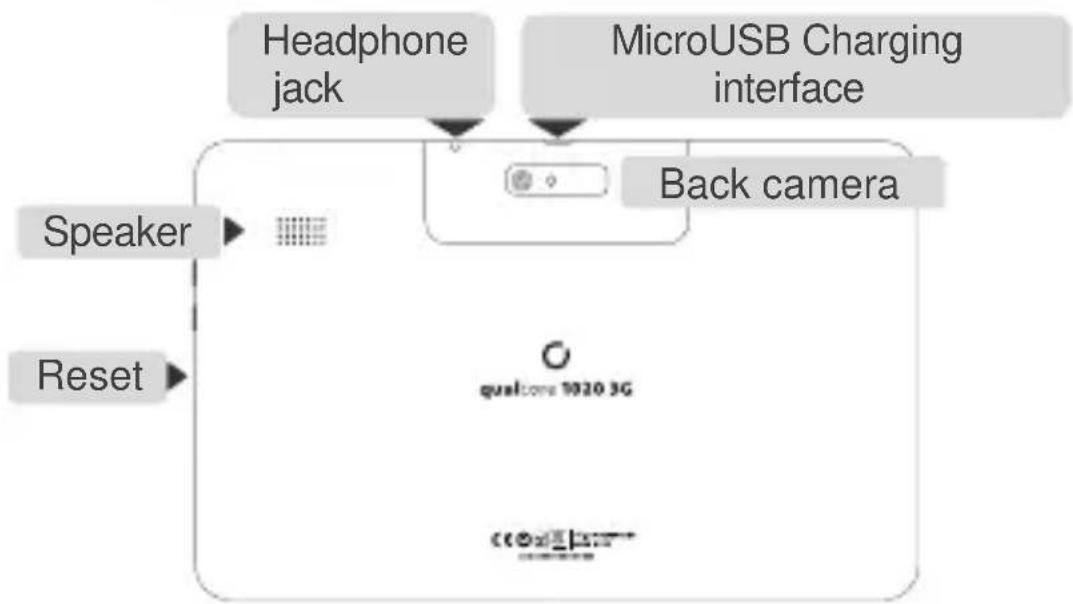

Keys Explained

Menu

Press to get the options for the current screen.

Home

Press to return to the Home Screen from any.

Back

Press to go to the previous screen.

Power

Press to switch your tablet to Sleep mode. Press to wake

up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the

icon, drag to the top.

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⏻ > Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap (☑) > Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap ⚙> Settings.
2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✕ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu

Witaj!

1. Tap an access point to connect to it.

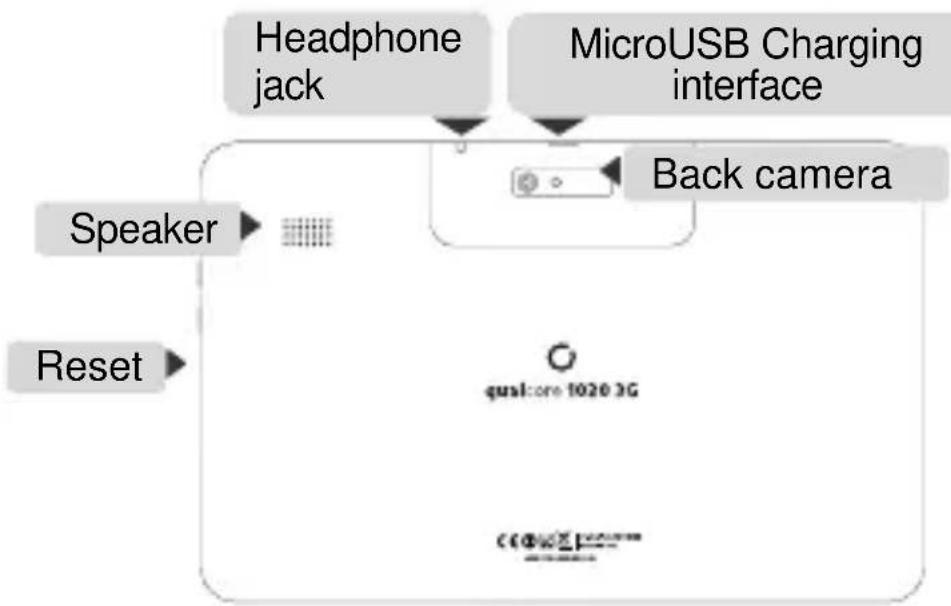

Bluetooth

Declaration of Conformity

We, the undersigned:

Manufacturer:	BrandLine Group Sp. z o.o.
Address, City:	ul. Dziadoszańska 1061-248 Poznań
Country: Polska

Declare the following apparatus:

Products name:	Tablet 10"
Brand and Model name:	OV- Qualcore 1021 3G

Hereby we confirm above product compliance with the European directive of CE:

EMC :	2004/108/EC
LVD :	2006/95/EC
R&TTE :	1999/5/EC
ROHS :	2011/65/EU
WE :	1275/2008

Below standards were tested and passed:

EMC :	ETSI EN 301 489-1 V1.8.1 (2008-04)ETSI EN 301 489-17 V2.1.1 (2009-05)
LVD :	EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
R&TTE :	EN 300328 V1.7.1:2006EN 62311:2008

Release date: 21.09.2015

May be sold in: BE CZ DK DE EE IE EL ES FR HR IT LV LT HU MT NL AT PL PT RO SI SK FI SE UK

BRANDLINE GROUP

SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOSCIĄ ul. Dziadoszańska 10, 61-248 Poznań NIP 782-257-98-40. Regon 361233546 (1)
