Qualcore 7020 3G - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Qualcore 7020 3G
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD up to 32 GB
Operating System	Android 6.0 (Marshmallow)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, 3G
SIM Card	Micro-SIM (1 slot)
Rear Camera	2 MP
Front Camera	0.3 MP
Battery Capacity	3000 mAh
Weight	295 g
Dimensions (W x H x D)	190 x 110 x 10 mm
Charging Port	Micro-USB
Audio Jack	3.5 mm
Sensors	Accelerometer

Frequently Asked Questions - Qualcore 7020 3G Overmax

How do I insert the SIM card?

Locate the SIM card slot on the side of the tablet. Use a SIM ejector tool or a paperclip to gently push into the hole to open the tray. Place the micro-SIM card with the gold contacts facing down, then close the tray.

How can I expand storage?

The tablet supports microSD cards up to 32 GB. Insert the card into the microSD slot located beside the SIM slot.

How do I perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm your choice. Alternatively, from the recovery menu, use volume buttons to navigate and power button to select.

How long does the battery last?

The 3000 mAh battery provides up to 6 hours of mixed usage (web browsing, video playback). Charging time is approximately 3 hours.

Can I make phone calls?

Yes, with a 3G SIM card inserted, you can make voice calls using the speakerphone or a Bluetooth headset. The tablet includes a dialer app.

How do I connect to Wi-Fi?

Swipe down from the top to open the notification panel, tap the Wi-Fi icon, select your network, and enter the password. You can also go to Settings > Wi-Fi.

What should I do if the screen freezes?

Press and hold the Power button for about 10 seconds until the device restarts. If that doesn't work, perform a forced shutdown by pressing Power + Volume Down simultaneously.

How do I transfer files to a computer?

Connect the tablet to a computer using the micro-USB cable. The tablet will appear as a removable drive. You can drag and drop files. Ensure USB debugging is enabled if needed.

Is there a GPS function?

The tablet supports GPS and A-GPS for location services. Enable it in Settings > Location.

How do I update the software?

Go to Settings > About tablet > System updates. Check for updates and download over Wi-Fi. Ensure the battery is above 50% before starting.

USER MANUAL Qualcore 7020 3G Overmax

To switch on the tablet, press and hold the power button for several seconds.

At the first start of the tablet, the assistant will carry through the basic settings configuration.

Opening the device

Switch off your tablet before installing or replacing the battery, SIM, or memory card.

Remove the back cover.

Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.

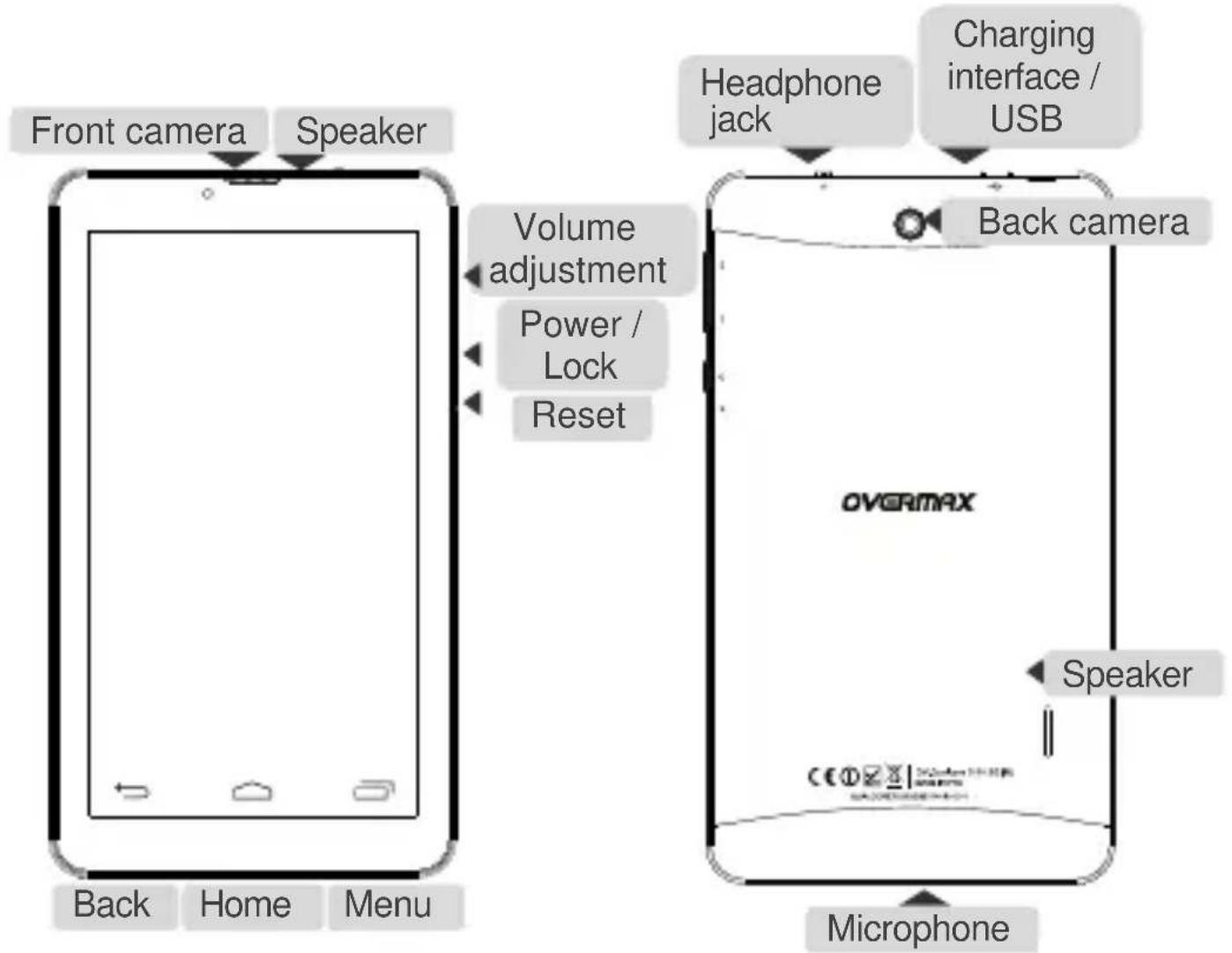

Keys Explained

Menu Press to get the options for the current screen.

Home Press to return to the Home Screen from any.

Back Press to go to the previous screen.

Power Press to switch your tablet to Sleep mode. Press to wake up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the 🔒 icon, drag to the right

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⚙> Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap (☑) > Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap Ⓛ> Settings.

2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✿ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu
