Qualcore 7030 4G - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Qualcore 7030 4G
Connectivity	4G, Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Cameras	Front camera and rear camera
Ports	3.5mm headphone jack, Micro USB (charging/data)
Battery	Rechargeable Li-Ion battery, typical capacity 3000 mAh
Charging	AC adapter (5V/1A or 2A)
Storage	Internal storage (varies), expandable via microSD card
SIM Card	One micro SIM slot for 4G
Operating System	Android (likely version based on release year)
Processor	Quad-core (estimation)
Display	7-inch TFT LCD (estimation)
Weight	Approximately 300 g
Dimensions	Approximately 190 x 110 x 10 mm
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Use only approved chargers; do not expose to water
Spare Parts	Battery and back cover replaceable; contact service center
General Info	User manual available at www.overmax.eu

Frequently Asked Questions - Qualcore 7030 4G Overmax

How do I turn on the tablet?

Press and hold the Power button for a few seconds. On first start, follow the setup wizard.

How do I insert a SIM card?

Turn off the tablet, remove the back cover, then insert the micro SIM card with the cut corner oriented as shown in the manual.

How do I expand storage?

Insert a microSD card into the slot with metal contacts facing down until it clicks into place.

How do I charge the tablet?

Connect the charger to the USB port and plug into an AC outlet. Charge until full.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, turn it on, then select a network from the list.

How do I take a photo?

Open the Camera app and tap the shutter button. To view, tap the thumbnail.

How do I connect Bluetooth devices?

Enable Bluetooth in Settings, then pair with the desired device by following on-screen prompts.

How do I reset the tablet?

Use the Reset button (tiny hole) with a paper clip, or go to Settings > Backup & Reset for a factory reset.

What are the camera specifications?

The tablet has a front camera for selfies and a rear camera for photos and video. Exact resolution is not specified.

Where can I find the user manual?

Download the user manual for free from www.overmax.eu or visit the product page on notice-facile.com.

USER MANUAL Qualcore 7030 4G Overmax

To switch on the tablet, press and hold the power button for several seconds.

At the first start of the tablet, the assistant will carry through the basic settings configuration.

Opening the device

Switch off your tablet before installing or replacing the battery, SIM, or memory card.

Remove the back cover.

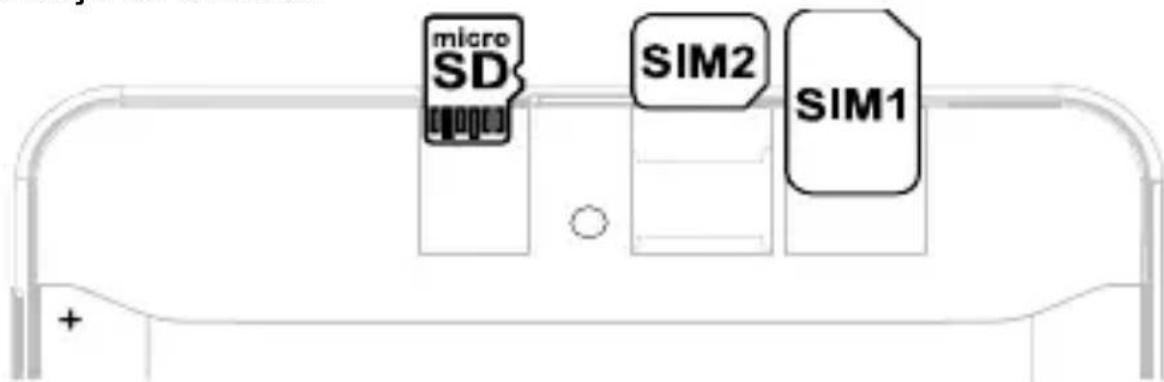

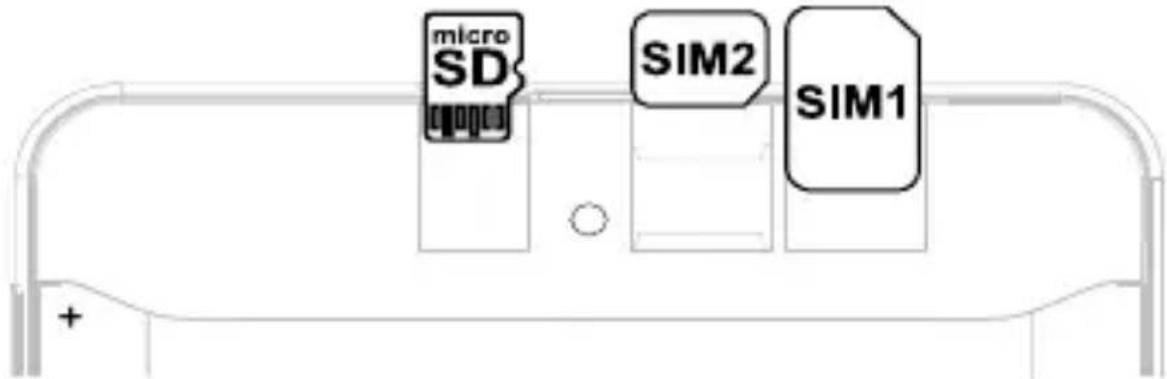

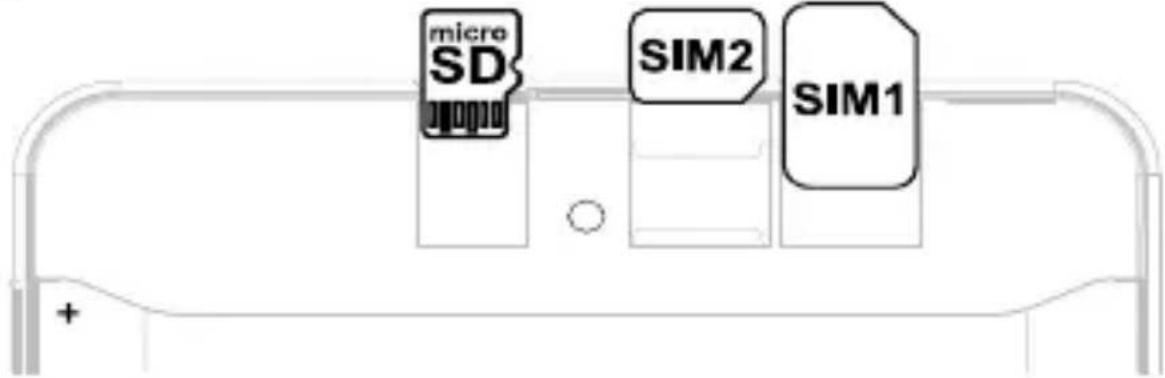

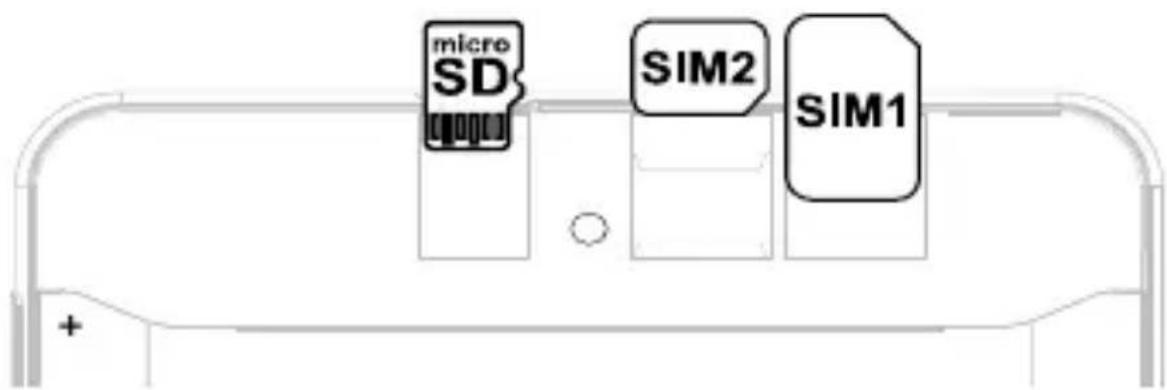

Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

Simple line drawing of a vertical pole with a triangular pointer (no text or symbols)

Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.

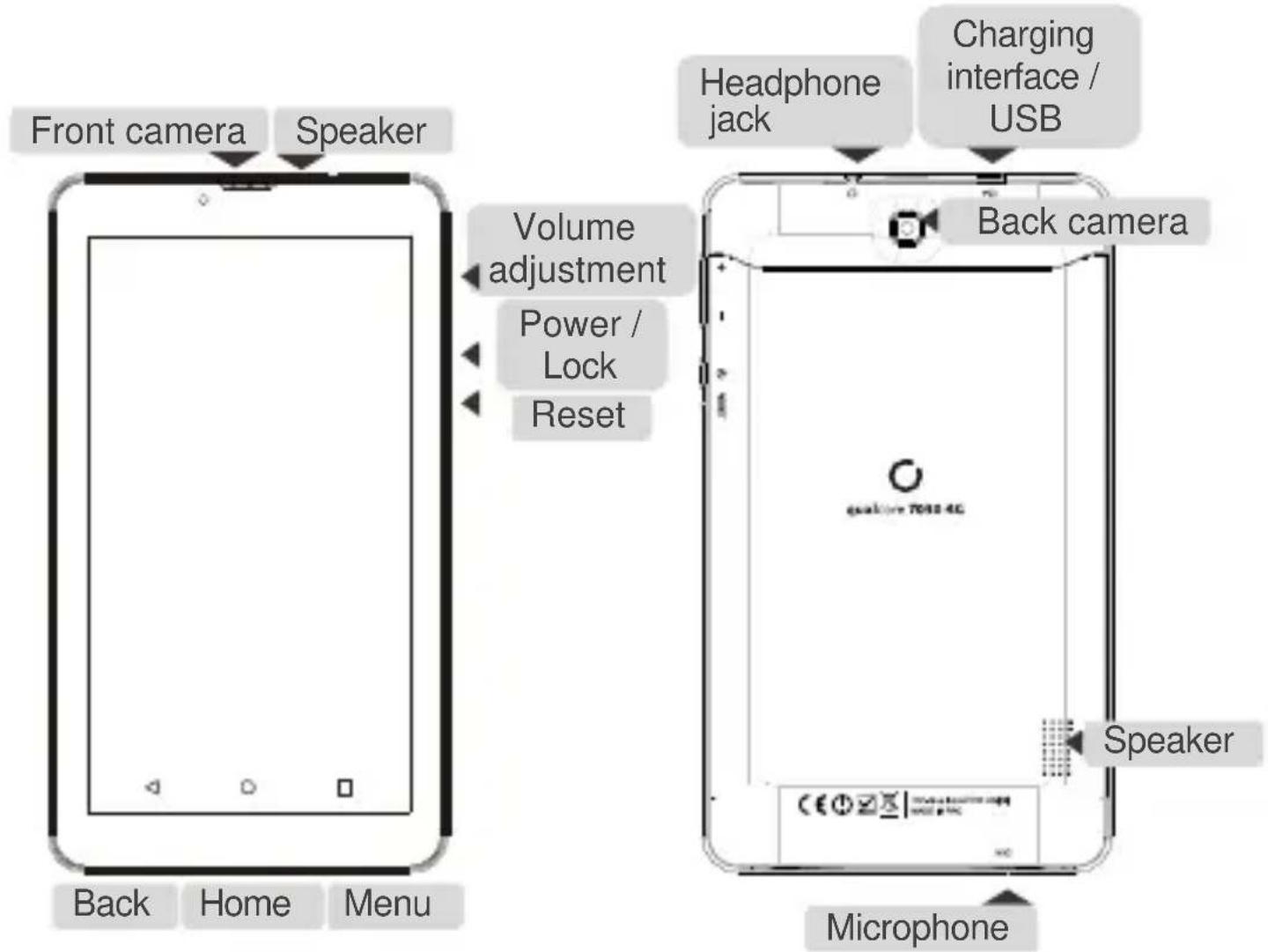

Keys Explained

Menu Press to get the options for the current screen.

Home Press to return to the Home Screen from any.

Back Press to go to the previous screen.

Power Press to switch your tablet to Sleep mode. Press to wake up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the 🔒 icon, drag to the top.

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⚪> Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap Ⓞ> Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap Ⓛ> Settings.

2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✿ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu

Witaj!

Simple line drawing of a vertical object with a triangular shape on top (no text or symbols)

Simple line drawing of a vertical object with a triangular shape on top (no text or symbols)

Pure electrical circuit lines without any symbols

1. Tap an access point to connect to it.

Bluetooth

Simple line drawing of a vertical pole with a triangular pointer (no text or symbols)

Simple line drawing of a vertical pole with a triangular pointer (no text or symbols)

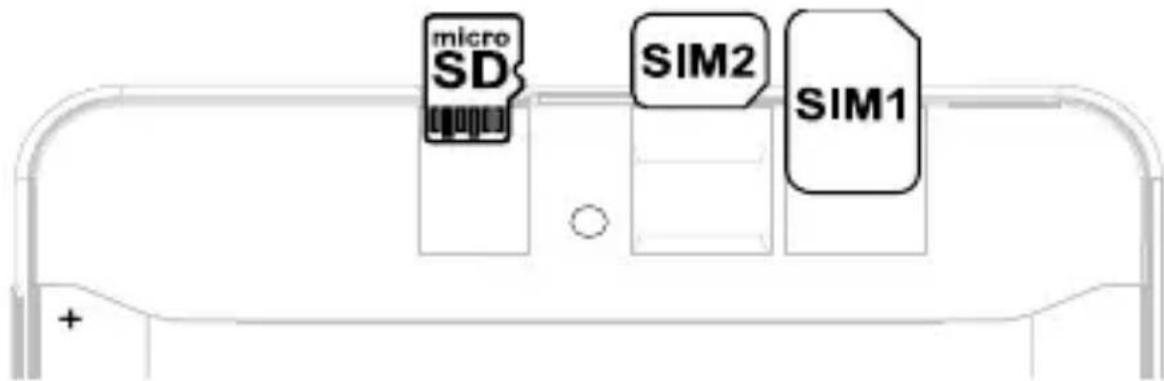

Držite SIM karticu s odrezanim kutem usmjerenim kao što je prikazano i gurnite u držač kartice.

Umetnite memorijsku karticu u utor za kartice s metalnim kontaktima okrenutu prema dolje dok ne sjedne na pravo mjesto.

Umetnite bateriju tako da poravnate zlatne kontakte na bateriji s zlatnim kontaktima u odjeljku za baterije. Lagano gurnite bateriju prema dolje dok ne sjedne na svoje mjesto.
