Qualcore 1020 3G - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Qualcore 1020 3G
Connectivity	3G, Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Display	7 inch (estimated), 1024x600 resolution
Processor	Quad-core 1.3 GHz (estimated)
RAM	1 GB (estimated)
Storage	8 GB internal, expandable via microSD up to 32 GB
Camera	Rear camera (estimated 2 MP), Front camera (estimated 0.3 MP)
Battery	3000 mAh (estimated), rechargeable via microUSB
Operating System	Android (estimated version 4.4 or 5.0)
SIM Card	Standard SIM slot for 3G connectivity
Memory Card Slot	microSD, metal contacts facing down
Audio	Headphone jack, built-in speaker
Ports	MicroUSB for charging and data
Buttons	Power, Home, Back, Menu
Sensors	G-sensor (estimated)
Dimensions	190 x 110 x 10 mm (estimated)
Weight	300 g (estimated)
Power Supply	5V/2A charger via microUSB (adapter included)
Warranty	Manufacturer warranty (check documentation)

Frequently Asked Questions - Qualcore 1020 3G Overmax

How do I turn on the Overmax Qualcore 1020 3G tablet?

Press and hold the Power button for several seconds until the screen lights up.

How do I insert a SIM card?

Switch off the tablet, remove the back cover, and insert the SIM card with the cut corner oriented as shown in the manual into the card holder.

How do I insert a memory card?

Insert the microSD card into the card slot with the metal contacts facing down until it clicks into place. Then press the cover back until it clicks.

How do I charge the battery?

Connect the microUSB charger to the tablet and plug it into a standard AC wall outlet. The battery charges fully; disconnect when done.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, turn it on, then tap an available network (hotspot) to connect. Enter the password if required.

How do I use Bluetooth?

In Settings, turn on Bluetooth. Your tablet will scan for devices. Tap the device you want to pair and follow the on-screen instructions.

How do I take a picture?

Open the Camera app from the Home screen. Tap the shutter button to take a picture. View it by tapping the preview icon in the corner.

How do I wake up the tablet from sleep mode?

Press the Power button to activate the screen, then swipe the lock icon to the right to unlock.

How do I perform a hard reset?

If the tablet freezes, use a paperclip to press the Reset hole (located near the ports) to restart the device.

Where can I find more information about the tablet?

Visit the official Overmax website at www.overmax.eu for additional support and documentation.

USER MANUAL Qualcore 1020 3G Overmax

To switch on the tablet, press and hold the power button for several seconds.

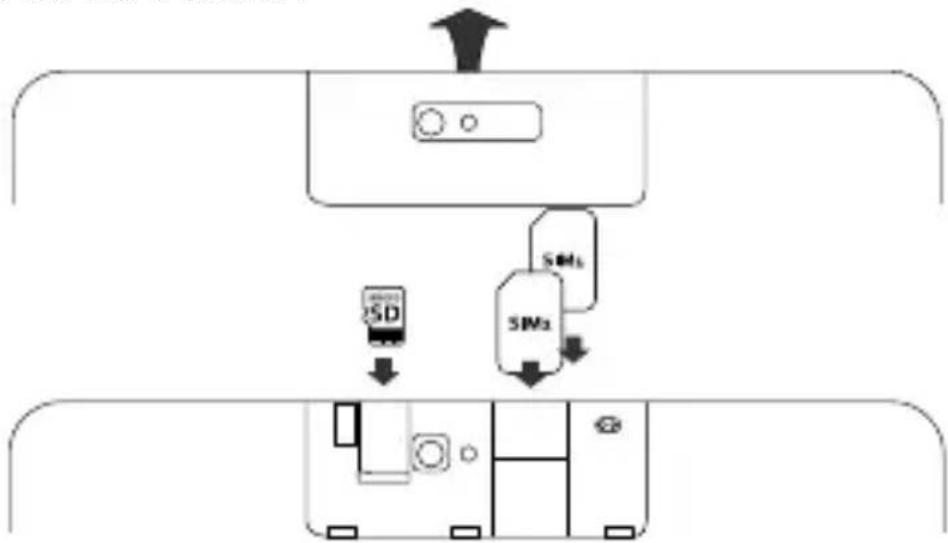

Opening the device

1. Switch off your tablet before installing or replacing the battery, SIM, or memory card.
2. Remove the back cover.
3. Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

1. Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

2. Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.

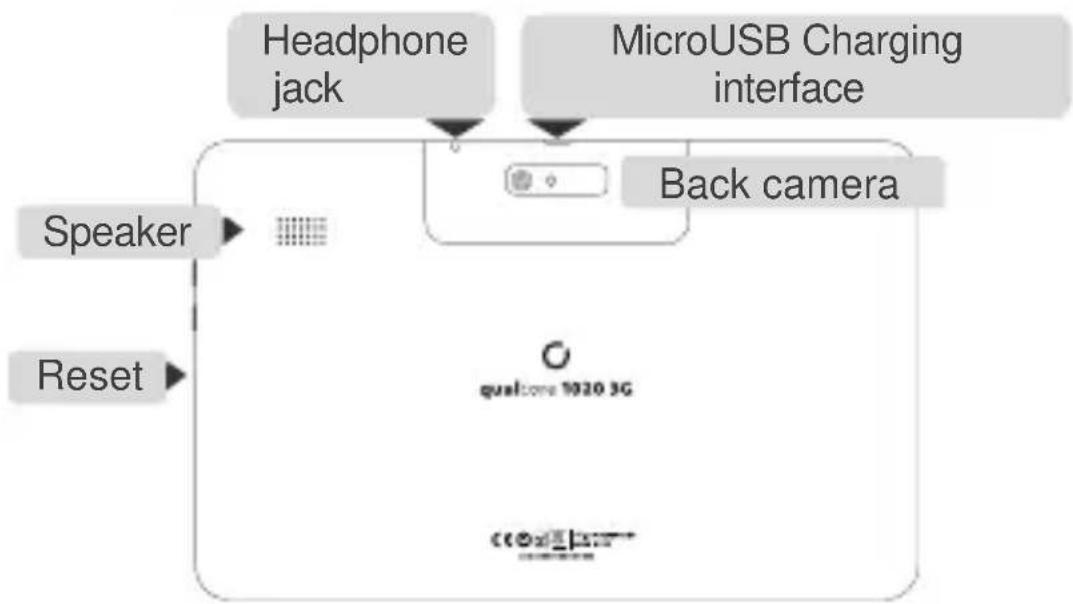

Keys Explained

Menu

Press to get the options for the current screen.

Home

Press to return to the Home Screen from any.

Back

Press to go to the previous screen.

Power

Press to switch your tablet to Sleep mode. Press to wake

up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the

icon, drag to the right

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⏻ > Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap (☑) > Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap ⚙> Settings.
2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✕ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu
