Qualcore 7021 - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Qualcore 7021
Display	7-inch IPS LCD, 1024x600 pixels
Processor	Quad-core 1.3 GHz
Operating System	Android 4.4 KitKat
RAM	1 GB
Internal Storage	8 GB, expandable via microSD up to 32 GB
Rear Camera	2 MP
Front Camera	0.3 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Battery	Lithium-ion 3000 mAh
Charging	Micro USB, 5V 2A input
Dimensions	191 x 108 x 10 mm
Weight	290 g
Audio	3.5mm headphone jack, built-in speaker
Sensors	G-sensor, ambient light sensor
Color	Black
Included Accessories	USB cable, charger (5V 2A)
Cleaning Instructions	Clean with soft dry cloth. Do not use liquids or abrasive cleaners.
Safety Warnings	Do not expose to water or extreme temperatures. Keep away from children.
Spare Parts and Repairability	Replacement parts available through authorized service centers. Repairs should be performed by qualified technicians.
General Information	For detailed instructions, refer to the user manual.

Frequently Asked Questions - Qualcore 7021 Overmax

How do I charge the Overmax Qualcore 7021?

Use the included USB cable and charger. Connect to a power outlet. Full charge takes approximately 3-4 hours.

How to perform a factory reset on the Qualcore 7021?

Go to Settings > Backup & reset > Factory data reset. Alternatively, turn off the tablet, then press and hold Volume Up + Power button until recovery menu appears.

Can I expand the storage on this tablet?

Yes, it supports microSD cards up to 32 GB. Insert into the slot on the side.

Does the Overmax Qualcore 7021 support cellular networks (SIM card)?

No, this model is Wi-Fi only. It does not have a SIM card slot.

What should I do if the screen becomes unresponsive?

Try a forced restart by holding the Power button for 10-15 seconds. If the issue persists, contact customer support.

How to connect to a Wi-Fi network?

Open Settings > Wi-Fi, toggle Wi-Fi on, select your network, and enter the password if required.

Why is the battery draining quickly?

Reduce screen brightness, turn off Bluetooth and Wi-Fi when not in use, and close background apps.

Can I replace the battery myself?

The battery is not user-replaceable. For replacement, contact an authorized service center.

Does the tablet support Bluetooth?

Yes, it has Bluetooth 4.0 for connecting to wireless devices like headphones or keyboards.

How to check for Android updates?

Go to Settings > About tablet > System updates. Note that this model may not receive official updates beyond its original version.

USER MANUAL Qualcore 7021 Overmax

To switch on the tablet, press and hold the power button for several seconds.

At the first start of the tablet, the assistant will carry through the basic settings configuration.

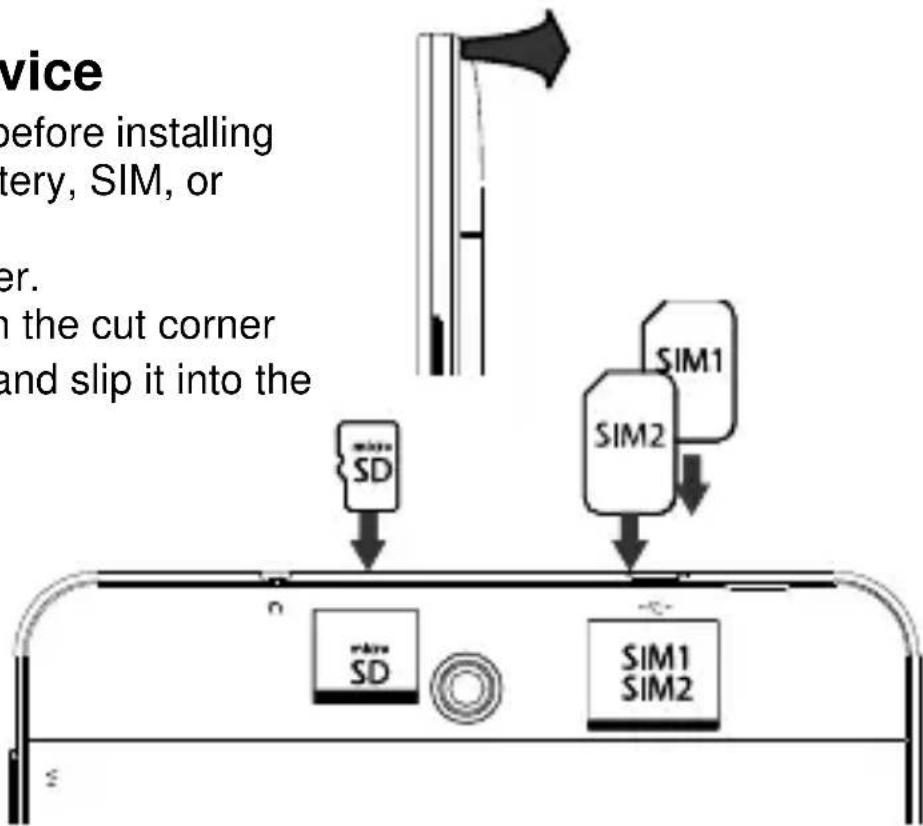

Opening the device

Switch off your tablet before installing or replacing the battery, SIM, or memory card.

Remove the back cover.

Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.

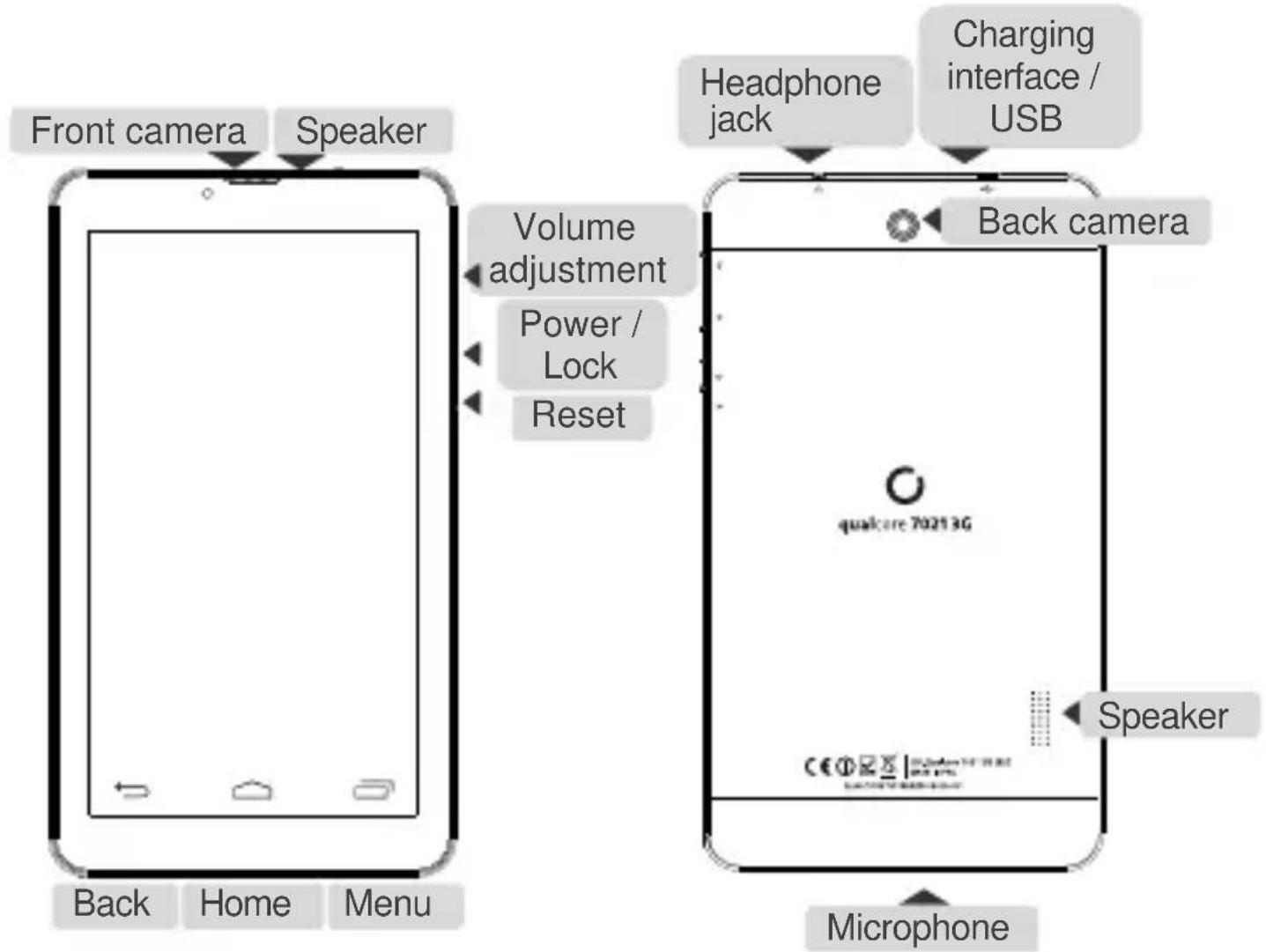

Keys Explained

Menu Press to get the options for the current screen.

Home Press to return to the Home Screen from any.

Back Press to go to the previous screen.

Power Press to switch your tablet to Sleep mode. Press to wake up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the 🔒 icon, drag to the right

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⏻ > Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap (☑) > Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap Ⓛ> Settings.
2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✕ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu

Witaj!

1. Tap an access point to connect to it.

Bluetooth

Držite SIM karticu s odrezanim kutem usmjerenim kao što je prikazano i gurnite u držač kartice.

Umetnite memorijsku karticu u utor za kartice s metalnim kontaktima okrenutu prema dolje dok ne sjedne na pravo mjesto.

Umetnite bateriju tako da poravnate zlatne kontakte na bateriji s zlatnim kontaktima u odjeljku za baterije. Lagano gurnite bateriju prema dolje dok ne sjedne na svoje mjesto.
