Steelcore 1011 3G - Tablet Overmax - Free user manual and instructions

Product Type	Tablet
Brand	Overmax
Model	Steelcore 1011 3G
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Operating System	Android
Processor	Quad-core 1.3 GHz
RAM	2 GB
Storage	32 GB
Expandable Storage	microSD up to 64 GB
Connectivity	Wi-Fi, Bluetooth 4.0, 3G
Camera (Rear)	5 MP
Camera (Front)	2 MP
Battery Capacity	6000 mAh
Dimensions (W x D x H)	240 x 170 x 9 mm
Weight	500 g
Power Supply	5V DC, 2A
Ports	micro USB, 3.5 mm audio, microSD, SIM
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Keep away from water, use original charger
Spare Parts & Repairability	Contact authorized service center

Frequently Asked Questions - Steelcore 1011 3G Overmax

How to extend battery life on the Overmax Steelcore 1011 3G?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close background apps. Also lower the screen timeout.

What to do if the tablet does not charge?

Check the charging cable and adapter for damage. Try a different outlet. If still no charge, perform a soft reset by holding the power button for 10 seconds.

How to free up storage space on this tablet?

Go to Settings > Storage. Clear cached data, uninstall unused apps, move files to a microSD card, or factory reset as last resort.

How to connect the tablet to a TV?

Use a micro USB to HDMI adapter (MHL) if supported. Alternatively, use screen mirroring via Wi-Fi if your TV supports Miracast.

Why is my tablet running slow?

Close unused apps, clear cache, uninstall bloatware, and restart the device. If persistent, consider a factory reset after backing up data.

How to update the Android system?

Go to Settings > About Tablet > System Updates. If an update is available, download and install over Wi-Fi. Note that updates may not be frequent for this model.

The touchscreen is unresponsive, what should I do?

Clean the screen with a soft cloth. Remove screen protector if applied. Perform a forced restart (hold power button 10s). If problem persists, contact support.

How to insert a SIM card?

Locate the SIM slot (usually on the side). Use a SIM ejector tool or paperclip to open the tray. Insert the micro-SIM with gold contacts facing down.

Can I use a Bluetooth keyboard with this tablet?

Yes, go to Settings > Bluetooth, pair your keyboard. Ensure the tablet is discoverable and the keyboard is in pairing mode.

What is the warranty period for Overmax products?

Overmax typically offers a 24-month warranty on tablets. Keep your purchase receipt. For claims, contact the seller or Overmax support.

USER MANUAL Steelcore 1011 3G Overmax

To switch on the tablet, press and hold the power button for several seconds.

At the first start of the tablet, the assistant will carry through the basic settings configuration.

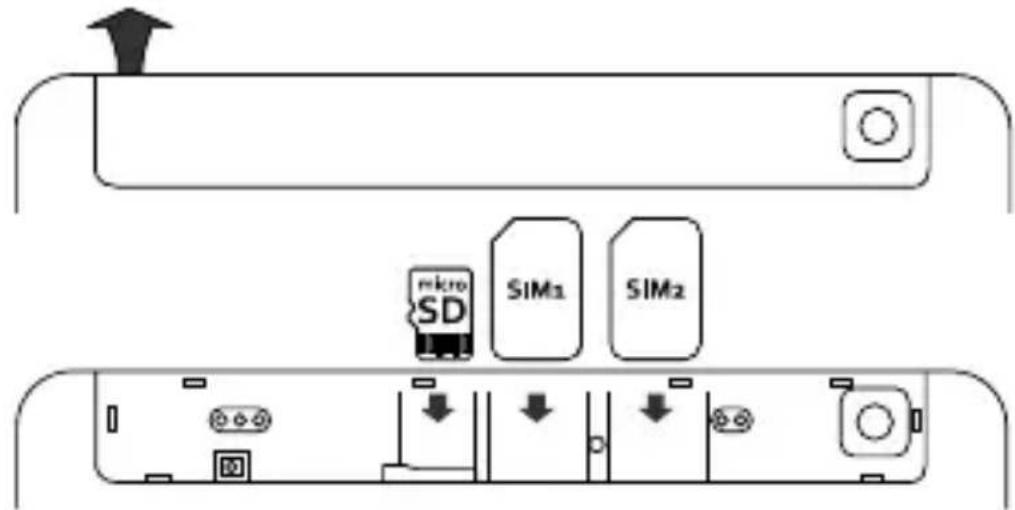

Opening the device

1. Switch off your tablet before installing or replacing the battery, SIM, or memory card.

2. Remove the back cover.

3. Hold the SIM card with the cut corner oriented as shown and slip it into the card holder.

1. Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position.

2. Press the cover gently back into place until you hear a click.

Charging the Battery

When you first get your new tablet you'll need to charge the battery.

1. Connect the adapter to the charger jack. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charger jack.

2. Connect the charger to a standard AC wall outlet.

3. Disconnect the charger when the battery is fully charged.

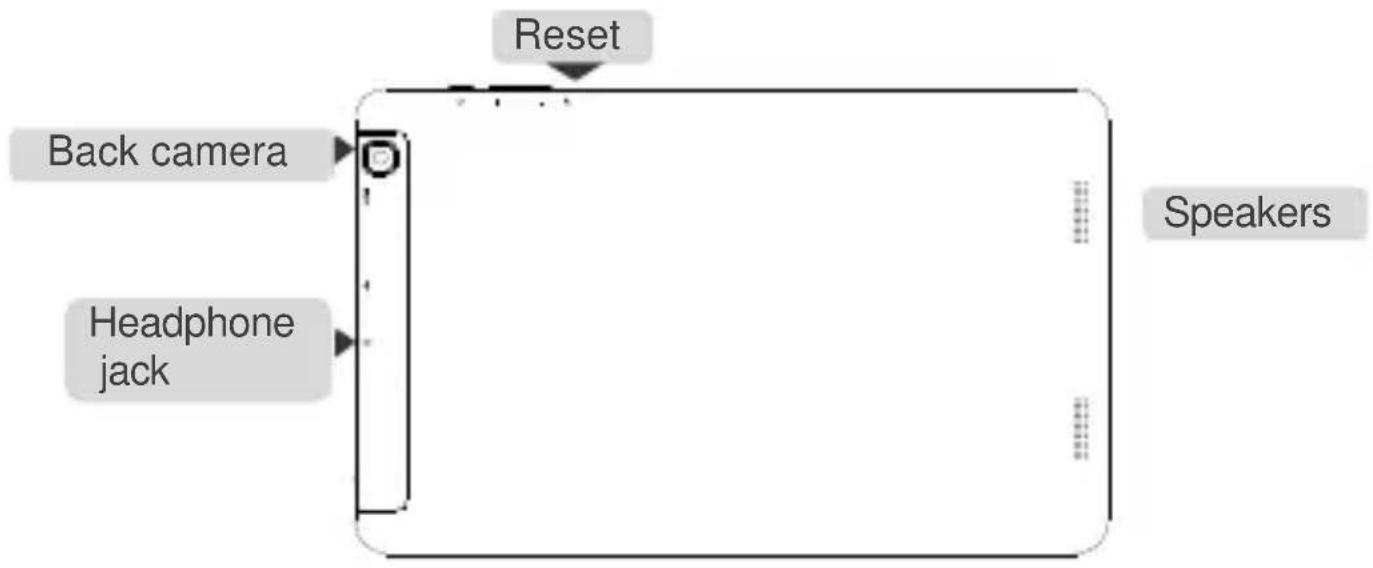

Keys Explained

Menu

Press to get the options for the current screen.

Home

Press to return to the Home Screen from any.

Back

Press to go to the previous screen.

Power

Press to switch your tablet to Sleep mode. Press to wake

up your tablet. Hold to turn on Airplane mode, or to power off.

Waking Up Your Tablet

Press Power Key to activate your screen display.

Tap the

icon, drag to the right

Turning On Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to about 300 feet.

1. Press Home key > tap ⚙> Settings.
2. Click OFF next to the Wi-Fi menu to turn it on, click ON you can turn off the Wi-Fi function.

Connecting to a Wi-Fi Network

1. Press Home key > tap (☑) > Settings > Wi-Fi.
   When the Wi-Fi is on, the Wi-Fi access points, or “hotspots”, that your tablet has detected are displayed with their names and security settings.
2. Tap an access point to connect to it.

Bluetooth

Bluetooth is a short-range wireless communication technology. Tablets or other devices with Bluetooth capabilities can exchange information wirelessly within a distance of about 10 meters. The Bluetooth devices must be paired before the communication is performed.

1. Press Home Key > tap Ⓛ> Settings.

2. Click off next to the Bluetooth menu to turn it on,

When Bluetooth is on, the ✿ icon will appear in the status bar.

1. Tap Bluetooth. Your tablet will show all visible Bluetooth devices in range.
2. Tap the device you want to pair with and operate according to the message prompt.

When both devices to be paired accept the connection, the pairing is completed.

Taking Pictures with Your Camera

Your tablet has camera function. Open it by pressing Home Key > tap > Camera.

Tap to take a picture. To view it, just tap the picture in the right corner of the screen.

Information

More information about the use of the device and the system can be found at: www.overmax.eu
