Product Type	Juice extractor (centrifugal)
Model	496
Brand	Zelmer
Speed Settings	2 speeds (I – low for soft fruits, II – high for hard fruits)
TURBO Function	Self-cleaning filter function (1.5-2 sec high rotation)
Safety System	Prevents start if incomplete assembly; lid locking bar with switch-off
Maximum Continuous Operation	15 minutes
Interval Between Uses	30 minutes
Noise Level	79 dB(A)
Insulation Class	II (double insulated, no grounding needed)
Materials	Parts in contact with food are food-safe materials
Dishwasher Safe Parts	Bowl, insert, lid, small fruit bowl, pusher, juice collector, foam separator (max 60°C) – except motor and filter
Filter Cleaning	Only with included hard brush; no metal brushes
Pulp Collector	Removable with plastic bag option for easy cleanup
Juice Collector	Includes foam separator (removable for natural juice)
Cord Storage	Base of motor unit
Non-stop Operation Limit	15 minutes
Electrical Requirements	AC voltage as per rating plate (e.g., 220-240V)

Frequently Asked Questions - 496 Zelmer

What is the maximum continuous operating time for the Zelmer 496 juice extractor?

The juice extractor can operate for 15 minutes without a break. After that, allow a 30-minute interval before next use.

How do I correctly assemble the juice extractor before use?

1. Align the bowl (2) with the motor (1) ensuring juice spout fits into groove. 2. Insert bowl insert (3) with notch aligned to inner fin. 3. Place filter (4) inside and check it rotates freely. 4. Attach lid (5) aligning outer fin with notch. 5. Lock lid by pulling locking bar (6) up until clicking sound. 6. Insert small fruit bowl (7) and pusher (8). 7. Attach pulp collector (12) and juice collector (9) under spout.

What do the different speed settings (I and II) mean?

Speed I (low rotation) is for soft fruits like berries, peaches, and tomatoes. Speed II (high rotation) is for hard fruits and vegetables like apples, carrots, and celery. Using the correct speed optimizes juice quality and prevents clogging.

How does the TURBO function work and when should I use it?

Press the TURBO button to run the motor at maximum speed for 1.5-2 seconds. This helps clean the filter when vibrations occur due to pulp accumulation. Use only in 10-second intervals.

What should I do if the juice extractor vibrates heavily or produces little juice?

First, use the TURBO function. If problem persists, switch off and unplug, then clean the filter from accumulated pulp and empty the pulp collector. Ensure the filter is not damaged.

Can I wash the filter in a dishwasher?

No, the filter (4) must only be cleaned with the included hard brush (13). Do not use metal brushes or wash in dishwasher. Other parts like bowl, lid, and juice collector are dishwasher safe up to 60°C.

Is the juice extractor safe to use around children?

The appliance is not intended for use by persons with reduced capabilities without supervision. Children should be supervised to ensure they do not play with it. The safety system prevents start if improperly assembled, but always keep out of reach.

Why does the juice appear cloudy or contain foam?

The juice naturally contains foam and pulp due to the centrifugal process. The foam separator (10) can be removed to obtain a clearer juice. Cloudiness results from high vitamin and pectin content – this is deliberate for maximum nutrition.

How should I store the juice extractor after use?

Clean all parts thoroughly, dry them, and reassemble. Roll the supply cord into the base of the motor unit. Store on a flat, dry surface away from temperatures above 60°C.

What fruits and vegetables can I juice with this model?

Almost any fruit or vegetable can be juiced. Refer to the speed table in the manual: soft fruits (speed I) like berries, peaches, tomatoes; hard produce (speed II) like apples, carrots, celery. Remove stones from fruit like plums or apricots. Cut hard vegetables into small pieces.

USER MANUAL 496 Zelmer

Product photo of a white juice maker with green handle and orange drink beside it (no visible text or symbols)

1. VIVOV K POLDIT OROSTAVOVAC Typa 496	4-9	2. INRUCTUN DE STILVOLI STORCATOR DE FRUJET Typa 496	22-27	3. UTR (PULB) KOPKOKONIKAH COKOBITSICAKAT Typa 496	40-45
4. NAVA K POLDIT OROSTAVOVAC Typa 496	10-10	4. MCTRURERIO SICHTANALDI COKOBITSICAKAH Typa 496	28-33	5. USER-KUL JUICE EXTRACTOR Typa 496	40-51
6. NAVA K OBLJHU OROSTAVOVAC Typa 496	16-21	6. MCTRURERIA SA TOTERA COKOCETNICKAVAH Typa 496	30-39

496 Sokowirówka

Juice Extractor

m = 311

m = 311

表1

的令

中

m = 311

注

[Unreadable]

米贝

m = 311

m = 311

[Unreadable]

[Unreadable]

卡

m = 311

M

trust

m = 311

-

The

zelmer

www.zeimercl

www.26mer.com

A

B

D

Szanowni Klienci!

INFORMACJE O OWOCACH I WARZYWACH

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Appliance characteristic

Juice extractor type 496 is an electrical appliance for fast fruit and vegetable juice centrifuging including automatic pulp separation.

The raw material is pulped and then the juice is centrifuged from the pulp. The usage advantages are increased due to the easy and simple operation. Electronic speed stabilizer provides constant rotation speed independent on loading, which allows juice even consistency obtaining. The juice extractor is equipped with 2 centrifuging speeds (for soft and hard fruit), which have been selected to obtain the optimal quality parameters for squeezed juice. Keeping the maximal content of vitamins, pectin, enzymes and minerals causes the lower juice clarity. This is an intended effect, as the juice extractor Manufacturer decided, that keeping the highest nutrient, pro-health and dietetic values of a juice is more important than its clarity. The juice extractor is equipped with special safety system preventing starting it in case of incomplete appliance assembling. The juice extractor is additionally equipped with filter self-cleaning function. After pressing TURBO button the engine operates 1,5÷2 seconds with high rotation. High rotation helps to clean the filter in case the vibration occurring due to excessive pulp accumulation. TURBO function can be used in 10 seconds intervals only. The juice extractor can operate 15 minutes without any break. The quantity of juice obtained from i.e. 1kg of a raw material, depends on its freshness, as well as on filter cleanness and pulping blade condition.

The parts in contact with processed raw materials are made of materials permitted for contact with food.

Safety operation instructions

Read this manual carefully before you use the appliance.

Make sure that you understand the below safety precautions.

Danger! / Warning! Risk of injury

Do not start up the appliance when the supplying cord is damaged or the casing is visibly damaged.

the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Do not use the juice extractor when the filter is damaged.

Before you start the juice extractor up, check the lid if it is locked well with the locking bar.

Do not unfasten the locking bar during juice extractor operation and the filter wiring, as in such case the safety system will switch the appliance off.

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

Unplug always before cleaning, assembling or disassembling.

To push the product use the pusher only.

De especially careful with the juice extractor operation in the presence of children.

Do not place the juice extractor on the wet surface.

Do not use the juice extractor without the pulp collector.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Warning! Risk of property damage

Do not disconnect the plug from the socket pulling the cord.

The appliance may only be plugged to an electrical socket (alternating current only) with a voltage in conformity with the one given on the rating plate of the appliance.

Switch the juice extractor off immediately, when you notice strong vibrations or rotation decrease. Clean the filter and its casing.

- Stop the operation and unplug the appliance when the product is blocked in chute or pulping blade. Unblock it.

- Stop the operation immediately and unplug the appliance when any liquid gets into the motor. Bring the juice extractor to the service for inspection.

Do not expose the juice extractor to temperatures over 60^ C.

Do not leave the appliance plugged unattended.

Do not immerse the motor in water neither clean it under running water.

Do not clean the casing with aggressive detergents, such as emulsion, milk, paste, etc. They can remove the graphic symbols such as: scales, labels, caution signs, etc.

Do not overload the appliance with extensive amount of product or do not push it to strong (with a pusher), because a sudden increase of juice amount in the bowl spout can cause the juice overflow out of the lid or into pulp collector.

Place the motor body near a socket on a flat, stable surface so that the vent holes of the appliance are not covered.

Product information and tips on its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

Unplug after operation.

Clean the metal parts, especially the filter including the sharp pulping blade with soft brush.

To make the maintenance easier, you can put the plastic bag into the pulp collector, which you can remove to the rubbish bin after operation.

Before the first use, wash thoroughly all elements of the equipment.

Specifications

The technical parameters are quoted on the nameplate of the product.

Admissible time of non-stop operation 15 minutes

An interval between repeated operation 30 minutes

An interval between repeated TURBO usage 10 seconds

Noise generated by the appliance ( L_WA ) 79 dB/A

Speed range: I gear, II gear

The juice extractor type 496 is constructed in II class insulation ☐.

It does not require connection to the grounded socket.

The juice extractor meets applicable norms requirements.

The appliance meets the requirements of the directives:

– Low voltage electrical device (LVD) – 2006/95/EC.

– Electromagnetic compatibility (EMC) – 2004/108/EC.

The product is marked with CE symbol on the nameplate.

INFORMATION ON FRUIT AND VEGETABLES

Fruit/vegetables	Centrifuging speed
Pineapples	II
Blueberries	I
Peaches	I
Beetroots	I
Pears	I
Apples	I
Cabbage	II
Fennel	I
Raspberries	I
Carrots	II
Melons	I
Apricots	I
Nectarines	I
Cucumbers	I
Kiwi	I
Tomatoes	I
Celery	II
Grapes	I

Part names (Fig. A)

1 Juice extractor motor

a I-0-II switch
b TURBO button
c skimmer
d vacuum cup
e supply cord

2 Bowl

f juice spout
g outer fin
h inner fin

3 Bowl insert

i notch

4 Filter
5 Lid
6 Locking bar
7 Bowl for small fruits
8 Pusher
9 Juice collector
10 Foam separator
11 Lid of collector
12 Pulp collector
13 Brush

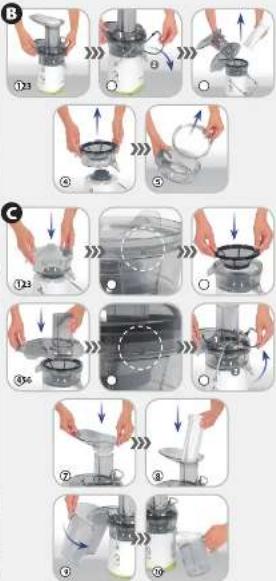

Preparations for operation (disassembling) (Fig. B)

Disassemble the juice extractor before first usage and clean the parts in contact with processed product.

① Place the juice extractor near the socket on the firm, clean and dry surface.
② Pull down the locking bar (6) so that the tracks moved out of grooves of the lid (5) from position 1 to position 2.
③ Take the pusher (8) out and remove the bowl (7) and lid (5).
④ Then remove the bowl (2) including the insert (3) and filter (4).
⑤ Then, disassemble the insert (3) from the bowl (2).

Wash the disassembled parts (apart from the motor) carefully in hot water and wash-up liquid. You can clean them in dishwasher in max temp. 60°C (apart from the motor and filter). After drying carefully start assembling the clean parts.

Preparations for operation (assembling) (Fig. C)

① Align the bowl (2) to the motor (1), so that the juice spout (f) was placed exactly in the casing (1) groove and 4 buckles from the upper part of the motor (1) were placed inside the 4 grooves in the bottom of the bowl (2).
② Insert the bowl insert (3) to the bowl (2) so that the notch (i) in the bowl insert (3) is located in the inner fin (h) of the bowl (2).
③ Put the filter (4) inside and check if it is well mounted and rotates easily.
④ Install the lid (5) so that the outer fin (g) of the bowl (2) is in the notch of the lid (5).
⑤ Pay attention to assemble the parts correctly. The outer fin (g) of the bowl (2) should be in one line with the notch in the lid (5).
⑥ Pull the locking bar (6) up, so that the rolls moved into grooves of the lid (5) from position 2 to position 1 (you will hear a characteristic clicking sound).
⑦ Each time insert a bowl for small fruit (7) on the feeder opening of the cover (5).
⑧ Put the pusher (8) into the chute so that the V-shaped hole was put on the knife inside the chute.
⑨ Put the pulp collector (12) under the lid (5) in the following way: lean the collector and place it under the insert (3) and lid (5), then push it towards the motor (1).
⑩ Put the juice collector (9) so that the juice spout (f) was inside the collector (9).

Start-up and operation

(Fig. D)

- Check if the switch is turned to „0” position.

① Plug the juice extractor in and start it up with the switch (a) setting as necessary gear 1 (position I – low rotation) or gear 2 (position II – high rotation).

Such exemplar table including exact information on selection of appropriate gear for particular fruit and vegetables is on page 76.

② Put some fruit or vegetables into chute and press them slightly with the pusher.

You mustn't push the products with your fingers or other objects.

In case of the necessity (In case of excessive accumulation of the pulp on the filter, which causes juice extractor vibrations) you can use TURBO button (b). The engine operates in such case on maximal rotation for approximately 2 seconds. After this time, the TURBO function switches off automatically, and the engine returns to previous rotation.

Repeated usage of TURBO function can take place after min. 10 seconds.

When centrifuging juice of small fruits, use the bowl for small fruits (7), put it on the chute.

Pour the extracted juice into glasses or cups prepared in advance.

③ The juice collector (9) is equipped with foam separator (10), which task is to stop the thicker particles of juice and foam.

recommend natural version of juice, less clear. In order to obtain such a juice it is necessary to remove the foam separator.

After operation (juice centrifuging) (Fig. E)

① Switch the juice extractor off, turning the switch (a) to position „0”.
② Unplug the appliance.

After the motor stops start to disassemble the juice extractor in order to wash the parts (see „Preparing for operation”).

Remove the accumulated pulp from the pulp collector.

ent the excess of the pulp collector. The excessive pulp can pour out while leaning the collector during removing.

Juice extractor maintenance rules

● clean carefully after each usage, to prevent drying of juice and fruit remains.
Remove the dirt from the corners with a bottle brush or tooth brush.
- clean the motor with damped cloth sprinkled with washing up liquid. Then dry it.

water or juice getting into the motor, stop operation immediately and bring the appliance to service for inspection.

The following elements of the equipment: juice bowl, insert, and lid, bowl for small fruits, pusher and the juice collector including foam separator should be washed in hot water with wash-up liquid.
You can clean them in dishwashers in maximum temperature 60°C.
The exception is a filter (4). It should be washed with hard brush (13) only, which is included to this juice extractor equipment. Do not use any metal brushes to clean the filter!
- Some elements can change their colour after long-term usage. It is not a defect.
Colour from carrot can be removed by cleaning the surface with a cloth immersed in edible oil.
Dry carefully all parts after cleaning.
assemble the juice extractor according to instruction mentioned above (see „Preparing for operation”).
Roll the supplying cord inside the base of juice extractor motor.

a special attention to transparent plastic parts. They are the most sensitive for hits and falls. They can be easily damaged then.

What to do when ...

The juice extractor does not work:

Bring the juice extractor to service agent.

The juice extractor extracts little juice or vibrates:

• se the TURBO function. If the problem still exists, switch the appliance off; clean the filter from accumulated pulp. Additionally, empty the pulp collector if it is full.
  case of mechanical filter damage, implicitly replace it with a new one.

Fruit and vegetable juices preparation

fruit and vegetables for juice extraction, should be fresh and washed carefully. Vegetables should be cleaned from sand and soil with running water and peeled. Publications concerning juice preparation, recommend to deep the vegetables into water with salt and citric acid for 5 minutes. Such prepared vegetables do not get darker during processing and their juice has natural colour.
Berry fruits should be washed directly before using, so that they do not lose their freshness.
The selection of fruit and vegetables depends on the season of the year, taste likes or health recommendations. The way of preparation influences the nutritive value.
Juices should be made of juicy kinds of fruits and vegetables, which should be ripe and fresh, to get the juice of the perfect flavour and fragrance.
The following vegetables are good for juice preparation: tomatoes, carrots, celeries, beetroots, parsley, onions, cabbages, cucumbers, black turnip, rhubarb, etc. You can also prepare juice of lettuce, spinach, leek and other vegetables as part of diet.
The following vegetables can be added to juices chopped: radish, chives, green parsley, dill, cress.
Fruit juice can be made of almost all kinds of fruit.
apples, peaches, apricots and plums should be blanched with boiling water on the strainer.
Remove the stones from the fruit, which have it, to prevent damages of the juice extractor.
Juice extracting of plums, blueberries, soft pears, apples or other fruit is inconvenient. The flesh of these fruit becomes a spongy pulp, which blocks the filter holes. You can use these fruit mixing a small amount of them with other fruit or vegetables, it is also necessary to clean the filter more often.
You can extract a small amount of grapes juice, but it is necessary to put whole bunch to the chute after removing ligneous stalk.
- cut the radical vegetables and hard fruit into pieces small enough for the chute. Cut the apples into pieces (if they are not small enough to put them whole into the chute) without peeling and removing seed cavity.

But the fruit or vegetables into the chute after you start up the juice extractor.
case the product is blocked in the chute or on the filter pulping blade, use the TURBO function. If the problem still exists, switch the appliance off, disassemble and clean.
The fresh juice nutritive value is close to fruit and vegetables nutritive value, but part of fibre is eliminated during juice centrifuging process. That is why the juice can be consumed by people, who can not eat raw vegetables due to digestions problems.
- juice drinks are specially recommended for children and elderly people nourishment.
is recommended to have a small amount of water while drinking vegetable juices, which are very strong. If the juices are not diluted, a daily dose should not exceed a half of glass.
Fruit juices are easier to digest so it is possible to drink a big amount of them: 3 up to 4 glasses per day between meals.
Juices should be consumed immediately after preparing, and drunk in sips. When drinking juice slowly, it mixes with saliva, which makes digestion easier. Drunk too fast and in too big quantity the juice is not properly absorbed.
You should not mix fruit with vegetables apart from apples. Melon juice shouldn't be mixed with other fruit juices.
You shouldn't store juice for later consumption.
vegetable juices can be diluted with lukewarm, boiled water, mineral water, milk, whey, sweeten, or flavoured another way.
You can prepare chasers of juice.
The following fragrance spices can be used for vegetable juices: pepper, dill, caraway, nutmeg, thyme, marjoram, and for fruit juices: vanilla, cinnamon and clove. It is necessary to mince the spices carefully to obtain full fragrance. The spices should be used in small amount to keep natural fragrance and flavour of the juice basic products. Due to low caloricity, fruit and vegetable juices are recommended for people on a slimming diet.
Fruit and vegetable juices are served in room temperature or cooled with ice cubes.
Calty sticks, crackers and toasts can be good snacks for vegetable juices, as biscuits, cakes, sponge cakes for fruit juices.
The juice obtained of some fruit and vegetables has tendency to self-condensing. Such phenomena results from the properties of used products and does not depend on the appliance.

Fresh juice is healthy

Carrot juice

It accelerates metabolism since it contains microelements and vitamins necessary for the body to function properly.

Vitamin A, produced from carotene, improves sight. The ingredients of this juice eliminate

harmful effects of nicotine, restores the natural healthy colour of the skin. Half a glass of carrot juice and half a glass of milk is recommended for little children. Carrot juice in combination with apple juice is recommended as an energizing drink for elderly people.

Tomato juice

Ripe and fresh tomatoes produce juice of an excellent quality. Tomato juice may be mixed with all other vegetable juices. It contains a lot of vitamin A and C.

Two glasses of this juice covers a daily demand of vitamin C. Salt and pepper enhance the taste of the juice.

Beetroot juice

Beetroot juice in combination with orange juice gives a drink of an excellent taste. This juice in a pure form may be drunk only upon a doctor's recommendation.

Cabbage juice

This juice is applied in treatment of gastric ulcers, however only upon a doctor's recommendation. When mixed with carrot juice, it may be drunk by those with sensitive stomach.

Spinach juice

This juice is highly hematopoietic, however due to a strong smell it is recommended to mix it with carrot juice. Spinach juice, carrot juice and celery juice mixed in equal amounts give a tasty drink.

Celery juice

Do not use celery leaves because of their bitter taste. The juice from a root of a celery is very tasty. It can be mixed with other vegetable juices. It should be drunk in smaller amounts than carrot juice. Adding apple juice or lemon improves the taste of the juice.

Cucumber juice

It is naturally bland and it should be mixed with apple, carrot or celery juice. Cucumber juice is used for skin care. It also filters kidneys. It is recommended for slimming treatment.

Apple juice

Juice made from fresh and ripe apples has a pleasant fragrance and taste and it is rich in vitamins A and B and valuable mineral salts. A high content of pectin in the juice makes that it has properties supporting digestion. Fresh apple juice is used to treat podagra and rheumatism. It is, generally speaking, an excellent nutriment.

Blackberry juice

Blackberry juice with a small amount of sugar and mineral water makes a very refreshing drink. Due to a big content of vitamins and microelements, it gives energy, especially to elderly people.

Black elder juice

The juice is rich in nutritive elements, it has diaphoretic properties and is used to treat a cold. When preparing preserves, it may be mixed with other fruit juices.

Blackcurrant juice

Blackcurrant juice has a specific fragrance, high acidity and noticeable tartness. Due to its chemical composition and a content of vitamins, it is one of the best juices. It should be mixed with juices of low acidity or with water, honey or sugar.

Special health recipes

Energy drink6 carrots2 apples 12 of beetroot	Body detox juice4 carrots 12 of cucumber1 beetroot
"Strong breath" drink1 handful of spinach1 handful of parsley2 celeries4 carrots	"Timeless regulator" juice2 apples1 hard pear 14 of lemon or a handful of spinach6 carrots
"Sunny" drink2 apples6 strawberries	"Love" drink3 big tomatoes 12 of cucumber1 celery 14 of lemon

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it: put the cardboard

packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

Notes
