Product Type	Random Orbital Sander
Model	010-078
Brand	Meec Tools
Power Consumption	300 W
No-Load Speed	6000 - 12000 RPM (variable)
Voltage	230 V / 50 Hz
Sanding Pad Diameter	125 mm (5 inches)
Orbit Diameter	3 mm
Dust Collection	Integrated dust bag with microfilter
Vibration Level	< 2.5 m/s² (typical)
Weight	1.5 kg
Dimensions (L x W x H)	250 x 120 x 150 mm
Grip	Soft rubber, ergonomic
Included Accessories	Sandpaper discs (5x), dust bag, wrench
Safety Features	Double insulation, lock-on button, vibration dampening
Maintenance	Clean dust bag after each use; check carbon brushes every 50 hours
Spare Parts Availability	Carbon brushes, sanding pad, dust bag available from Meec Tools
Certifications	CE, RoHS
Warranty	2 years (subject to registration)

Frequently Asked Questions - 010-078 Meec Tools

What type of sandpaper does the Meec Tools 010-078 sander use?

It uses 125 mm (5 inch) hook-and-loop sanding discs. Ensure you purchase discs with the correct 5-hole pattern for dust extraction.

Can I adjust the speed of the sander?

Yes, the sander has a variable speed control dial that allows you to adjust the no-load speed from 6000 to 12000 RPM, depending on the material and task.

How do I clean the dust bag?

Remove the dust bag from the sander and empty it over a trash bin. For thorough cleaning, wash the bag with mild soap and water, then let it dry completely before reuse.

Is the sander suitable for drywall sanding?

While it can be used for light drywall sanding, it is primarily designed for wood and painted surfaces. Excessive drywall dust may clog the dust collection system.

What is the warranty period for this sander?

Meec Tools offers a 2-year warranty against manufacturing defects. Registration on their website may be required for full coverage.

How do I replace the sanding pad?

Unplug the sander. Use a wrench (included) to loosen the bolt under the pad. The pad can then be pulled off and replaced with a new one. Re-tighten the bolt securely.

Can I use the sander for wet sanding?

No, this sander is not designed for wet sanding. Using water or liquids can damage the tool and pose electrical hazards.

How often should I check or replace the carbon brushes?

Inspect carbon brushes every 50 hours of use. Replace them when they are less than 5 mm long to maintain motor performance and prevent damage.

Does the sander have a soft start feature?

No, the Meec Tools 010-078 does not include a soft start. It starts at full speed when the trigger is pressed.

What safety precautions should I take when using this sander?

Always wear safety goggles, a dust mask, and hearing protection. Use both hands to operate. Ensure the workpiece is secure. Disconnect power before changing accessories.

USER MANUAL 010-078 Meec Tools

Exterior view of a Meec power tool with meshing and a black cloth cover (no text or symbols visible)

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....7

SÄKERHETSANVISNINGAR....7

ARBETSOMRÅDE....7

ELSÄKERHET 7

PERSONLIG SÄKERHET 7

ANVÄNDNING OCH SKÖTSEL AV ELVERKTYG 8

SERVICE....9

SÄRSKILDA SÄKERHETSANVISNINGAR....9

SYMBOLER 9

TEKNISKA DATA....10

BESKRIVNING....10

MONTERING 11

MONTERING AV SLIPPAPPER....11

START/STOPP 12

VARVTALSVÄLJARE....12

ANVÄNDNING AV DAMMPÅSE....13

VAL AV SLIPPAPPER 13

SLIPNING 13

UNDERHÅLL 14

BYTE AV KOLBORSTAR 14

NORSK 15

SIKKERHETSANVISNINGER 15

ARBEIDSOMRÅDE 15

EL-SIKKERHET 15

PERSONLIG SIKKERHET 16

BRUK OG VEDLIKEHOLD AV EL-VERKT∅YET 16

SERVICE....17

SPESIELLE SIKKERHETSANVISNINGER 17

SYMBOLER 17

TEKNISKE DATA 18

BESKRIVELSE....18

MONTERING....19

MONTERING AV SLIPEPAPIR 19

START/STOPP 20

TURTALLSVELGER....20

BRUK AV ST∅VPOSE 21

VALG AV SLIPEPAPIR 21

SLIPING 21

VEDLIKEHOLD 22

BYTTE AV KULLB∅RSTER 22

POLSKI 23

ZASADY BEZPIECZEŃSTWA 23

MIEJSCE PRACY....23

BEZPIECZEŃSTWO ELEKTRYCZNE....23

BEZPIECZEŃSTWO OSOBISTE 24

OBSŁUGA I CZYSZCZENIE ELEKTRONARZĘDZIA. 24

SERWIS....25

SZCZEGÓLNE INSTRUKCJE BEZPIECZEŃSTWA 25

SYMBOLE 26

DANE TECHNICZNE 26

OPIS 27

MONTAŽ 28

ZAKŁADANIE PAPIERU ŚCIERNEGO .....28

SAFETY INSTRUCTIONS....32

WORK AREA 32

ELECTRICAL SAFETY 32

PERSONAL SAFETY 32

USING AND LOOKING AFTER POWER TOOLS....33

SERVICE....34

SPECIAL SAFETY INSTRUCTIONS 34

SYMBOLS 34

TECHNICAL DATA....35

DESCRIPTION 35

ASSEMBLY 36

FITTING THE SANDPAPER 36

STARTING/STOPPING 37

SPEED SELECTOR....37

USING THE DUST BAG 38

CHOICE OF SANDPAPER 38

SANDING 38

MAINTENANCE 39

REPLACING CARBON BRUSHES 39

SÄKERHETSANVISNINGAR

Read the Operating Instructions carefully before use.

Save these instructions for future reference.

WARNING: Read all warnings, safety instructions and other directives carefully before use. Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury.

The term "power tool" in all the warnings below refers to your mains-powered (corded) or battery-powered (cordless) power tool.

WORK AREA

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep children and onlookers at a safe distance when using power tools. You can easily lose control of the tool if you are distracted.

ELECTRICAL SAFETY

• The mains plug on the power tool must match the mains outlet. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.
• Be careful with the power cord. Never use the power cord to carry or pull the tool, or to pull out the plug from the mains socket. Keep the power cord away from heat, oil, sharp edges and moving parts. Damaged or tangled power cords increase the risk of electric shock.
• If using the tool outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.
• If it is absolutely necessary to use power tools in damp conditions, use a mains connection protected by a residual current device. Using an RCD reduces the risk of electric shock.

PERSONAL SAFETY

- Stay alert. Pay attention to what you are doing, and use your common sense when working with power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.

• Use personal safety equipment. Always wear safety glasses. Depending on the type of tool and how it is used, safety equipment such as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.
• Avoid accidental starting. Check that the power switch is in the OFF position before plugging in the power cord and/or the battery, or lifting/carrying the tool.
• Carrying a tool with your finger on the switch, or connecting a tool to the mains supply when the switch is in the ON position, increases the risk of accidents and injuries.
• Remove Allen keys/spanners etc. before starting the power tool. Spanners or the like that are left in a rotating part of the tool can cause personal injury.
• Do not overreach. Always maintain a firm footing and good balance. This will ensure you have better control over the tool in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.
• If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such equipment can reduce the risk of dust-related problems.

USING AND LOOKING AFTER POWER TOOLS

• Do not force the power tool. Use the correct power tool for the planned work. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safety precautions reduce the risk of accidentally starting the power tool.
• Store power tools out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the power tool and these instructions, to use the tool. Power tools are dangerous if used by inexperienced persons.
• Keep the power tool properly maintained. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the power tool is damaged, it must be repaired before being used again. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.

SERVICE

- The power tool must only be serviced by qualified personnel using identical spare parts. This will ensure that the power tool remains safe to use.

SPECIAL SAFETY INSTRUCTIONS

1. Follow local regulations when sanding painted surfaces.
2. Use a dust extractor if possible.
3. Recycle dust and other waste in accordance with local regulations.

4. Special safety instructions for sanding lead-based paint

5. All persons in the work area must wear a filter mask that provides protection from dust and fumes from lead-based paint.
   • Children and pregnant women must not go into the work area.

6. Avoid eating, drinking or smoking in the work area.

SYMBOLS

The symbols below are used on the type plate on the machine.

They indicate information on the product, or instructions on how it should be used.

	Complies with the relevant safety standards.
	Read all the instructions before use, to minimise the risk of personal injury.
	Used products must be disposed of in accordance with local regulations.
	Double insulationEquipment, class II. The tool does not need to be earthed.
	Wear ear protection.
	Wear safety glasses.
	Wear a breathing mask.

TECHNICAL DATA

Rated voltage/frequency 230–240 VAC, 50 Hz

Power consumption 270 W

Speed (no load) 5000–12000 rpm

Sound pressure level (LpA) 79 dB(A), K=3 dB

Sound power level (LwA) 89 dB(A), K=3 dB

Vibration level 5 m/s2, K=1.5 m/s2

Always wear ear protection.

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING: The actual vibration level when using power tools may differ from the specified total value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

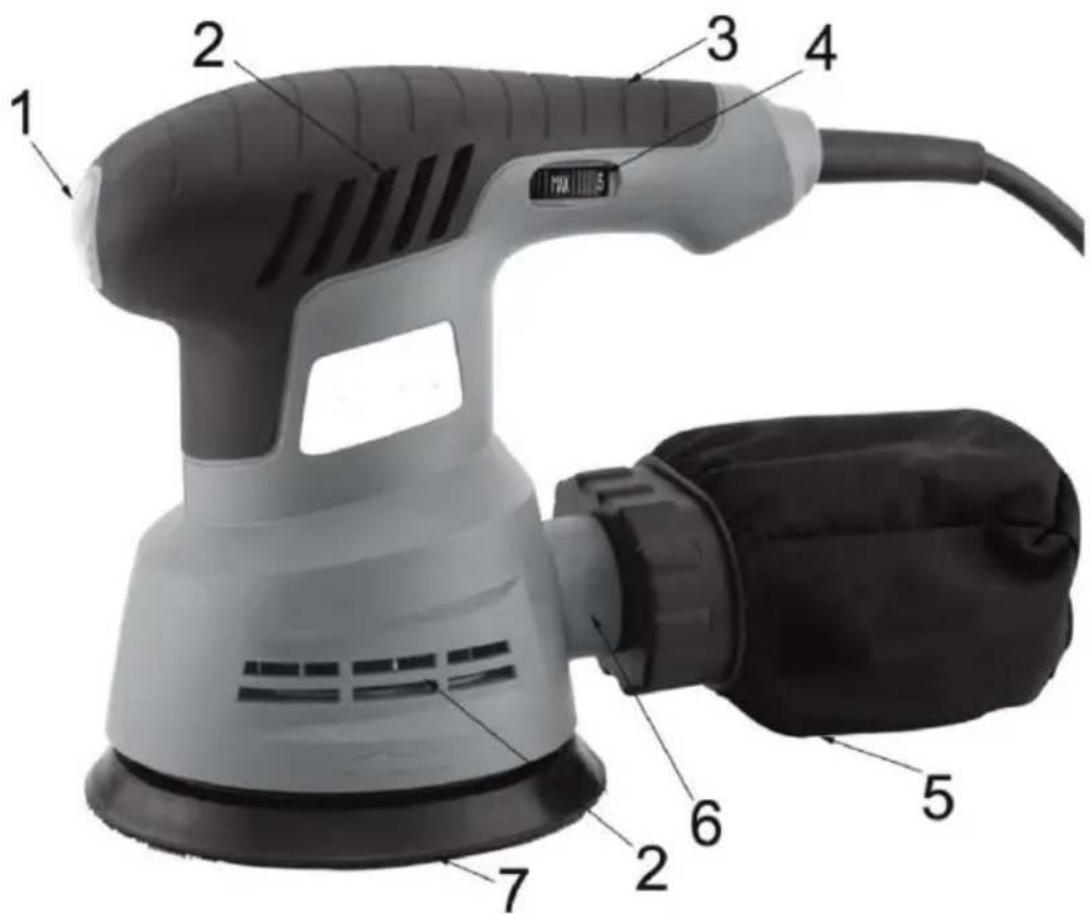

DESCRIPTION

EN

1. Power switch
2. Ventilation openings
3. Handle
4. Speed selector
5. Dust bag med holder
6. Dust port
7. Sanding plate with Velcro fastener

ASSEMBLY

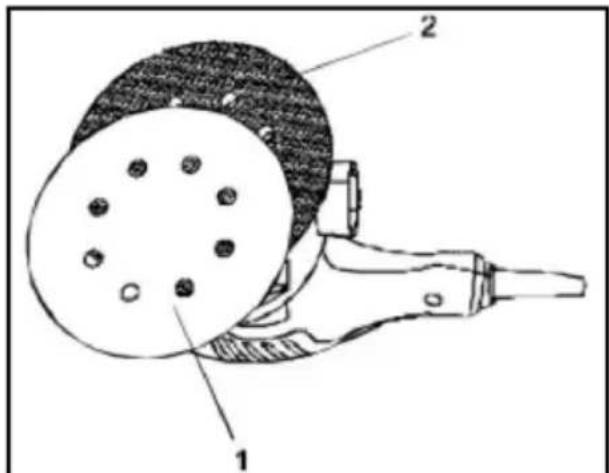

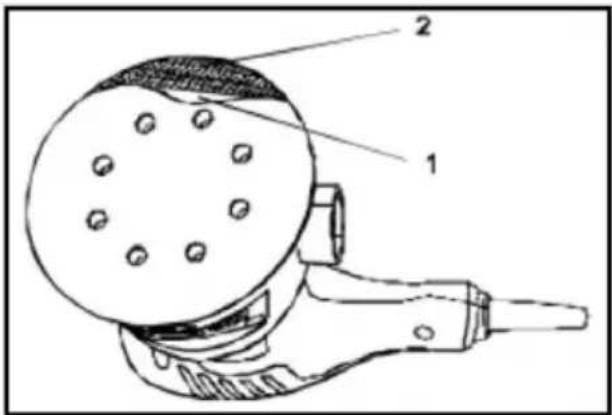

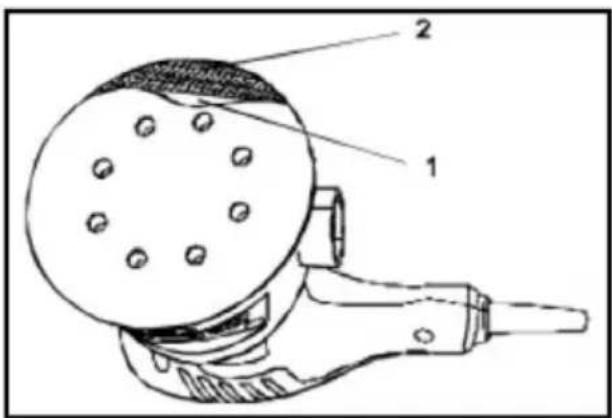

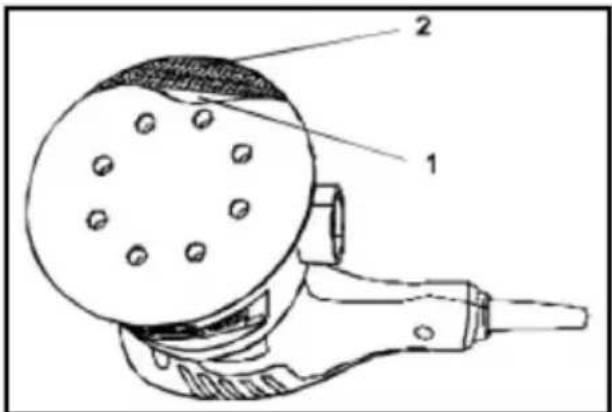

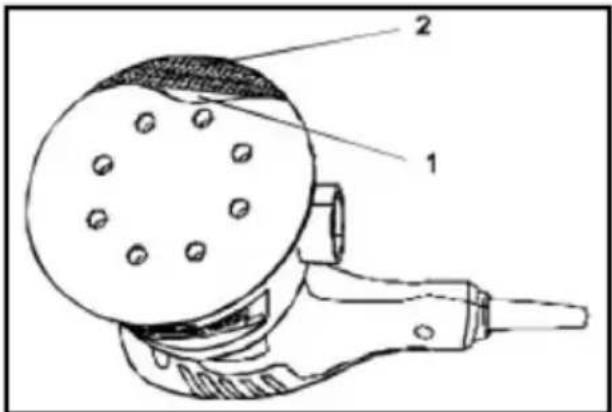

FITTING THE SANDPAPER

1. Press the sandpaper (1) firmly on the sanding plate with the Velcro fastener (2).

NOTE:

• Align the holes in the sandpaper to the holes in the sanding plate.

• Press the sandpaper firmly in place.

• Remove the sandpaper (1) by pulling it off the sanding plate with the Velcro fastener (2).

WARNING: The sandpaper should fit firmly so that it cannot come loose.

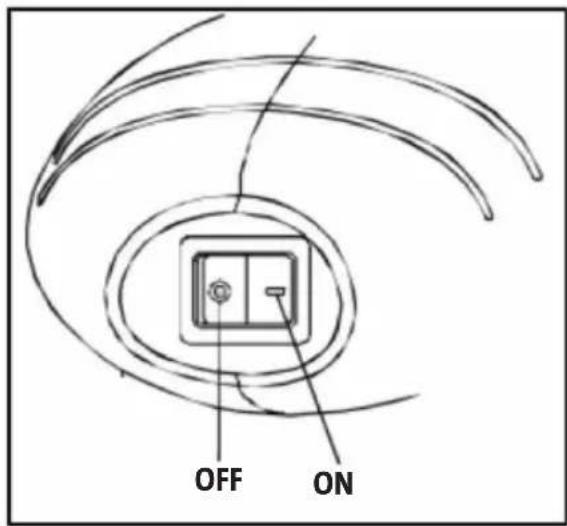

STARTING/STOPPING

1. Plug in the power cord.
2. Start the tool by setting the power switch (1) in the ON position.
3. Switch off the tool by setting the power switch (1) in the OFF position.

WARNING: Never sand any objects containing magnesium.

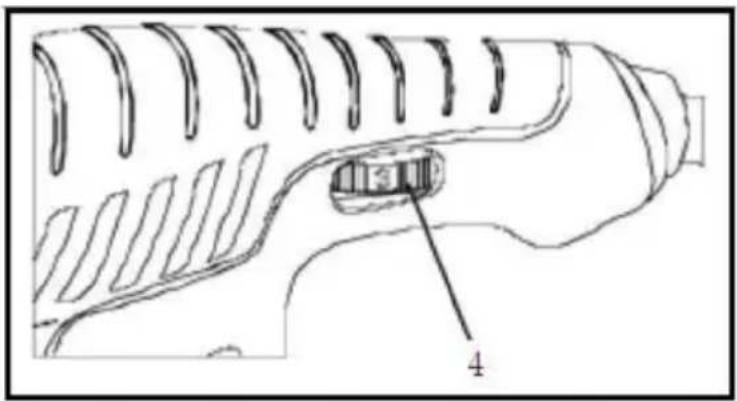

SPEED SELECTOR

Turn the speed selector (4) towards MAX for a faster speed and towards 1 for a slower speed.

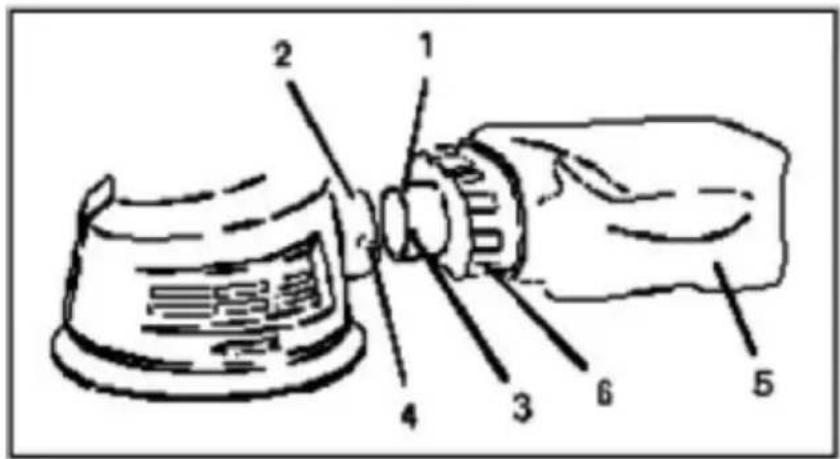

USING THE DUST BAG

1. Insert the dust bag fastener (1) in the dust port (2) on the back of the tool.

NOTE: The pin (3) on the fastener should slot into the slot in the dust port (4).

1. Press the fastener as far as it goes into the dust port and turn the dust bag (5) about 15^ clockwise to lock it on the tool.

2. Release the dust bag (5) from the holder (6) at regular intervals and empty it.

NOTE: The opening on the dust bag is elastic to simplify fitting and removing.

CHOICE OF SANDPAPER

The correct grade and type of sandpaper is important for the results. Aluminium oxide, silicon carbide and other synthetic abrasives are best suited for sanding with a sander. Natural abrasives such as flint and granite are too soft and quickly wear out.

Coarse sandpaper generally removes more material. Fine sandpaper produces a smoother surface. Choose sandpaper suitable for the actual job.

NOTE: Higher numbers indicate finer grades and lower numbers coarser grades.

If the surface is rough, sand with coarse sandpaper until the surface is smoother. Use finer and finer sandpaper until the surface is sufficiently smooth. Continue working with each grade until the entire surface is uniform.

SANDING

Secure the workpiece in a vice or on a stable surface with clamps, or the equivalent.

WARNING: If the workpiece is not properly secured it can fly away and cause personal injury and/or material damage.

MAINTENANCE

The tool does not require any special maintenance.

Clean the ventilation openings and dust bag regularly.

IMPORTANT: Never use strong detergents or solvents, they could damage the plastic parts on the tool.

Clean with a soft cloth moistened with a mild detergent. Do not expose the tool to water or any other liquid.

REPLACING CARBON BRUSHES

The tool has a function which stops it automatically if the carbon brushes are worn. When the carbon brushes have been worn to a certain level, this therefore stops the motor. Replace the carbon brushes with new ones of the same type.

IMPORTANT:

• The carbon brushes must always be replaced in pairs.
• Unplug the power cord before removing covers or guards.

CE

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

RoHS Directive 2011/65/EU EN 62321:2009

This product was CE marked in year -13
