SD-B97B - Tumble drier Infiniton - Free user manual and instructions

Brand	Infiniton
Model	SD-B97B
Product Type	Vented Tumble Dryer
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 58 cm
Weight	35 kg
Power Supply	220-240 V / 50 Hz
Energy Consumption	4.8 kWh per cycle
Energy Class	C
Noise Level	65 dB(A)
Number of Programs	12
Key Programs	Cotton, Synthetics, Delicates, Mix, Time Dry, Cool Air, Anti-Crease
Drying Technology	Vented (requires external venting)
Control Type	Rotary knob + push buttons
Display	LED indicator lights
Lint Filter	Yes, at bottom front
Reversible Door	No
Delay Start	Up to 9 hours
Safety Features	Child lock, overheat protection, door interlock
Included Accessories	Venting hose, user manual, warranty card
Repairability Index	7.5 / 10

Frequently Asked Questions - SD-B97B Infiniton

Does the Infiniton SD-B97B require external venting?

Yes, this is a vented tumble dryer, so it must be connected to an external vent or window to expel moist air. Use the included venting hose.

What is the maximum load capacity for the SD-B97B?

The maximum load capacity is 7 kg, as per standard for cotton programs. For delicates, reduce to 3 kg.

How do I clean the lint filter on this Infiniton dryer?

The lint filter is located at the bottom front of the dryer. Pull it out, remove the lint by hand or with a soft brush, rinse under running water if necessary, and dry before reinserting.

Can I install the SD-B97B in a small bathroom?

It is not recommended for small enclosed spaces without proper ventilation. The dryer must have adequate airflow and be vented to the outside.

What are the energy efficiency and consumption figures?

The SD-B97B has an energy class of C and consumes approximately 4.8 kWh per drying cycle. Actual consumption varies with load and program.

Does the dryer have a child lock feature?

Yes, it includes a child lock to prevent accidental operation. Refer to the manual on how to activate it.

How long does a typical drying cycle take?

Cycle times vary by program and load, but a standard cotton program at full load may take 150-180 minutes. Time Dry allows setting specific durations up to 120 minutes.

What should I do if the dryer stops mid-cycle?

Check if the lint filter is clogged, or the vent hose is blocked. Also verify the door is fully closed. If issues persist, contact Infiniton support.

Can I dry wool or silk items in the SD-B97B?

It is not recommended. Delicate fabrics like wool and silk should be air-dried or use the Low Heat program only for small loads.

Where can I find spare parts for this tumble dryer?

Authorized spare parts can be ordered through Infiniton's service network or via their official website. Use the model number SD-B97B for reference.

USER MANUAL SD-B97B Infiniton

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Model	Rated capacity
SD-B97B / SD-B98G	9.0kg

Line drawing of a U-shaped mechanical component with no text or symbols

Soporte de manguera

Simple line drawing of a container with a cross mark, partially submerged in a liquid surface (no text or symbols)

Simple line drawing of a container with a circular inlet and cross mark, mounted on a base (no text or symbols)

Simple line drawing of a container with a circular inlet and cross mark, no text or symbols present

Diagram of a washing machine with a hand operating a button, showing no text or symbols.

Hand holding a wall-mounted power socket with a pointer indicating left motion (no text or symbols)

Enchufar

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Cargar

Hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

Cerrar la puerta

Secado

Encender

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram showing a bracket with arrows indicating direction (no text or symbols)

saca el depósito

Technical line drawing of a mechanical component or bracket (no text or symbols)

Pure diagram of curved road or pipeline lines without any text, numbers, or symbols

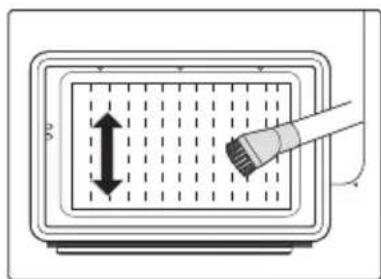

Limpiar el filtro

Simple line drawing of a wall socket with a cable and arrow indicating direction (no text or symbols)

Apagar

Nota!

1 On/Off

Encender / Apagar

2 Start / Pausa

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a sink and handle (no text or symbols)

Advertencia!

Nota!

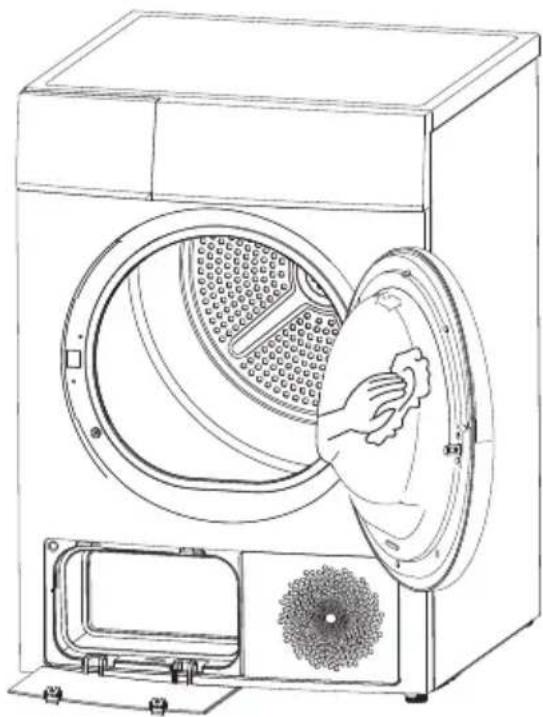

Line drawing of a washing machine with a hand cleaning the lid (no text or symbols)

Model	SD-B97B / SD-B98G
Rated Capacity	9.0kg
Dryer Type	Condenser
Energy efficiency class	A++
Weighted annual energy consumption (AE) c	257.7kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load	1.60kWh
Energy consumption of the standard cotton programme at full load	2.17kWh
Energy consumption of the standard cotton programme at partial load	1.18kWh
Power consumption of the off-mode (Po)	0.2 W
Power consumption of the left-on mode (PI)	0.8 W
Duration of the left-on mode	10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	143min
Programme time of the standard cotton programme at full load	190min
Programme time of the standard cotton programme at partial load	108min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency for the standard cotton programme at full and partial load	81%
Sound power level for the standard cotton programme at full load	66dB

PROCEDIMIENTO EN CASO DE AVERÍA DE UN PRODUCTO INFINITON

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Read all instructions and explanations before use. Follow the instructions carefully.

Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions 2

INSTALLATION

■ Product Description 9

■ Installation 9

OPERATION

■ Quick Start 12

■ Before each Drying 13

■ Control Panel 15

■ Option.... 16

■ Drying Programmes Table 20

MAINTENANCE

■ Cleaning and Care 24

■ Trouble Shooting 27

■ Technical Specifications 29

■ Safety Instructions

Warning!

To prevent any damages to your and others' life or property, you have to follow the safety notes.

Intended use

• This heat pump dryer is intended for drying typical amounts of household laundry, which have been washed with water. It has been designed solely for private use and is not suitable for commercial or shared use (i.e. by several families in an apartment building).
• Use this appliance only as described in this user manual.
  • This appliance is for indoor use only.
• Any other use is deemed improper and may result in damage to property or even personal injury.
• The manufacturer accepts no liability for damage caused by improper use.

Safety Instructions

- The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting the appliance to the mains, make sure that the mains voltage is correct. You can find more information about this on the rating plate.

- The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

⚠ Warning!

Electric shock hazard

• Before connecting the tumble dryer, ensure that the connection parameter on the rating plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.
• The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
• Do not pull the power cord forcefully. Please grasp the mains plug instead
• Do not plug/draw the mains plug with wet hands.
• Do not bend, clamp or damage the power cord and the power plug.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Warning: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Do not connect the appliance to the mains electricity supply by an extension lead, multi-socket adapter or similar.
• The accessibility of the plug must always be ensured, in order to disconnect the tumble dryer from the mains.
• If the appliance appear high temperature abnormally, please draw the mail plug immediately.

Injury danger

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
• Do not disassemble or install the dryer without any instruction or supervision.
• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)
• Do not lean on the opened door of the dryer.
• Condensed water is not drinking water. It can cause health problems in both people and animals if consumed.

Damage danger

- Do not put more load than rated in this user manual. See the related chapter in the user manual.

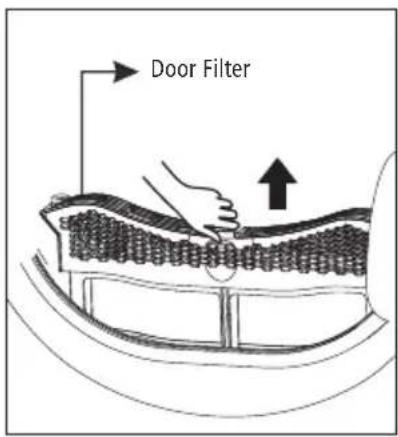

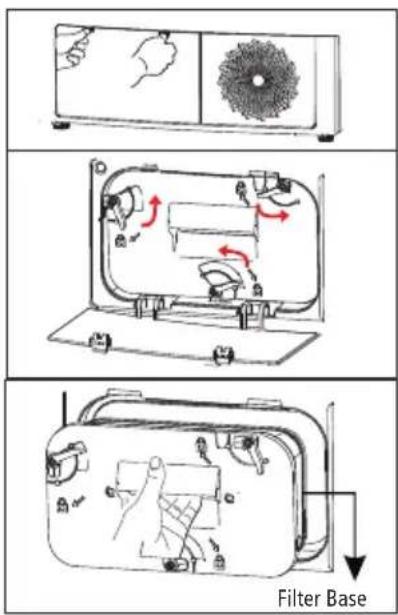

• Do not operate the dryer without the door filter and base filter.
• Do not dry the clothes before being spun.
• Do not expose the dryer directly under the sun.
• Do not install the dryer in humid and drenching environment.
• While cleaning and maintenance, please do remember to pull out the power plug and do not directly spray the dryer with water.
• The appliance should not be overturned during normal use or maintenance.

Warning!

Explosion & Fire danger

• Please do not dry the clothes with any flammable substances such as kerosene or alcohol. Otherwise, there may be explosion.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• Remove all objects from pockets such as lighters and matches.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Openings must not be obstructed.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.

Safety with children

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.

• Always close the door after use. In this way you will avoid the danger of:

• Children climbing onto or into the dryer or hiding things in it.

• Pets or other small animals climbing into it.

Correct Disposal of this product:

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of packaging material

- The packaging is designed to protect the appliance from damage during transportation. The packaging materials are environmentally friendly and should be recycled. Recycling the packaging can reduce the use of raw materials in the manufacturing process and the amount of waste in landfill sites.

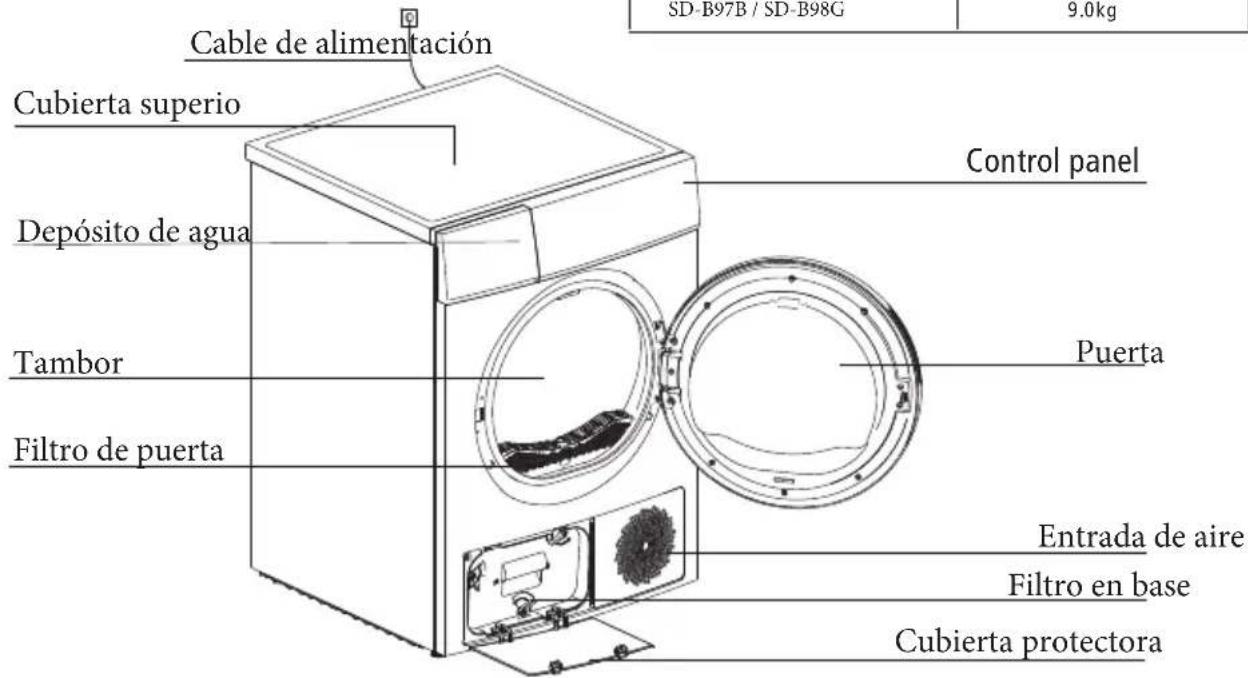

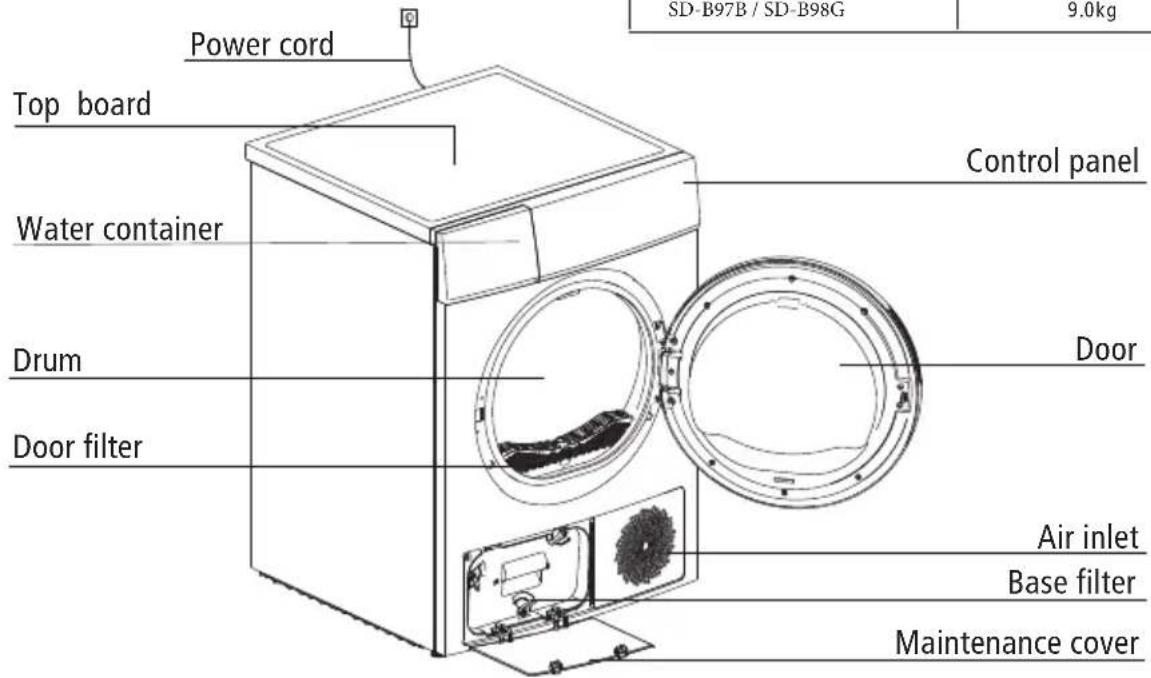

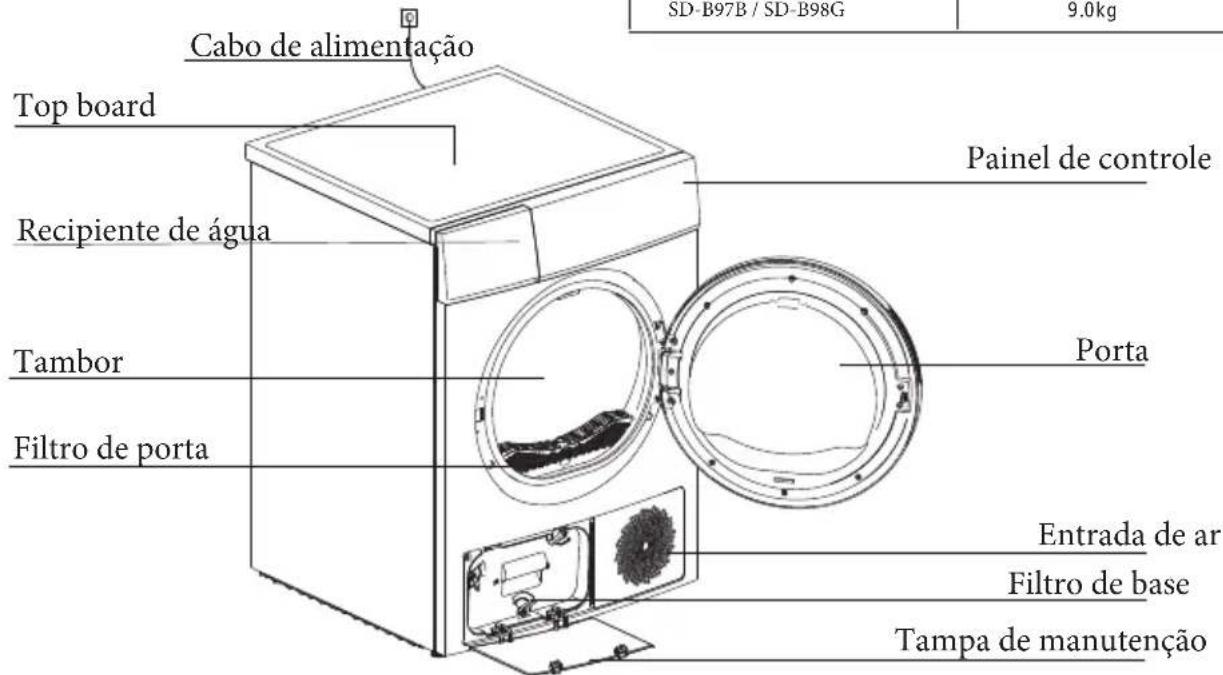

■ Product Description

Model	Rated capacity
SD-B97B / SD-B98G	9.0kg

Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.

Accessories

The following parts are optional for specific models.

If your dryer has following parts, please wear gloves to them install as per the instruction below.

Line drawing of a U-shaped mechanical component with no text or symbols

Hose holder

Condensing drain hose

Connector

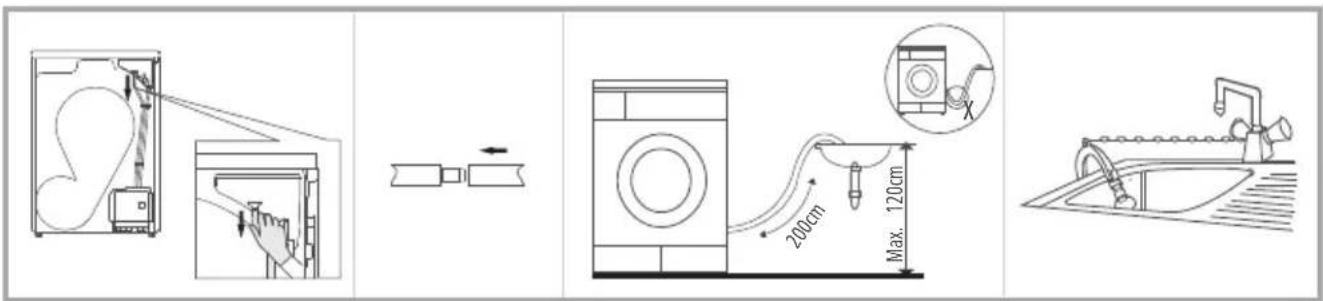

Installation

Remove the drain hose from the housing drawer.
Insert the drain hose and the external drainage hose into the connector.
Put the hose holder in the washing basin or any other sink.

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for transport. If the dryer can't be transported erectly, the dryer can be tilted to right less than 30^ .

Risk of injury and damage!

Improper handling of the appliance may result in injury.

• The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Installation Position

Warning!

• Children can become entangled in the packaging film or swallow small parts and suffocate. Do not allow children to play with the packaging.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

• Do not restrict the floor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

• It is recommended that, for your convenience, the machine is positioned close to your washing machine.

• Do not stack this dryer on washing machine without stacking kits. (If you want to stack this dryer on a washing machine, please purchase the independent parts. Installation shall be done by the manufacturer, its service agent or similarly qualified persons to avoid any hazards.)

• The tumble dryer must be installed in a clean place, where dirt does not accumulate. Air must be able to circulate freely around the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.

• To keep vibration and noise within minimum level when the dryer is in use, it must be placed on a firm and level surface.

• The feet must never be removed.

Simple line drawing of a container with a cross mark on a surface (no text or symbols)

Simple line drawing of a mechanical setup with a circular component and cross mark, mounted on a base (no text or symbols)

Simple line drawing of a container with a circular inlet and cross symbol, placed on a textured base (no text or labels)

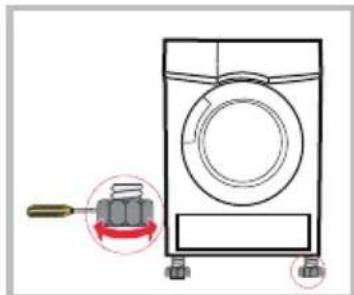

Level Adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet by hand or using a tool.

Diagram of a washing machine with a hand operating a button, showing no text or symbols.

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric specification
2. Do not connect the dryer with the power connection board, a universal plug or socket, do not use multi-plug adapters and extension cables.

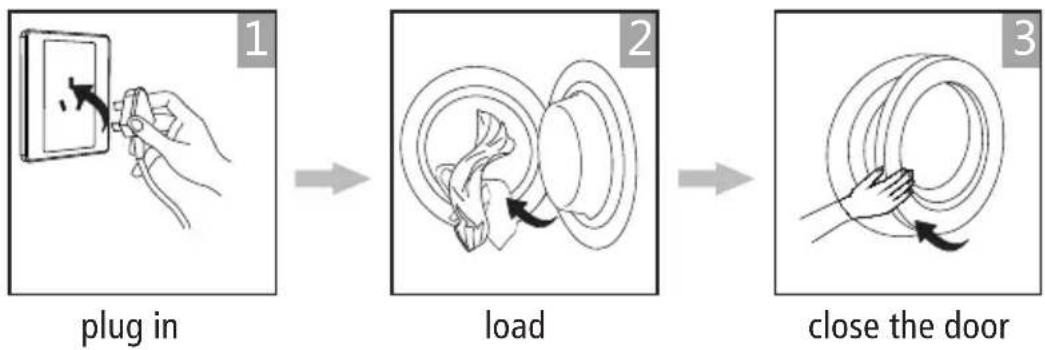

Quick Start

Note!

Before using, make sure the tumble dryer is installed correctly.

Before Drying

Drying

on

select program

select function or default

start

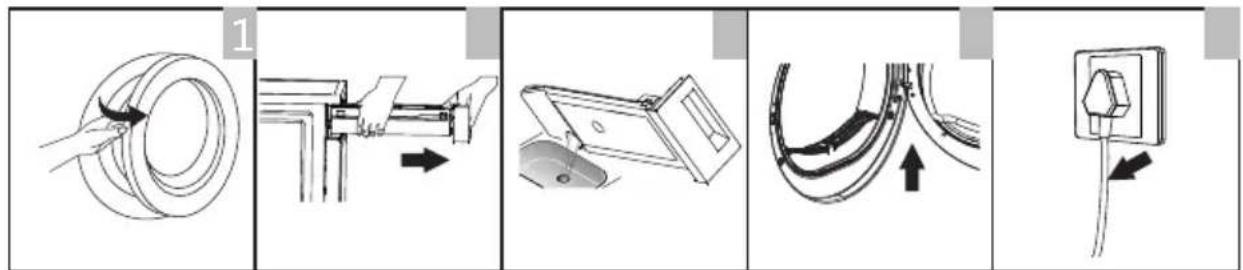

After Drying

Buzzer beep and "0:00" on display.

open the door and take out laundry
pull out the container

pour out condensate water
clean the filter power off

Note!

- If the socket with a switch is used, please press the switch to turn off the power directly.

■ Before Each Drying

Note!

• Leave it to stand for 2 hours after transporting. Before first use, please use the soft fabric to clean the inside drum.
• Put some clean rags into the drum.
• Plug the power, press 【On/Off】
• Select the 【Refresh】 Programme, press 【Start/Pause】 button
• After finishing this programme, please follow the "cleaning and care" (refer to page 24) to clean the filter door.

• During drying, the compressor and the water will generate some noise which is entirely normal.

• Before drying, thoroughly spin the laundry in washing machine. High spin speed shortens the drying time and saves energy.

• For uniform drying result, sort the laundry according to fabric type and select the appropriate drying programme.
• Before drying, please close zips, hooks and eyelets, button, tie fabric belts, etc.
• Remove all objects from pockets such as lighters and matches.
• Sew in or remove underwiring from bras.
• Close duvet covers and pillow cases to prevent small items from being rolled up inside them.
  7.Leave jackets open and undo any long zips so that textiles dry evenly.
  8.Do not over dry the clothes, because over dried clothes can easily get creases.
• Do not dry the articles containing rubber or similar elastic materials.
• Keep the area around the tumble dryer clean. Coal dust or flour may cause an explosion.
• The door shall be opened only after the programme of the tumble dryer is finished to avoid being scalded by hot steam or over heated drying machine.
• Clean the lint filter and empty water container after each use to avoid extension of drying time and increase of energy consumption.
• Do not dry clothes after dry-clean process.

The reference weight of dry clothes (weight per item)

	Sweater(mixed 800g)		Jacket(800g)cotton		Jeans(800g)		Bath Towel(900g)cotton
	Single bedsheet(600g)cotton		Work clothes(1120g)		Pyjamas(200g)		Shirt(300g)cotton
	T-Shirt(180g)cotton		Underwear(70g)cotton		Socks(50g)mixed-weave

Note!

• Do not put more load than rated.
• Do not dry dripping wet laundry. The dryer might get damaged

Only dry laundry suitable for tumble drying. Regard the laundry care labels:

Suitable for tumble drying

Normal drying process: Drying in the tumbler is possible under normal load and temperature 80^ .

Mild drying process: Caution is appropriate when tumble drying. Select mild process with reduced thermal action.

Do not tumble dry: Articles unsuitable for drying in the tumbler.

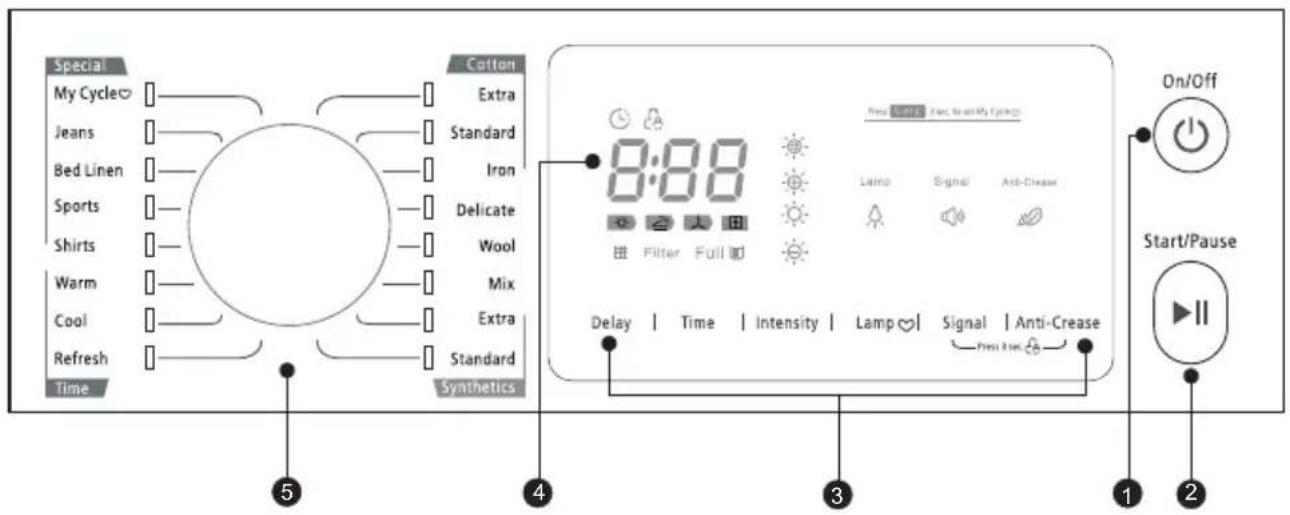

Control Panel

1 On/Off

Product is switched on or off.

2 Start/Pause

Press the button to start or pause the drying cycle.

3 Option

These buttons are used for setting additional functions.

4 Display

The display shows the setting, estimated program time remaining and status messages of your dryer.

5 Programmes

Different drying cycles can be selected according to the users need and the type of laundry to be dried.

Option

Delay

Delay

This function is used for delaying the start of the drying programme up to 24 hours.

When the delayed programme starts, the time starts to countdown on the display and the delay icon blinks.

1. Load your laundry and make sure the machine door is closed.
2. Press the 【On/Off】button, then use the programme selector knob to select the desired programme.
3. You can additionally select the 【Anti-Crease】or 【Signal】functions according to your need.
4. Press the 【Delay】 button.
5. Repeatedly to press the 【Delay】button to select the desired delay time.
6. After the 【Start/Pause】 button is pressed, the Dryer is at the running condition. The drying procedure will be automatically performed when the delay time is over.
7. If you press the 【Start/Pause】button again, the delay function will be paused.
8. If you want to cancel the "Delay" function, please press the 【On/Off】 button.

Time

Time

When the 【Warm】 or 【Cool】 or 【Refresh】 programme is selected, the 【Time】 button can be used to adjust the drying time in 10 min. steps.

Intensity

Intensity

You can adjust the dryness level of the laundry by pressing the 【Intensity】 button.

There are four grades.

1. The intensity function can be activated only before the programme starts.
2. Press the 【Intensity】 button repeatedly to increase the drying grade.
3. Except the 【Cotton Iron】, 【Delicate】, 【Wool】, 【Warm】, 【Cool】, 【Refresh】 programme, all the other programmes can be adjusted with the 【Intensity】 function.

Lamp	LampThe drum light will be on for 3 minutes when the button is pressed or 1 minute when the door is open.
Signal	SignalSet the buzzer on or off. In default condition, the buzzer is on.When the buzzer is on:1. The dryer will affirm pressed function button by a sound.2. If the programme knob is rotated during the dryer is running, the buzzer will remind the user that this is an invalid operation.3. When the drying programme is done, the buzzer will beep.
Anti-Crease	Anti-CreaseAt the end of the drying cycle, the anti-crease time is 30 minutes (default) or 120 minutes (selected). This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except【Cool】, 【Wool】and【Refresh】, all the other programmes have this function.
My Cycle	My CycleUsed to define and save your favourite programme, which is used frequently.1. Select the desired programme and other drying functions.2. Press and hold the【Lamp♡】for 3 seconds until the beep sounds and the desired programme has been saved.3. Turn the programme selector to the【My Cycle】position, then you can start your favourite programme. If you want to change the【My Cycle】settings, repeat the steps (1) and (2).
Child Lock	Child LockThis machine incorporates a special child safety lock, which can prevent children from carelessly pressing buttons or making the faulty operation.When the drying cycle is running, press the【Anti-Crease】and【Signal】buttons at the same time for 3 seconds to start child lock function.When child lock function is set, the display will show Child lock icon and all button are deactivated, except【On/Off】button.To deactivate the child lock function, the【Anti-Crease】and【Signal】buttons shall be pressed at the same time for 3 seconds.

■ Display

	Delay
	Child lock
8:88	Remaining Time indicator/Error message
	Cycle phase status
Filter	Clean filters (warning)
Full	Empty water container (warning)
	Intensity (four grades)
	Lamp
	Signal
	Anti-Crease
	My Cycle

Programmes

Programme selector

1. When the LED display screen brightens up, rotate the programme knob to select the desired programme.
2. Select the 【Delay】, 【Time】, 【Intensity】, 【Anti-Crease】 or 【Signal】 functions for additional options.
3. Press the 【Start/Pause】 button.
4. Press the 【On/Off】 button after the programme has comlpeted.

Programme start

The drum will rotate after the programme starts. The cycle phase LED in the display will light up and the remaining programme time will be displayed.

Programme end

1. The drum will stop rotating after the programme ends. The display will show "0:00", also the cycle phase LED showing "End" and related LED will illuminate. The dryer will start 【Anti-Crease】 function if user doesn't remove the load. (Refer to page 17). Please press 【On/Off】 button after unloading the tumble dryer to cut off power and pull out the plug.
2. Deal with the problems according to "Trouble Shooting" section, if there is an unexpected stop during the drying procedure or the dryer shows an Error Code (Refer to page 27).

Programme		Max Load	Application/Properties	Delay	Time
Cotton	Extra	9.0kg	For single or multi-layer cotton laundry to be dried completely direct storage.for	Y	N
	Standard
	Iron		For single layer cotton laundry to remain damp ironing.for
Delicate		1.0kg	For delicate laundry that is suitable for drying or laundry to be hand washed at low temperature.advised	Y	N
Mix		3.5kg	For mixed fabrics from cotton and synthetics.	Y	N
Synthetics	Extra	3.5kg	For thick or multi-layer synthetic to be dried completely .fabrics	Y	N
	Standard		To dry thin synthetic textiles, which are not ironed, such as easy care shirts, baby cloths or socks.
Wool		1.0kg	To refresh you wool items and make them more fresh and fluffy.	Y	N
Special	Jeans	4.5kg	To dry jeans or leisure clothes that are spun at high speed in the washing machine.	Y	N
	Bed Linen	4.5kg	To dry bed linen, bed sheets or other large items.
	Sports	3.0kg	To dry sportswear and thin fabrics from polyester, which are not ironed.
	Shirts	1.0kg	For easy care laundry, such as shirts and blouses equipped with anti-crease functionality to minimize the ironing effort Place clothes loosely in the dryer. Once dried, remove quickly and hang it on a clothes hanger.
	My Cycle	—	Define and save your favourite programme.	Y	—
Time	Warm	—	To dry individual items or complete the drying process of multi-layer fabrics with different drying behavior, such as jackets, pillows or voluminous items. Min 10 min. to max. 120 min.(in 10 min.steps)	Y	Y
	Cool	—	To air items without heating. Min. 10 min to max. 30 min.(in 10 min. steps)
	Refresh	1.0kg	To refresh clothes kept at closed environment for a long time or to remove odors. Min. 20 min to max. 150 min.(in 10 min. steps)

• Note for Test Institutes:

Test programme in accordance with Regulation 392/2012/EU for energy labelling, measured in accordance with EN 61121 and suitable for drying normal cotton load at rated load capacity.

■ Consumption Data ①

Model	Program	capacity	Spin Speed / Residual Humidity	Drying Time	Energy Consumption
SD-B97B / SD-B98G	Cotton Standard	9kg	1000rpm / 60%	190min	2.17kWh
	Cotton Standard	4.5kg	1000rpm / 60%	108min	1.18kWh
	Synthetic Standard	3.5kg	800rpm / 40%	60min	0.62kWh

Note!

• Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Cotton Extra programme or use "Intensity" function.
• As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to completely dry them if some parts of the clothes are still damp after programme finishes.

All data are measured in accordance with EN 61121.

The actual consumption may differ from the values given in the table, depending on the amount of the laundry, type of fabric, residual moisture and any additional functions selected.

■ Cleaning and Care

Empty the water container

1. Pull out and hold the water container with two hands.
2. Tilt the water container, pour out the condensate water into the basin.
3. Install the water container.

Line drawing of hands operating a mechanical bracket or frame (no text or symbols)

Diagram of a kitchen sink with a water dispenser pouring liquid into a tray (no text or symbols)

Warning!

- Empty the water container after each use. Once the water container is filled completely, the programme will be paused and the " " " on will light. After the container is emptied, the dryer can be restarted by pressing

【Start/Pause】button.

• Do not drink the condensate water.
• Do not use the dryer without the water container.

Clean the filters

This dryer has a primary door lint filter and a base filter in front of the heat exchanger for additional protection. Make sure you clean the door filter after each cycle.

The base filter need to be cleaned after each fifth drying programme.

Clean the filter door

1. Open the door.
2. Take out the dioter.
3. Open the filter and remove the fluff on the filter, You can clean it in watering
4. Dry the didter thoroughly before installing it back.

Note!

• Take notice of the correct orientation before to insert the door filter.

Clean the base filter

1. Open the cover.
2. Unlock three locking levers and grasp the filter handle.
3. Remove the base filter and clean it. If there is too much lint on the filter, clean it in water. Dry the filter thoroughly before installing it back.
4. Clean the rubber sealing, both at the filter and handle.
5. Re-insert the filter.
6. Lock three locking levers and make sure that the levers are in correct lock position.
7. Close the cover until there is a click sound.

Note!

• The fluff accumulated on the filter will block the air circulation. Not cleaning the filter regularly will increase drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• Clean the base filter after each fifth cycle to prevent fluff accumulation inside the dryer.

Clean the heat exchanger

Warning!

Do not touch the heat exchanger with your hand, which may cause an injury.

• As necessary, approx. once every 6 months, remove the fluff from the heat exchanger using a vacuum cleaner with a dusting brush attached.
• Clean the heat exchanger without applying any pressure. Otherwise the heat

exchanger could be damaged. The dryer will not dry if the cooling fins are damaged or bent.

Diagram of a device with a pointer and grid pattern, no text or symbols present

Clean Tumble dryer

Warning!

• Disconnect the power cord before cleaning!
• Clean the dryer with a wet cloth which is only damped by clean water.
• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
• Please wear gloves when cleaning.

Line drawing of a washing machine with a hand cleaning the interior (no text or symbols)

• Prepare a wet cloth damped by clean water.
- Clean the door, especially the inside window.
- Clean the sealing around the door opening.
- Clean the humidity sensor inside the drum.
• Take out all the filters, clean the sealing and air flow openings.
- Before starting the dryer, dry all parts with a soft cloth.

■ Trouble Shooting

Many malfunctions and faults that might occur in daily operation can be easily remedied. Time and money will be saved because a service call won't be needed. The following guide may help you to find the reason for a malfunction and correct it.

Display	Reason	Solutions
“”E32	Humidity sensor error	Please contact your local service center if the problem occurs.
“”E33	Temperature sensor error
“”	Water pump failure or water level sensor failure
	Container is full	Empty container

Warning!

• Only authorised technicians can carry out repairs.
• If the LED displays other prompt and the dryer does not work, please call the service.

Note!

Before you call the service, please check if you have dealt with the problems yourself consulting the user instructions.

Problem	Solution
•Display is not on	• Check if the power supply works.• Check if the mains plug is inserted.• Check the selected programme .• Press the 【On/Off】button.
• “ ☐”is lighting	• Check the water container. If it's full, please pour out the condensate water and restart the dryer.• If the container is not full, please restart the dryer directly.• If the “ ☐” icon is still lighting after you have finished the first two steps, please call the service.
•“ ☐”is inglight	• Clean the lint filter.
•Dryer does not start	• Connect the tumble dryer to the mains.• Turn on the tumble dryer.• Check the the door is closed.• Check the programme is set.• Press the 【Start/Pause】button.
•Degree of dryness was not reached or drying time too long	• Clean lint filter and .heat exchanger• Empty the water container.• Check the drain hose.• Check installation place is appropriate.• Keep the air inlet clean.• Use higher drying intensity level programme or time programme.
•There are humming noises	• The compressor is operating. These noises are quite normal and do not indicate a fault.
•The dryer switches off at the end of the programme	• The dryer switches off automatically for energy saving. This is not an error but a normal function.

Warning!

If you cannot deal with the problems by yourself and need help:

• Press the 【On/Off】button.
• Pull out the mains plug and call the service.

■ Technical Specifications

ModelParameter	SD-B97B / SD-B98G
Dimension(L*W*H)	640*595*845(mm)
Ambient temperature	+ 5°C ~ +35°C
Rated input power	850W
Rated voltage	220-240V~
Rated frequency	50Hz
Refrigerant	R134a
Weight of product	48kg
Rated capacity	9.0kg
GWP	1430
CO2-eq	0.5T
Quantity of refrigerant	350g

Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.

Note!

• The rated capacity is the maximum capacity to be dried at one time. Make sure that the dry clothes which are loaded into the appliance do not exceed the rated capacity.
• Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.
• There is a risk of damage if the condensate water is allowed to freeze in the pump, hoses and / or condensate water container.

Model	SD-B97B / SD-B98G
Rated Capacity	9.0kg
Dryer Type	Condenser
Energy efficiency class	A++
Weighted annual energy consumption (AE) c	257.7kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load	1.60kWh
Energy consumption of the standard cotton programme at full load	2.17kWh
Energy consumption of the standard cotton programme at partial load	1.18kWh
Power consumption of the off-mode (Po)	0.2 W
Power consumption of the left-on mode (PI)	0.8 W
Duration of the left-on mode	10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	143min
Programme time of the standard cotton programme at full load	190min
Programme time of the standard cotton programme at partial load	108min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency for the standard cotton programme at full and partial load	81%
Sound power level for the standard cotton programme at full load	66dB

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

SD-B97B

SD-B98G

SECADORA

MANUAL

DE

USUÁRIO

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Model	Rated capacity
SD-B97B / SD-B98G	9.0kg

Simple line drawing of a U-shaped mechanical component (no text or symbols)

Hose holder

Condensing drain hose

Connector

Instalação

• The appliance is very heavy. Never transport or carry the appliance alone; always with the assistance of another person.
• Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.
• Do not use the open door as a handhold.
• Remove all package material before using the appliance.
• Before setting up the tumble dryer, check it for any externally visible damage. Do not install or use a damaged tumble dryer.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

Simple line drawing of a container with a cross mark on a surface (no text or symbols)

Simple line drawing of a mechanical setup with a circular component and cross mark, mounted on a base (no text or symbols)

Simple line drawing of a container with a circular inlet and cross symbol, placed on a textured base (no text or labels)

Ajuste de nível

Diagram of a washing machine with a hand operating a button, showing no text or symbols

Hand holding a wall-mounted switch with a magnified view of the switch (no text or symbols)

Ligar

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

carregar

Hand holding a coiled ring with an arrow indicating rotation (no text or symbols)

feche a porta

Secagem

on

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Pure mechanical assembly diagram showing a lever and bracket without any text or symbols

puxe o recipiente

Technical line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram of curved road or pipeline sections with an upward arrow indicating direction (no text or symbols)

limpe o filtro desligar

Simple line drawing of a wall socket with a cable and arrow indicating direction (no text or symbols)

Note!

	Sweater(mixed 800g)		Jacket(800g)cotton		Jeans(800g)		Bath Towel(900g)cotton
	Single bedsheet(600g)cotton		Work clothes(1120g)		Pyjamas(200g)		Shirt(300g)cotton
	T-Shirt(180g)cotton		Underwear(70g)cotton		Socks(50g)mixed-weave

Note!

1 On/Off

Model	Program	capacity	Spin Speed / Residual Humidity	Drying Time	Energy Consumption
SD-B97B / SD-B98G	Cotton Standard	9kg	1000rpm / 60%	190min	2.17kWh
	Cotton Standard	4.5kg	1000rpm / 60%	108min	1.18kWh
	Synthetic Standard	3.5kg	800rpm / 40%	60min	0.62kWh

Note!

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Diagram of a mechanical device with a water tank and a handle, showing no text or symbols.

Warning!

Note!

Line drawing of a washing machine with a hand cleaning the inner casing (no text or symbols)

Model	SD-B97B / SD-B98G
Rated Capacity	9.0kg
Dryer Type	Condenser
Energy efficiency class	A++
Weighted annual energy consumption (AE) c	257.7kWh/year
Automatic or non-automatic	Automatic
EU Ecolabel	N/A
Energy consumption of the standard cotton programme
Weighted energy consumption of the standard cotton programme at full and partial load	1.60kWh
Energy consumption of the standard cotton programme at full load	2.17kWh
Energy consumption of the standard cotton programme at partial load	1.18kWh
Power consumption of the off-mode (Po)	0.2 W
Power consumption of the left-on mode (PI)	0.8 W
Duration of the left-on mode	10 min
Programme time of the 'standard cotton programme'
Weighted programme time of the standard cotton programme at full and partial load	143min
Programme time of the standard cotton programme at full load	190min
Programme time of the standard cotton programme at partial load	108min
Condensation efficiency class A (most efficient) to G (least efficient)	B
Average condensation efficiency of the standard cotton programme at full load	81%
Average condensation efficiency of the standard cotton programme at partial load	81%
Weighted condensation efficiency for the standard cotton programme at full and partial load	81%
Sound power level for the standard cotton programme at full load	66dB

PROCEDIMENTO EM CASO DE FALHA DE UM PRODUTO INFINITON

• Linha Branca: rmablanca.infiniton.es
• Linha Marrom: rma.infiniton.es

INFINITION WORLD ELECTRONIC S.I.

C/Baza 349, naves 4-6

Poligone Juncar

18220 ALBOLOTE (Granada)

e-mail: [e-mail]

INFINITON
