WSD-Y8A5D4WD - Tumble dryer Infiniton - Free user manual and instructions

Product Type	Tumble Dryer
Model	WSD-Y8A5D4WD
Brand	Infiniton
Dimensions (H x W x D)	845 x 595 x 540 mm
Net Weight	59 kg
Gross Weight	61 kg
Power Supply	220-240 V ~ 50 Hz
Rated Current	10 A
Total Power	1500 W
Capacity (Wash/Dry)	8 kg / 5 kg
Maximum Spin Speed	1400 rpm
Number of Programs	15
Control Type	Electronic
Display	LED
Child Lock	Yes
Drum Material	Stainless Steel
Door Opening Angle	135°
Drying Levels	Iron, Wardrobe, Extra Drying, Drying Time (30 min - 4 h)
Special Features	Delay End, Steam Refresh, Extra Rinse, Prewash
Water Pressure Range	0.05 - 1 MPa
Water Connection	Cold water only
Installation Type	Freestanding
Energy Consumption (Eco 40-60 full load)	0.740 kWh/cycle
Water Consumption (Eco 40-60 full load)	55 L/cycle

Frequently Asked Questions - WSD-Y8A5D4WD Infiniton

How do I install the tumble dryer?

Place the dryer on a rigid, dry, level surface with at least 20 mm clearance from walls. Remove all transport bolts from the rear using a spanner. Adjust the feet to level the appliance. Connect the water inlet hose to a cold water tap and the drain hose to a sink or drain. Plug into a grounded outlet.

How do I clean the drain pump filter?

Unplug the dryer and let the water cool. Open the bottom cover, turn the filter anticlockwise, remove any debris, then reinsert and turn clockwise. Clean every 3 months.

What should I do if the dryer doesn't start?

Check that the door is closed properly and no clothes are stuck. Ensure the water tap is open and the power cord is connected. If the problem persists, consult the error code list in the manual.

How do I use the child lock feature?

Press and hold the Temperature and Spin buttons simultaneously for at least 2 seconds. The child lock icon will light up. Repeat to unlock.

Can I dry all types of fabrics?

No, always check the care label. The dryer has specific programs for cotton, synthetics, and wool. Do not dry garments that have been in contact with flammable substances.

How do I select the drying level?

Press the Drying Level button to choose between Iron, Wardrobe, Extra Drying, or Drying Time (30 min to 4 h). The corresponding icon will light up.

What does the error code F01 mean?

F01 indicates a water inlet failure. Check that the water tap is open, the hose is not kinked or clogged, and the filter is clean. If the problem persists, contact service.

How do I clean the detergent dispenser?

Press the locking mechanism to remove the dispenser. Rinse with water and clean the shaft with a soft brush. Reinsert until it clicks. Clean monthly.

What is the maximum load for drying?

The maximum drying capacity is 5 kg. Overloading may affect drying performance and cause wrinkles.

How do I mute the acoustic signals?

Press and hold the Spin and Steam Care buttons simultaneously for 2 seconds. The mute icon appears. Repeat to reactivate.

USER MANUAL WSD-Y8A5D4WD Infiniton

Front view of a white infinity washing machine with black circular vent and control panel (no visible text or symbols)

WSD-Y8A5D4WD
ean: 8445639005316

Simple line drawing of a container with a cross mark on a textured surface (no text or symbols)

Simple line drawing of a container with a circular top and cross mark, resting on a curved surface (no text or symbols)

Simple line drawing of a container with a circular inlet and cross mark, placed on a surface (no text or symbols)

¡ADVERTENCIA!

Transporte

Two stick figures pulling a large gray rectangular object (no text or symbols)

Technical line drawing of a washing machine with internal chambers and mounting feet (no text or symbols)

Close-up of a wrench and circular mechanical component (no text or symbols visible)

Close-up of a metallic mechanical knob or knob with a textured surface (no visible text or symbols)

Close-up of a white mechanical component with a circular hole and a striped pattern (no text or symbols visible)

Close-up of a white mechanical component with a handle and base, no visible text or symbols

Close-up of a white object with arrows indicating motion or transformation, next to a circular object (no text or symbols visible)

Close-up of a faucet with a valve and a connector, showing directional arrows indicating movement (no text or symbols)

Illustration of a box with an arrow pointing upward, and a magnified inset showing a small structure labeled 'A' (no text or symbols present)

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or anti-poverty (no text or labels)

Simple line drawing of a sweater with a tag and label (no text or symbols on the sweater itself)

Two handbags with circular designs, one wrapped in a bow and the other in a gift box (no text or symbols)

Line drawing of a bag with a small animal inside, placed on grid paper (no text or symbols)

Line drawing of a knitted sweater with arms and buttons (no text or symbols)

Technical line drawings of two views of a water filtration or refrigeration unit (no text or symbols)

Colorful play button logo with triangular design and 'easyplay' text (no additional symbols or text)

Simple diagram with a black circle and two curved arrows inside, surrounded by horizontal lines (no text or symbols)

programa adecuado

Hand pointing at a circular button with a triangular play symbol (no text or numbers present)

Diagram showing a device with an open panel and a plug inserted, no text or symbols present

Conectar

Illustration of a faucet with arrows indicating flow direction (no text or symbols)

Abrir el grifo

Diagram showing a biological or mechanical process with concentric layers and a central circular component, no text or symbols present.

Cargar la ropa

Hand holding a cylindrical object with an arrow indicating rotation (no text or symbols)

Cerrar la puerta

Añadir detergente

Nota importante:

Close-up of a hand holding a transparent circular object with internal components (no visible text or symbols)

Line drawing of a mechanical device with a lever and housing (no text or symbols)

Illustration of a hand inserting a dark object into a wall-mounted device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a white infinity washing machine with a black circular vent, placed in front of a window and kitchen cabinets (no text or symbols on the device itself)

WSD-Y8A5D4WD
ean: 8445639005316

Index	English
Installation	25
Safety information	28
Before use	30
How to use	35
Maintenance & Cleaning	41

Location

Before installing this Infiniton appliance, you must choose a location that meets the following requirements:

1. Rigid, dry and level surface

2. Avoid direct sunlight

3. Sufficient ventilation

4. The ambient temperature must be above 0°C

5. Keep the appliance away from any heat source (cookers, boilers, radiators, etc.).

6. Install the appliance in a clean place, where there is no accumulation of dirt. Do not obstruct the air inlets of the product.

WARNING! Stability is important to prevent the appliance from moving. Ensure that the product is level and stable. To ensure that the vibration and noise levels emitted by the appliance during operation are normal, the appliance should be placed on a firm and level surface.

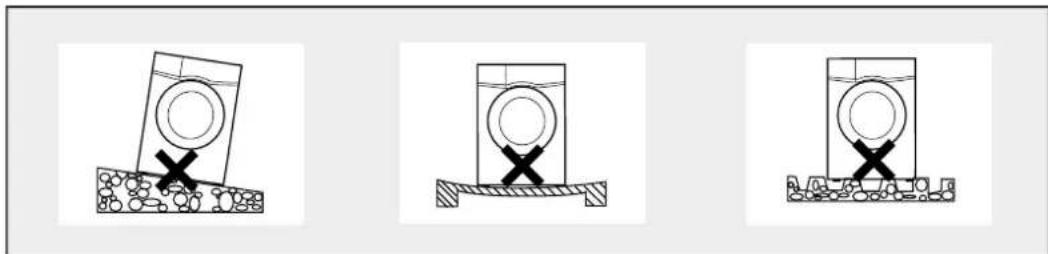

Three diagrams showing a container with cross marks placed on a surface, no text or symbols present.

WARNING! Make sure the power cable is not trapped or damaged is not trapped or damaged.

WARNING! Be sure to maintain the minimum distances from the walls, as shown in the picture on the right.

Transport

Move the appliance with extreme care. Do not grip any protruding parts of the product. The door of the product must not be used as a carrying handle under any circumstances. If the appliance cannot be transported in an upright position, it can be tilted to the right less than 30^ .

Risk of damage and injury! Improper handling of the appliance may cause injury.

⚠️ Important! The appliance is very heavy, please never carry the appliance alone;

always do so with the help of another person.

Remove all obstacles from the transport route and the installation site:

- Open doors and remove objects on the floor.

Do not use the open door as a support point.

Remove all packing materials before using the appliance.

Before installing the product, check it for externally visible damage.

Do not install or use the appliance if it is damaged.

Two stylized human figures pulling a gray rectangular block (no text or symbols)

Do not install the appliance in a room where there is a risk of frost. At temperatures close to freezing point, the product may not operate properly. There is a risk of damage if condensed water is allowed to freeze in the pump and hoses.

Remove the transport bolts

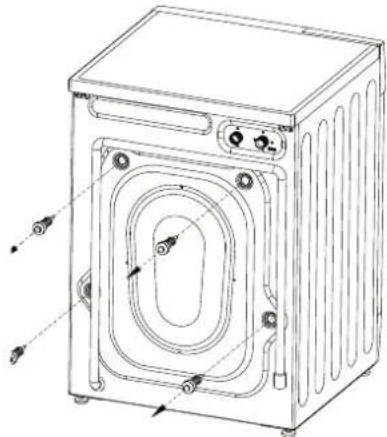

You must remove all the transport bolts from the rear before using your appliance for the first time. Otherwise, the product may produce unusual movement and vibration, as these transport bolts are used to prevent the appliance drum from being damaged during transportation.

Note: Once all transport bolts have been removed, please store them in a safe place for re-installation in case the appliance is transported again.

Technical line drawing of a front-loading washing machine with internal chambers and mounting holes (no text or labels)

Close-up of a white car wheel with a metallic knob and a wrench, no visible text or symbols

Loosen the transport bolts with a spanner.

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

Remove the bolts, including the rubber parts, and save them for possible future use.

Close-up of a white object with a dark circular feature and a striped pattern (no text or symbols visible)

Plug the holes with the rubber plugs.

Levelling

Once you have positioned the appliance in its normal place of operation, make sure that it is completely level. To do this, you should use a spirit level. If the appliance is not completely level, you should adjust the legs according to the following figure:

Close-up of a mechanical component with a lever and handle (no visible text or symbols)

1. Loosen the counter nut
2. Turn the foot until it reaches the floor
3. Adjust the feet and lock the nuts with a spanner.

Electrical connection

This appliance must be grounded for safety. The power cord of this appliance is equipped with a three-prong plug that fits into a standard three-prong outlet to minimize the possibility of electric shock. Do not, under any circumstances, cut or remove the third grounding prong from the supplied power cord.

Do not cut or remove the third grounding prong of the supplied power cord under any circumstances. This appliance requires a standard 220-240V-50/60Hz three-prong grounded outlet. The cord must be secured behind the appliance and must not be left unattended. appliance and should not be left exposed or dangling, thus avoiding accidents and/or injuries.

Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull it out. Do not use an extension cord with this appliance. If the power cord is If the power cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. The use of an extension cord may adversely affect the performance of the unit.

Water supply connection

To avoid water leaks, please read these instructions carefully.

! WARNING!

Do not kink, crush or modify the supplied water inlet hose on the appliance.

1. Connect the water supply hose to the water inlet valve and to the cold water tap.

2. Tighten all hose nuts by hand. Never use a tool to tighten the nuts.

Close-up of a white object with arrows indicating motion or transformation, next to a spherical object (no text or symbols visible)

Close-up of a faucet with a pipe fitting and a valve, showing directional arrows indicating flow or movement (no text or symbols)

IMPORTANT! Models with a single water inlet must not be connected to the hot water tap. This will damage the laundry in the appliance or may cause a general failure of the appliance.

When you have finished connecting the water connections, please pay special attention to check for leaks at the connection points by opening the taps as much as possible. check for leaks at the connection points by opening the taps as far as possible. If a leak is visible, close the tap and remove the nut. Replace the nut carefully after checking the seal.

Note: Do not use old or used water hoses in your new washing machine, as they may cause stains on your clothes.

Drain hose connection

The end of the drain hose must be connected directly to the drain or sink.

WARNING! Do not kink or lengthen the drain hose, otherwise it may be damaged due to possible water leakage.

If the drain hose comes out of its housing during water drainage, your home could be flooded and you could suffer burns due to the high water temperatures during the washing process. during the washing process. Securely fix the drain hose to avoid these situations and to ensure that the drainage situations and ensure that the water intake and drainage processes take place safely.

There are two ways of attaching the intake end of the drain hose:

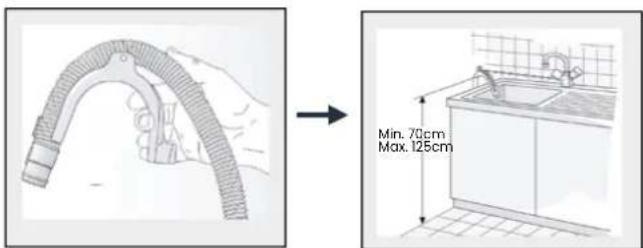

Option 1. Place the end of the drain hose into the sink, using the clamp provided, as shown in the picture.

Option 2. Connect the end of the drain hose directly to the sink drain socket, as illustrated in the picture.

Note: In case you connect the drain hose as option 1, To prevent backflow of dirty water into the machine and to facilitate draining, do not immerse the end of the hose into the dirty water and do not insert it into the drain more than 15 cm.

General security information

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are properly informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

Safety of children and vulnerable people

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children up to 8 years of age can charge and discharge this appliance.
- Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are 8 years of age or older and supervised.
- Keep all containers away from children. There is a risk of suffocation.
- If you are discarding the appliance, pull the plug out of the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from getting an electric shock if it falls or closes.

Electrical connections

• Make sure that the power cord is not trapped by the appliance, as this could damage it.
• Connect the appliance to a grounded socket outlet protected by a fuse that complies with the values in the "Technical specifications" table.
• The installation of the earth connection must be carried out by a qualified electrician.
• Ensure that the machine is installed in accordance with local regulations.
• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

WARNING! Do not use multiple plugs or extension cords.

WARNING! The product must not have an external switching device, such as a timer or be connected to a circuit timer or connected to a circuit that switches on and off regularly.

WARNING!

WARNING!

WARNING!

WARNING!

Do not disconnect the plug from the socket if there are flammable gases nearby.

Never pull out the plug with wet hands.

Always pull the plug, not the cable.

Always unplug the product when not in use.

Unpacking the appliance

WARNING! Packaging material (e.g. film, polystyrene foam) can be dangerous for children.

Risk of suffocation! Keep all packaging out of the reach of children.

1. Remove the cardboard box and the Styrofoam packaging.
2. Lift the washer and remove the packaging from the base.
3. Make sure to remove the small triangular foam (A) together with the bottom packaging. Otherwise, place the unit on a side surface and remove it manually.
4. Remove the tape securing the power cord and drain hose.
5. Remove the inlet hose from the drum.

Diagram of a box with an arrow pointing upward, showing a magnified view of a small structure labeled 'A' (no text or symbols present)

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🙏 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Before first wash cycle

We strongly recommend that before starting a wash cycle for the first time, you remove any residual water that may remain in the washing machine as a result of the tests and quality controls carried out by the manufacturer. From Infiniton we recommend that you start a short wash cycle are clothes.

To do so:

1. Open the water inlet tap to the washing machine.
2. Close the door.
3. Put some detergent, approximately 30 ml. In the detergent compartment.
4. Select and start a short programme.

Before each wash

The ambient temperature of the washing machine should be between 5 - 40°C. If used below 0°C, the inlet valve and drain system may freeze and cause damage to the appliance.

If the machine is installed in conditions where there is a risk of freezing, it must be installed immediately in a new location where the ambient temperature is above 5^ C, thus ensuring that the water supply and drain hoses can be thawed before use.

Simple line drawing of a sweater with a tag and label (no text or symbols on the clothing itself)

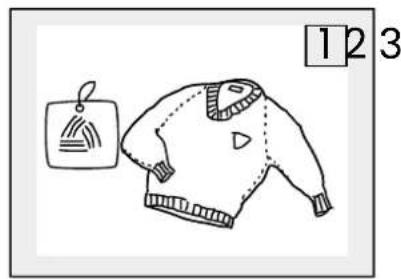

Check clothing care labels.

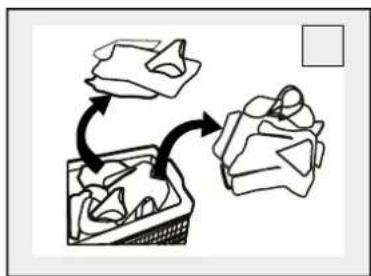

Sort clothes by colour and type of fabric.

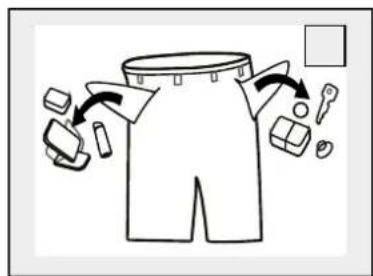

Remove all items that may be contained in pockets of clothing.

Two handbags with bow and circular designs, one closed and one open, both drawn in line drawing style (no text or symbols)

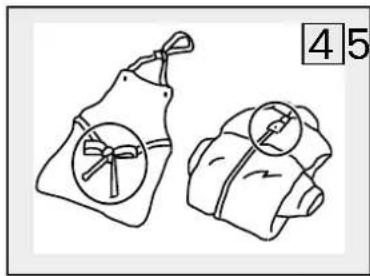

Close the zips, buttons and hooks. Loose belts and ties should be tied.

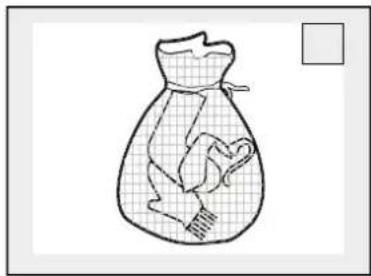

Simple line drawing of a bag with a rope tied around it, no text or symbols present.

Place small garments (stockings, belts...) and garments with hooks (bras) in a special fabric bag.

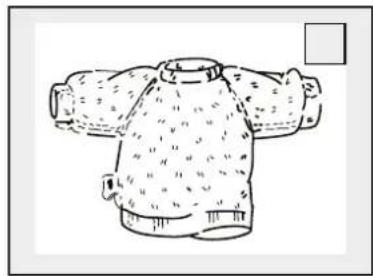

Line drawing of a knitted sweater with shoulder and collar details (no text or symbols)

Wash long-haired garments and garments that are susceptible to susceptible to pilling, inside out.

WARNING! Do not put clothes that have been in contact with combustible or flammable substances such as wax, oil, paint, petrol, alcohol, paraffin and other flammable materials into the washing machine.

WARNING! Washing loose laundry can create an imbalance in the drum. Always wash more than one laundry item to make the spinning run smoothly.

Note: Refer to the laundry care labels and detergent usage instructions before washing. Use a non-foaming or low sudsing detergent suitable for machine washing properly.

Clothing care labels

The following icons provide care instructions for each garment. The garment label contains symbols for washing, bleaching, drying and ironing, or dry cleaning if necessary. Follow the instructions on the label to prolong the life of the garment and reduce laundry problems.

Washing

Boil wash at 95°C

Colour wash at 60°C

Colour and delicate wash at 60°C

Colour wash at 40°C

Gentle wash at 40°C

Very gentle wash at 40°C

Delicate wash at 30°C

Gentle delicate wash at 30°C

Very gentle delicate wash at 30°C

Hand wash

Do not wash

Note: The number shown in the drawing specifies the maximum wash temperature in degrees Celsius which must not be exceeded.

Ironing

lrring at a max. temperature of 200°C.

Ironing at a max. temperature of 150^ C.

Ironing at a max. temperature of 100^ C.

Do not iron

Note: The dots indicate the ranges of ironing temperature ranges (regulator, steam, travel irons and ironing machines)

Drying

Tangible drying/drying at 80°C normal

Tumble dry/ tumble dry at 60°C gentle

Do not tumble dry

Line drying

Line drip dry

Flat tumble drying

F□drip-drying

Line drying in the shade

Imine drip-drying in the shade

Horizontal shade drying

Horizontal drip-drying in the shade

Note: The dots indicate the drying level of the tumble dryer and the lines indicate the type and position of drying.

Bleach

Any type of bleach

Oxygen bleach only

Do not use bleach

Note: Do not use more detergent than recommended by the product manufacturer.

Note: Use stain and bleach removers before the washing cycle and only when necessary.

Note: Save water and electricity by always loading the washing machine to the maximum load (the exact amount of laundry depends on the depends on the programme used).

Prepare the laundry

The first step to be taken before starting the washing process is to separate the laundry as follows as follows:

- Fabric type. Pay attention to clothing labels:

Cotton, blended fibres, delicate fabrics, synthetics, wool and hand-washed garments.

• Color

Separate coloured and white linen. Wash new coloured linen separately.

- Loading clothes into the washing machine

Wash clothes of different sizes in the same load, distributing all the laundry evenly inside the drum, thus improving washing efficiency.

- Delicate clothing

Wash small garments (nylon stockings, belts...) and garments containing any kind of hooks, e.g. bras, in a cloth bag or a pillowcase with a zip. In case you want to wash curtains, always remove the rings and hooks.

• Empty all pockets

Coins, safety catches... They can damage clothing and the inside of the appliance.

- Locks

Close zips, buttons and hooks. Loose belts and ties should be tied.

- Remove stubborn stains

Stains such as egg, blood, milk, coffee, etc. can be removed with the help of a product which should be applied to the stained area before putting into the washing machine. Stain remover can also be added to the detergent dispenser.

• Tints

Use only dyes suitable for use in washing machines and follow the manufacturer's instructions carefully. There are parts of the washing machine that can be stained by dyes.

- Put the laundry inside the washing machine.

Adding detergents and additives

Use low sudsing and efficient detergents in front-loading washing machines.

The choice of detergent will depend on:

type of fabric (cotton, silk, mixed fabrics, wool...), colour, washing temperature and degrees and types of soiling.

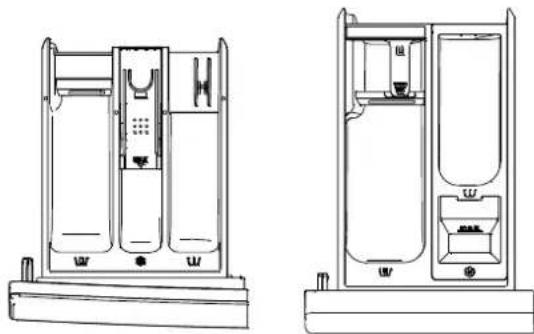

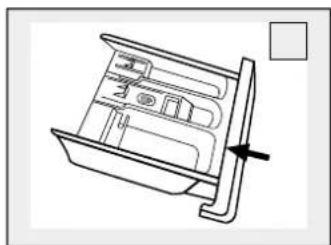

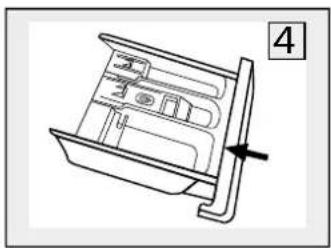

Detergent dispenser (normal)

Prelwash

Detergent

Softener

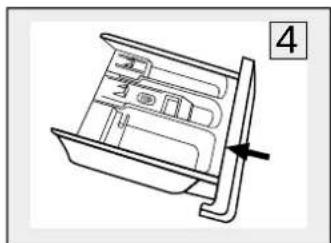

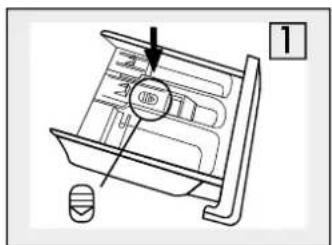

Press this button to remove the dispenser

Technical line drawings of two views of a water filtration or refrigeration unit (no text or symbols)

Note: It is only necessary to add detergent in "compartment I" after selecting the prewash function.

Recommendations for a good use of detergent

This table is for guidance only. The programs may not match the actual product.

Reccomended detergent Wash cycles Wash Temp. Fabric type
Intensive use with bleaching agents and optical brighteners.	Cotton, ECO 40-60, Mix, Bedding, Intensive.	40/60/90 White clothing	ing made of boil-proof cotton or linen.
Color detergent without bleaching agents or optical brighteners.	Cotton, ECO 40-60, Mix, Bed linen, Intensive, 20°C.	Cold/20/30/40 Colored	clothing made of cotton or linen.
Color or mild detergent without optical brighteners.	20°C. Cold/20 Colored garments		made of easy-care fibers or synthetic materials.
Mild washing detergent. Synthetic 20/30 Delicate garments, silk, viscose.
Special for wool. Wool 20/30/40 Wool

Note: The detergent or additive can be diluted in a little water before pouring it into the detergent dispenser to avoid blocking the detergent inlet and causing water overflow. Choose the right type of detergent for optimal washing performance and minimum water and energy consumption. To achieve the best result, proper detergent dosage is important. Use a reduced amount of detergent if the drum is not completely full.

Always adjust the amount of detergent to the hardness of the water, if the tap water is soft, use less detergent. Dose according to how dirty your laundry is, less dirty laundry requires less detergent.

The following symptoms are a sign of detergent overdose:

• Foaming.
• Poor washing and rinsing results.

The following symptoms are a sign of insufficient detergent dosage:

• Grey linen.
• build-up of limescale deposits on the drum, heating element and/or laundry.

Remarks:

White stains on dark fabrics are caused by insoluble compounds currently used in some phosphate-free powder detergents. If this occurs, shake or brush the fabric or use liquid detergents. Use only detergents and additives specifically manufactured for household washing machines.

When using descalers, dyes or bleaches during prewashing, make sure that they are suitable for domestic washing machines. Descalers may contain components that can damage your washing machine. Do not use solvents (turpentine, benzine...). Do not wash fabrics that have been treated with solvents or flammable liquids.

Dosing:

Follow the detergent manufacturer's dosage recommendations carefully.

It will depend on:

• Degree and type of soiling.
- Amount of laundry. Follow the detergent manufacturer's instructions for full loads; half load: 3/4 of a full load; minimum load (approx. 1 kg): 1/2 of a full load.
• Water hardness in your area. Soft water requires less detergent than hard water.

Twist and go!

Normally washing machines come with dozens of programmes, and Infiniton does too, but the reality is that we only use 3 of them. Synthetic, cotton and 30/40 degrees. That's why simplifying things is thinking about the customer. We assure you that our seniors will appreciate the efficiency and simplicity. Put Easy Play in your life. Turn the wheel, press play and that's it. Your clothes will be washed to perfection depending on the time you have available.

Logo of 'easyplay' play button with red triangle and multicolored segments (no text beyond logo design)

What's Easy play technology?

Introducing the easiest to use Infiniton washing machines. Infiniton washing machines with Easy Play technology are essentially the solution to do the laundry quickly and optimally.

At Infiniton we have a clear philosophy; technology should be within everyone's reach to improve our lives. An accessible and non-exclusive good.

Easy Play, a child's game!

With Easy Play technology in Infiniton washing machines, doing the laundry will be easier than ever. This technology helps you to program the washing machine in an intuitive way so that you don't have any problems in your day-to-day life. Select the temperature and type of fabric depending on the clothes you are going to wash, so you can be sure that your clothes will be perfect.

Hand pressing a button on a circular button (no text or symbols)

Turn on Select the

Simple diagram with a black circle and curved arrows, no text or symbols present

the right program

Select the function or keep the settings default

Press Start/Pause to start the program

Why Easy Play is essential?

Infiniton simplifies your life with our washing machines. These washing machines develop the best technology to make your life much easier.

Doing the laundry is no longer a chore. Make Easy Play and spend your time on the things that really matter. These washers not only take care of your most delicate clothes, they also protect everyday fabrics and textures.

Before starting any program

It is recommended to follow these 5 steps before starting any washing machine program:

Diagram showing a device with an open panel and a plug inserted, no text or symbols present

Connect

Illustration of a faucet with arrows indicating flow direction (no text or symbols)

Open the faucet

Diagram showing a biological structure with a curved arrow indicating rotation or movement (no text or symbols)

Loading clothes

Hand holding a cylindrical object with an arrow indicating rotation (no text or symbols)

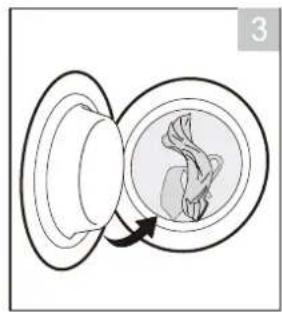

Closing the door

Add detergent

Important note:

It is necessary to add detergent in compartment I if the prewash function is selected.

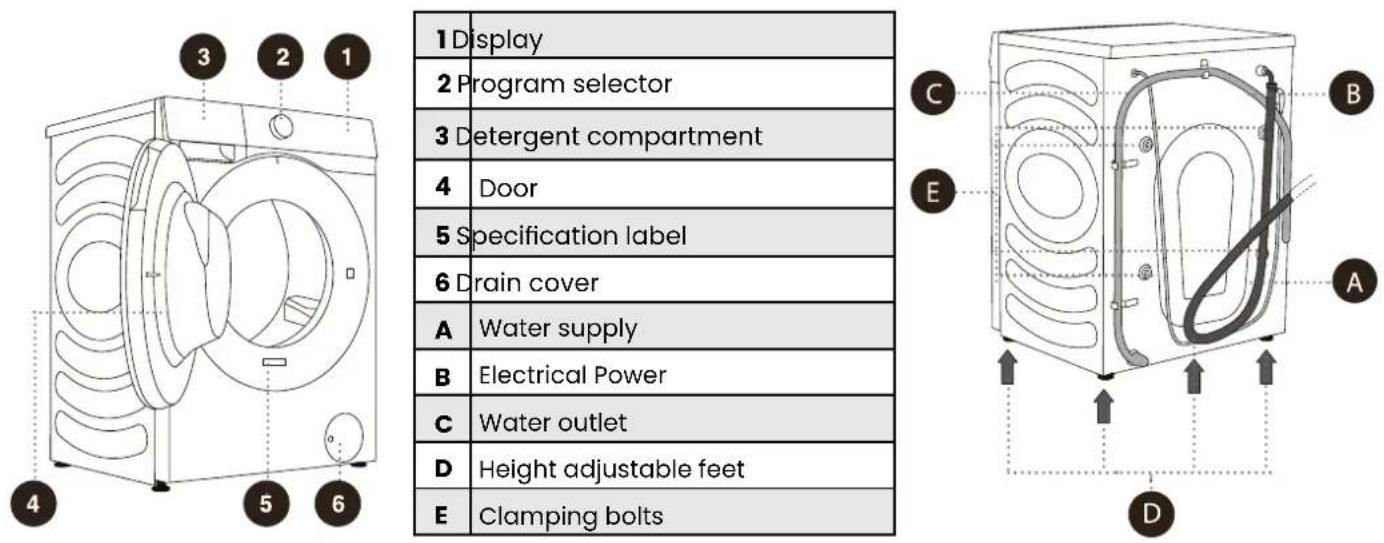

Product parts

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

Product dimensions (height x width x depth) 845 x 595 x	540mm
Maximum load capacity (Kg) 8 / 5
Rated voltage and frequency 220-240V ~ 50Hz
Rated current 10A
Total power (W) 1500
Water pressure (Mpa) Máxima (1Mpa) Mínima (0.05Mpa)
Number of programmes 15
Spin speed (rpm) 1400rpm

Control panel description

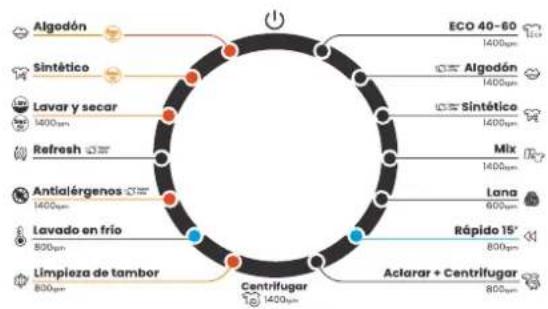

Programme's selector

- To select the desired programme, turn the programme selector clockwise or anticlockwise until the marker on the programme selector is on the desired programme.

- Make sure that the programme selector is set to the desired programme.

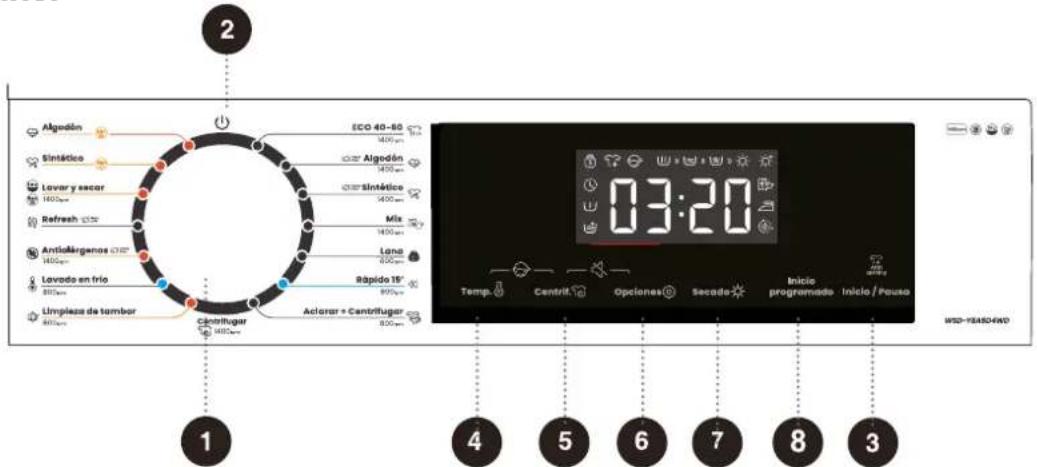

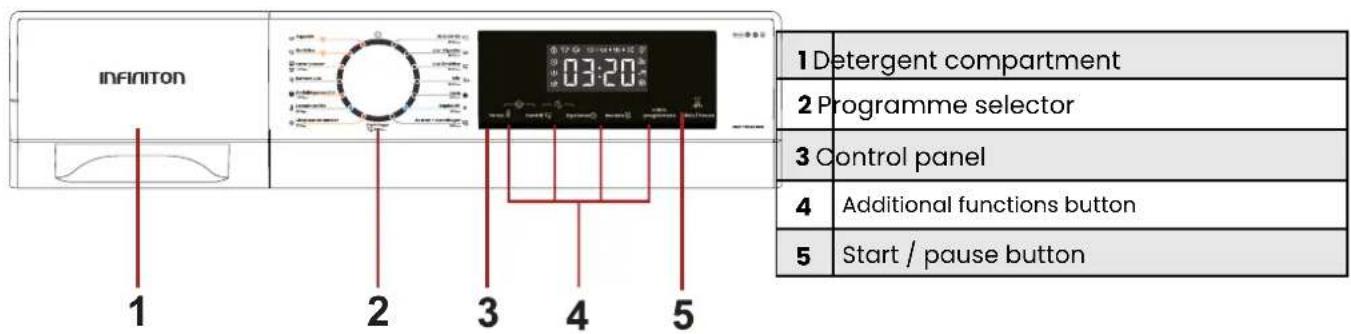

Control panel

1	PROGRAM SELECTOR - Turn the dial to select the desired wash program.
2	ON/OFF - Turn the program selector to turn the washer on/off.
3	START/PAUSE/ADD CLOTHING - Press this button to start or pause the selected program. Press 3sec to pause the cycle and add forgotten items.
4	TEMPERATURE - Press this button to change the preset temperature in the selected program.
5	SPIN - Press this button to change the preset spin speed in the selected program.
6	OPTIONS - Press this button to select additional functions.
7	DRYING - Press this button to select the level of drying you wish to apply.
8	PROGRAMMED START - With this button you can program the start/end of the selected program at a specific time.
4+5	CHILD LOCK - Press these two buttons at the same time to activate/deactivate the child lock.
5+6	MUTE - Press these two buttons to activate or deactivate the acoustic signals.

On / Off

To switch the washing machine on and off. Turn the washer on by turning the program selector. During program operation, if it is necessary to turn it off, turn the knob to the "ON/OFF" position to turn it off.

Start / Pause

To start a program or pause a program in progress. If the machine door is not closed or the door lock is not activated, the washer will not start and an alarm will be shown on the display. After starting a program, or when the pause state is selected, the set functions and parameters cannot be changed. Turn the machine off and turn the knob again to reset the programs and parameters.

Temperature

Changing the temperature of the selected program. Each program has a preset temperature which can be changed by pressing the TEMP. position (--indicates cold wash). The temperature is shown on the display unit above the button.

Spin

Allows you to adjust the spin speed. With the spin speed preset or selected, the selected spin speed will be illuminated on the display.

Options

In standby mode, press the "Options" button to select an additional function for the current program. Select only one function per press, then the corresponding icon flashes. After start-up, the program cannot be changed.

Prewash

Select this function to perform a prewash to improve the washing effects and better remove stains. This function is suitable for heavily soiled laundry. When selecting the prewash function, add detergent in the prewash compartment of the detergent dispenser.

Extra rinse

After setting the extra rinse function, the program runs the rinse process one more time before running the softening, and the total program run time increases accordingly.

Dry

Press the "Drying Level" button to select the drying time and additional drying functions. When the Iron, Wardrobe and Extra Drying functions are selected, the corresponding icon will light up and the remaining program time will be shown in the display window. When the [Drying Time] function is selected, the Drying Time icon will light up. The washer can detect the weight of the laundry to adjust the drying time automatically.

Before drying, confirm whether the laundry can be dried (refer to the program table to confirm the type of laundry that can be dried).

Before starting drying, make sure that the faucet is turned on and the cold water is in place.

Before drying separately, please remove the drained laundry from the drum, and put it in the drum after draining.

When drying small or light clothes, the drying time may be less than the set time.

If hand-washed laundry requires drying, before drying, please select the spin with the highest possible speed according to the types of laundry. It is recommended to select the "Spin + Drying level" program. At the end of drying, the washing machine will run for a period of time according to a certain rate to loosen the clothes and reduce wrinkling.

The excessive and dehydrated cotton linen fastening to the wall may affect the drying effect. Therefore, it is recommended to dry the clothes after loosening them manually.

Overload drying may affect the drying effect, while over-drying may cause the wrinkling of the clothes. For chemical fiber clothes, such as shirts, etc., the ironing mode should be selected.

If garments of different materials are dried together, the drying effect may be affected. Therefore, it is recommended to sort the laundry before drying.

If a drying failure occurs, refer to the contents of [Drying Failure] to solve it.

The [Iron] function allows you to iron the laundry with little water after drying.

The [Wardrobe] function allows you to use the laundry immediately after drying.

The [Extra Drying] function allows you to store the laundry after drying.

The [Drying Time] function allows drying the laundry for a certain time. Users press the "Drying Level" button to select any type of drying time with 6 types, including 30 minutes, 1 hour, 1.5 hours, 2 hours, 3 hours and 4 hours. Please select a reasonable drying time. Otherwise, the clothes will not dry completely if the drying time is too short.

Child lock

This is a safety feature. To activate it, press the Temp. and Spin positions simultaneously, and hold them down for at least 2 seconds, the Child Lock icon will light up, and the Child Lock will be activated. Repeat the same operation, and the Child Lock will be unlocked.

When the child lock is activated, all function buttons will be locked except the power function.

When the program is finished, the child lock is automatically unlocked.

Muting the acoustic signals

Use this option to deactivate or reset the acoustic signals.

When the machine is in standby, pause or run status, press the "Spin+Steam Care" buttons for 2 seconds, the mute function icon will appear on the display. All beeps will be deactivated except the alarms. When the washer is in this state, repeat the same operation until the mute function icon goes off. All beeps will be activated.

Door locking

Once the program has started, the door lock icon will light up. Do not force the door at this time to avoid damage.

When the washer is paused or after the program has finished, if the unlock conditions are met, the door lock will automatically unlock and the door lock icon will turn off.

ADD CLOTHING

This operation can be executed during the washing process when the drum is still rolling and there is a large amount of water with high temperature in the drum.

The operation mode is dangerous and the door will not be able to open with force. Press the Start/Pause button 3sec. to restart the wash, and start loading the laundry in the intermediate function.

Follow the steps below:

1. Wait until the drum stops spinning.
2. The door lock unlocks.
3. Close the door when the laundry is loaded and press the [Start/Pause] button.

Do not use the ADD CLOTHING function when the water level exceeds the edge of the inner tub or the temperature is too high.

Automatic Weighing

The washer displays “----” after power on, indicating that it is automatically performing the weighing. It will automatically adjust the program duration (hours: minutes) according to the weight of the laundry.

Delay End

1. Select a program

Press the Program Start button to select the time from 0-24h.

1. Press [Start/Pause] to start the operation.

Cancel the function:

Press the [Programmed Start] button before starting the program. If the program has already started, you must turn off the unit to restart.

Programme's Table

Programme Temperature range (°C)		Spin(rpm)	Max. laundry load	Type of laundry
ECO 40-60 40-60	1400 8.0/5.0			Normally soiled cotton clothing.
Algodón 20-30-40	-60-90 1400 8.0/5.0			Heavily soiled and moderately soiled cotton or linen clothes. For heavily soiled garments, select the prewash function.
Sintético 20-30-40	-60 1400 8.0/5.0			Moderately soiled synthetics, cotton blend fabrics.
Mix 20-30-40 1400	4.0/4.0			Suitable for lightly soiled cotton blended fabrics and chemical fiber fabrics.
Lana 20-30-40 600	2.0			The program is suitable for machine washable wool.
Rápido 15 20-30-40	800 1.0			The program is suitable for cotton and blended fabrics. It is suitable for new or lightly worked clothes. The washing time will be prolonged in case of changing the default settings.
Aclarar + Centrifugar	-- 1400 8.0/5.0			This program is preset to two rinses and spin.
Centrifugar -- 1400	8.0/5.0			In this program, you can manually select the duration and spin speed.
Limpieza de tambor	90 800 --			The program is used to clean the drum and remove any detergent residue and bacteria that may accumulate and develop especially when using programs with low wash temperatures. The drum must be clean. Run this program at least once a month.
Lavado en frío	20	1400 8.0/5.0		The program is suitable for lightly strained, low-wear cotton clothes.
Algodón (secadora)	---	5.0		Damp cotton and linen laundry can be dried after spin-drying.
Sintético (Secadora)	---	5.0		Clothes containing wet chemical fibers can be dried after spinning.
Refresh	--	--	2.0	It is suitable for removing unpleasant odors (such as the smell of smoke, barbecue, etc.) from clothes.
Lavar y secar	40-60 1400 5.0			For cleaning normally soiled cotton garments that are declared washable at 40°C or 60°C, together in the same cycle, and for drying them so that they can be immediately stored in a closet. This cycle is used to assess compliance with EU eco-design legislation for washing and drying.
Antialérgenos	40-60-90	1400 4.0/4.0		Suitable for high temperature resistant and less fading fabrics, which removes allergens by high temperature steam.

Programme Nominal capacity Kg.	Duration of program Hours: Minutes	Water consumption in liters/ operational cycle	Maximum Temperature ^^(1)	Residual moisture in % /centrifuged in rpm ^(2)	Energy consumption kwh/cycle
Lavado en frío	8.0 1:50 65.0 20 55%/1400	0.190
Algodón 20	8.0 2:09 68.0 20 53%/1400	0.240
Algodón 60	8.0 3:29 68.0 57 53%/1400	1.180
Mix	4.0 1:58 58.0 38 55%/1400	0.580
Rápido 15	1.0 0:30 18.0 38 55%/800 0.310
ECO 40-60 ^(3)	8.0 3:26 55.0 34 53%/1400	0.740
	4.0 2:48 40.0 30 53%/1400	0.372
	2.0 2:48 30.0 25 53%/1400	0.250

The above data are merely indicative and may vary depending on actual conditions of use.

1. The Eco 40-60 program is capable of cleaning normally soiled cotton laundry declared as washable between 40^ and 60^ in the same cycle, and that this program is used to assess compliance with EU eco-design legislation.
2. The power consumption of the off mode is 0.49W.
3. The most efficient programs in terms of energy consumption are generally those that operate at lower temperatures and for longer durations.
4. Loading the domestic washing machine to the capacity indicated by the manufacturer for the respective programs will contribute to energy and water savings.
5. Correct use of detergent, softeners and other additives. Do not over-apply detergent.

This may adversely affect the washing results.

1. Periodic cleaning, including optimum frequency, and limescale prevention and procedure.

2. Noise and remaining moisture content are influenced by spin speed.

3. Product information and QR code are reflected on the energy consumption label. Product registration information can be obtained by scanning the QR code.

4. Standard program information.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

Regular cleaning of this appliance helps to prolong its life.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

After using detergent, be sure to rinse it with clean water and then wipe it dry with a cloth.

Note: Never use metal scouring pads as this may damage painted, chrome and plastic surfaces.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the appliance, door gasket, plastic decorative parts, etc. to avoid damage. Carefully dry the door gasket, clean the groove with a wooden stick wrapped with cotton thread.

Cleaning the door

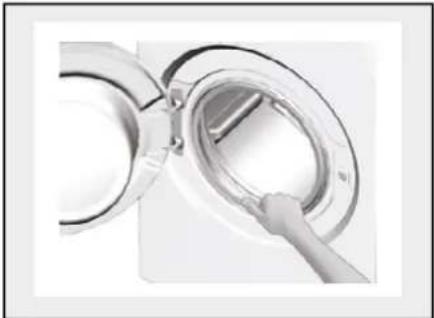

Clean the glass and door gasket after each wash to remove possible lint and/or detergent/softener residues, as leaks may occur.

If any rust stains are found inside the drum, they should be removed with non-chlorine detergent.

Close-up of a hand inserting a metallic ring into a circular housing (no text or symbols visible)

Cleaning of the detergent dispenser

1. Open the detergent dispenser, press the locking mechanism and pull out the dispenser completely from the opening.
2. Clean the dispenser with plenty of water to remove detergent and fabric softener residues.
3. Clean the dispenser shaft with a soft brush.
4. Insert the dispenser into the recess until the locking mechanism clicks.

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Illustration of a hand inserting a small object into a device (no text or symbols visible)

Line drawing of a mechanical or electronic component with internal compartments and a lever (no text or symbols)

Important! Depending on the model, the locking mechanism of the detergent dispenser may vary in symbol and location. The above figure is for reference only.

Note: Do not use abrasive or caustic type agents to clean the plastic parts.

Note: Perform a thorough cleaning of the detergent dispenser, following the above steps, at least once a month to ensure normal operation of the appliance.

Cleaning the inlet water filter

Note: If you notice a decrease in water flow, this is a sign that the filter needs to be cleaned.

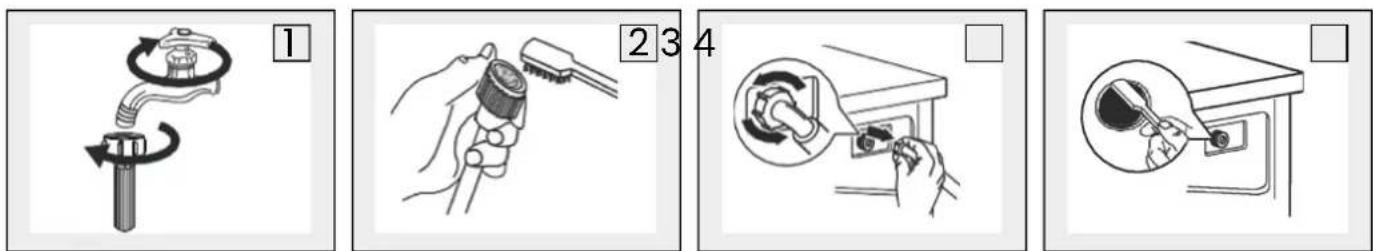

1. Close the tap and remove the water supply hose from the tap.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the back of the machine. Remove the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter in the water inlet and reconnect the water supply hose.
6. Clean the inlet filter every 3 months to ensure normal operation of the appliance.

Cleaning the drain pump filter

Note: Make sure that the machine has finished the washing cycle and is empty. Turn off the machine and unplug it before cleaning the drain pump filter.

Important! Be careful with hot water. Let the water cool down. Risk of scalding.

1. Open the bottom cover, located on the front of the washing machine.
2. Open the filter by turning it anticlockwise.
3. Carefully remove all foreign bodies inside.
4. Reinsert the filter by turning clockwise and close the lid.

Note: Clean the filter periodically every 3 months to ensure normal operation of the appliance.

Important! When the appliance is in use and depending on the selected programme, there may be hot water in the pump.

Never remove the pump cover during a washing cycle. always wait until the appliance has finished the cycle and is empty. When replacing the lid, make sure that it is tightened securely.

Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, contact customer service.

DESCRIPTION POSSIBLE CAUSE SOLUTION
Washing machine does not start	The door is not closed properly. Clothes get stuck	Check if the laundry is not correctly positioned. Close the door tightly and restart the machine.
Door does not open	The child lock may be activated (if available)	Disconnect from the mains and restart.
Small water leaks Water connections and drain hose		Check and secure the hose to the water inlet hose and water inlet hose and clean the water outlet hose.
Detergent residue in the dispenser	The detergent is wet and/or coagulated. In most cases this is usually due to the use of powder detergent.	Clean the detergent dispenser
Display does not work (If the model has a display)	Connection problem with the main board.	Disconnect from the mains and check that the mains plug is connected correctly.
Abnormal noise	The transport bolts have not been removed. The floor is unlevel .	Check whether all transport bolts have been correctly removed. Make sure that the appliance is level with the help of a level.
La ropa tiene restos de detergente.	Puede que con algunos deter- gentes aparezcan en la ropa partículas de detergente no disueltas en forma de puntos blancos.	Realice un aclarado adicional o limpie la ropa con un cepillo una vez que se haya secado.
Hay puntos grises en la colada. Hay aceite no tratado, crema o ungüento en la colada.		En el próximo lavado utilice la cantidad de detergente indica- da en el envase.
El ciclo de centrifugado no se realiza o se realiza después de lo esperado.	No es un fallo. Se ha activado el sistema de control de carga no homogénea.	El sistema de control de carga no homogénea intentará distribuir la ropa. El ciclo de centrifugado comenzará una vez que la ropa se haya distribuido. En el próximo lavado distribuya la ropa de forma homogénea en el interior del tambor.

Error code list

The following list will show you a number of error codes that may appear on your washer's display.

DESCRIPTION POSSIBLE CAUSE SOLUTION
F01	Water inlet failure. Check the following	Is the water supply tap open and the pressure too low?Is the water supply hose pinched?Is the water supply hose file clogged?Is the hose frozen?
F03	Drainage failure. Check the following	Is the hose pinched, does water flow through it?Is the drain hose filter clogged?Is the hose frozen?
F04/F98	Electronic module failure. Switch	the unit off.Press the start/pause button again. If the error persists, call for service.
F24	Water level reaches overflow level.	Stop the program by pressing the Stop/Pause button. Restart the program. If the appliance continues to pump water into the bath, turn off the water tap and call for service.
F13	Error when locking the door. The door is closed, but cannot be locked. Turn the appliance off. Turn it back on and restart the wash program. If the error persists, call for service.
F14	Door locking error. The door is closed but cannot be locked.Switch off the appliance. Switch it on again. If the error persists, call for service.
Unb	Unbalance alarm. The unbalance alarm shall be resolved by the following methods:1. windingTurn off the machine, open the door, shake out the laundry and put it back into the machine, then select the simple dewatering program to try again.2. Clothes too lightTurn off the machine, open the door, put in one or two towels, then select the simple de-water-ring program to try again.

INFINITON

Lavaseca

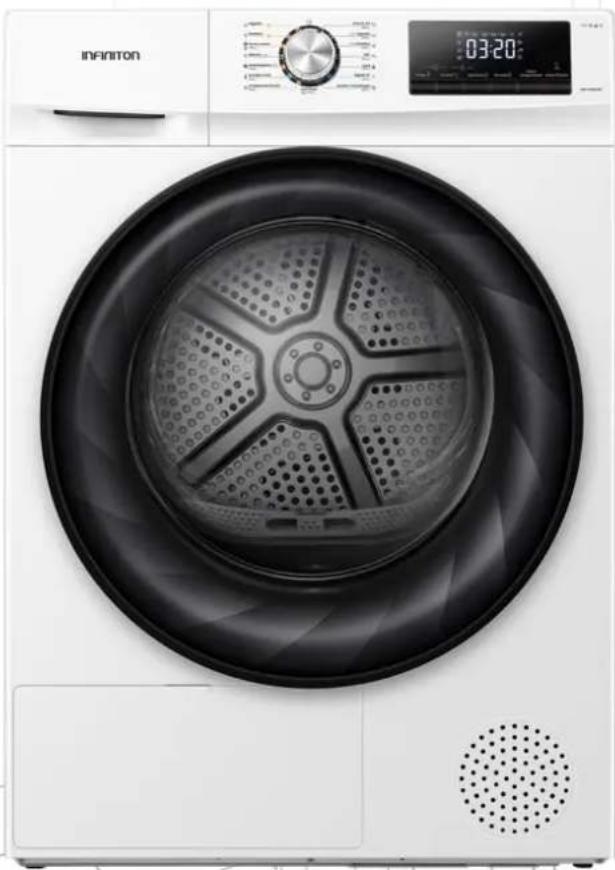

Front view of a white infinity washing machine with black circular vent and digital display (no visible text or symbols)

WSD-Y8A5D4WD

ean: 8445639005316

Indice

Português

Instalação 47

Simple line drawing of a mechanical setup with a block, circular components, and a cross mark (no text or symbols)

Simple line drawing of a container with a cross mark on a base, no text or symbols present.

Simple line drawing of a washing machine with a circular component and cross symbol, placed on a surface (no text or labels)

Transporte

Two stylized human figures pulling a gray rectangular block (no text or symbols)

Technical line drawing of a washing machine with mounting holes and internal chambers (no text or symbols)

Close-up of a metallic circular component with a wrench beside it (no visible text or symbols)

Close-up of a metallic mechanical knob or knob with a textured surface (no visible text or symbols)

Close-up of a white mechanical component with a circular hole and a striped pattern (no text or symbols visible)

Close-up of a white object with two arrows pointing to a circular object, no visible text or symbols

Close-up of a faucet with a pipe fitting and directional arrows indicating flow or movement (no text or symbols)

Illustration of a box with an arrow pointing upward, next to a magnified inset showing a building labeled 'A' (no text or symbols on the main diagram)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Simple line drawing of a sweater with a tag and label (no text or symbols on the sweater itself)

Two handbags with circular designs, one wrapped in a bow tie and the other in a segmented bag (no text or symbols)

Simple line drawing of a bag with a bag inside, containing a small animal (no text or symbols)

Line drawing of a knitted sweater with shoulder-length sleeves (no text or symbols)

Technical line drawings of a dual-chamber water heater device (no text or symbols)

Detergente recomendado Ciclos de lavagem Temp. De lavagem Tipo de matéria têxtil
Intensive use with bleaching agents and optical brighteners.	Algodón, ECO 40-60, Mix, Ropa de cama, Intensivo.	40/60/90 White clothing	thing made of boil-proof cotton or linen.
Color detergent without bleaching agents or optical brighteners.	Algodón, ECO 40-60, Mix, Ropa de cama, Intensivo, 20°C.	Frío/20/30/40 Colored	clothing made of cotton or linen.
Color or mild detergent without optical brighteners.	20°C. Frío/20 Colored garments		made of easy-care fibers or synthetic materials.
Mild washing detergent. Sintético	co 20/30 Delicate garments, silk,		viscose.
Special for wool. Lana 20/30/40	Wool

Logo of 'easyplay' play button with triangular play icon and multicolored segments (no text beyond logo design)

Simple diagram with a black circle and two curved arrows inside, surrounded by horizontal lines (no text or symbols)

o programa

Hand pointing at a circular button with a triangular play symbol (no text or numbers present)

Prima Iniciar/Pausa para iniciar o programa

Close-up of a hand holding a circular mechanical component, possibly a valve or pump unit (no text or symbols visible)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a faucet with rotating valve mechanism (no text or symbols)

Illustration of a hand holding a small cylindrical object with a tool inserted, labeled with number 2 and 3 (no text or symbols on the object itself)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Simple line drawing of a hand holding a magnifying glass over a device (no text or symbols)

Simple line drawing of a folding or folding mechanical component with a circular hole, no text or symbols present.

Hand holding a light bulb with rotating arrow inside a computer monitor (no text or symbols)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Model No. WSD-Y8A5D4WD
Capacity (kg) 8/5
Maximum Rotational Speed (rpm) 1400
Control (Electronic / Manual) Electronic
Adjustable feet (Yes / No?) Yes
Built-in device (Yes / No?) NO
Doorstop electromagnetic
Drum material Stainless Steel
Interior lighting (Yes / No?) Yes
Childlock (Yes / No?) Yes
Time remaining indicator (Yes / No?) Yes
Signal at the end of the program (Yes / No?) Yes
Number of programs 15
List of product-specific programs Delay End\Steam Refresh
Installation Type	Freestanding
Voltage (V)	220-240/50
Batteries Required? (Yes / No?)	NO
Display type	LED
Amount automatic (Yes / No?)	YES
Start time delay (Yes / No?) YES
Program	Eco 40-60
	Cotton
	Synthetics
	Mix
	Wool
	Quick 15'
	Rinse+Spin
	Spin
	Drum Clean
	20°C
	Allergy Care
	Steam Refresh
	Wash and Dry
	Synthetics Dry
	Cotton Dry
Specifications
Volume Of Inner Tub/L	54
Door opening angle/°	135
Porthole/mm	340
Door Outer Frame Diameter (outer)/mm	530
Net Dimensions (W*D*H)/mm	595x540x845
Gross Dimensions (W*D*H)/mm (Shrink film)	650x560x880
Net Weight/kg	59
Gross Weight/Kg 61
Loading Q'ty/40high	224

INFINITON

Soporte y contacto

¿Necesitas ayuda?

Silhouette icon of a person wearing a headset with a wrench inside (no text or symbols)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
