| Produktart | E-Rennrad / E-Gravel |
| Marke | SCOTT |
| Modell | Contessa Solace eRIDE 15 |
| Modelljahr | 2023 |
| Rahmengrößen | XS, S, M, L, XL |
| Rahmenmaterial | Carbon (vermutet) |
| Motor | TQ System (integrierter Mittelmotor) |
| Akku | TQ integrierter Akku |
| Display | TQ Display |
| Bremssystem | Hydraulische Scheibenbremsen |
| Sattelstütze | Syncros Duncan D-Shape SL |
| Sattelklemme | Addict RC Seatpost Clamp |
| Steuersatz | IS52/31.8 – IS52/40 |
| Maximale Reifenbreite | 50 mm (Gravel und Straße) |
| Maximaler vorderer Bremsrotor | 180 mm (min. 160 mm) |
| Maximaler hinterer Bremsrotor | 160 mm (min. 140 mm) |
| Garantie auf Rahmen | 5 Jahre bei jährlicher Wartung, sonst 3 Jahre |
| Wartungsintervall | Mindestens einmal jährlich durch autorisierten SCOTT-Händler |
| Ersatzteile | Erhältlich (siehe Ersatzteilliste im Handbuch) |
| Reinigung | Mit feuchtem Tuch und milder Seife |
Häufig gestellte Fragen - Contessa Solace eRIDE 15 SCOTT
Benutzerfragen zu Contessa Solace eRIDE 15 SCOTT
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Fahrrad kostenlos im PDF-Format! Finden Sie Ihr Handbuch Contessa Solace eRIDE 15 - SCOTT und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. Contessa Solace eRIDE 15 von der Marke SCOTT.
BEDIENUNGSANLEITUNG Contessa Solace eRIDE 15 SCOTT
2023 SCOTT
SOLACE eRIDE ROAD
& GRAVEL MANUAL
CONTENT
THE SOLACE eRIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.
Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.
GEOMETRY & TECHNICAL DATA 03
TQ SYSTEM MANUALS 04
CABLE ROUTING 05
SPARE PARTS 06
MANUFACTURE'S GUARANTEE 09
LEGEND
TORQUE REQUIRED
NO GREASE REQUIRED
GREASE REQUIRED
CARBON GREASE REQUIRED
THREADLOC REQUIRED
BEARING FIT REQUIRED
TORX TOOL SIZE
TORQUE AMOUNT
TASK DIFFICULTY
HEX TOOL SIZE
GEOMETRY & TECHNICAL DATA
SEATPOST Syncros Duncan D-Shape SL
SEATPOST CLAMP Addict RC Seatpost Clamp
HEADSET mm IS52/31.8 IS52/40
REAR AXLE mm 142
FRONT AXLE mm 100
MAX TYRE WIDTH mm 50 Gravel/50 Road
FORK STEERER in 11/4 - 11/2
MAX/MIN FRONT ROTOR mm 180/160
MAX/MIN REAR ROTOR mm 160/140
| MY23 SOLACE eRIDE | XS49 | S52 | M54 | L56 | XL58 | ||
| A Head tube angle | ° | 69.5 | 70 71 71 71 | ||||
| B Head tube length | mm 85 | 110 128 | 154 | 175 | |||
| C Top tube horizontal | mm | 518 | 534.2 | 554.5 | 578.4 | 592.5 | |
| D standover height | mm | 759 | 785 | 803 | 824 | 841 | |
| E BB offset | mm | 76 | 76 | 76 | 76 | 76 | |
| F BB height Road | mm | 283 | 283 | 283 | 283 | 283 | |
| BB height Gravel | mm | 294 | 294 | 294 | 294 | 294 | |
| G Wheelbase | mm | 1021.5 | 1030.1 | 1036.8 | 1056.2 | 1071.1 | |
| I BB center to TST | mm | 477 | 507 | 527 | 547 | 567 | |
| J Seat angle | ° | 74.5 | 74 | 73.5 | 73 | 73 | |
| K Chainstay | mm | 435 | 435 | 435 | 435 | 435 | |
| L Reach | mm | 374 | 378 | 387 | 398 | 406 | |
| M Stack | mm | 519.3 | 544.7 | 565.6 | 590.2 | 610 | |
| Fork Length | mm | 406 | 406 | 406 | 406 | 406 | |
| Fork Rake | mm | 50 | 50 | 50 | 50 | 50 | |
SOLACE eRIDE
GEOMETRY & TECHNICAL DATA
When removing and re-attaching the rear wheel to the frame make sure the non drive side dropout has both the indicated parts correctly positioned inside the dropout before inserting the rear axle.
TQ SYSTEM MANUALS
Charger Manual
Motor Manual
Battery Manual
Display Manual
Range Extender Manual
SOLACE eRIDE
CABLE ROUTING
Mechanical
TQ System
SOLACE eRIDE
SPARE PARTS
297262 SCO eRIDE FD MOUNT & BLANK SOLACE 23
297135 SCO eRIDE TQ INTERNAL CABLE GUIDE 23
297667 SCO ERIDE CABLE GUIDES C-STAY SOLACE 23
297521 SCO HEADSET TOP CAP CRESTON 23 288249 SYN HEADSET IS52/31.8 - IS52/42
297516 SCO eRIDE INTERNAL CABLEGUIDE 23
SOLACE eRIDE
SPARE PARTS CONT.
277543 SCO SEATCLAMP ADDICT RC 20
277028 SCO AXLE FRONT ADDICT RC/PLASMA 6 TP 20 419858 SCO AXLE SOLACE R 23
286000 SCO DROPOUT SRAM UDH 21
297263 SCO eRIDE MOTOR COVER SOLACE 23
296623 SYN FRAME PROTECTION KIT SOLACE eRIDE 420008 SCO SOLACE eRIDE CHAINSTAY PROTECTOR 420009 SCO SOLACE eRIDE CHAINSTAY PROTECT.PLATE
SOLACE eRIDE
SPARE PARTS CONT.
292915 SYN FENDER SET SOLACE GRAVEL eRIDE
292914 SYN FENDER SET SOLACE ROAD eRIDE
296220 SCO eRIDE TQ SMART BOX 23
296217 SCO eRIDE TQ LOCKRING SET 23
294533 SYN KICKSTAND ROAD eRIDE TQ 2 BOLT
294537 SCO eRIDE TQ RANGE EXTENDER
294539 SCO eRIDE TQ RANGE EXT. CABLE ROAD/GR
294540 SCO eRIDE TQ RANGER EXTENDER HOLDER
MANUFACTURER'S GUARANTEE,
When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.
CONDITIONS
The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.

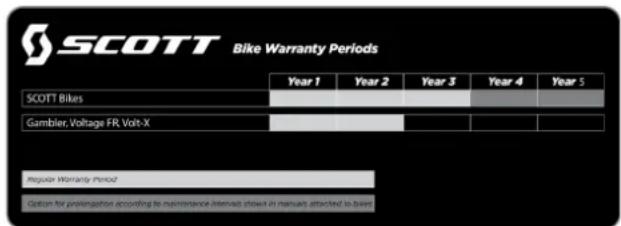

DURATION
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.
ASSERTION
The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.
Performance of SCOTT in the event of a guarantee claim
In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.
LIMITATIONS
The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.
The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.
The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.
MISCELLANEOUS
These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,
SRAM etc.) remain unaffected by this manufacturer's guarantee.
The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.
© SCOTT Sports SA 2023. All rights reserved.
The information contained in this manual is in various languages but only the English version will be relevant in case of conflict.
P.E.D Zone C1, Rue Du Kiell 60 | 6790 Aubange | BelgiumDistribution: SSG (Europe) Distribution Center SA SCOTT Sports SA | 11 Route du Crochet | 1762 Givisiez | 2022 SCOTT Sports SA www.scott-sports.com Email: webmaster.marketing@scott-sports.com
