Contessa Addict eRIDE 15 - Fahrrad SCOTT - Kostenlose Bedienungsanleitung

Produkttyp	Elektro-Rennrad
Marke	SCOTT
Modell	Contessa Addict eRIDE 15
Rahmenmaterial	Carbon (nicht explizit genannt, aber typisch für Addict eRIDE)
Motortyp	Mahle X20 Hinterradnabenmotor
Akku	Interner Akku + optionaler Range Extender 185 Wh
Ladegerät	Active Charger mit CAN BUS, 0–4,5 A, Micro-USB-Anschluss
Display	PulsarONE (kompatibel mit X20-System)
Bedienelement	Ein/Aus, Unterstützungsstufen, Licht, RGB-Dynamic-Line
Unterstützungsstufen	4 Stufen: Grau (keine), Grün (1), Orange (2), Rot (3); Blau (Auto)
Rahmengrößen	XS, SM, MED, LG, XL
Steuerrohrwinkel	71°–73,3° (je nach Größe)
Sitzrohrwinkel	75°–73,1° (je nach Größe)
Überstandshöhe	752–843 mm (je nach Größe)
Tretlagerhöhe	279 mm
Radstand	995–1015 mm (je nach Größe)
Bremsscheibengröße (max.)	160 mm vorne und hinten
Reifengröße (max.)	32 mm
Hinterachse	12x142 mm, kompatibel mit Standard-Nichtmotorrad
Gabel	SCOTT Gabel mit 45 mm Nachlauf
Steuersatz	IS52/31.8 – IS52/42 (SYN HEADSET)
Sattelstütze	Carbonfett empfohlen
Garantie Rahmen	5 Jahre (bei jährlicher Wartung durch autorisierten Händler), sonst 3 Jahre
Garantie Kategorie 5 Modelle	2 Jahre
Zubehör im Lieferumfang	Ladegerät, Bedienungsanleitung

Häufig gestellte Fragen - Contessa Addict eRIDE 15 SCOTT

Wie lade ich den Akku des Contessa Addict eRIDE 15?

Verwenden Sie das mitgelieferte Active Charger und schließen Sie es an die Ladebuchse am Rahmen an. Der Ladevorgang dauert je nach Akkustand und gewählter Stromstärke (0–4,5 A) unterschiedlich lang. Der Ladezustand wird am Display oder über die RGB Dynamic Line angezeigt.

Welche Unterstützungsstufen gibt es?

Es gibt vier Stufen: Grau (keine Unterstützung), Grün (Stufe 1), Orange (Stufe 2), Rot (Stufe 3) sowie einen automatischen Modus (blau), der die Unterstützung an die Fahrsituation anpasst.

Kann ich einen Range Extender nachrüsten?

Ja, der optionale X20 Range Extender (185 Wh) kann in einen handelsüblichen Flaschenhalter montiert werden. Er versorgt das System auch dann mit Strom, wenn der interne Akku leer ist. Achten Sie darauf, dass nur der X20 Range Extender mit dem X20 System kompatibel ist.

Wie reinige ich das E-Bike richtig?

Verwenden Sie ein weiches Tuch und mildes Reinigungsmittel. Vermeiden Sie Hochdruckreiniger, da Wasser in empfindliche Komponenten wie Motor und Akku eindringen kann. Trocknen Sie das Bike nach der Reinigung gründlich ab.

Welche Reifengröße ist maximal zulässig?

Die maximale Reifengröße beträgt 32 mm. Größere Reifen könnten am Rahmen oder an der Gabel schleifen.

Wie stelle ich den Sattel richtig ein?

Lockern Sie die Sattelstützenklemme (SCOTT Seatclamp Addict RC 20) mit einem Inbusschlüssel. Stellen Sie die Sattelhöhe so ein, dass Ihr Bein bei durchgetretenem Pedal leicht gebeugt ist. Verwenden Sie Carbonfett auf der Sattelstütze, um ein Verkleben zu verhindern. Ziehen Sie die Klemme mit dem empfohlenen Drehmoment an.

Was muss ich bei der Montage der Hinterradbremsscheibe beachten?

Die Bremsscheibe muss eng anliegend über den Motorstecker geschoben werden. Achten Sie auf die korrekte Position: Der Stecker wird hinter der Scheibe verlegt, sodass die Endkappe durch das Loch der Bremsscheibe passt. Ziehen Sie die Schrauben mit dem richtigen Drehmoment an.

Kann ich das Display nachrüsten?

Ja, das X20 System ist mit dem PulsarONE Display kompatibel (Teilenummer 285950). Es kann nachträglich montiert werden und zeigt Geschwindigkeit, Akkustand, Unterstützungsstufe und weitere Daten an.

Wie aktualisiere ich die Firmware des Systems?

Schließen Sie das Ladegerät über den Micro-USB-Anschluss an einen Computer an. Mit der entsprechenden Software (z. B. über die SCOTT App) können Updates direkt auf das System gespielt werden. Wenden Sie sich bei Fragen an Ihren SCOTT Händler.

Was ist bei der Garantie zu beachten?

Die Herstellergarantie beträgt 5 Jahre auf Rahmen und Hinterbau, sofern das Bike jährlich von einem autorisierten SCOTT Händler gewartet wird. Ohne jährliche Wartung reduziert sich die Garantie auf 3 Jahre. Die Garantie muss innerhalb von 10 Tagen nach Kauf unter www.scott-sports.com registriert werden. Bewahren Sie den Original-Kaufbeleg auf.

BEDIENUNGSANLEITUNG Contessa Addict eRIDE 15 SCOTT

2022 S C OT T

ADDICT eRIDE

MANUAL

CONTENT

THE ADDICT ERIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

GEOMETRY & TECHNICAL DATA 03

DROPOUTS & AXLES 04

REAR BRAKE DISC MOUNTING 06

CONTROL & RANGE EXTENDER 07

CHARGER & DISPLAY 08

HEADSET OPTIONS 09

STEM / SEATPOST / CABLE GUIDE OPTIONS 10

MANUFACTURE'S GUARANTEE 11

Before taking delivery of your new Addict eRIDE, please make sure you understand how the bike functions in regard to the drive system, battery, and controls.

Your Authorized Scott Dealer can explain how the bike functions, and how the consumer APP (iTunes & Android) is connected to the system.

APPLE STORE GOOGLE PLA

TORQUE REQUIRED TORX TOOL SIZE

NO GREASE REQUIRED

GREASE REQUIRED

THREADLOC REQUIRED

BEARING FIT REQUIRED

TORQUE AMOUNT

TASK DIFFICULTY

HEX TOOL SIZE

GEOMETRY & TECHNICAL DATA

Max/Min Rotor Size:

• Front 160mm Only
• Rear 160mm Only

Max Rotor bolt size:

10mm (standard disc bolt length)

Max Tyre Size:

32mm

	MY22 ADDICT eRIDE	XS	SM	MED	LG	XL
A	Head tube angle	71°	72°	72.5°	73°	73.3°
B	Head tube length	105 mm	125 mm	145 mm	165 mm	185 mm
C	Top tube horizontal	515 mm	530 mm	545 mm	560 mm	575 mm
D	standover height	752 mm	776 mm	799 mm	822 mm	843 mm
E	BB offset	-70 mm	-70 mm	-70 mm	-70 mm	-70 mm
F	BB height	279 mm	279 mm	279 mm	279 mm	279 mm
G	Wheelbase	995.1 mm	997 mm	1002.6 mm	1007.5 mm	1014.8 mm
H	BB center to top tube center	435 mm	460 mm	485 mm	510 mm	535 mm
I	BB center to top of seat tube	490 mm	520 mm	540 mm	560 mm	580 mm
J	Seat angle	75°	74.5°	74°	73.5°	73.1°
K	Chainstay	422 mm	422 mm	422 mm	422 mm	422 mm
L	Reach	373.2 mm	377 mm	380.9 mm	384.3 mm	388.6 mm
	Stack	529.1 mm	551.6 mm	572.4 mm	593.3 mm	613.6 mm
	Fork Rake	45°	45°	45°	45°	45°

DROPOUTS & AXLES

The X20 features a new rear hub motor with a 12x142 mm axle.

The X20 features an easy slip in system of the wheel. This means the motor auto connects with the system when the rear wheel is inserted into the dropout.

Make sure the hub sensor is clean & located correctly into the dropout.

290053 SCO eRIDE Mahle Addict Dropout L/H/S 22

For the right-hand side drop out hanger the frame features the same dropouts' options as the Addict RC.

The new frame now as well share the same rear axle as Addict RC, this means the bike can now be used with a standard non-motorised 12x142mm wheel.

277030 SCO Axle rear Addict RC/Plasma 6 20

DROPOUTS & AXLES cont.

part number:

277544 SCO Dropout Addict RC 20

277545 SCO Dropout Addict RC direct mount 20

part number:

277028 SCO Axle Front Addict RC/Plasma 6 TP 20

REAR BRAKE DISC MOUNTING

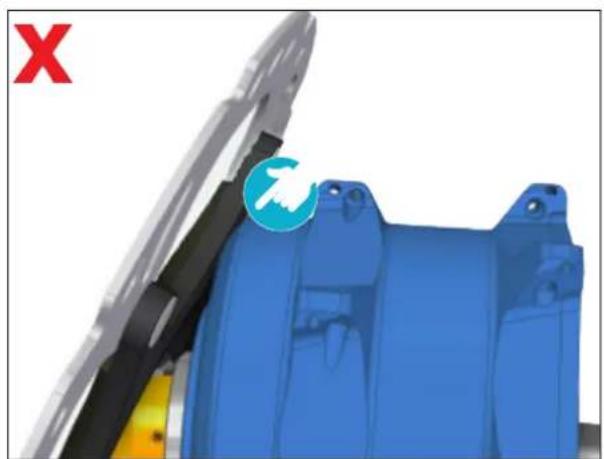

PLEASE TAKE EXTRA CARE WHEN INSTALLING THE REAR DISC ROTOR AS THE ROTOR WILL HAVE A TIGHT FIT WHEN INSTALLING IT OVER THE MOTOR CONNECTOR.

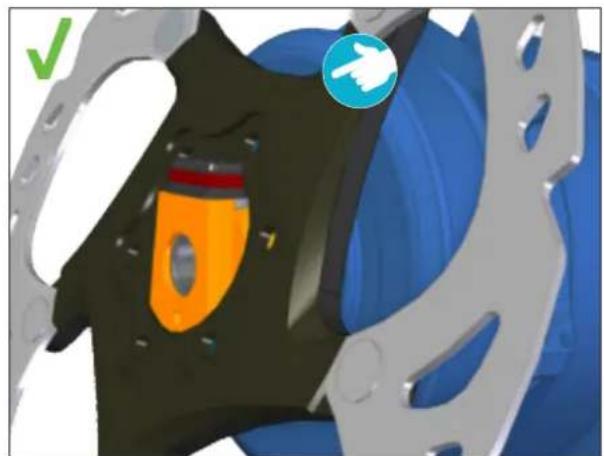

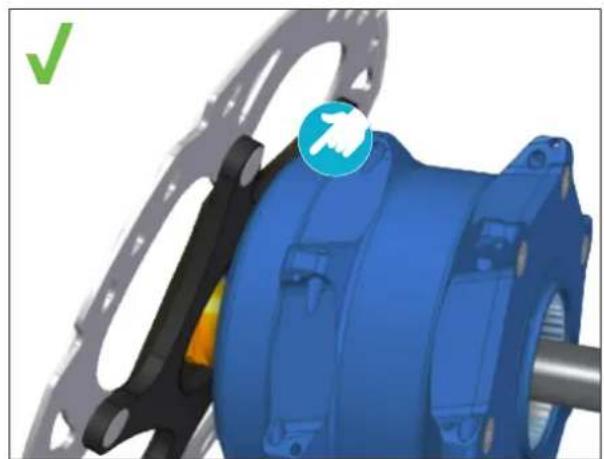

TAKE NOTE OF THE CORRECT DISC ROTOR POSITION AS HIGHLIGHTED BELOW. ONCE THE CONNECTOR IS BEHIND THE ROTOR, THE END CAP CAN GO THROUGH THE BRAKE DISC HOLE.

CONTROL & RANGE EXTENDER

Control Button

On/Off _ Assistance Level_Light On/ Off

Ambient Light Sensor

Adaptation of the bicycle components (lights etc).

RGB Dynamic Line

Battery Level (area filled)

Assist Level (by colour)

System Info (animation of the line)

The new X20 Range Extender is a second battery (185 Wh) and direct power supply to the X20 system. This means the Range Extender can support the bike even if the internal battery has been drained of power.

The X20 and X35 are not cross compatible. The X20 Range Extender has as a new smaller size to fit any standard bottle cage on the market, no special Range Extender cage from Mahle is needed.

GREY: No

Assistance

GREEN: Level 1

ORANGE: Level 2

RED: Level 3

BLUE: Automatic

Assistance Mode

288538 SCO RIDE Mahle Addict Booster 2 battery

CHARGER & DISPLAY

The new Active Charger includes CAN BUS for real time communication with the battery.

This direct communication combined with a more powerful converter allows the battery to be charged at different intensities from 0 to 4.5A making the charging process faster and more efficient.

The micro USB port on the charger provides an additional connecting point which allows future updates to be made to the full eBike system directly.

The charger is not cross compatible with different systems!

The X20 system is compatible with the PulsarONE display.

285950 SCO eRIDE Mahle Addict PULSARONE display

294434 SCO eRIDE Mahle Addict Charger 2

HEADSET OPTIONS

part number:

277547 SCO STEM SPACER KIT SY CREST IC

part number:

277548 SCO STEM SPACER KIT SY RR IC

part number:

275466 SYN HEADSET IS52/31.8 - IS52/42

part number:

277550 SCO STEM STEERER CAP SY CREST IC

part number:

277549 SCO STEM STEERER CAP SY RR IC

STEM / SEATPOST / CABLE GUIDE OPTIONS

part number:

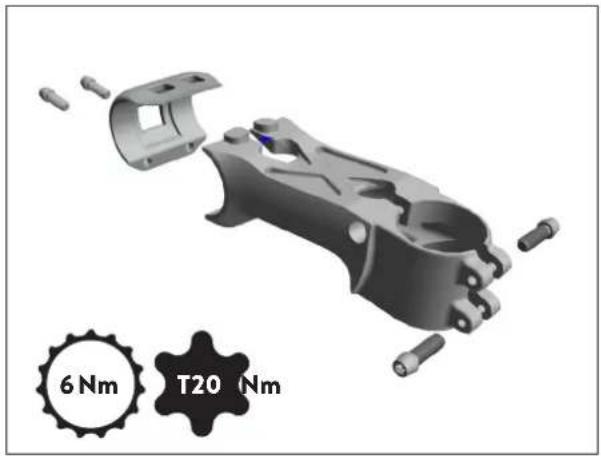

275472 SCO Stem hardware kit Fras iC, Crest iC

part number:

275431 SYN Stem RR 1.5

part number:

277042 SCO Stem top cover SY RR iC

part number:

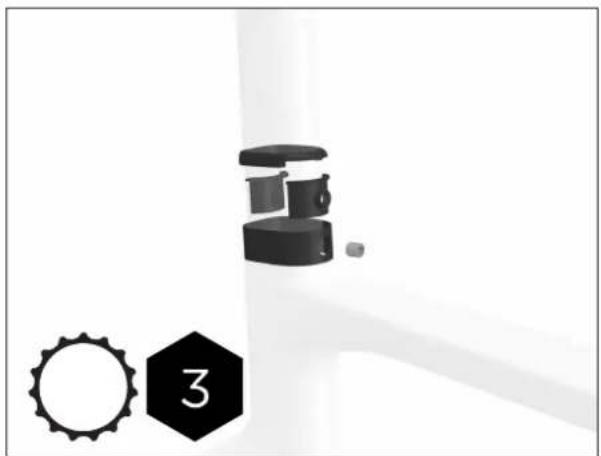

277543 SCO Seatclamp Addict RC 20

Use carbon grease on the seatpost.

Cable guide kit part number:

277025 SCO Cableguide kit Addict RC D 20

MANUFACTURER'S GUARANTEE,

When purchasing a new SCOTT bicycle from an authorized SCOTT dealer, SCOTT grants a manufacturer's guarantee subject to the following provisions.

CONDITIONS

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.

DURATION

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the SCOTT manual and must be confirmed there by the stamp and signature of the authorized SCOTT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer's guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.

ASSERTION

The manufacturer's guarantee is provided by SCOTT Sports SA, Route du Crochet 11, 1762 Givisiez, Switzerland. The buyer must inspect the SCOTT bicycle immediately after purchase and notify his authorized SCOTT dealer at once in writing of any obvious defects. Hidden defects must be reported immediately after their discovery. In the event of a guarantee claim, the SCOTT bicycle must be handed over to an authorized SCOTT dealer. The latter will contact SCOTT to remedy the defect. The assertion of a guarantee claim always requires the presentation of the original proof of purchase as well as the proof of maintenance service in the SCOTT manual.

Performance of SCOTT in the event of a guarantee claim

In the event of a guarantee claim, SCOTT will, at its own discretion, repair the defect or replace the defective product with a product of similar quality, whereby colour and model deviations are possible. If a repair or replacement is not possible, a purchase price refund will be made taking into account previous use. SCOTT is entitled to commission third parties to remedy the defect.

LIMITATIONS

The manufacturer's guarantee applies exclusively to frames, swingarms and rigid forks of SCOTT bicycles. Bicycle components are excluded from this manufacturer's guarantee.

The manufacturer's guarantee does not apply to normal wear and tear, damage caused by accidents or other excessive force on the SCOTT bicycle, corrosion, improper maintenance, incorrect assembly and assembly of unsuitable components or accessories as well as cosmetic defects, for example in the varnish.

The manufacturer's guarantee does not apply to SCOTT bicycles that have been used in a rental shop.

MISCELLANEOUS

These manufacturer's guarantee provisions apply to all SCOTT bicycles as of model year 2023. Statutory warranty rights of the buyer and guarantees of component manufacturers (Shimano,

SRAM etc.) remain unaffected by this manufacturer's guarantee.

The place of jurisdiction for all disputes in connection with this manufacturer's guarantee is Freiburg, Switzerland. This manufacturer's guarantee is subject to Swiss law to the exclusion of all legislation that refers to foreign law.

© SCOTT Sports SA 2022. All rights reserved.

The information contained in this manual is in various languages but only the English version will be relevant in case of conflict.

P.E.D Zone C1, Rue Du Kiell 60 | 6790 Aubange | BelgiumDistribution: SSG (Europe) Distribution Center SA SCOTT Sports SA | 11 Route du Crochet | 1762 Givisiez | 2022 SCOTT Sports SA www.scott-sports.com Email: [e-mail]
