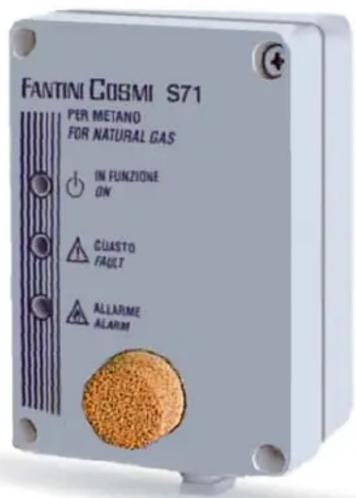

S71 - Gasmelder Fantini Cosmi - Kostenlose Bedienungsanleitung

Produkttyp	Gasmelder (Sensor)
Marke	Fantini Cosmi
Modell	S71
Gaseart	Methan, Stadtgas (leichte Gase)
Betriebstemperatur	-10 °C bis 50 °C
Schutzart	IP54
Abmessungen (B × H × T)	76 mm × 128 mm × 65 mm
Gewicht	0,18 kg
Versorgungsspannung	12 V DC (vom Steuergerät P30A)
Anschluss	Kabelgebunden an Steuergerät P30A
Anzeigen	Grüne LED (Betrieb), rote LED (Alarm), orange LED (Störung)
Alarmausgang	Alarmsignal an Steuergerät (potentialfreier Kontakt)
Installationshöhe	30–40 cm unter der Decke (für leichte Gase)
Normen	EN 60730-1, CE, EAC
Gehäusematerial	Schlagfestes Isoliermaterial
Farbe	Weiß
Verwendung	In Verbindung mit Steuergerät P30A
Lieferumfang	Sensor und Montagematerial
Wartung	Jährliche Funktionsprüfung empfohlen
Sicherheit	Positive Sicherheit (Unterbrechung der Verbindung löst Alarm aus)
Einsatzbereich	Innenräume
Lebensdauer	Ca. 5 Jahre (Sensor)

Häufig gestellte Fragen - S71 Fantini Cosmi

Wie installiere ich den S71 Gasmelder richtig?

Welche Gase erkennt der S71?

Was bedeuten die LEDs am Gerät?

Was tun, wenn der Alarm auslöst?

Wie teste ich den S71?

Kann ich den S71 selbst reinigen?

Ist der S71 mit anderen Steuergeräten kompatibel?

Wo soll der Melder montiert werden?

Wie lange ist die Lebensdauer des Sensors?

Gibt es eine Garantie auf den S71?

BEDIENUNGSANLEITUNG S71 Fantini Cosmi

S71-S72

Gas detection sensors for control units P30A

Combustible gas detection sensors to be used with the electronic control units P30A. The sensors are available in 2 versions: S71 for methane gas and city gas, S72 for LPG.

Gas type Operating ambient

temperature
Protection degree

S71 Methane gas, or other light gases - 10 ÷ 50 °C IP54
S72 LPG gas (cylinder liquid gas) or other heavy gases - 10 ÷ 50 °C IP54

INSTALLATION

Wall mounting.

Detection sensors should be fixed on the wall at a distance of approximately 2 meters from the gas using device in such position in order to allow natural air circulation:

S71 for specific light gases (methane gas, city gas), this sensor has to be installed at a high level approximately 30-40 cm from the ceiling.
S72 for heavy gases (cylinder liquid gas LPG), this sensor has to be installed to a low level approximately 30-40 cm above the floor.

Avoid installing the sensors:

■ behind barriers that hinder the air natural circulation in the environment.

• near vents (keeping a minimum distance of 2 meters).
  ■ away from steam, smoke and other fumes.

Remove the cover by unscrewing the four front screws.

Install the base on the wall using for the cable input the appropriate cable gland.

Complies with EN 60730-1 standards

CE EAC

OPERATION

The intervention threshold of the sensors is adjusted in the factory to a value that allows the signaling of gas presence at a concentration much lower than the danger limits.

The sensors are provided with an intervention light signaling and the connections with the control unit have positive safety (their disconnection causes the detector intervention).

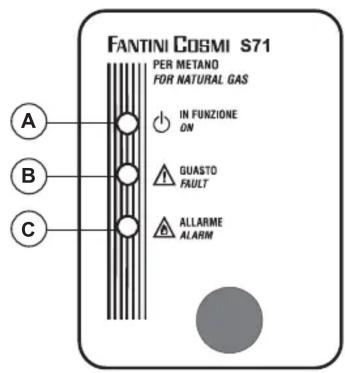

A Voltage indicator: always switched on.
B Sensor failure indicator.
C Alarm sensor indicator: normally switched off, it operates and remains on for all the time during which the detected gas concentration is above the prescribed value.

ELECTRICAL CHARACTERISTICS

Casing in shockproof insulating material.

Green LED to indicate power supply.

Red LED to indicate triggering.

Orange LED to indicate sensor failure.

Positive safety connections with the detector (the control unit detects an error, in case of incorrect connections or interruption of the connection).

Unit weight 0,18 Kg.
