BEDIENUNGSANLEITUNG CBE-1000 Zephyr

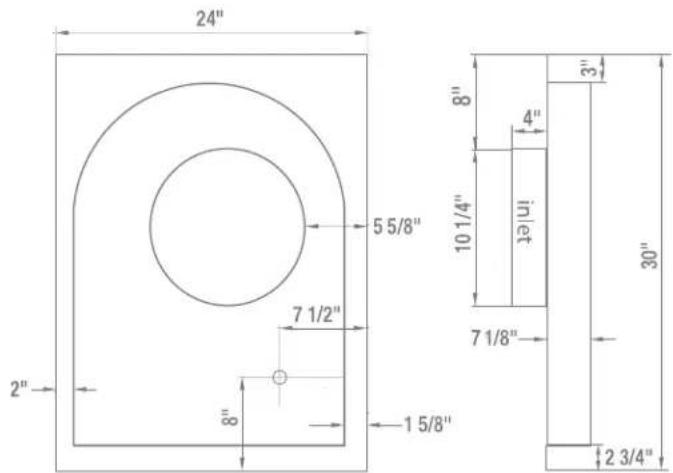

CBE-1000
(external)


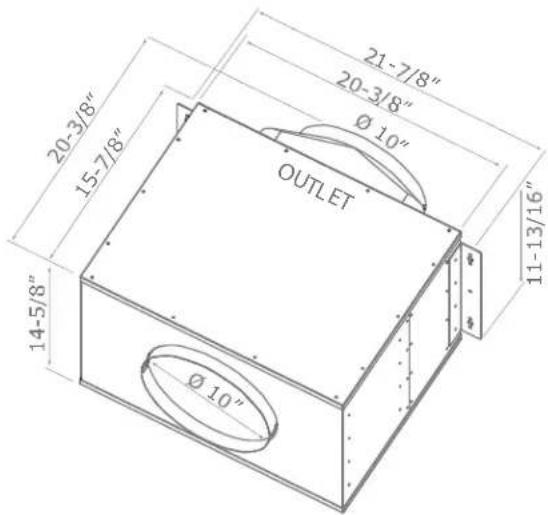

(in-line)
| MODEL | BLOWER TYPE | MAX WATTS* | MAX AMPS* | CFM | SONES | COMPATIBLE MODELS |
| CBI-290A | Single Internal | 77 | 0.75 | 200 - 290 | 1.4 - 3 | CCA, COK, CTP, Arc Collection |
| CBI-290B | Single Internal | 77 | 0.75 | 200 - 290 | 1.4 - 3 | AK83 |
| CBI-600A | Single Internal | 320 | 2.75 | 240 - 600 | 1.8 - 6 | CCA, COK, CTP, Arc Collection |
| CBI-600B | Single Internal | 320 | 2.75 | 240 - 600 | 1.8 - 6 | AK83, AK78 |
| EBI-600B | Single Internal | 450 | 3.75 | 240 - 600 | 2.3 - 9 | CPA |
| PBI-1100A | Dual Internal | 640 | 5.45 | 500 - 1,100 | 3.5 - 8 | AK83, AK78, ALU-E43ASX |
| PBD-1200A | Dual Internal | 660 | 5.8 | 400 - 1,200 | 3.5 - 9 | AK70xxBS, AK75xxBS |
| CBE-1000** | External | 700 | 6.25 | 500 - 1,000 | NA | AK83, AK78, Cheng Collection, Arc Collection |
| PBN-1000A** | In-line | 640 | 5.45 | 500 - 1,000 | NA | AK83, AK78, Cheng Collection, Arc Collection |
*Add blower Watts and Amps to AC Power details from hood spec sheet to determin total power consumption. **For Cheng, Arc Collection and AK83 hoods you must transition from 10" to 8" ducting before duct passes through ceiling. A 10" to 8" adapter is included with external and in-line blowers. The exception to this is ALU-E43ASX which uses a 10" round.
