BEDIENUNGSANLEITUNG S0111 Ricoo


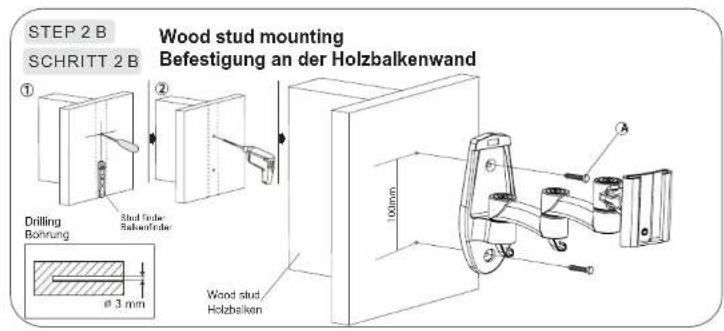

STEP 2 B SCHRITT 2 B Wood stud mounting Befestigung an der Holzbalkenwand Drilling Bohrung Stud fader Sahonfelder 100mm φ 3 mm Wood stud/ Holzbalken


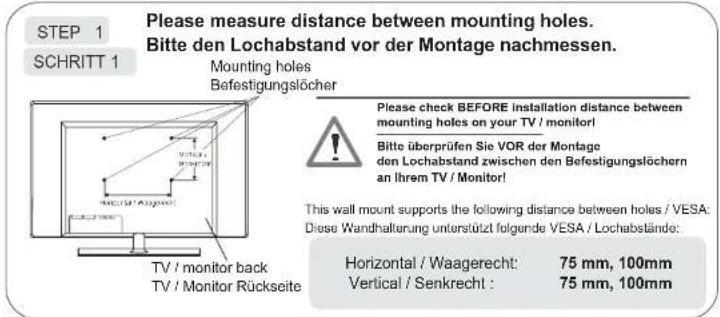

STEP 1 SCHRITT 1 Please measure distance between mounting holes. Bitte den Lochabstand vor der Montage nachmessen. Mounting holes Befestigungslöcher Please check BEFORE installation distance between mounting holes on your TV / monitor! Bitte überprüfen Sie VOR der Montage den Lochabstand zwischen den Befestigungslöchern an Ihrem TV / Monitor! This wall mount supports the following distance between holes / VESA: Diese Wandhalterung unterstützt folgende VESA / Lochabstände: Horizontal / Waagerecht: 75 mm, 100mm Vertical / Senkrecht : 75 mm, 100mm


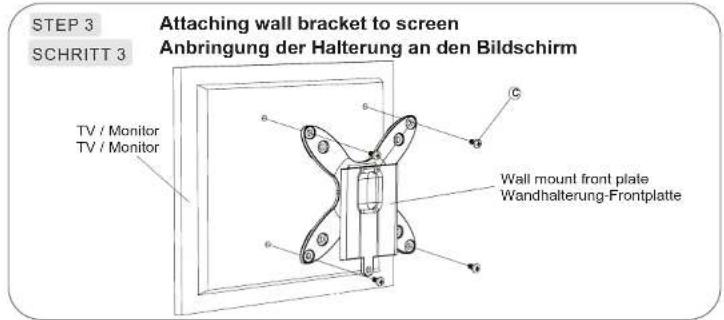

STEP 3 SCHRITT 3 Attaching wall bracket to screen Anbringung der Halterung an den Bildschirm TV / Monitor TV / Monitor Wall mount front plate Wandhalterung-Frontplatte


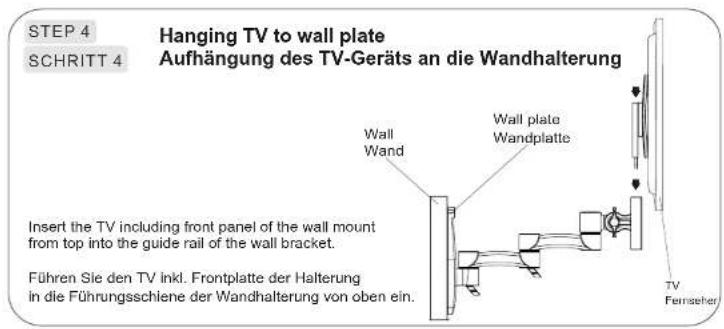

STEP 4 SCHRITT 4 Hanging TV to wall plate Aufhängung des TV-Geräts an die Wandhalterung Insert the TV including front panel of the wall mount from top into the guide rail of the wall bracket. Führen Sie den TV inkl. Frontplatte der Halterung in die Führungsschiene der Wandhalterung von oben ein.


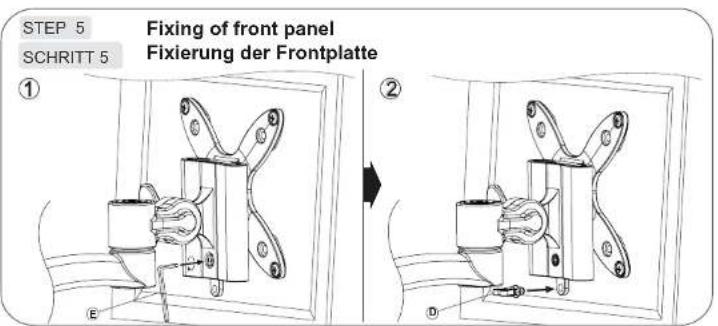

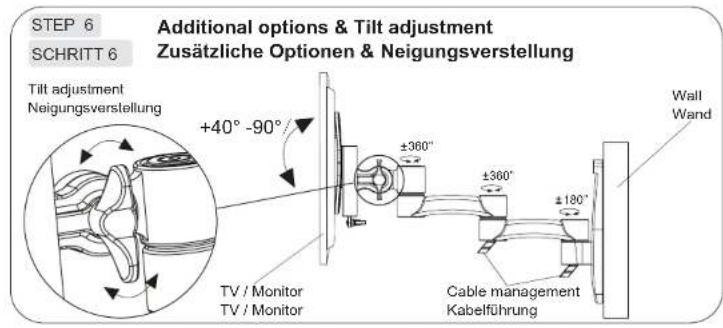

STEP 5 Fixing of front panel SCHRITT 5 Fixierung der Frontplatte ① ② E D
