BRUKSANVISNING GU10 Amprobe
AMPROBE
Light-Check Adapters
Safe and reliable testing with Amprobe Light Check Adapters
Amprobe's complete set of Light-Check adapters are made to ensure your safety during testing light points. The adapters can be used in conjunction with a wide variety of test equipment that uses test leads terminating in 4 mm safety connectors. They enable a range of tests to be conducted on light fitting terminals eliminating the need to hold test probes in place and ensuring reliable and safe contact.
ADPTR-B15 Light-Check Adapter
ADPTR-B22
Light-Check
Adapter
ADPTR-E14 Light-Check Adapter

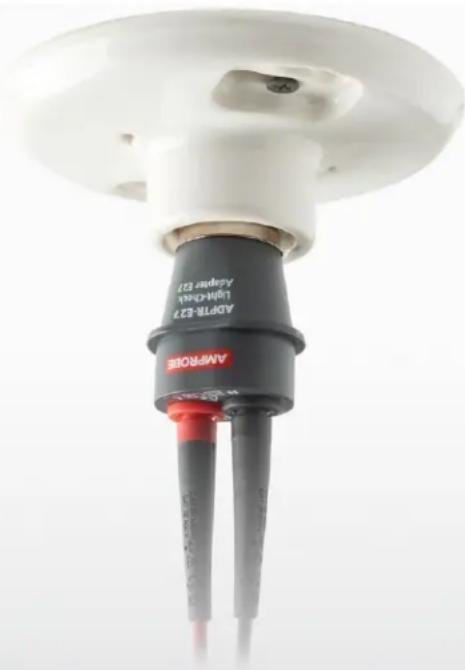

ADPTR-E27
Light-Check
Adapter
ADPTR-GU10
Light-Check
Adapter
ADPTR-KIT1 Light-Check Adapter Kit consisting of complete set of 5 adapters (E27, B22, E14, B15, GU10) with carrying case.
Specifications
Feature
| Output | 4 mm safety socket |
| Voltage range | 0 to 300 V AC(insulation measurement up to 1000 V) |
| Nominal current | Up to 2 A continuous / cover peaks while loop /line measurement |
| Electrical safety | IEC 61010-1, UL61010-1, CAN/CSA C22.2 No. 61010-1-12 |
For complete specifications, please download the product manual on amprobe.com
Features
• Simple, one-handed operation
- Optimal and safe contact to light points
- Low contact resistance for accurate line impedance measurement
• Tactile finger guard safety barrier
- Compact and durable
- 4 mm safety socket
- Maintenance free
• Rated CAT II 300 V
Applications
Light-Check adapters can be used with:
- Installation Testers
• Insulation Testers
- Wire Tracers
• Voltage Measurement and Monitoring Equipment
c SP
Safety Certification
All Amprobe tools, including the
Amprobe Light-Check Adapters, are rigorously tested for safety, accuracy, reliability, and ruggedness in our state-of-the-art test lab. In addition, Amprobe products that measure electricity are listed by a 3rd party safety lab, either UL or CSA. This system assures that Amprobe products meet or exceed safety regulations and will perform in a tough professional environment for many years to come.
